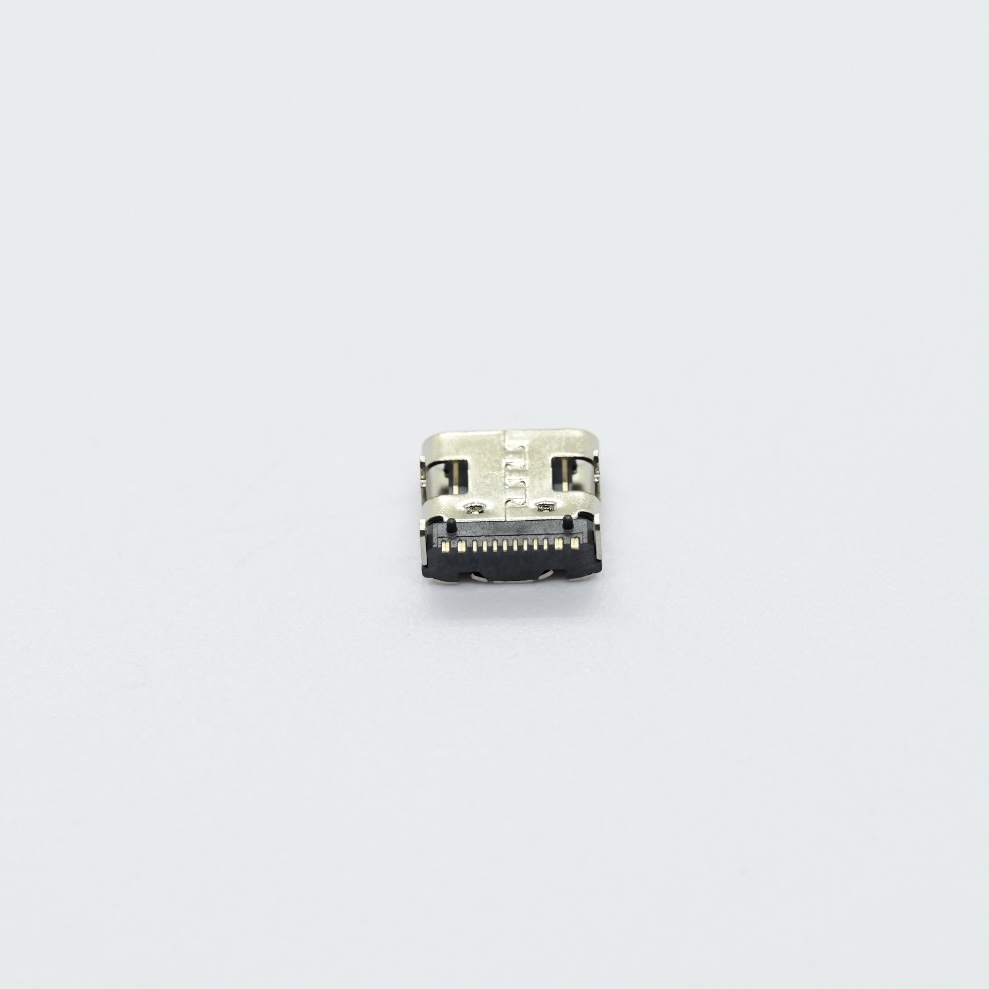

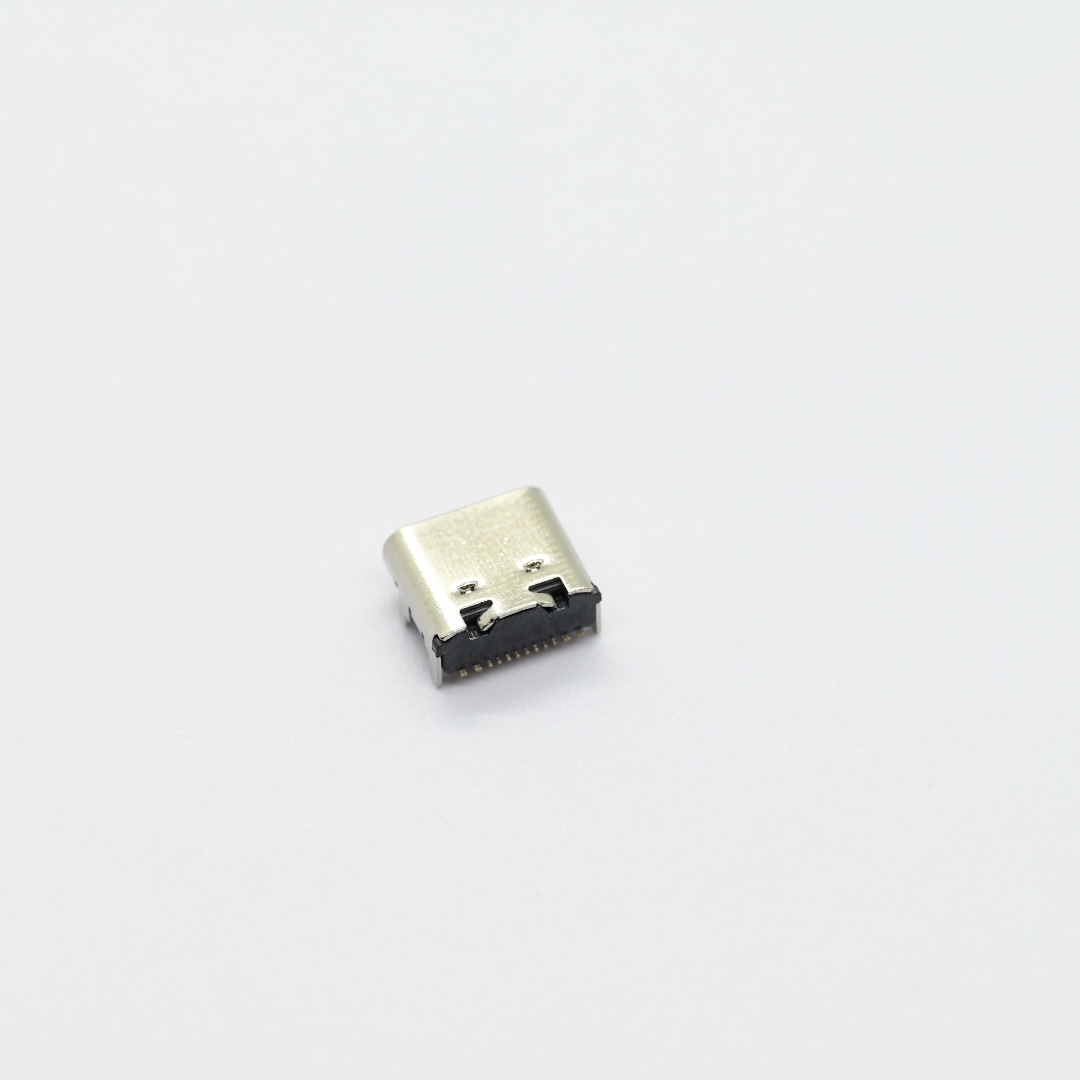

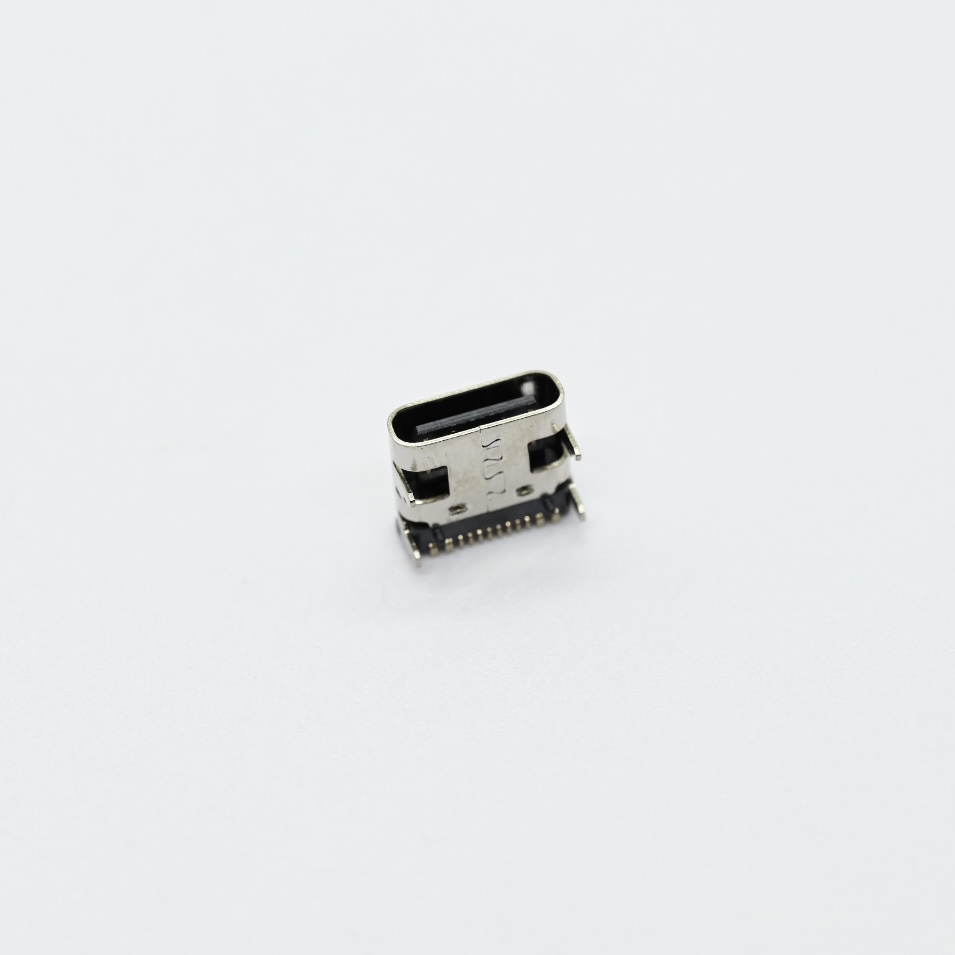

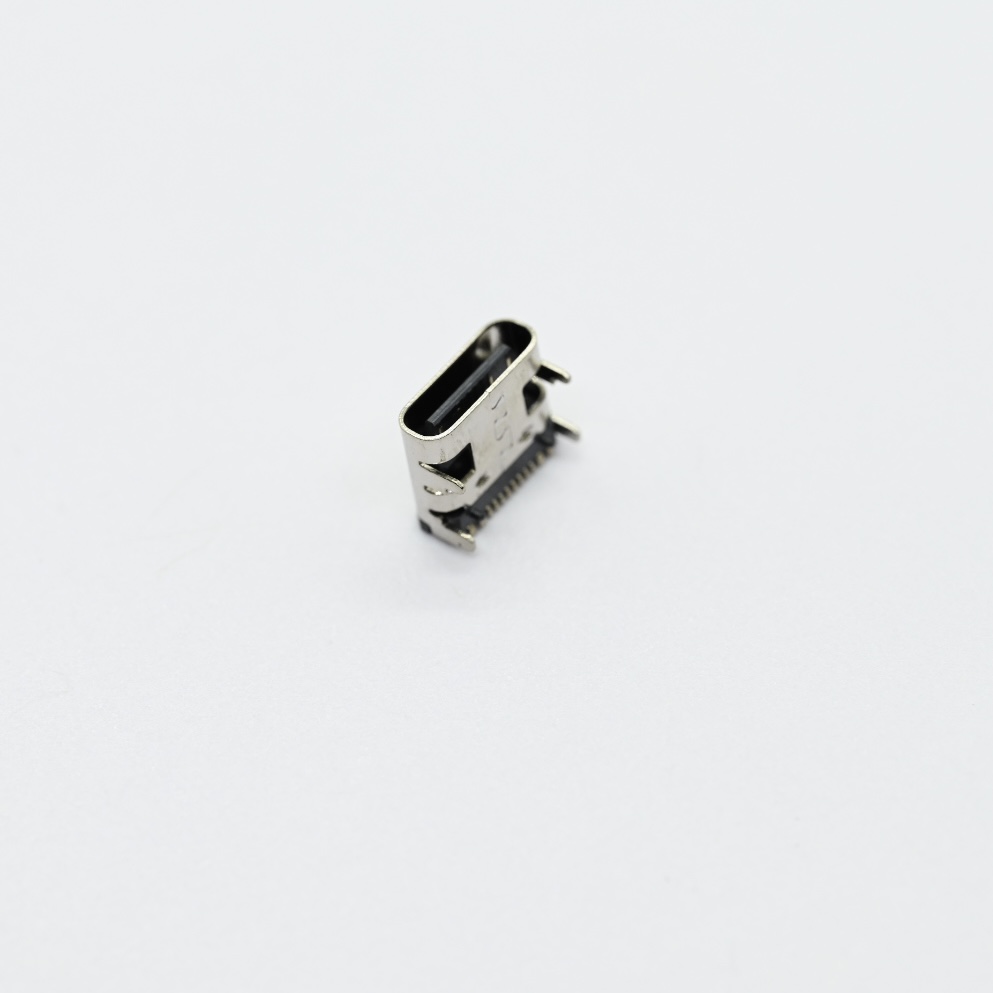

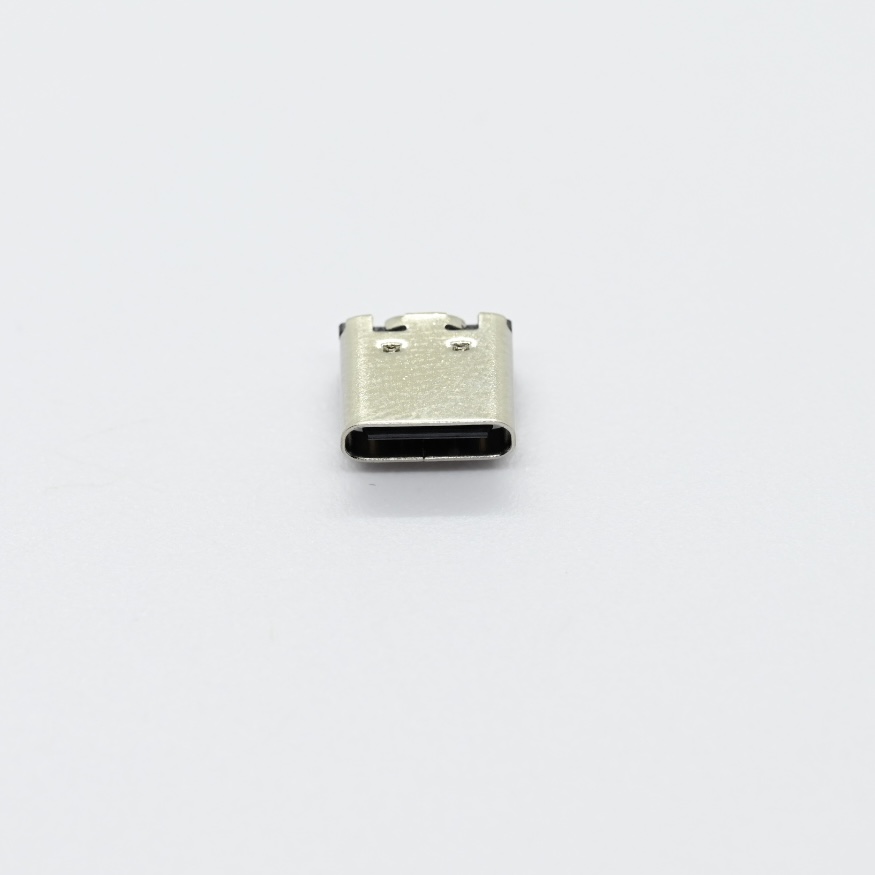

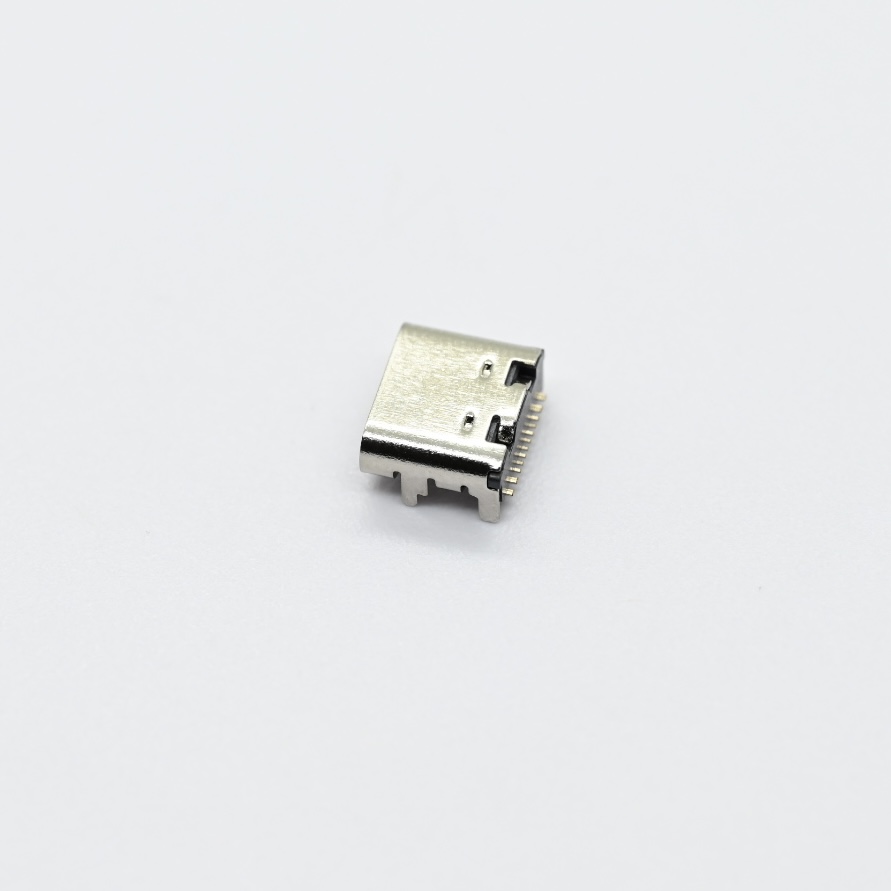

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures 1016‑FGB385 16 pin on‑board Type‑C female receptacle with plastic post to deliver reliable reversible charging and data signal interconnection for compact printed circuit board assembly, complying with drawing general dimensional tolerances to guarantee stable SMT soldering positioning and consistent mating performance with matching Type‑C male plugs. This board mount SMT receptacle adopts high temperature thermoplastic housing with integrated plastic positioning post for accurate PCB alignment, high conductivity copper alloy contacts and corrosion resistant metal shell, following standard Type‑C pin assignments for CC1 CC2 and SBU2 signal channels while satisfying RoHS environmental standards. It fits standard SMT reflow soldering processes and supports tape reel packaging to adapt automated high volume production. This Type‑C female connector is widely deployed in smart household appliances, portable consumer electronics, communication modules, industrial control panels, computer peripherals and precision measuring instruments. Operators need to confirm pin definition and dimensional tolerance for actual projects, follow official PCB footprint for SMT mounting, control reflow soldering peak temperature to prevent thermoplastic housing deformation and store finished units inside dry sealed packages to avoid oxidation of copper alloy contacts. Unlike competitors outsourcing stamping molding and plating services Antenk completes full in house manufacturing workflow covering independent plastic and metal mold development, copper contact high speed stamping, high temp plastic injection molding and multi grade electroplating plus comprehensive laboratory reliability verification. We hold ISO9001 ISO14001 IATF16949 and UL E472792 certifications complying with REACH rules, own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom solutions and round the clock engineering support, and over seventy percent USB connector products are exported globally with stable ANTENK brand mass‑production quality.

1. Plastic Post Type‑C Housing ensures precise PCB alignment and stable positioning during high volume SMT soldering operations.

2. SMT Mount Type‑C Socket achieves compact board level connection for high speed data transfer and power charging applications.

3. Reversible USB‑C Receptacle supports plug insertion from both directions to bring convenient assembly and user operation experience.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: On‑board SMT female receptacle with plastic positioning post

1.2 Pin configuration: 16 Pin, follows standard Type‑C pin assignment including CC1, CC2, SBU2 signal pins

1.3 General dimensional tolerance: X ±0.50 mm without special specification

2. Material & Compliance

2.1 Housing: High‑temperature resistant thermoplastic with integrated plastic positioning post

2.2 Contact: Copper‑alloy conductive terminals

2.3 Compliance standard: RoHS compliant

3. Dimensional Parameters (Unit: mm)

3.1 Key structural dimensions refer to drawing cross‑section view: 0.80, 2.60, 4.15, 1.10, 0.65

3.2 Strictly implement PCB footprint and dimension tolerance defined in official drawing

4. Mounting Method

4.1 Assembly mode: SMT surface mount for PCB soldering

4.2 Plastic positioning post assists accurate positioning during PCB placement

5. Application Scenarios

5.1 Portable consumer electronics and smart household devices

5.2 Communication modules, industrial control panels

5.3 Computer peripherals and compact precision electronic equipment

6. Operation & Storage Precautions

6.1 Follow official drawing pin definition and dimensional tolerance for project design

6.2 Adopt recommended PCB footprint for SMT reflow soldering

6.3 Control reflow soldering temperature to prevent thermoplastic housing deformation

6.4 Store finished connectors in dry sealed packages to avoid oxidation of copper‑alloy contacts

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

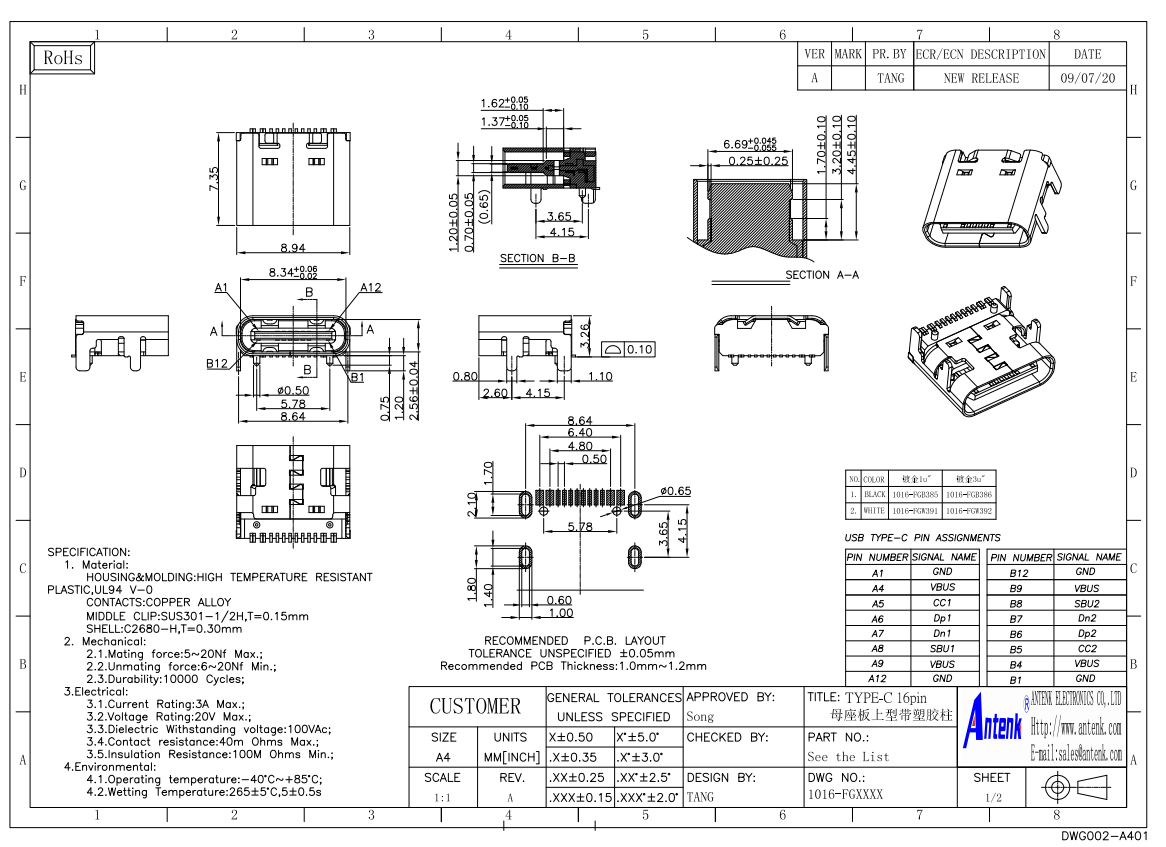

Product Drawing：
