Product Drescription：

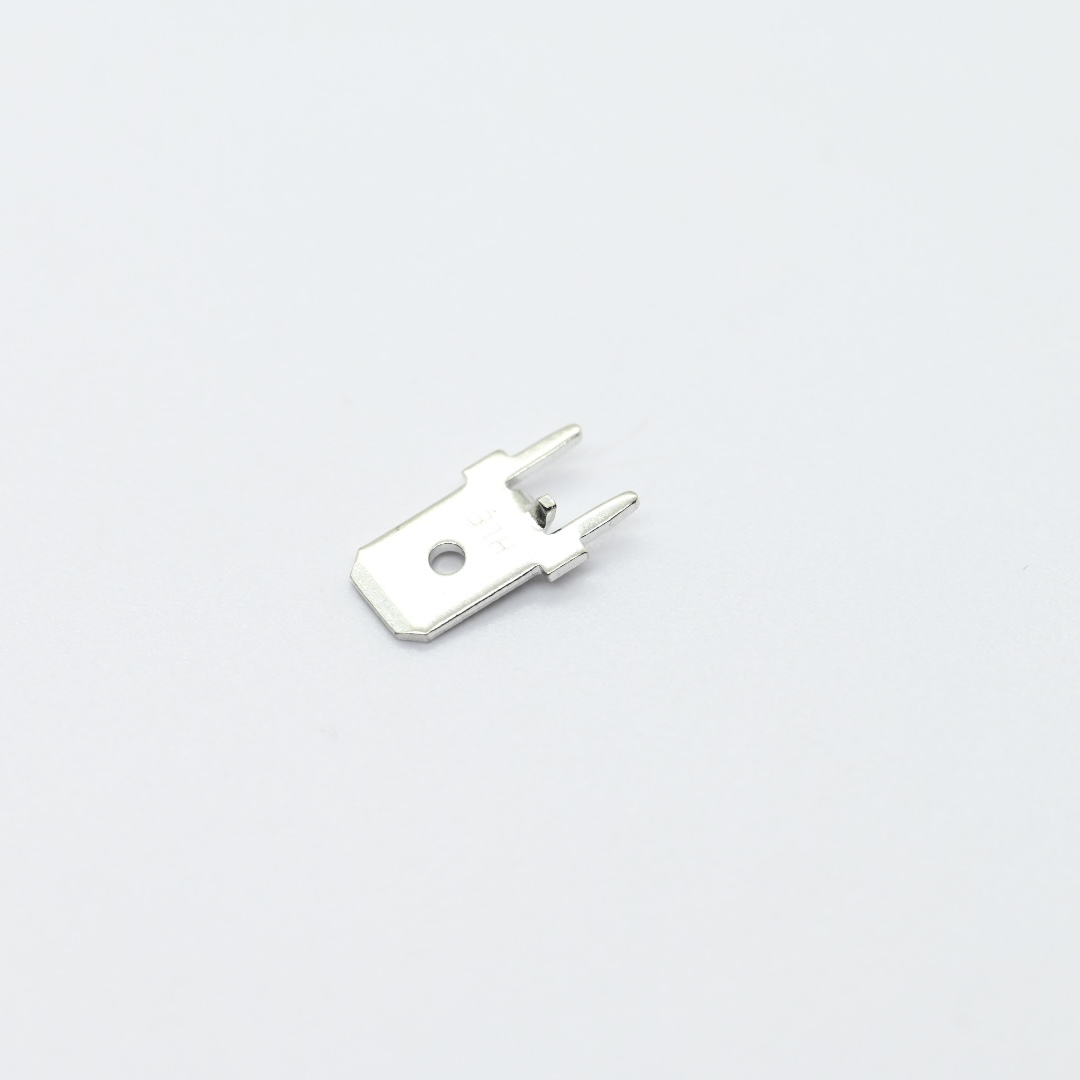

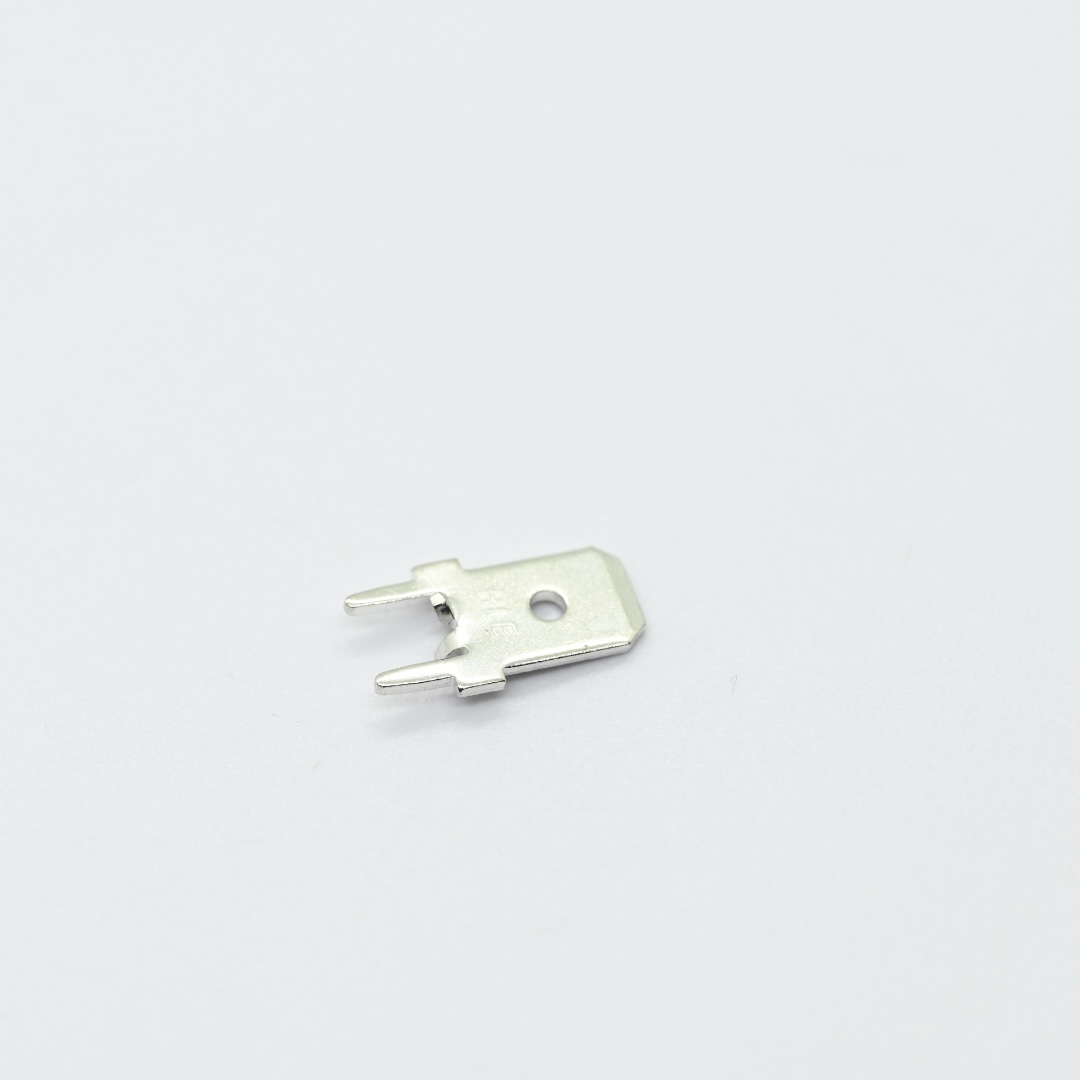

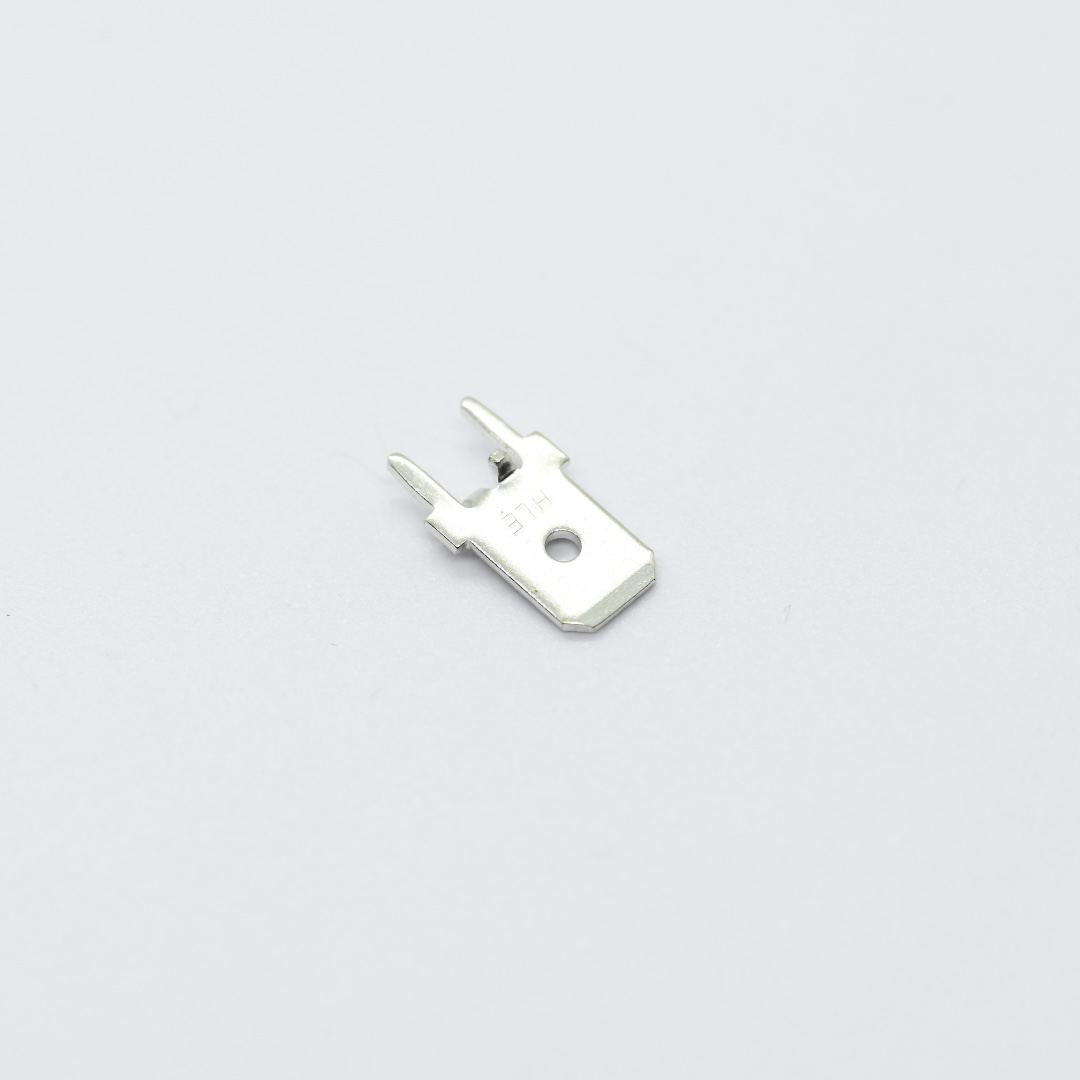

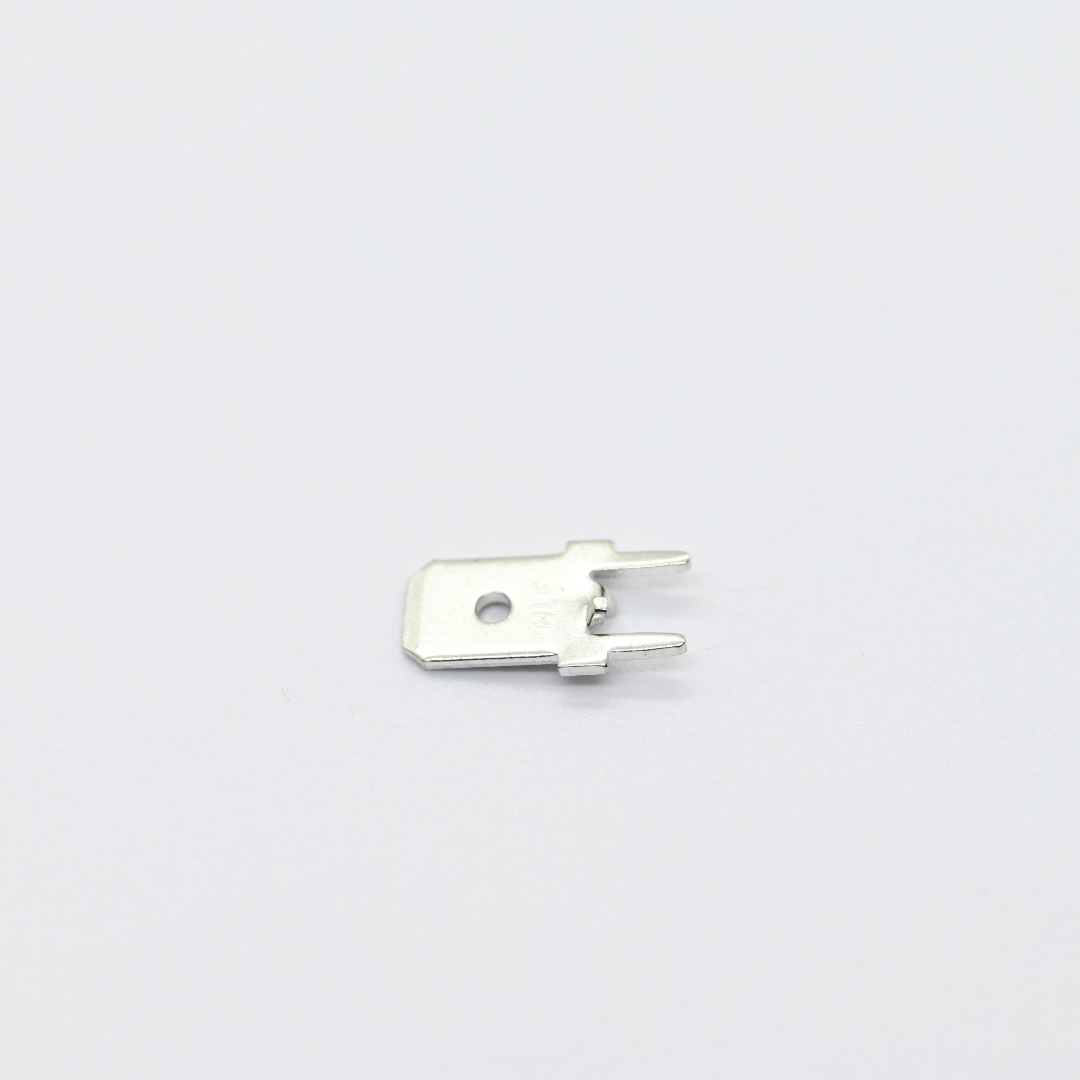

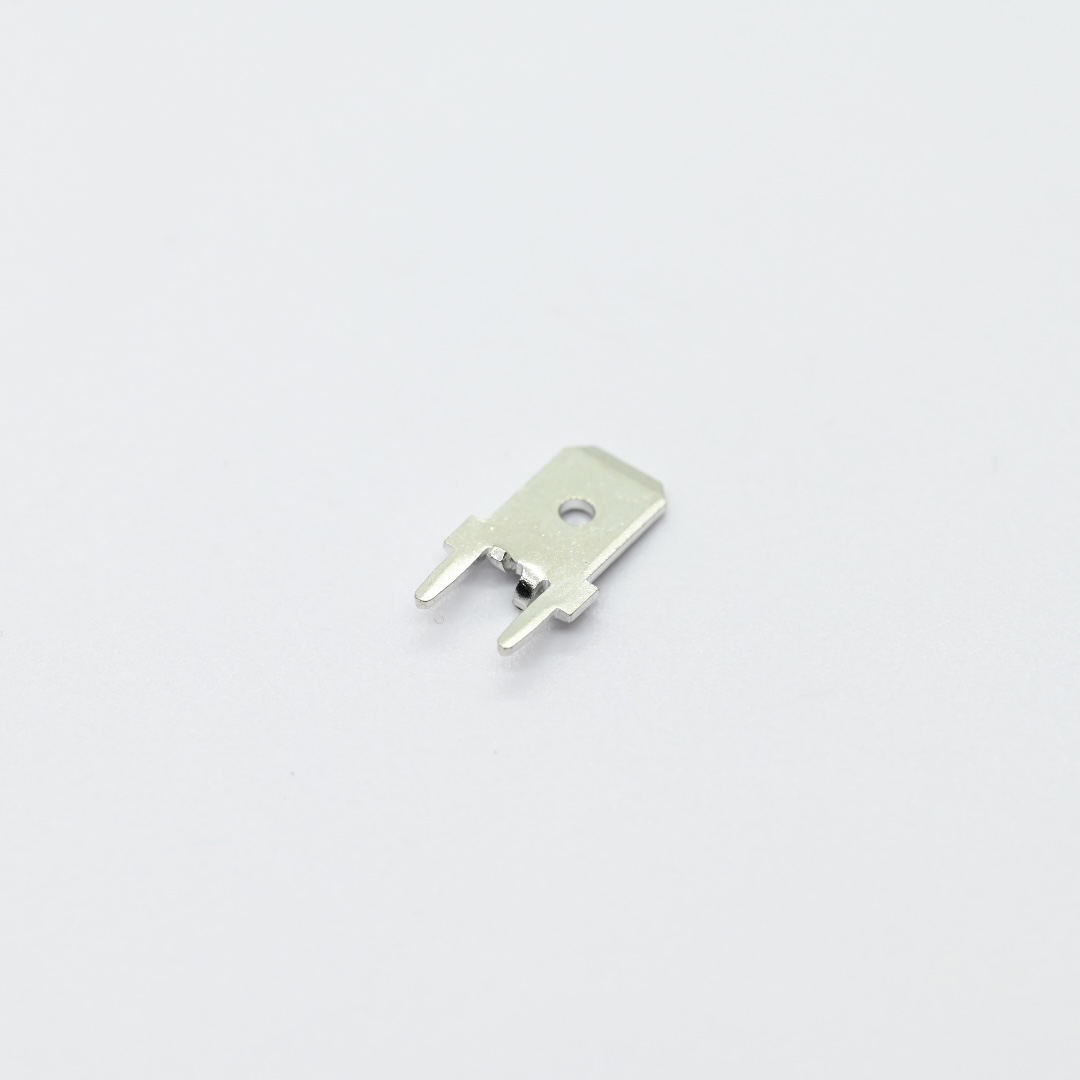

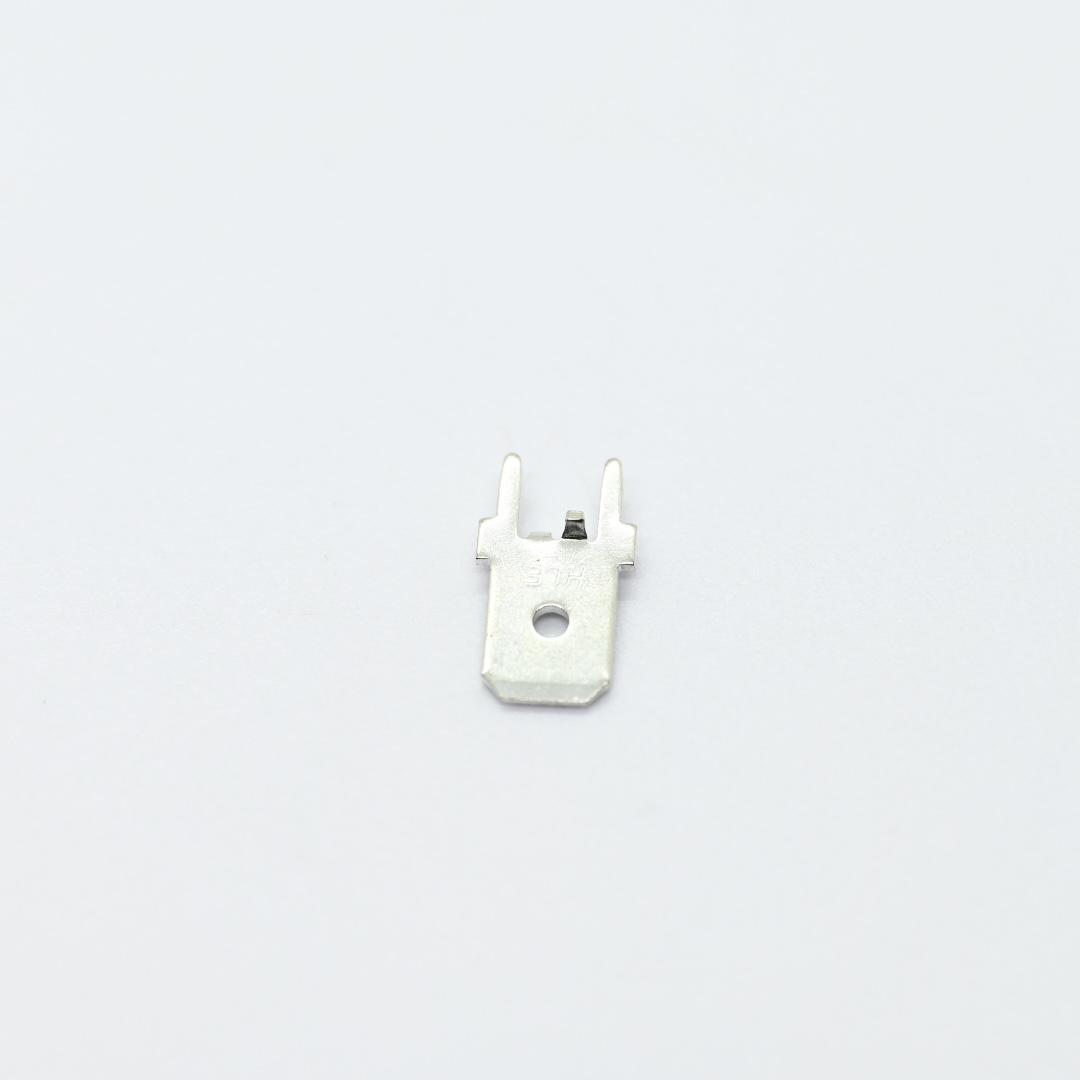

Huizhou Antenk Electronics Co., Ltd. manufactures PT250 X model 250 series 6.3 positioned PCB tab terminal to establish stable power and signal conductive connection by through hole soldering onto 1.6 millimeter thickness printed circuit boards, complying with drawing dimension tolerances to ensure accurate hole matching and firm soldering joint performance. This PCB tab terminal is constructed of brass base material with tin plated surface finish, features locating structure for correct positioning during PCB assembly and follows specified drawing dimension standards for all key outline and pin hole sizes. It meets RoHS and HSF environmental requirements and fits manual insertion as well as automated through hole soldering production workflows. This PCB tab terminal is widely used in household electrical appliances, motor equipment, air conditioners, washing machines, audio devices, industrial control units, automotive electronic assemblies and precision measuring instruments. Operators should reference drawing PCB hole dimensions for circuit board design and make proper adjustment according to practical application conditions, guarantee suitable 1.6 millimeter board thickness for installation, avoid excessive soldering heat which may damage solder joints and store finished tabs in dry sealed packages to prevent brass surface oxidation. Unlike competitors that outsource stamping and plating processes Antenk carries out full in house production including independent precision metal mold development, high speed brass material stamping and tin electroplating plus complete laboratory reliability inspection. We hold ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules, own more than one hundred eighty precision metal terminal molds, provide custom dimension solutions and round the clock engineering support, and over seventy percent of our terminal products are exported worldwide supported by reliable ANTENK brand manufacturing quality.

1. Tin Plated Brass Tab delivers excellent electrical conductivity and effective anti oxidation performance for stable circuit connection.

2. Positioned PCB Tab provides accurate alignment to prevent offset during through hole PCB mounting operations.

3. Through Hole Tab Terminal forms firm solder joints to realize reliable wire to board power and signal transmission.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: 250 6.3 position type PCB tab terminal

1.2 Applicable PCB thickness: 1.6 mm

1.3 PCB mounting hole reference dimension: hole diameter Ø1.4±0.05 mm, hole pitch 5.08±0.05 mm

1.4 Key outline dimensions unit mm: 6.35±0.1, 7.92±0.3, 4.5±0.3, 7.92±0.5, 14.02±0.3, 0.8±0.03

1.5 Default drawing tolerance: ±0.1 mm for dimensions without specified tolerance

2. Material & Surface Finishing

2.1 Base material: Brass

2.2 Surface plating: Tin plate

3. Mounting Method

3.1 Assembly mode: Through‑hole soldering onto printed circuit board

3.2 Locating structure ensures correct placement during PCB installation

4. Compliance

4.1 Meet RoHS environmental requirements

5. Application Scenarios

5.1 Household electrical appliances, air conditioners and washing machines

5.2 Motor equipment, audio devices

5.3 Industrial control equipment and precision measuring instruments

6. Operation & Storage Precautions

6.1 PCB hole dimensions are for reference only, adjust parameters according to actual application conditions

6.2 Use 1.6 mm thickness printed circuit board for installation

6.3 Follow drawing tolerance standards for product design

6.4 Avoid excessive soldering heat to prevent solder joint failure

6.5 Store finished terminals in dry sealed packages to prevent brass material oxidation

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

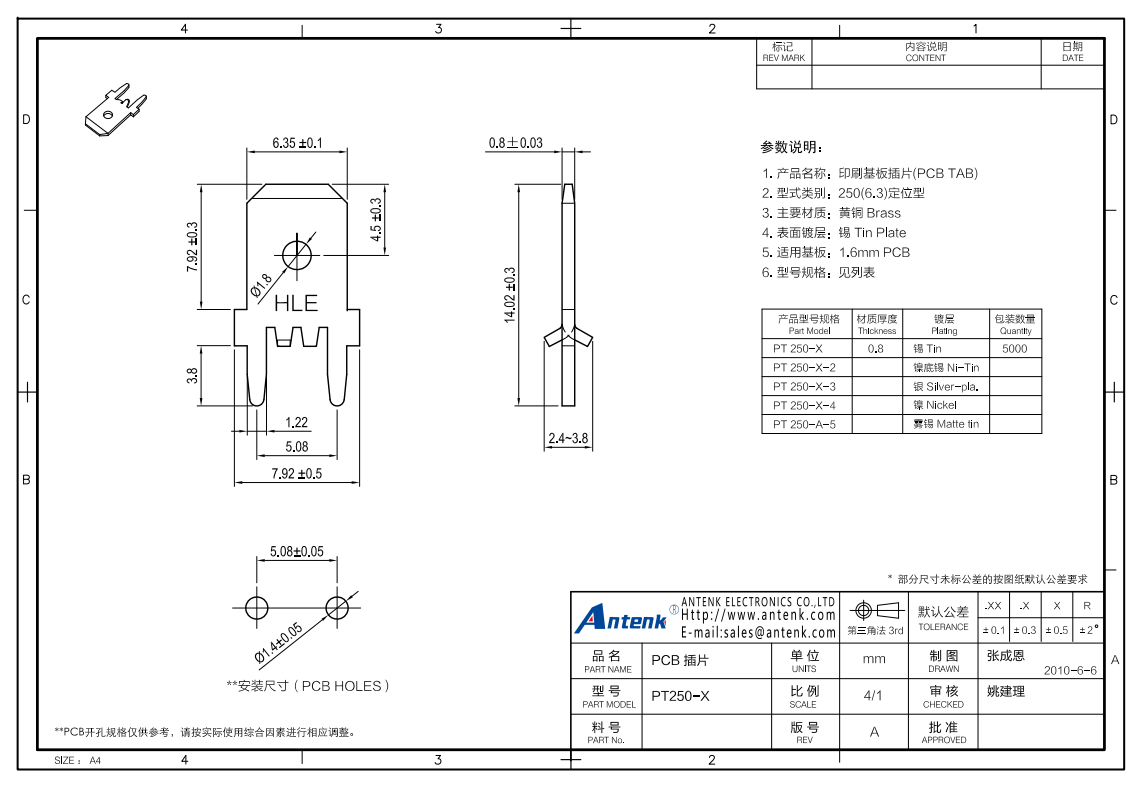

Product Drawing：
