Huizhou Antenk Electronics Co., Ltd. manufactures AW2508V xP series 2.50 millimeter pitch 180 degree wafer connector to deliver stable wire to board power and signal interconnection for printed circuit board assembly complying with drawing dimensional tolerances to secure precise through hole soldering and reliable mating performance with matching AH2508 series housing. This wafer connector adopts Nylon 66 plus 15 percent glass fiber insulator with UL94V 0 flame retardant grade and multiple color selections, brass pins finished with tin over nickel plating and provides two pin styles with kink or without kink covering 2P to 20P circuit options. It features 3A rated current and 250V AC DC rating with 1000V AC one minute withstanding voltage, minimum 1000 megaohms insulation resistance and operating temperature ranging from minus 40 degree Celsius to plus 105 degree Celsius while conforming to RoHS and HSF standards. It supports manual assembly and automated high volume production. This wafer connector is widely deployed in digital home appliances, industrial control panels, communication devices, audio equipment and precision measuring instruments. Operators need to select proper pin count pin style and housing color for real projects, follow official PCB layout for through hole soldering, control soldering temperature to avoid insulator damage and store finished units inside dry sealed packages to prevent brass pin oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk completes full in house manufacturing workflow covering independent plastic and metal mold development, brass pin high speed stamping, Nylon 66 injection molding and multi grade electroplating plus comprehensive laboratory reliability verification. We hold ISO9001 ISO14001 IATF16949 and UL E472792 certifications complying with REACH rules, own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom solutions and round the clock engineering support, and over seventy percent of our connector products are exported globally backed by stable ANTENK brand mass‑production quality.

1. Tin Nickel Wafer Pin ensures stable electrical conduction and good corrosion resistance for wire to board connection applications.

2. Straight Mount Wafer Socket achieves accurate through hole installation for reliable PCB assembly operations.

3. Multi Position Wafer Connector satisfies diverse circuit requirements with multiple pin count selections for electronic devices.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: 180 degree through hole wafer connector, pitch 2.50 mm

1.2 Pin count options: 2P‑20P

1.3 Pin style options: A with kink, B without kink

1.4 Mating partner: AH2508 series housing

1.5 Key dimensions unit mm: insulator height 8.80±0.25, pin height 3.40, overall length marked as dimension A±0.20 and B±0.25

1.6 Insulator multi‑color options: ivory, brown, black, gray, yellow, green, orange, lemon yellow, red, blue, pink, purple, light blue, vivid yellow

2. Material & Surface Plating

2.1 Contact pin: Brass with tin over nickel plating

2.2 Insulator housing: Nylon 66 plus 15% glass fiber, UL94V‑0 flame retardant grade

3. Electrical Performance

3.1 Rated voltage: 250V AC DC

3.2 Rated current: 3A

3.3 Withstanding voltage: 1000V AC for 1 minute

3.4 Minimum insulation resistance: 1000 MΩ

3.5 Operating temperature: -40 °C ~ +105 °C

4. Compliance Standard

4.1 Compliance: RoHS and HSF compliant

5. Mounting Method

5.1 Assembly mode: Through‑hole soldering for PCB installation

5.2 Follow official PCB layout drawing for pad design

6. Application Scenarios

6.1 Digital household appliances and consumer electronics

6.2 Communication equipment and industrial control panels

6.3 Audio devices and precision measuring instruments

7. Operation & Storage Precautions

7.1 Select proper pin count pin style and housing color according to actual project requirements

7.2 Adopt recommended PCB layout for through‑hole soldering

7.3 Control soldering temperature to prevent nylon insulator thermal damage

7.4 Store finished connectors in dry sealed packages to avoid oxidation of brass pins

7.5 Follow drawing dimensional tolerances for product design verification

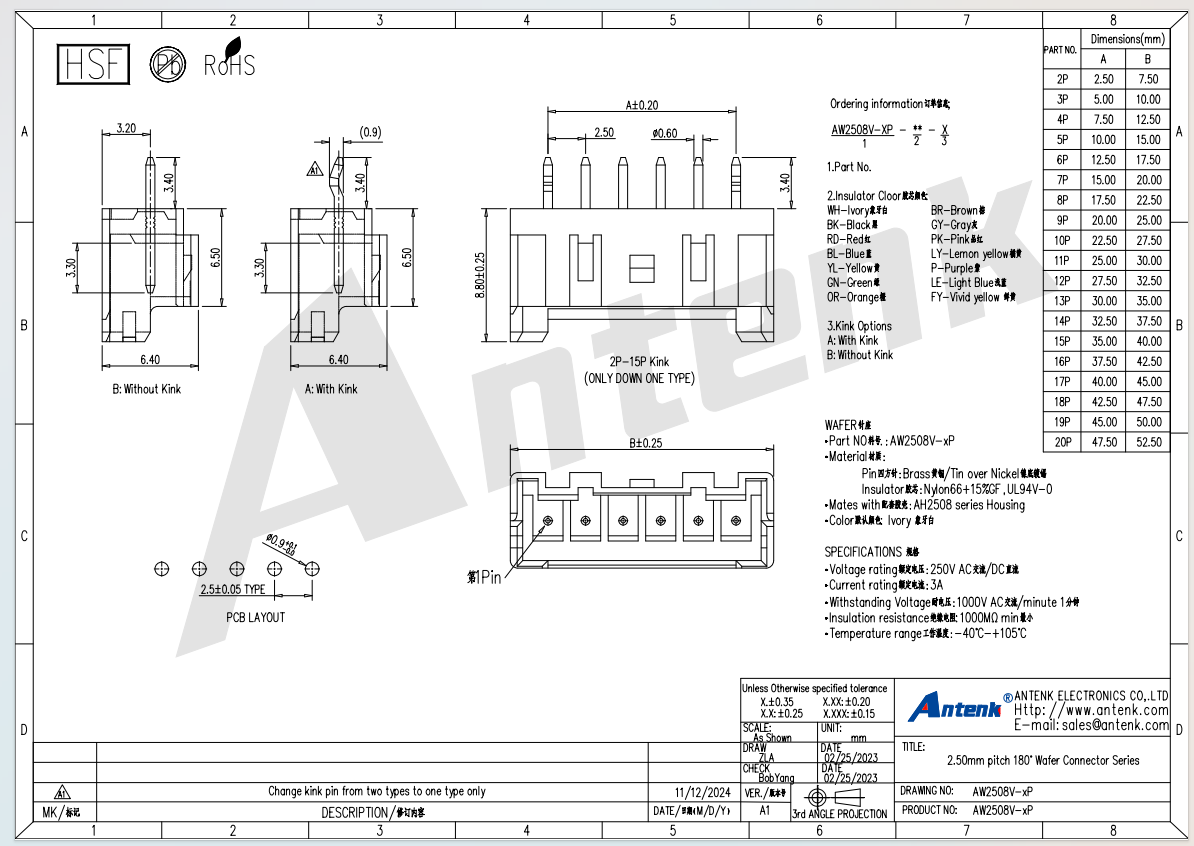

Product Drawing：

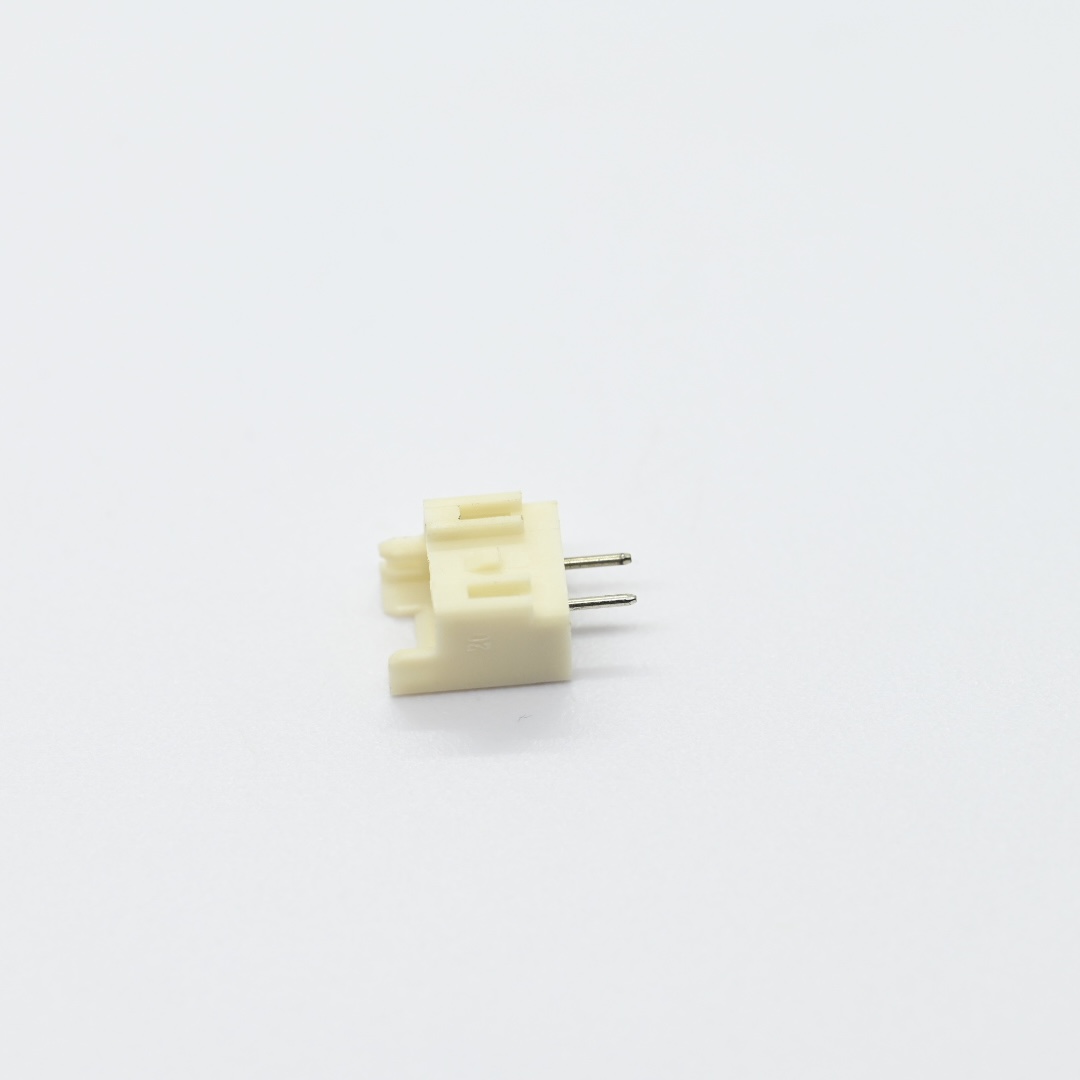

AW2508V-02P-WH-B+2.50mm pitch 180 Wafer Connector Series（3）

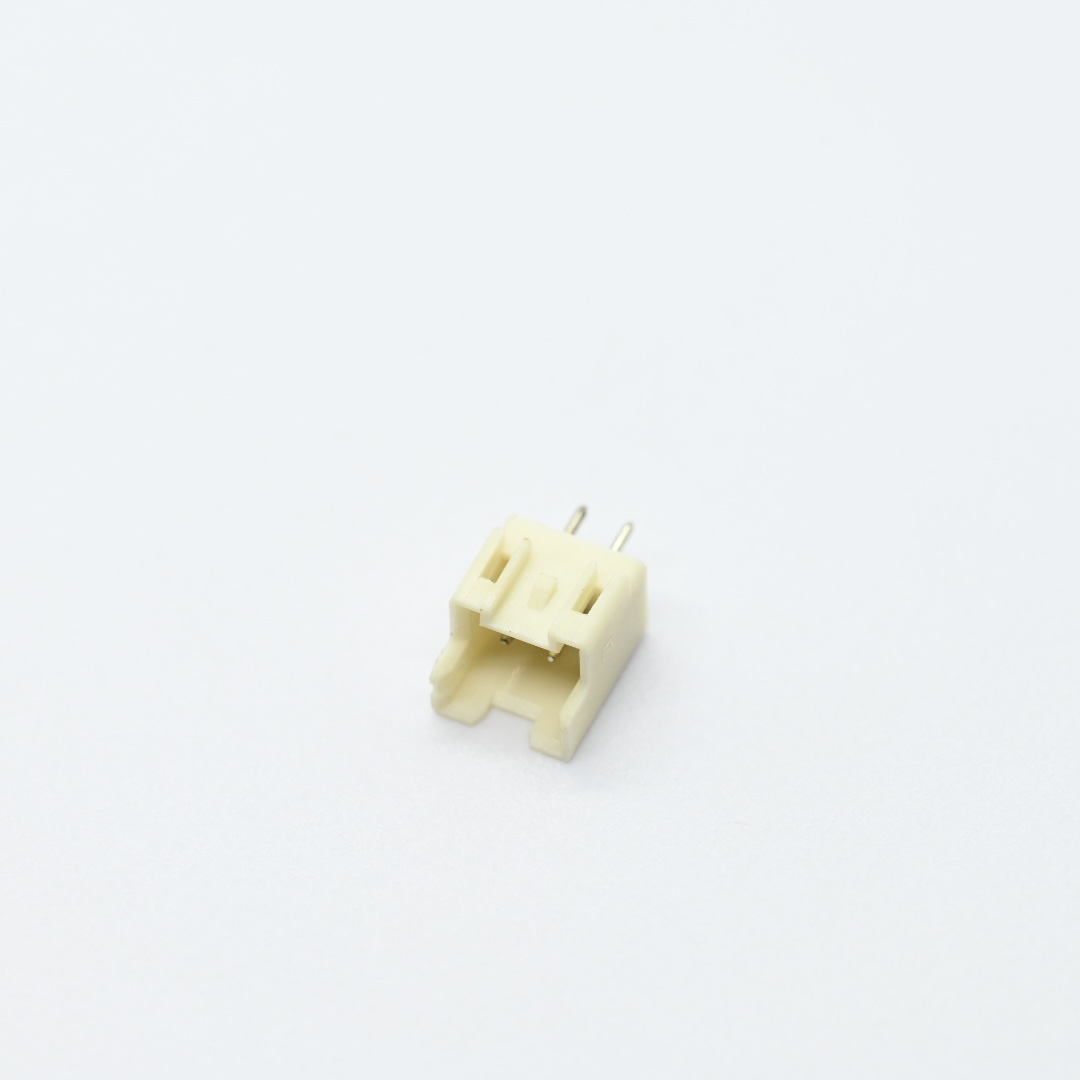

AW2508V-02P-WH-B+2.50mm pitch 180 Wafer Connector Series（4）

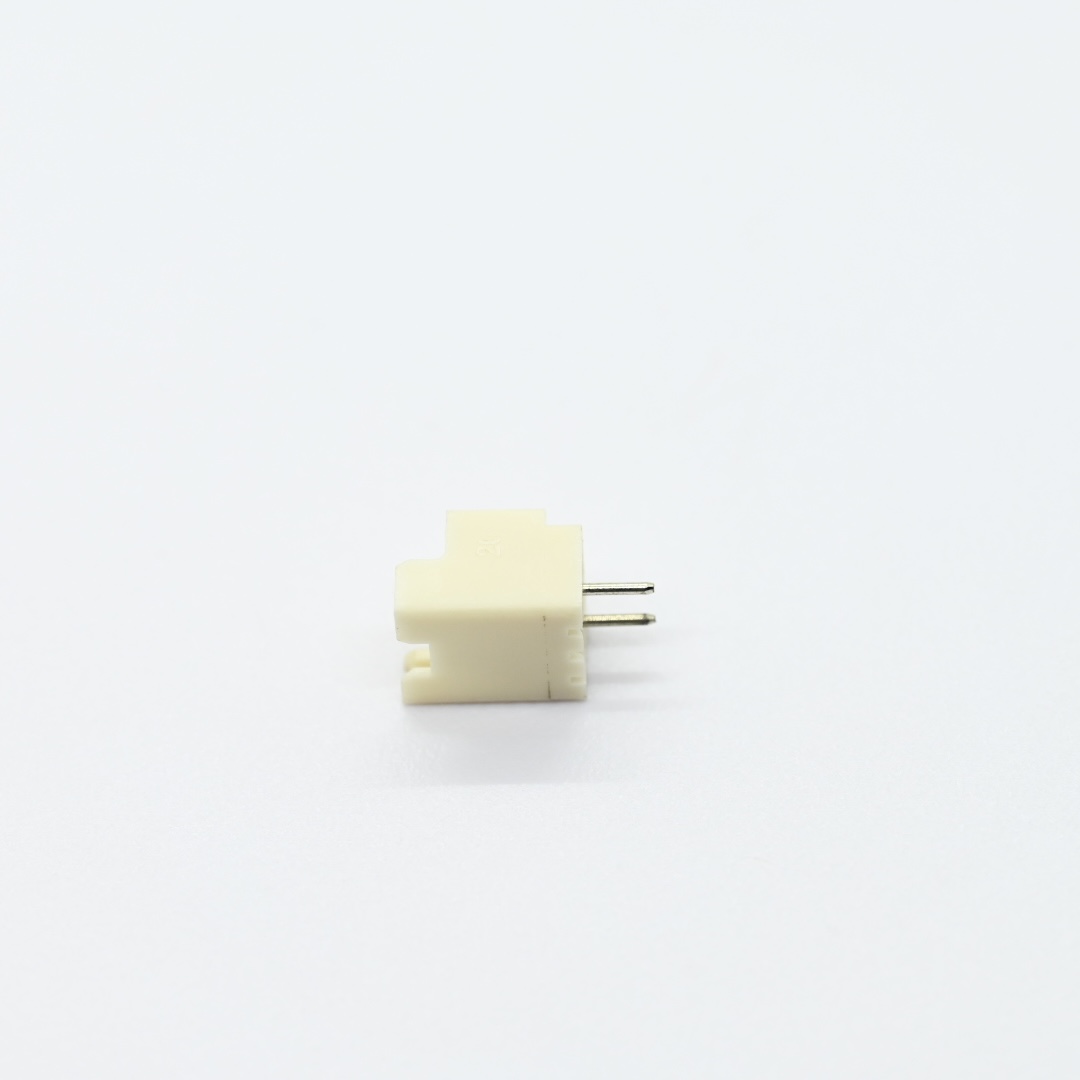

AW2508V-02P-WH-B+2.50mm pitch 180 Wafer Connector Series（5）

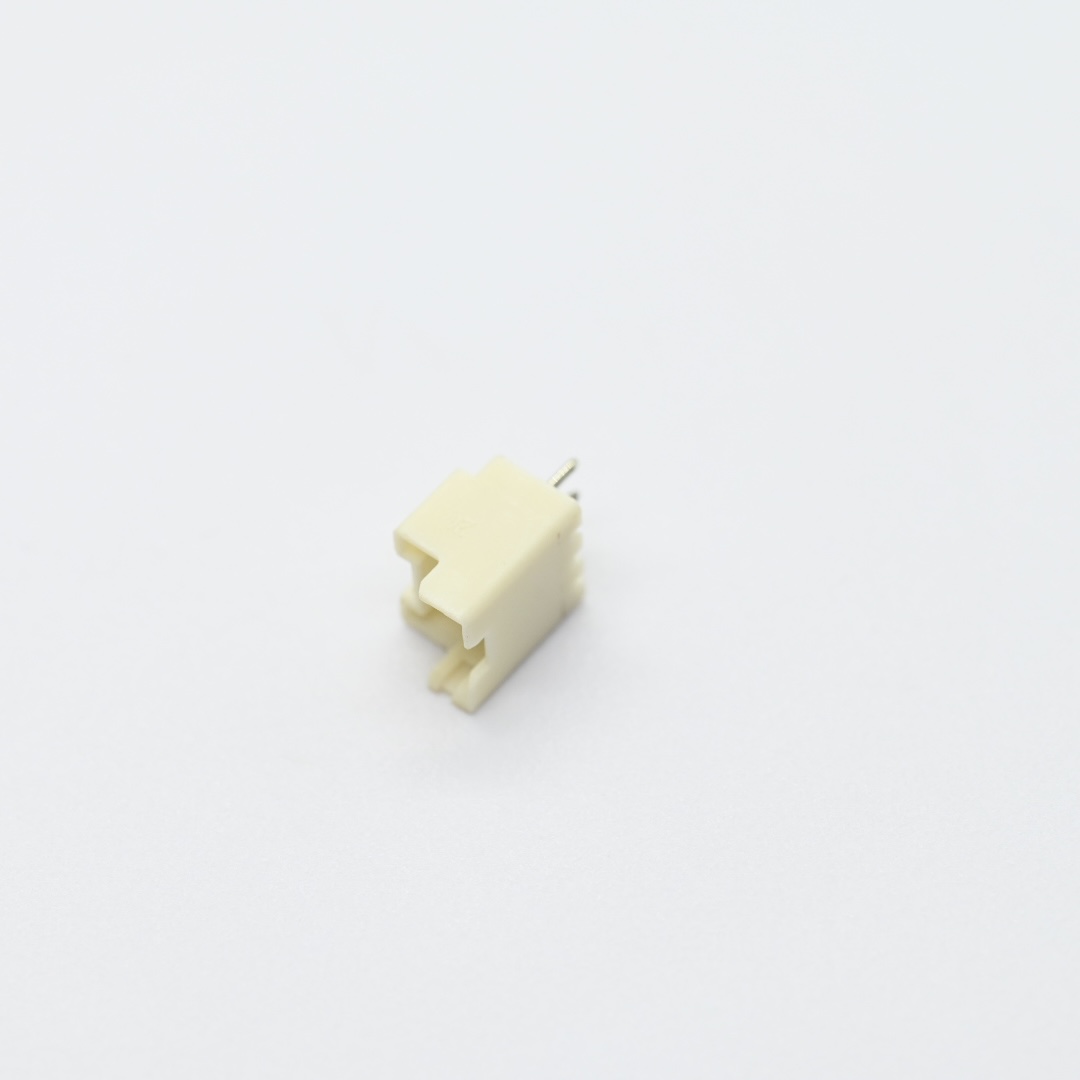

AW2508V-02P-WH-B+2.50mm pitch 180 Wafer Connector Series（6）

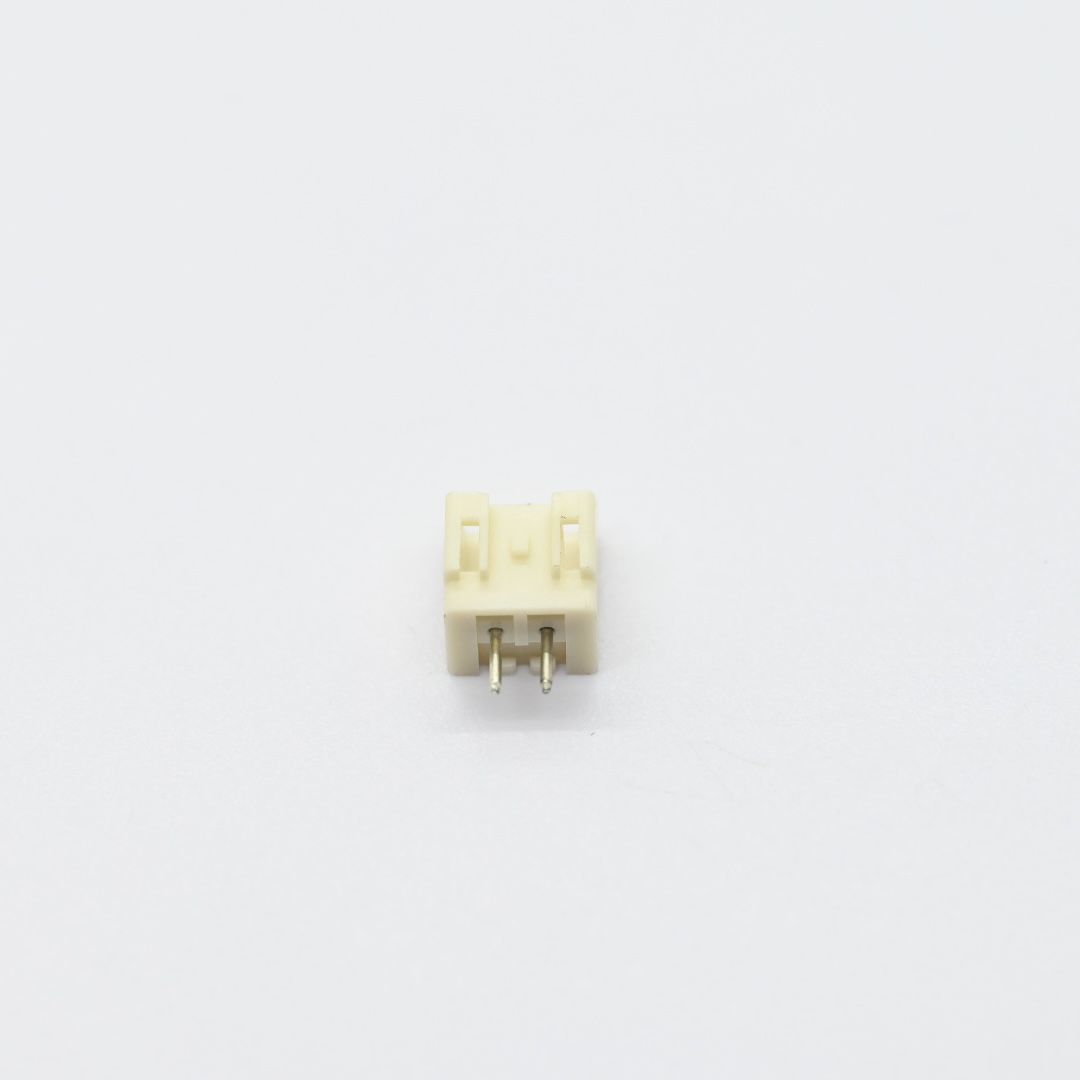

AW2508V-02P-WH-B+2.50mm pitch 180 Wafer Connector Series（1）

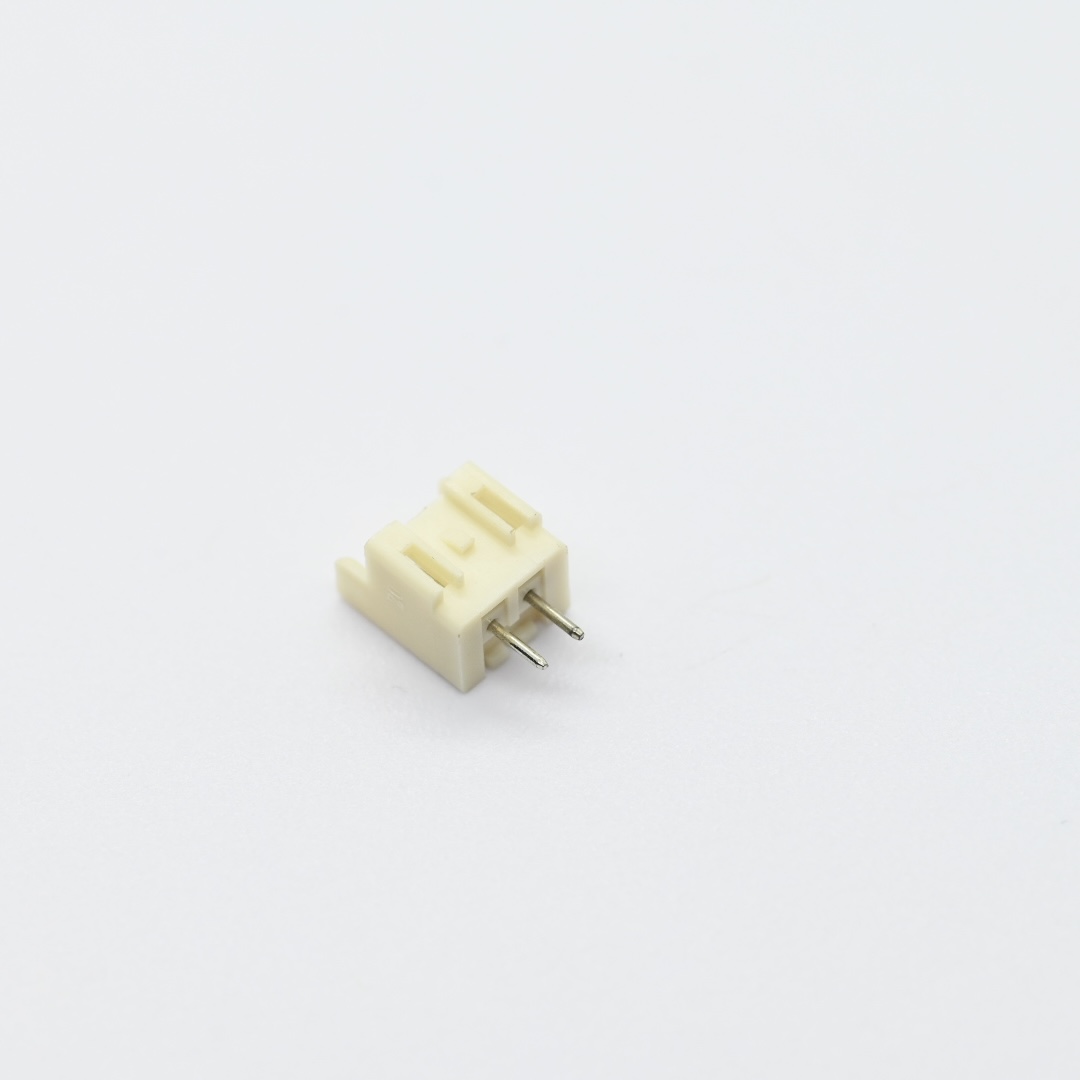

AW2508V-02P-WH-B+2.50mm pitch 180 Wafer Connector Series（2）
