YOKELINK Guy Clamps are heavy-duty galvanized steel clamps designed to secure and hold the ends of guy strand wires in utility pole, overhead power line, telecommunications, and other pole-line applications. Also known as guy wire clamps, guy strand clamps, or parallel groove guy clamps, they provide a strong mechanical grip while minimizing damage to the galvanized steel strand.
YOKELINK supplies one-bolt, two-bolt, and three-bolt guy clamps in different sizes and configurations to match different strand wire diameters, installation requirements, and mechanical loads. Our guy clamps are manufactured from carbon steel and can be supplied with hot-dip galvanized finishes to ASTM A153 requirements, making them suitable for demanding outdoor environments.

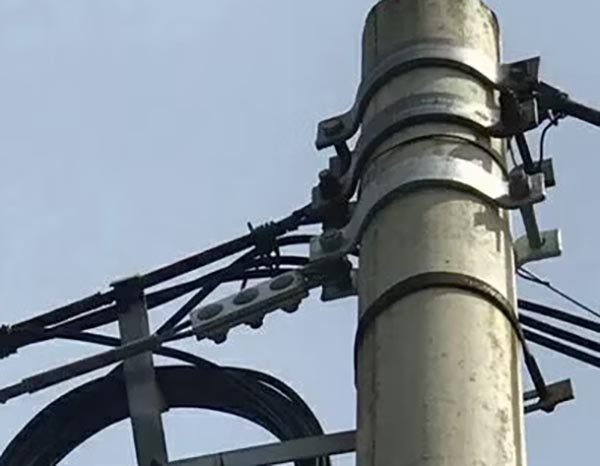

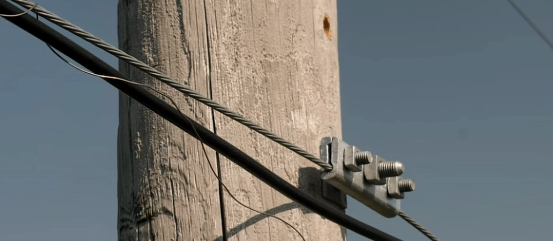

A guy wire clamp is a mechanical pole-line fitting used to secure the end of a guy strand wire. In a typical guying system, the guy wire transfers tension between a utility pole or structure and an anchor point in the ground. The guy clamp grips the strand and helps maintain the mechanical connection at the dead-end or anchoring point.

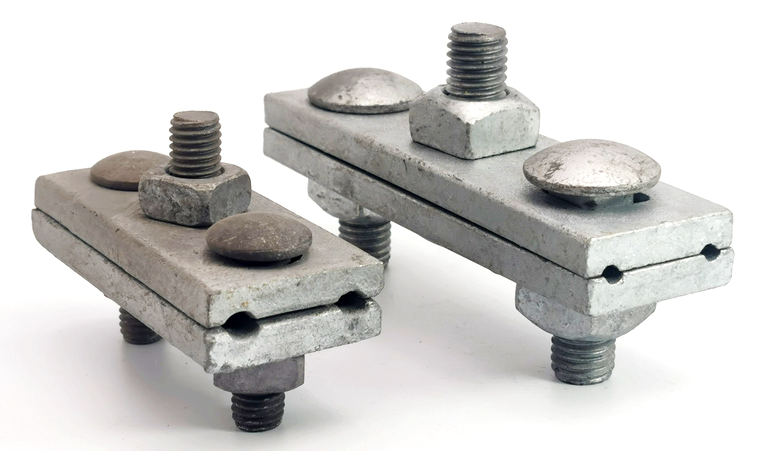

A conventional guy clamp consists of two steel clamp plates with matching straight parallel grooves. The guy strand is positioned between the plates and tightened using one, two, or three bolts. The parallel-groove design distributes the clamping force along the strand and helps reduce localized damage to the individual wires. This basic construction is widely used for guying and pole-line applications
| Type | No. of Bolts | Typical Application | Key Feature |
| One-Bolt Guy Clamp | 1 | Light-duty guy wires | Compact and easy to install |
| Two-Bolt Guy Clamp | 2 | General utility applications | Balanced clamping force |
| Three-Bolt Guy Clamp | 3 | Heavy-duty guy wires | Higher gripping strength and load stability |
| Specification | Common Options |
| Material | Carbon Steel |
| Finish | Hot-Dip Galvanized |
| Bolt Diameter | 1/2", 5/8" |
| Bolt Quantity | 1, 2, or 3 |
| Length | 1.5"–6" or customized |
| Width | Approx. 1.56"–1.71" |
| Application | Utility Poles, Overhead Lines, Telecom Networks, Transmission & Distribution |
Yokelink Guy Clamps are manufactured using a controlled steel forming and stamping process to achieve consistent dimensions, accurate bolt-hole positioning, and reliable wire-gripping performance.
Steel Preparation → Cutting → Stamping & Forming → Deburring → Hot-Dip Galvanizing → Assembly → Quality Inspection
For the clamp plates, carbon steel strip or plate is cut to size and formed using precision stamping dies. The bolt holes, raised areas, and parallel grooves are produced during the stamping and forming process. After forming, the components are deburred and hot-dip galvanized to provide corrosion resistance for outdoor overhead line applications.
Finally, the clamp plates are assembled with the specified bolts and nuts and inspected for dimensional accuracy, coating quality, and mechanical performance.
For this type of Guy Clamp, “Stamping & Forming” should be the main manufacturing process you emphasize.

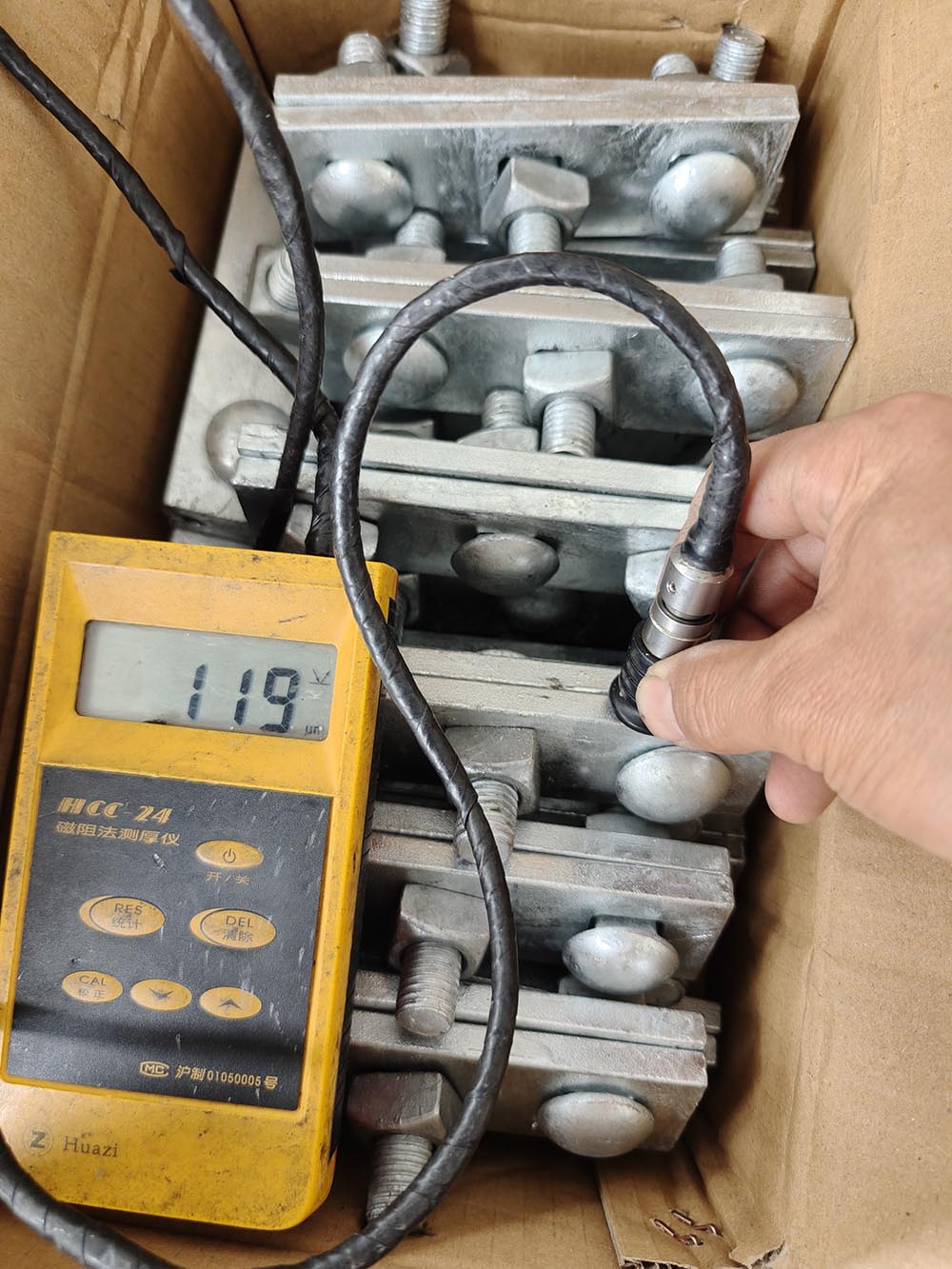

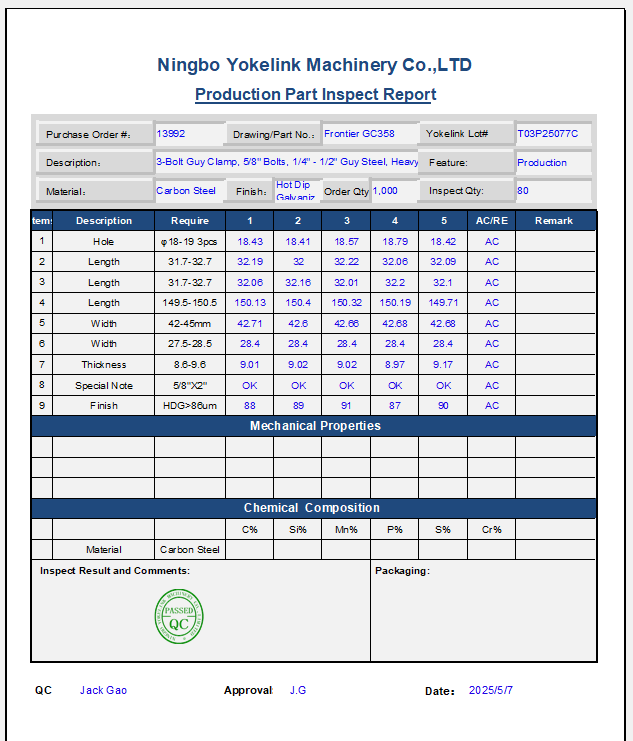

Before shipment, finished Guy Clamps undergo final inspection covering:
Dimensions → Appearance → Galvanizing → Bolt/Nut Assembly → Quantity → Packaging Only products that meet the agreed specifications are released for delivery.
Yokelink combines precision stamping, controlled galvanizing, dimensional inspection, and mechanical performance testing to manufacture reliable Guy Clamps for overhead power distribution, transmission, telecom, and utility pole systems.

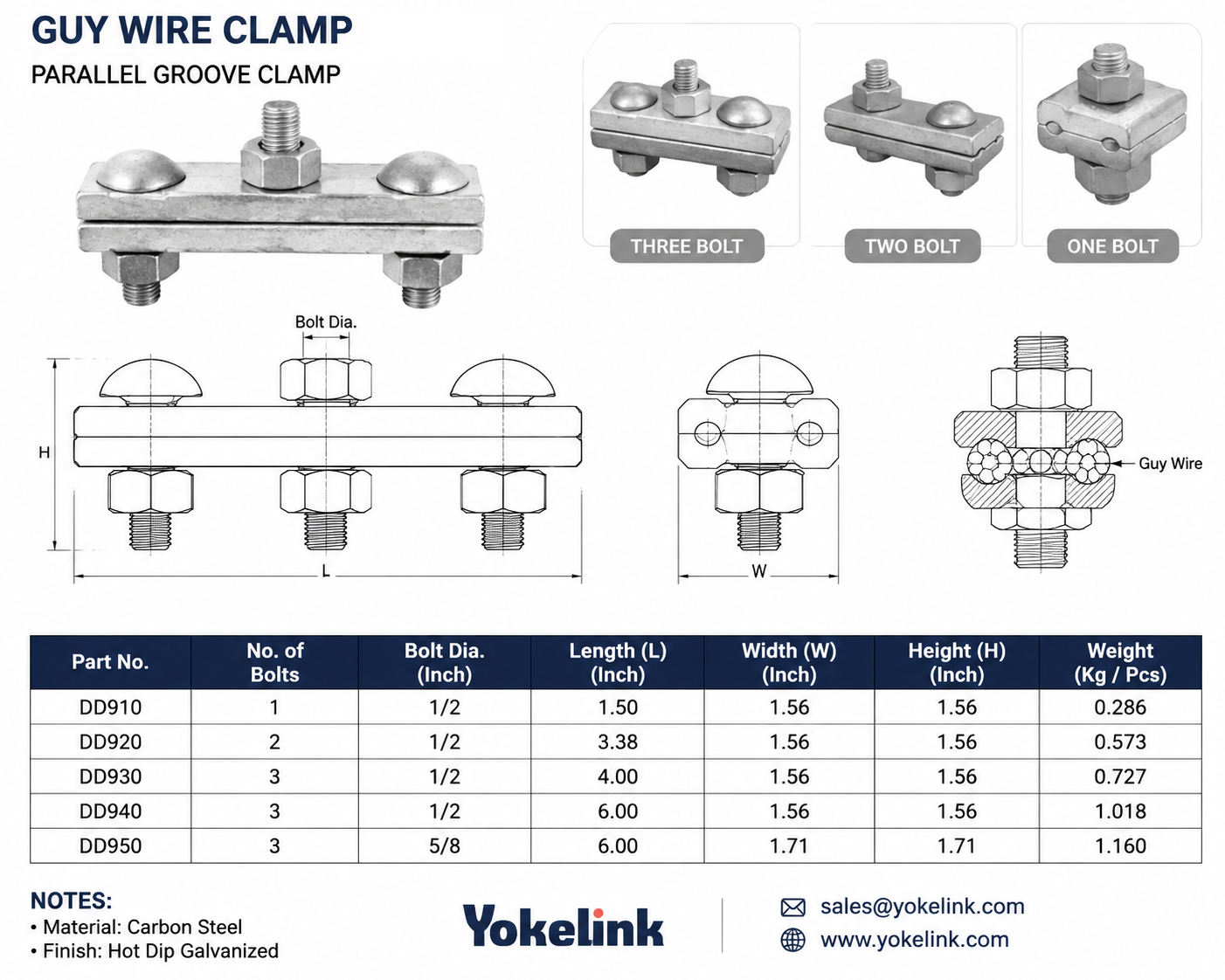

| Yokelink Part No. | Type | Bolt | Length | Width | Hubbell / CHANCE | MacLean | Strand Size* |
| D0910 | 1-Bolt | 1/2" | 1.50" | 1.56" | 400121315 | J1061 | 3/16"–3/8" |
| D0920 | 2-Bolt | 1/2" | 3.38" | 1.56" | 6448 | J1030 | 3/16"–3/8" |
| D0930 | 3-Bolt | 1/2" | 4.00" | 1.56" | 6449 | J929 | 3/16"–7/16" |
| D0940 | 3-Bolt | 1/2" | 6.00" | 1.56" | 6450 | J930 | 3/16"–7/16" |
| D0950 | 3-Bolt | 5/8" | 6.00" | 1.71" | 6461 | J931 | 5/16"–1/2" |
When selecting Guy Clamps for overhead power lines, utility poles, and telecommunications infrastructure, buyers need more than a competitive price. A reliable supplier should provide consistent dimensions, dependable clamping performance, corrosion-resistant finishes, and stable supply across repeat orders.
Yokelink Guy Clamps are designed around these requirements, providing a practical solution for distributors, utility contractors, and poleline hardware suppliers.
For buyers familiar with North American catalog systems, Yokelink can also provide cross-reference information based on dimensions, bolt configuration, and application, making it easier to identify a suitable Yokelink model when sourcing alternatives to established brands.
For distributors looking for Hubbell, MacLean, or other North American-style Guy Clamp alternatives, the most important factors are not simply the brand name. Buyers should compare: Bolt configuration + bolt diameter + clamp dimensions + strand range + material + galvanizing + mechanical performance. Yokelink focuses on these specification-based requirements so customers can select the appropriate Guy Clamp for their application rather than relying only on a catalog number.
Yokelink Guy Clamps have already been exported extensively to North and South American markets and have become regular-supply products for multiple distributors. Through long-term cooperation with overseas distributors, Yokelink has developed experience in supplying Guy Clamps and other Poleline Hardware according to distributor specifications, packaging requirements, and repeat-order schedules. For customers looking for a reliable Guy Clamp manufacturer in China, Yokelink provides a combination of: Consistent Quality + Competitive Pricing + North American-Style Specifications + Stable Supply + Distributor Support
A Guy Clamp is a poleline hardware component used to secure guy wire or stay wire to utility poles, anchor rods, and other supporting structures. It provides a strong mechanical grip to help maintain the stability of overhead line systems.
A Parallel Groove Guy Clamp uses specially formed grooves in the clamp plates to grip the guy wire. The parallel grooves distribute clamping pressure along the wire and help prevent wire slippage under tension.
Yokelink supplies several configurations, including:
Different bolt configurations are available for different guy wire sizes and load requirements.
Yokelink Guy Clamps are typically manufactured from carbon steel. The steel provides the mechanical strength required for outdoor guying and overhead-line applications.
Yes. Hot-Dip Galvanizing (HDG) is available and is commonly used for Yokelink Guy Clamps. The zinc coating provides corrosion protection for outdoor applications such as utility poles, power distribution, and telecommunications networks.
The correct Guy Clamp should be selected according to the guy wire/strand diameter, bolt configuration, clamp dimensions, and required mechanical performance.
Yokelink can help customers select the appropriate model based on the guy wire size and application requirements.
The main difference is the number of bolts used to apply clamping force.
The number of bolts alone should not be used to determine load capacity; the complete product specification and test requirements should be considered.
Yes, Yokelink can provide specification-based cross-reference information for customers sourcing alternatives to established poleline hardware brands. Customers should compare bolt quantity, bolt diameter, length, width, strand size, material, finish, and mechanical requirements before selecting an alternative.
Yes. Yokelink can discuss customized dimensions, bolt sizes, surface treatment, packaging, markings, and OEM requirements based on customer specifications and project requirements.
Yes. Yokelink Guy Clamps have been exported in volume to North and South American markets and are supplied regularly to multiple distributors. Yokelink supports repeat orders, distributor programs, customized packaging, and mixed Poleline Hardware requirements.
Looking for a reliable Guy Clamp manufacturer and supplier? Contact Yokelink for specifications, drawings, pricing, and samples.
