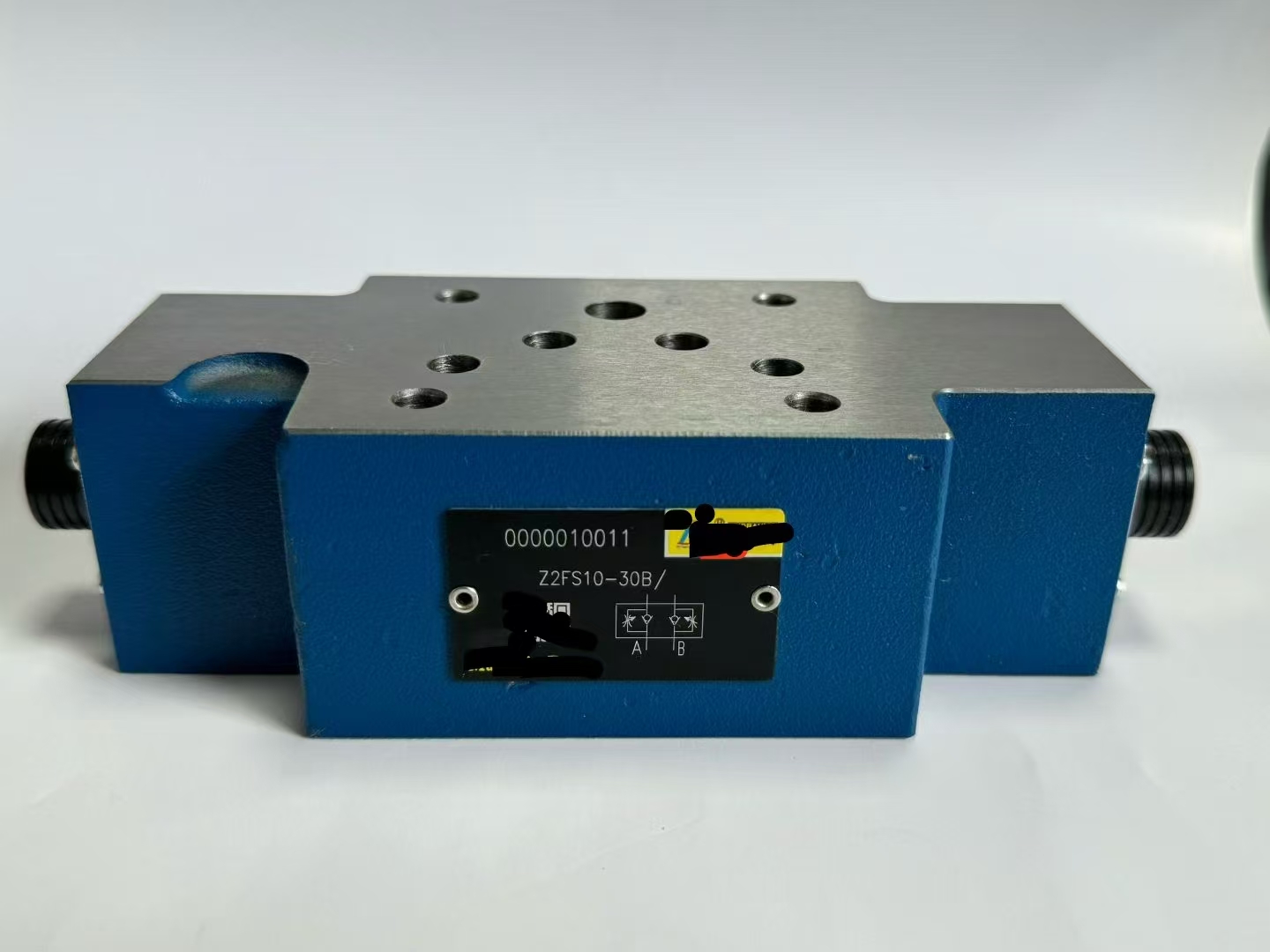

Rexroth Z2FS10‑30B Sandwich Stack Valve
Product Overview
The Rexroth Z2FS10‑30B is a premium double throttle‑check Hydraulic valve with sandwich stack structure, serving as a precise flow‑control component in industrial and construction hydraulic system. This stacked Hydraulic valve integrates two independent one‑way throttle units, which can separately adjust the inflow and outflow flow of hydraulic actuators, accurately control the movement speed of cylinders and motors, and avoid impact and unstable action of the Machine. Adopting NG10 (CETOP 05) standard sandwich mounting size, it can be directly installed between directional valve and manifold block, simplifying pipeline layout and reducing leakage points. With adjustable lockable throttle knobs and high‑precision internal structure, it realizes stable meter‑in or meter‑out speed regulation, greatly improving the motion stability and safety of the whole hydraulic system. It is widely used for OEM assembly, equipment maintenance and spare‑parts replacement of injection molding machines, hydraulic presses, engineering machinery and automated production equipment.
Technical Specifications
‑ Model: Z2FS10‑30B
‑ Brand: Rexroth
‑ Product Type: Double throttle check Hydraulic valve, sandwich stack flow control valve
‑ Nominal size: NG10 / Cetop 05
‑ Maximum working pressure: 315 bar
‑ Rated maximum flow: 160 L/min
‑ Mounting mode: Sandwich stacked installation, matched with standard directional valve manifold
‑ Working medium: Anti‑wear hydraulic oil for mobile and industrial hydraulic system
‑ Operating temperature: -20℃ ~ +85℃
‑ Feature: Independent dual‑path flow adjustment, reversible free flow, low pressure loss, compact structure, strong interchangeability, suitable for long‑term frequent speed regulation of hydraulic Machine.
Working Principle
Pressure oil from the hydraulic system enters the two working ports of the Hydraulic valve. In the forward direction, the adjustable throttle orifice limits the oil flow to control the speed of the executive component; in the reverse direction, the built‑in check valve opens completely, allowing oil to return freely without throttling loss. The lockable adjusting knob can precisely set the opening of the throttle port to match the speed requirement of the Machine. When the throttle spool is worn or the sealing ring fails, it will cause flow deviation, unstable speed and hydraulic impact of the equipment. Replacing a genuine Z2FS10‑30B can restore accurate flow regulation function and keep the hydraulic system running smoothly.
Core Advantages
1. Original Rexroth hydraulic technology, stable pressure resistance and flow control accuracy, effectively optimize the motion stability of the hydraulic system.
2. Sandwich integrated design saves installation space, reduces external oil pipes and leakage risks, and optimizes the overall layout of the Machine.
3. Dual independent throttle channels realize separate speed control for two actuators, flexible to meet various working condition requirements of hydraulic equipment.
4. Optimized internal flow channel minimizes pressure drop, reduces energy consumption and oil temperature rise, and prolongs the service life of the Hydraulic valve.
5. Standard NG10 universal interface, compatible with most mainstream hydraulic valve groups, direct replacement without modifying original manifold plates, convenient for on‑site maintenance.
Application Range
Z2FS10‑30B double throttle check Hydraulic valve is an essential flow control element for hydraulic circuits. It is widely applied to injection molding machines, bending machines, construction machinery, automated production lines and other hydraulic‑driven Machine. Suitable for equipment manufacturers, hydraulic system maintenance workshops and global spare‑parts suppliers for routine maintenance, system upgrading and component replacement.
