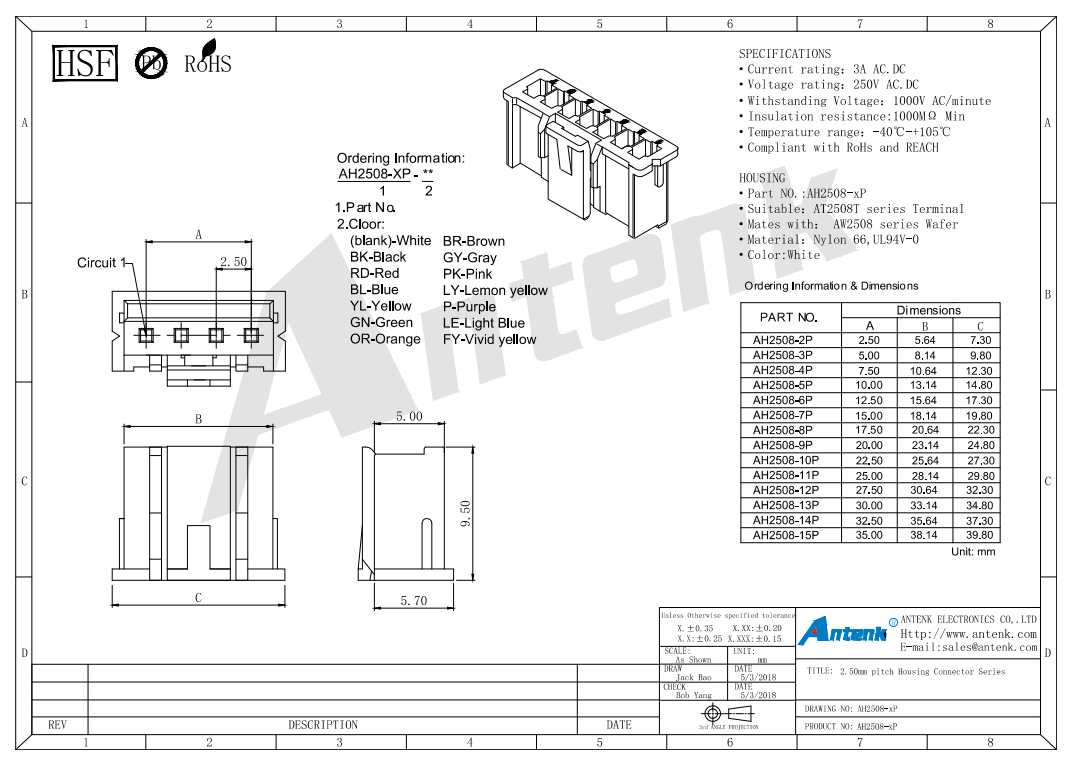

Product Drawing：

Huizhou Antenk Electronics Co., Ltd. manufactures AH2508 xP series 2.50 millimeter pitch housing connector to realize reliable wire to board connection when paired with AT2508T series terminals and AW2508 series wafer connectors, complying with drawing dimension standards to guarantee stable mating performance and secure wire crimping assembly. This connector housing is made of Nylon 66 material with UL94V 0 flame retardant rating and supplies abundant color options including white yellow red blue green orange and other shades. It delivers 3A rated current and 250V AC DC rated voltage, features 1000V AC one minute withstanding voltage and minimum 1000 megaohms insulation resistance, works under operating temperature from minus 40 degree Celsius to plus 105 degree Celsius and satisfies RoHS and REACH environmental requirements. It fits manual crimp assembly and automated mass production procedures. This housing connector is widely used in digital household appliances, industrial control devices, communication equipment, audio systems and precision measuring instruments. Operators need to select suitable circuit count and housing color for practical projects, use matched AT2508T terminals for crimp operation, avoid excessive crimp force to prevent housing crack and store finished goods in dry sealed packages for anti‑aging protection. Unlike competitors outsourcing molding services Antenk implements complete in‑house production containing independent plastic mold development, precision Nylon 66 injection molding and full laboratory reliability testing. We obtain ISO9001 ISO14001 IATF16949 and UL E472792 certifications, own more than two hundred fifty plastic connector molds, provide customized solutions and round the clock engineering support, and more than seventy percent of our connector goods are exported worldwide with stable ANTENK brand manufacturing quality.

1. Flame Retardant Nylon Housing provides high safety performance for electronic device connection under complex working conditions.

2. Multi Color Connector Housing supports diverse color identification to simplify wiring distinction in wire assembly work.

3. 2.50 Pitch Wire Housing achieves precise matching with corresponding wafer terminals for stable wire to board interconnection.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: 2.50 mm pitch connector housing

1.2 Compatible parts: fits AT2508T series terminals, mates with AW2508 series wafer connector

1.3 Available colors: white, yellow, red, blue, green, orange, vivid yellow, purple, light blue, pink, lemon yellow, brown, black, gray

1.4 Unit of dimensions: millimeter, multiple pin count related dimension values are provided in drawing

2. Material Properties

2.1 Housing material: Nylon 66, UL94V‑0 flame retardant grade

3. Electrical Parameters

3.1 Rated current: 3A AC DC

3.2 Rated voltage: 250V AC DC

3.3 Withstanding voltage: 1000V AC per minute

3.4 Minimum insulation resistance: 1000 MΩ

3.5 Operating temperature range: ‑40 °C to +105 °C

4. Compliance Standard

4.1 Environmental compliance: RoHS and REACH compliant

5. Mounting & Assembly Method

5.1 Assembly mode: crimp AT2508T series terminals into housing, then mate with AW2508 series wafer connector

6. Application Scenarios

6.1 Digital household appliances and consumer electronics

6.2 Industrial control equipment and communication devices

6.3 Audio equipment and precision measuring instruments

7. Operation & Storage Precautions

7.1 Match with specified AT2508T terminals and AW2508 series wafer for correct mating

7.2 Select appropriate pin count and housing color according to practical project demands

7.3 Avoid excessive crimping force to prevent housing cracking

7.4 Store finished products in dry sealed environment to slow nylon material aging

Product Drawing：

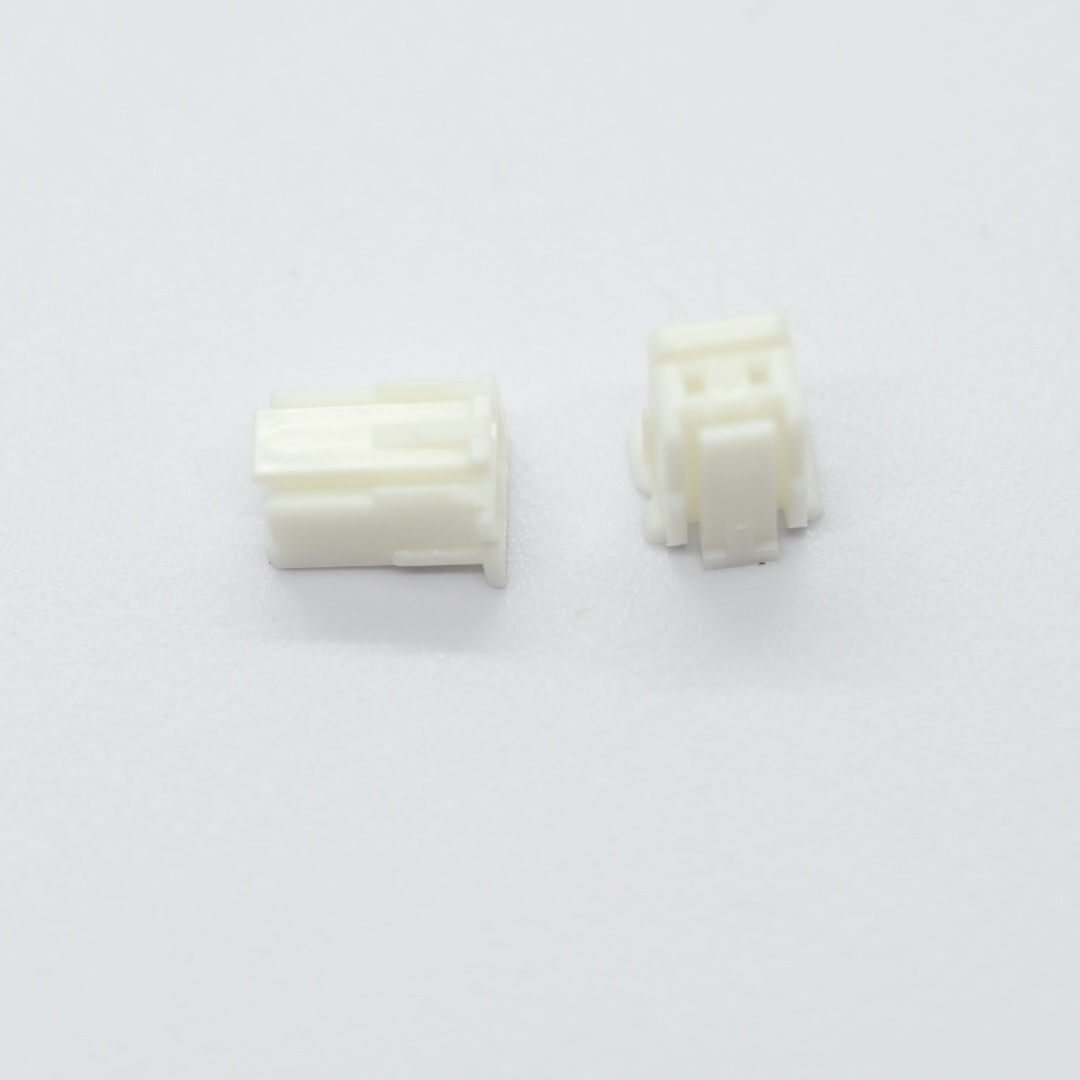

AH2508-2P+2.50mm pitch Housing Connector Series（6）

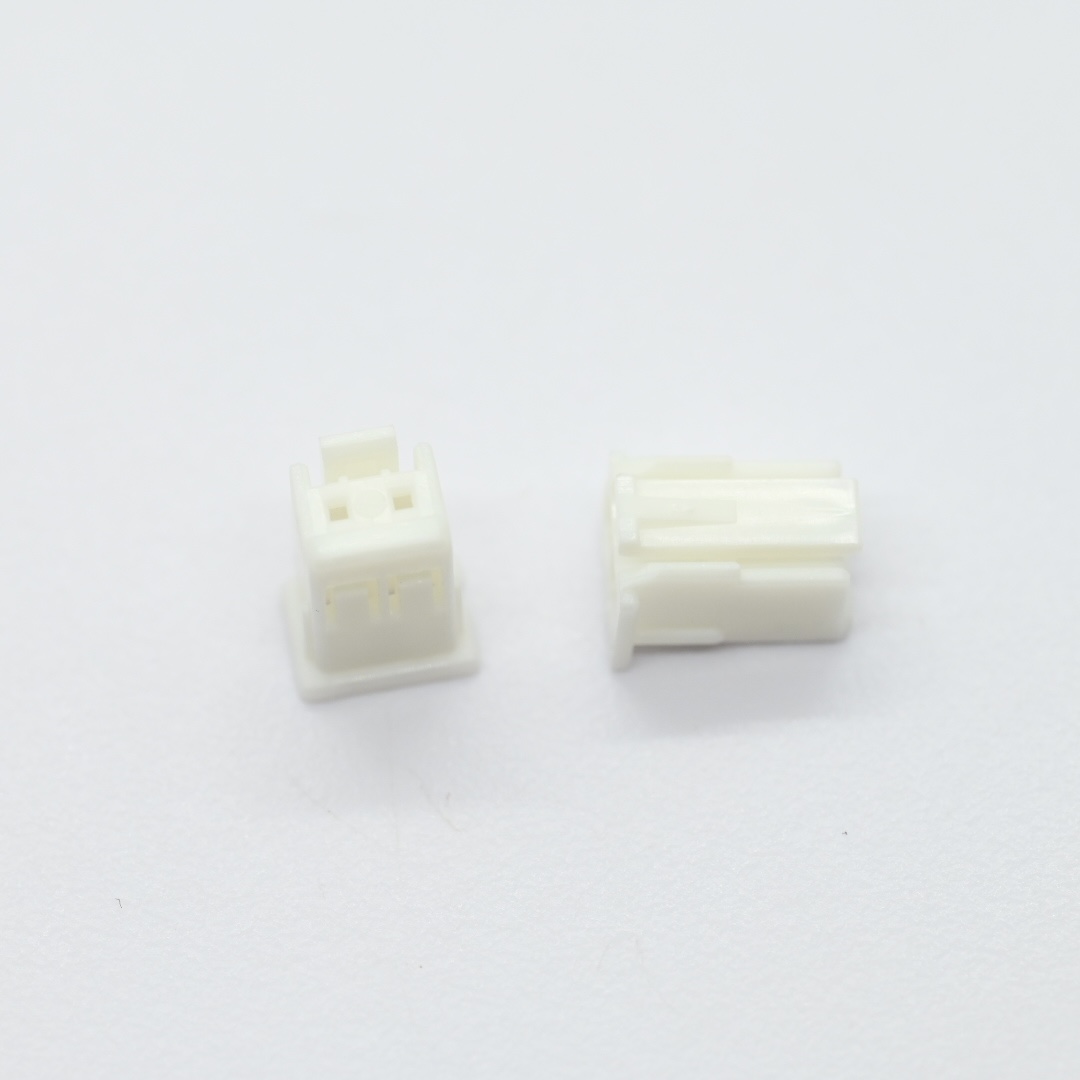

AH2508-2P+2.50mm pitch Housing Connector Series（4）

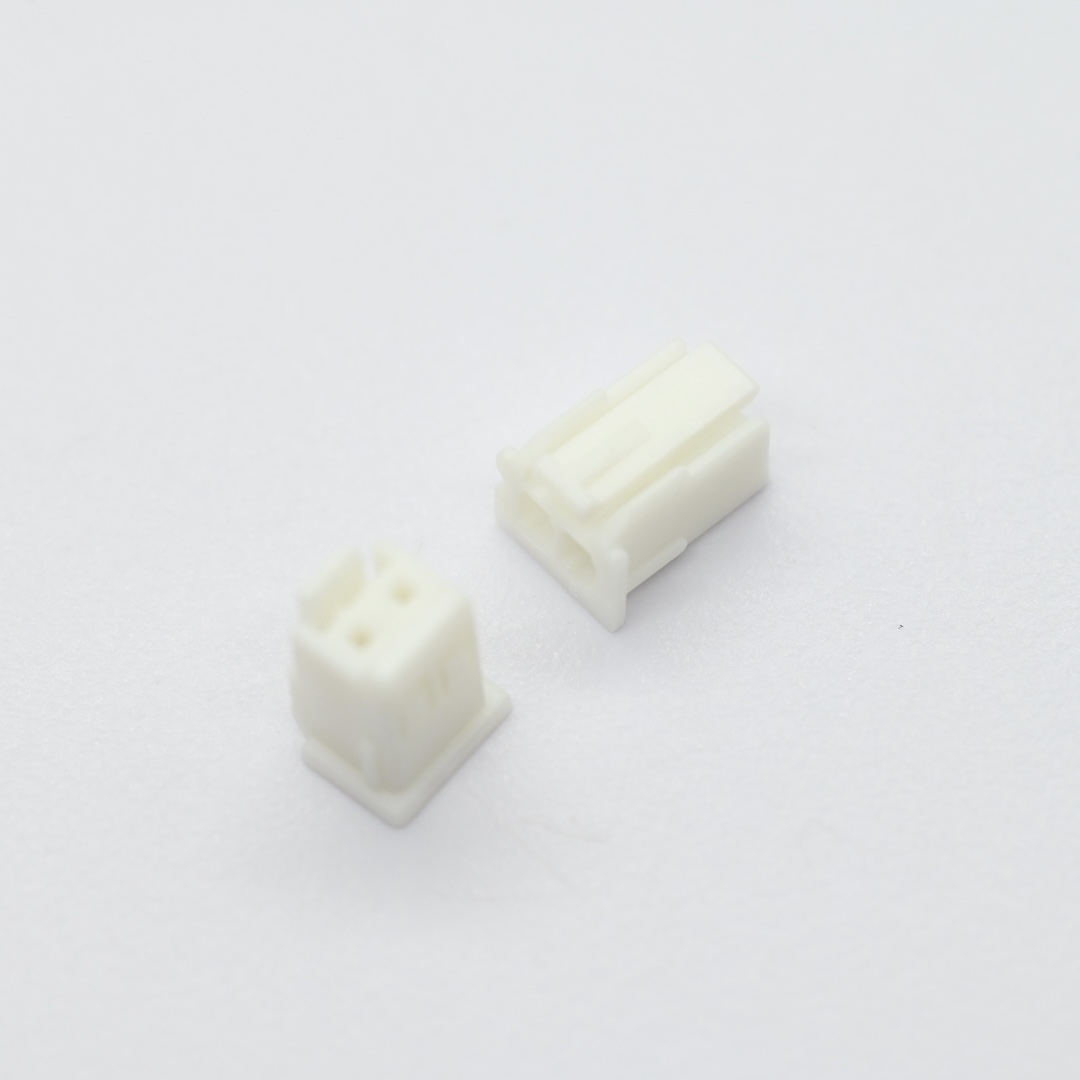

AH2508-2P+2.50mm pitch Housing Connector Series（5）

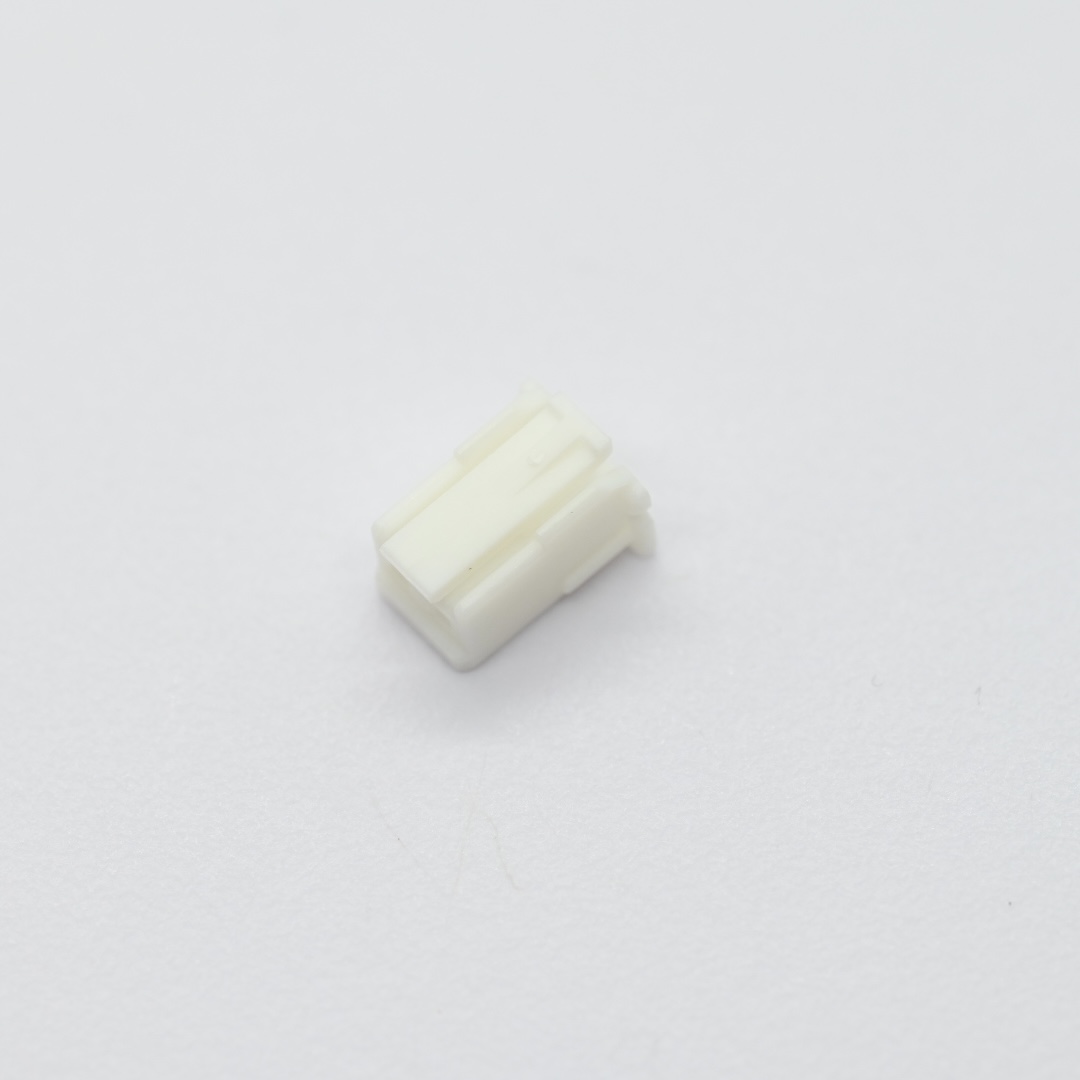

AH2508-2P+2.50mm pitch Housing Connector Series（2）

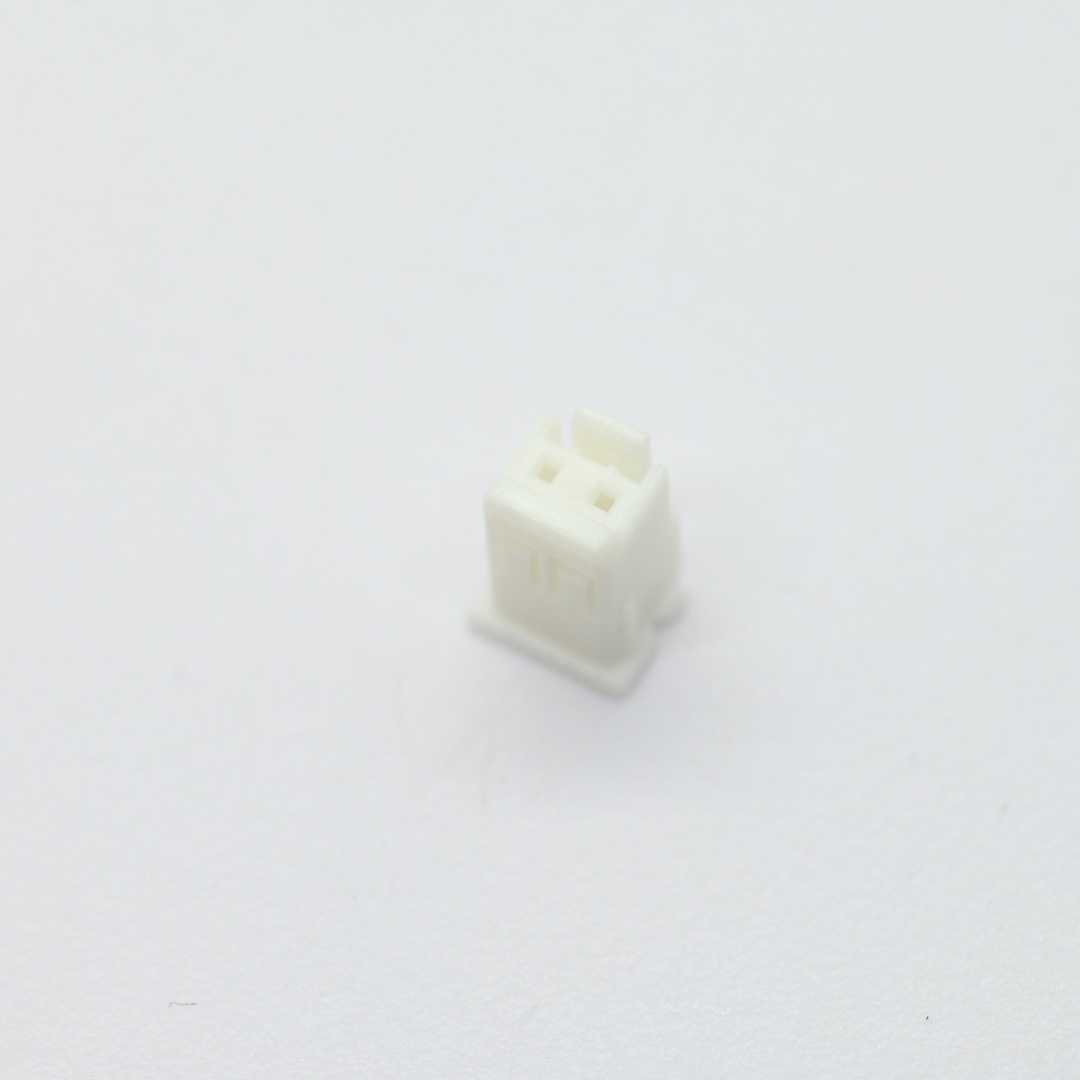

AH2508-2P+2.50mm pitch Housing Connector Series（3）

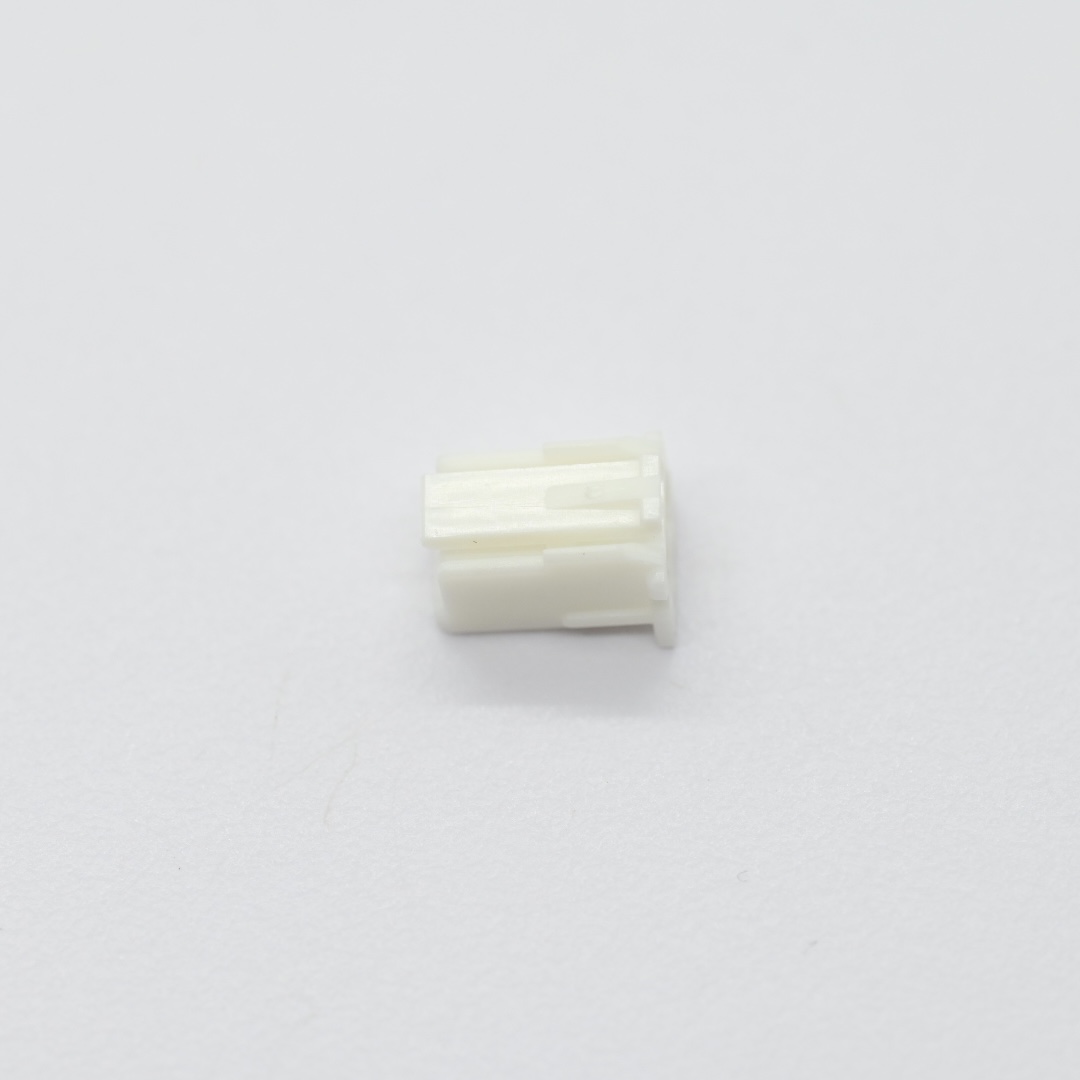

AH2508-2P+2.50mm pitch Housing Connector Series（1）
