Angle DIP USB A Type Receptacle

Angle DIP USB A Type Receptacle

3 week ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures UAFR01 series angle DIP USB A type receptacle to deliver stable USB signal and power transmission through right angle dual in‑line package soldering onto printed circuit boards complying with drawing dimension tolerances to guarantee accurate PCB hole matching and reliable plugging performance with standard USB A male plugs. This USB receptacle uses phosphor copper contact pins with multiple gold plating selections, LCP insulator housing and optional shell materials including brass iron and stainless steel, shell surface finishes cover nickel plating and tin plating on mating area. It supports maximum 1.5A rated current, 500V AC dielectric withstanding voltage, maximum 30 milliohms contact resistance and minimum 1000 megaohms insulation resistance, adopts UL94V‑0 thermoplastic material and meets RoHS HSF environmental standards, available in tray bag tape and reel packing to fit manual assembly and automated mass‑production workflows. This USB A receptacle is widely applied in computer peripherals, digital household appliances, communication equipment, industrial control units and precision measuring instruments. Operators need to follow recommended PCB layout for DIP soldering, select proper shell material and contact plating grade according to project demands, control soldering temperature to prevent LCP insulator damage and store finished connectors inside dry sealed packages to avoid metal part oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk carries out full in‑house manufacturing workflow including independent plastic and metal mold development, high speed metal stamping, LCP injection molding and multi‑grade electroplating plus comprehensive laboratory reliability verification. We hold ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules, own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide custom solutions and round the clock engineering support, and over seventy percent of our connector products are exported worldwide supported by stable ANTENK brand mass‑production quality.

1. Gold Plated USB Socket delivers excellent signal transmission performance and strong anti‑corrosion capability for daily USB connection scenarios.

2. LCP USB Receptacle maintains stable structural performance under high temperature soldering and complex working environment conditions.

3. Right Angle USB Jack realizes space saving PCB installation for compact electronic device internal layout design.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: Angle DIP USB A type receptacle

1.2 Mounting form: Dual in‑line through hole PCB mounting

1.3 Key outline dimensions unit mm: overall length 15.80±0.15, height 14.10, width 13.10

1.4 PCB layout reference: Recommended pad and hole dimensions for board assembly

1.5 Packing options: Tray, Bag, Tape & Reel

2. Material & Surface Plating

2.1 Contact material: Brass or Phosphor copper

2.2 Contact plating: Gold flash, 3u"Gold, 10u"Gold, 15u"Gold, 30u"Gold; tin plating on non‑mating zone

2.3 Shell material optional: Brass, Iron, Stainless steel

2.4 Shell finish: Nickel plating

2.5 Insulator material: LCP, UL94V‑0 flame retardant grade

3. Electrical Parameters

3.1 Max current rating: 1.5A

3.2 Withstanding voltage: 500V AC

3.3 Max contact resistance: 30 milliohms

3.4 Min insulation resistance: 1000 MΩ

4. Compliance Standard

4.1 Environmental compliance: RoHS, HSF compliant

5. Mounting Method

5.1 Assembly mode: Angle DIP through‑hole soldering onto printed circuit board

5.2 Follow official recommended PCB layout for hole and pad design

6. Application Scenarios

6.1 Computer peripheral devices

6.2 Digital household appliances

6.3 Communication and industrial control equipment

6.4 Precision measuring instruments

7. Operation & Storage Precautions

7.1 Adopt the recommended PCB layout for DIP soldering processing

7.2 Select suitable shell material and contact plating grade for actual projects

7.3 Control soldering temperature to avoid thermal damage to LCP insulator

7.4 Keep finished goods in dry sealed packages to prevent oxidation of metal contacts and shell

7.5 Match with standard USB A male plug for normal mating performance

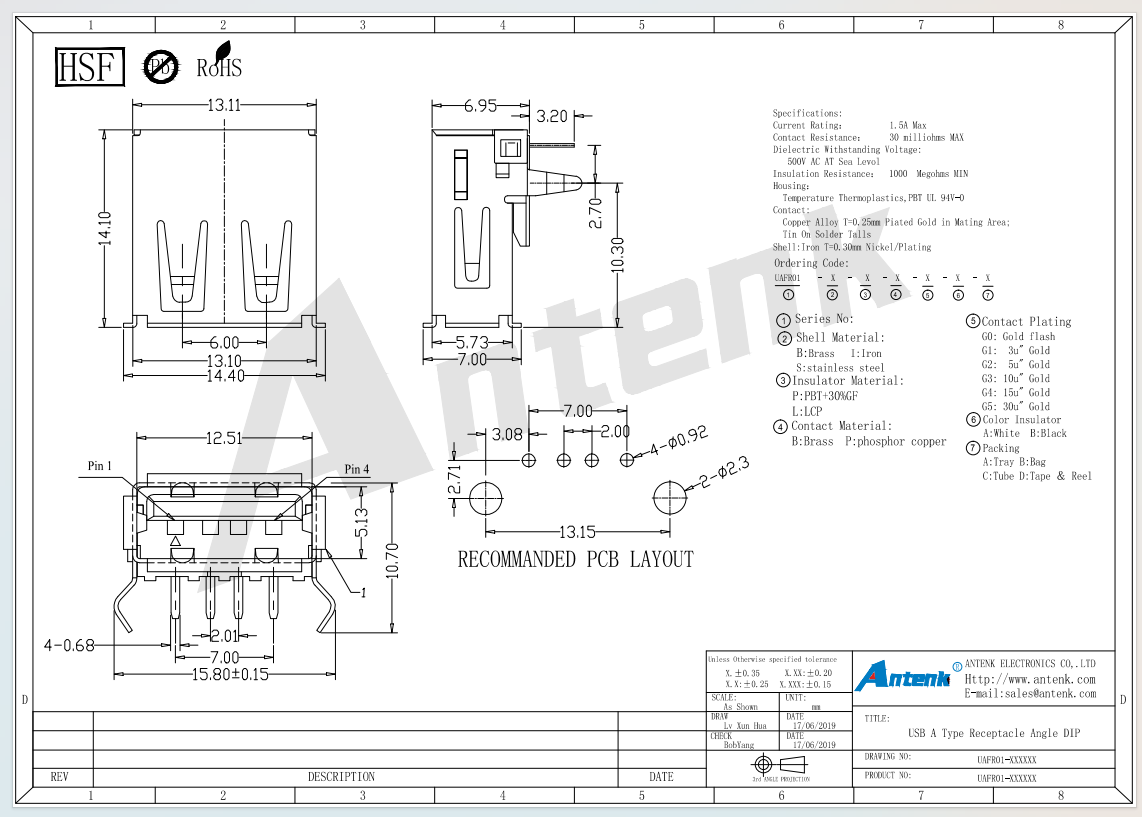

Product Drawing：

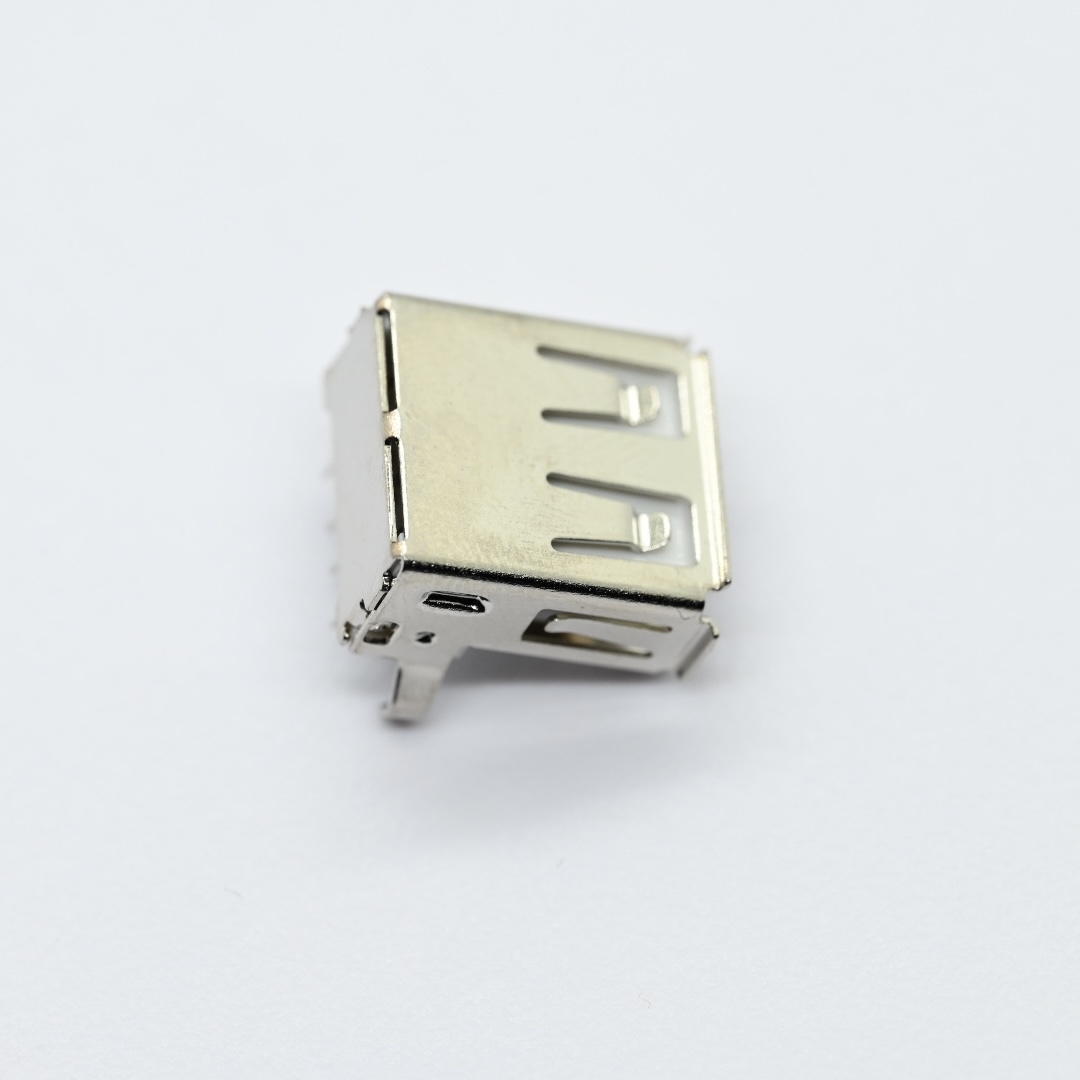

UAFR01-B-P-P-G0-A-A+USB A Type Receptacle Angle DIP（5）

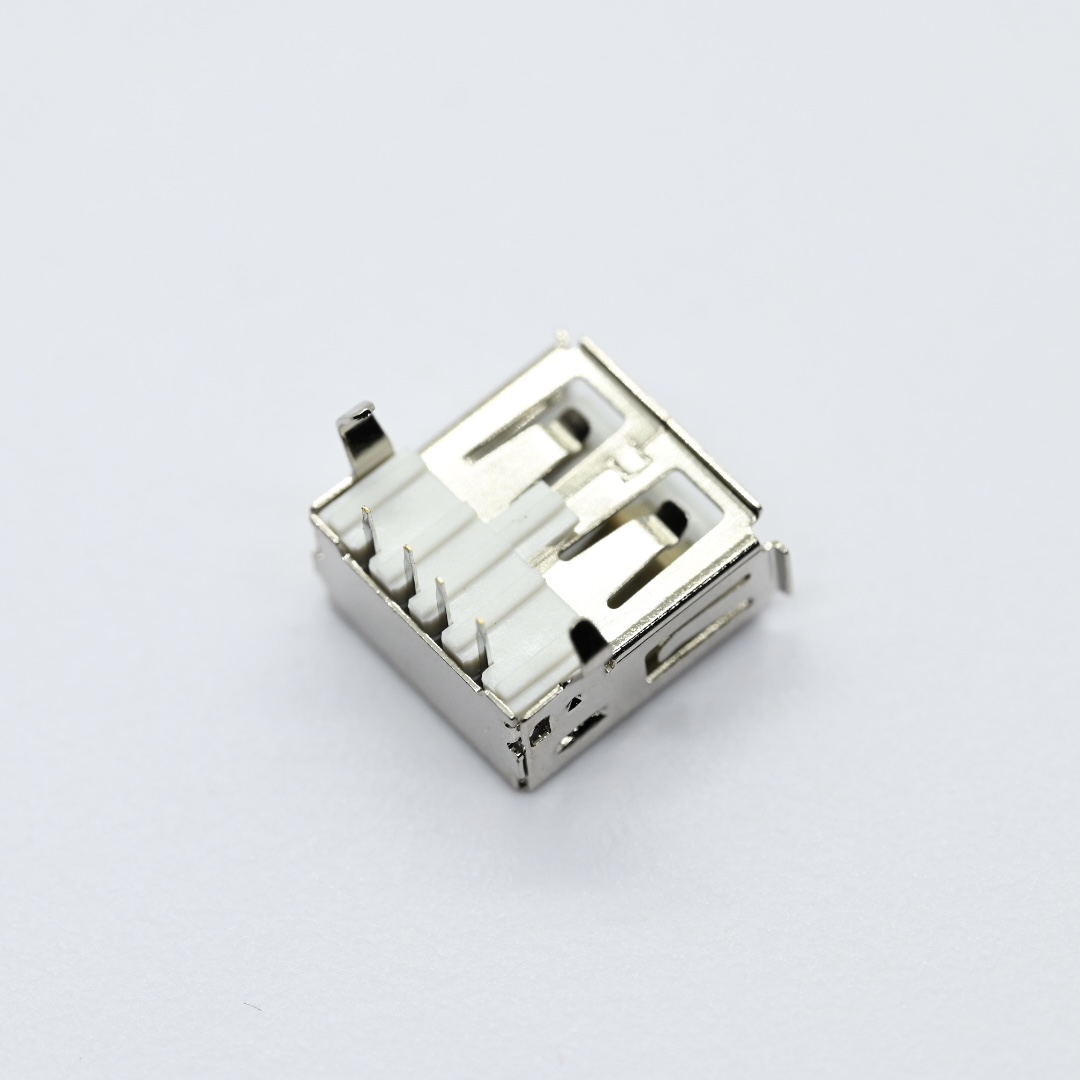

UAFR01-B-P-P-G0-A-A+USB A Type Receptacle Angle DIP（2）

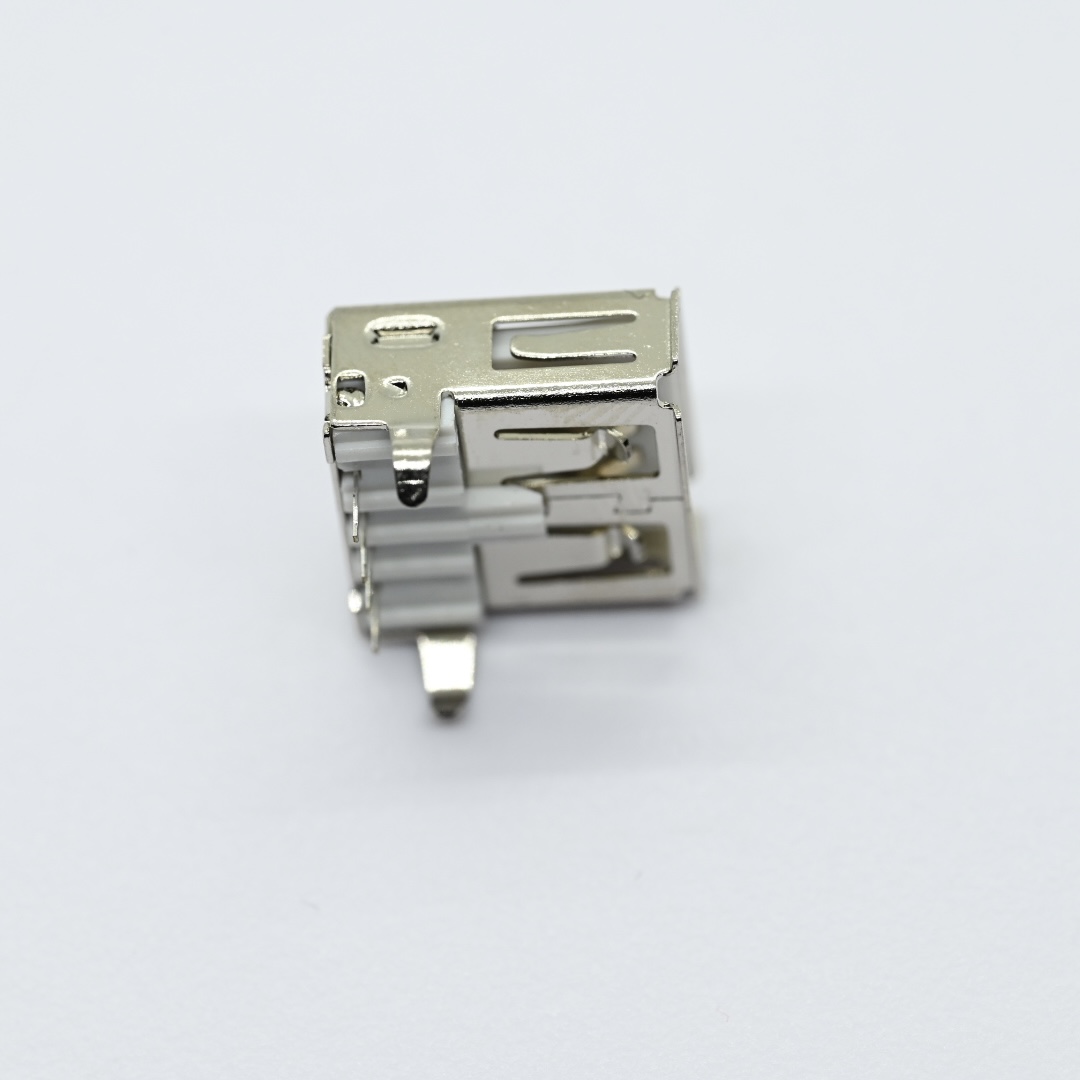

UAFR01-B-P-P-G0-A-A+USB A Type Receptacle Angle DIP（4）

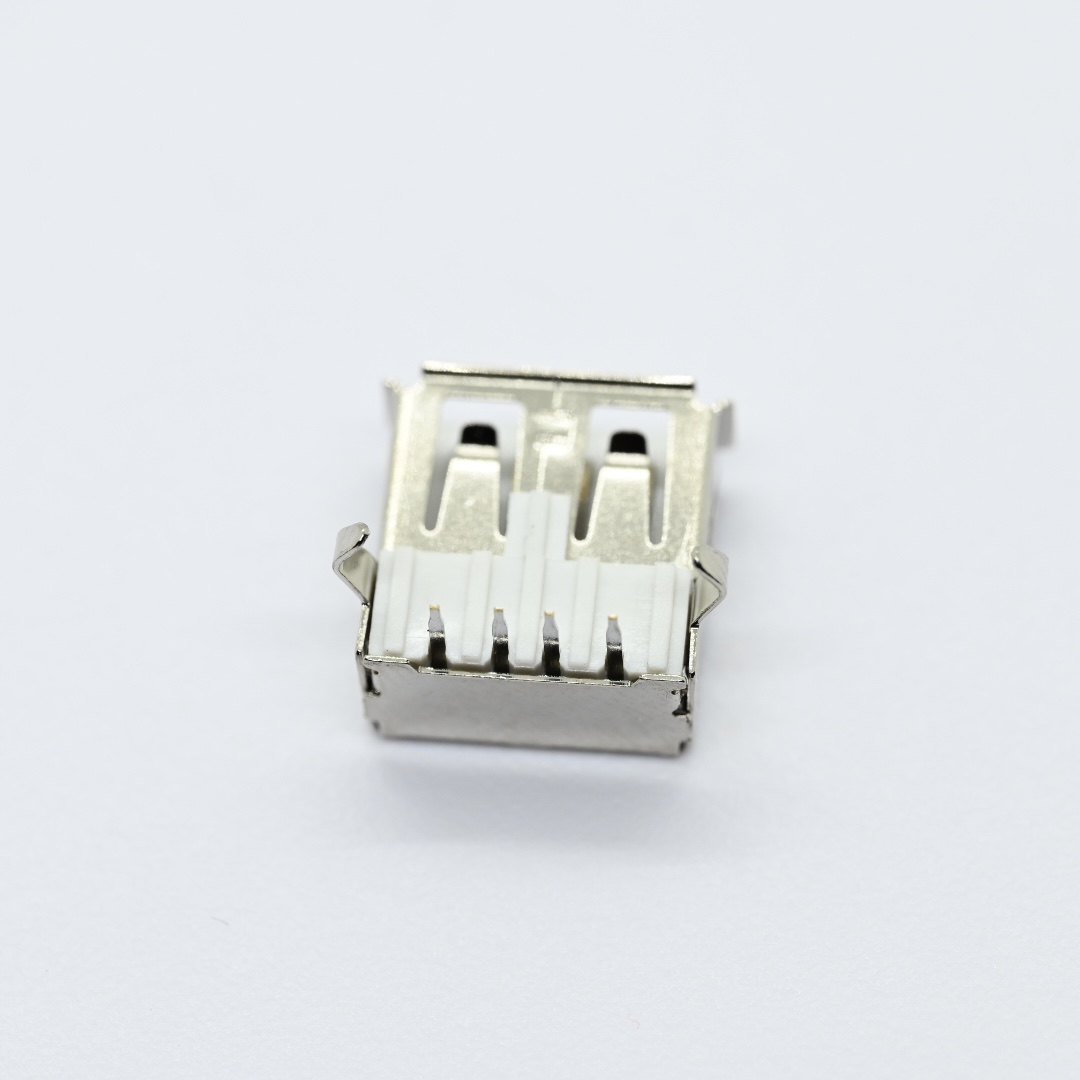

UAFR01-B-P-P-G0-A-A+USB A Type Receptacle Angle DIP（3）

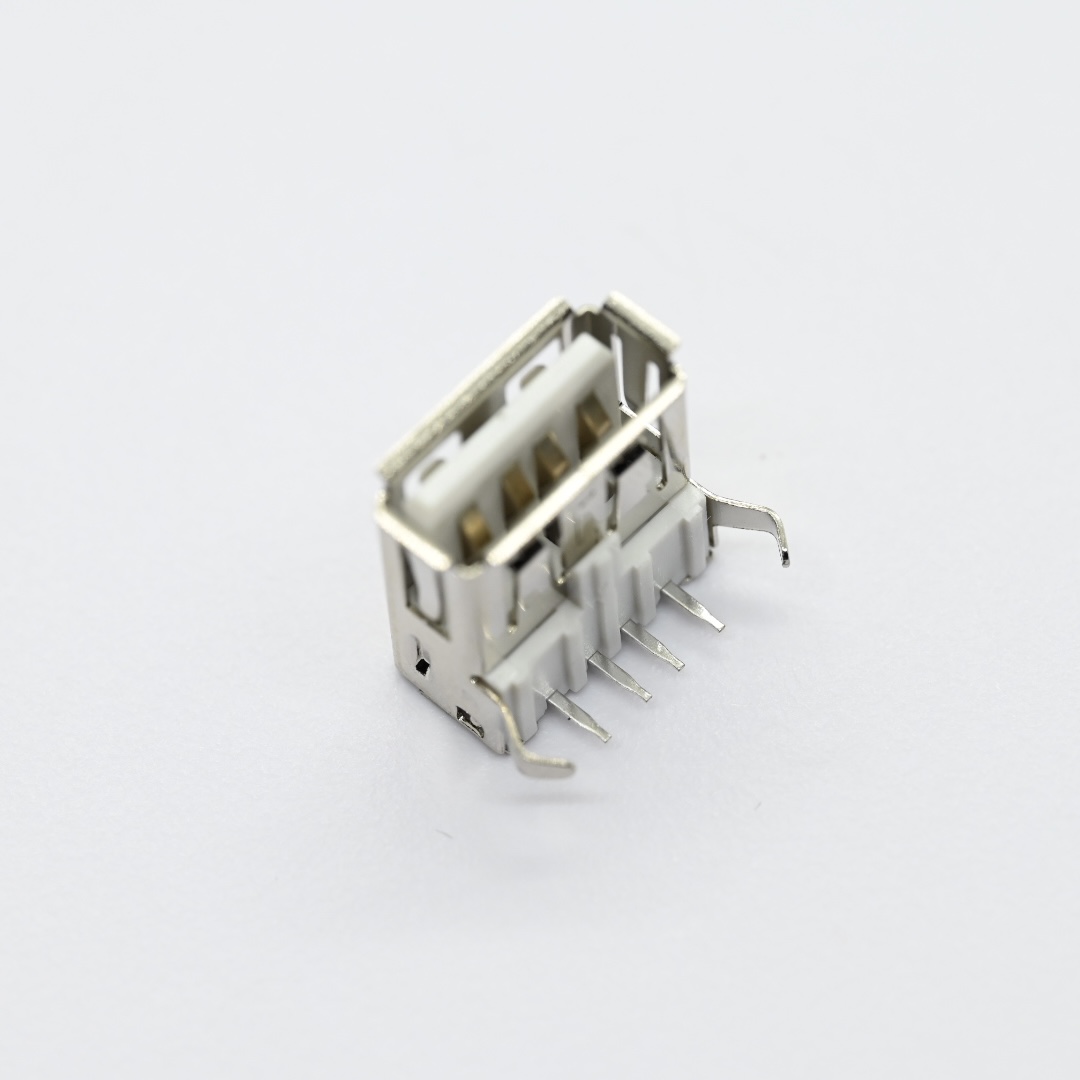

UAFR01-B-P-P-G0-A-A+USB A Type Receptacle Angle DIP（6）

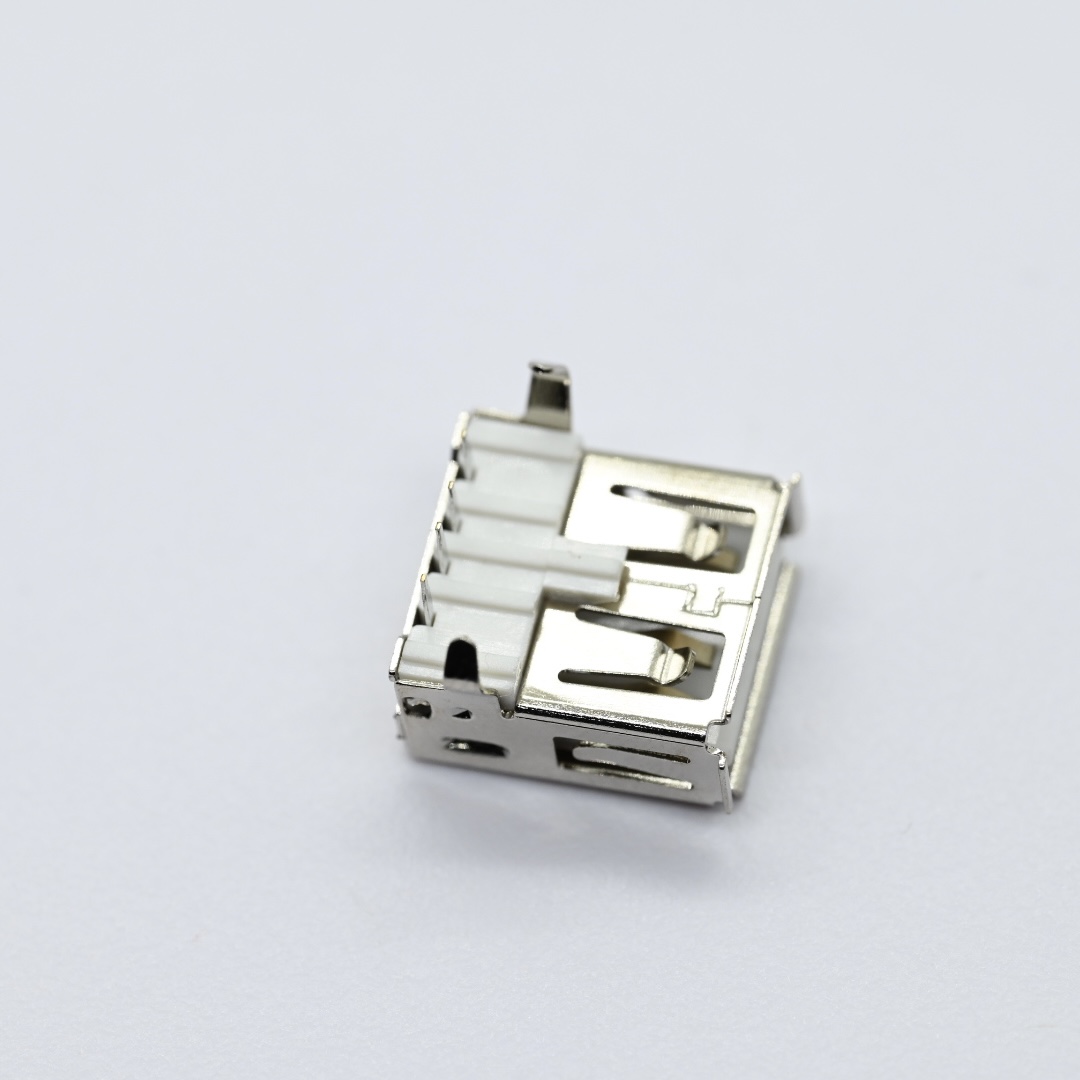

UAFR01-B-P-P-G0-A-A+USB A Type Receptacle Angle DIP（1）
