DIN41612 Right Angle Half C Plug Connector

DIN41612 Right Angle Half C Plug Connector

5 week ago

2 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures DMR XX XXX 311 series DIN41612 right angle plug type half C connectors to deliver stable power and signal interconnection for printed circuit board assembly complying with drawing dimensional tolerances to ensure precise through hole soldering and consistent mating performance with matching DIN series sockets. This half C plug connector adopts brass contacts with diversified plating options covering gold flash multiple thickness gold or tin over nickel finishes, insulator made of PBT plus 30 percent glass fiber with UL94V 0 flame retardant grade. It supports multiple contact counts including 16P 24P 32P 48P and various tail length selections, features 2.0 Amp rated current, 1000V AC one minute withstanding voltage, maximum 20 milliohms contact resistance and minimum 1000 megaohms insulation resistance at DC 100V, operating temperature ranges from minus 55 degree Celsius to plus 105 degree Celsius and conforms to RoHS and HSF environmental standards. It fits manual insertion and automated high volume soldering workflows. This DIN plug connector is widely deployed in industrial control cabinets, communication devices, test measurement instruments and industrial computer equipment. Operators need to select proper pin count tail length contact plating and row configuration for practical projects, follow official PCB layout for through hole soldering, control soldering temperature to avoid insulator damage and store finished units inside dry sealed packages to prevent brass contact oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk completes full in house manufacturing workflow covering independent plastic and metal mold development, brass contact high speed stamping, reinforced PBT injection molding and multi grade electroplating plus comprehensive laboratory reliability verification. We hold ISO9001 ISO14001 IATF16949 and UL E472792 certifications complying with REACH rules, own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom dimension solutions and round the clock engineering support, and over seventy percent of our connector products are exported globally backed by reliable ANTENK brand mass‑production quality.

1. GF Reinforced DIN Connector provides outstanding mechanical strength for long‑term industrial equipment connection applications.

2. Gold Nickel DIN Plug achieves low contact resistance and superior anti‑oxidation performance under harsh working conditions.

3. Half C DIN Plug satisfies compact layout demands for industrial backplane interconnection system assembly.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: DIN41612 right angle plug type half C connector

1.2 Available contact counts:16P, 24P, 32P, 48P

1.3 Tail length options: B 3.00 mm, F 4.40 mm, M 13.00 mm

1.4 Contact row configuration options: A, C, D1, D, F1, F

1.5 Contact pitch:2.54 mm

1.6 Mating force: Max 45N for 48‑position model; minimum 0.15N withdrawal force per single contact

1.7 Unit of dimensions: millimeter, follow recommended PCB layout for board design

2. Material & Surface Plating

2.1 Contact material: Brass

2.2 Contact plating options: gold flash, multiple thickness gold over nickel, tin over nickel

2.3 Insulator material: PBT plus 30% glass fiber, UL94V‑0 flame retardant grade

3. Electrical Parameters

3.1 Rated current: 2.0 Amp

3.2 Withstanding voltage: 1000V AC for 1 minute

3.3 Maximum contact resistance: 20 milliohms

3.4 Minimum insulation resistance: 1000 MΩ at DC 100V

3.5 Operating temperature range:‑55 °C to +105 °C

4. Compliance Standard

4.1 Environmental compliance: RoHS and HSF compliant

5. Mounting Method

5.1 Assembly mode: Right angle through‑hole soldering for PCB installation

5.2 Adopt official recommended PCB layout for pad and hole design

6. Application Scenarios

6.1 Industrial control cabinet equipment

6.2 Industrial computer and backplane systems

6.3 Communication devices

6.4 Test and precision measurement instruments

7. Operation & Storage Precautions

7.1 Select correct contact count tail length plating and row configuration for practical projects

7.2 Follow drawing PCB layout requirement to complete through‑hole soldering

7.3 Control soldering temperature to prevent damage to glass fiber reinforced PBT insulator

7.4 Store finished connectors in dry sealed packages to avoid brass contact oxidation

7.5 Respect specified insertion and withdrawal force range during mating operation

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

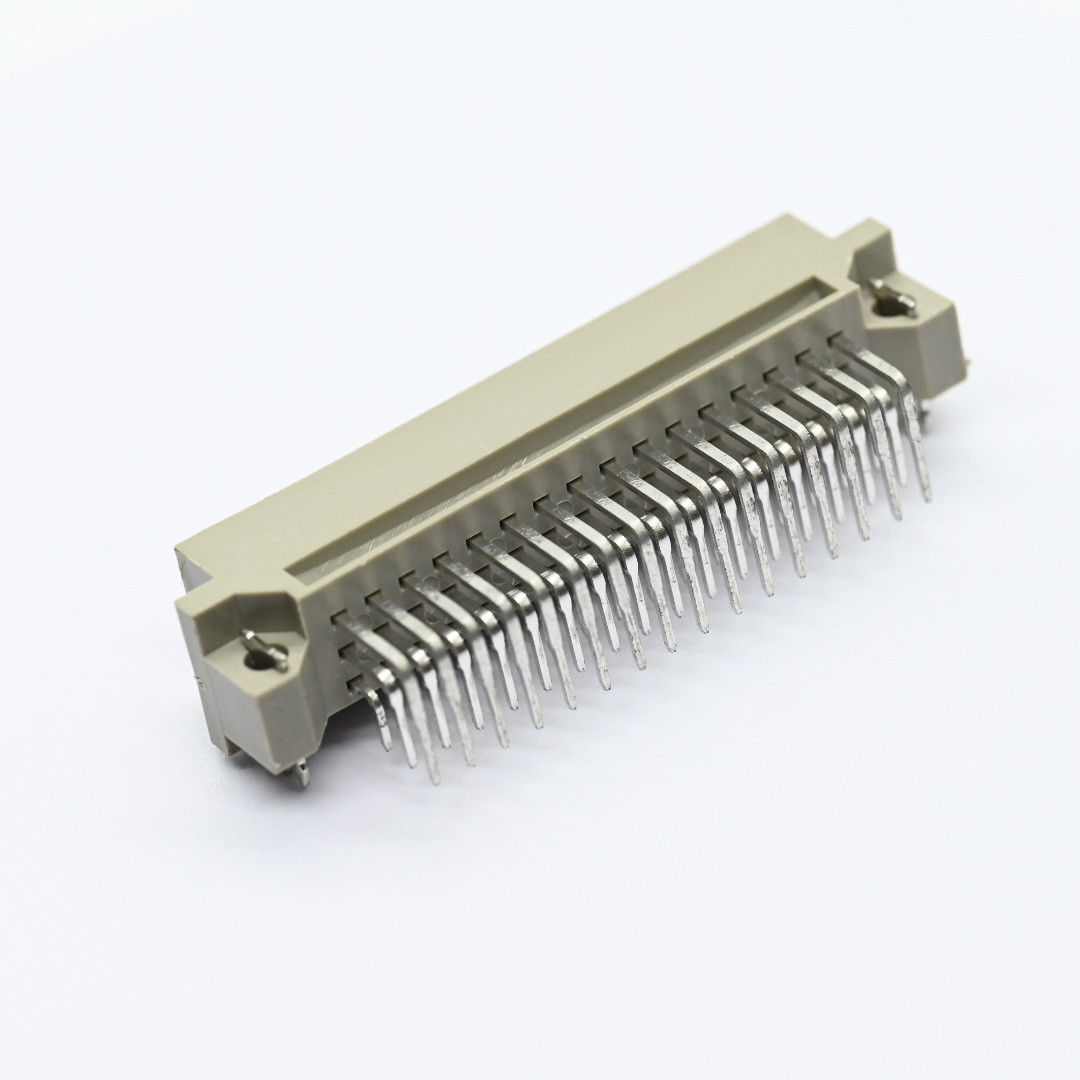

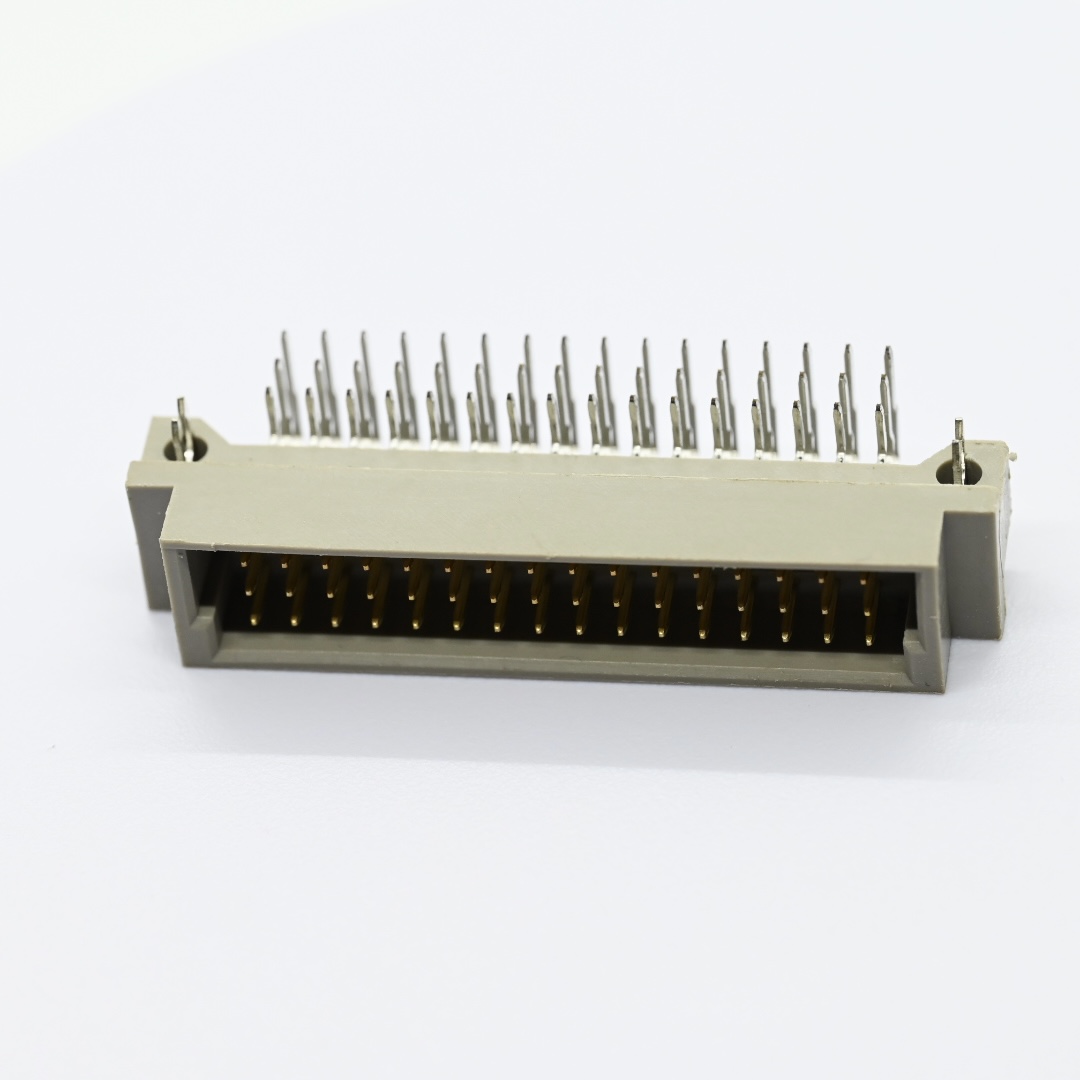

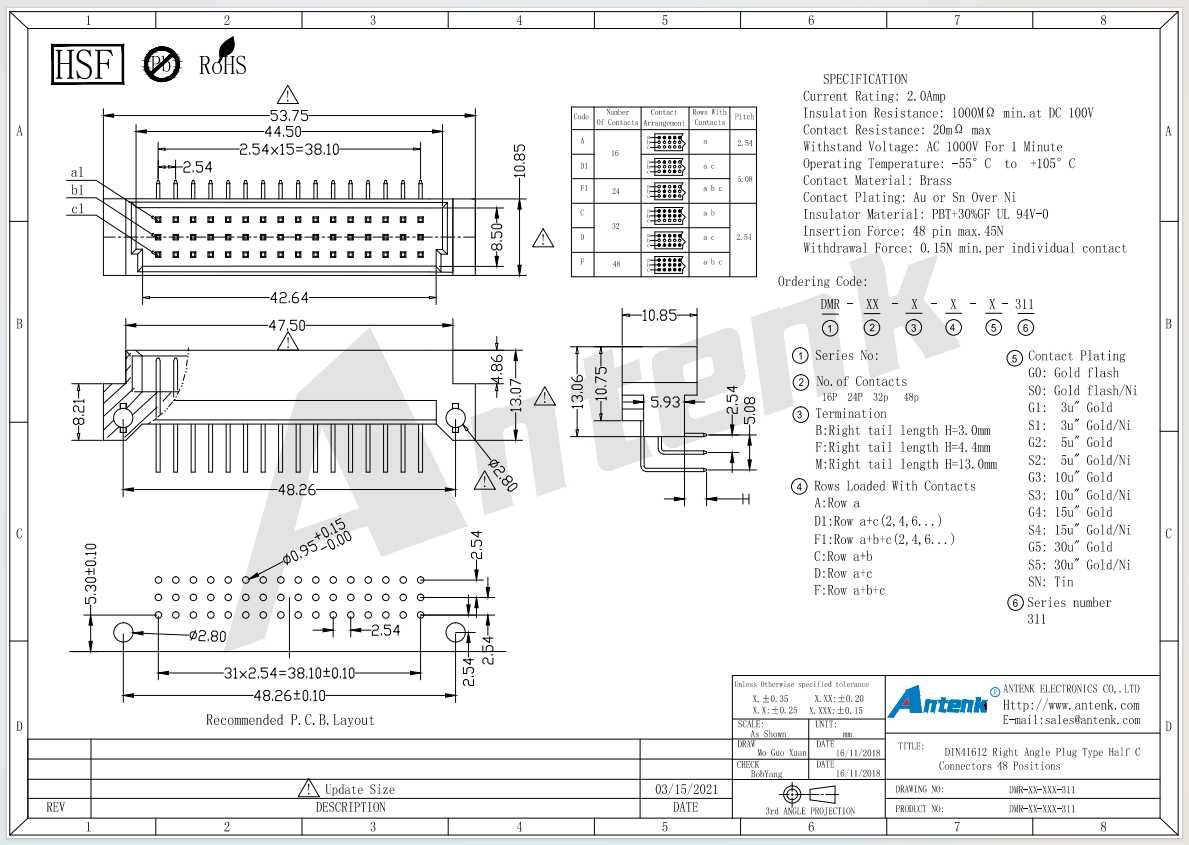

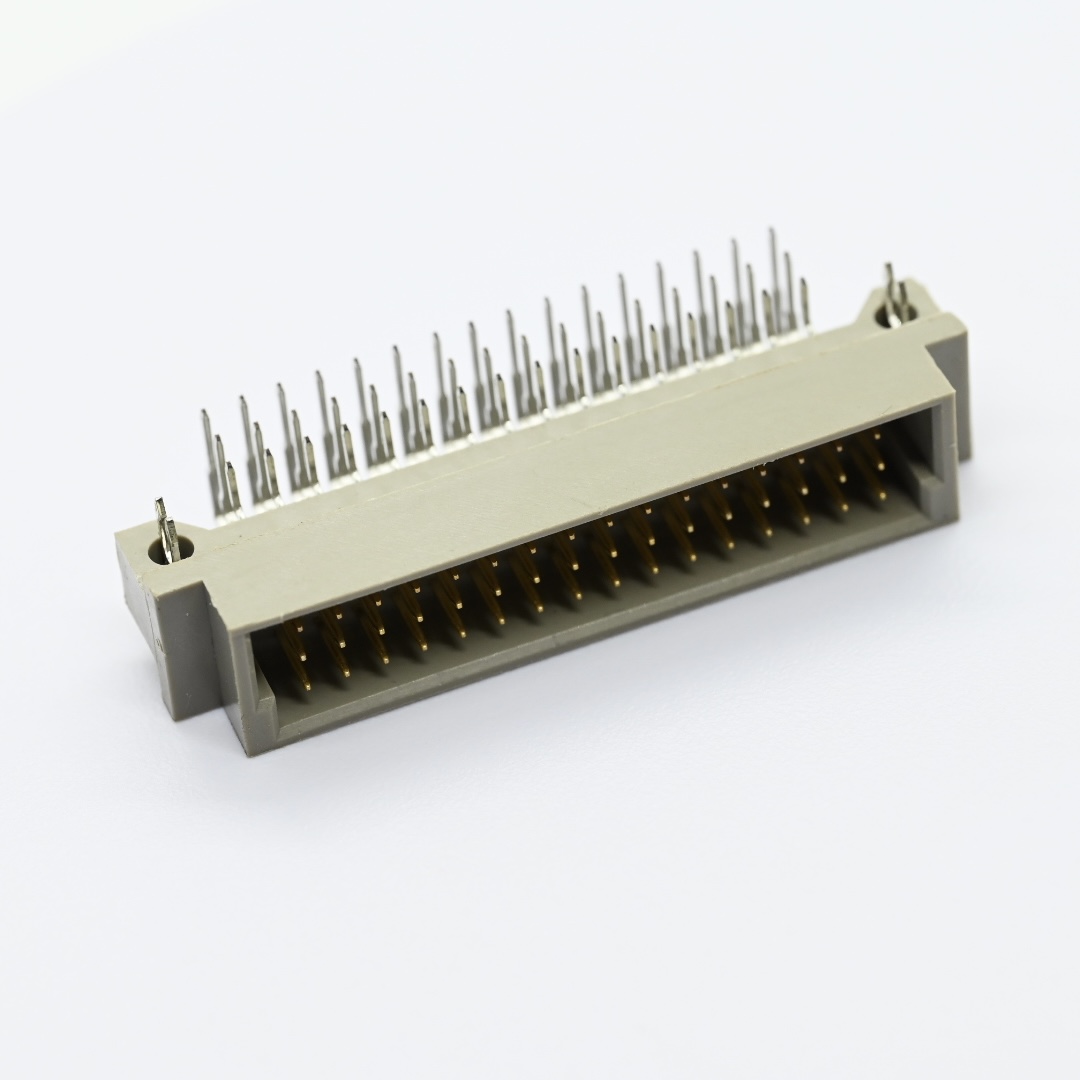

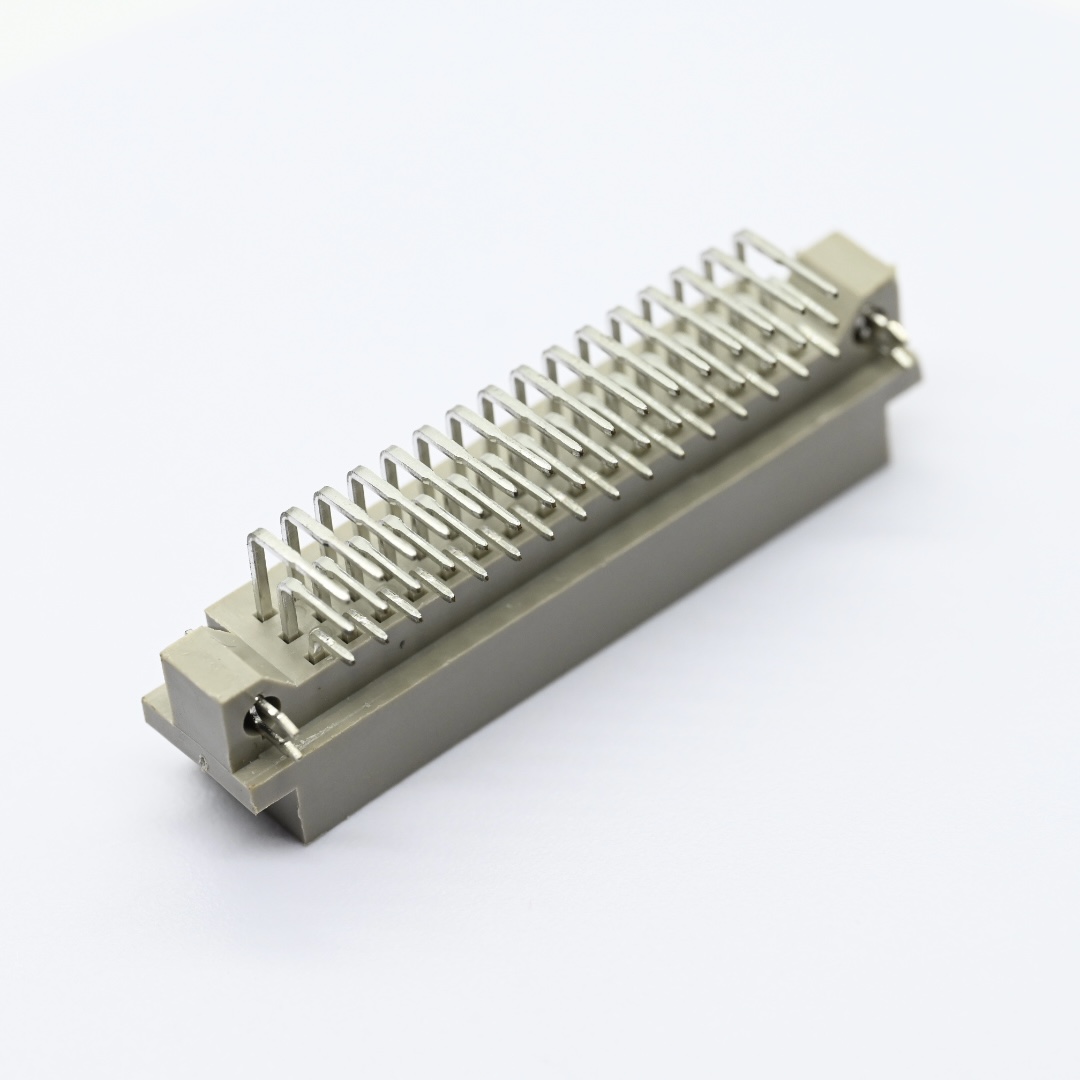

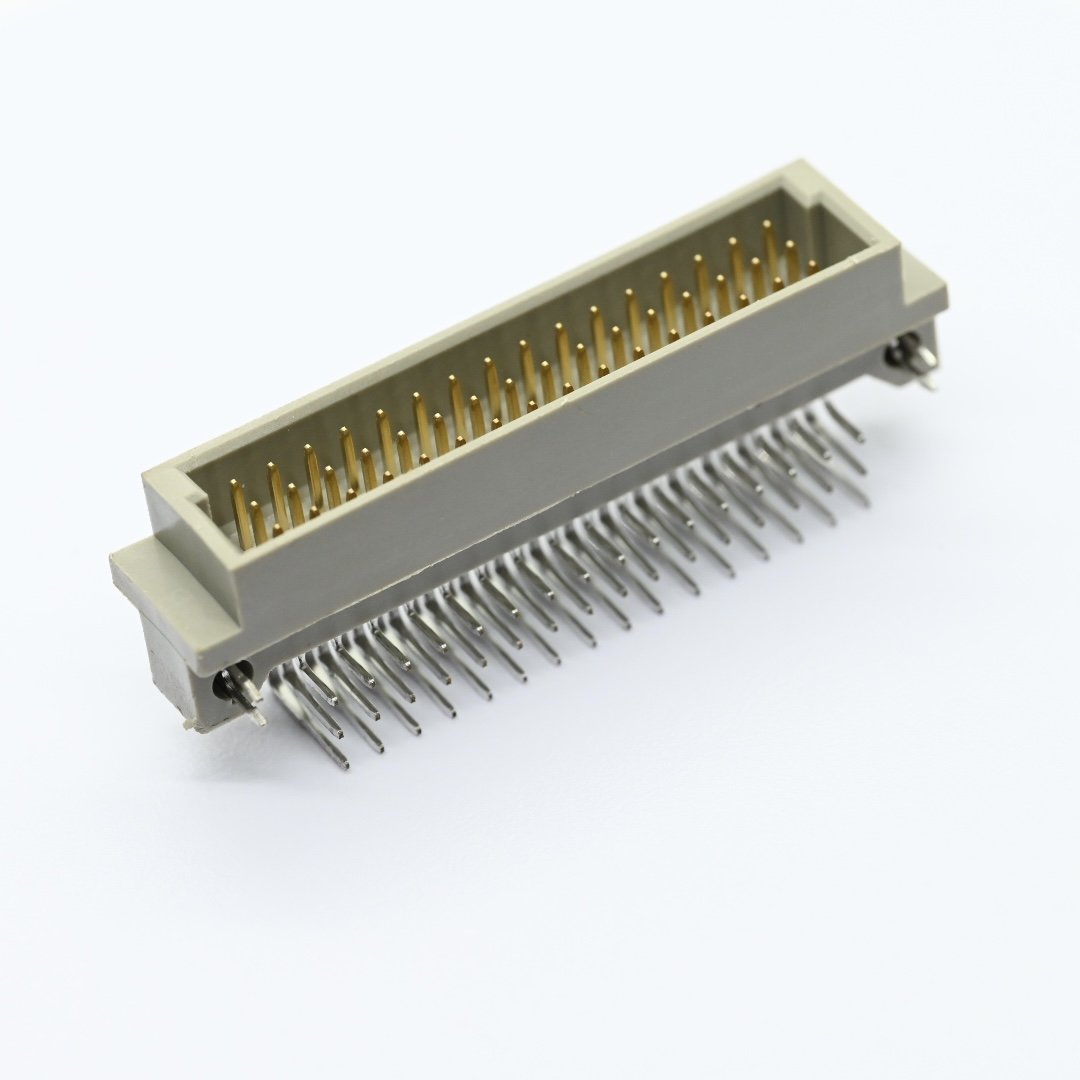

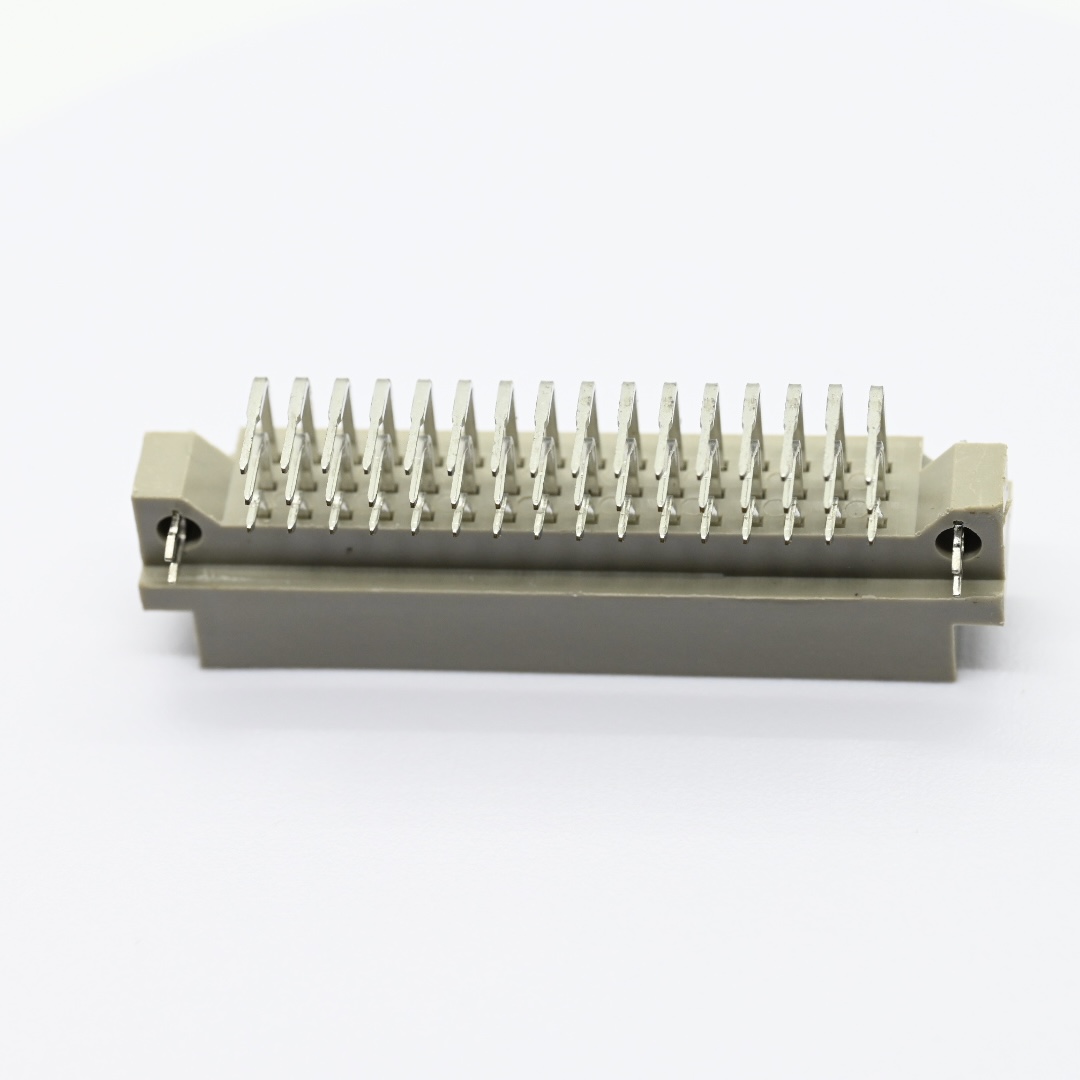

Product Drawing;
