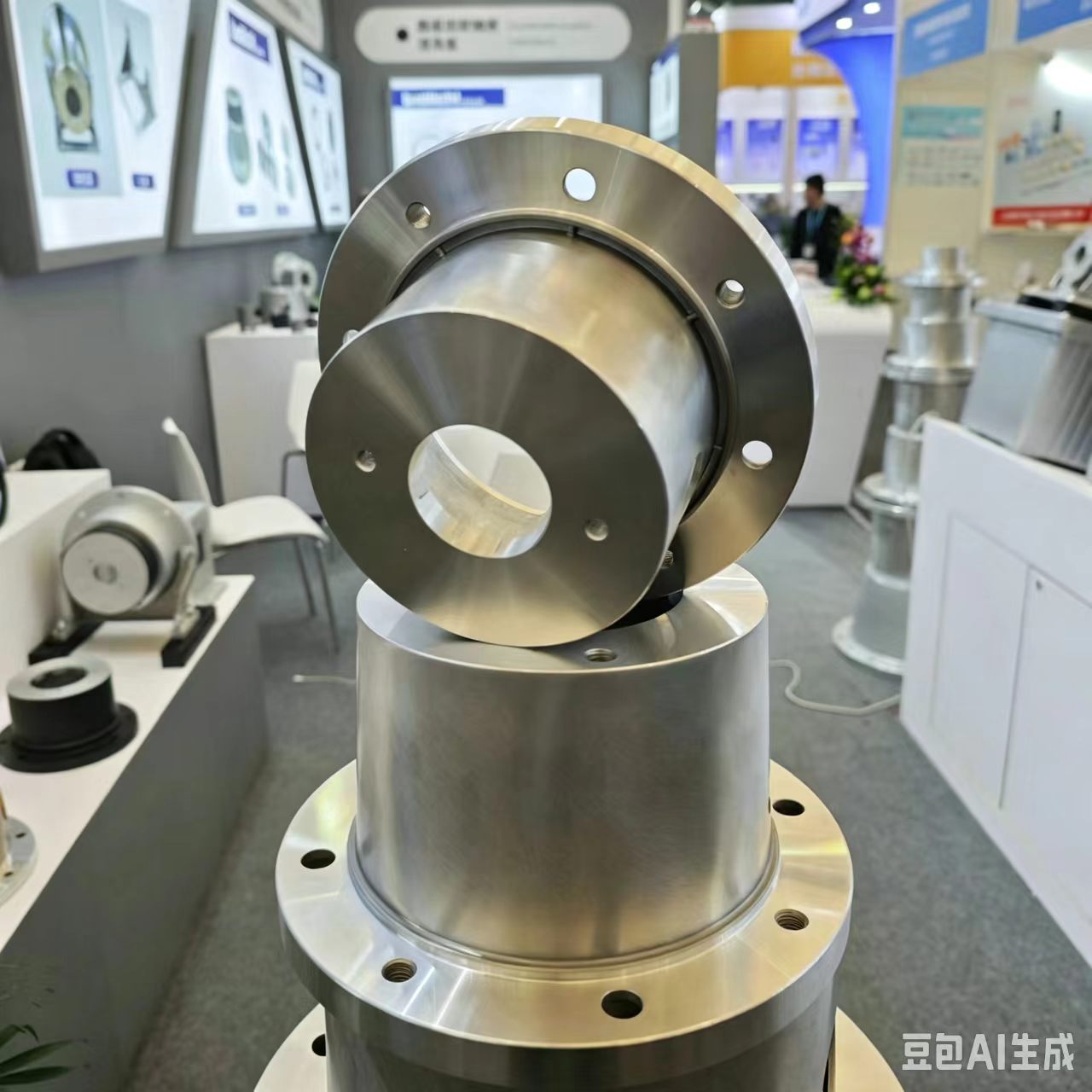

Motor‑Pump Bell Housing
Product Overview
The Motor‑Pump Bell Housing is a critical connecting component installed between an electric motor and a hydraulic pump, widely used in industrial hydraulic system and hydraulic power‑pack units for all kinds of hydraulic‑driven Machine. Made of high‑strength cast aluminum alloy, this bell housing provides rigid concentric connection and precise alignment for motor shaft and pump shaft. It encloses the flexible coupling inside, protects the coupling from dust, moisture and external impact, reduces vibration transmission during operation, and guarantees stable coaxiality between motor and hydraulic pump. With standard SAE and IEC flange mounting dimensions, it can be perfectly matched with various motors and gear pumps, vane pumps, piston pumps. It effectively reduces noise, avoids shaft offset‑induced wear, and improves the long‑term reliability of the whole hydraulic system. It is suitable for OEM assembly, system renovation and spare‑parts replacement of hydraulic stations, injection molding machines, automation equipment and industrial machinery.
Technical Specifications
‑ Product Name: Motor‑Pump Bell Housing
‑ Material: High‑strength die‑cast aluminum alloy
‑ Matching Standard: IEC motor flange, SAE pump flange
‑ Surface Treatment: Sand‑blasting oxidation, anti‑corrosion
‑ Installation: Flange‑to‑flange direct assembly between electric motor and hydraulic pump
‑ Internal Space: Reserved cavity for installing shaft coupling
‑ Feature: High concentricity, low‑vibration, good heat dissipation, compact structure, easy installation and maintenance, long service life, compatible with various specifications of hydraulic Machine.
Working Principle
When assembling the hydraulic system, one end of the bell housing is fixed to the output flange of the electric motor, and the other end is connected to the mounting flange of the hydraulic pump. The flexible coupling is placed inside the bell housing to connect the motor drive shaft and pump shaft. The bell housing keeps the motor and pump perfectly coaxial, bears radial load during power transmission, isolates the coupling from the external environment, and reduces vibration and noise generated during high‑speed rotation. If the bell housing is deformed or cracked, it will cause shaft misalignment, serious vibration, abnormal noise, premature damage to coupling, motor and pump bearings. Replacing a qualified motor‑pump bell‑housing can restore coaxial transmission and ensure stable operation of the whole hydraulic equipment.
Core Advantages
1. High‑precision flange machining ensures excellent concentricity between motor and hydraulic pump, reducing shaft deflection and extending service life of coupling, pump and motor.
2. Light‑weight high‑strength aluminum material features good heat‑dissipation performance, effectively lowering operating temperature of the transmission part of the hydraulic system.
3. Fully‑enclosed protective structure shields the internal coupling from dust, debris and splashing oil, reducing failure risk of hydraulic Machine.
4. Standard universal flange size, wide compatibility with most IEC motors and SAE‑mounted hydraulic pumps, convenient for quick replacement.
5. Optimized structural rigidity greatly absorbs and reduces vibration transmission, lowering running noise of the hydraulic station and improving equipment stability.
Application Range
Motor‑Pump Bell Housing is an essential connecting accessory for motor‑driven hydraulic pump assemblies in the hydraulic system. It is widely applied to hydraulic power packs, hydraulic stations, injection molding machines, hydraulic presses, automated production lines, material‑handling machinery and other industrial hydraulic‑driven Machine. Suitable for hydraulic system manufacturers, power‑pack assembly factories, machinery maintenance workshops and global spare‑parts suppliers.
