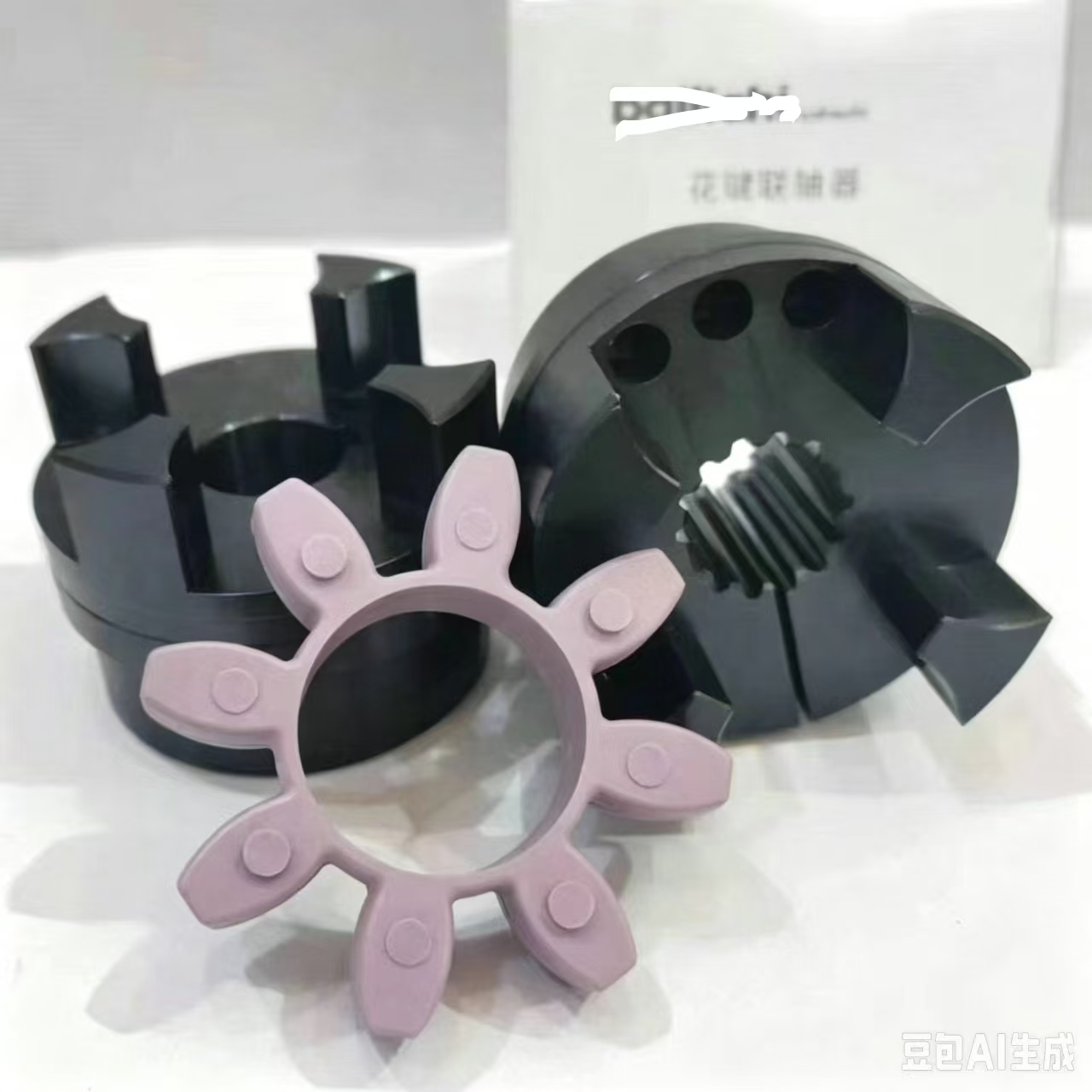

Clamping‑type Flexible Coupling

Product Overview

The Clamping‑type Flexible Coupling is a high‑performance shaft connection accessory widely adopted in industrial hydraulic system and all kinds of hydraulic‑driven Machine. As a precise power‑transmission component, it connects the drive shaft of electric motor and the input shaft of hydraulic pump, and is usually installed inside the motor‑pump bell‑housing.

Different from the traditional set‑screw locking structure, this clamping‑type flexible coupling adopts hoop‑clamping design, which tightly grips two shafts by radial tightening force. The built‑in elastomeric spider insert provides flexible buffering, compensates for minor radial, axial and angular shaft misalignment, absorbs vibration and shock loads during operation, reduces transmission noise, and protects the motor, pump and other key parts from overload damage. It delivers reliable power transmission performance for hydraulic power‑pack units, hydraulic stations and automation equipment.

Technical Specifications

‑ Product Name: Clamping‑type Flexible Coupling

‑ Main Body Material: High‑strength aluminum alloy / alloy steel

‑ Elastic Insert Material: Polyurethane (PU)

‑ Locking Method: Clamping‑hoop friction locking (no‑set‑screw)

‑ Connection Form: Clamp hub on both sides

‑ Feature: Tool‑free convenient installation, zero‑clearance torque transmission, vibration‑damping, misalignment compensation, high concentricity, long service life, suitable for high‑speed rotation of hydraulic Machine.

Working Principle

One hub of the clamping‑type flexible coupling is mounted on the motor drive shaft, and the other hub is fixed on the shaft of the hydraulic pump. Two hubs are connected through the elastic spider insert in the middle. Tighten the clamping bolts to produce radial shrinkage force, so that the coupling hubs are firmly locked on both shafts without slipping.

When the motor runs, torque is transmitted from motor shaft to pump shaft through the coupling. The elastic insert absorbs vibration, shock and slight shaft offset generated during operation, avoiding rigid friction between shafts. If the elastic insert is worn or the clamping force is insufficient, slippage, abnormal noise and vibration will occur, which will damage the whole hydraulic system. Replacing a qualified clamping‑type flexible coupling can restore stable power transmission.

Core Advantages

1. Clamping‑hoop locking design realizes zero‑clearance torque transmission, effectively prevents shaft slippage, far better locking effect than set‑screw‑type coupling.

2. Flexible polyurethane insert provides excellent vibration‑damping and shock‑absorbing performance, greatly lowering running noise of the hydraulic system.

3. It can compensate small radial, axial and angular misalignment between motor shaft and hydraulic pump shaft, reducing bearing wear of both sides.

4. Light‑weight aluminum‑alloy hub features low rotational inertia, suitable for frequent start‑stop and high‑speed working conditions of industrial Machine.

5. Easy to install and disassemble, no key‑way damage to shafts, convenient for later‑period maintenance of hydraulic power‑pack.

Application Range

Clamping‑type Flexible Coupling is a vital transmission part between electric motor and hydraulic pump in the hydraulic system. It is widely used for hydraulic power‑pack, hydraulic station, injection molding machine, hydraulic press, automated production line, material‑handling machinery and other industrial hydraulic‑driven Machine. Perfect matching accessory for motor‑pump bell‑housing assembly.
