DIN41612 Vertical Half C Female Connector

DIN41612 Vertical Half C Female Connector

5 week ago

2 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures DFS XX XXX 312 series DIN41612 vertical female type half C connectors to deliver stable power and signal interconnection for printed circuit board assembly complying with drawing dimensional tolerances to ensure precise through hole soldering and reliable mating performance with matching DIN series male plugs. This half C female connector uses brass contacts with multiple plating alternatives including gold flash various thickness gold or tin over nickel finishes, its insulator adopts PBT plus 30 percent glass fiber material with UL94V 0 flame retardant grade. It supports diverse contact counts of 16P 24P 32P 48P and abundant termination tail options, features 2.0 Amp rated current, 1000V AC one minute withstanding voltage, maximum 20 milliohms contact resistance and minimum 1000 megaohms insulation resistance under DC 100V, operating temperature ranges from minus 55 degree Celsius to plus 105 degree Celsius and satisfies RoHS and HSF environmental standards. It supports manual assembly and automated high volume soldering operations. This DIN female connector is widely used in industrial backplane systems, industrial control cabinets, communication facilities and precision test measuring instruments. Operators shall select suitable contact number tail style contact plating and row configuration for practical projects, follow official PCB layout for through hole soldering, control soldering temperature to prevent insulator damage and store finished goods in dry sealed packages to avoid brass contact oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk carries out full in house manufacturing workflow covering independent plastic and metal mold development, brass contact high speed stamping, glass fiber reinforced PBT injection molding and multi grade electroplating plus comprehensive laboratory reliability verification. We obtain ISO9001 ISO14001 IATF16949 and UL E472792 certifications complying with REACH rules, own more than two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide customized solutions and round the clock engineering support, and over seventy percent of our connector products are exported worldwide with stable ANTENK brand mass‑production quality.

1. Vertical DIN Female Socket achieves upright PCB mounting to save horizontal space for industrial backplane equipment.

2. GF Filled Female DIN Socket delivers enhanced mechanical strength for long‑term harsh industrial working scenarios.

3. Brass Contact DIN Socket guarantees stable power and signal transmission under wide temperature variation conditions.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: DIN41612 vertical female type half C connector

1.2 Available contact counts: 16P, 24P, 32P, 48P

1.3 Termination tail options: multiple straight solder tail and wrap post tail with different height dimensions

1.4 Contact row configuration options: A, C, D1, D, F1, F

1.5 Contact pitch: 2.54 mm and 5.08 mm optional

1.6 Mating force: Max 45N for 48‑position model; minimum 0.15N withdrawal force for each single contact

1.7 Dimension unit: millimeter, follow official recommended PCB layout for board design

2. Material & Surface Plating

2.1 Contact material: Brass

2.2 Contact plating options: gold flash, multiple thickness gold over nickel, tin over nickel

2.3 Insulator material: PBT plus 30% glass fiber, UL94V‑0 flame retardant grade

3. Electrical Parameters

3.1 Rated current: 2.0 Amp

3.2 Withstanding voltage: 1000V AC for 1 minute

3.3 Maximum contact resistance: 20 milliohms

3.4 Minimum insulation resistance: 1000 MΩ under DC 100V

3.5 Operating temperature range: ‑55 °C to +105 °C

4. Compliance Standard

4.1 Environmental compliance: RoHS, Pb‑free and HSF compliant

5. Mounting Method

5.1 Assembly mode: Vertical through‑hole soldering onto printed circuit board

5.2 Adopt the provided recommended PCB layout for pad and hole designing

6. Application Scenarios

6.1 Industrial backplane interconnection systems

6.2 Industrial control cabinet equipment

6.3 Communication hardware devices

6.4 Precision test and measurement instruments

7. Operation & Storage Precautions

7.1 Select proper contact count tail type contact plating and row configuration for real‑world projects

7.2 Comply with drawing PCB layout requirements for through‑hole soldering process

7.3 Control soldering temperature to avoid thermal damage to glass‑fiber reinforced PBT insulator

7.4 Keep finished connectors in dry sealed packages to prevent oxidation of brass contacts

7.5 Operate within specified insertion and withdrawal force range during mating cycles

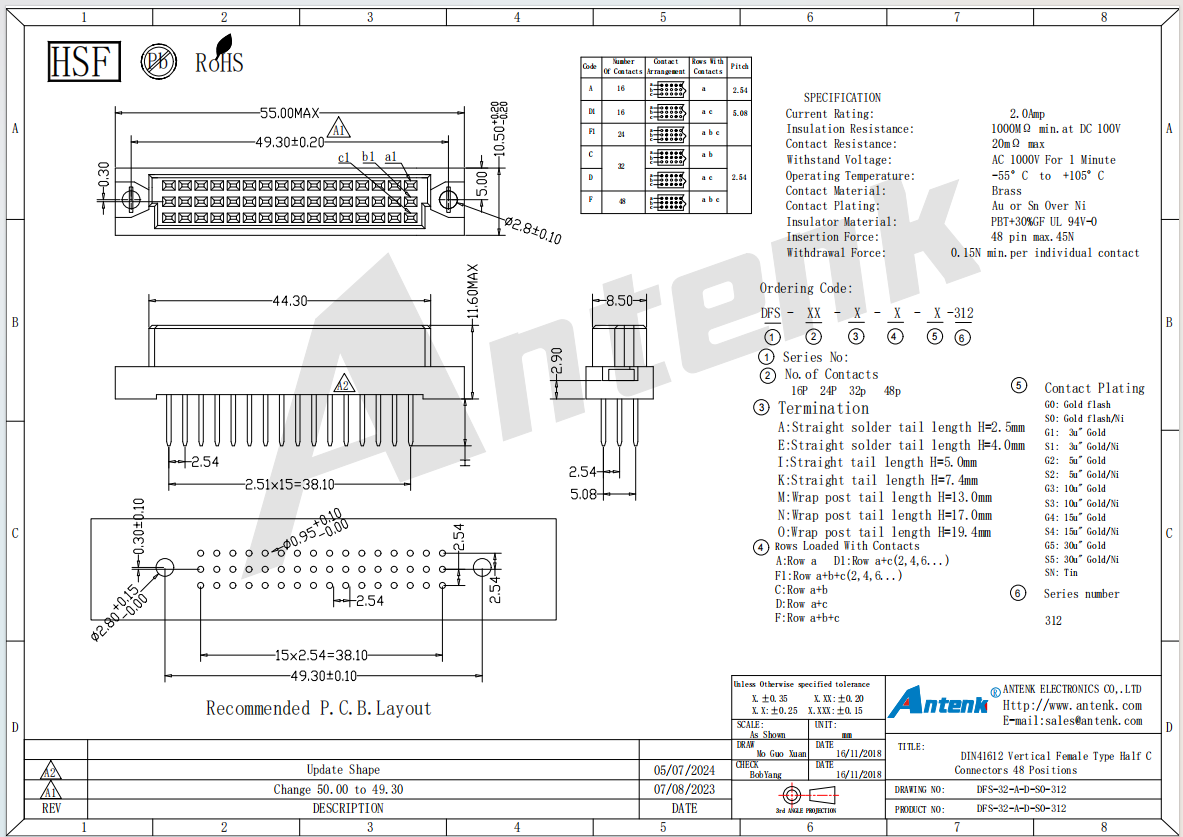

Product Drawing：

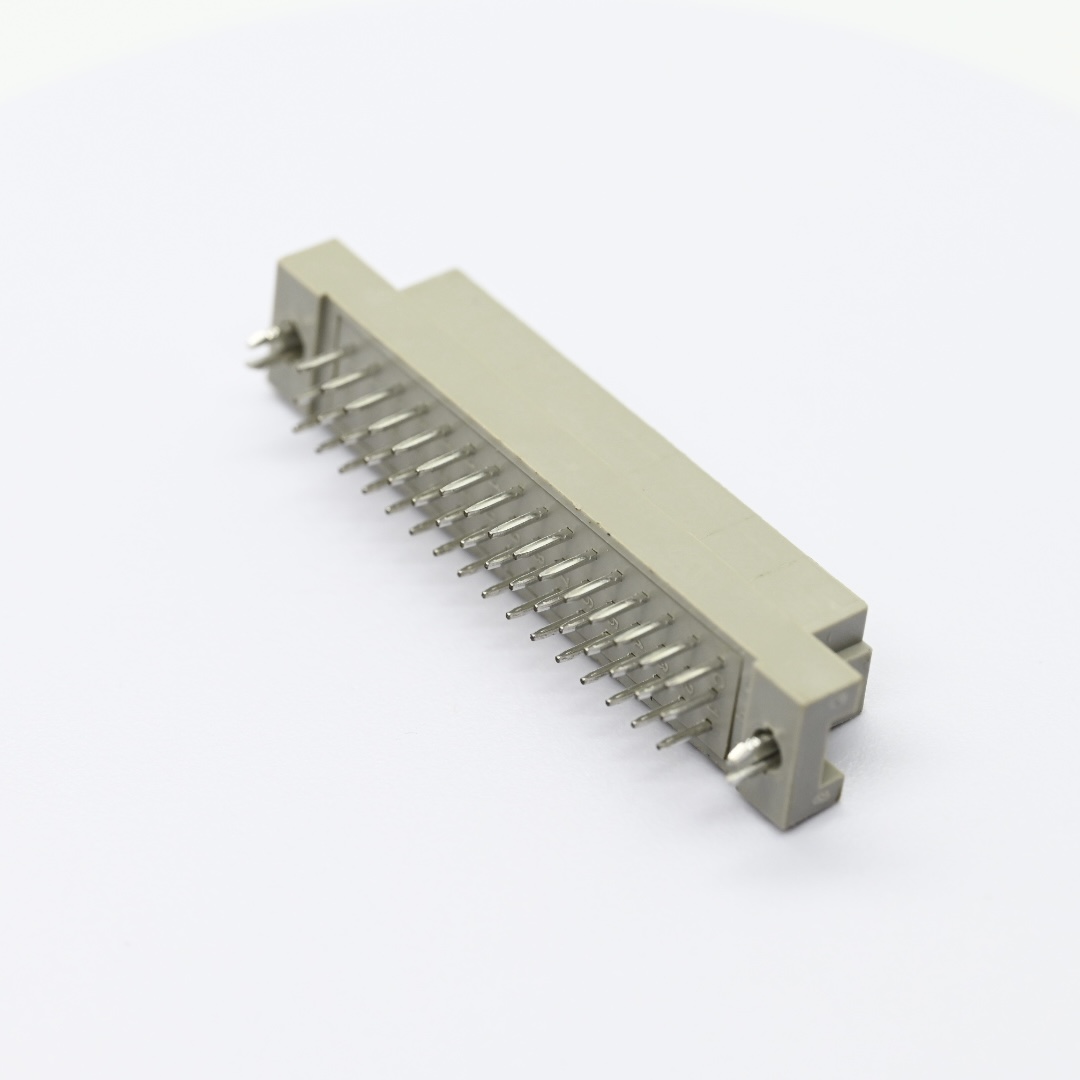

DFS-48P-E-F-S0-312+DIN41612 Vertical Female Type Half C Connectors 48 Positions（3）

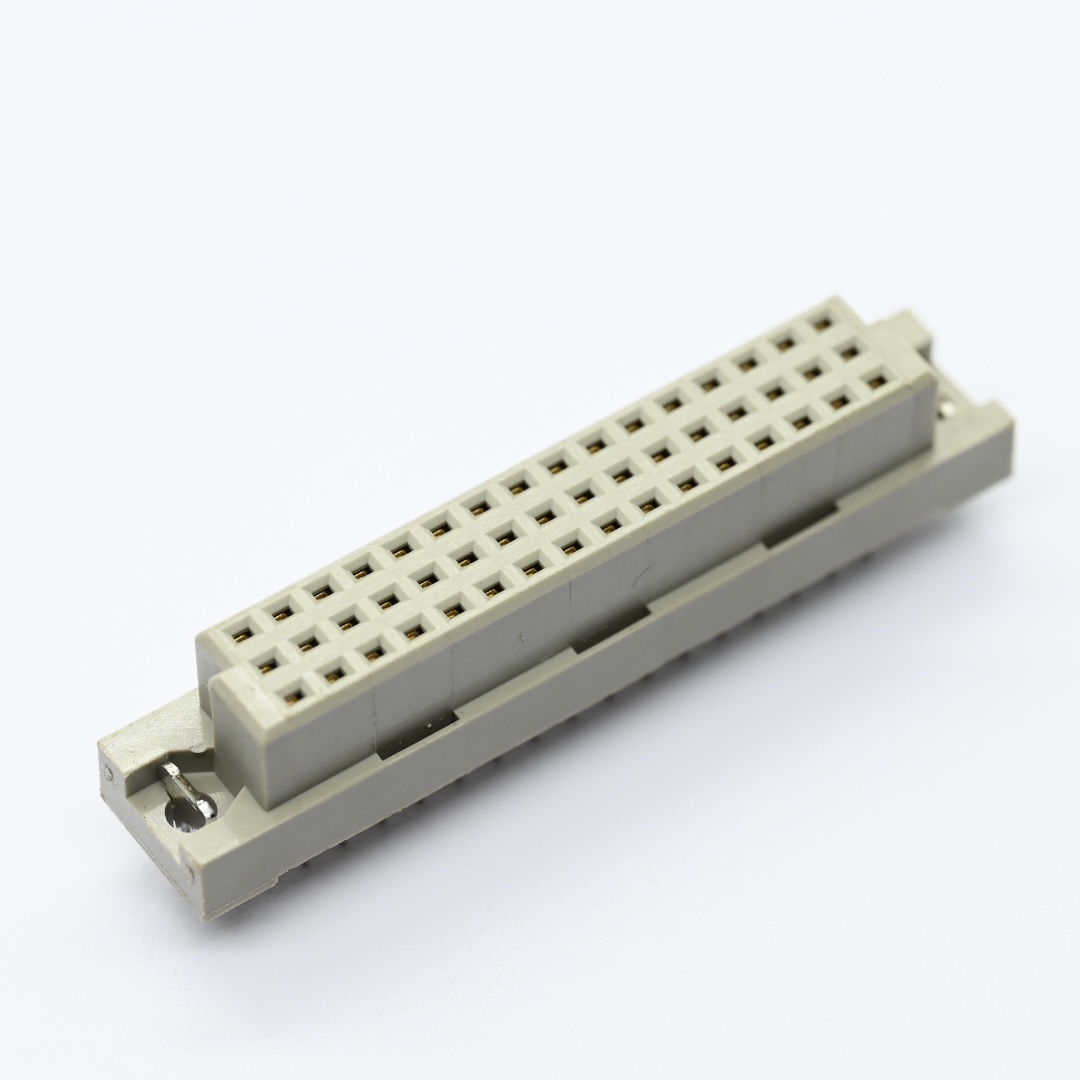

DFS-48P-E-F-S0-312+DIN41612 Vertical Female Type Half C Connectors 48 Positions（4）

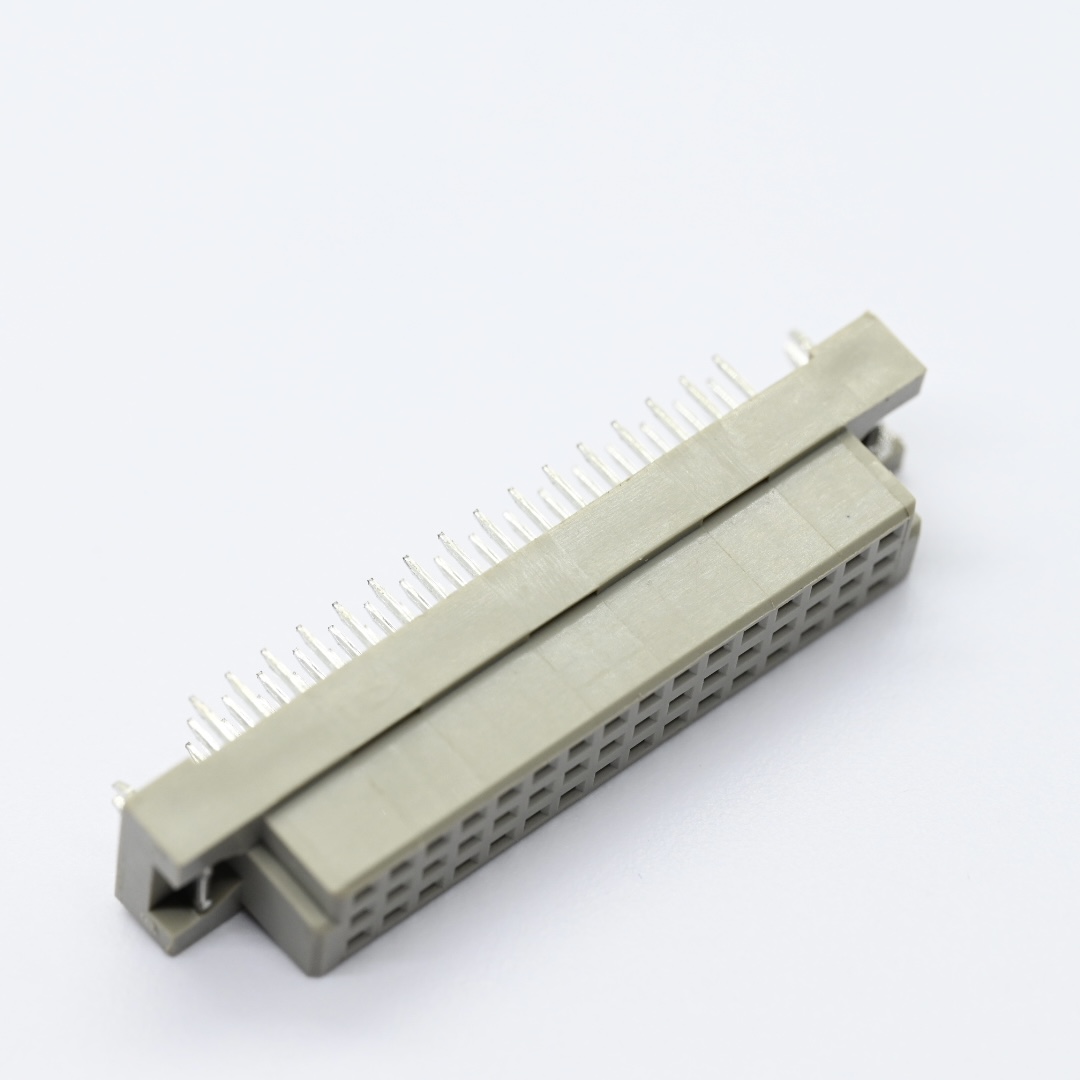

DFS-48P-E-F-S0-312+DIN41612 Vertical Female Type Half C Connectors 48 Positions（6）

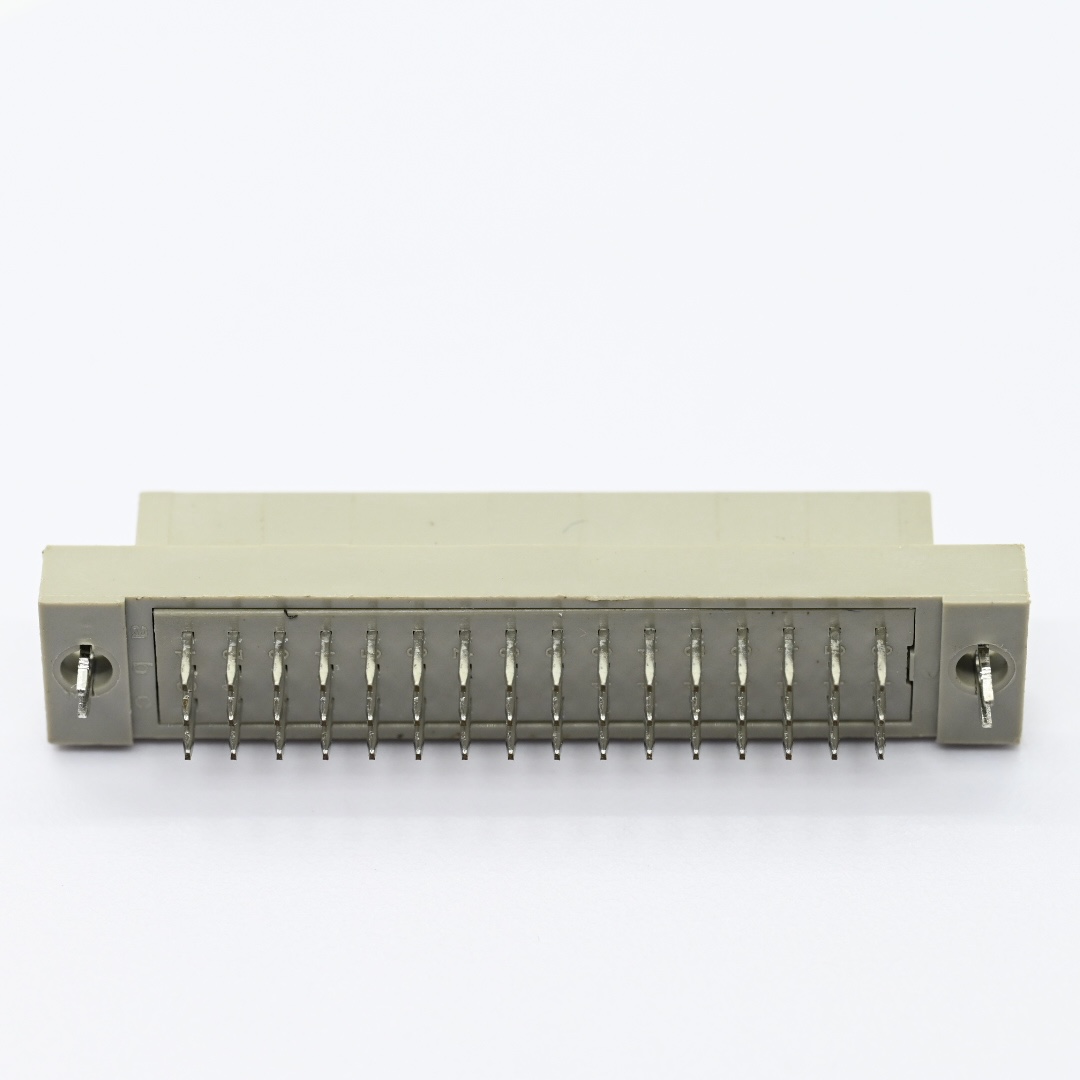

DFS-48P-E-F-S0-312+DIN41612 Vertical Female Type Half C Connectors 48 Positions（1）

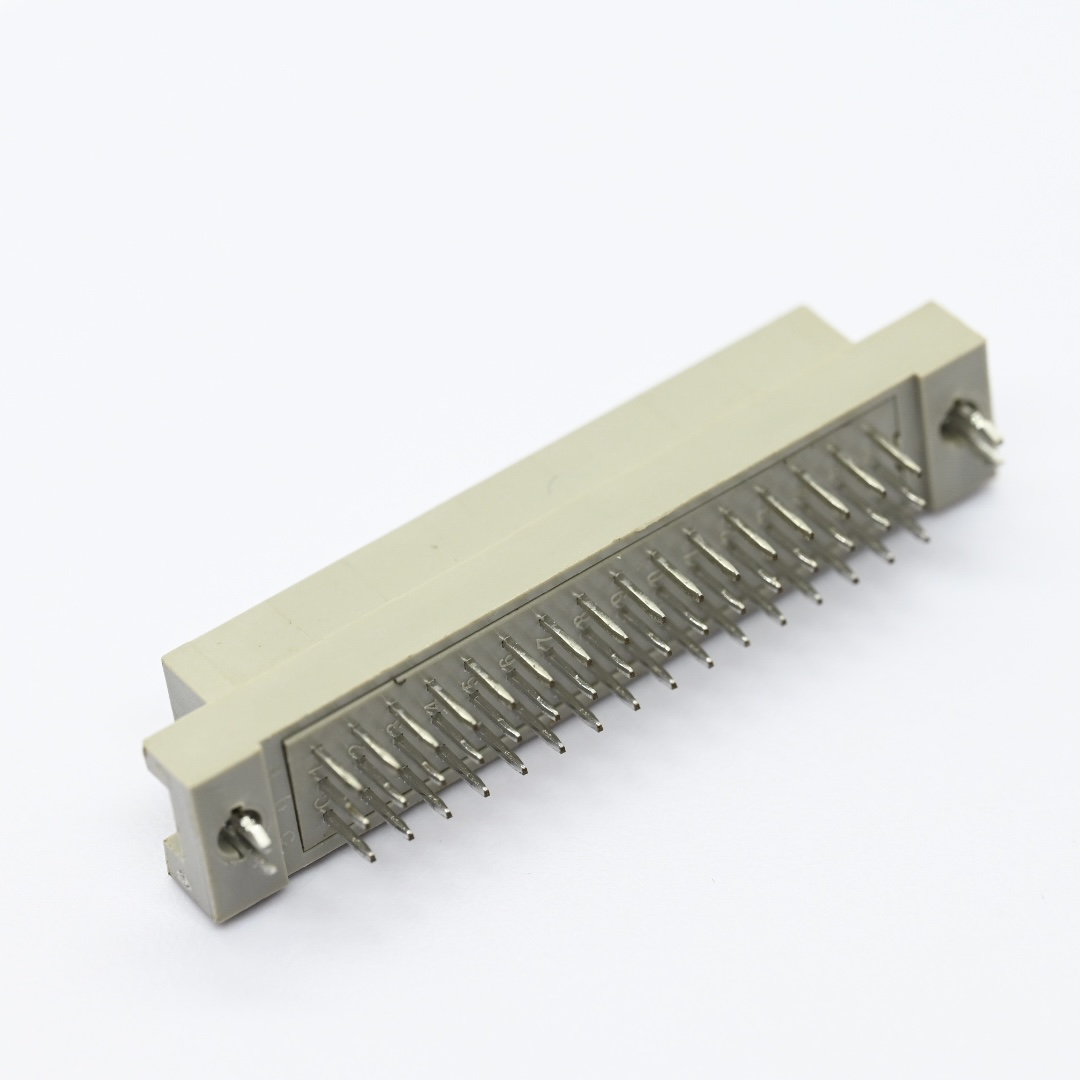

DFS-48P-E-F-S0-312+DIN41612 Vertical Female Type Half C Connectors 48 Positions（2）

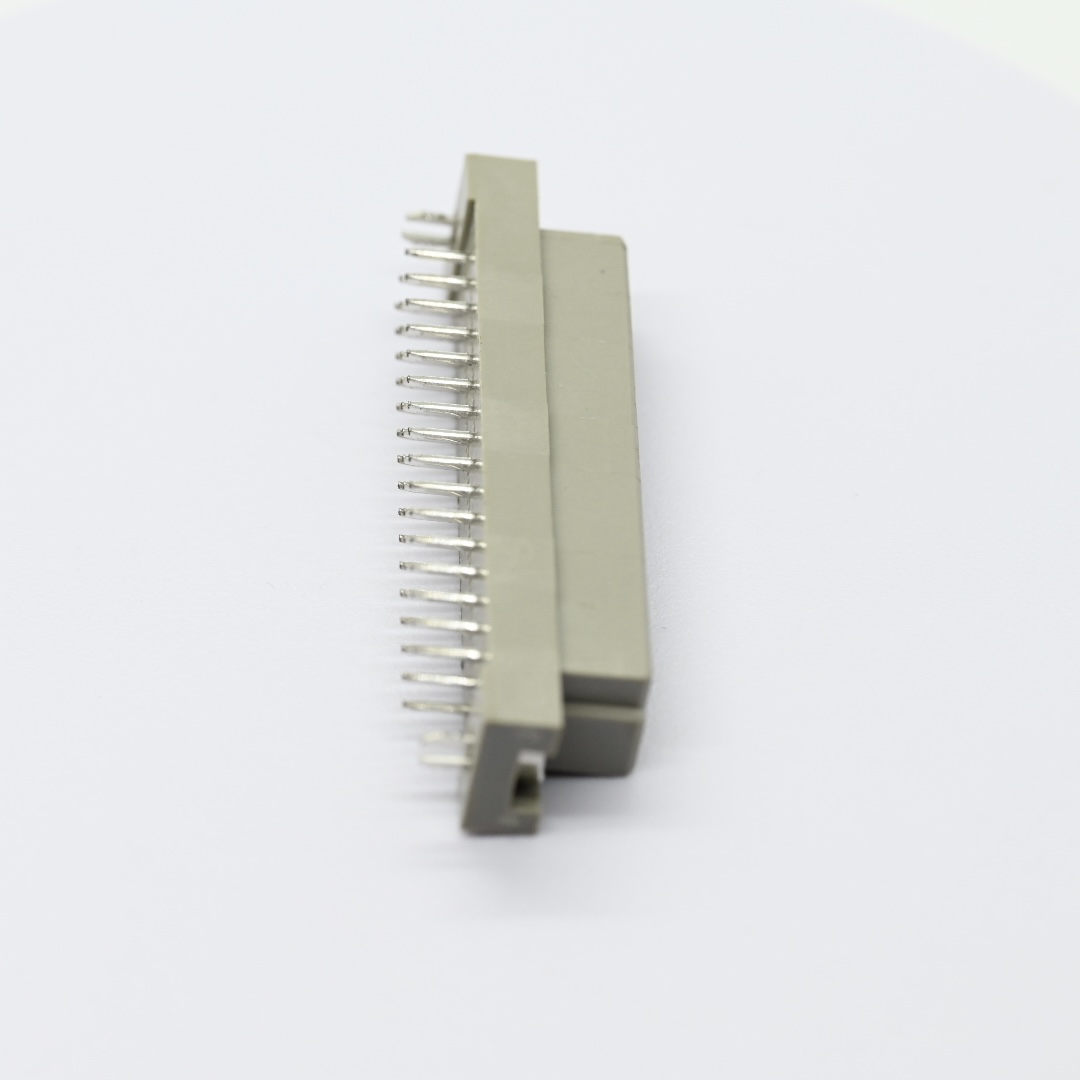

DFS-48P-E-F-S0-312+DIN41612 Vertical Female Type Half C Connectors 48 Positions（5）
