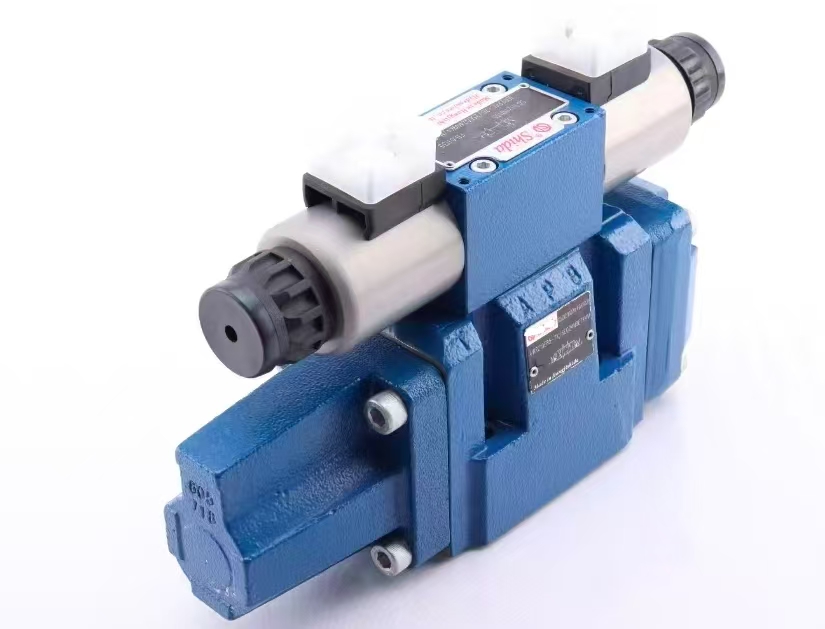

4WRZ(E)-7X Proportional Directional Valve
Product Overview
4WRZ(E)-7X is a high‑performance pilot‑operated electro‑hydraulic Hydraulic valve, widely used for flow and direction regulation in complex industrial hydraulic system and heavy‑duty automatic Machine.
As a two‑stage proportional directional control valve, 4WRZ version requires separate external amplifier, while 4WRZE is equipped with built‑in on‑board electronics (OBE). It converts electric control signals into infinitely‑variable hydraulic output, continuously adjusting the flow rate and movement direction of hydraulic actuators such as hydraulic cylinders and hydraulic motors. This precise‑control Hydraulic valve enables stepless speed regulation, smooth acceleration‑deceleration and shock‑free switching for the whole hydraulic system, greatly improving running accuracy, stability and automation level of your industrial Machine. It is an ideal control component for high‑precision hydraulic stations, metallurgical equipment, plastic machinery and engineering machinery.
Technical Specifications
‑ Model Series: 4WRZ‑7X, 4WRZE‑7X
‑ Product Type: Pilot‑operated electro‑hydraulic proportional directional Hydraulic valve
‑ Nominal Sizes: NG10, NG16, NG25, NG32, NG40, NG52
‑ Max working pressure: 350 bar
‑ Rated flow range: Up to 2800 L/min
‑ Mounting form: Sub‑plate mounting, installation dimensions comply with ISO 4401 standard
‑ Spool function: 4/2‑way, 4/3‑way, spring‑centered
‑ Solenoid: Detachable wet‑pin DC proportional solenoid
‑ Control Mode: 4WRZ: External amplifier control; 4WRZE: Integrated on‑board electronics control
‑ Working medium: Anti‑wear hydraulic oil for industrial hydraulic system
‑ Oil temperature: ‑20℃ ~ +80℃
‑ Feature: High control precision, smooth response, low‑noise operation, strong anti‑pollution ability, long‑term stable performance for heavy‑load Machine
Working Principle
The 4WRZ(E)-7X proportional directional Hydraulic valve consists of a 3‑way pressure‑reducing pilot valve and a main spool valve. After receiving the electric control signal, the proportional solenoid drives the pilot valve to output pilot pressure in proportion to the input signal. The pilot pressure pushes the main spool to move, changing the opening size and flow direction of the main valve port. By adjusting spool displacement, the flow output can be steplessly changed, so as to control the movement speed and direction of actuators in the hydraulic system.
Worn spool, damaged proportional solenoid or failed amplifier will cause unstable speed, slow response, vibration or crawling phenomenon of the Machine. Replacing a qualified 4WRZ(E)-7X proportional directional valve can restore precise regulation performance of the whole hydraulic circuit.
Core Advantages
1. Infinitely‑variable proportional regulation realizes stepless speed control, effectively eliminating impact during start‑stop and direction switching of the hydraulic system.
2. Two‑stage pilot‑operated structure supports large‑flow high‑pressure output, suitable for heavy‑load high‑power industrial Machine.
3. Two optional electric control schemes: external amplifier (4WRZ) and integrated electronics (4WRZE), flexible for different control cabinet layouts.
4. Standard ISO sub‑plate installation, good interchangeability, convenient for on‑site replacement and maintenance of existing hydraulic system.
5. High‑precision‑machined valve spool‑sleeve pair, low friction and high repeat accuracy, ensuring long‑term reliable operation of the Hydraulic valve.
Application Range
4WRZ(E)-7X proportional directional Hydraulic valve is a core control component of closed‑loop and open‑loop industrial hydraulic system. It is widely applied to hydraulic presses, injection molding machines, metallurgical machinery, rotary drilling rigs, material‑handling equipment, test benches and other automated hydraulic‑driven Machine. Suitable for hydraulic‑system integrators, equipment‑manufacturing factories, maintenance workshops and global spare‑parts distributors.
