DIN41612 Angled M Type Male Power Terminal

DIN41612 Angled M Type Male Power Terminal

4 week ago

2 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures CP12M 40A XX 041 series DIN41612 M type male power terminals for angled solder installation to deliver reliable high current power transmission for printed circuit board assembly complying with drawing dimensional tolerances to guarantee accurate PCB hole matching and stable mating performance with matching female power contacts. This angled male power terminal adopts copper alloy contact material with multiple plating selections including gold flash various thickness gold or tin over nickel finishes. It supports maximum 40 Amp contact current rating and follows specified PCB layout for through hole soldering processing, and conforms to RoHS and HSF environmental standards to fit manual assembly and automated mass‑production workflows. This power terminal is widely applied in industrial backplane systems, industrial control cabinets, power supply units and heavy‑duty precision measuring instruments. Operators need to select suitable contact plating grade for practical projects, strictly follow official recommended PCB layout for angled through hole soldering, control soldering temperature to avoid plating layer damage and store finished terminals inside dry sealed packages to prevent copper alloy contact oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk completes full in house manufacturing workflow covering independent metal mold development, copper alloy high speed stamping and multi grade electroplating plus comprehensive laboratory reliability verification. We hold ISO9001 ISO14001 IATF16949 and UL E472792 certifications compliant with REACH rules, own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom solutions and round the clock engineering support, and over seventy percent of our connector products are exported worldwide supported by stable ANTENK brand mass‑production quality.

1. Angled Power Terminal enables space saving angled through hole soldering for industrial backplane power connection scenarios.

2. Copper Alloy Terminal offers excellent electrical conductivity and mechanical strength for heavy‑duty power transmission applications.

3. High Current Male Terminal sustains up to 40 Amp load to satisfy high power demands of industrial control equipment.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: DIN41612 M type male power terminal with angled solder structure

1.2 Key dimension unit millimeter: overall length 17.70±0.30, core feature dimensions 6.40±0.10, 3.60⁺⁰·²⁰₋₀·₀₅

1.3 PCB mounting: Angled through hole soldering, follow recommended PCB layout with hole size 4.30±0.05

1.4 General tolerance rule: Spec tolerance values apply if marked; otherwise follow drawing default tolerance standard

2. Material & Surface Plating

2.1 Contact material: Copper alloy

2.2 Contact plating options: gold flash, multiple thickness gold over nickel, tin over nickel

3. Electrical Parameters

3.1 Maximum contact current rating: 40 Amp

4. Compliance Standard

4.1 Environmental compliance: RoHS and HSF compliant

5. Mounting Method

5.1 Assembly mode: Angled through‑hole soldering onto printed circuit board

5.2 Strictly adopt official recommended PCB layout for hole dimension design

6. Application Scenarios

6.1 Industrial backplane interconnection systems

6.2 Industrial control cabinet power modules

6.3 Industrial power supply units

6.4 Heavy‑duty precision measuring instruments

7. Operation & Storage Precautions

7.1 Select proper contact plating grade in accordance with actual project requirements

7.2 Use the designated PCB hole dimension for angled through‑hole soldering

7.3 Control soldering temperature to prevent damage to surface plating layers

7.4 Store finished terminals in dry sealed packages to avoid oxidation of copper alloy contacts

7.5 Match with corresponding female power contacts to achieve qualified mating performance

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

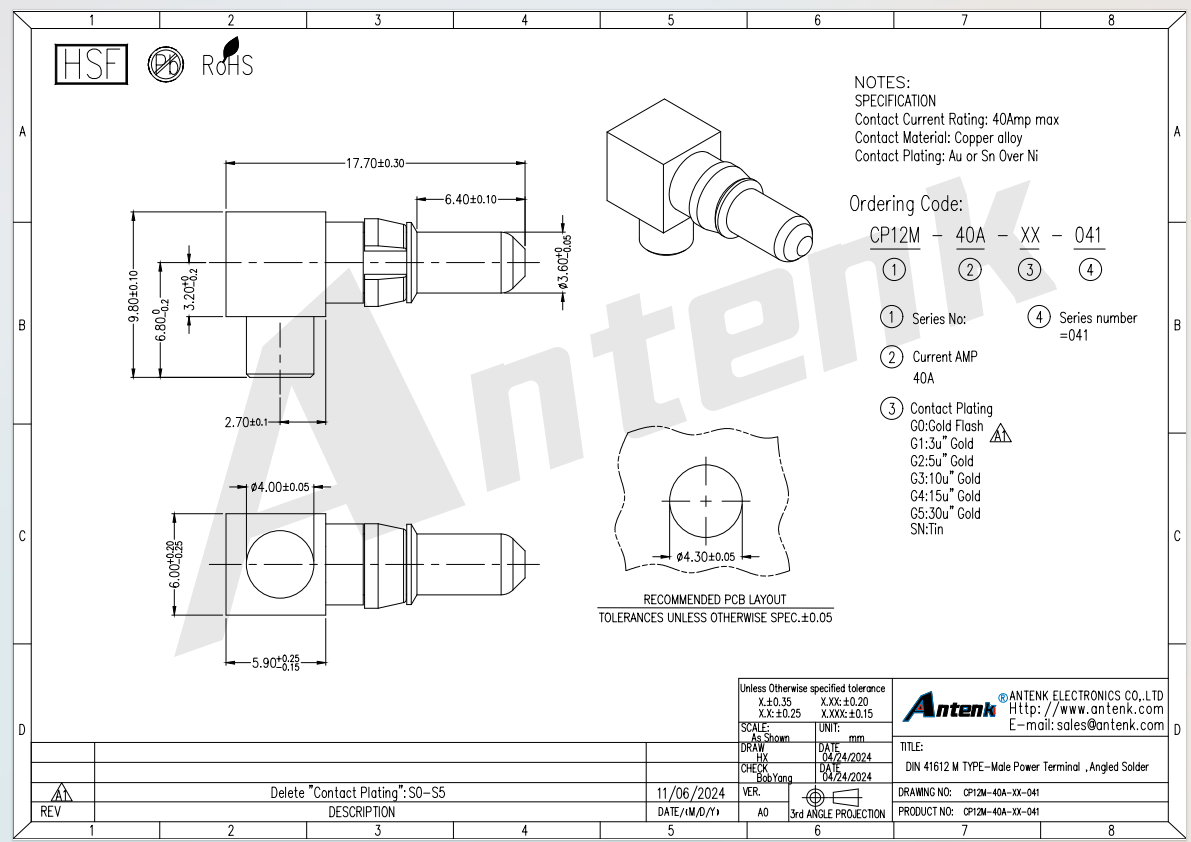

Product Drawing:

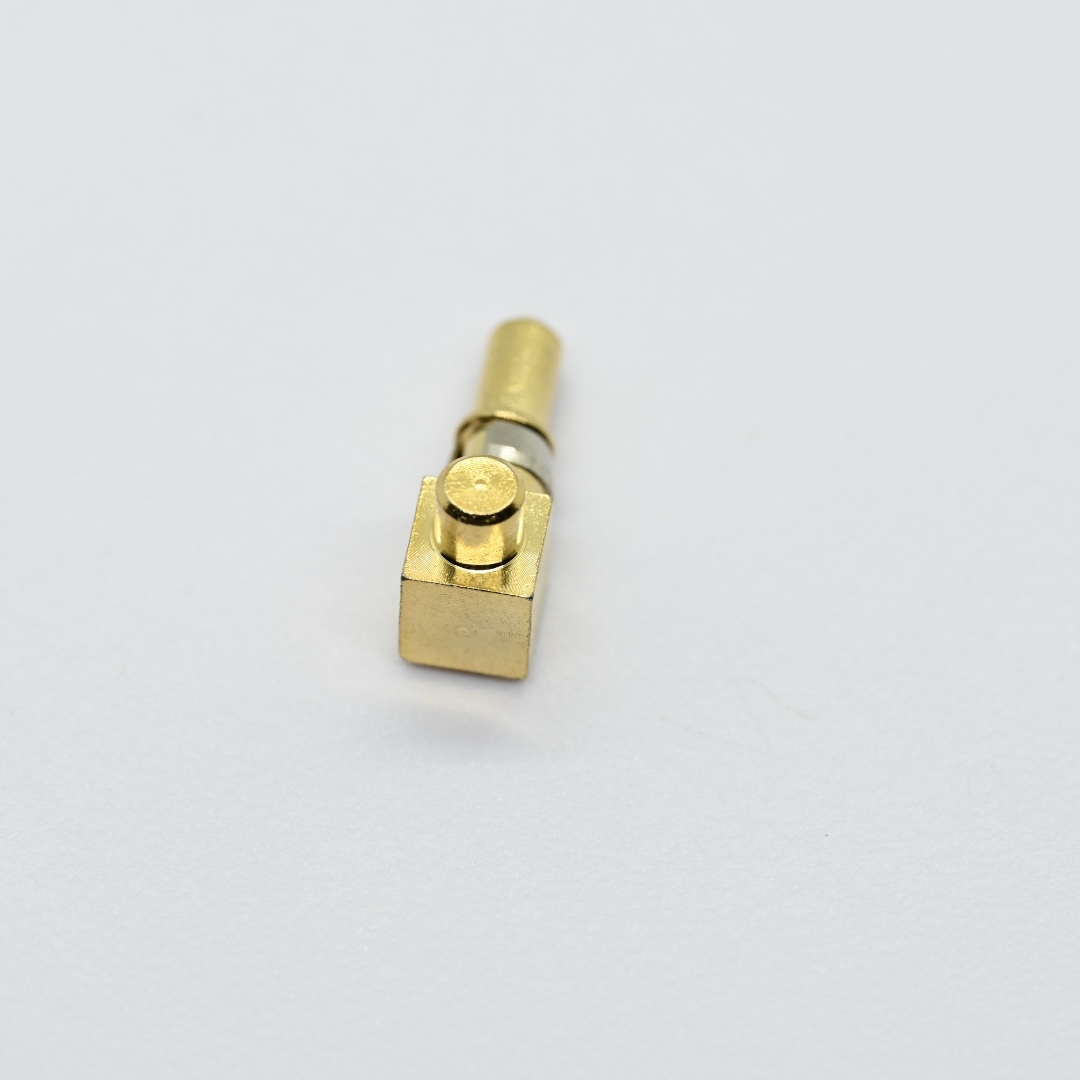

CP12M-40A-G0-041+DIN 41612 M TYPE-Male Power Terminal，Angled Solder（4）

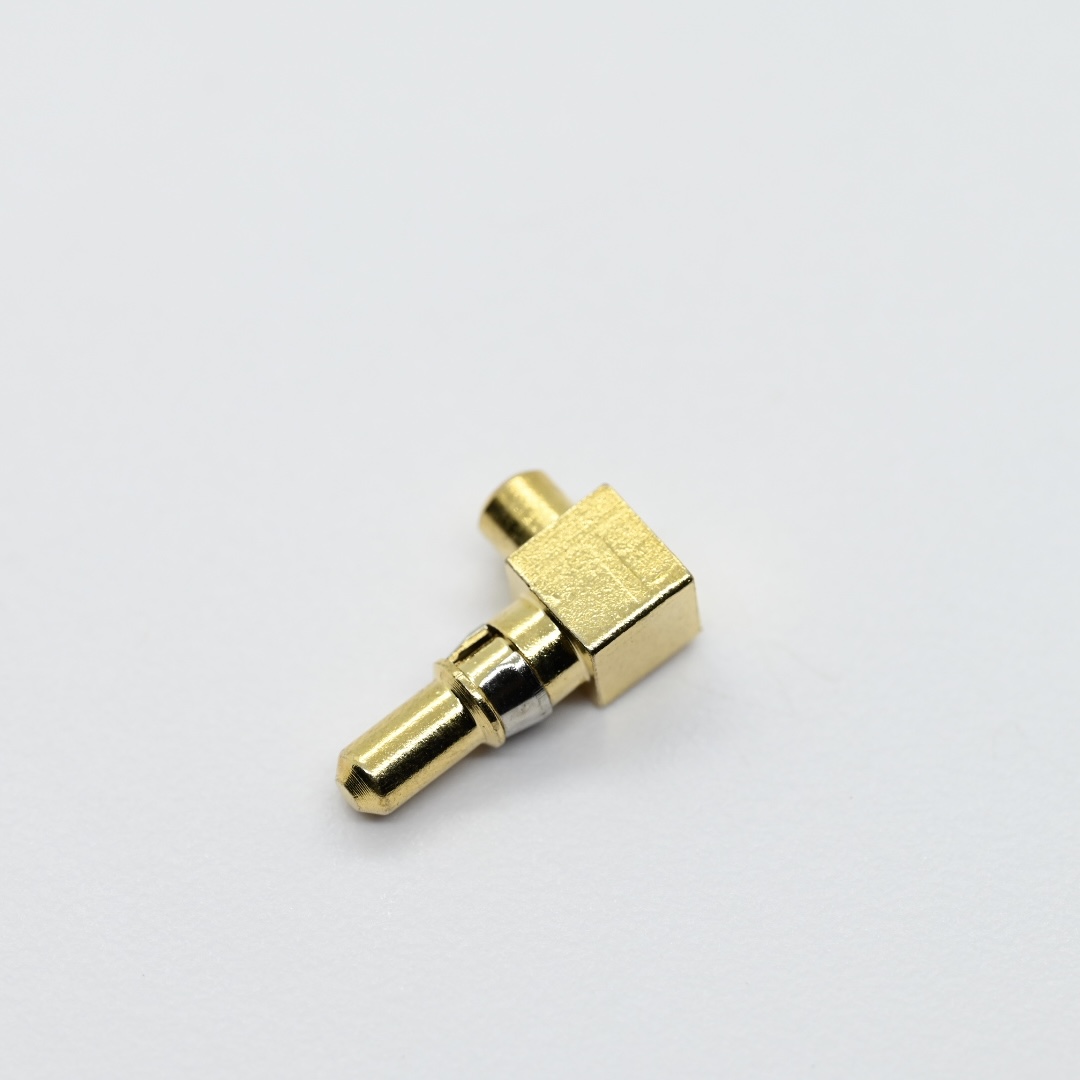

CP12M-40A-G0-041+DIN 41612 M TYPE-Male Power Terminal，Angled Solder（6）

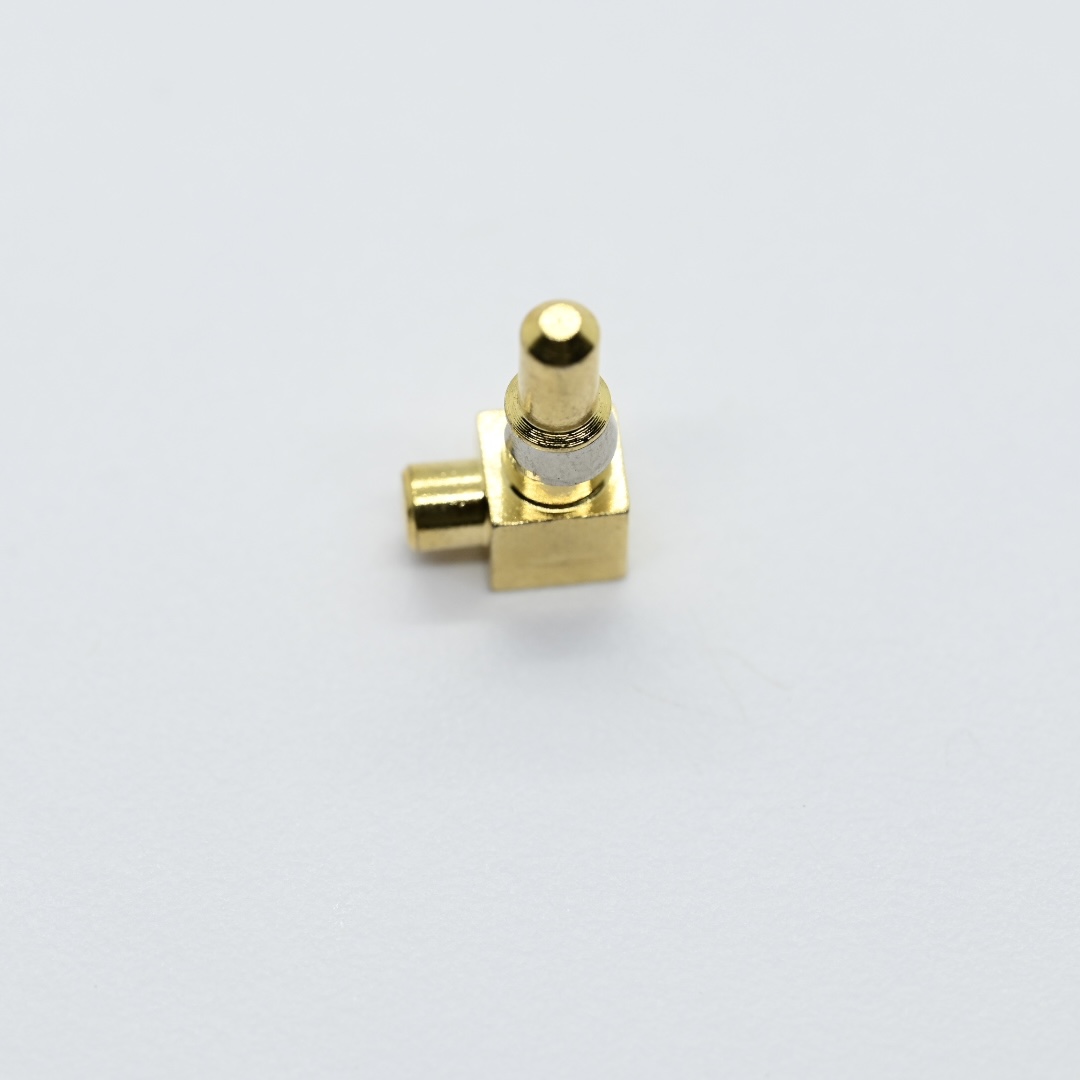

CP12M-40A-G0-041+DIN 41612 M TYPE-Male Power Terminal，Angled Solder（5）

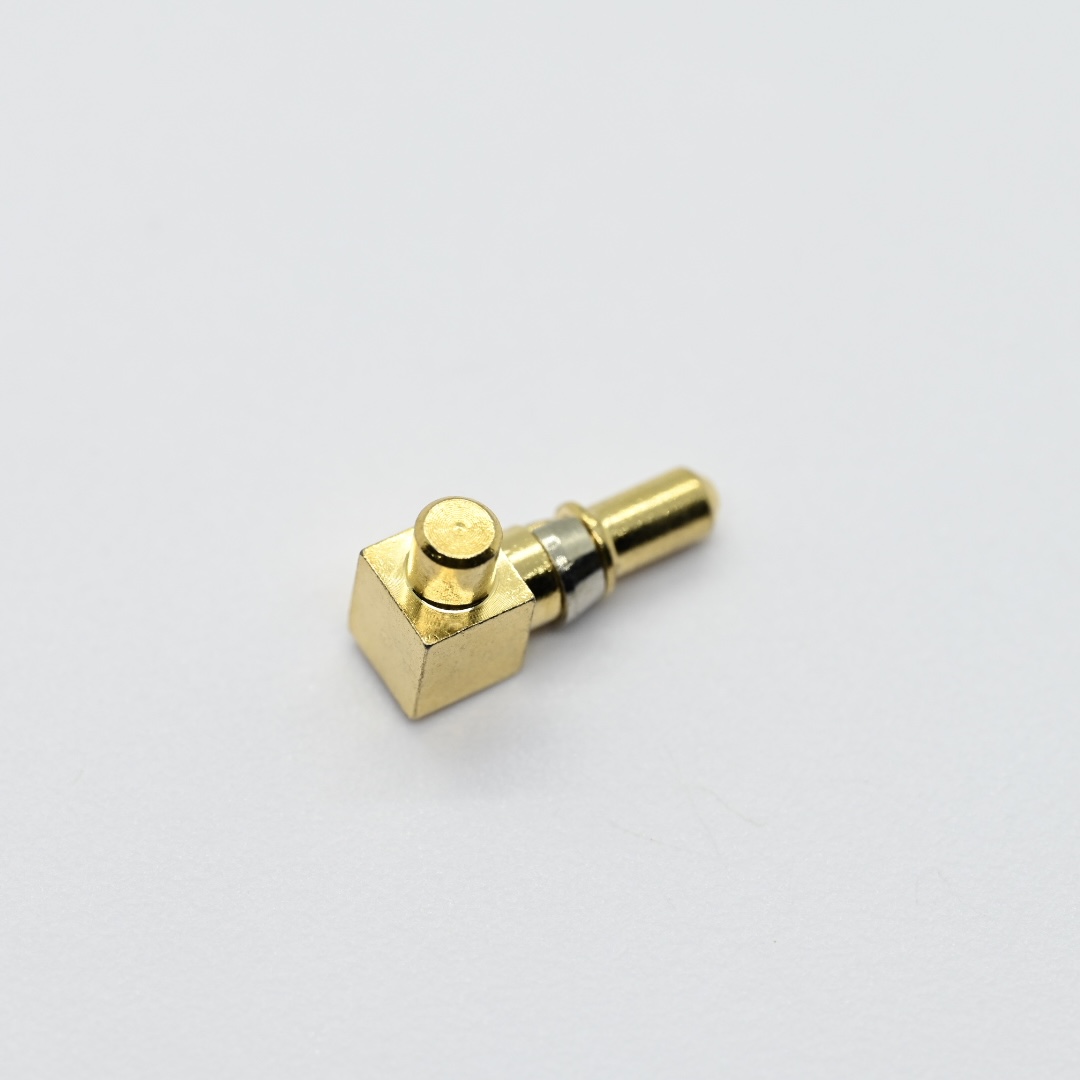

CP12M-40A-G0-041+DIN 41612 M TYPE-Male Power Terminal，Angled Solder（3）

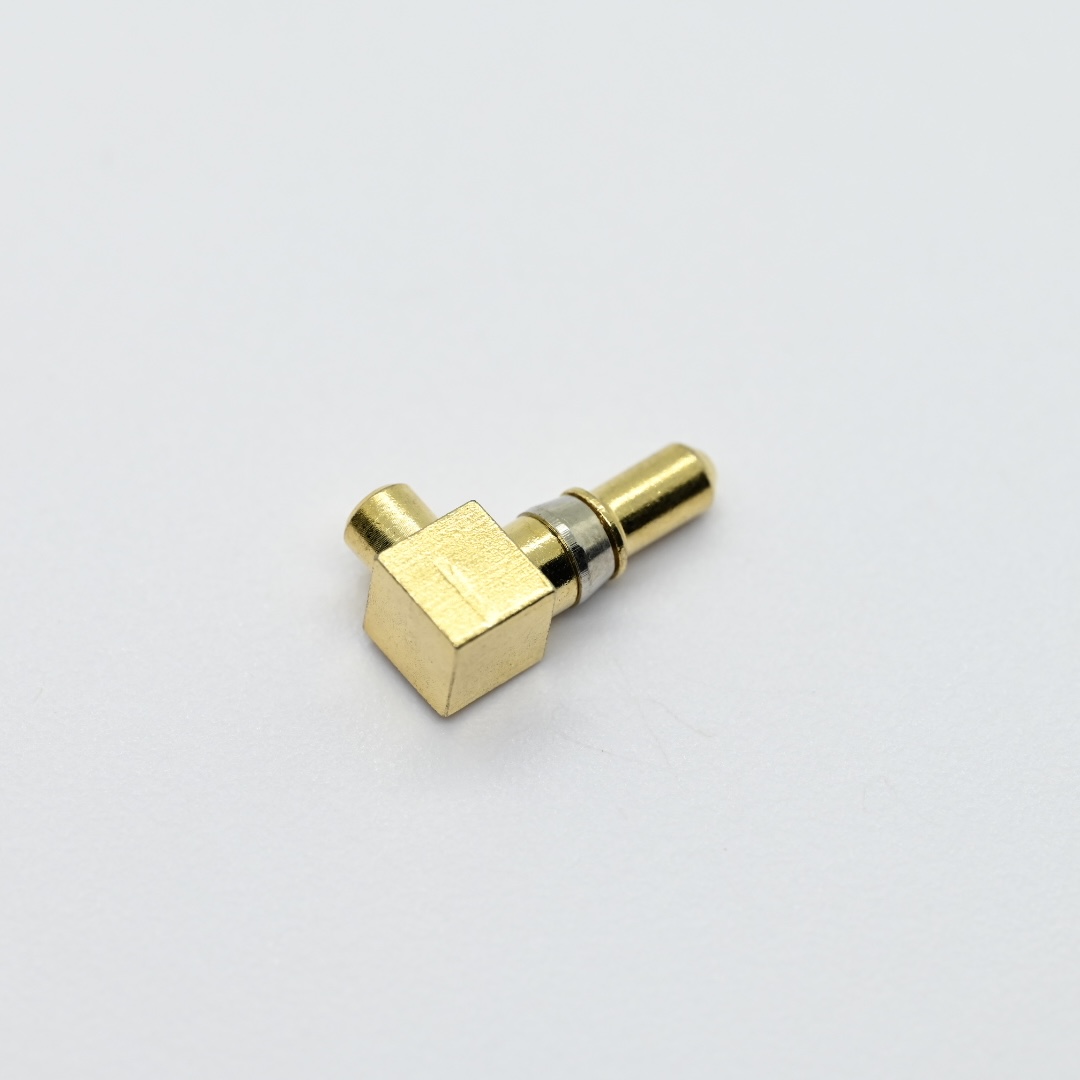

CP12M-40A-G0-041+DIN 41612 M TYPE-Male Power Terminal，Angled Solder（2）

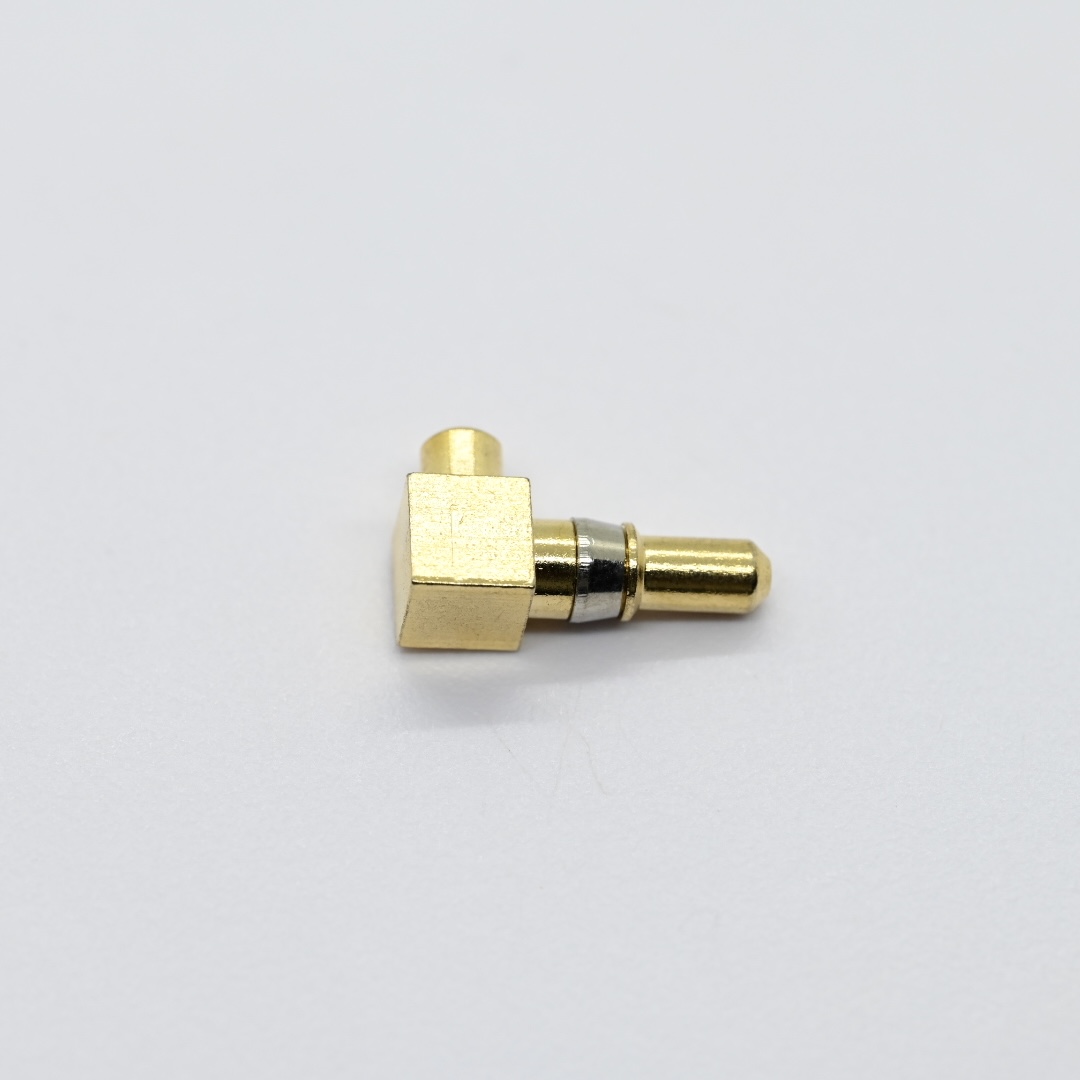

CP12M-40A-G0-041+DIN 41612 M TYPE-Male Power Terminal，Angled Solder（1）
