Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures CP12M 40A XX 051 series DIN41612 M type male power terminals for straight solder installation to deliver stable high current power transmission on printed circuit board assembly complying with strict drawing dimensional tolerances to ensure precise PCB hole alignment and reliable mating performance with matched female power contacts. This straight solder male terminal is built of copper alloy contact material with multiple plating options including gold flash varied thickness gold or tin over nickel finishes, and carries a maximum 40 Amp current rating. It is designed for standard through hole soldering and meets RoHS and HSF environmental requirements, supporting both manual assembly and large scale automated production. This power terminal is widely used in industrial backplane systems control cabinets power supply modules and heavy duty precision measuring instruments. Operators shall select appropriate contact plating according to application environment follow the official recommended 4.05 millimeter PCB hole layout control soldering temperature to prevent plating damage and store terminals in dry sealed packaging to avoid copper oxidation. Different from suppliers who outsource stamping and plating Antenk completes full in‑house production workflow including independent mold development high speed copper stamping electroplating and laboratory reliability testing. Our factory is certified with ISO9001 ISO14001 IATF16949 and UL E472792, holds abundant connector molds, provides customized services and over seventy percent of our products are exported to global markets under the trusted ANTENK brand.

1. Straight Power Terminal provides vertical through hole soldering connection for industrial printed circuit board assembly.

2. High Current Power Pin supports stable 40 Amp power transmission under heavy‑duty operating conditions.

3. Gold Flash Terminal delivers excellent oxidation resistance and reliable electrical conductivity for long‑term industrial use.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: DIN41612 M type male power terminal with straight solder structure

1.2 Mounting form: Straight through hole soldering for PCB assembly

1.3 PCB requirement: Follow official recommended PCB layout for hole dimension design

1.4 Dimension unit: millimeter, follow drawing default tolerance for all mechanical sizes

2. Material & Surface Plating

2.1 Contact material: Copper alloy

2.2 Contact plating options: gold flash, multiple thickness gold over nickel, tin over nickel

3. Electrical Parameters

3.1 Maximum contact current rating: 40 Amp

4. Compliance Standard

4.1 Environmental compliance: RoHS and HSF compliant

5. Mounting Method

5.1 Assembly mode: Straight through‑hole soldering onto printed circuit board

5.2 Adopt the official recommended PCB layout for hole and pad design

6. Application Scenarios

6.1 Industrial backplane interconnection systems

6.2 Industrial control cabinet power modules

6.3 Industrial power supply units

6.4 Heavy‑duty precision measuring instruments

7. Operation & Storage Precautions

7.1 Select proper contact plating grade based on practical project environment

7.2 Comply with drawing PCB layout requirements for straight through‑hole soldering

7.3 Control soldering temperature to avoid damage to terminal surface plating

7.4 Store finished terminals in dry sealed packages to prevent copper alloy oxidation

7.5 Match with corresponding female power contacts to achieve qualified mating performance

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

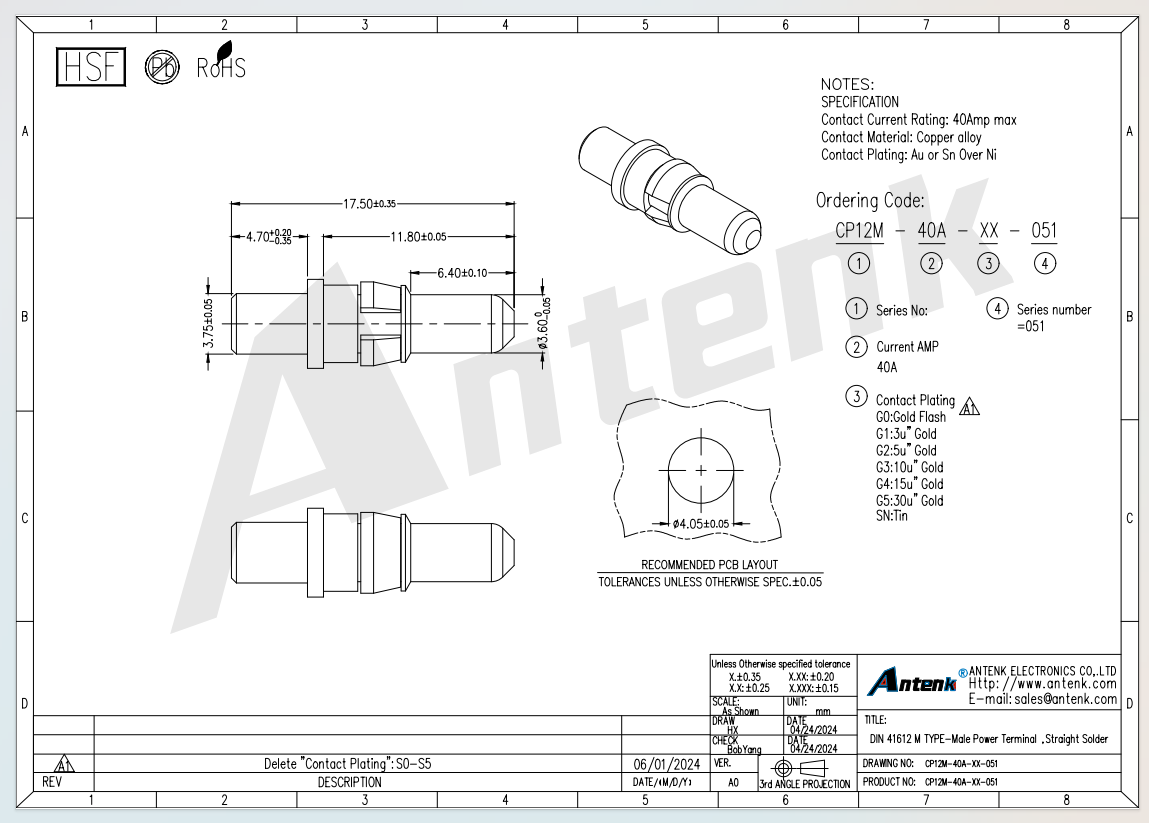

Product Drawing：

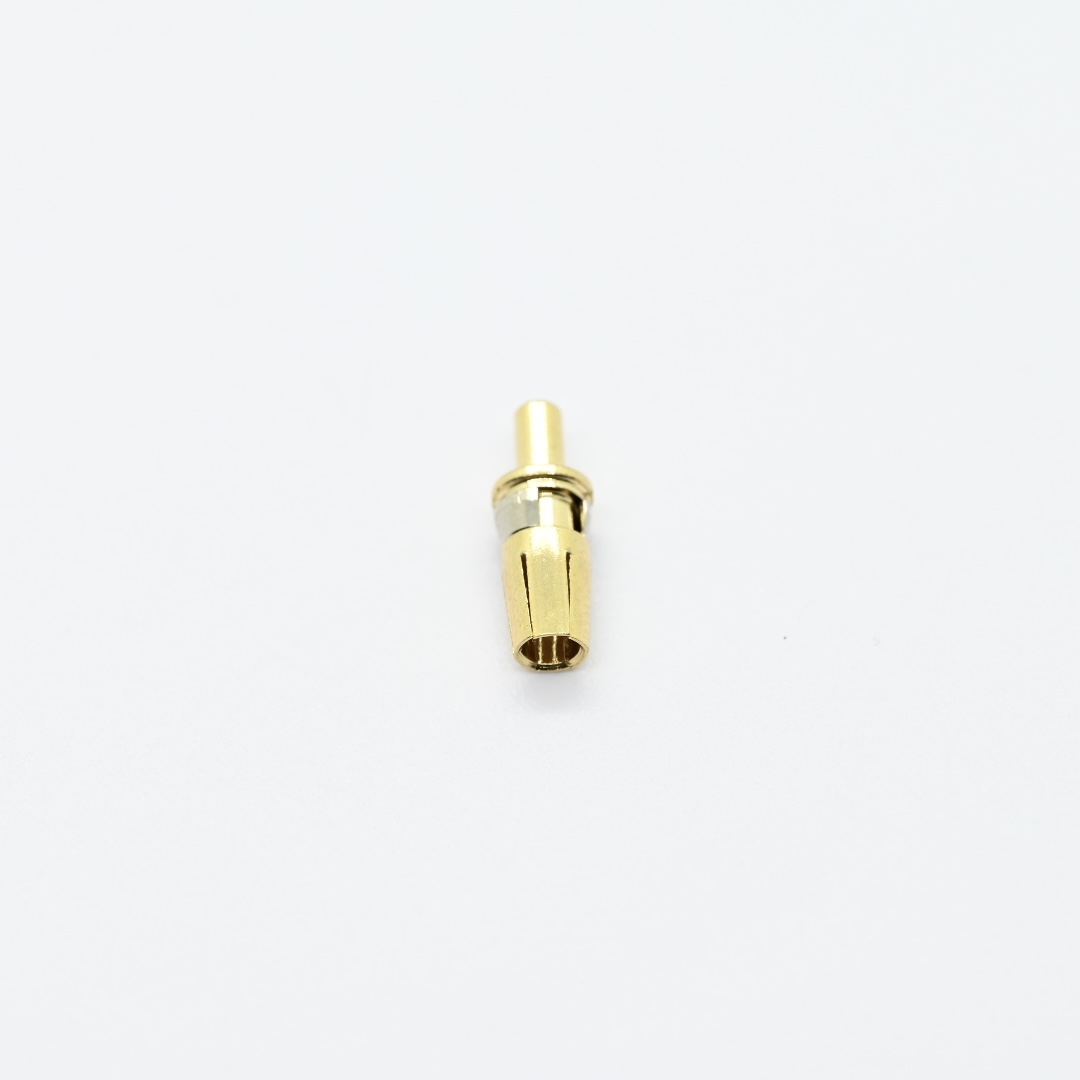

CP12F-40A-G0-051+DIN 41612 M TYPE-Male Power Terminal Straight Solder（3）

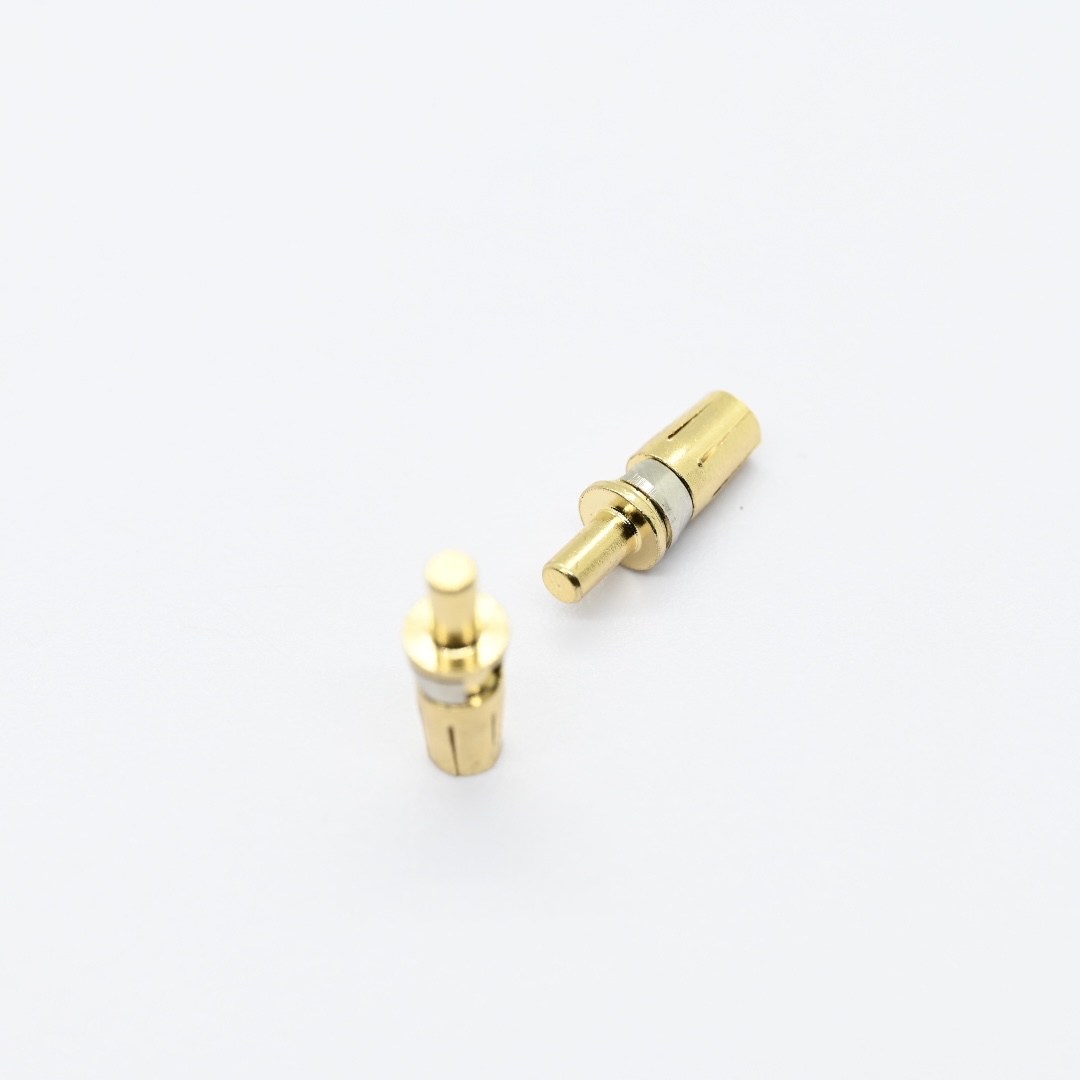

CP12F-40A-G0-051+DIN 41612 M TYPE-Male Power Terminal Straight Solder（6）

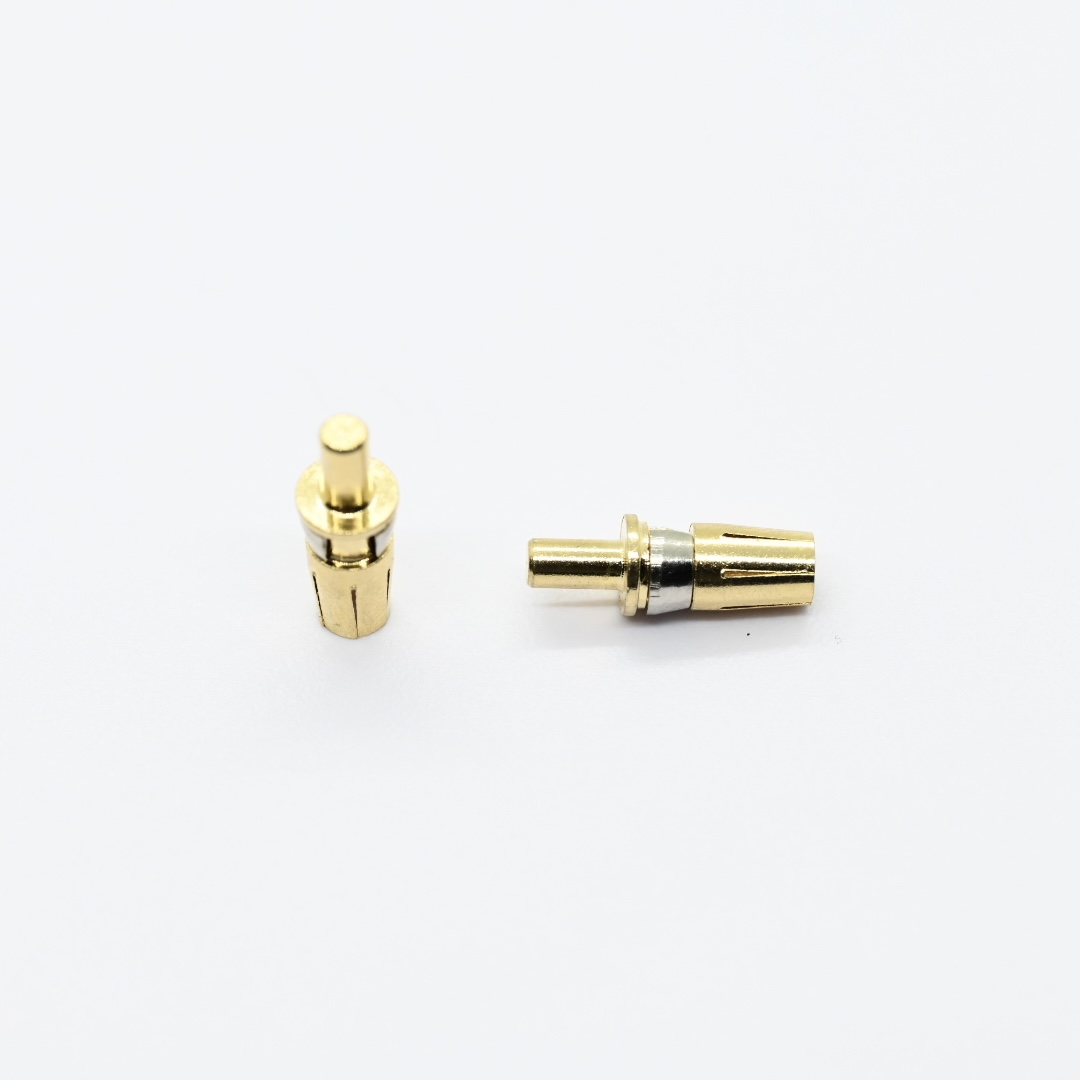

CP12F-40A-G0-051+DIN 41612 M TYPE-Male Power Terminal Straight Solder（5）

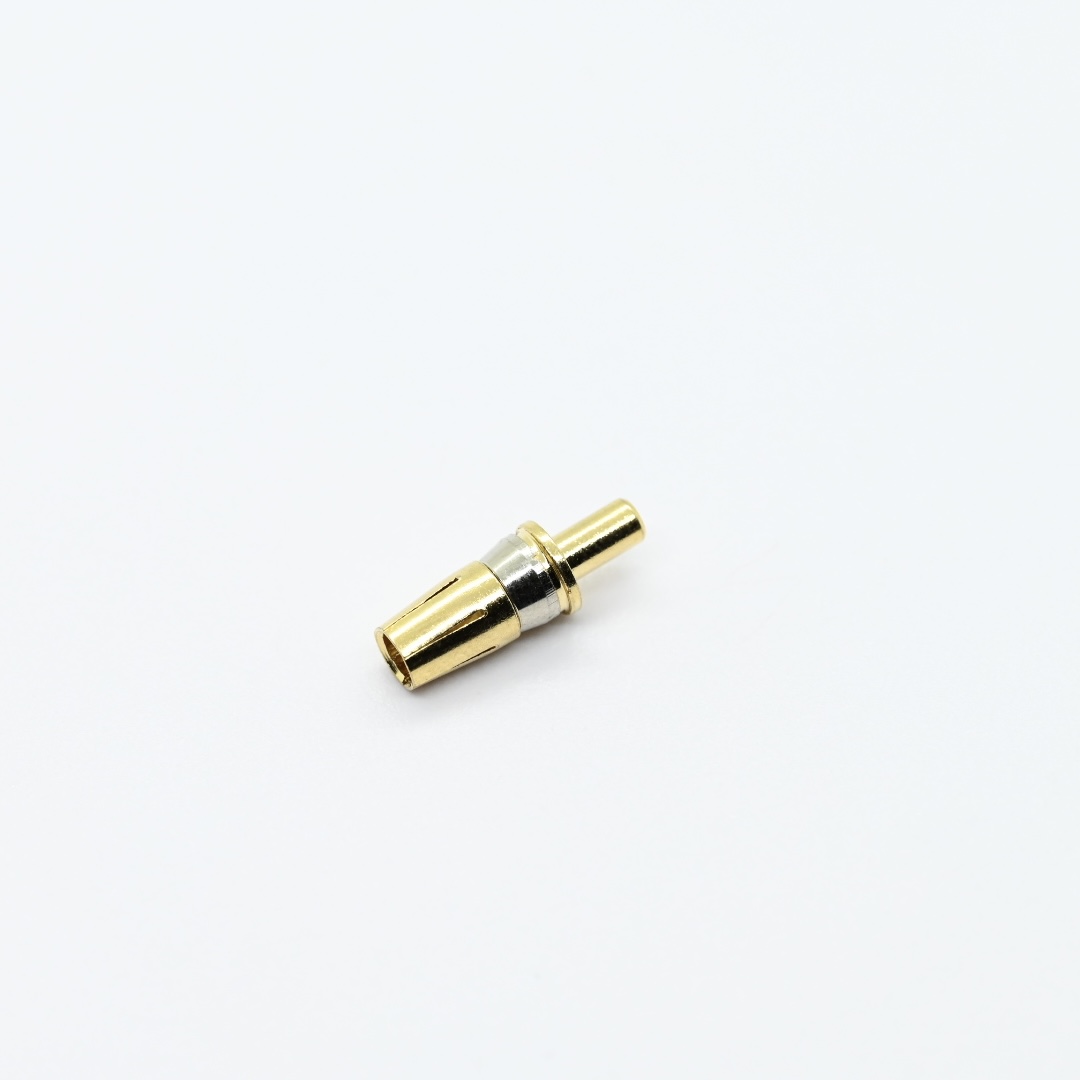

CP12F-40A-G0-051+DIN 41612 M TYPE-Male Power Terminal Straight Solder（2）

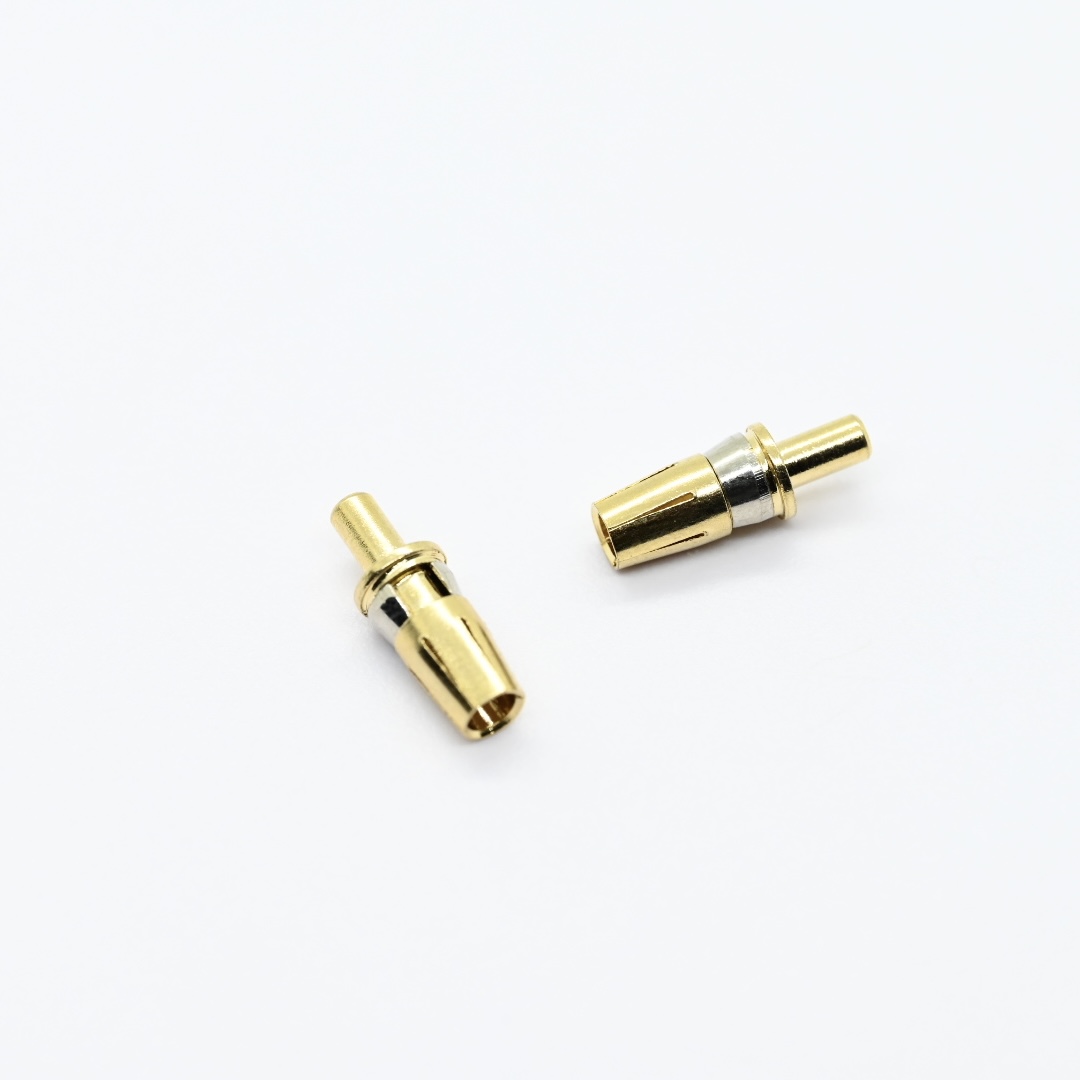

CP12F-40A-G0-051+DIN 41612 M TYPE-Male Power Terminal Straight Solder（1）

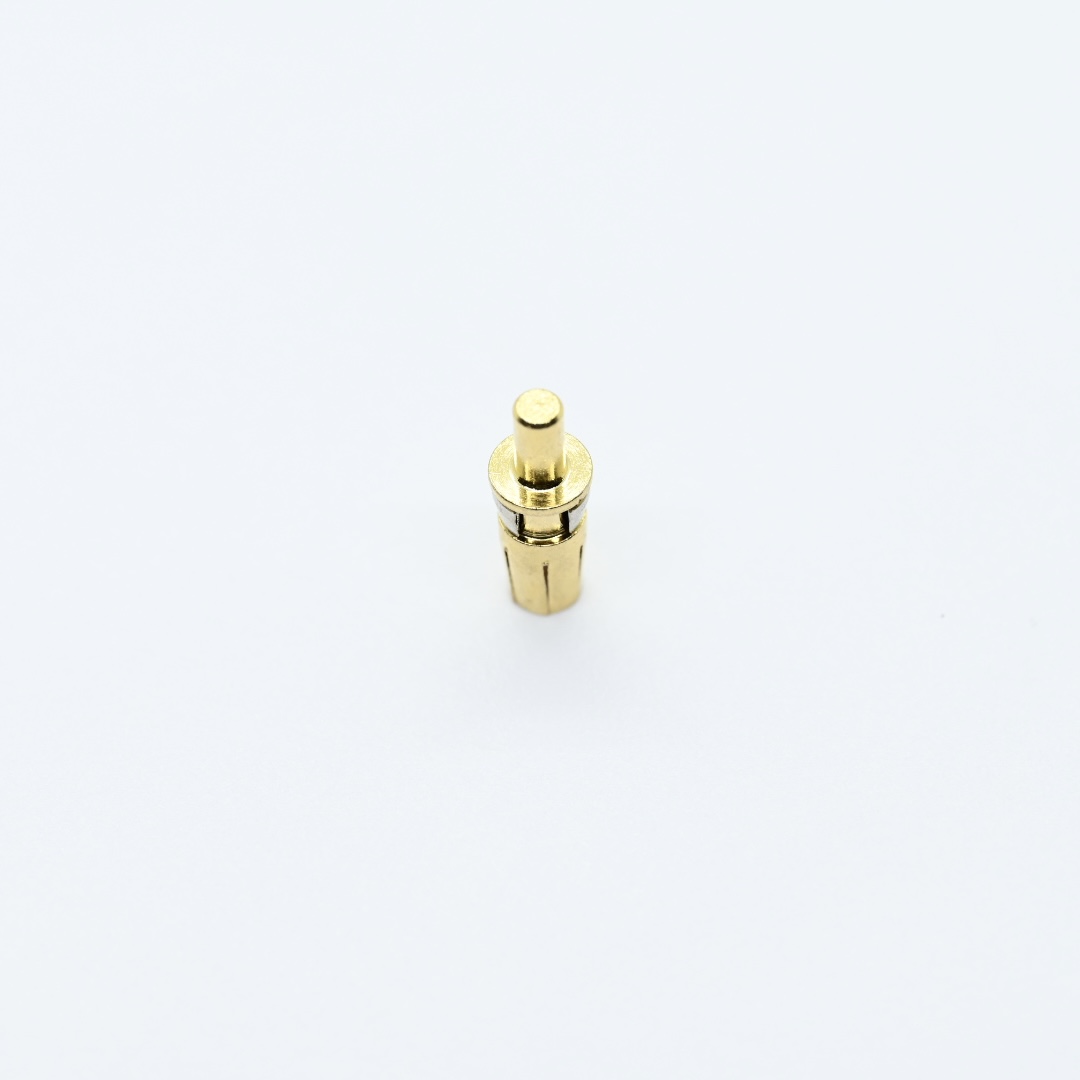

CP12F-40A-G0-051+DIN 41612 M TYPE-Male Power Terminal Straight Solder（4）
