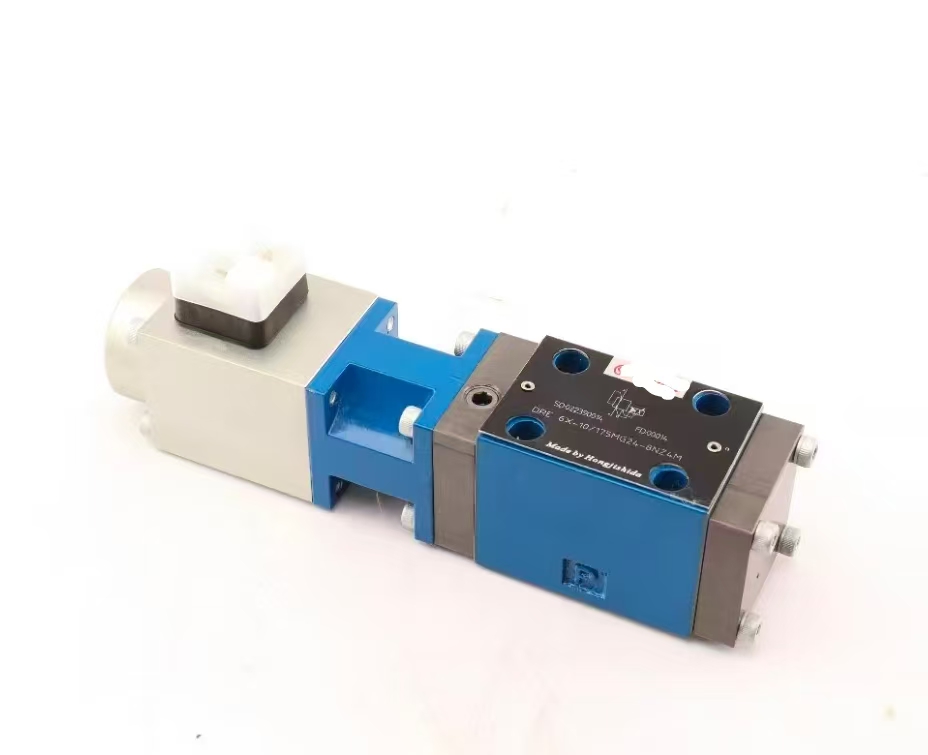

DRE6X‑1X Proportional Pressure Valve
Product Overview
DRE6X‑1X is a pilot‑operated 3‑way electro‑hydraulic proportional pressure‑reducing Hydraulic valve, widely used for stepless electric remote pressure regulation of branch circuits in medium‑size industrial hydraulic system and automated Machine .
This compact proportional Hydraulic valve features internal pilot‑oil supply, with DRE6X‑1X requiring external drive amplifier; the variant DREBE6X‑1X is equipped with built‑in onboard electronics (OBE). It converts analog electrical control signals into infinitely‑variable secondary output pressure, reducing high‑pressure oil from main circuit to preset stable working pressure for downstream actuators, and provides built‑in pressure‑limiting protection. With low hysteresis and good pressure‑holding performance, it delivers independent pressure control for multi‑loop hydraulic system, serving as a reliable pressure‑control component for injection‑molding machines, CNC machine‑tools, test benches and other hydraulic‑driven industrial Machine.
Technical Specifications
‑ Model Series: DRE6X‑1X, DREBE6X‑1X
‑ Product Type: Pilot‑operated 3‑way electro‑hydraulic proportional pressure‑reducing Hydraulic valve
‑ Nominal Size: NG6
‑ Max inlet working pressure (port P): 315 bar; Port T max pressure: 250 bar
‑ Adjustable secondary pressure range: 0‑75 / 0‑175 / 0‑310 bar optional
‑ Maximum rated flow: 40 L/min
‑ Mounting form: Sub‑plate mounting, ISO 4401‑03‑02‑0‑05 standard dimension
‑ Solenoid: 24 VDC wet‑pin proportional solenoid
‑ Control Mode: DRE6X‑1X: External amplifier; DREBE6X‑1X: Built‑in onboard electronics (OBE)
‑ Control signal: 0‑10 V / 4‑20 mA
‑ Working medium: Anti‑wear hydraulic mineral oil for industrial hydraulic system
‑ Oil temperature range: ‑20℃ ~ +80℃
‑ Key Features: Compact NG6 size, internal pilot‑oil supply, built‑in pressure‑limiting function, low hysteresis, stable pressure‑holding, easy installation for medium‑load hydraulic Machine
Working Principle
DRE6X‑1X proportional pressure‑reducing Hydraulic valve consists of pilot proportional solenoid, pilot control valve and main‑stage spool assembly . After receiving electrical command signal, the proportional solenoid generates corresponding thrust to adjust pilot pressure. The pilot pressure pushes the main spool to change the opening gap between inlet P and outlet A, reducing main‑circuit high‑pressure oil to target secondary pressure and maintaining stable outlet pressure regardless of flow fluctuation inside the hydraulic system. The built‑in pressure‑limiting function will open A‑to‑T passage to limit outlet pressure when over‑pressure occurs, protecting downstream actuators .
Damaged proportional solenoid, spool sticking or amplifier failure will cause pressure drift, unstable output pressure or over‑pressure faults of the Machine. Replacing a qualified DRE6X‑1X proportional pressure valve can restore accurate remote pressure‑regulation performance of your hydraulic branch circuit.
Core Advantages
1. Stepless electric remote pressure setting, greatly improving automation and flexible pressure‑adjustment capability of your hydraulic system.
2. 3‑way pilot‑operated structure with internal pilot‑oil supply, no extra external pilot‑oil circuit required, simplifying pipeline layout for compact‑space Machine.
3. Built‑in pressure‑limiting safety function, preventing downstream actuators from over‑pressure damage in the hydraulic system.
4. Standard ISO sub‑plate mounting, good interchangeability, convenient for upgrading or retrofitting existing hydraulic system.
5. Compact NG6 body, low‑hysteresis control, stable pressure‑holding performance, suitable for medium‑precision hydraulic‑driven industrial Machine.
Application Range
DRE6X‑1X proportional pressure‑reducing Hydraulic valve is a core pressure‑control spare‑part for medium‑size industrial hydraulic system. It is widely applied to injection‑molding auxiliary machinery, CNC machine‑tools, hydraulic test‑benches, packaging equipment, small‑and‑medium hydraulic presses, automated production lines and other hydraulic‑driven industrial Machine. Suitable for hydraulic‑system integrators, equipment‑manufacturers, maintenance workshops and global spare‑parts distributors.
