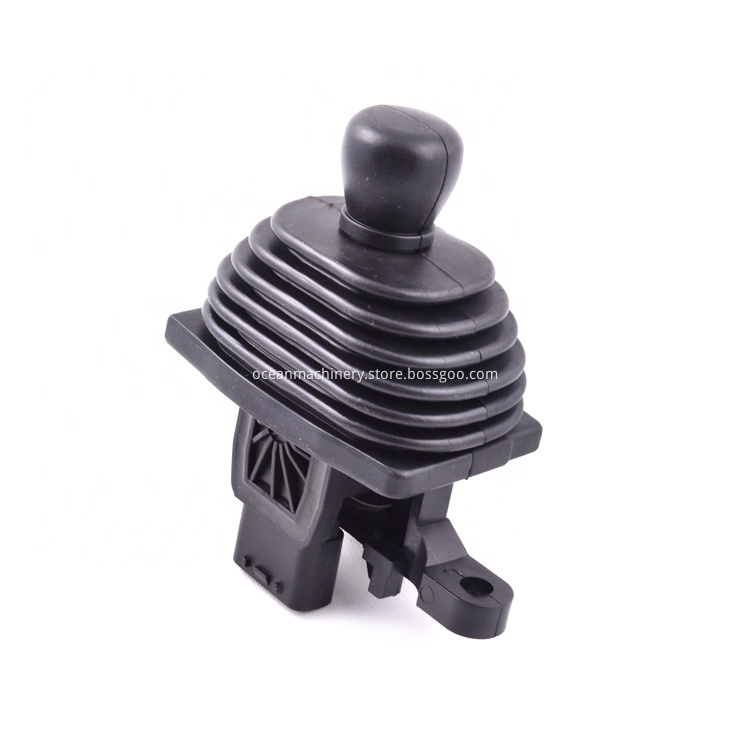

TOYOTA 8FBN30 operation handle joystick 67810-11322-71
OUR ADVANTAGES:
1. More than 20 years experience.of construction machinery spare parts wheel loader parts ,engine spare parts ,motor grader spare parts etc .
2. Complete range of forklift part with various brands for choice.
3. Good quality.
4. Competitive price
5. OEM acceptable
|
Environment Parameter
|
|||
|
Storage Temperature
|
-50 ℃~ +80 ℃
|
||
|
Operating Temperature
|
-30 ℃~ +80 ℃ ( Hall: -40 ℃~ +80 ℃)
|
||
|
Protection Grade
|
IP64
|
||
|
Vibration
|
Amplitude±3g, Frequency: 10Hz-200Hz
|
||
|
Impact
|
20g, 6ms, Semi-sinusoidal
|
||
|
EMC Anti-interference Rank
|
100V/m, 30MHz to 1GHz, 80% sine-wave modulation, meet EN50082-2 (1995) standard
|
||
|
EMC Emission Rank
|
Rank B, 150KHz to 30MHz, meet EN50081-2 (1993) standardernin
|
||
|
ESD Anti-interference Rankt
|
Rank 4, 8KV contact discharge,15KV air discharge, meet the IEC61000-4-2 standard
|
||
|
Mechanical Parameter
|
|||
|
Mechanical Angle
|
Potentiometer: ±32°, Hall: ±20°
|
||
|
Operating Torque
|
1.5N (50N max)
|
||
|
Mechanical Life
|
5 million
|
||
|
Mechanical Error
|
±0.5°
|
||
|
Electrical Parameter
|
|||
|
Hall
|
Power Supply Voltage
|
5±0.5V DC
|
|
|
Power Consumption Current
|
6.5mA/hall sensor
|
||
|
Resolution Ratio
|
infinite
|
||
|
Maximum Voltage
|
15VDC
|
||
|
Reversed Polarity Maximum Voltage
|
14.5VDC
|
||
|
Load Resistance
|
5KΩ
|
||
|
Median Voltage (no-load)
|
48 - 52%Vs
|
||
|
|
Power Supply Voltage
|
DC24V
|
|
|
Power Supply Current
|
<20mA
|
||
|
Resolution Ratio
|
infinite
|
||
|
Resistance (10%)
|
5KΩ and 10KΩ
|
||
|
Electrical Angle
|
±32°
|
||
|
Output Voltage Range (relative voltage)
|
0 ~ 100% ; 10 ~ 90%
|
||
|
Median Voltage
|
48% ~ 52%
|
||
|
Potentiometer Maximum Load Voltage
|
32VDC
|
||
|
Maximum Power Consumption (25°C)
|
0.25W
|
||
|
Switch Direction
|
Switch Position ±3°
|
||
Shipping and packaging :
We also specialized in other equipments spare parts like road rollers ,heavy wheel loaders ,front end loader ,all with excellent quality and
reasonable price !
If you are interested in the product, contact 2bvideo.com for more information for more information
