Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures WU3 1FM33 S F P X D series waterproof 90 degree Type C 6P female connectors with 7.85 millimeter height, two boss positioning posts and four DIP mounting legs for mixed SMT and DIP soldering on printed circuit board assembly complying with drawing dimensional tolerances to achieve IP66 waterproof performance and stable mating performance conforming to USB2.0 specification. This female connector adopts SUS30R half hard nickel plated shell with 0.25 millimeter thickness, PA10T plus thirty percent glass fiber insulator and phosphor bronze contacts with multiple plating choices including gold flash varied thickness gold or tin over nickel finishes. It supports 3 Amp rated current, maximum 30 milliohms initial contact resistance, 100 Volt AC dielectric withstanding voltage and minimum 100 megaohms insulation resistance, provides minimum 10000 mating cycles with insertion force ranging from 5 to 20 Newton, meets RoHS environmental standards and supports tray bag tube or tape reel packaging for mixed manual and automated assembly workflows. This connector is widely used for outdoor portable devices smart home equipment industrial handheld instruments and waterproof consumer electronics. Operators shall select proper contact plating and packing style for practical projects, strictly follow official recommended PCB layout for combined SMT DIP soldering, control soldering temperature to prevent insulator damage and store finished connectors inside dry sealed packages to avoid phosphor bronze contact oxidation. Unlike competitors outsourcing stamping molding and plating services Antenk completes full in house manufacturing workflow covering independent plastic and metal mold development, phosphor bronze terminal high speed stamping, precision plastic injection molding and multi grade electroplating plus comprehensive laboratory reliability verification. We hold ISO9001 ISO14001 IATF16949 and UL E472792 certifications complying with REACH rules, own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, deliver custom solutions and round the clock engineering support, and over seventy percent of our connector products are exported worldwide backed by reliable ANTENK brand mass‑production quality.

1. Waterproof Type C Socket realizes stable signal transmission with IP66 waterproof rating for various moisture exposed electronic products.

2. SUS304 Shell Connector provides excellent anti‑corrosion capability and structural rigidity against frequent plugging and unplugging.

3. PA10T Insulator Jack maintains stable insulation performance during high temperature SMT and DIP soldering procedures.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: 90 degree right angle Type‑C 6P female connector, mixed SMT and DIP mounting

1.2 Structure feature: Height 7.85 millimeter, equipped with two boss positioning posts and four DIP mounting legs, built‑in waterproof ring

1.3 Shell specification: SUS304 R‑1/2H nickel plated shell, shell thickness 0.25 mm

1.4 Interface standard: Complies with USB2.0 specification

1.5 Durability: Minimum 10000 mating cycles

1.6 Insertion force: 5‑20 Newton

1.7 Packaging options: Tray, Bag, Tube, Tape&Reel

1.8 General tolerance: Follow drawing default tolerance without special marking

1.9 Mounting requirement: Adopt official recommended PCB layout for combined SMT and DIP soldering

2. Material & Surface Plating

2.1 Contact material: Phosphor bronze

2.2 Housing material: PA10T with 30 percent glass fiber

2.3 Contact plating options: gold flash, gold flash tin composite, 3u" gold, 5u" gold, 10u" gold, 15u" gold, 30u" gold

3. Electrical Parameters

3.1 Rated current: 3 Amp

3.2 Max initial contact resistance: 30 mΩ

3.3 Dielectric withstanding voltage: 100 Volt AC minimum

3.4 Minimum insulation resistance: 100 MΩ

4. Compliance & Protection Grade

4.1 Waterproof rating: IP66

4.2 Environmental compliance: RoHS compliant

5. Mounting Method

5.1 Assembly mode: Combined SMT surface mount and DIP through hole soldering for PCB assembly

5.2 Strictly follow official recommended PCB layout for pad and hole design

6. Application Scenarios

6.1 Outdoor portable electronic devices

6.2 Moisture resistant smart home products

6.3 Waterproof industrial handheld instruments

6.4 Moisture‑proof consumer electronic equipment

7. Operation & Storage Precautions

7.1 Select appropriate contact plating and packaging form according to practical project requirements

7.2 Follow drawing PCB layout for mixed SMT DIP soldering processing

7.3 Control soldering temperature to avoid damage to PA10T insulator and internal waterproof ring

7.4 Store finished connectors in dry sealed packages to prevent phosphor bronze contact oxidation

7.5 Guarantee correct assembly of waterproof ring to realize IP66 waterproof performance

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

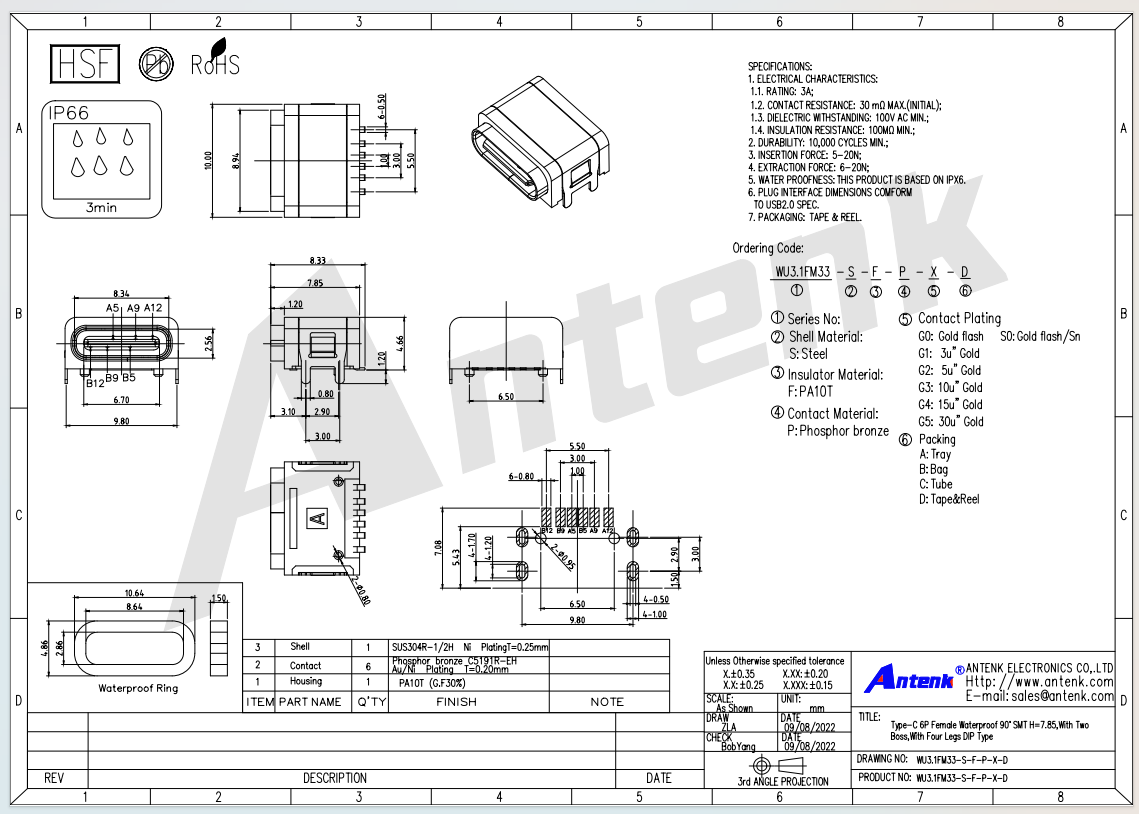

Product Drawing：

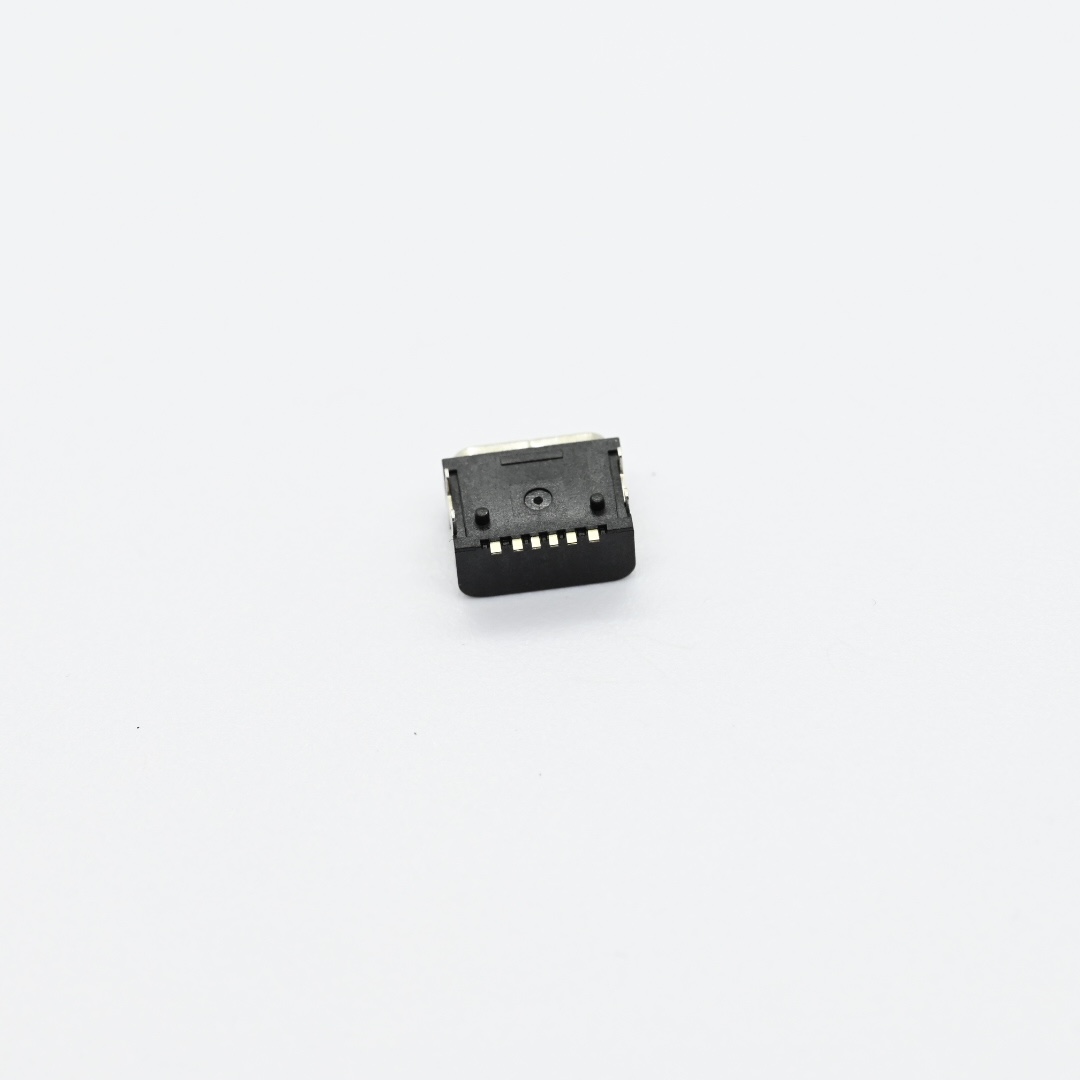

WU3.1FM33-S-F-P-X-D+Type-C 6P Female Waterproof 90 SMT（5）

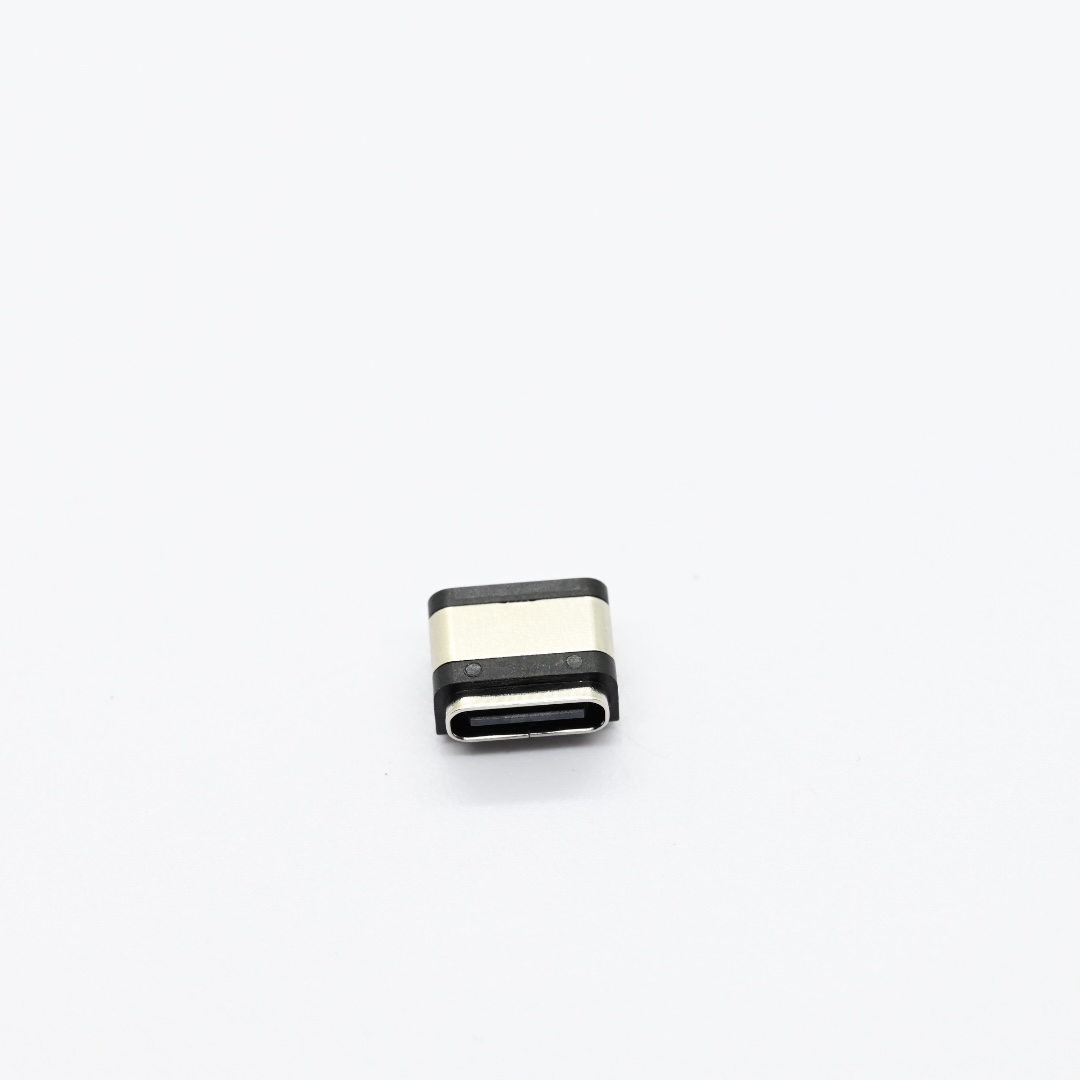

WU3.1FM33-S-F-P-X-D+Type-C 6P Female Waterproof 90 SMT

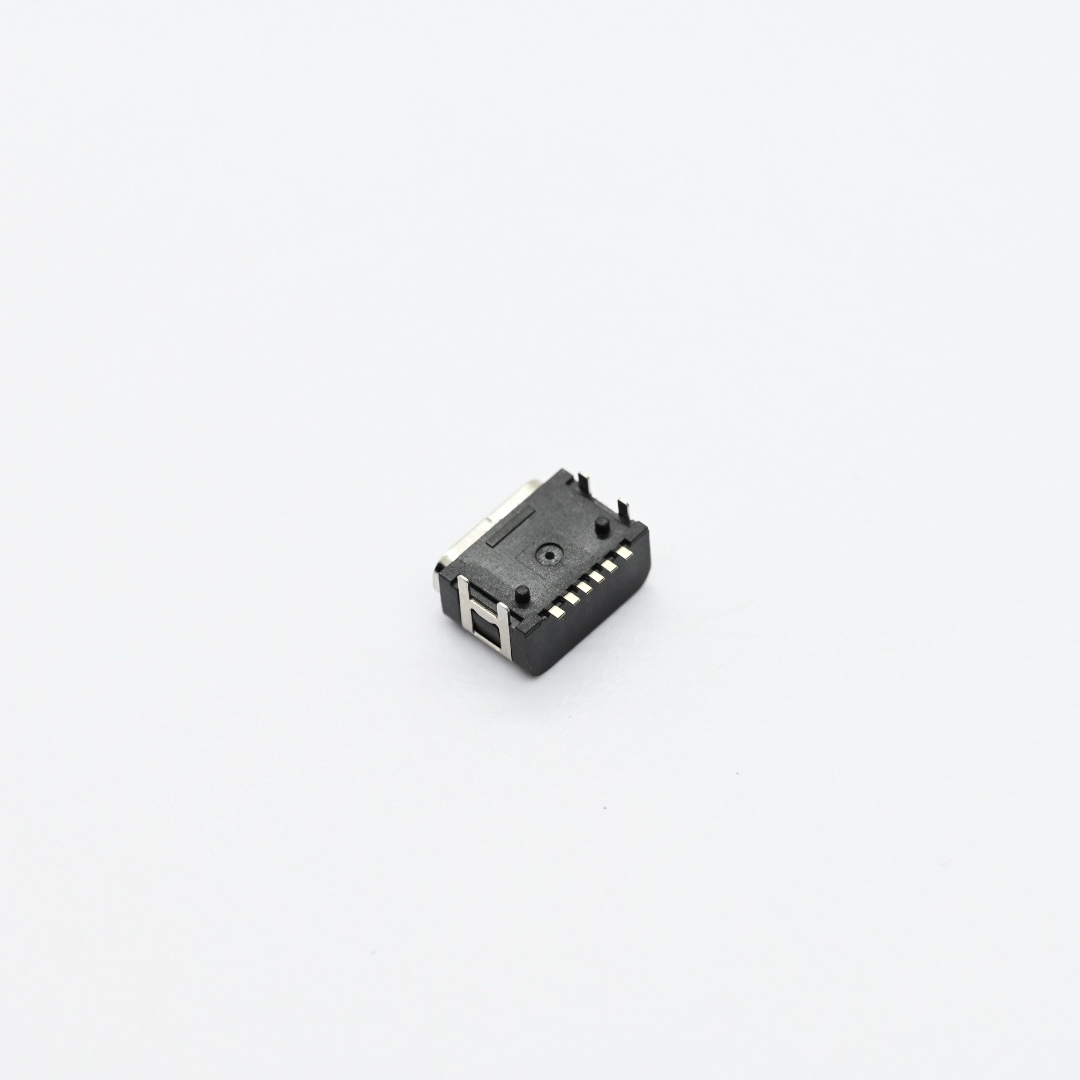

WU3.1FM33-S-F-P-X-D+Type-C 6P Female Waterproof 90 SMT（6）

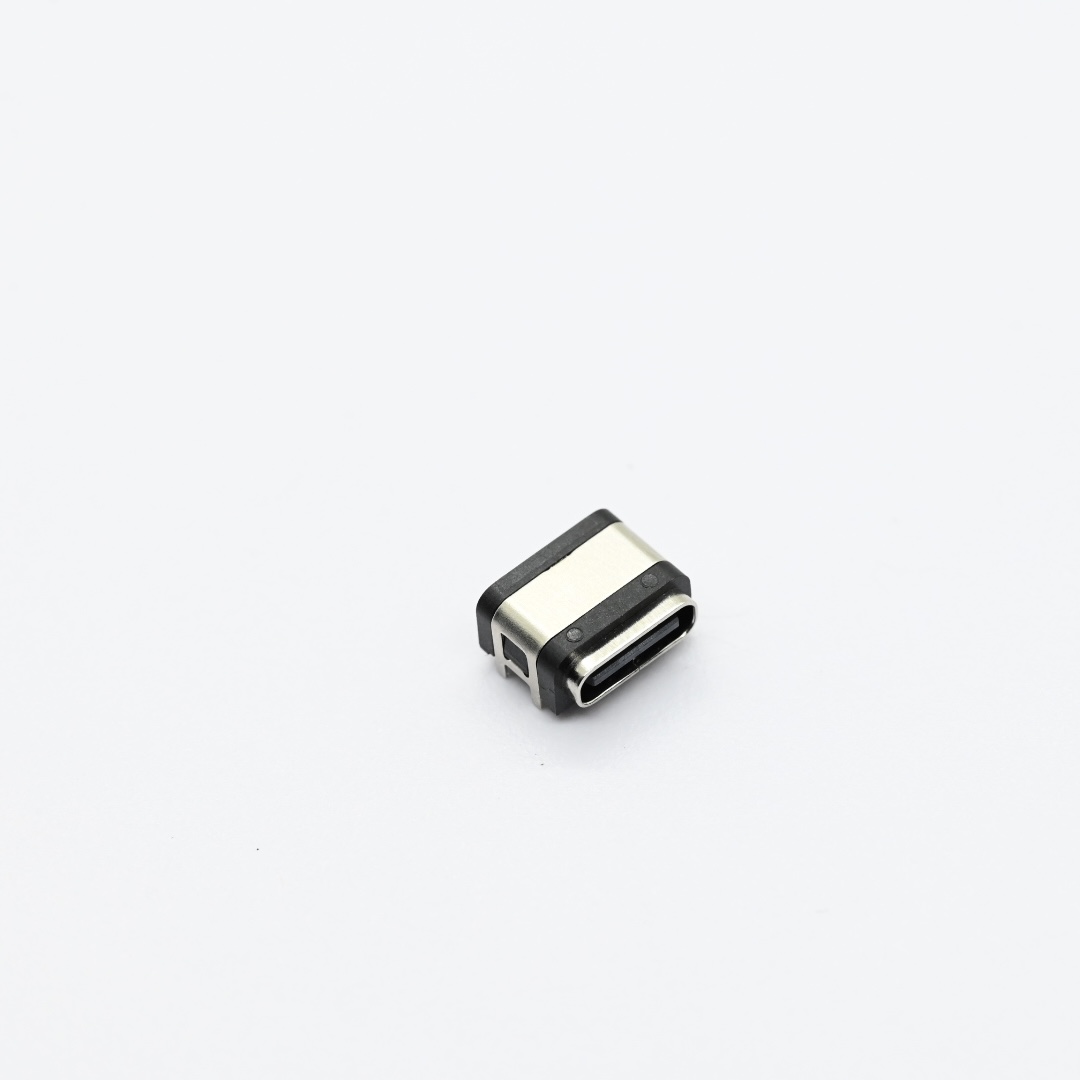

WU3.1FM33-S-F-P-X-D+Type-C 6P Female Waterproof 90 SMT（2）

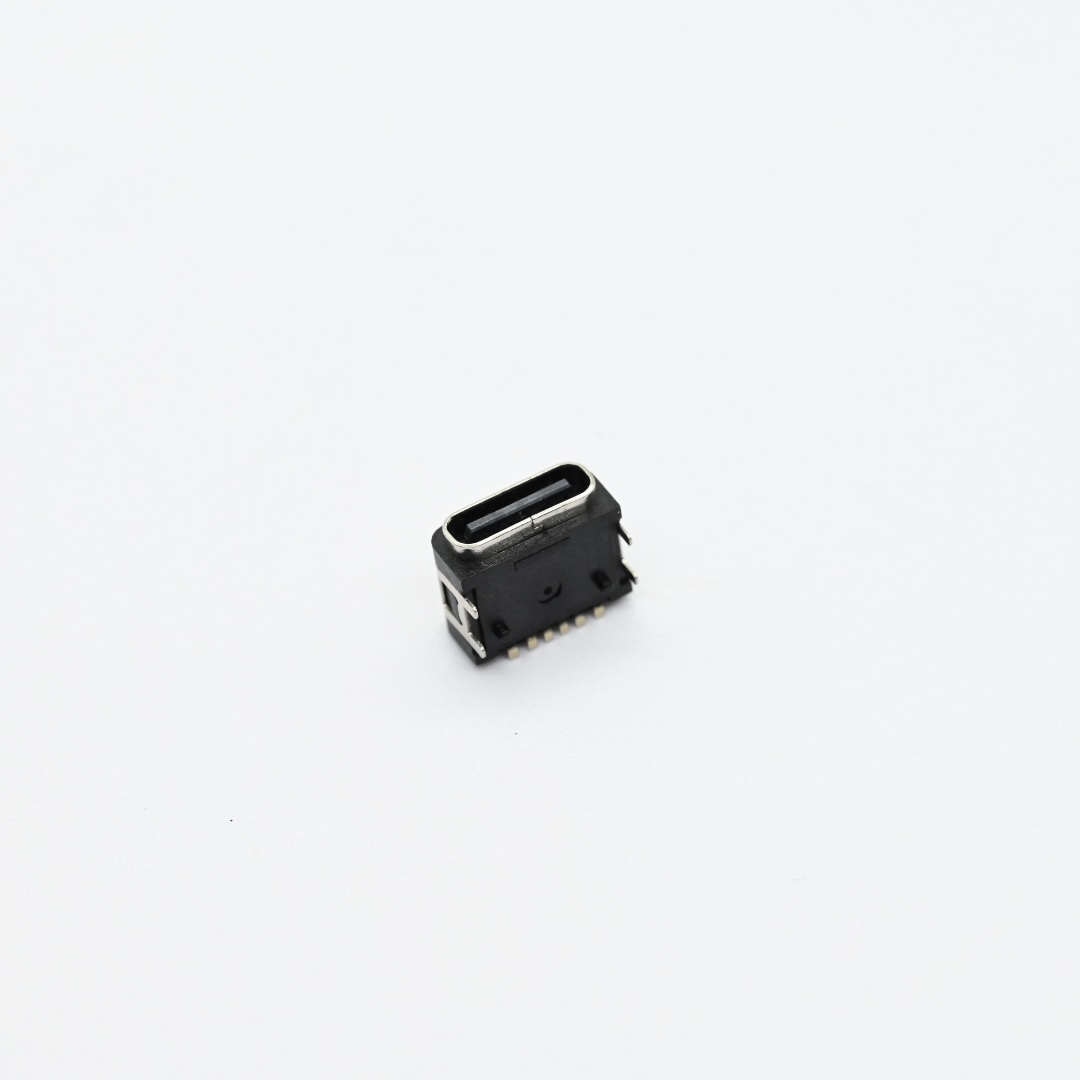

WU3.1FM33-S-F-P-X-D+Type-C 6P Female Waterproof 90 SMT（4）

WU3.1FM33-S-F-P-X-D+Type-C 6P Female Waterproof 90 SMT（3）
