Right Angle DIP CR2450 Coin Cell Holder

Right Angle DIP CR2450 Coin Cell Holder

3 week ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures BT R SN A 2450N series right angle DIP coin cell holders specially designed for CR2450 button batteries to deliver stable power supply through through hole soldering onto printed circuit board assembly complying with drawing dimensional tolerances to guarantee accurate PCB hole matching and reliable battery contact retention. This coin cell holder adopts LCP plus thirty percent glass fiber housing with natural color and UL94V 0 flame retardant grade, paired with 0.15 millimeter thick spring stainless steel contacts with multiple plating selections including gold flash varied thickness gold or tin finishes with minimum 50 micro inch nickel under layer beneath solder area. Its operating temperature ranges from minus 30 degree Celsius to plus 70 degree Celsius and meets RoHS Pb free and HSF environmental standards, supporting tray or tape reel packaging to fit manual assembly and automated mass‑production workflows. This coin cell holder finds wide application in industrial control units precision measuring instruments portable smart devices and household electronic gadgets. Operators need to pick suitable contact plating and packing solution for real projects, strictly follow official recommended PCB layout for right angle DIP soldering, control soldering temperature to avoid housing deformation and store finished holders inside dry sealed packages to prevent stainless steel contact oxidation. Different from market competitors who outsource stamping molding and plating Antenk carries out full in house manufacturing workflow covering independent mold development stainless steel high speed stamping plastic injection molding multi grade electroplating and complete laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL E472792 certifications complying with REACH rules, own over two hundred fifty plastic connector molds and one hundred eighty metal terminal molds, provide custom engineering solutions and round the clock technical support, and over seventy percent of our connector goods are exported globally supported by stable ANTENK brand production quality.

1. Right Angle Battery Holder provides compact through hole mounting space for CR2450 coin cell battery on printed circuit boards.

2. LCP Coin Cell Socket features UL94V 0 flame retardant performance for long‑term electronic device operation.

3. Stainless Spring Contact maintains consistent spring pressure to secure stable electrical connection for button batteries.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: 90 degree right angle DIP coin cell holder for CR2450 button battery

1.2 Dimension unit: millimeter

1.3 Main outline dimension: 31.75±0.30 mm

1.4 Pin pitch: 2.54 +0.10 mm

1.5 General tolerance: X.±0.38, X.X:±0.25, X.XX:±0.20, shtur:±0.10 without special marking

1.6 Packaging options: Tray packing, Tape & reel packing

1.7 Mounting requirement: Follow official recommended PCB layout for DIP through‑hole soldering

2. Material & Surface Plating

2.1 Housing material: LCP plus 30% glass fiber, natural color, UL94V‑0 flame retardant grade

2.2 Contact material: Spring stainless steel, thickness 0.15 mm

2.3 Solder area base finish: Minimum 50u" nickel under‑layer, 200u" tin plated

2.4 Optional contact plating: gold flash, 3u" gold, 5u" gold, 10u" gold, 15u" gold, 30u" gold, tin

3. Environmental Parameters

3.1 Operating temperature range: ‑30 °C to +70 °C

4. Compliance Standard

4.1 Environmental compliance: RoHS, Pb‑free and HSF compliant

5. Mounting Method

5.1 Assembly mode: Right angle DIP through‑hole soldering onto printed circuit board

5.2 Adopt official recommended PCB layout for hole dimension design

6. Application Scenarios

6.1 Industrial control equipment

6.2 Precision measuring instruments

6.3 Portable smart electronic devices

6.4 Household consumer electronic products

7. Operation & Storage Precautions

7.1 Select proper contact plating and packaging method according to actual project demands

7.2 Follow drawing PCB layout requirements for right angle DIP soldering

7.3 Control soldering temperature to prevent LCP housing thermal deformation

7.4 Store finished holders in dry sealed packages to avoid stainless steel contact oxidation

7.5 Ensure correct installation of CR2450 coin cell to maintain stable spring contact pressure

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

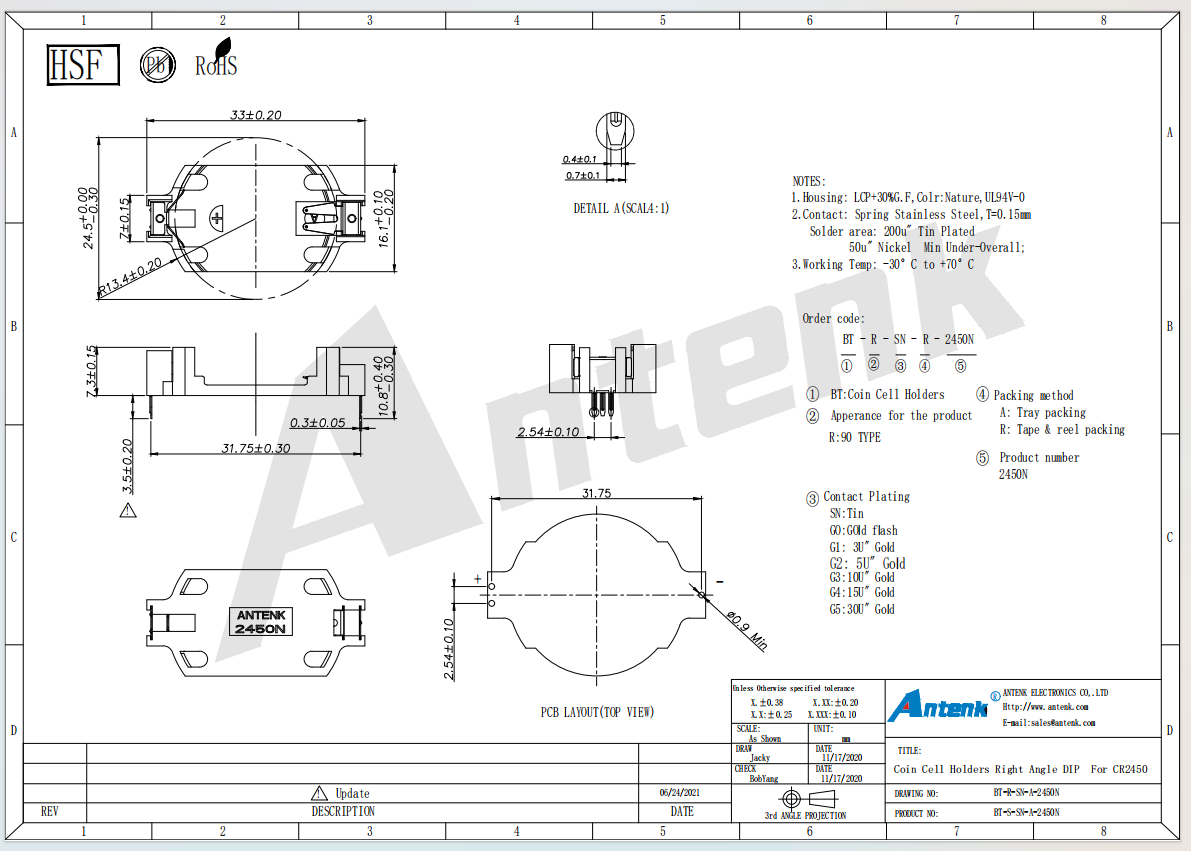

Product Drawing：

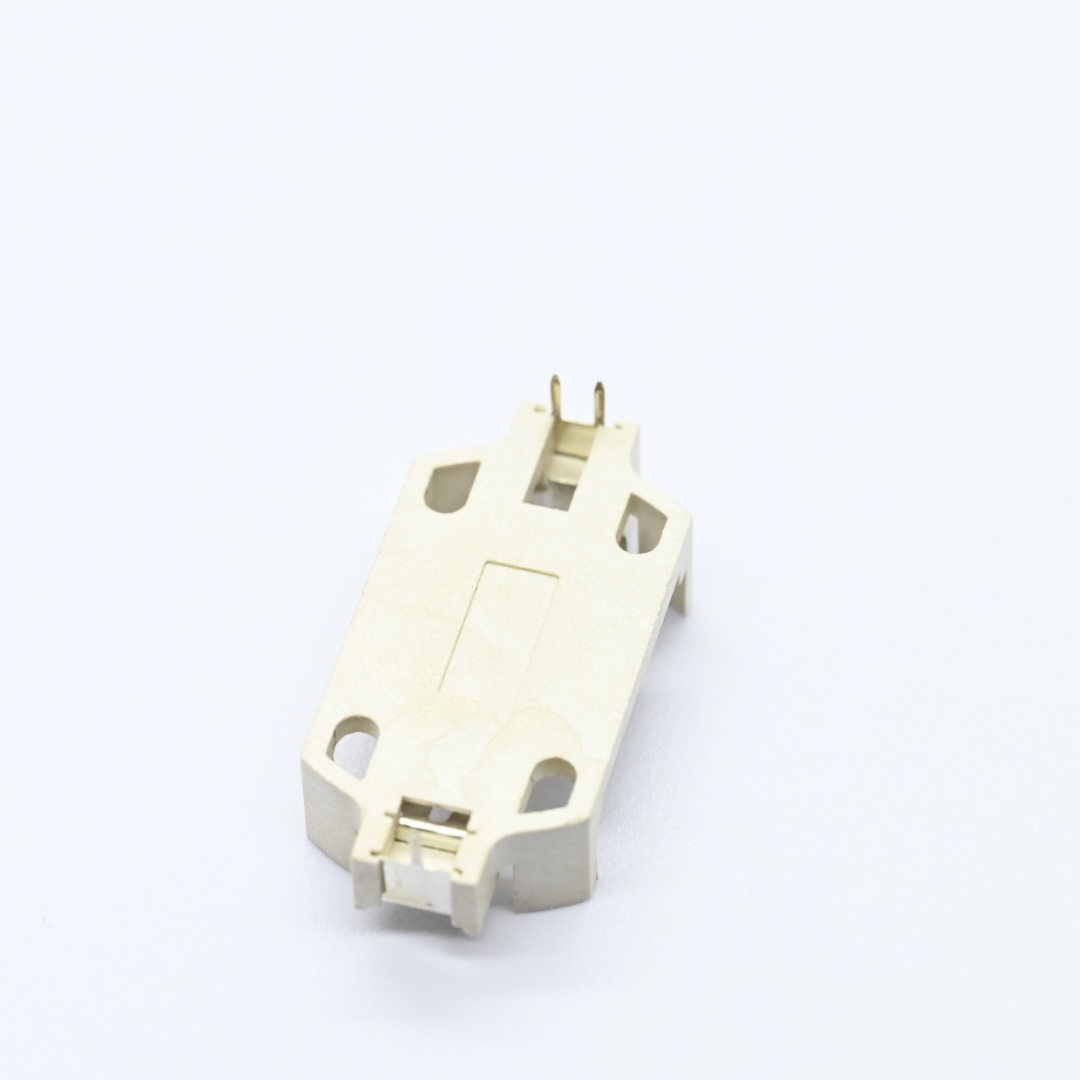

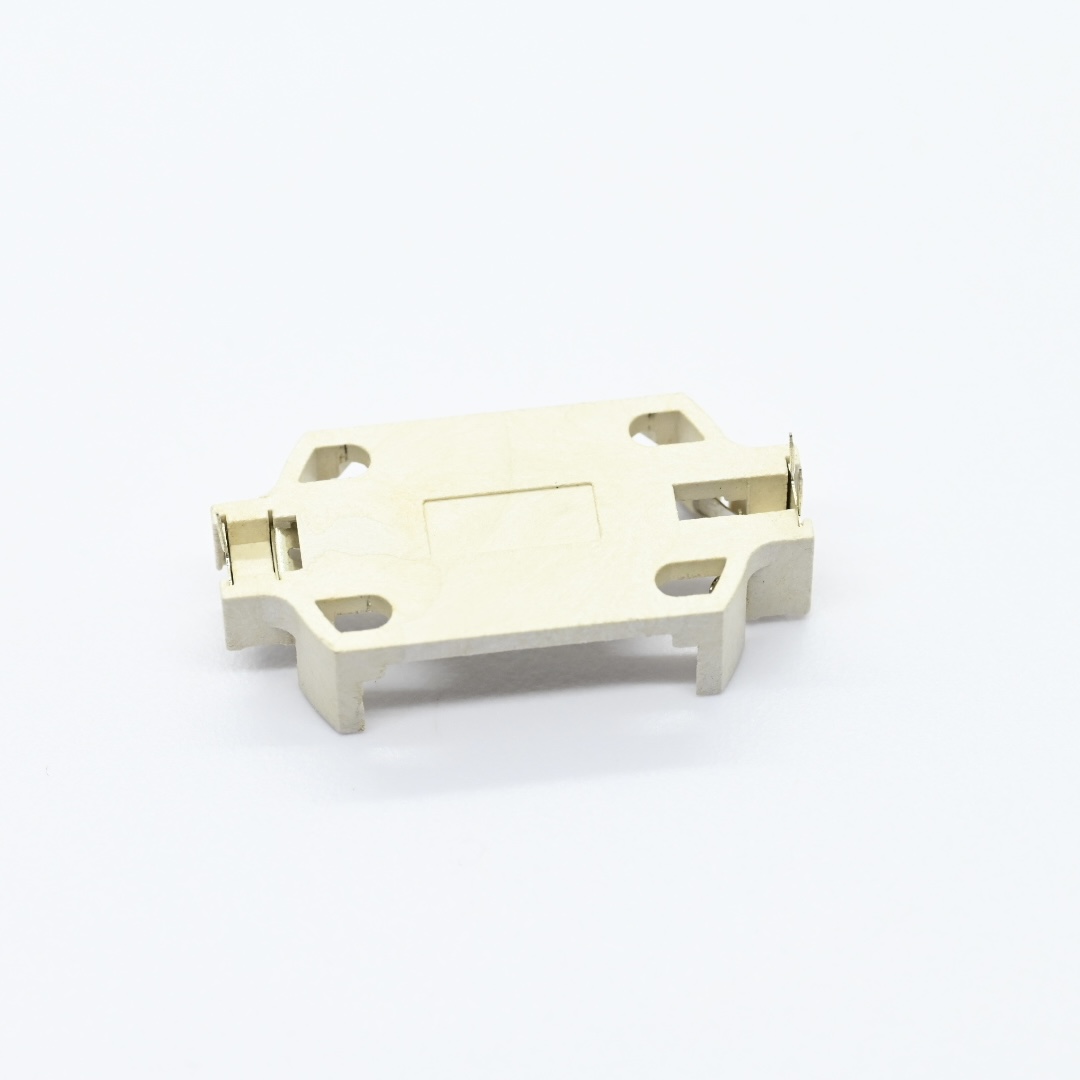

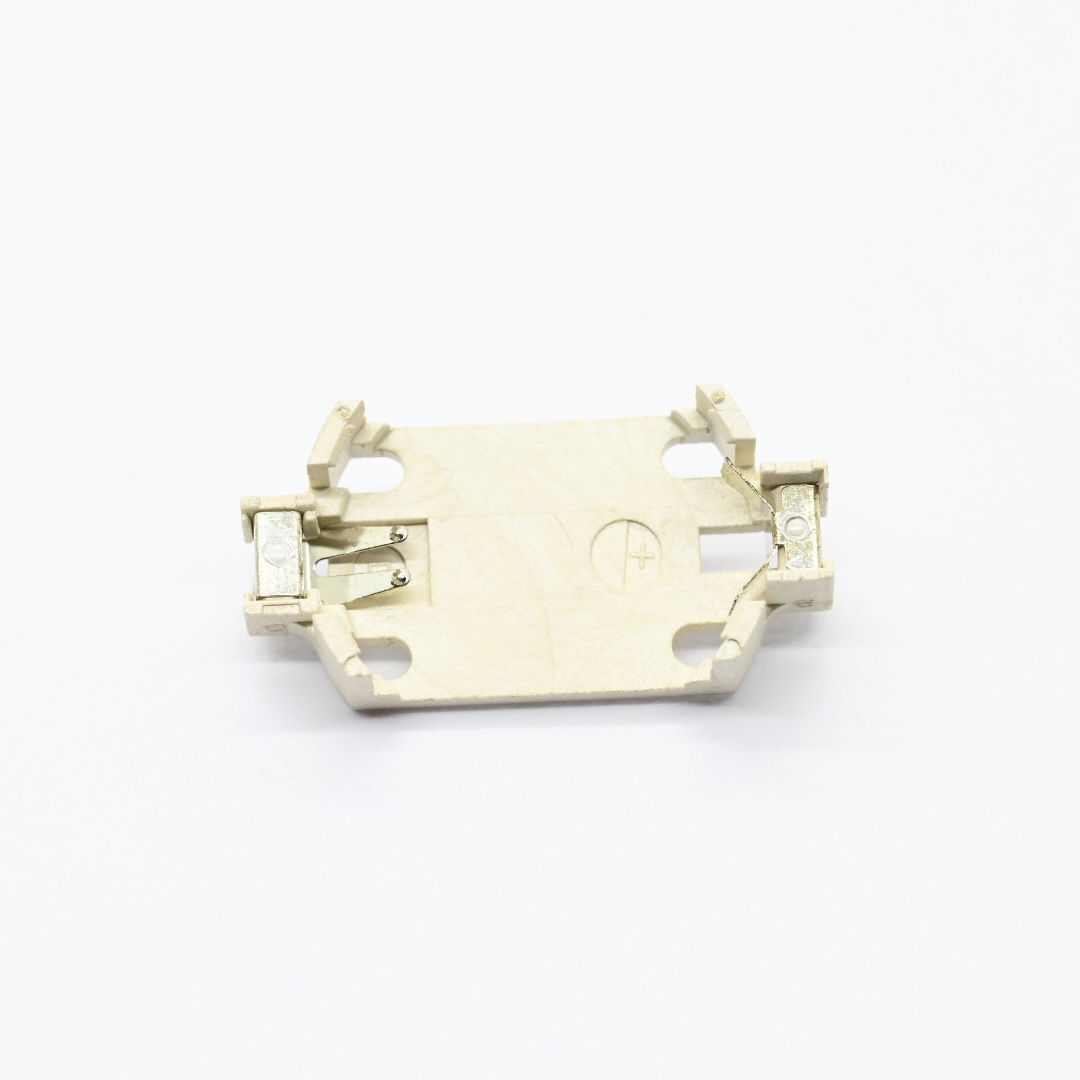

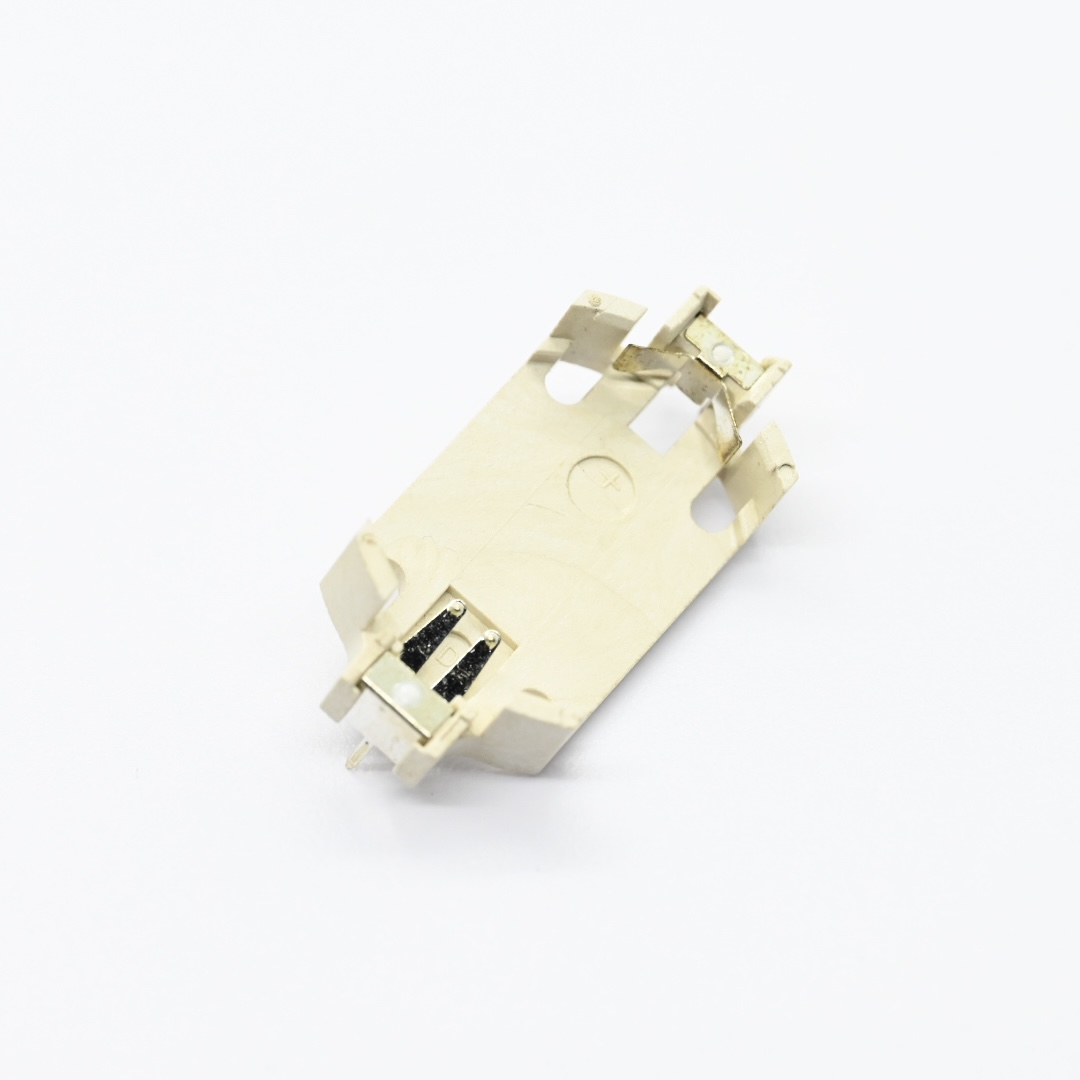

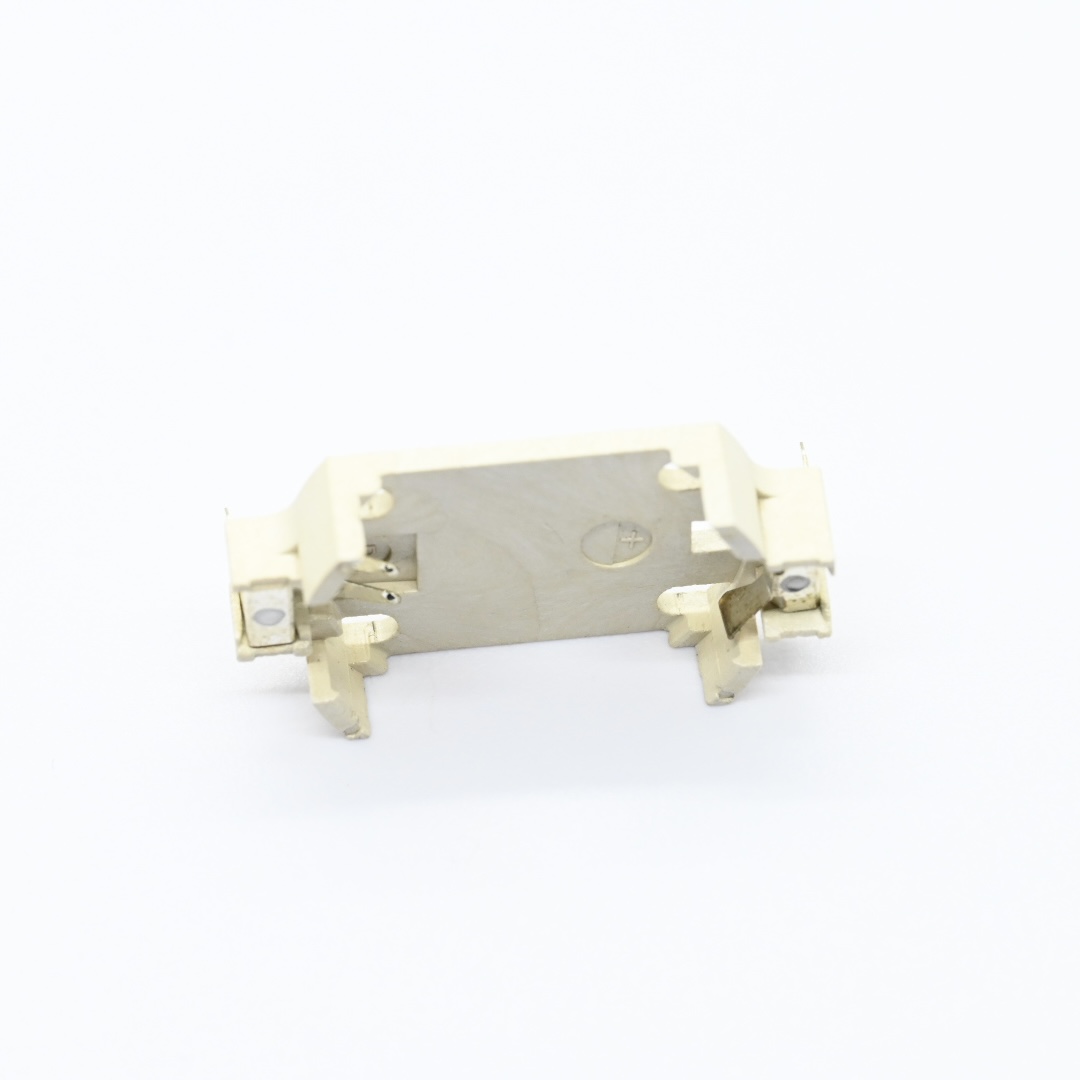

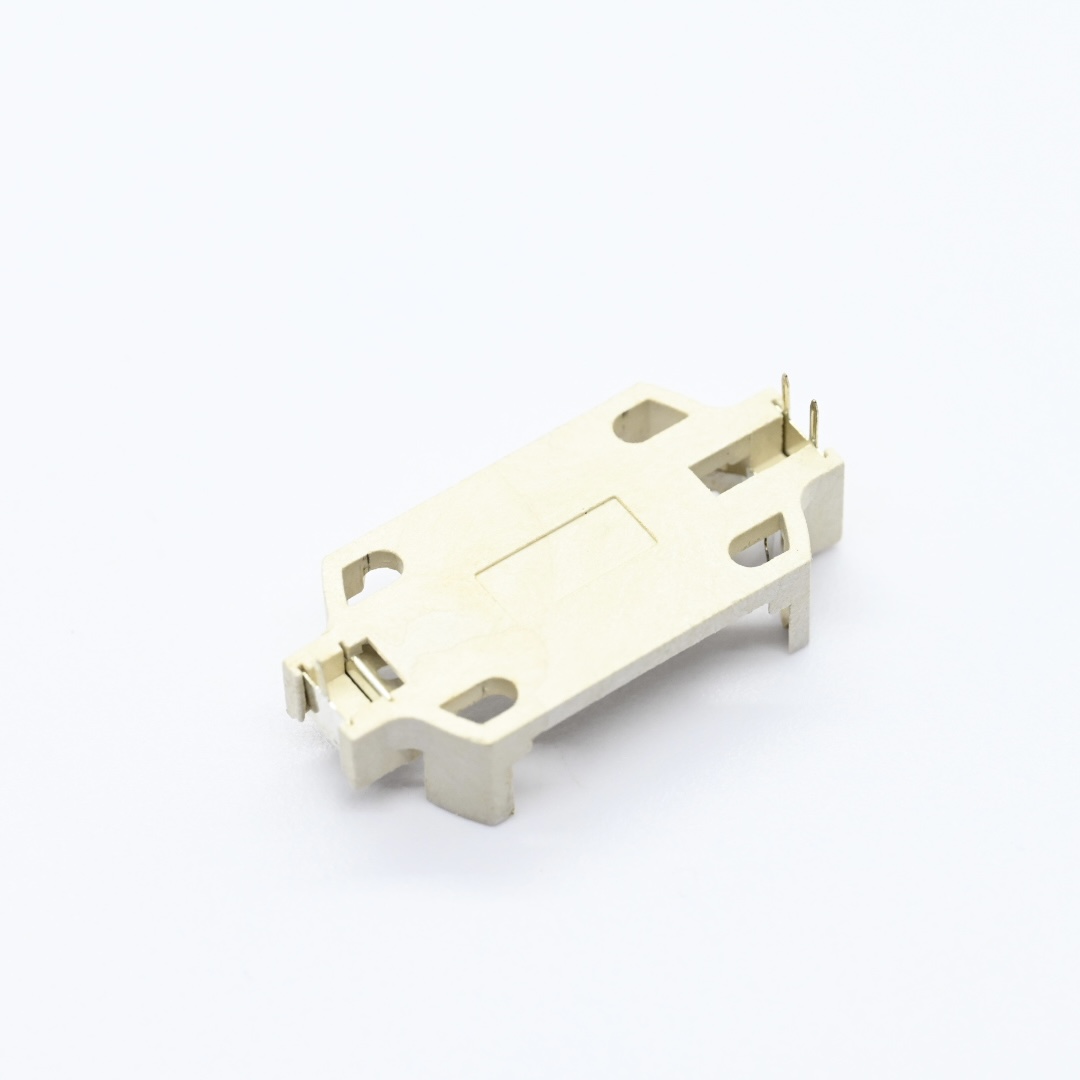

BT-R-SN-X-2450N+Coin Cell Holders Right Angle DIP For CR2450（4）

BT-R-SN-X-2450N+Coin Cell Holders Right Angle DIP For CR2450（6）

BT-R-SN-X-2450N+Coin Cell Holders Right Angle DIP For CR2450（5）

BT-R-SN-X-2450N+Coin Cell Holders Right Angle DIP For CR2450（2）

BT-R-SN-X-2450N+Coin Cell Holders Right Angle DIP For CR2450（1）

BT-R-SN-X-2450N+Coin Cell Holders Right Angle DIP For CR2450（3）
