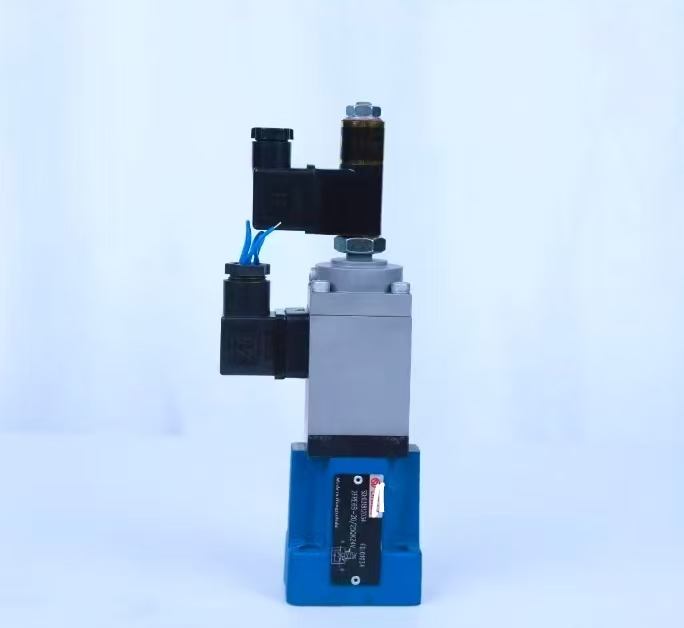

2FRE6‑20 Proportional Flow Control Valve
Product Overview
2FRE6‑20 is a compact 2‑way electro‑hydraulic proportional flow‑control Hydraulic valve, specially designed for stepless, pressure‑compensated flow regulation in space‑limited industrial hydraulic system and automated industrial Machine.
This high‑precision proportional Hydraulic valve adopts NG6 small‑size design, built‑in pressure compensator to maintain stable flow output regardless of load‑pressure changes inside your hydraulic system. It converts analog electrical signals into infinitely‑variable flow, realizing accurate stepless speed adjustment for hydraulic actuators. With low hysteresis, excellent repeatability and fast dynamic response, it delivers reliable flow‑control performance for injection‑molding auxiliary equipment, small hydraulic presses, hydraulic test‑benches and various compact hydraulic‑driven Machine.
Technical Specifications
‑ Model: 2FRE6‑20
‑ Product Type: 2‑way electro‑hydraulic proportional flow‑control Hydraulic valve, pressure compensated
‑ Nominal Size: NG6
‑ Maximum working pressure: 210 bar
‑ Adjustable flow range: 0‑20 L/min
‑ Mounting form: Sub‑plate mounting, ISO 4401‑03‑02‑0‑05 standard dimension
‑ Solenoid: 24 VDC proportional solenoid
‑ Control mode: External amplifier, control signal: 0‑10 V / 4‑20 mA
‑ Optional function: Inductive spool‑position closed‑loop feedback, built‑in check‑valve
‑ Working medium: Anti‑wear hydraulic mineral oil for industrial hydraulic system
‑ Oil temperature range: ‑20℃ ~ +80℃
‑ Key Features: Compact NG6 structure, pressure compensation, stepless remote flow adjustment, stable speed output, durable performance for precision‑required small‑and‑medium hydraulic Machine
Working Principle
2FRE6‑20 proportional flow‑control Hydraulic valve consists of proportional solenoid, metering orifice, pressure compensator and valve‑body assembly. After receiving electrical command signal, the proportional solenoid adjusts the opening of metering orifice. The built‑in pressure compensator keeps constant pressure drop across the orifice, ensuring stable actual flow even when the load pressure of the hydraulic system fluctuates. The optional inductive position sensor feeds real‑time spool‑opening signal back to the amplifier for closed‑loop correction, further improving flow‑control accuracy.
Damaged proportional solenoid, orifice blockage or amplifier failure will cause unstable actuator speed, flow drifting or regulation failure of the Machine. Replacing a qualified 2FRE6‑20 proportional flow control valve can restore accurate stepless flow‑regulation performance of your hydraulic circuit.
Core Advantages
1. Stepless electric remote flow adjustment, greatly improving speed‑control flexibility and automation level of your hydraulic system.
2. Built‑in pressure‑compensated design, stable flow output under variable‑load working conditions, ensuring smooth operation of hydraulic‑driven Machine.
3. Compact NG6 small‑size structure, saving installation space, perfectly suitable for equipment with limited layout space.
4. Optional closed‑loop spool‑position feedback, realizing higher‑precision flow regulation.
5. Standard ISO sub‑plate mounting, good interchangeability, convenient for upgrading or retrofitting existing hydraulic system.
Application Range
2FRE6‑20 proportional flow‑control Hydraulic valve is a core precision flow‑control spare‑part for compact‑layout industrial hydraulic system. It is widely applied to small‑and‑medium hydraulic presses, injection‑molding auxiliary machinery, hydraulic test‑benches, packaging equipment, automated assembly lines and other hydraulic‑driven industrial Machine. Suitable for hydraulic‑system integrators, equipment‑manufacturers, maintenance workshops and global spare‑parts distributors.
