2.54 Millimeter Pitch Crimp Terminal Connector

2.54 Millimeter Pitch Crimp Terminal Connector

2 day ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures 2.54 millimeter pitch crimp terminal connectors AT2543T xP series designed to create stable electrical wire connections through mechanical crimp installation for matching AH2543 series housing. These terminals support AWG 22 to AWG 28 wire with maximum insulation outer diameter 1.90 millimeter, deliver 250 volt voltage rating and 4 amp current rating, hold 1000 volt per minute withstanding voltage, minimum 1000 megaohm insulation resistance and maximum 10 milliohm contact resistance, and operate within minus 40 degree Celsius to plus 105 degree Celsius. Product material options include brass or phosphor bronze with tin over nickel or gold over nickel plating, supplied on reel packing with ten thousand pieces per reel and custom gold plating available upon minimum order requirement. This terminal complies with RoHS and REACH environmental standards and fits industrial control units precision measuring instruments consumer electronic hardware and communication equipment. Operators shall select proper material and plating grade for real projects, use matched crimping tool to secure reliable wire joint and store reel terminals in dry sealed packages to avoid metal surface oxidation. Unlike competitors outsourcing stamping and plating work Antenk performs full in‑house production covering independent mold development high speed metal stamping multi grade electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, own abundant metal terminal molds, provide custom engineering solutions and round‑the‑clock technical support, over seventy percent of our connector products are exported globally. Feel free to share your project parameters to receive sample offer and full datasheet support.

1. Vibration Resistant Crimp Terminal maintains stable electrical contact even under continuous mechanical shock for industrial electronic assemblies.

2. High Current Wire Terminal handles rated 4 amp load to build dependable wire connection for signal and power transmission scenarios.

3. Reel Packed Contact Terminal supports automated crimping equipment to raise production efficiency for large volume manufacturing tasks.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: Crimp terminal for AH2543 series connector housing

1.2 Measurement unit: millimeter

1.3 Key outline dimensions: 9.40±0.25 mm, 3.30±0.20 mm, 2.90±0.20 mm, 1.92±0.20 mm, 1.25±0.20 mm

1.4 Applicable wire: AWG 22 to AWG 28, maximum wire insulation outer diameter 1.90 mm

1.5 Standard packaging: Reel packing, 10000 pieces per reel

1.6 Auxiliary note: Custom gold plating is available subject to minimum order quantity requirement

1.7 CTA: Contact our engineering team to get full dimension drawing and crimp parameter reference for your product design.

2. Material & Surface Plating

2.1 Base material options: Brass, Phosphor Bronze

2.2 Plating options: Tin over Nickel, Gold over Nickel

3. Electrical Performance

3.1 Voltage rating: 250V AC DC

3.2 Current rating: 4A AC DC

3.3 Withstanding voltage: 1000V AC per minute

3.4 Insulation resistance: 1000MΩ minimum

3.5 Contact resistance: 10mΩ maximum

4. Environmental Parameters

4.1 Operating temperature range: ‑40°C to +105°C

5. Compliance Standard

5.1 Environmental compliance: RoHS and REACH compliant

6. Usage Method

6.1 Assembly mode: Crimp connection with matched crimping tool

6.2 Compatible component: Designed for AH2543 series housing

7. Application Scenarios

7.1 Industrial control equipment

7.2 Precision measuring instruments

7.3 Consumer electronic devices

7.4 Communication hardware

8. Operation & Storage Precautions

8.1 Select suitable base material and surface plating according to actual project requirements

8.2 Use qualified matching crimping tool to guarantee stable crimp connection performance

8.3 Store reel packed terminals in dry sealed environment to prevent oxidation of metal surfaces

8.4 Observe minimum order quantity if you request custom gold plating service

8.5 CTA: Submit your wire specification and working condition information, we can offer free sample testing and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

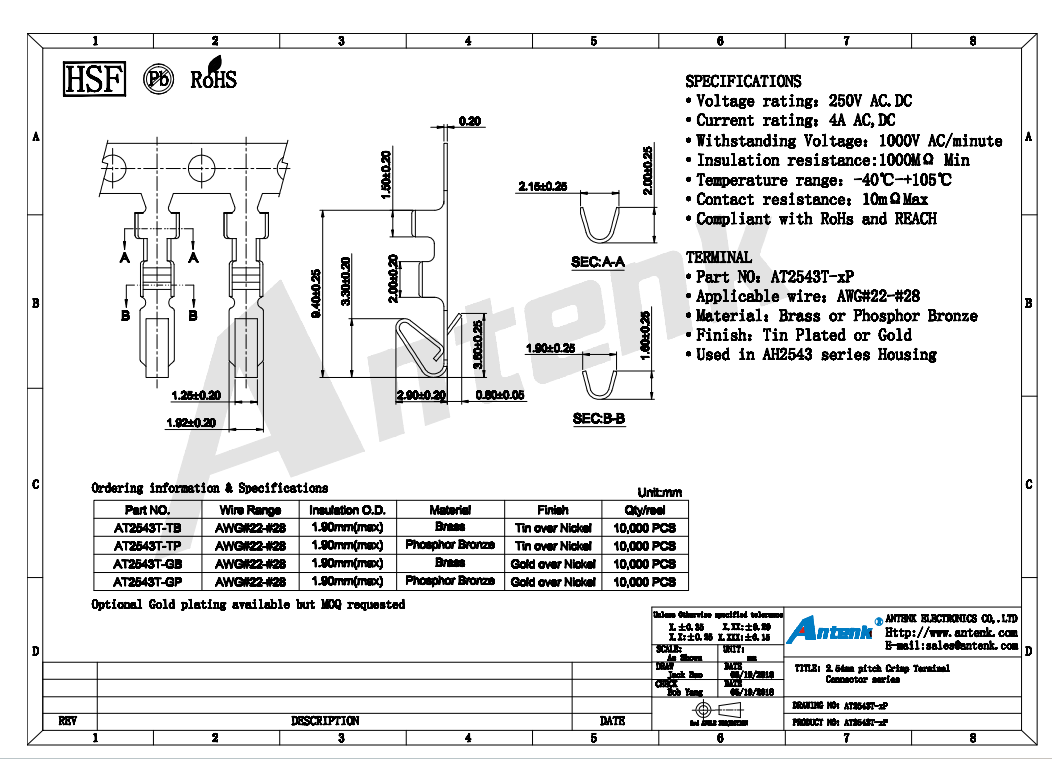

Product Drawing:

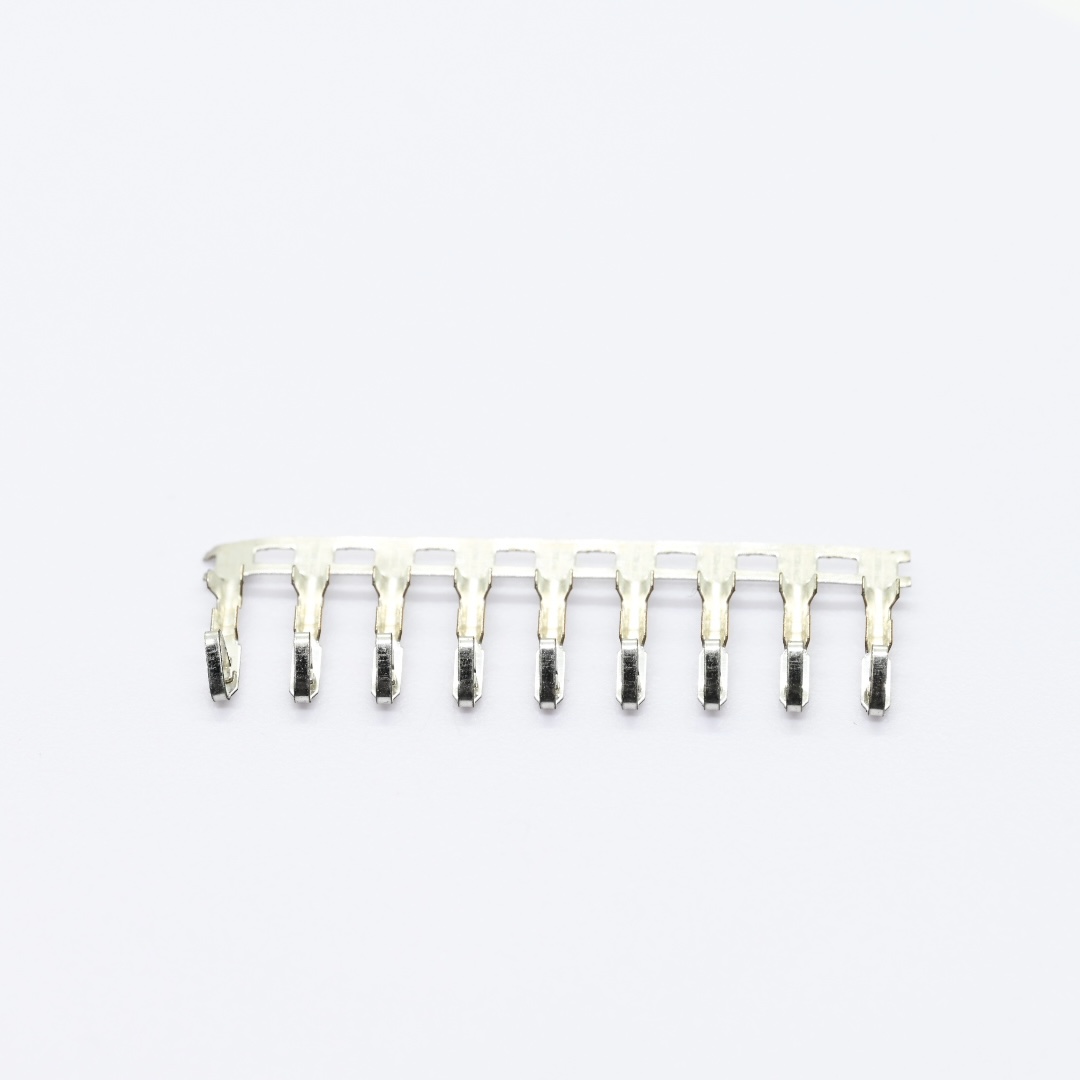

AT2543T-TP+2.54mm pitch Crimp Terminal Connector series（1）

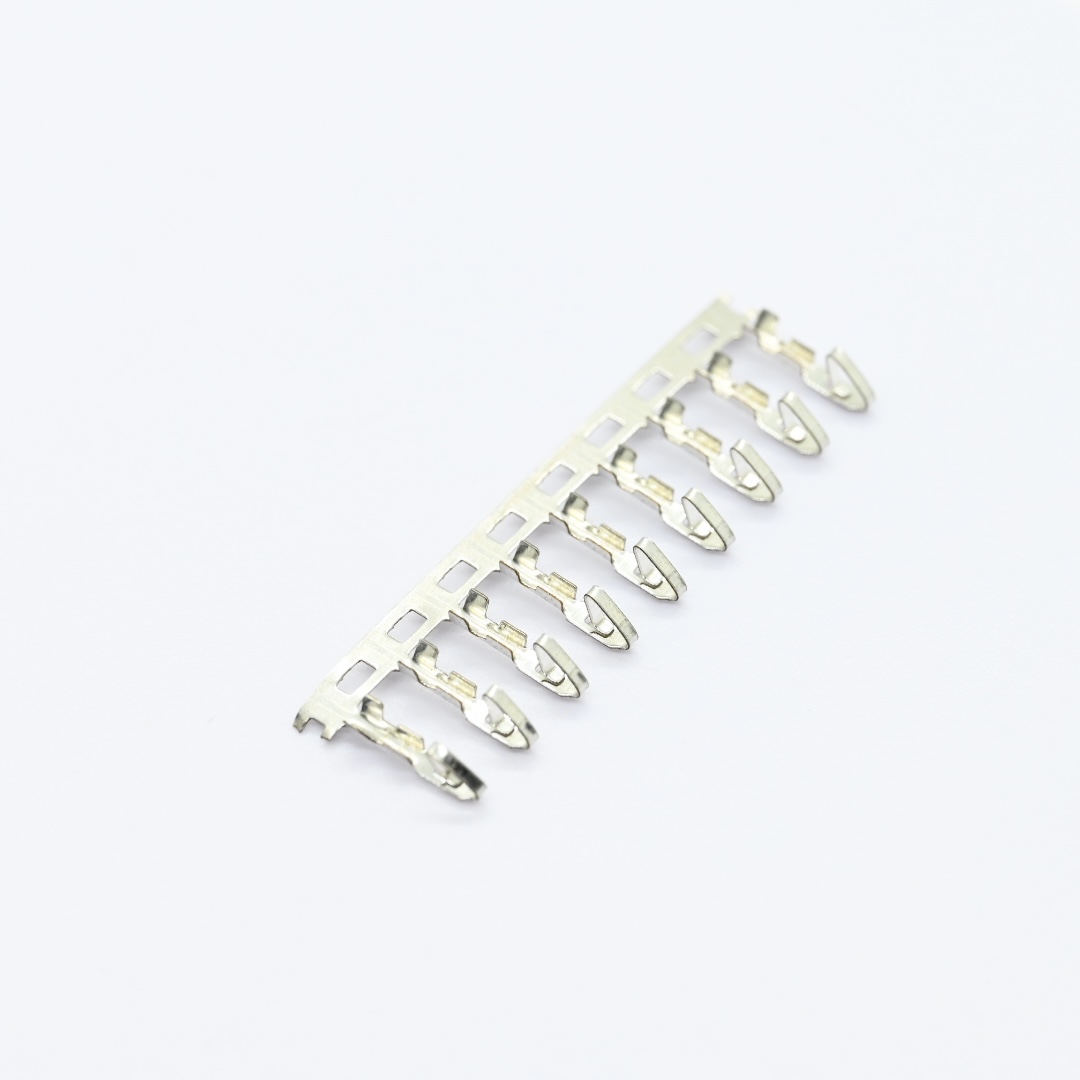

AT2543T-TP+2.54mm pitch Crimp Terminal Connector series（3）

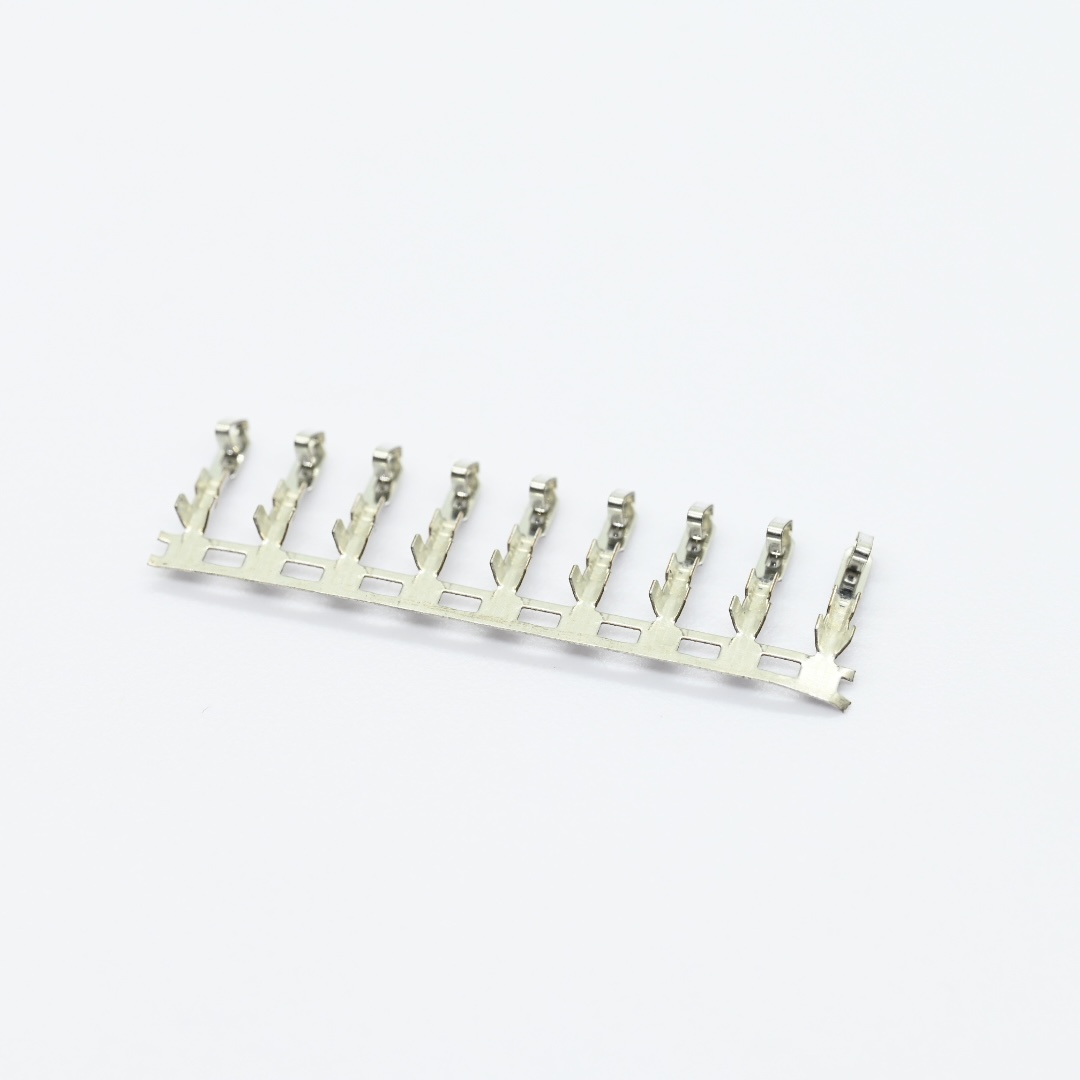

AT2543T-TP+2.54mm pitch Crimp Terminal Connector series（2）

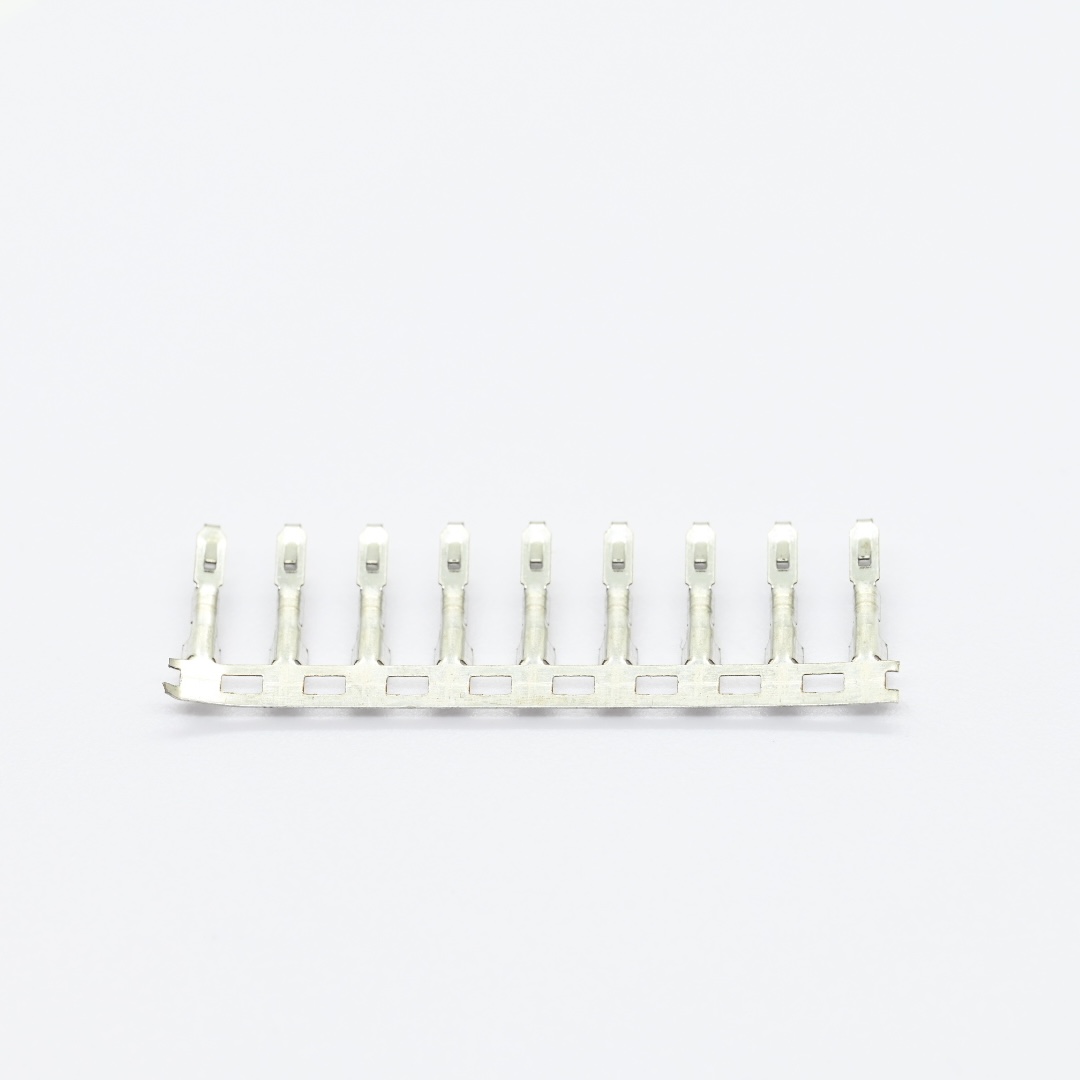

AT2543T-TP+2.54mm pitch Crimp Terminal Connector series（5）

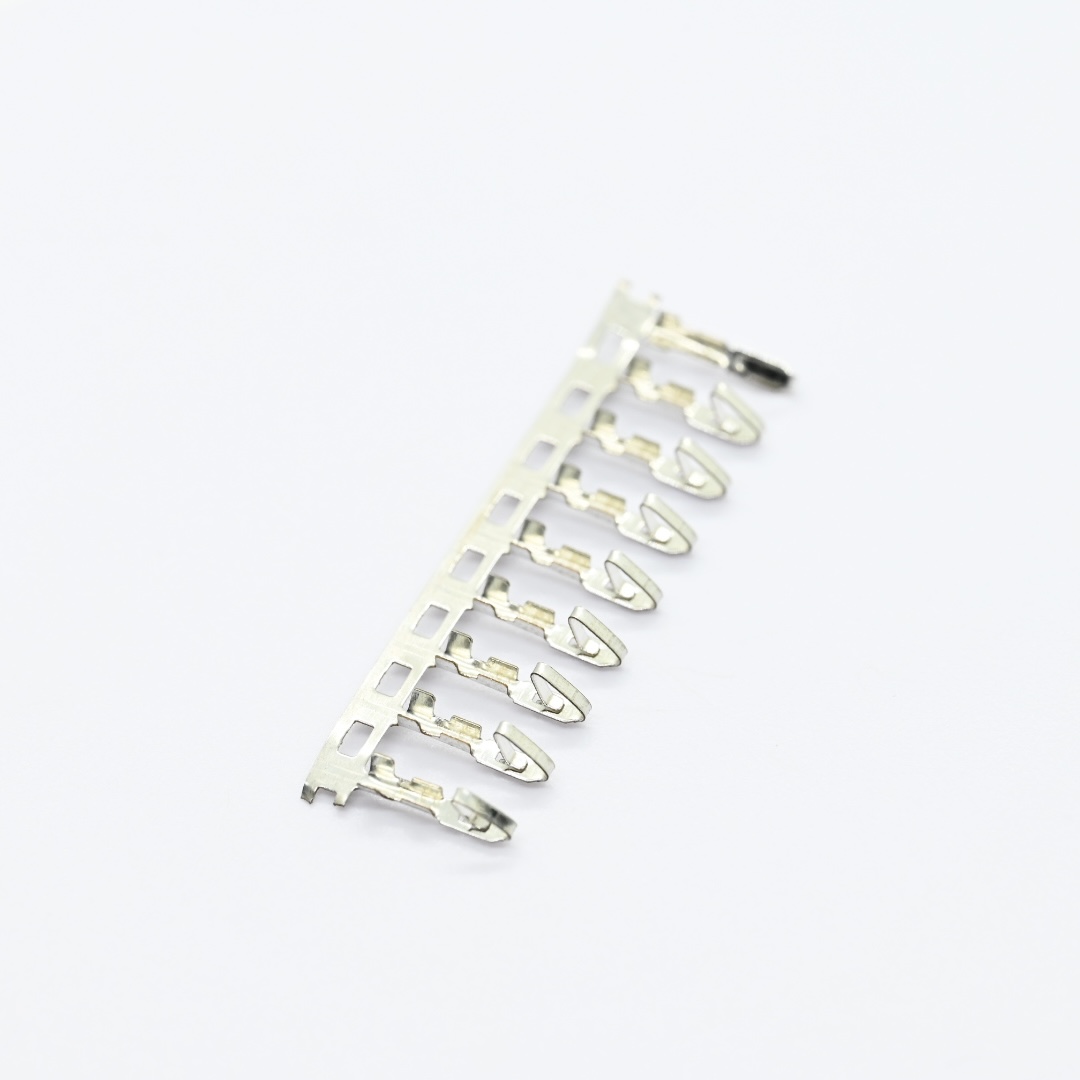

AT2543T-TP+2.54mm pitch Crimp Terminal Connector series（6）

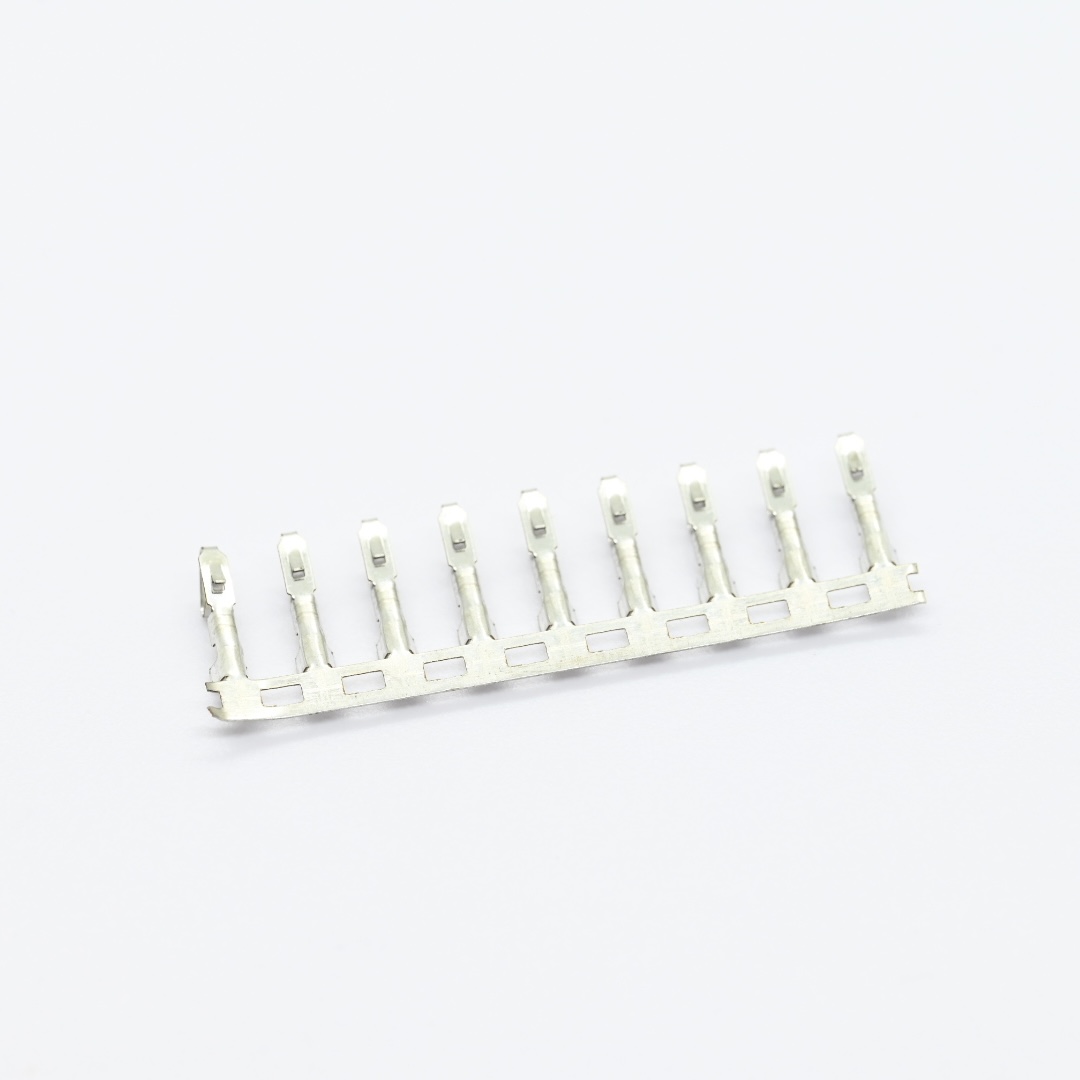

AT2543T-TP+2.54mm pitch Crimp Terminal Connector series（4）
