5.0 Millimeter Pitch PCB Screw Terminal Block

5.0 Millimeter Pitch PCB Screw Terminal Block

3 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures AT166 5.0 millimeter pitch PCB screw terminal blocks designed to deliver secure wire to board electrical connection via screw clamping structure for printed circuit board assembly. This terminal block reaches 300 volt rated voltage and 12 amp rated current, supports 18 to 12 AWG wire with 2.5 square millimeter wire cross section and applies 0.5 newton meter recommended screw torque. It adopts PA66 plus twenty three percent glass fiber housing with UL94V 0 flame retardant grade, tin plated brass terminals and nickel plated steel M3 screws, available in multiple pole counts and various insulator color options. This product meets RoHS and HSF environmental standards and fits industrial control modules power supply units precision measuring instruments and general consumer electronic hardware. Operators shall apply recommended torque value during wire installation, select proper pole number and insulator color for actual projects and keep finished products under dry storage to prevent metal component corrosion. Different from competitors outsourcing stamping molding and plating Antenk carries out full in‑house production including independent mold development high speed brass stamping precise PA66 injection molding multi grade electroplating and complete laboratory reliability verification. We hold ISO9001 ISO14001 IATF16949 and UL certifications, provide custom color and pole solution with round‑the‑clock engineering support, and over seventy percent of connector products are exported globally. Feel free to submit your project requirements for sample offer and full datasheet resources.

1. Flame Resistant PCB Connector prevents fire risks and guarantees stable performance for industrial electronic circuit assemblies.

2. Multi Pole Wiring Terminal supports varied contact quantities to realize flexible wire connection on different PCB application scenarios.

3. High Torque Wire Terminal maintains firm screw clamping force and avoids loose wiring under long‑term equipment operation.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: PCB screw terminal block for wire‑to‑board connection

1.2 Measurement unit: millimeter

1.3 Key outline dimensions: 5.00 mm pitch, 8.40 mm, 4.70±0.20 mm, 5.49 mm, 13.00 mm

1.4 Wire range: 18‑12 AWG, maximum 2.5 mm² wire cross‑section

1.5 Available poles: 2 contacts up to 24 contacts

1.6 Insulator color options: Green Blue Black Gray Orange

1.7 Recommended screw torque: 0.5N.m

1.8 CTA: Reach out to our engineering team to obtain complete dimension drawings and wiring guidance for your PCB design validation.

2. Material & Surface Plating

2.1 Housing material: PA66 plus 23 percent glass fiber, UL94V‑0 flame retardant rating

2.2 Terminal material: Brass with tin plated finish

2.3 Screw material: Steel M3.0 with nickel plated finish

3. Electrical Performance

3.1 Voltage rating: 300V

3.2 Current rating: 12A

4. Compliance Standard

4.1 Environmental compliance: RoHS and HSF compliant

5. Usage Method

5.1 Assembly mode: Mount onto printed circuit board, secure wires by screw clamping

5.2 Operation tip: Apply 0.5N.m torque when tightening M3.0 screws

6. Application Scenarios

6.1 Industrial control modules

6.2 Power supply units

6.3 Precision measuring instruments

6.4 General consumer electronic equipment

7. Operation & Storage Precautions

7.1 Apply the recommended 0.5N.m torque for screw tightening to prevent damage to housing or loose wire connection

7.2 Select proper pole quantity and insulator color according to actual project requirements

7.3 Store finished terminal blocks in dry environment to avoid corrosion of metal components

7.4 Do not over‑torque screws to avoid plastic housing cracking

7.5 CTA: Share your wire parameters and application conditions, we can provide free sample evaluation and professional technical support.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

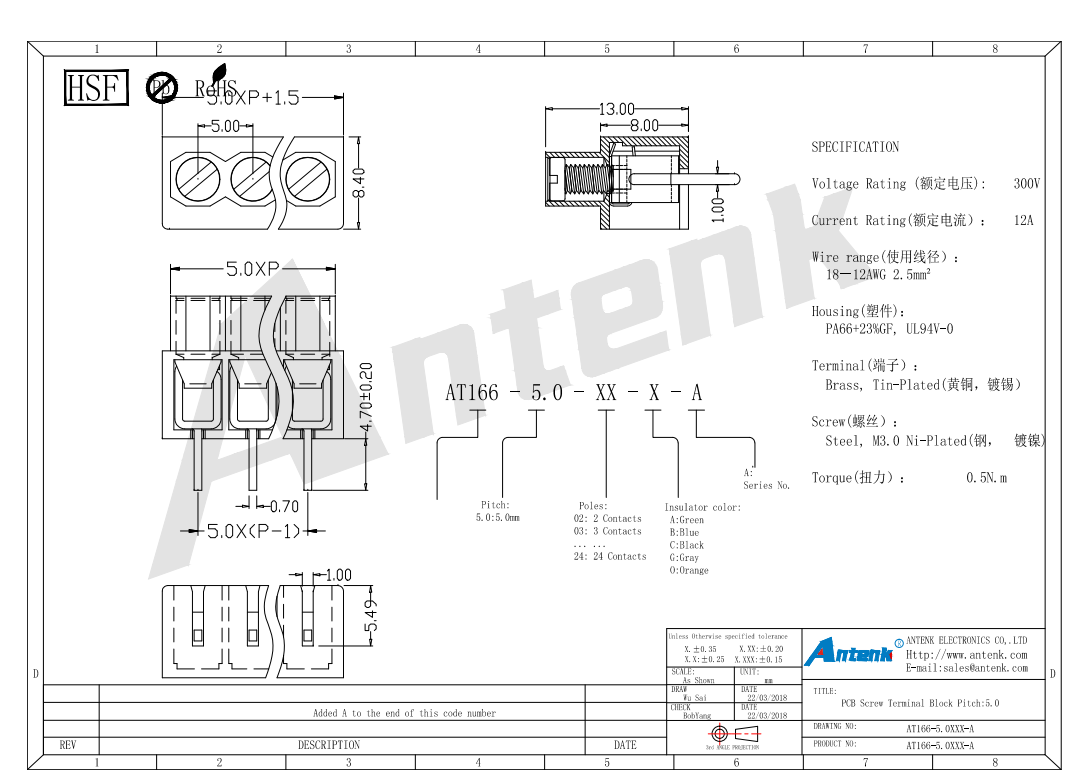

Product Drawing:
