Product details

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures DFR‑XX‑XXX‑314B DIN41612 right angle female half R connectors with fork contacts to establish stable backplane board to board signal and power interconnection by soldering onto printed circuit boards. This connector supports multiple contact counts including 16 24 32 and 48 positions with 2.54 millimeter pitch, holds 2.0 amp rated current, 1000 volt AC one minute withstand voltage, minimum 1000 megaohm insulation resistance and maximum 20 milliohm contact resistance, and operates from minus 55 degree Celsius to plus 165 degree Celsius. It adopts PBT plus forty eight percent glass fiber insulator with UL94V 0 flame retardant grade and brass fork contacts, and supplies diverse plating choices of tin or various nickel over gold finishes with two different solder tail length options. This item satisfies RoHS and HSF standards and fits industrial rack equipment automation control systems telecommunication hardware and precision measuring instruments. Operators shall select suitable contact quantity plating and solder tail length for real projects, follow official PCB layout for soldering and store goods in dry sealed environment to avoid brass contact corrosion. Unlike competitors outsourcing stamping molding and plating Antenk completes full in‑house production covering independent mold development high speed brass stamping precise PBT injection molding multi grade electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, deliver custom configuration solutions and round‑the‑clock engineering support, over seventy percent of connector goods are exported globally. Feel free to send your project specifications for sample quotation and full datasheet resources.

1. Eurocard Backplane Connector builds robust board to board interconnection for industrial rack mounted electronic systems.

2. High Temp Receptacle Connector maintains consistent electrical performance under wide ranging high and low temperature operating conditions.

3. Fork Contact PCB Receptacle achieves reliable mating connection after stable soldering onto target printed circuit boards.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: DIN41612 right angle female half R backplane connector with fork contacts

1.2 Measurement unit: millimeter

1.3 Pitch: 2.54 mm, key outline dimensions: 10.30 mm, 8.50 mm, 13.12 mm, 6.72 mm, 5.63 mm, 5.08 mm

1.4 Available contact positions: 16, 24, 32, 48 positions

1.5 Contact row configurations: Row a, row a plus b, row a plus c, row a plus b plus c

1.6 Solder tail options: B type tail length 3.0 mm, J type tail length 7.0 mm

1.7 Plating options: Tin, gold flash, multiple gold thickness over nickel finishes

1.8 Mechanical force: Max 45N insertion force for 48 pins; minimum 0.24N withdrawal force per single contact

1.9 CTA: Contact our engineering team to acquire full dimension drawings and recommended PCB layout files for your hardware design validation.

2. Material & Surface Plating

2.1 Contact material: Brass

2.2 Contact plating: Gold or tin over nickel

2.3 Insulator material: PBT plus 48 percent glass fiber, UL94V‑0 flame retardant rating

3. Electrical Performance

3.1 Current rating: 2.0 Amp

3.2 Withstand voltage: AC 1000V for 1 minute

3.3 Insulation resistance: 1000MΩ minimum under DC 100V

3.4 Contact resistance: 20mΩ maximum

4. Environmental Parameters

4.1 Operating temperature range: ‑55°C to +165°C

5. Compliance Standard

5.1 Environmental compliance: RoHS and HSF compliant

6. Usage Method

6.1 Assembly mode: Right angle solder termination onto printed circuit board for backplane board‑to‑board interconnection

6.2 Operation tip: Follow official recommended PCB layout to achieve stable soldering performance

7. Application Scenarios

7.1 Industrial rack equipment

7.2 Automation control systems

7.3 Telecommunication hardware

7.4 Precision measuring instruments

8. Operation & Storage Precautions

8.1 Select proper contact quantity contact row configuration solder tail length and plating grade according to real‑world project requirements

8.2 Observe specified insertion force to avoid physical damage to fork contacts during mating operation

8.3 Store connectors in dry sealed environment to prevent corrosion of brass contact surfaces

8.4 Do not apply excessive force during plug and unplug cycles to preserve long term connection reliability

8.5 CTA: Submit your contact arrangement plating and working condition requirements, we can deliver free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

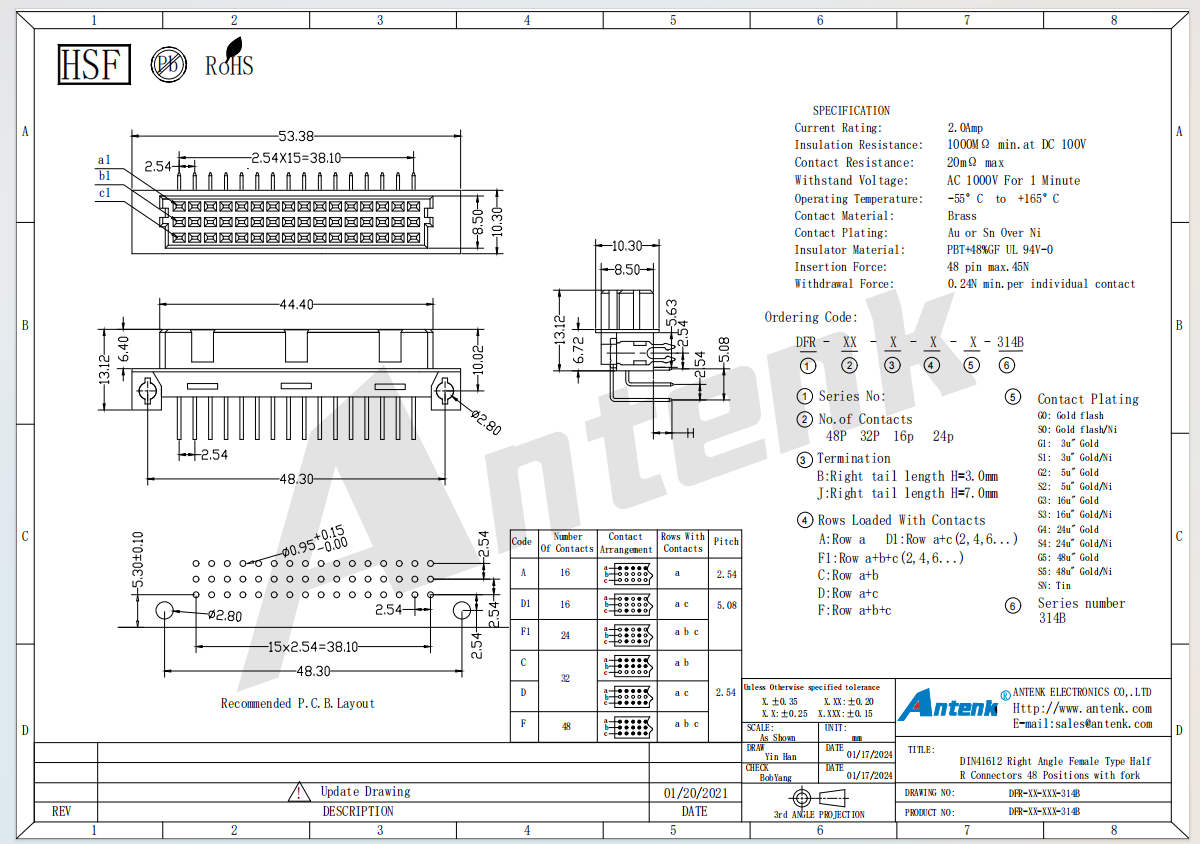

Product Drawing：

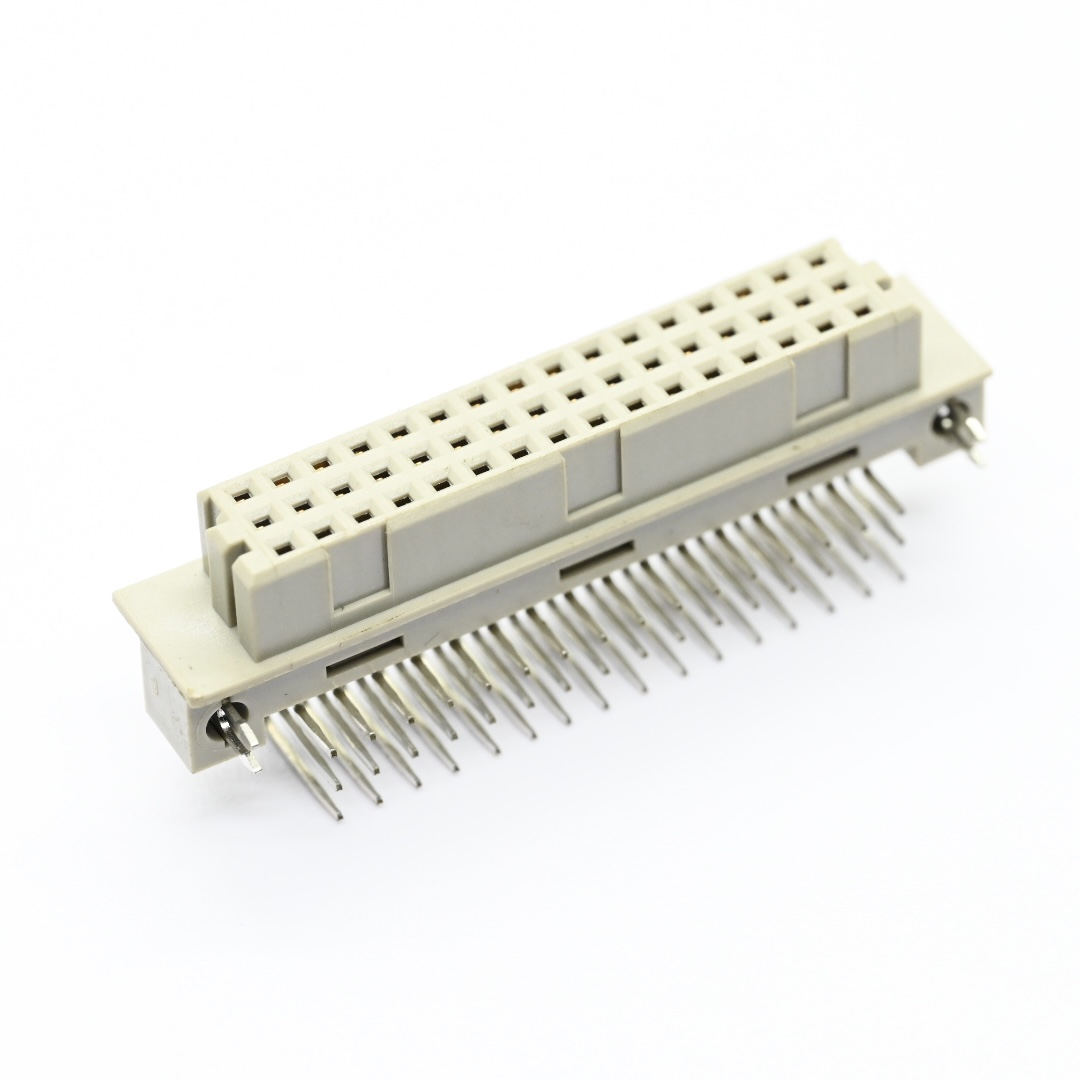

DFR-48P-B-F-S0-314B+DIN41612 Right Angle Female Type Half（4）

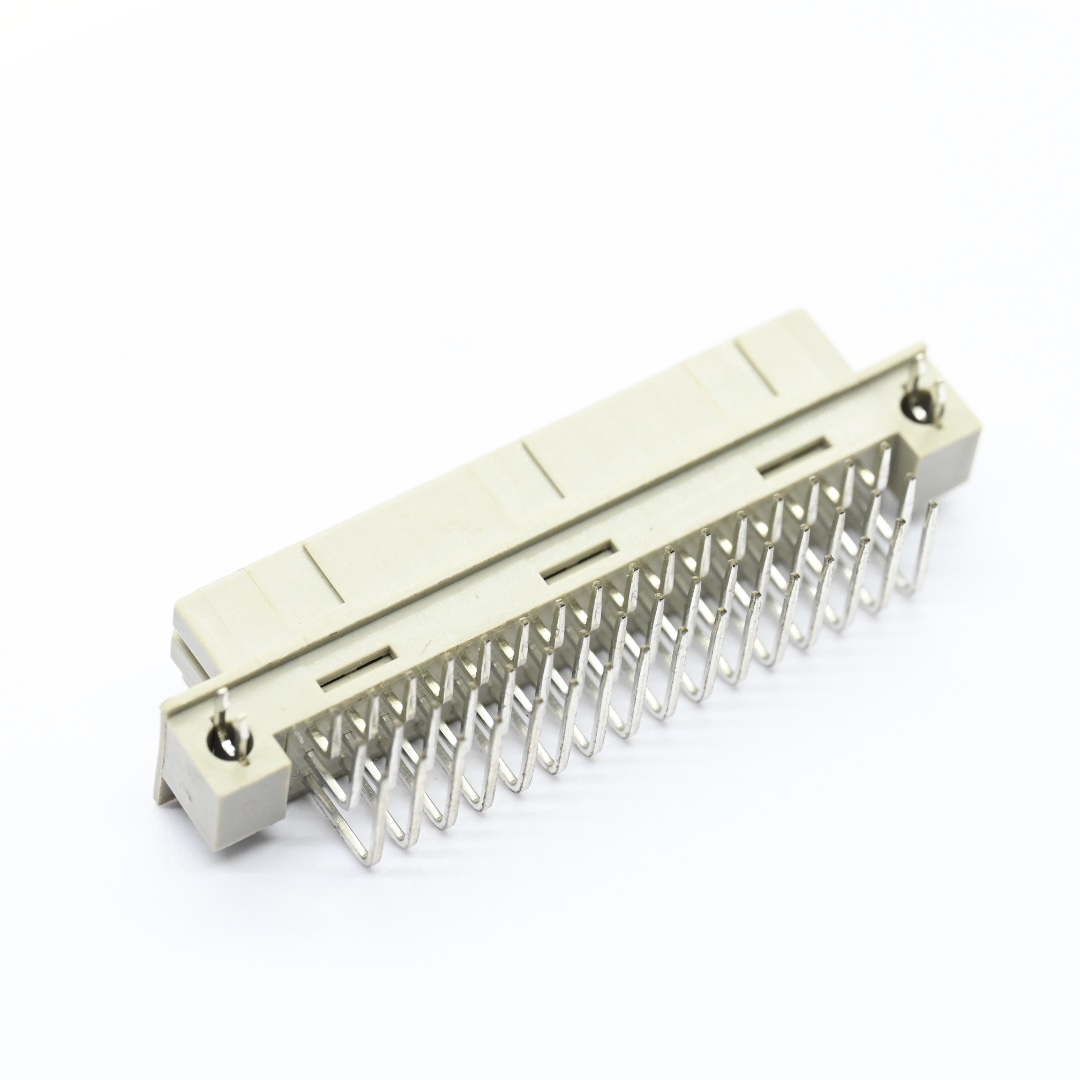

DFR-48P-B-F-S0-314B+DIN41612 Right Angle Female Type Half（6）

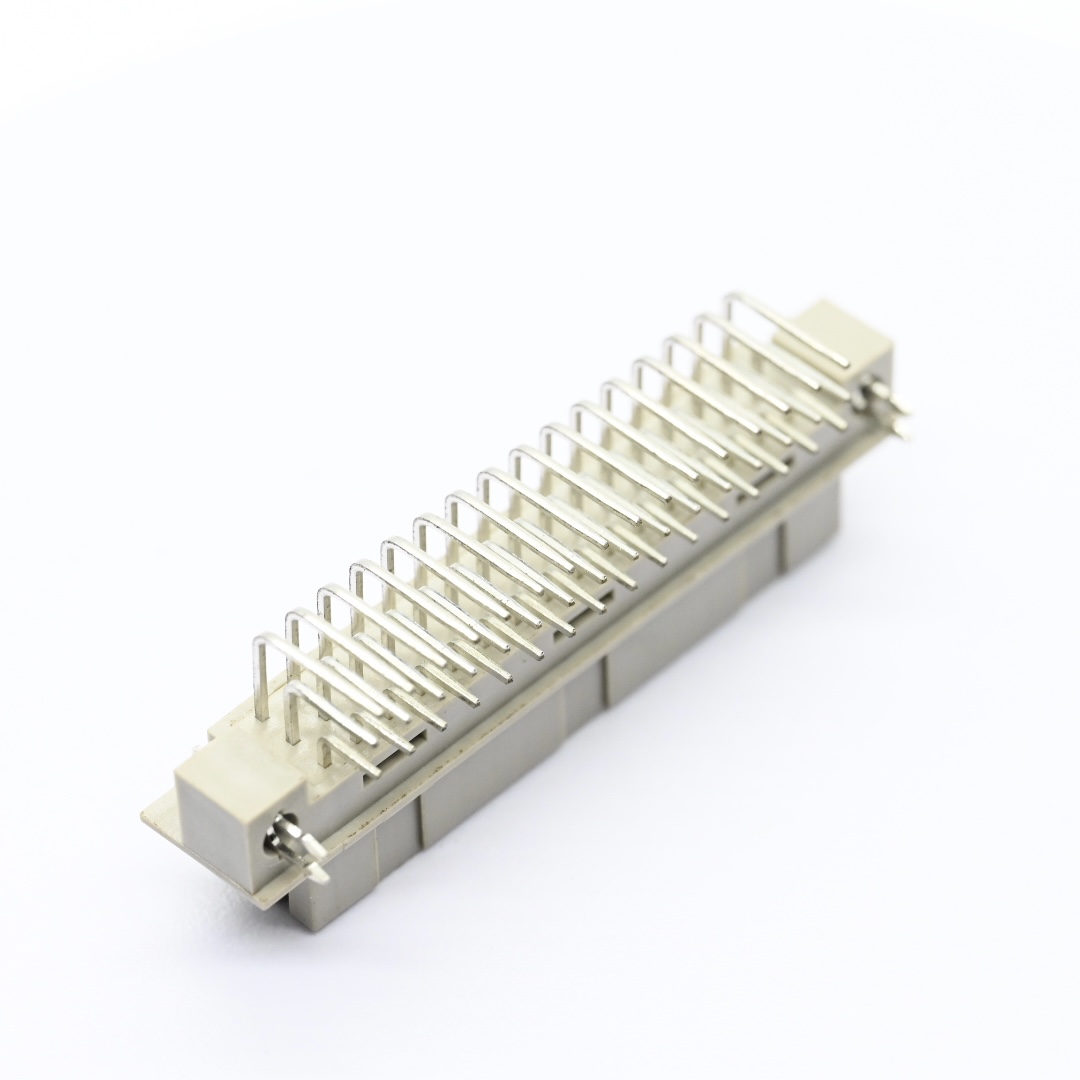

DFR-48P-B-F-S0-314B+DIN41612 Right Angle Female Type Half（1）

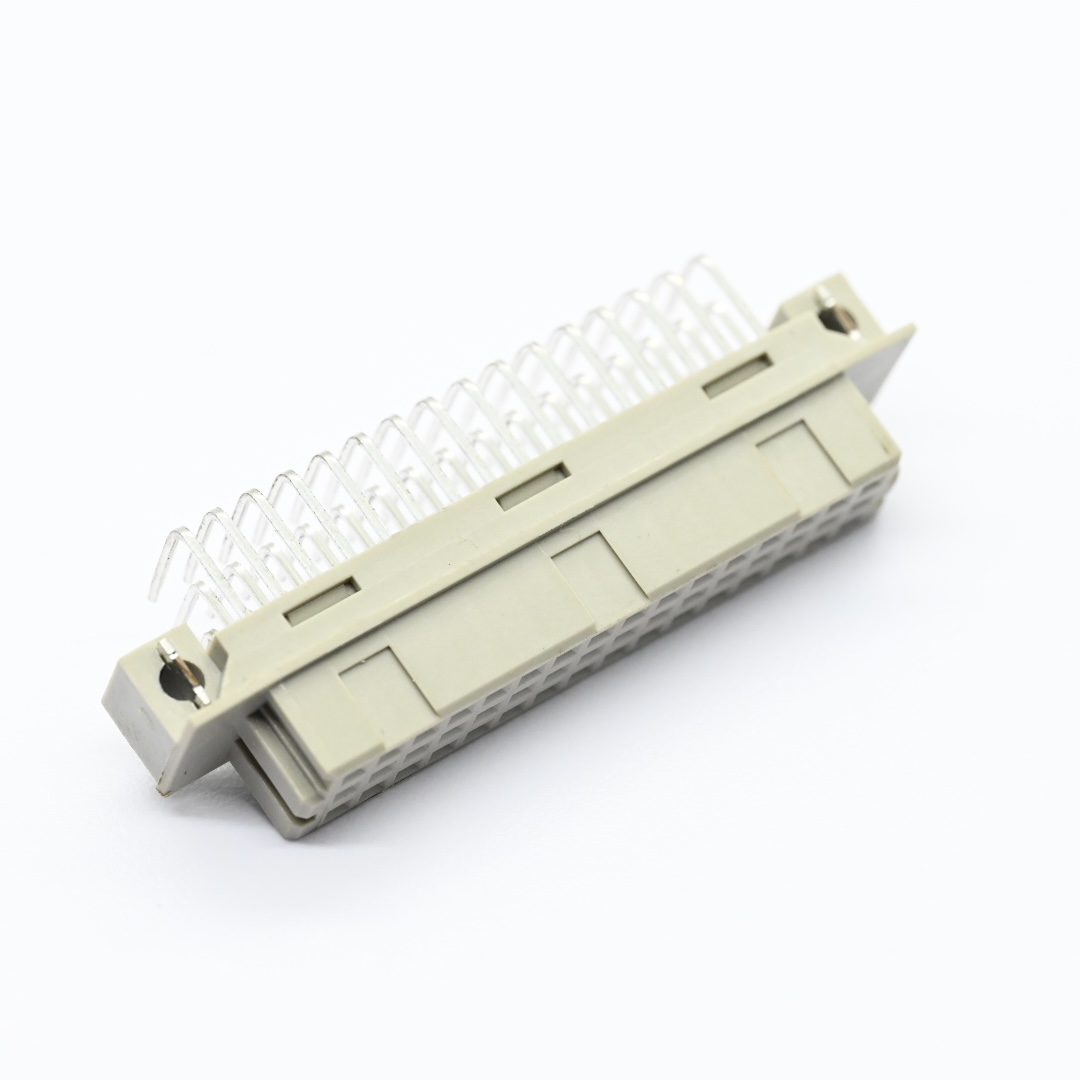

DFR-48P-B-F-S0-314B+DIN41612 Right Angle Female Type Half（3）

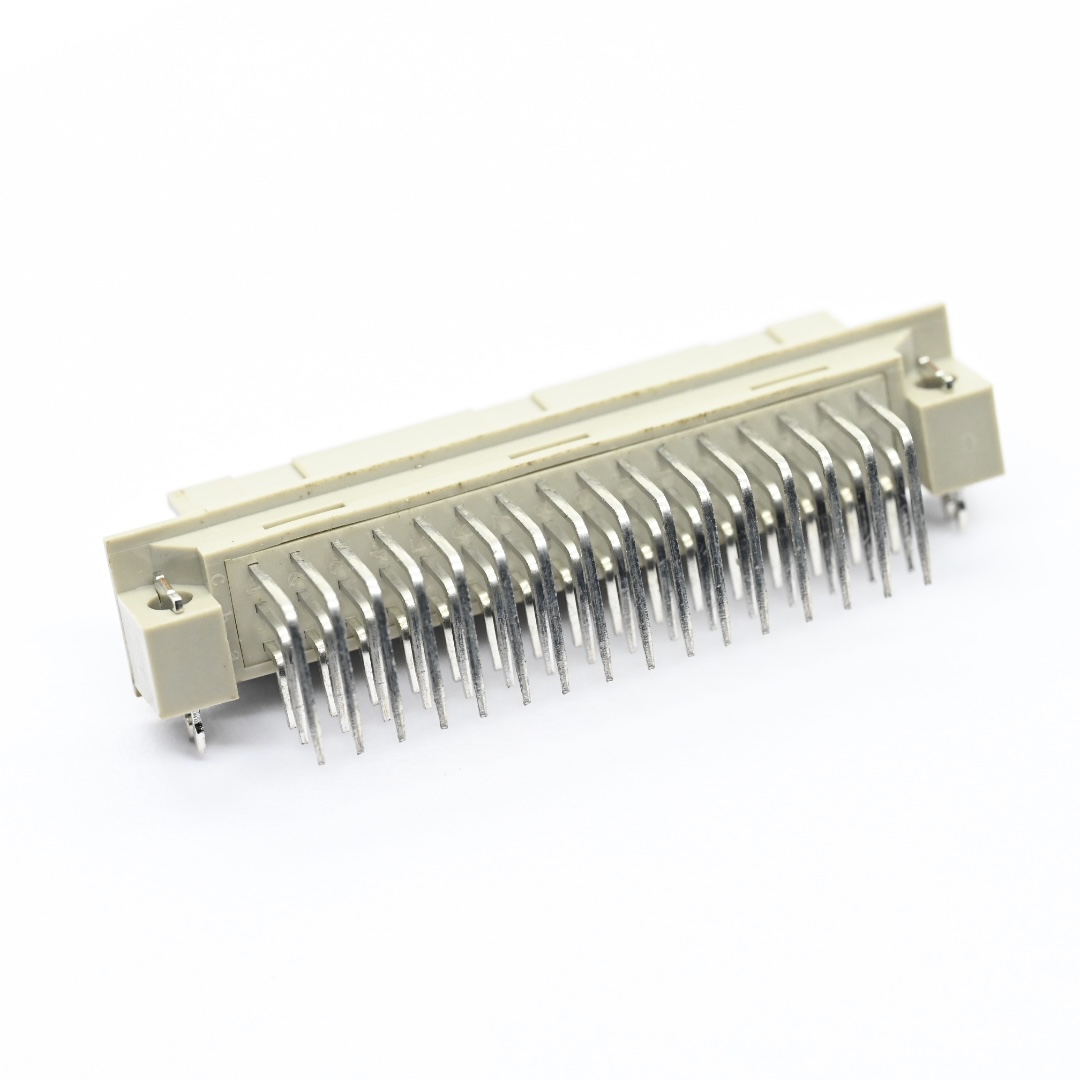

DFR-48P-B-F-S0-314B+DIN41612 Right Angle Female Type Half（2）

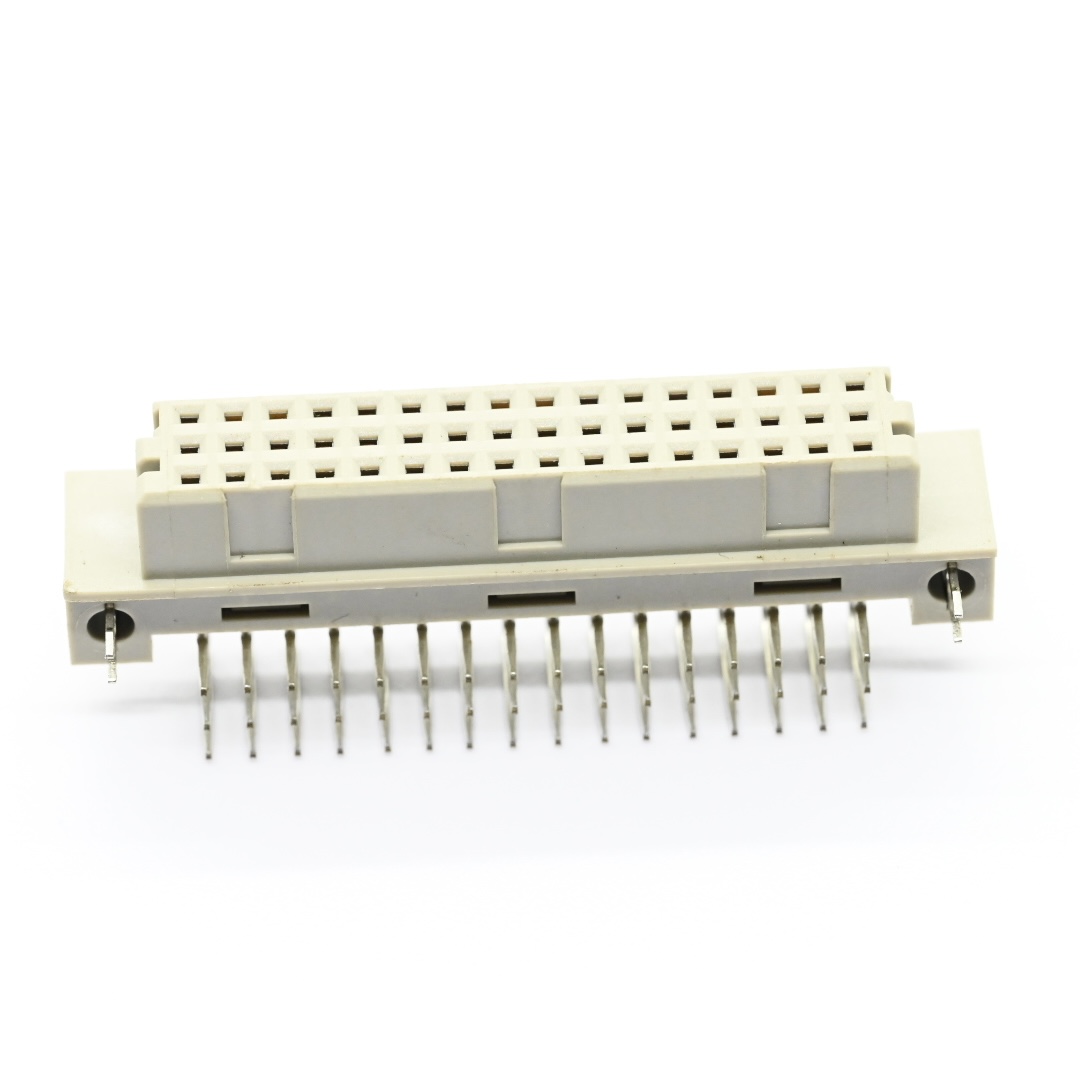

DFR-48P-B-F-S0-314B+DIN41612 Right Angle Female Type Half（5）
