VQ Series Cartridge Kit
Product Overview
VQ Series Cartridge Kit is the core internal replacement assembly for VQ series high‑speed high‑pressure Hydraulic Vane pump, serving as critical wearable components of the whole hydraulic pump. It is widely used to restore performance of the original pump inside industrial hydraulic system and various heavy‑duty hydraulic‑driven Machine.

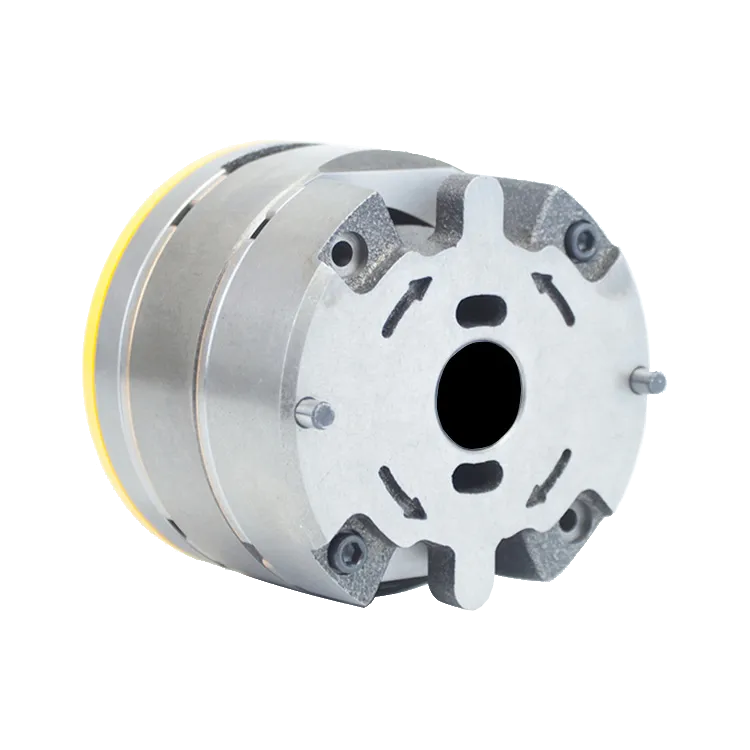

This integrated cartridge assembly consists of rotor, vanes, cam ring, floating side plates and related sealing parts. Thanks to the independent cartridge‑in‑housing structure, field maintenance and displacement adjustment can be completed without removing the pump body from the Machine. It effectively brings back rated flow and pressure output for your hydraulic system, avoiding full pump replacement and lowering overall operating costs.
Technical Specifications
‑ Model Series: VQ Series Cartridge Kit
‑ Compatible Pump Models: 20VQ, 25VQ, 35VQ, 45VQ, 2520VQ, 3520VQ, 3525VQ, 4520VQ, 4525VQ, 4535VQ single & double Hydraulic Vane pump
‑ Displacement coverage: 8‑193 mL/r, multiple displacement options available
‑ Continuous working pressure: up to 21 MPa; Peak pressure: 22.8 MPa
‑ Max rated rotating speed: 2700 rpm
‑ Vane design: 10‑vane for mobile heavy‑load condition; 12‑vane for low‑noise industrial application
‑ Rotation direction: Clockwise / Counter‑clockwise optional
‑ Matching medium: Anti‑wear hydraulic oil for industrial hydraulic system
‑ Key features: Integrated modular assembly, dual‑metal floating side‑plate with automatic clearance compensation, high seizure resistance, easy on‑site service for industrial Machine
Working Principle
As the core pumping unit of Hydraulic Vane pump, VQ Series Cartridge Kit realizes oil suction and pressure delivery inside the hydraulic pump. Driven by the main shaft, rotor and vanes rotate inside cam ring. Centrifugal force pushes vanes tightly against cam‑ring inner surface. Volume change between vanes generates negative pressure for oil suction and positive pressure for oil delivery to supply the whole hydraulic system. Floating side plates perform automatic axial clearance compensation under oil pressure, maintaining high volumetric efficiency even under high‑pressure working condition of the Machine .
When vanes, rotor or side plates inside the cartridge suffer wear, the hydraulic pump will generate insufficient pressure, flow loss, noise and internal leakage. Installing brand‑new VQ Series Cartridge Kit can quickly recover pump performance for your hydraulic system.
Core Advantages
1. Modular integrated structure, quick on‑site replacement. No need to disassemble pump housing and pipeline from the Machine, greatly shorten maintenance downtime of hydraulic system.
2. Dual‑metal floating pressure‑compensated side‑plate design, keep high volumetric efficiency under long‑term high‑pressure continuous operation.
3. Complete model coverage, compatible with single and double VQ series Hydraulic Vane pump, flexible displacement selection for different Machine.
4. High anti‑seizure performance, excellent cold‑start adaptability, stable for heavy‑load and frequent‑cycle working conditions .
5. Cost‑effective solution: replace inner cartridge only instead of whole hydraulic pump, reduce spare‑part investment for hydraulic system.
Application Range
VQ Series Cartridge Kit is vital wearable spare‑part for VQ series Hydraulic Vane pump. It serves maintenance and overhaul of hydraulic system on engineering machinery, material‑handling equipment, injection‑molding Machine, machine tools, metallurgical facilities and mobile hydraulic equipment. Widely stocked by hydraulic repair workshops, equipment manufacturers and global spare‑parts distributors.
