Product details

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures AW1254R‑S‑xP 1.25 millimeter pitch 90 degree SMT wafer connector to deliver stable wire to board signal and low power transmission through surface mount soldering on printed circuit boards, and this product mates with AH1254 series housing. This compact SMT connector supports multiple position counts, carries 1.0 amp rated current and 125 volt AC DC rated voltage, reaches 500 volt AC withstand voltage for one minute, features minimum 100 megaohm insulation resistance, and works within minus 40 degree Celsius to plus 105 degree Celsius. It adopts beige Nylon 6T insulator with UL94V 0 flame retardant grade, brass pins with gold over nickel on contact area and tin over nickel on solder area. This item meets RoHS and HSF standards and fits consumer electronic modules communication hardware small household appliances and compact industrial control devices. Operators shall select proper position count for real projects, follow official PCB layout for SMT soldering and store finished goods in dry sealed environment to prevent brass terminal oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in‑house production covering independent mold development high speed brass stamping precise Nylon 6T injection molding multi grade electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, provide custom technical solutions and round‑the‑clock engineering support, over seventy percent of connector goods are exported globally. Feel free to submit your project parameters for sample offer and complete datasheet support.

1. Compact SMT Wafer Header saves valuable PCB space for miniature electronic device assembly.

2. Right Angle Wire Board Header achieves reliable wire to board interconnection via surface mount soldering process.

3. Reflow Tolerant Wafer Socket maintains stable electrical performance through standard SMT reflow soldering cycles.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: 90 degree right angle SMT wafer connector for wire to board connection, mates with AH1254 series housing

1.2 Measurement unit: millimeter

1.3 Pitch: 1.25±0.10 mm, multiple overall dimensions vary according to pin positions

1.4 Available pin positions: ranging from 3 pins up to 25 pins

1.5 Insulator color: Beige

1.6 Pin dimension: 0.80±0.05 mm

1.7 CTA: Contact our engineering team to obtain full dimension drawings and PCB layout documents for your product design validation.

2. Material & Surface Plating

2.1 Pin material: Brass, gold over nickel on contact area, tin over nickel on solder area

2.2 Solder tab material: Brass with tin over nickel plating

2.3 Insulator material: Nylon 6T, UL94V‑0 flame retardant rating

3. Electrical Performance

3.1 Rated voltage: 125V AC DC

3.2 Rated current: 1A AC DC

3.3 Withstanding voltage: 500V AC per minute

3.4 Minimum insulation resistance: 100M ohms

4. Environmental Parameters

4.1 Operating temperature range: ‑40°C to +105°C

5. Compliance Standard

5.1 Environmental compliance: RoHS and HSF compliant

6. Usage Method

6.1 Assembly mode: Surface mount soldering onto printed circuit board for wire to board connection

6.2 Operation tip: Apply matching AH1254 series housing for complete mating connection

7. Application Scenarios

7.1 Consumer electronic modules

7.2 Communication hardware

7.3 Small household appliances

7.4 Compact industrial control devices

8. Operation & Storage Precautions

8.1 Select proper pin count according to actual project requirements

8.2 Follow official recommended PCB layout to guarantee reliable SMT soldering effect

8.3 Store connectors in dry sealed packages to avoid oxidation of brass terminals

8.4 Use the matched AH1254 series housing, do not use incompatible mating parts

8.5 CTA: Submit your pin quantity and application condition details, we can provide free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

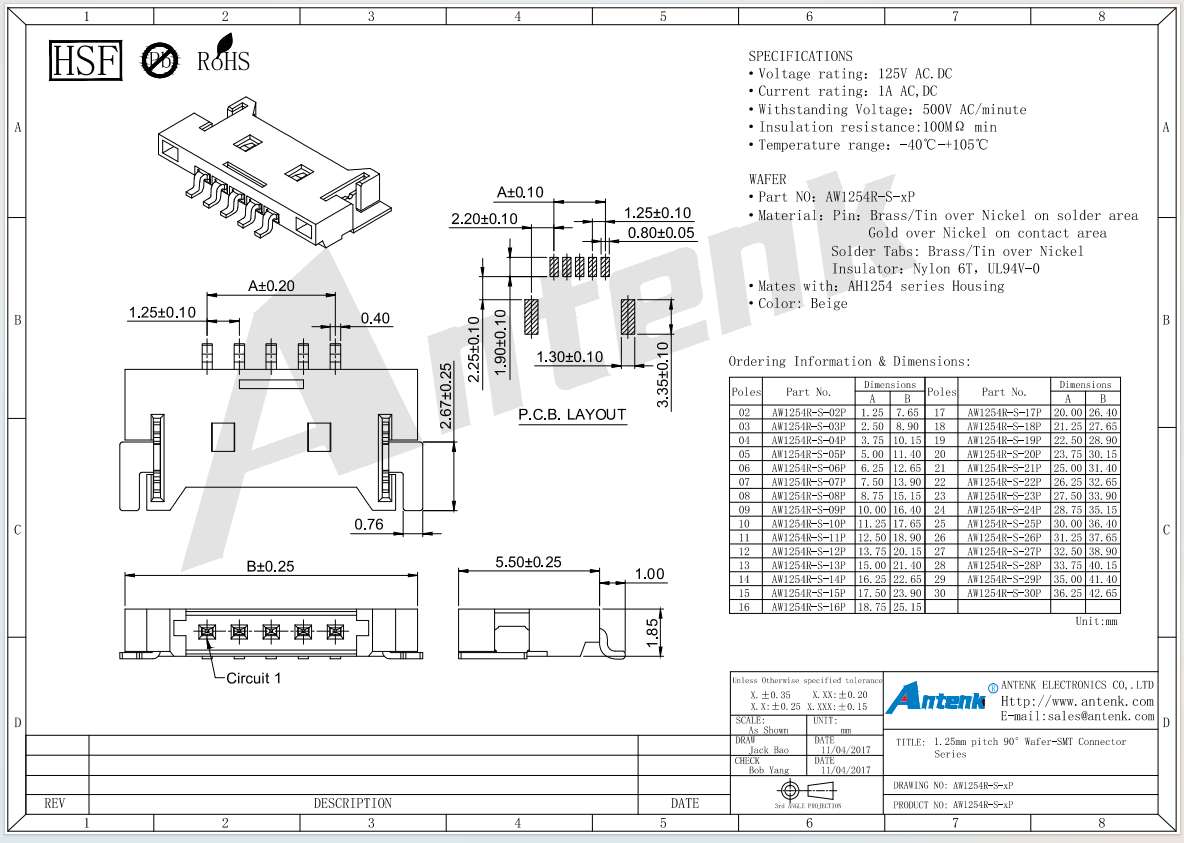

Product Drawing:

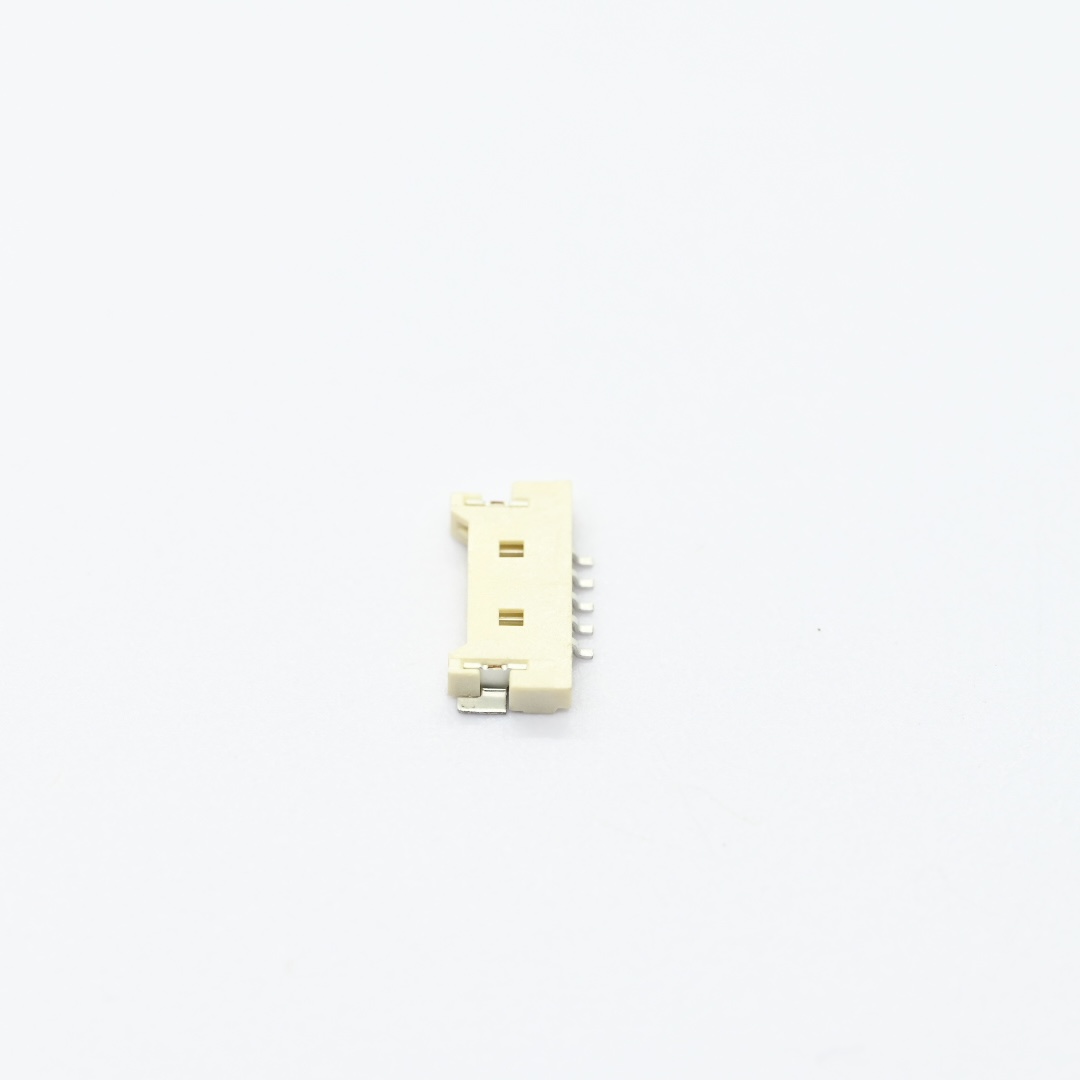

AW1254R-S-05P+1.25mm pitch 90° Wafer-SMT Connector Series（3）

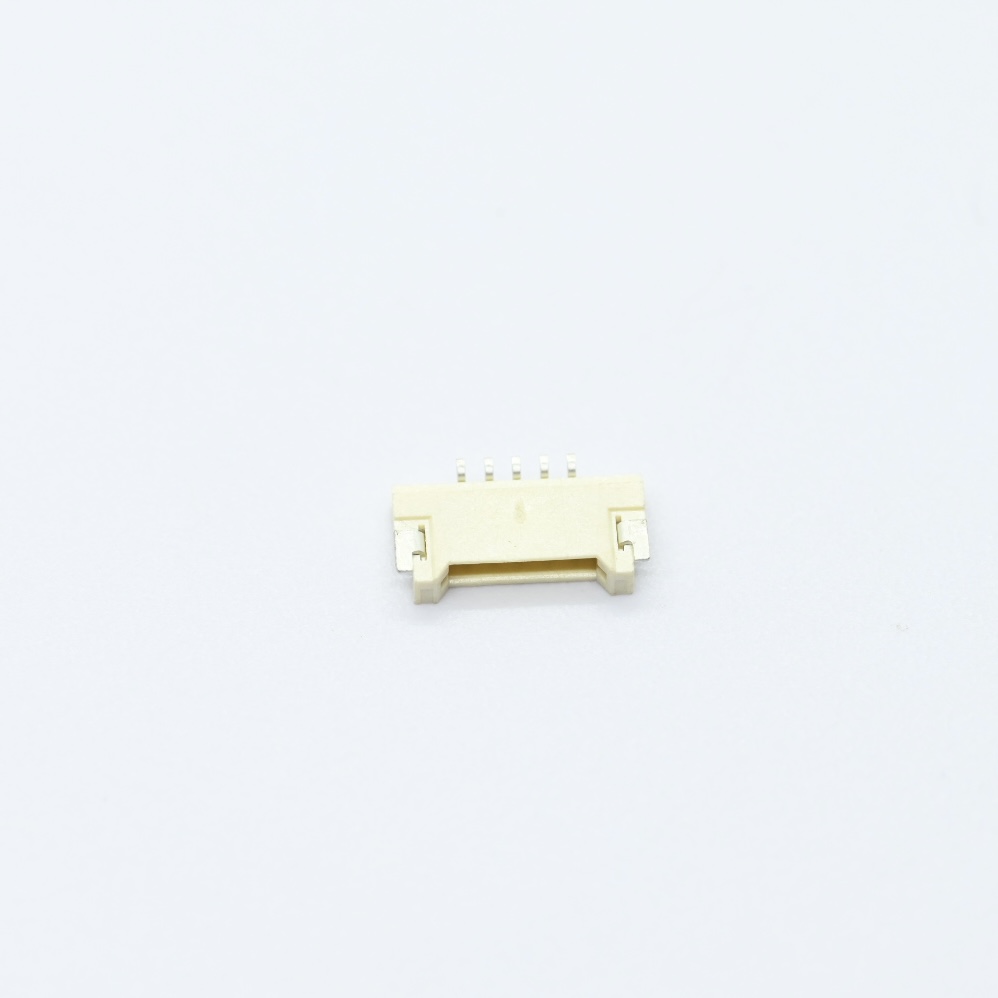

AW1254R-S-05P+1.25mm pitch 90° Wafer-SMT Connector Series（5）

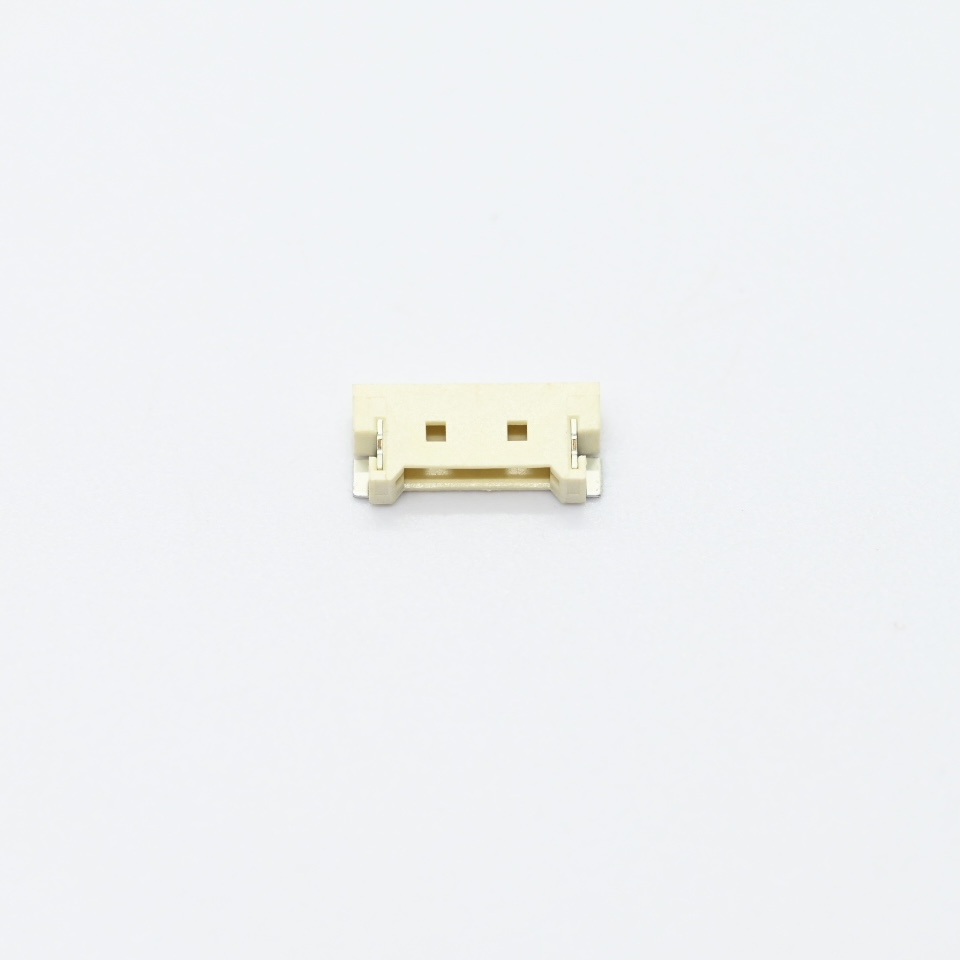

AW1254R-S-05P+1.25mm pitch 90° Wafer-SMT Connector Series（4）

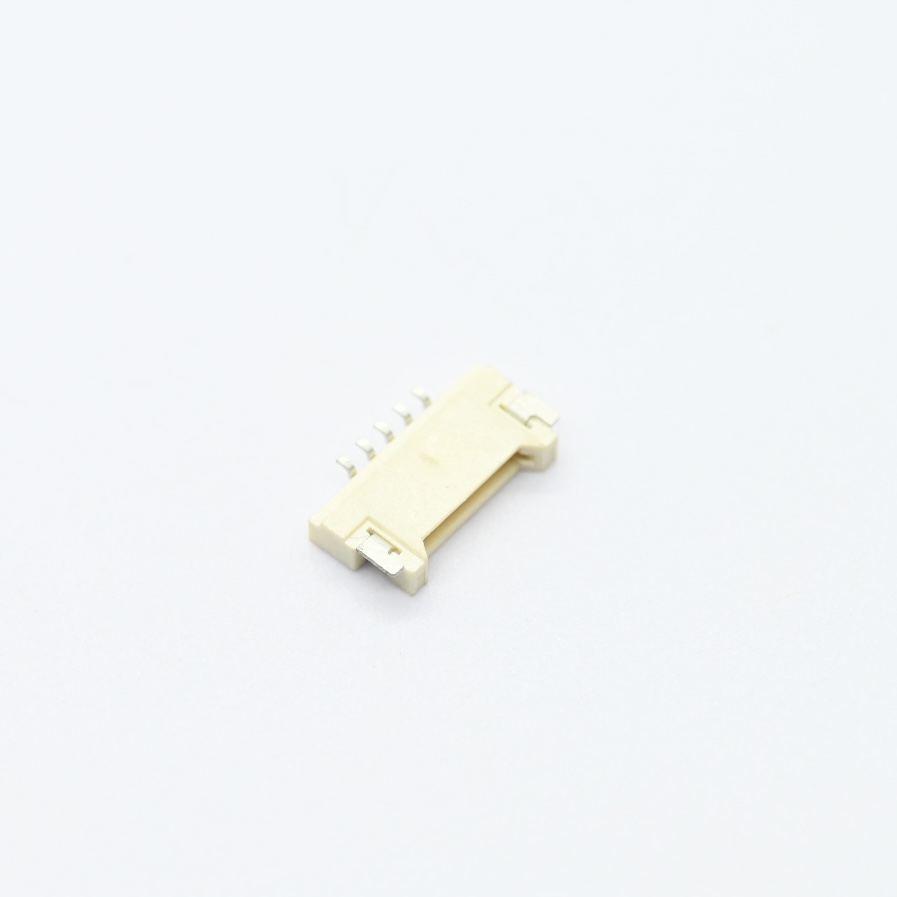

AW1254R-S-05P+1.25mm pitch 90° Wafer-SMT Connector Series（6）

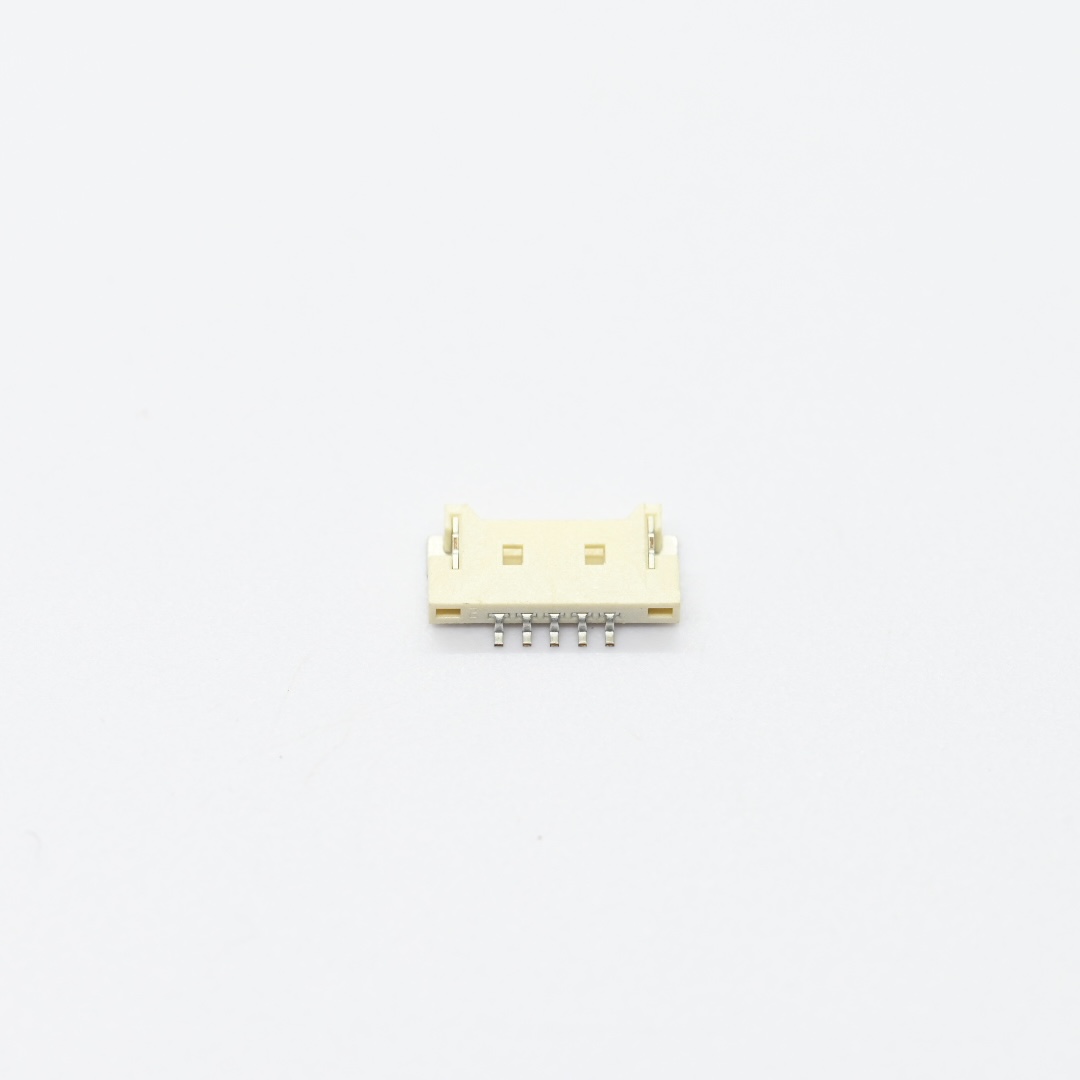

AW1254R-S-05P+1.25mm pitch 90° Wafer-SMT Connector Series（1）

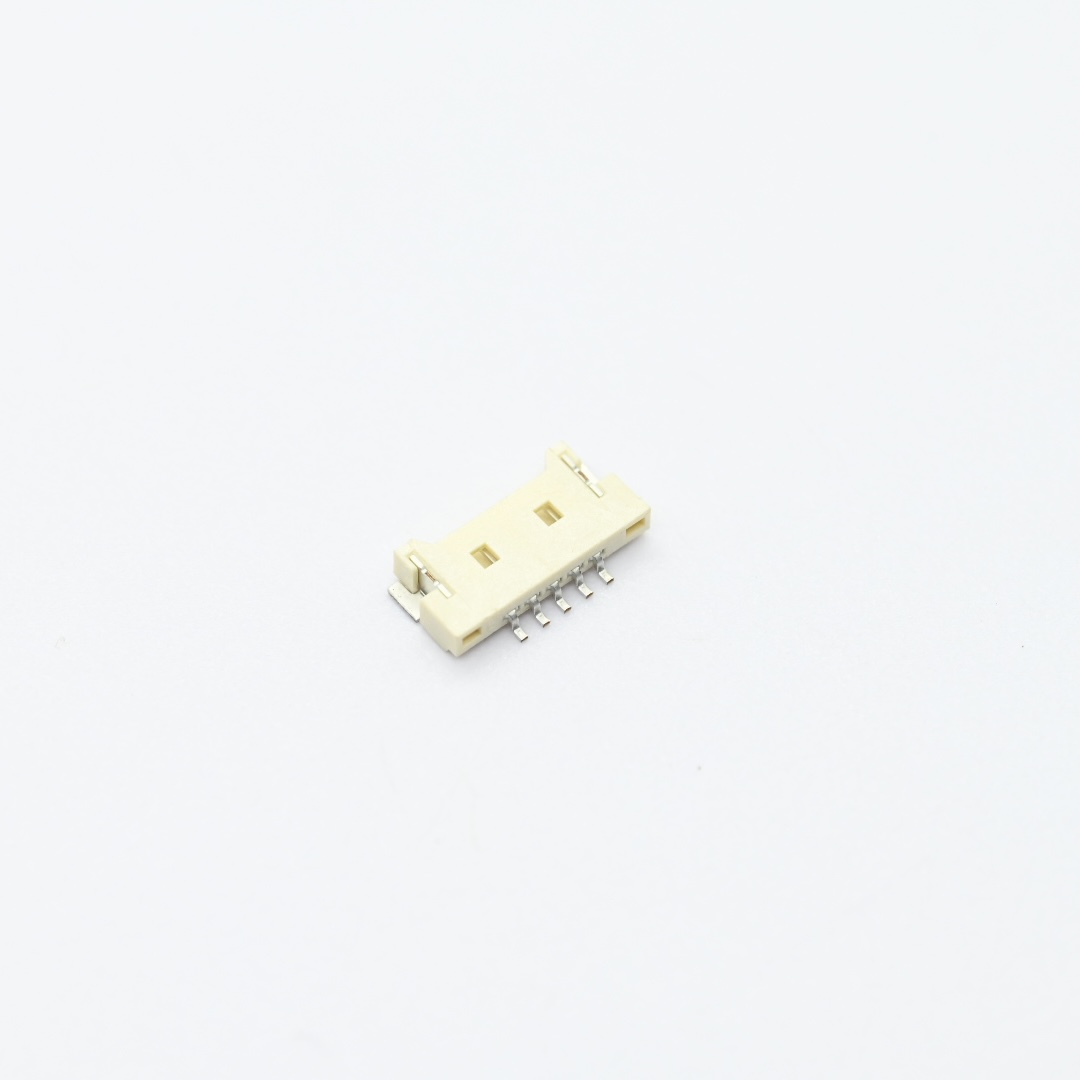

AW1254R-S-05P+1.25mm pitch 90° Wafer-SMT Connector Series（2）
