SFP 1X1 Press Fit Cage Without Moon Notch

SFP 1X1 Press Fit Cage Without Moon Notch

2 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

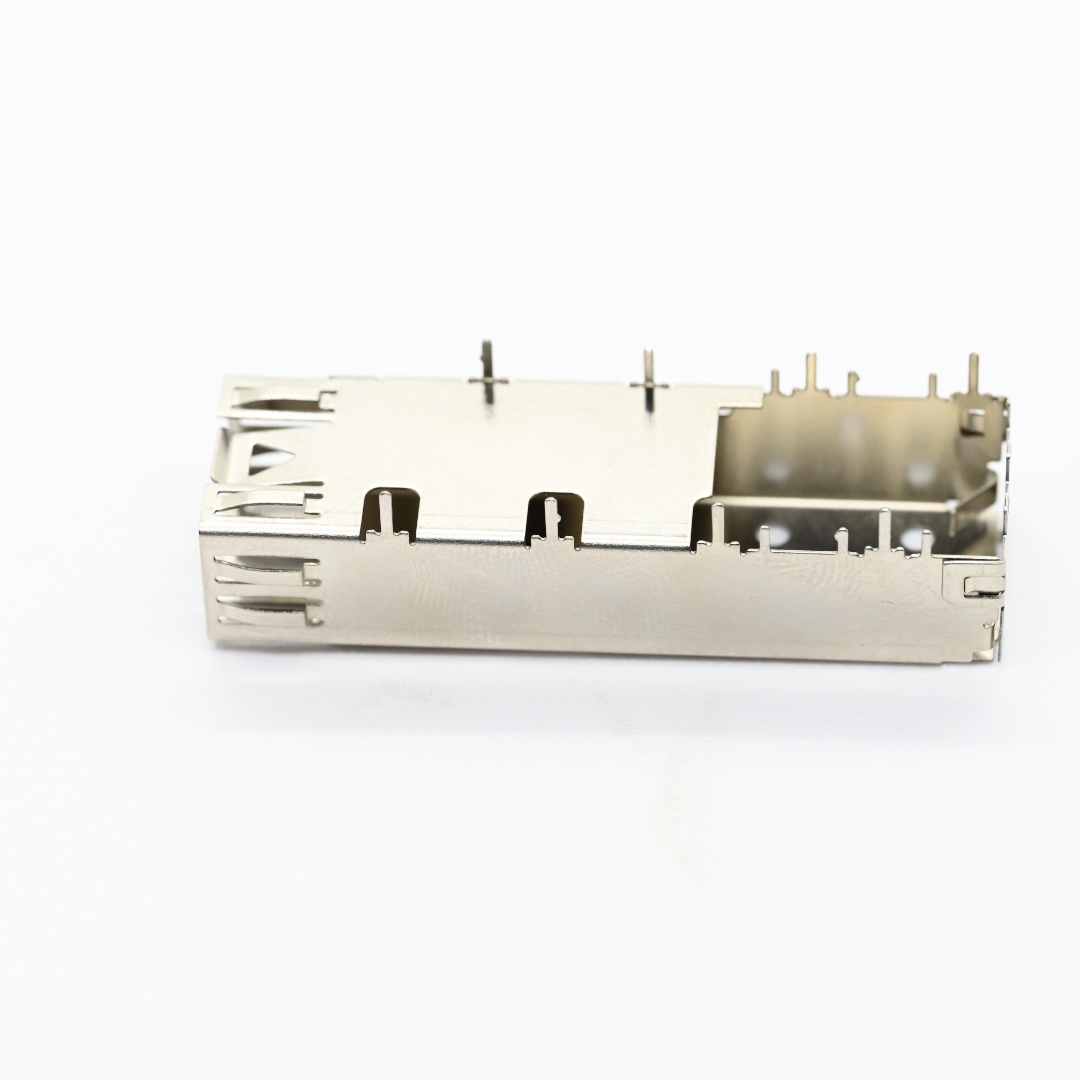

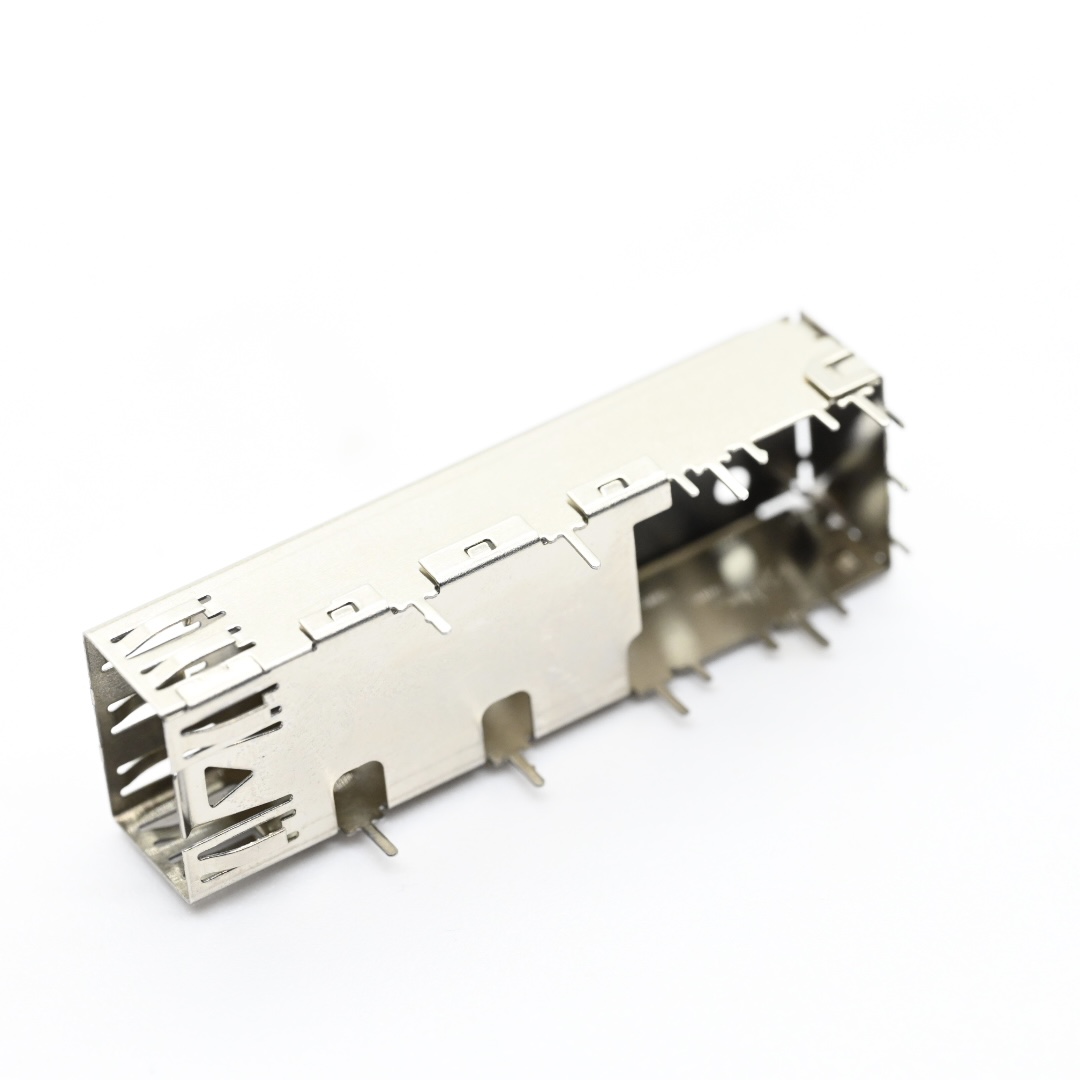

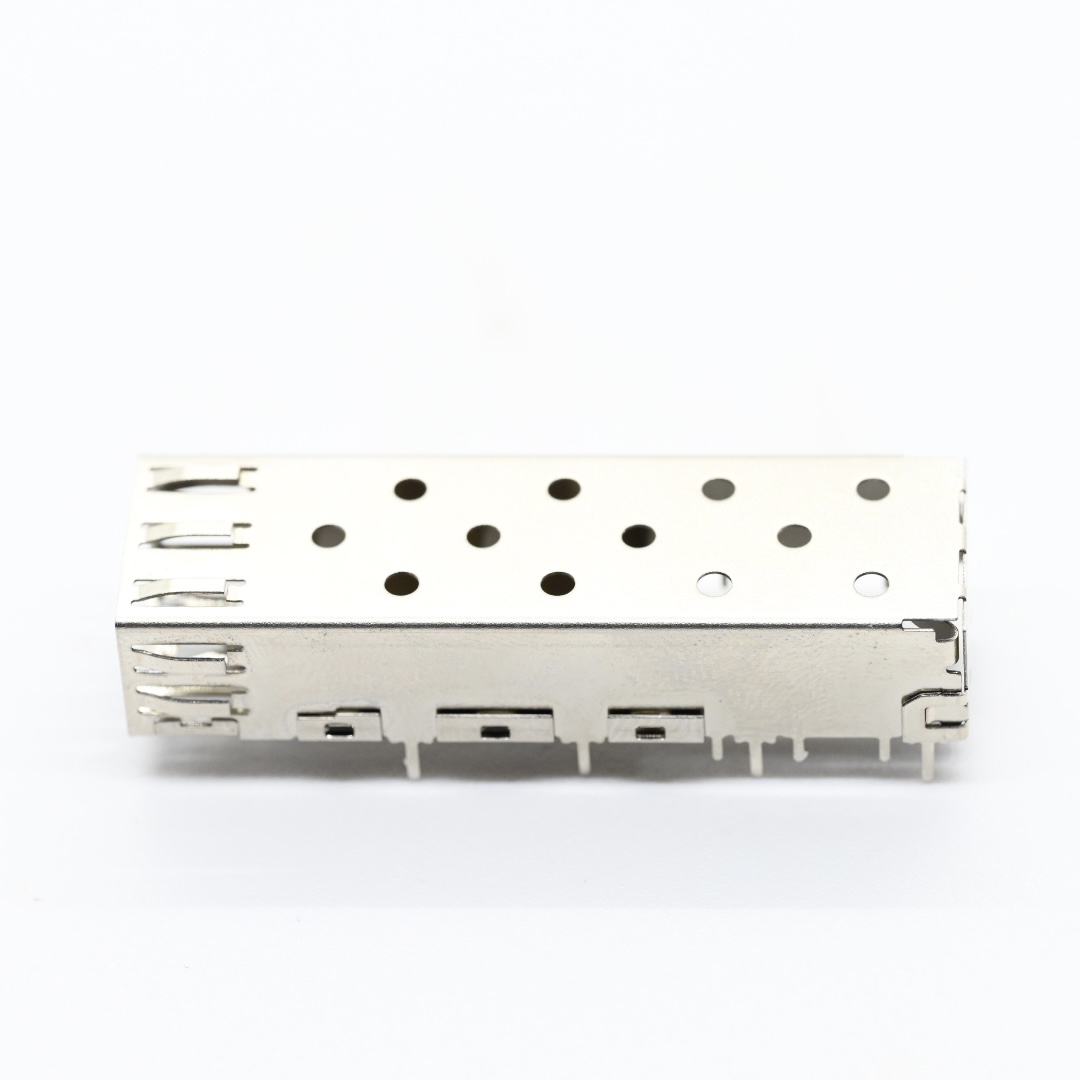

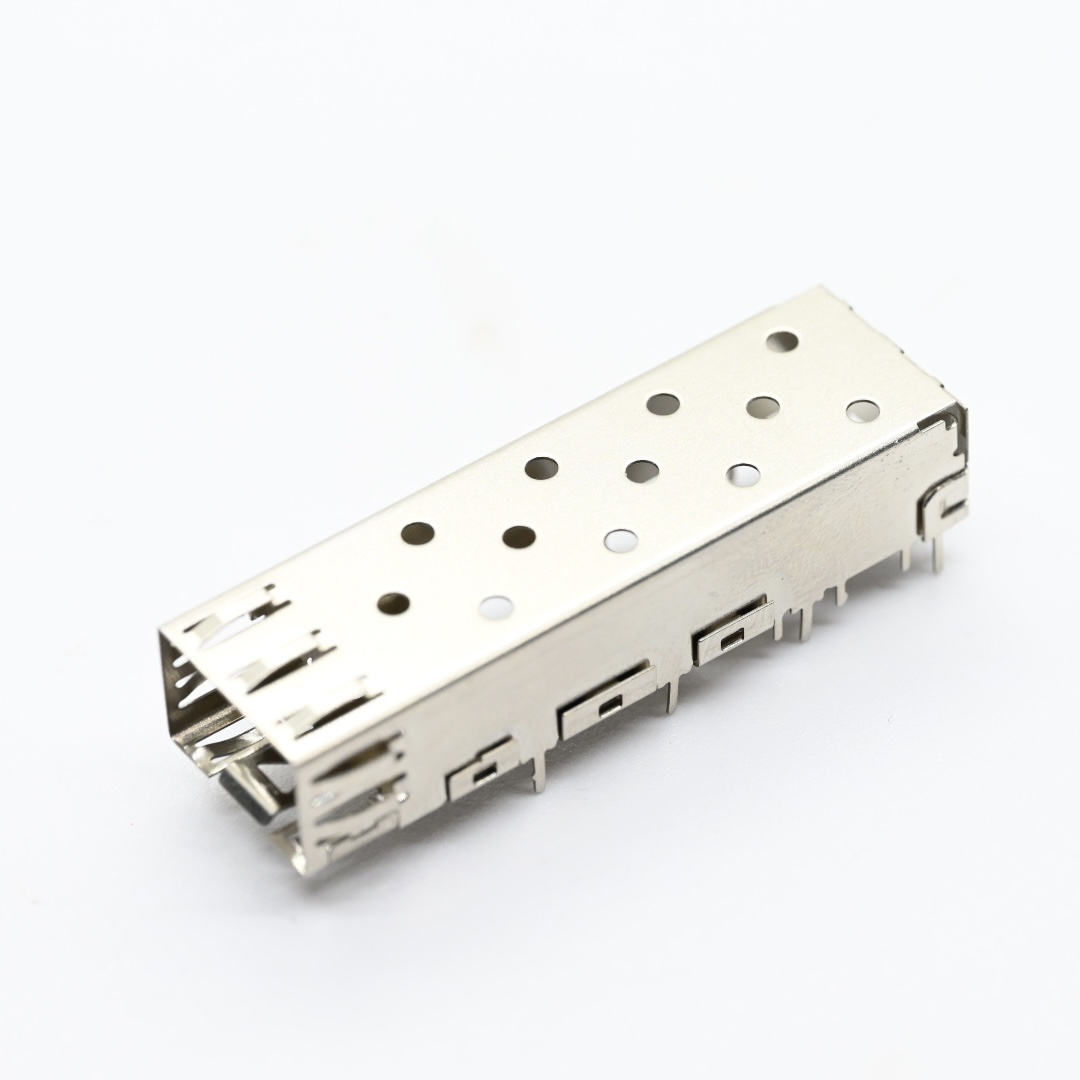

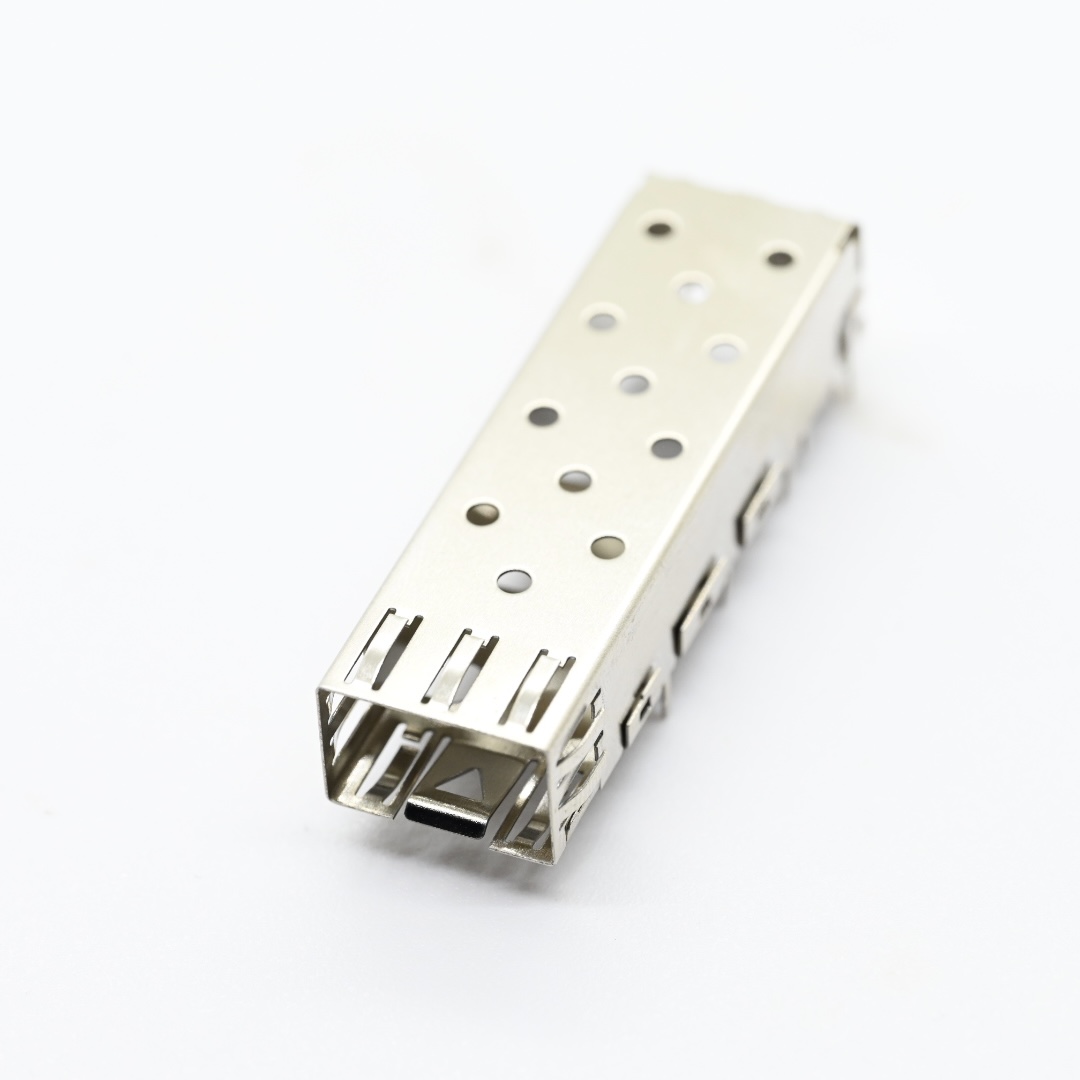

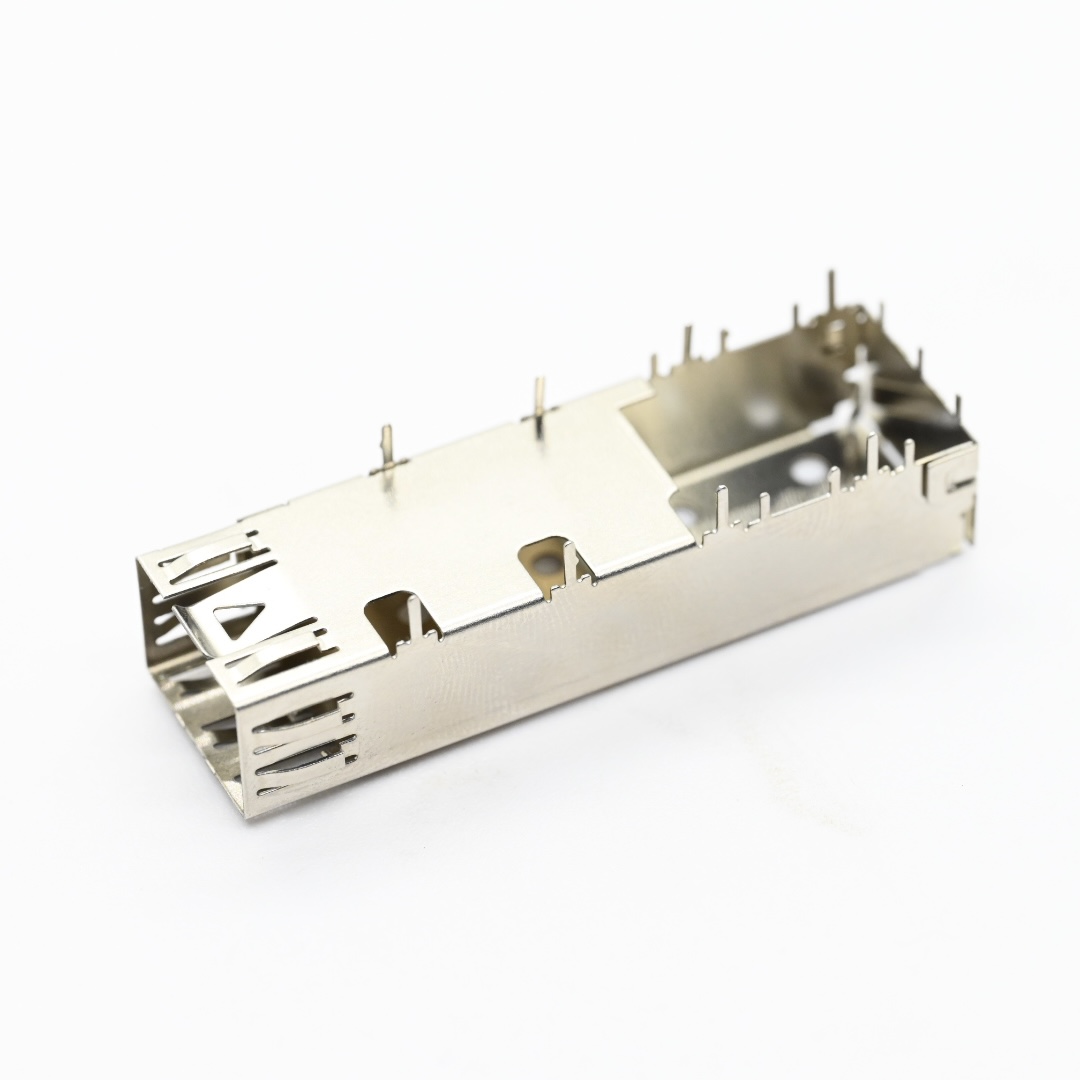

Product details

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures ATK19‑1GS19‑D0S02 SFP one by one press fit cage without moon notch to realize stable high speed optical module signal transmission by press fitting onto printed circuit boards. This one port SFP cage adopts copper alloy material with nickel plating, comes with tray packaging and works within minus 55 degree Celsius to plus 85 degree Celsius. It follows official recommended PCB configuration for chassis ground pad and via layout and removes moon notch structure for improved mechanical compatibility. This item satisfies RoHS compliance and fits network switches optical communication equipment industrial data transmission hardware and fiber communication host devices. Operators shall strictly follow official PCB footprint for press fit assembly and store connectors in dry sealed environment to prevent nickel plated copper alloy surface oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in‑house production covering independent mold development high speed copper alloy stamping precise forming multi grade electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, deliver custom configuration solutions and round‑the‑clock engineering support, over seventy percent of connector goods are exported globally. Feel free to send your project specifications for sample quotation and full datasheet resources.

1. Press Fit SFP Cage mounts firmly onto PCB boards without soldering for optical network equipment assembly.

2. EMI Shielded SFP Socket blocks electromagnetic interference to secure stable high speed optical signal transmission.

3. Tray Packed SFP Receptacle provides tidy component storage and convenient automated production handling.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: SFP 1X1 press fit cage without moon notch for optical module housing

1.2 Measurement unit: millimeter

1.3 Key outline dimensions: 42.30 mm, 34.50 mm, 11.53 mm and other dimensional values shown on drawing

1.4 Packaging method: Tray packaging

1.5 PCB requirement: Follow official recommended PCB configuration, include chassis ground pads and vias

1.6 CTA: Contact our engineering team to acquire full dimension drawings and recommended PCB layout documents for your hardware design validation.

2. Material & Surface Plating

2.1 Housing material: Copper alloy

2.2 Surface finish: Nickel plated

3. Environmental Parameters

3.1 Operating temperature range: ‑55°C to +85°C

4. Compliance Standard

4.1 Environmental compliance: RoHS compliant

5. Usage Method

5.1 Assembly mode: Press fit installation onto printed circuit board

5.2 Operation tip: Adopt specified chassis ground pads and vias for reliable grounding performance

6. Application Scenarios

6.1 Network switching equipment

6.2 Optical communication hardware

6.3 Industrial data transmission devices

6.4 Fiber‑based communication hosts

7. Operation & Storage Precautions

7.1 Strictly implement the official PCB footprint for press‑fit assembly

7.2 Avoid excessive pressing force during installation to prevent mechanical deformation of copper alloy cage

7.3 Store products in dry sealed environment to protect nickel‑plated surfaces from corrosion

7.4 Follow drawing defined tolerance and bezel opening requirements for system casing matching

7.5 CTA: Submit your mechanical layout and application condition requirements, we can deliver free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

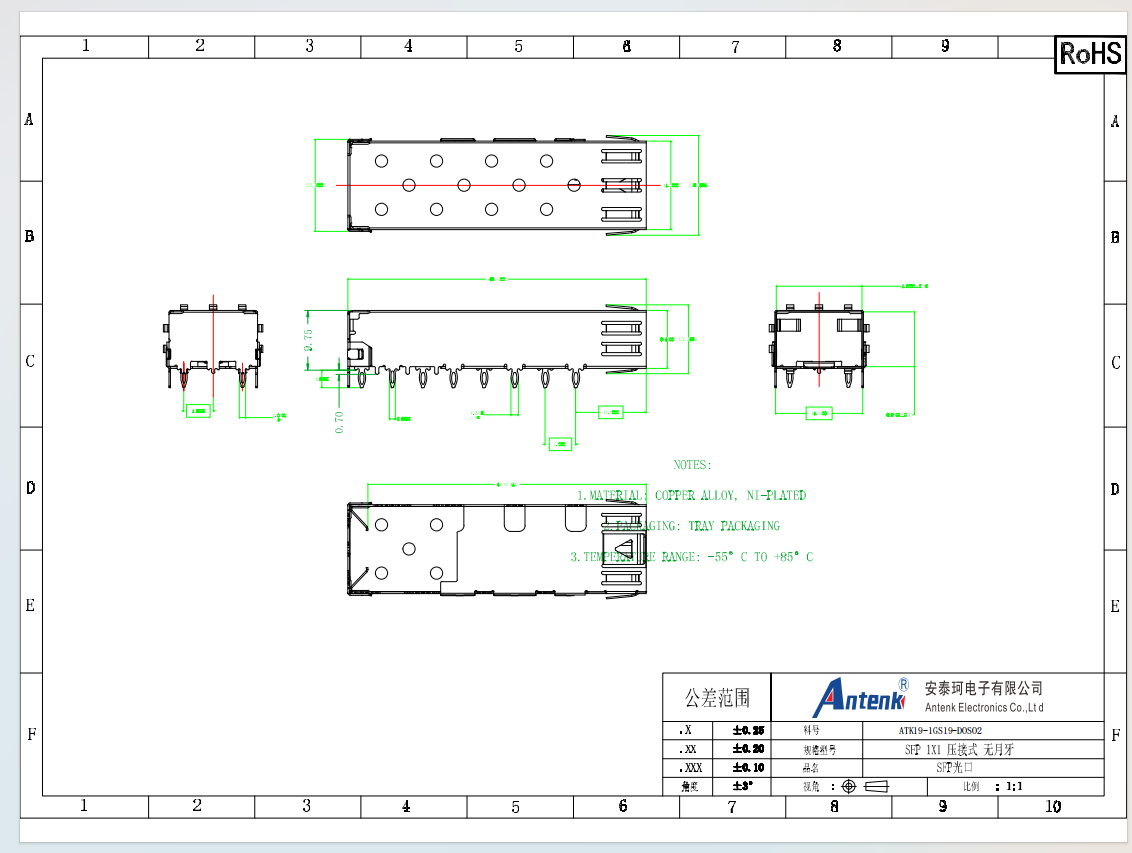

Product Drawing:
