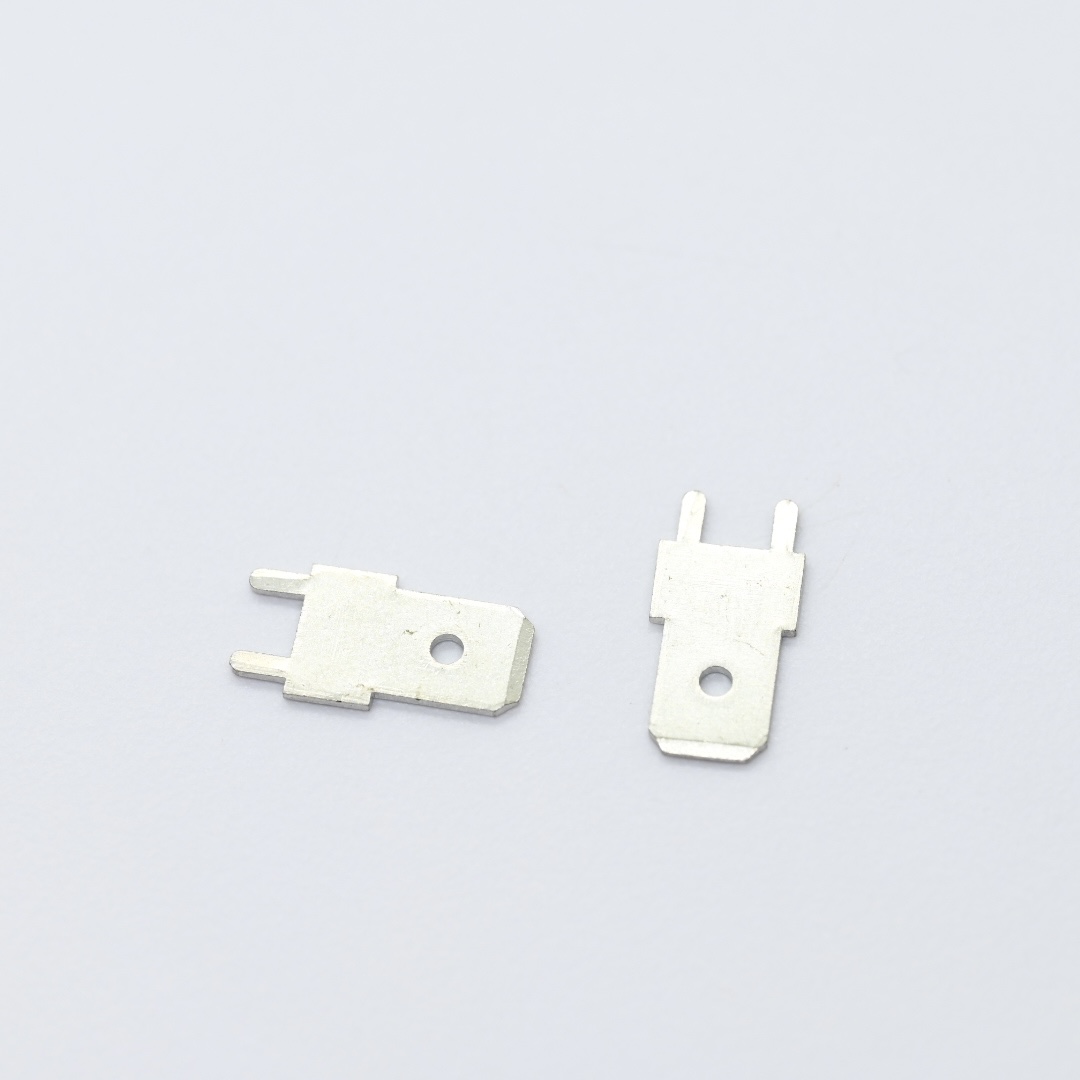

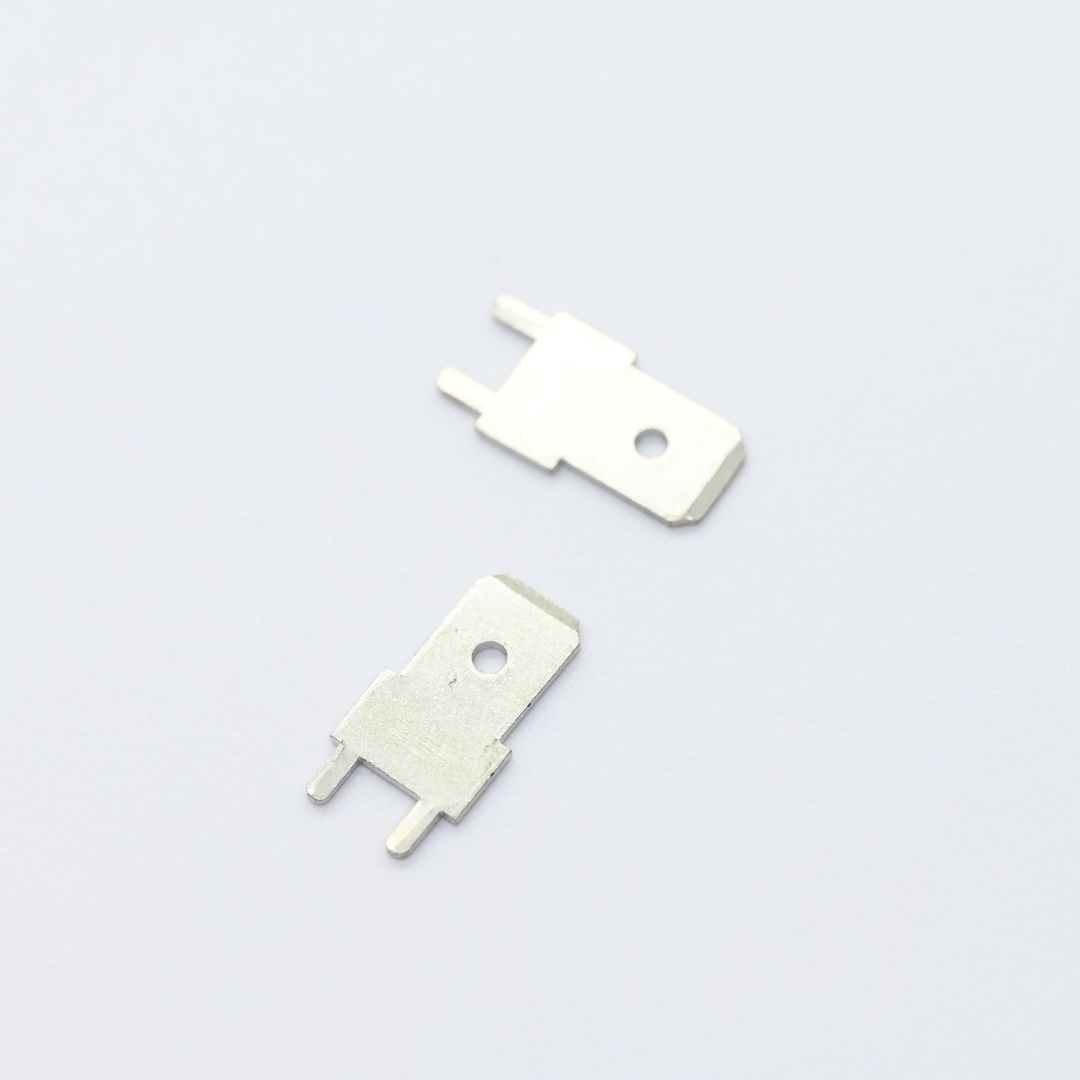

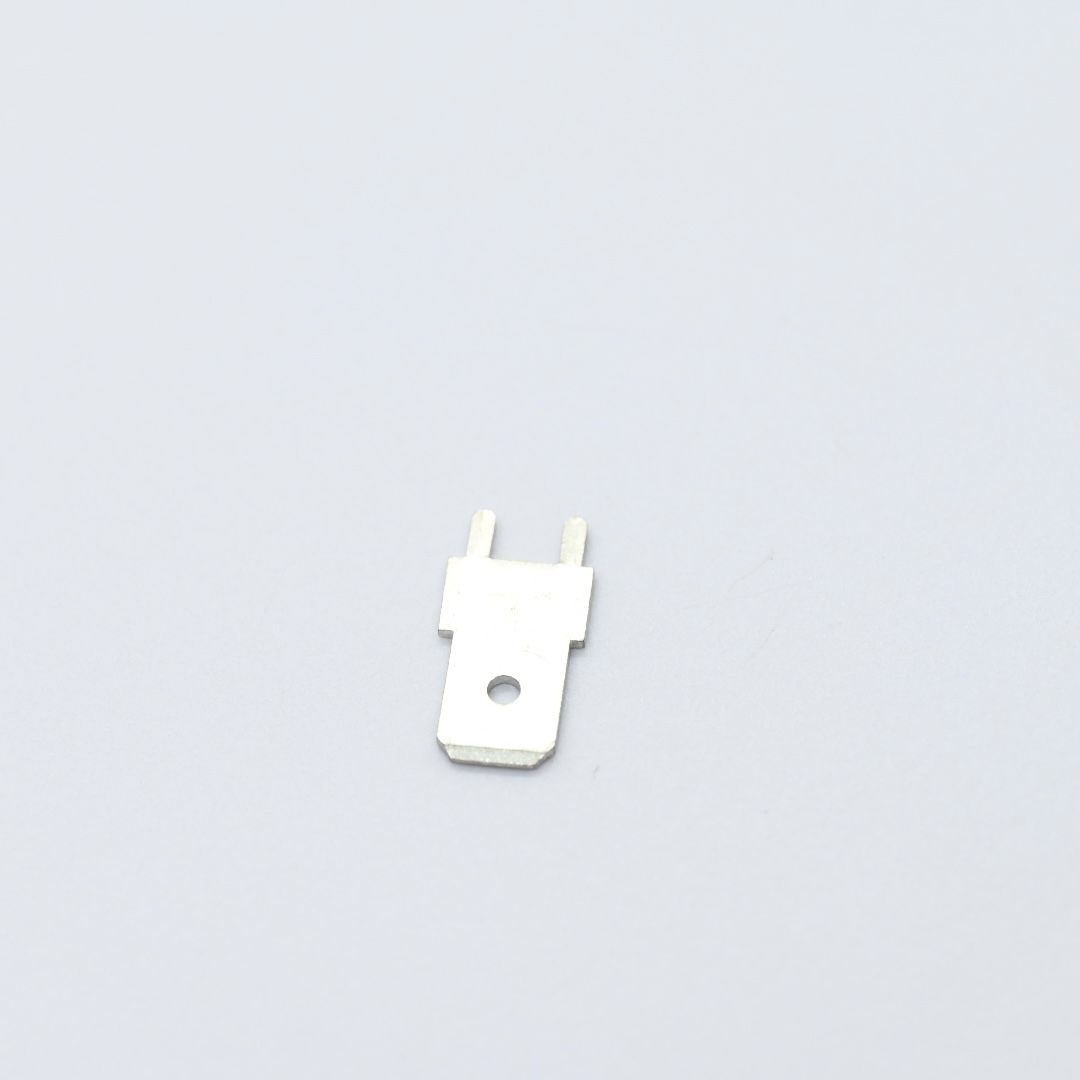

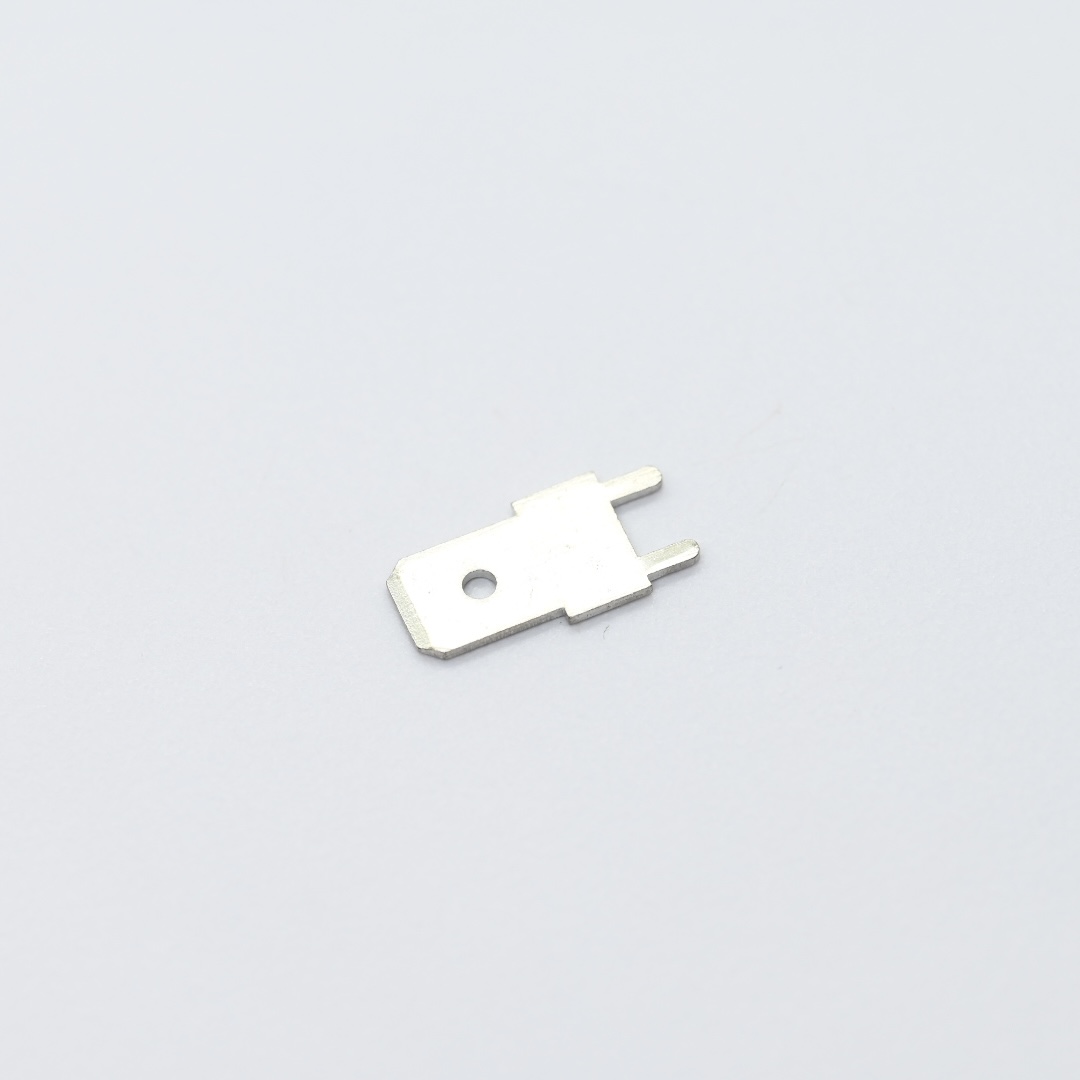

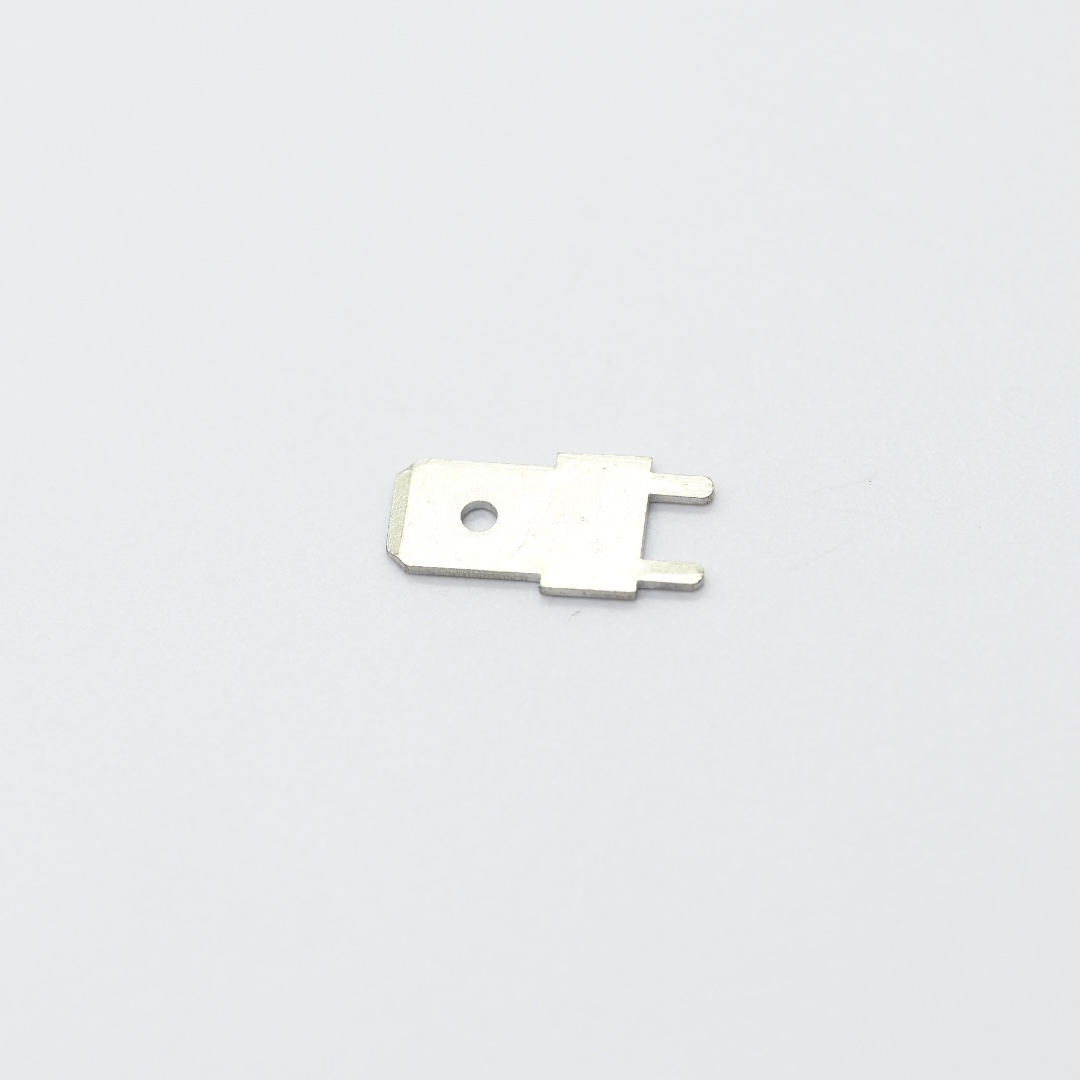

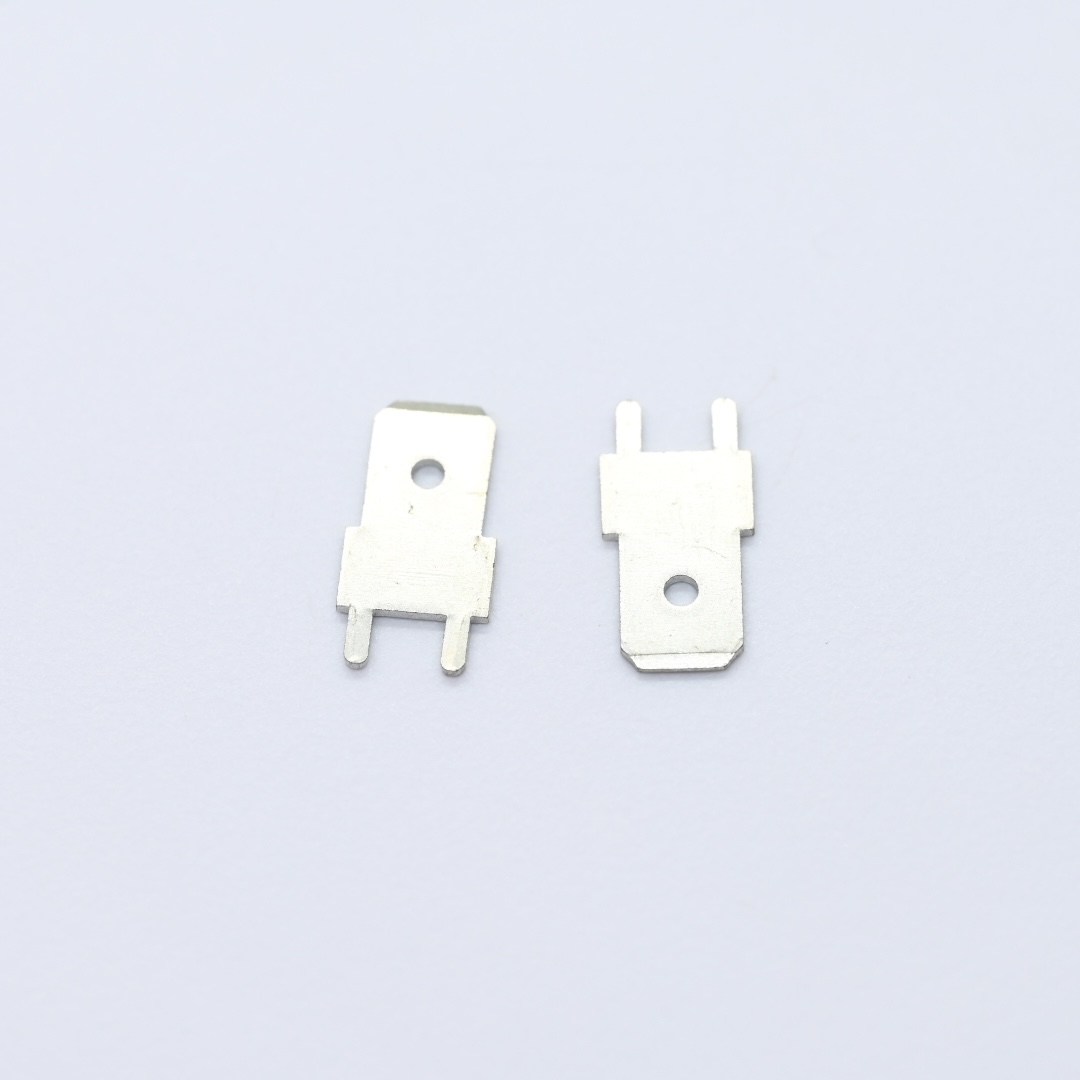

Straight 250 Type PCB Mount Tab Terminal

Straight 250 Type PCB Mount Tab Terminal

2 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures PT250‑A straight 250 type PCB mount tab to establish reliable electrical connection by through hole soldering onto 1.6 millimeter printed circuit boards. This PCB tab features 0.8 millimeter brass base material and supports multiple surface finishes including tin nickel tin silver nickel and matte tin to satisfy diverse customer demands. It follows official PCB hole layout with 1.4 millimeter mounting holes and strict dimensional tolerances for stable assembly performance. This product meets RoHS and REACH environmental standards and fits household appliances industrial control equipment digital electronic devices and precision measuring instruments. Operators shall follow official PCB hole specification for through hole soldering and store products in dry sealed environment to avoid brass terminal corrosion. Unlike competitors outsourcing stamping and plating Antenk completes full in‑house production covering independent mold development high speed brass stamping multi grade electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, deliver custom configuration solutions and round‑the‑clock engineering support, over seventy percent of connector goods are exported globally. Feel free to submit your project specifications for sample quotation and full datasheet resources.

1. Brass PCB Mount Tab delivers steady electrical conduction after through hole soldering on printed circuit boards.

2. Tin Plated Circuit Tab resists surface oxidation and guarantees good solderability for electronic assembly.

3. Through Hole PCB Tab fits 1.6 millimeter circuit boards for durable mechanical and electrical connection.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: 250 6.3 straight type printed circuit board tab PCBTAB

1.2 Measurement unit: millimeter

1.3 Key dimensions: thickness 0.8±0.03 mm, length 14±0.5 mm, mounting hole diameter 1.4 mm, hole center distance 5.08 mm and other dimensions as shown on drawing

1.4 Compatible PCB board: 1.6 mm thickness printed circuit board

1.5 Standard packing quantity: 5000 pieces per pack

1.6 CTA: Contact our engineering team to obtain full dimension drawings and PCB hole reference data for your product design validation.

2. Material & Surface Plating

2.1 Base material: Brass

2.2 Available surface finishes: Tin, Nickel‑Tin, Silver, Nickel, Matte tin

3. Compliance Standard

3.1 Environmental compliance: RoHS and REACH compliant

4. Usage Method

4.1 Assembly mode: Through hole soldering onto printed circuit board

4.2 Operation tip: Follow drawing specified PCB hole size and center distance for proper installation

5. Application Scenarios

5.1 Household electrical appliances

5.2 Industrial control devices

5.3 Digital electronic equipment

5.4 Precision instruments and meters

6. Operation & Storage Precautions

6.1 Adhere to drawing dimensional tolerance requirements for PCB hole processing

6.2 Avoid excessive mechanical force to prevent brass tab deformation during assembly

6.3 Store products in dry sealed packages to prevent brass and plating layer corrosion

6.4 Select proper plating finish according to actual working environment requirements

6.5 CTA: Submit your dimension demands and working condition information, we can offer free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

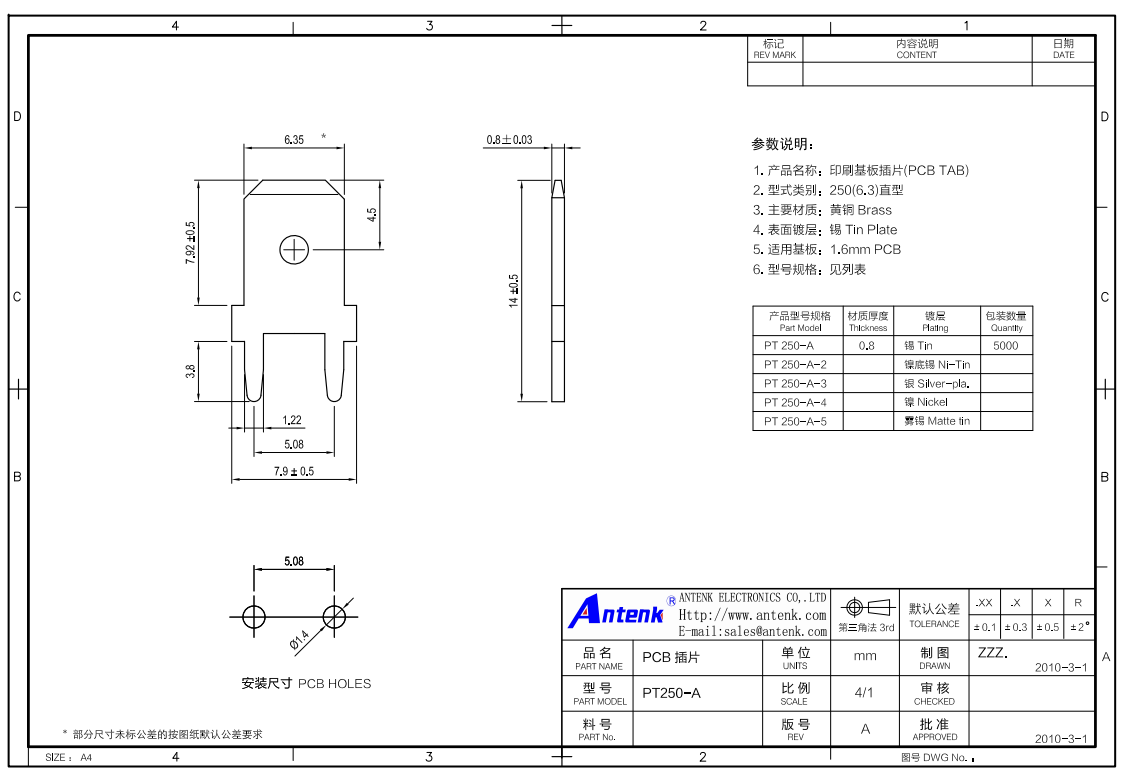

Product Drawing:
