Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures AW2501RB xP 2.5 millimeter pitch 90 degree wafer connector to deliver stable wire to board electrical interconnection by through hole soldering on printed circuit boards. This right angle wafer header adopts brass pins with tin over nickel plating and Nylon 66 insulator with UL94V‑0 flame retardant grade, rated for 250V AC DC voltage and 3A AC DC current, withstands 800V AC per minute with minimum 1000M insulation resistance and operates within minus 40 degree Celsius to plus 105 degree Celsius. It supports multiple pin counts and various housing color options and mates with AH2501 series housing for flexible assembly. This product follows RoHS and REACH standards and fits household appliances industrial control digital devices and precision instrument hardware. Operators shall comply with official PCB layout for soldering and store items in dry surroundings to avoid pin oxidation. Unlike competitors outsourcing stamping molding and plating Antenk performs full in‑house production covering independent mold development brass terminal stamping nylon injection molding multi grade electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, deliver custom configuration solutions and round‑the‑clock engineering support, over seventy percent of connector goods are exported globally. Feel free to send your project specifications for sample quotation and full datasheet resources.

1. Nylon 66 Wafer Header features UL94V 0 flame retardant performance for reliable electronic assembly.

2. 3A Rated Wafer Connector carries stable current transmission under 250V AC DC working condition.

3. Multi-color Wafer Header provides diverse housing color choices to meet different project identification demands.

Detailed Specifications of AW2501RB‑xP 2.5mm Pitch 90 Degree Wafer Connector

1. Mechanical Specifications

1.1 Product type: 2.5 millimeter pitch 90 degree right angle wafer connector

1.2 Measurement unit: millimeter

1.3 Key dimension: contact pitch 2.50±0.05 mm, square pin size 0.64 mm, multiple pin counts from 5P up to 18P, other dimensions refer to official drawing

1.4 Mating part: compatible with AH2501 series housing

1.5 Available option: two housing styles, multiple color selections including white black red yellow green blue

1.6 CTA: Contact our engineering team to get full dimension drawings and PCB layout guidelines for your hardware design validation.

2. Material Construction

2.1 Contact pin: Brass with tin over nickel plating

2.2 Insulator housing: Nylon 66, UL94V‑0 flame retardant grade

3. Electrical Parameters

3.1 Rated voltage: 250V AC DC

3.2 Rated current: 3A AC DC

3.3 Withstanding voltage: 800V AC per minute

3.4 Minimum insulation resistance: 1000M

4. Environmental Parameters

4.1 Operating temperature range: minus 40°C to plus 105°C

5. Compliance Standard

5.1 Environmental compliance: RoHS compliant

6. Usage Method

6.1 Assembly mode: Through hole soldering onto printed circuit board

6.2 Operation tip: Match with AH2501 series housing to achieve correct wire to board connection

7. Application Scenarios

7.1 Household electrical appliances

7.2 Industrial control equipment

7.3 Digital electronic devices

7.4 Precision instrument equipment

8. Operation & Storage Precautions

8.1 Follow official PCB layout requirements for soldering assembly

8.2 Avoid bending square pins to prevent contact damage

8.3 Store products in dry environment to prevent pin surface oxidation

8.4 Select proper style pin count and housing color according to project requirements

8.5 CTA: Submit your pin count style and application condition requirements, we can provide free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

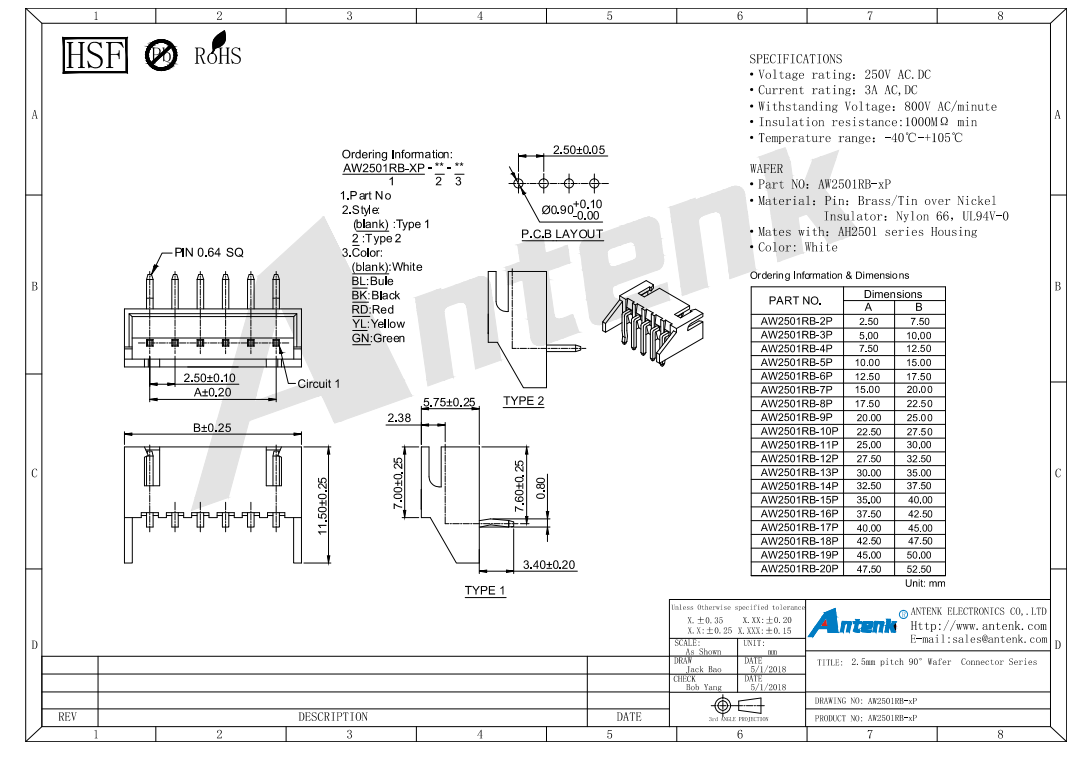

Product Drawing：

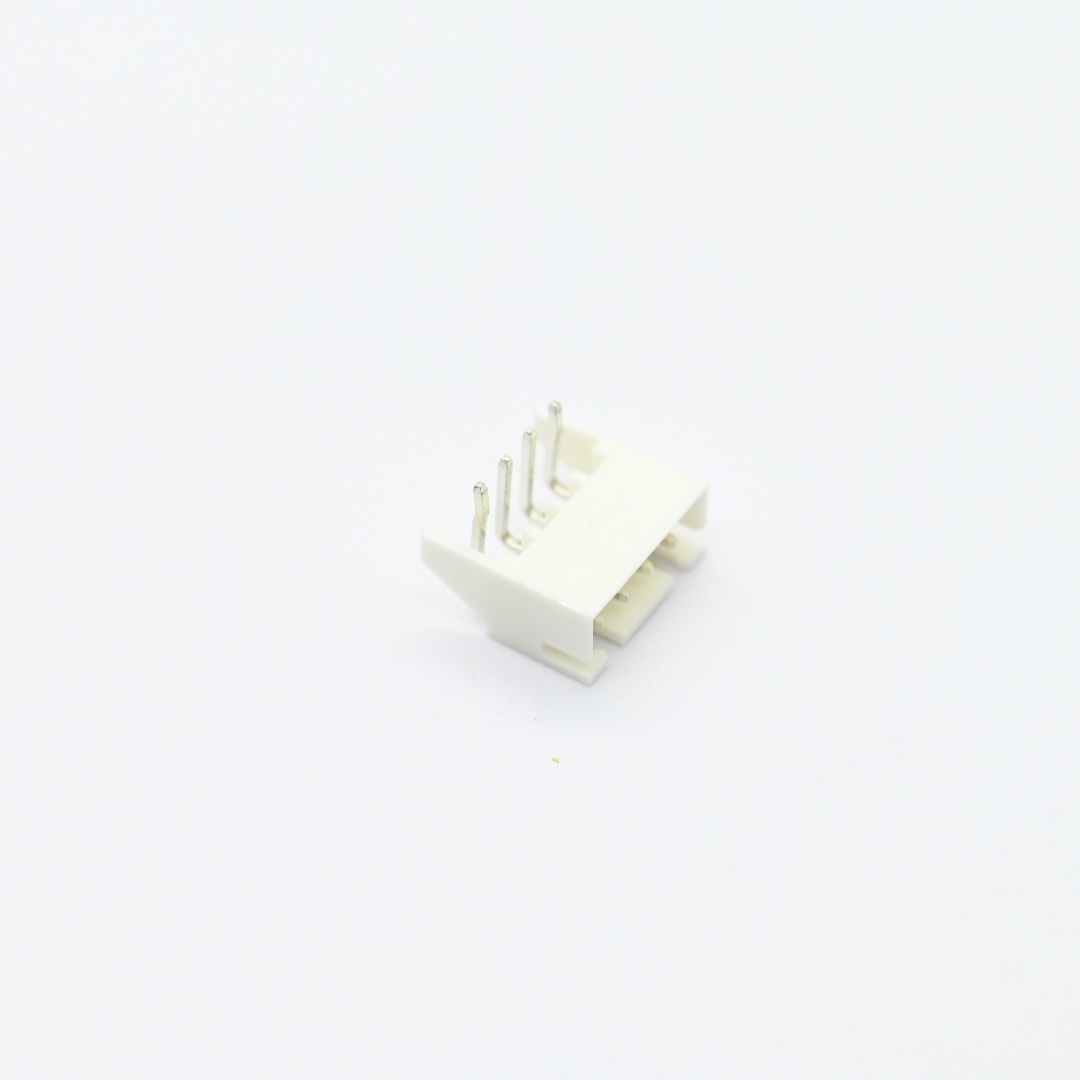

AW2501RB-4P+2.5mm pitch 90° Wafer Connector Series（6）

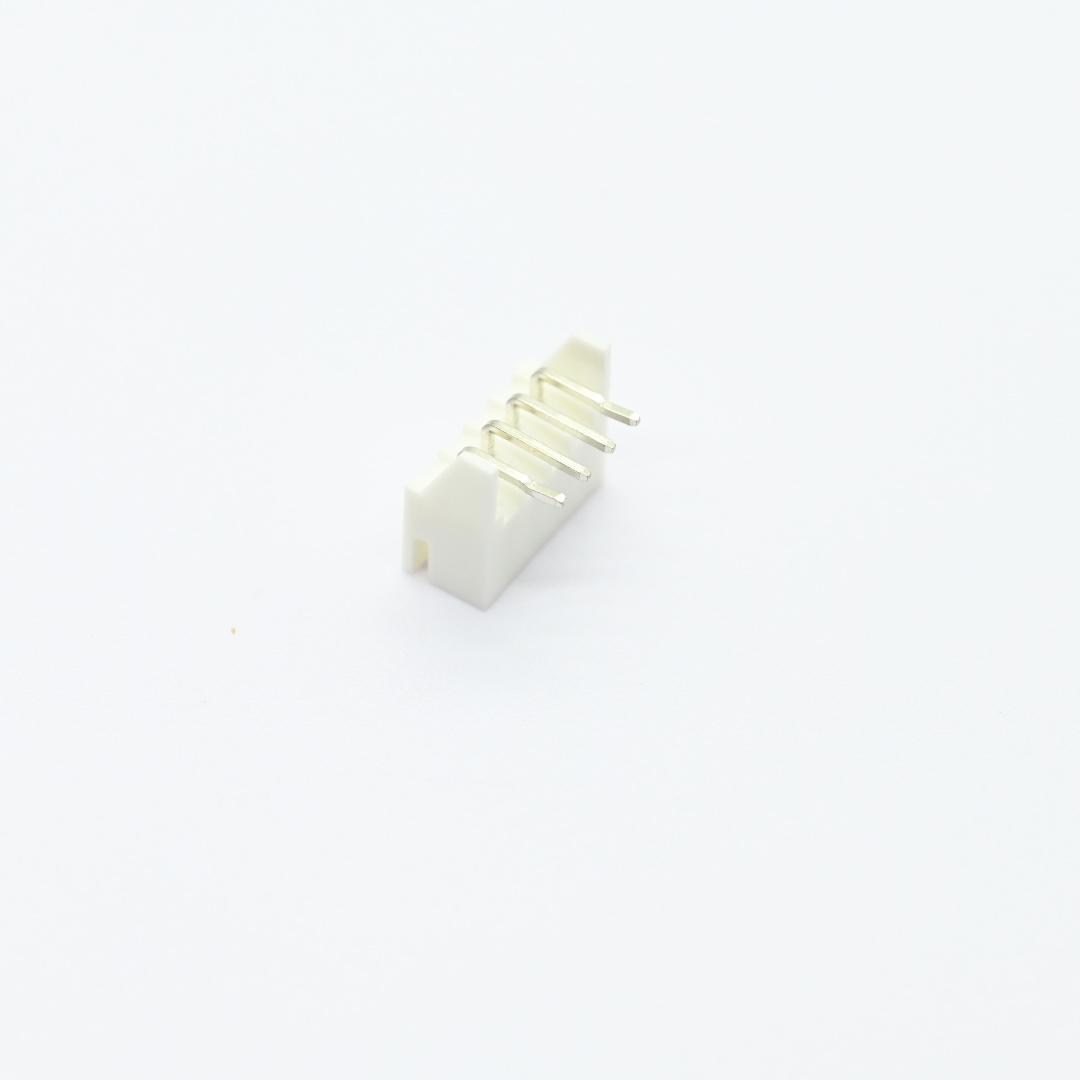

AW2501RB-4P+2.5mm pitch 90° Wafer Connector Series（4）

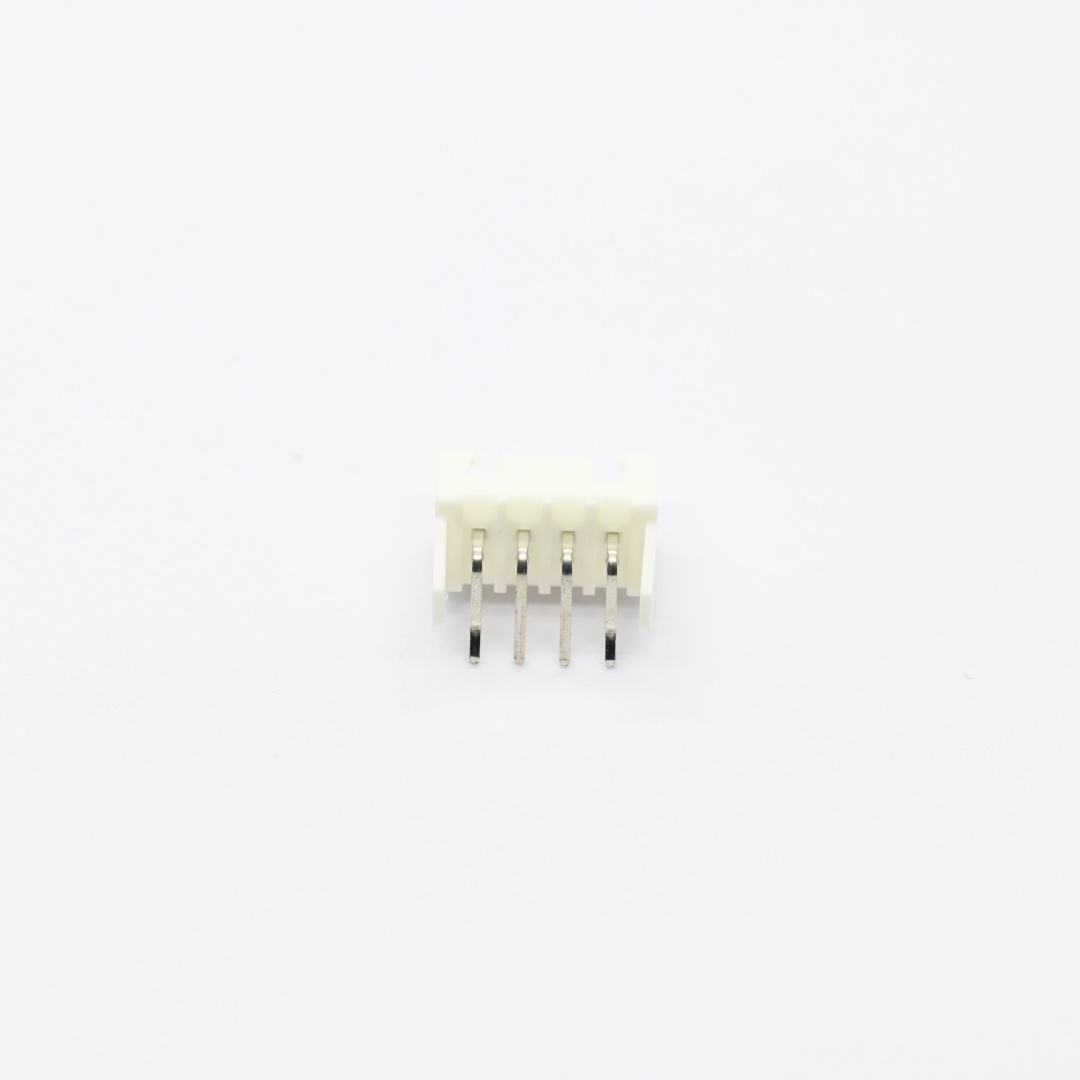

AW2501RB-4P+2.5mm pitch 90° Wafer Connector Series（1）

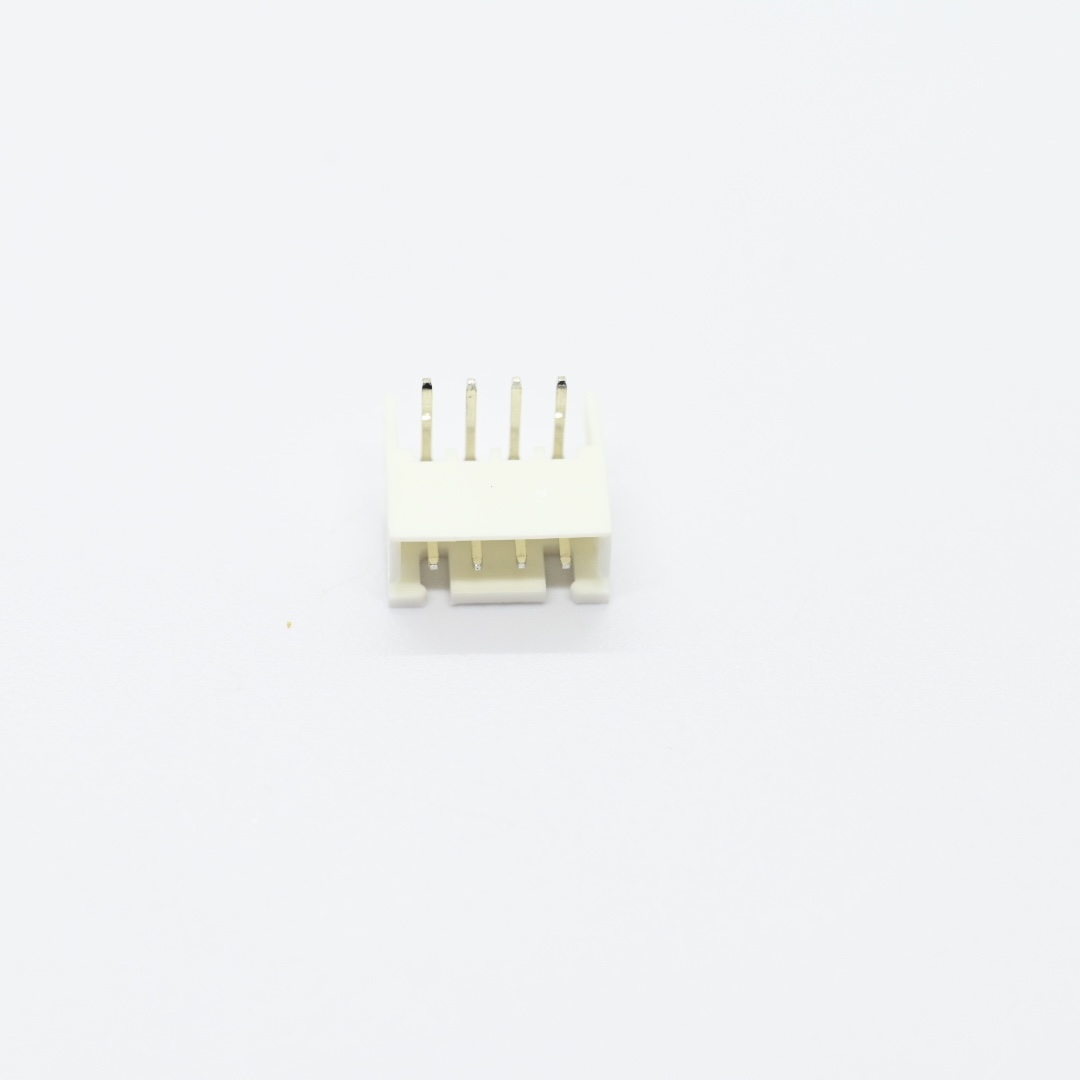

AW2501RB-4P+2.5mm pitch 90° Wafer Connector Series（5）

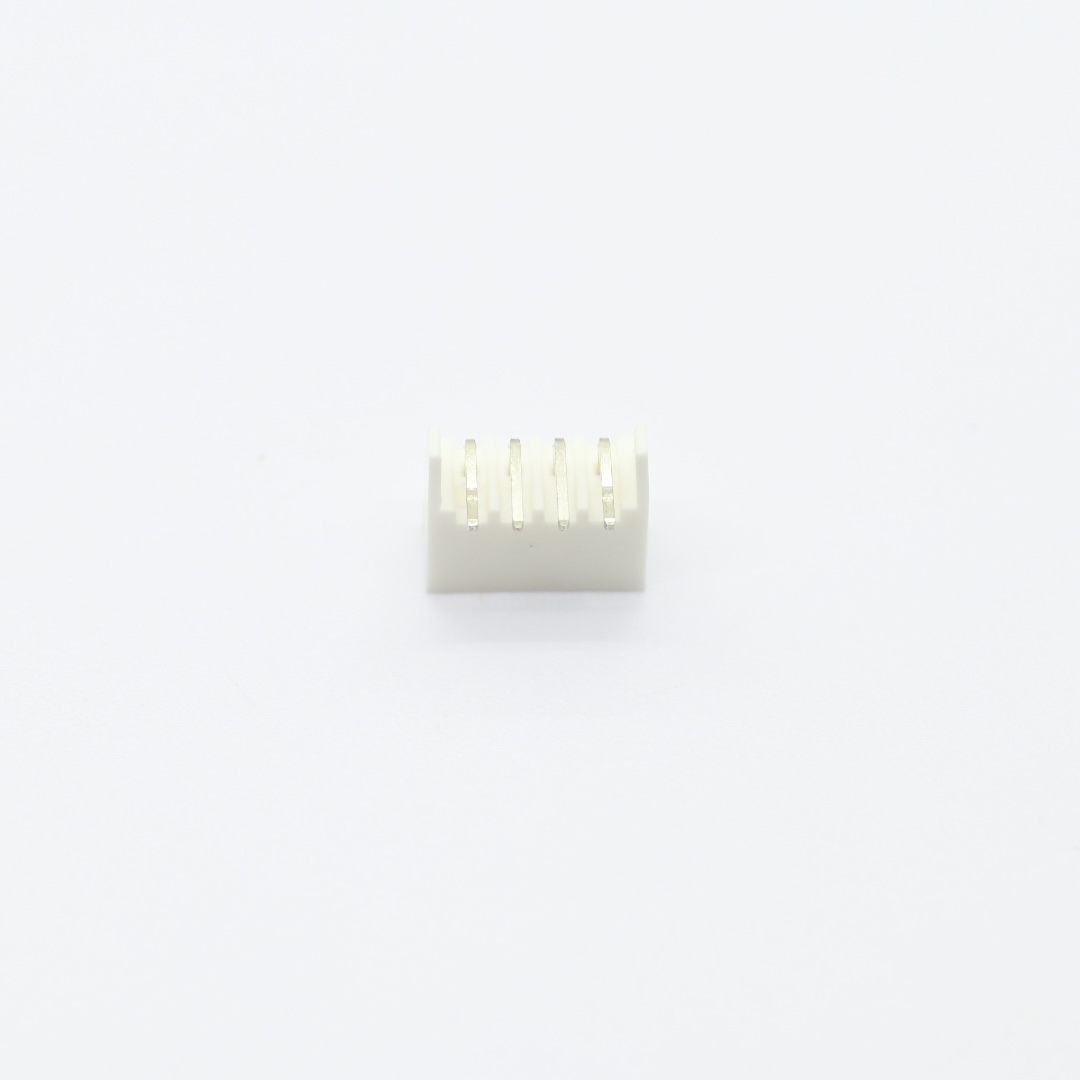

AW2501RB-4P+2.5mm pitch 90° Wafer Connector Series（3）

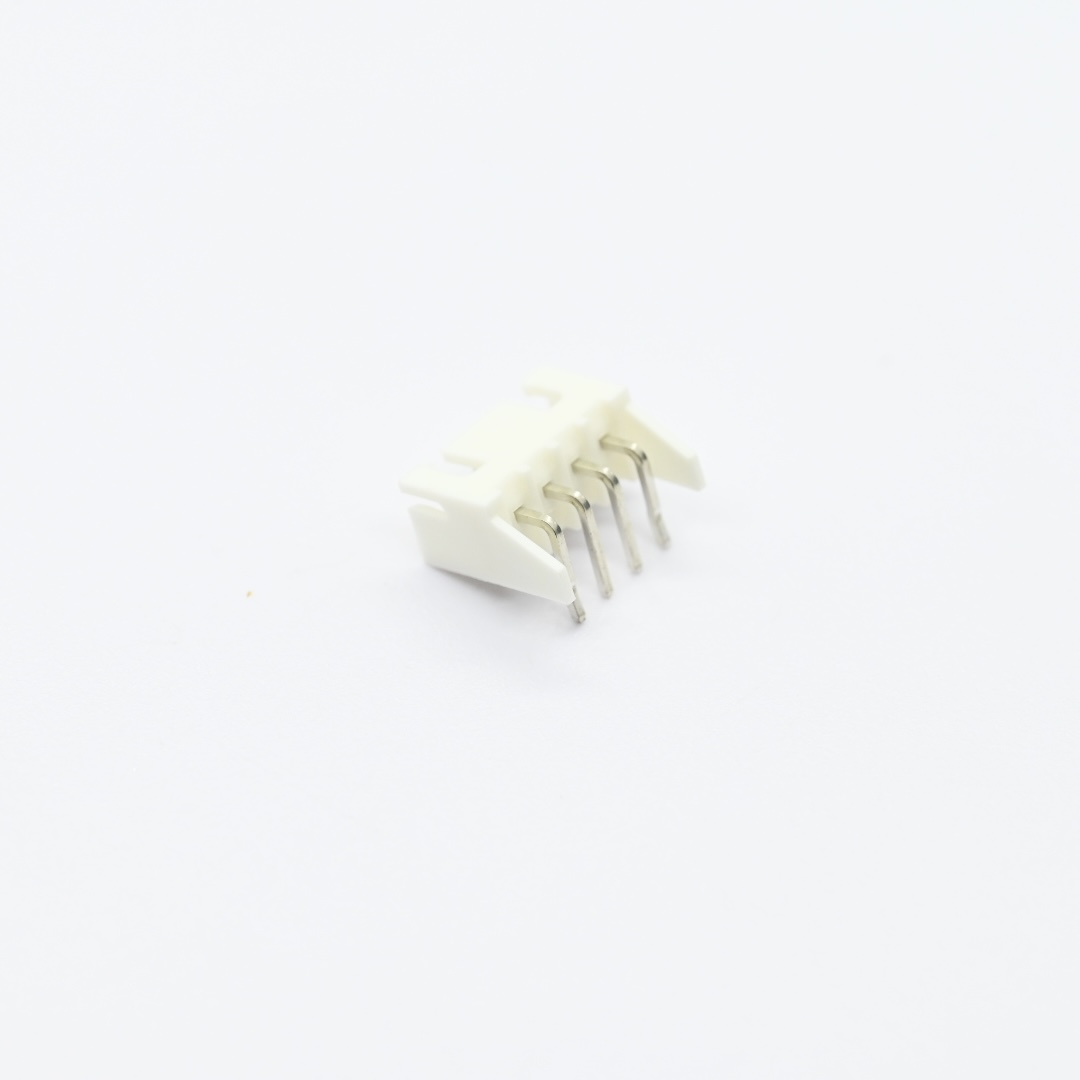

AW2501RB-4P+2.5mm pitch 90° Wafer Connector Series（2）
