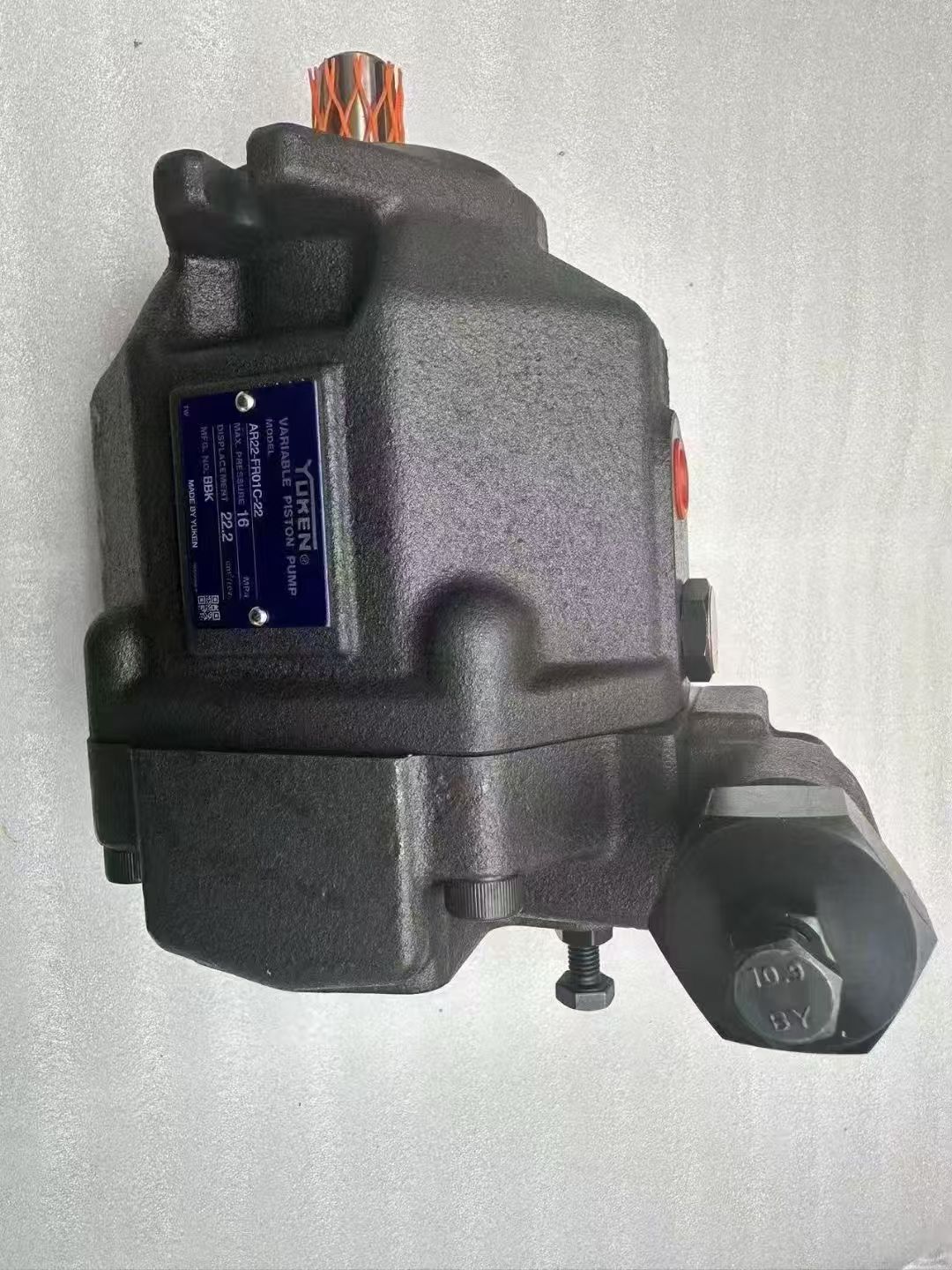

YUKEN AR22‑FR01C‑22 Hydraulic piston pump

Product Overview

YUKEN AR22‑FR01C‑22 is a compact variable‑displacement Hydraulic piston pump, a high‑efficiency hydraulic pump designed to provide adjustable pressure‑compensated flow output for precision‑oriented industrial hydraulic system and various automated Machine .

This original YUKEN Hydraulic piston pump features small footprint, low‑noise operation and high volumetric efficiency. Adopting pressure compensation control, it automatically adjusts flow output according to system pressure demand, saving energy for the whole hydraulic system. It is widely adopted as the core power source for CNC machine tools, bending equipment, small‑size hydraulic presses and other precision industrial Machine .

Technical Specifications

‑ Model: AR22‑FR01C‑22

‑ Product Type: Variable displacement Hydraulic piston pump, energy‑saving hydraulic pump

‑ Theoretical displacement: 22.2 cm³/rev; Minimum adjustable displacement: 8.5 cm³/rev

‑ Rated continuous pressure: 16 MPa; Max intermittent pressure: 21 MPa

‑ Permissible rotating speed: 600‑1800 rpm

‑ Control mode: Pressure compensator control

‑ Mounting: Standard flange mounting, motor direct‑coupling available

‑ Shaft configuration: Standard drive shaft for industrial Machine

‑ Rotation direction: Clockwise

‑ Compatible fluid: Anti‑wear hydraulic oil for industrial hydraulic system, ISO‑VG32 / VG46 recommended

‑ Operating oil temperature range: ‑20℃ ~ +70℃

‑ Approximate weight: 12.1 kg

‑ Key features: Compact lightweight structure, low noise, pressure self‑compensation, high volumetric efficiency, energy‑saving performance, stable continuous operation for precision hydraulic system and automated Machine

Working Principle

As a premium Hydraulic piston pump, this hydraulic pump transforms rotational mechanical energy into hydraulic pressure energy for the complete hydraulic system. Driven by input shaft, the cylinder block drives pistons for reciprocating movement. By changing the swash‑plate tilt angle, output displacement and flow can be adjusted. The built‑in pressure compensator detects system pressure in real‑time; when system pressure reaches preset value, swash‑plate angle reduces automatically to cut flow output, achieving energy‑saving standby for the Machine.

Wear on pistons, valve plate or bearing components will trigger internal leakage, pressure drop and insufficient flow of the hydraulic pump. Overhaul or genuine spare‑parts replacement can restore full‑range performance of your hydraulic system.

Core Advantages

1. Pressure‑compensated variable design, automatically reduces flow at set pressure, lowers power consumption of the whole hydraulic system.

2. Compact and lightweight layout, suitable for equipment with limited installation space on industrial Machine.

3. Optimized internal structure delivers low‑noise running, improves working environment of the hydraulic system.

4. High volumetric efficiency under long‑term continuous operation, stable pressure output for precision‑processing Machine.

5. Standard mounting dimensions, easy installation and maintenance for hydraulic system integration.

Application Range

YUKEN AR22‑FR01C‑22 Hydraulic piston pump serves as key power‑supply hydraulic pump for medium‑pressure precision hydraulic system. It is extensively applied for CNC lathes, machining centers, pipe‑bending machines, small hydraulic presses, injection‑molding auxiliary equipment and other automated industrial Machine. Well‑received by hydraulic integrators, machine‑tool manufacturers and global spare‑parts distributors.
