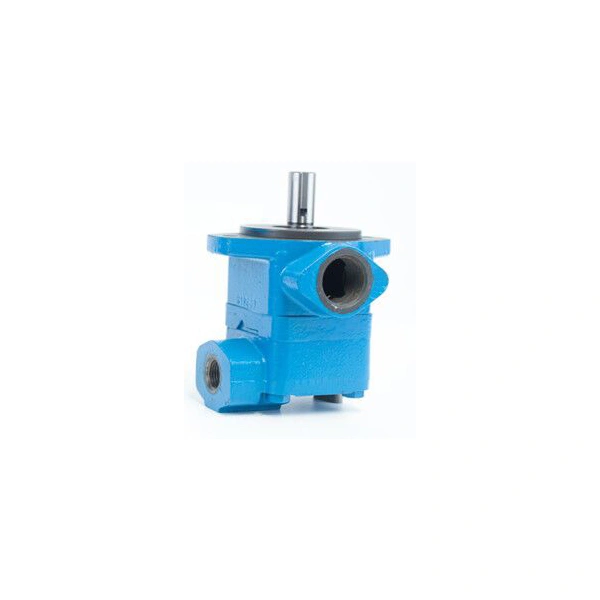

V10 Vane Pump

Product Overview

V10 is a compact fixed‑displacement balanced‑vane Hydraulic Vane pump, a lightweight small‑size hydraulic pump widely used for auxiliary and pilot oil supply in compact industrial hydraulic system and various light‑to‑medium‑load hydraulic‑driven Machine .

This classic Hydraulic Vane pump adopts balanced‑vane structure, featuring small footprint, low noise and high volumetric efficiency. It can be applied as single‑pump unit or combined into double‑pump configuration. It serves as an ideal power source for small hydraulic stations, auxiliary circuits, mobile equipment and compact industrial Machine.

Technical Specifications

‑ Model: V10

‑ Product Type: Fixed‑displacement balanced‑vane Hydraulic Vane pump, compact hydraulic pump

‑ Displacement range: 3.3‑22.8 mL/r, multiple displacement options available

‑ Continuous rated pressure: 17.2 MPa (2500 psi); Peak pressure: 19.0 MPa (2750 psi)

‑ Max permissible rotating speed: up to 4800 rpm

‑ Mounting form: Standard SAE 2‑bolt flange mounting, foot‑mount bracket optional

‑ Shaft option: Plain keyed shaft, spline shaft optional

‑ Rotation direction: Clockwise (standard), counter‑clockwise optional by internal assembly adjustment

‑ Working medium: Anti‑wear hydraulic mineral oil for industrial hydraulic system

‑ Operating oil temperature: ‑20℃ ~ +80℃

‑ Key Features: Balanced vane design, ultra‑compact housing, low noise, high volumetric efficiency, interchangeable V‑Series Cartridge Kit, stable operation for light‑to‑medium‑load industrial Machine

Working Principle

V10 Hydraulic Vane pump consists of rotor, vanes, cam ring, side plates and cast‑iron pump housing. Driven by input shaft, rotor rotates and centrifugal force pushes vanes tightly against cam‑ring inner surface. Periodic volume change between vanes completes oil suction and pressure delivery to supply the whole hydraulic system. The balanced‑vane structure offsets radial hydraulic force, reducing bearing load and extending service life of the hydraulic pump.

Worn vanes, cam ring or side plates will cause internal leakage, pressure drop, abnormal noise and insufficient flow output of the hydraulic pump. Installing matched V Series Cartridge Kit can quickly restore full performance of your hydraulic system.

Core Advantages

1. Balanced‑vane construction reduces radial bearing load, improves durability under continuous operation of industrial Machine.

2. Ultra‑compact housing, saves installation space for limited‑space layout of hydraulic system.

3. Modular V‑Series Cartridge Kit, easy on‑site maintenance without removing the whole pump from Machine, shortens downtime of hydraulic system.

4. Standard mounting dimensions, good interchangeability for original replacement and retrofitting existing hydraulic system.

5. Flexible single‑pump or double‑pump combination, perfectly meets auxiliary and pilot circuit demands of different Machine.

Application Range

V10 fixed‑displacement Hydraulic Vane pump is a key power‑supply hydraulic pump for low‑to‑medium‑pressure industrial hydraulic system. It is widely applied to small‑size hydraulic stations, auxiliary hydraulic circuits, mobile equipment, agricultural machinery, light‑duty machine tools and other hydraulic‑driven industrial Machine. Suitable for hydraulic‑system integrators, equipment manufacturers, repair workshops and global spare‑parts distributors.
