Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures PHCM14 series 1.27 by 2.54 millimeter dual row SMT pin header to deliver stable board to board signal transmission through surface mount soldering on printed circuit boards. This surface mount pin header uses PA6T insulator with UL94V 0 flame retardant grade and brass contacts supporting multiple plating options including tin and varied gold thickness, rated for 1 amp current, 20 milliohm maximum contact resistance, 1000 megaohm minimum insulation resistance and 500V AC dielectric withstand capacity, operating within minus 65 degree Celsius to plus 125 degree Celsius. It supplies diverse contact counts, two housing types and optional locating pegs to match different PCB layout requirements. This product complies with RoHS and REACH standards and fits industrial control digital electronic devices and precision instrument equipment. Operators must follow official PCB layout for SMT soldering and keep goods in dry storage environment to avoid contact oxidation. Unlike competitors outsourcing stamping molding and plating Antenk performs full in house production covering independent mold development brass terminal stamping high temperature plastic injection molding multi grade electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, deliver custom configuration solutions and round the clock engineering support, over seventy percent of connector goods are exported globally. Feel free to submit your project specifications for sample quotation and full datasheet resources.

1. Gold Plated Pin Header maintains low contact resistance for high‑reliability signal transmission.

2. Dual Row Surface Header optimizes PCB space utilization for compact electronic product designs.

3. Black PA6T Pin Header provides excellent heat resistance during SMT reflow soldering processes.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: Dual row surface mount pin header

1.2 Measurement unit: millimeter

1.3 Key dimension: row pitch 2.54 mm, contact pitch 1.27 mm, multiple contact counts from 02 to 100 positions, other dimensions refer to official drawing

1.4 Available option: two housing styles, optional locating pegs, multiple contact plating selections

1.5 CTA: Contact our engineering team to obtain complete dimension drawings and PCB layout guidelines for your hardware design validation.

2. Material Construction

2.1 Insulator housing: Black PA6T, UL94V‑0 flame retardant grade

2.2 Contact pin: Brass, supports multiple surface plating including tin and various gold thickness options

3. Electrical Parameters

3.1 Rated current: 1A

3.2 Insulation resistance: minimum 1000M ohms

3.3 Contact resistance: maximum 20M ohms

3.4 Dielectric Withstanding: AC 500V

4. Environmental Parameters

4.1 Operating temperature range: minus 65°C to plus 125°C

5. Compliance Standard

5.1 Environmental compliance: RoHS compliant

6. Usage Method

6.1 Assembly mode: SMT surface mount soldering onto printed circuit board

6.2 Operation tip: Select proper housing type and locating peg option according to PCB layout

7. Application Scenarios

7.1 Household electrical appliances

7.2 Industrial control equipment

7.3 Digital electronic devices

7.4 Precision instrument equipment

8. Operation & Storage Precautions

8.1 Follow official PCB layout specification for surface mount soldering operation

8.2 Avoid mechanical impact to prevent pin deformation before and during SMT processing

8.3 Store products in dry surroundings to prevent contact surface oxidation

8.4 Choose suitable contact plating and housing configuration based on actual project requirements

8.5 CTA: Submit your contact count plating and housing requirements, we can offer free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

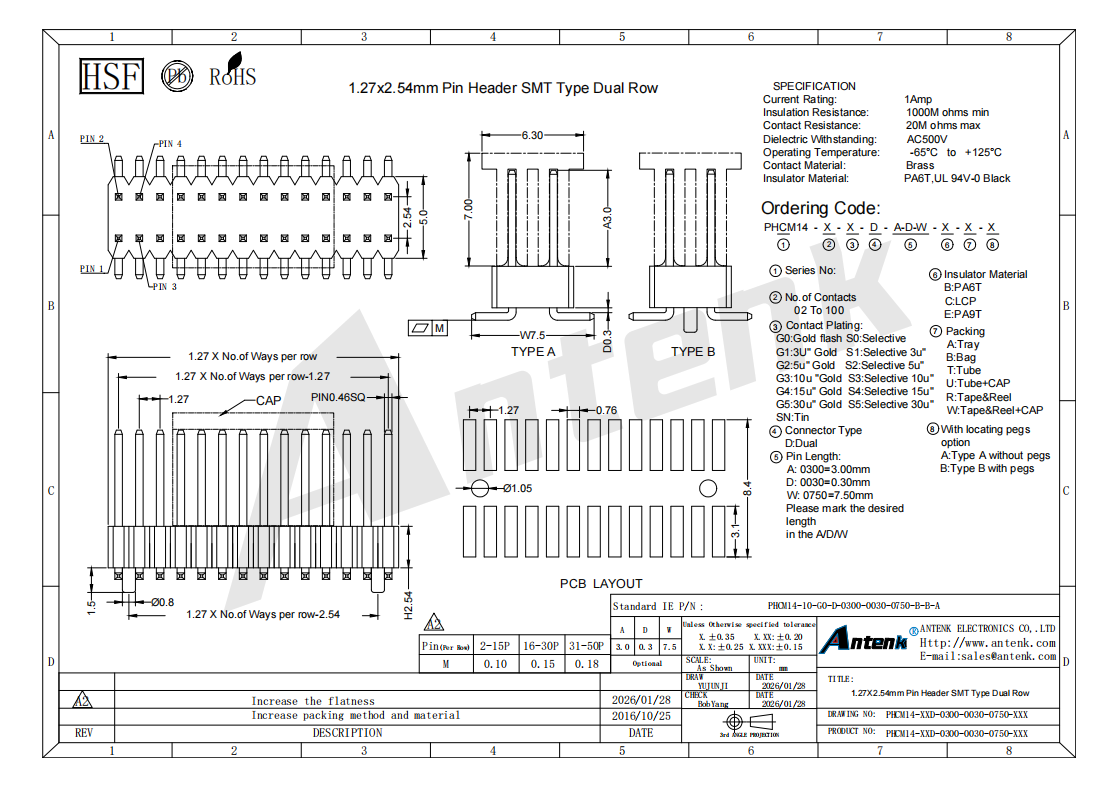

Product Drawing：

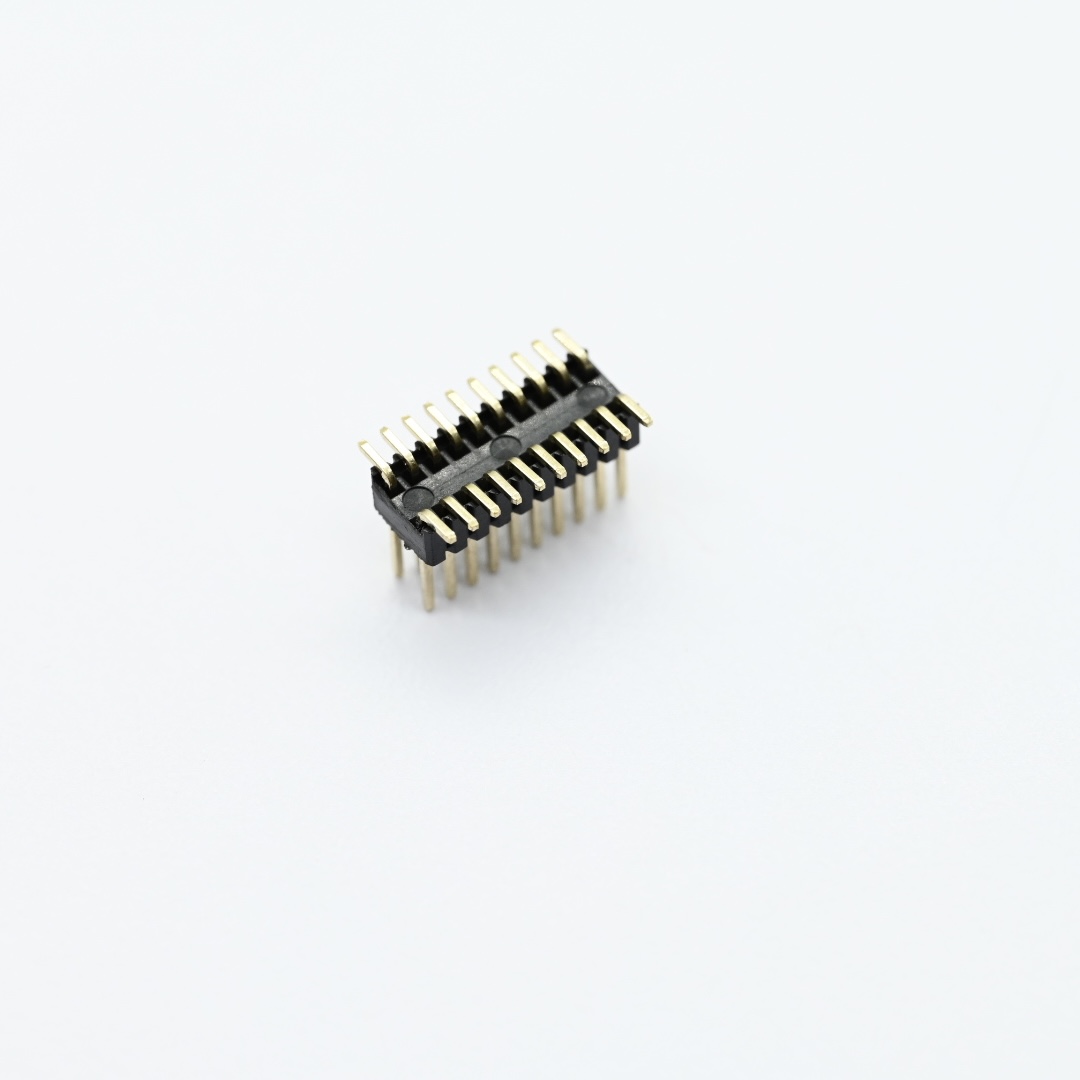

PHCM14-20-G0-D-0843-0100-D-0483-0010-0752-E-T-H（7）

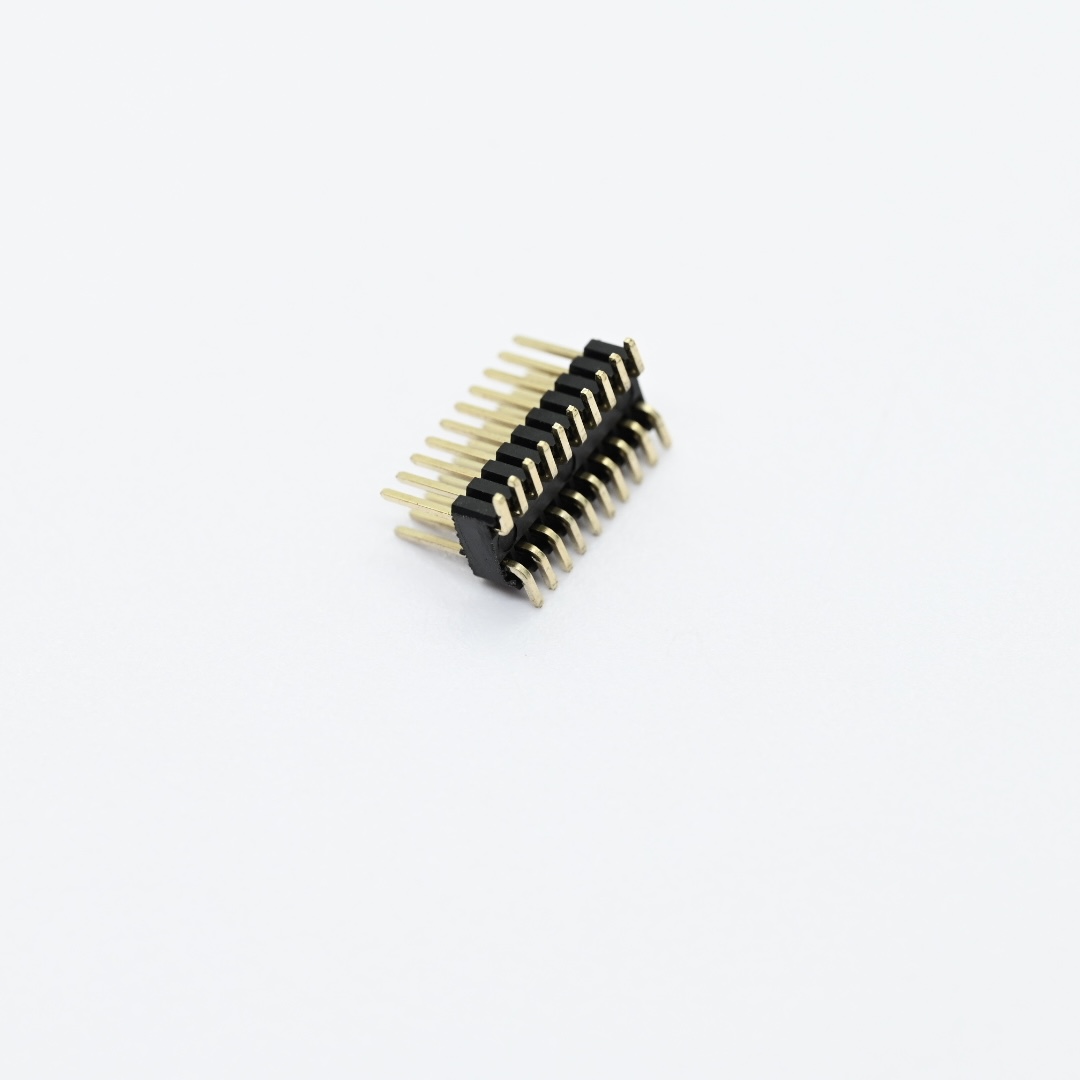

PHCM14-20-G0-D-0843-0100-D-0483-0010-0752-E-T-H（5）

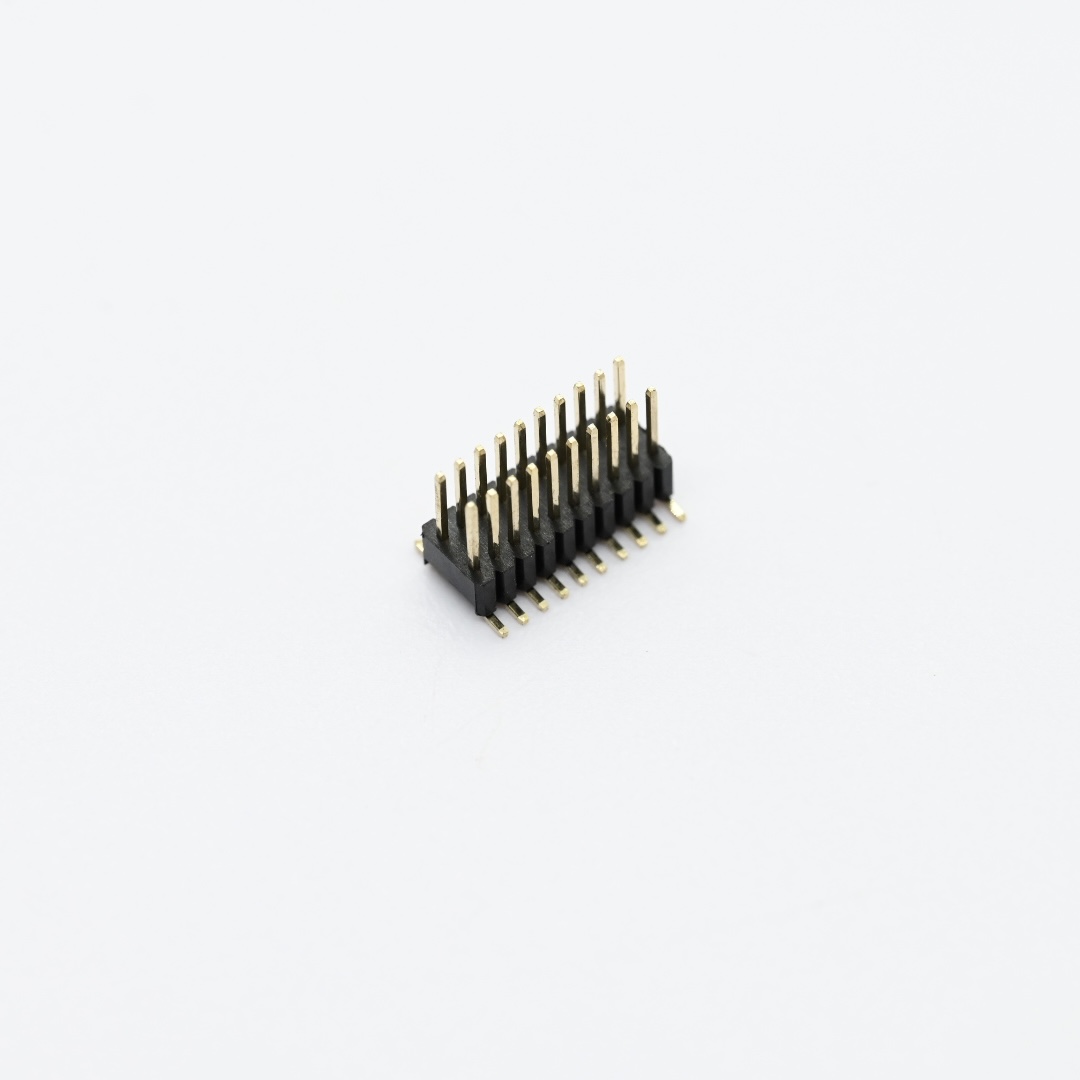

PHCM14-20-G0-D-0843-0100-D-0483-0010-0752-E-T-H（2）

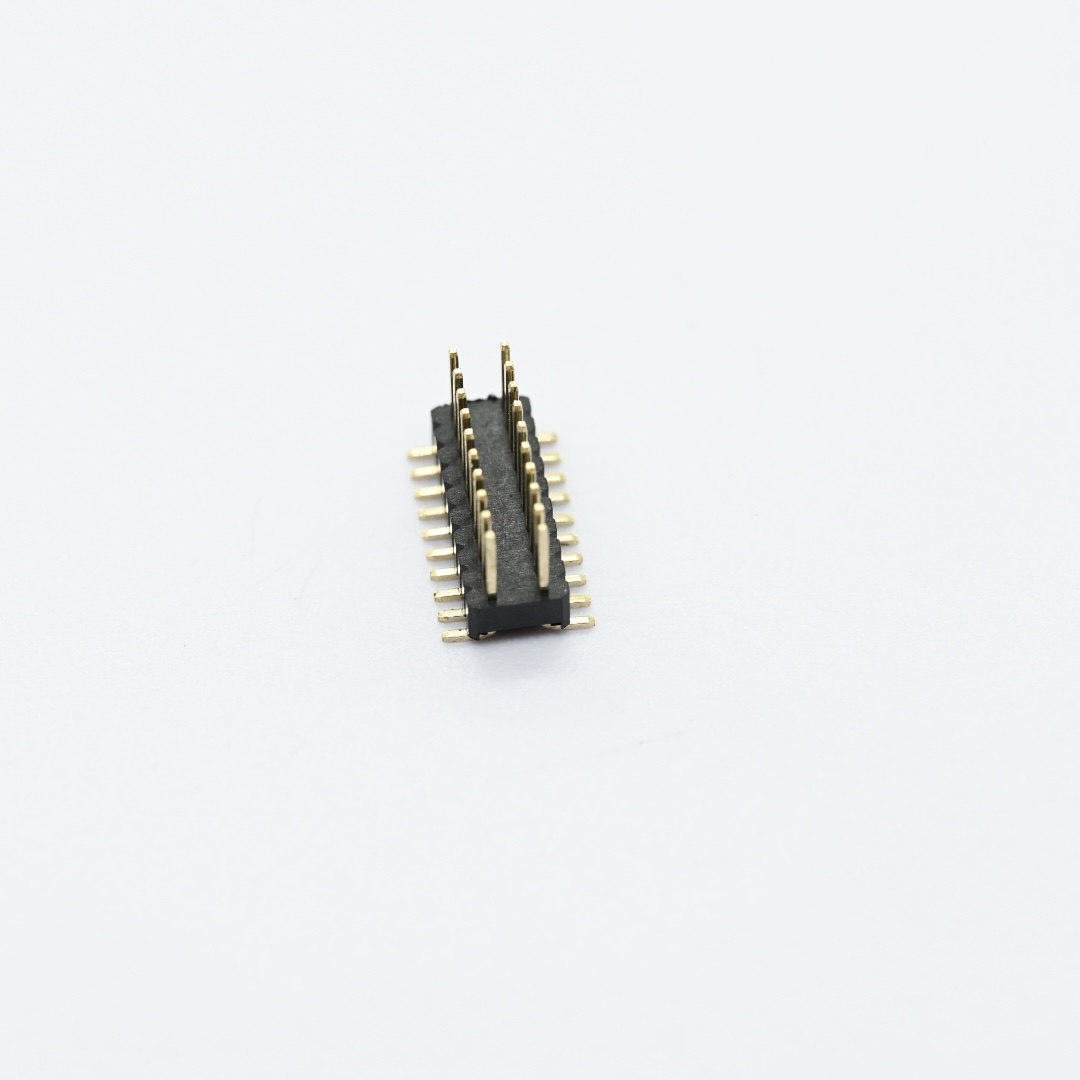

PHCM14-20-G0-D-0843-0100-D-0483-0010-0752-E-T-H（3）

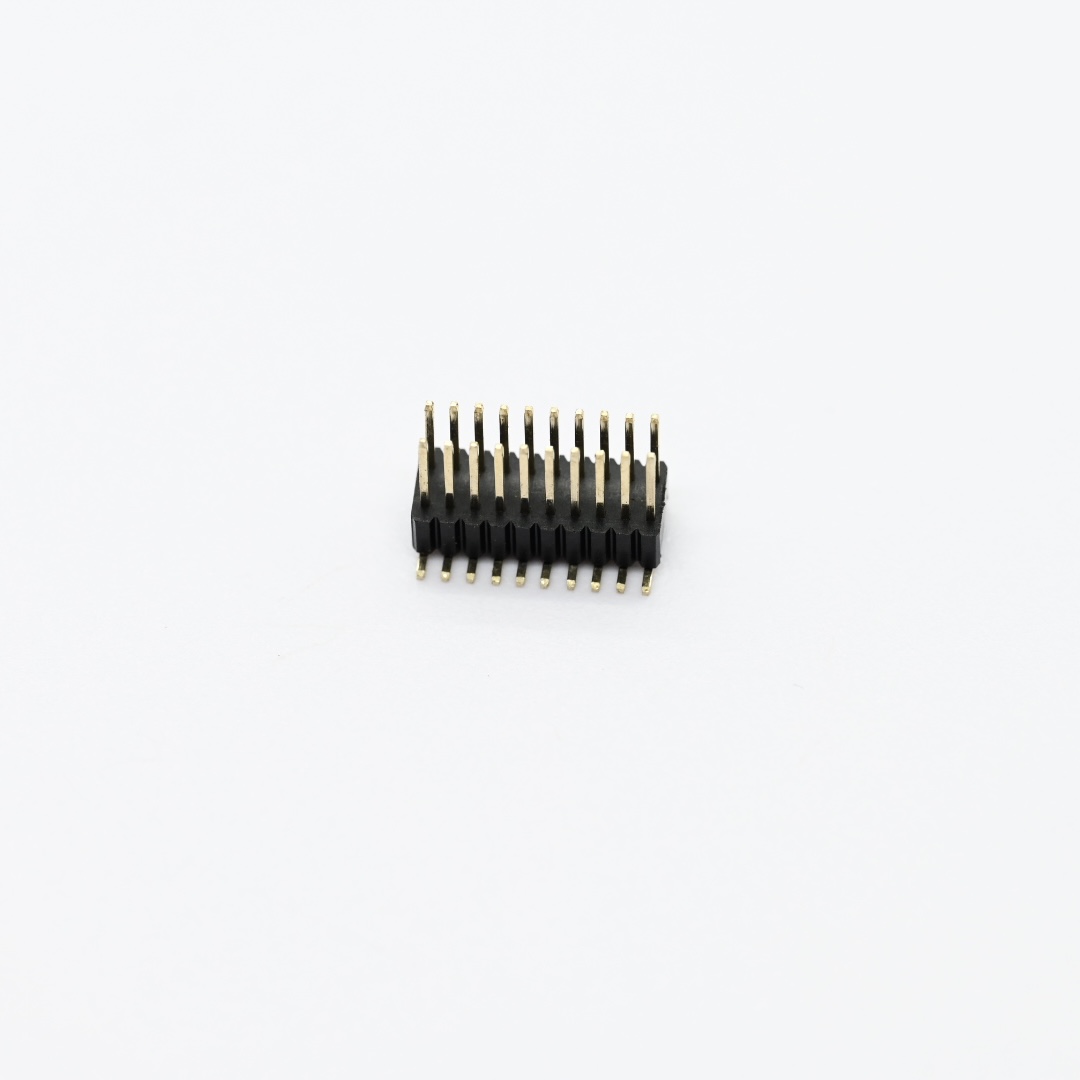

PHCM14-20-G0-D-0843-0100-D-0483-0010-0752-E-T-H（1）

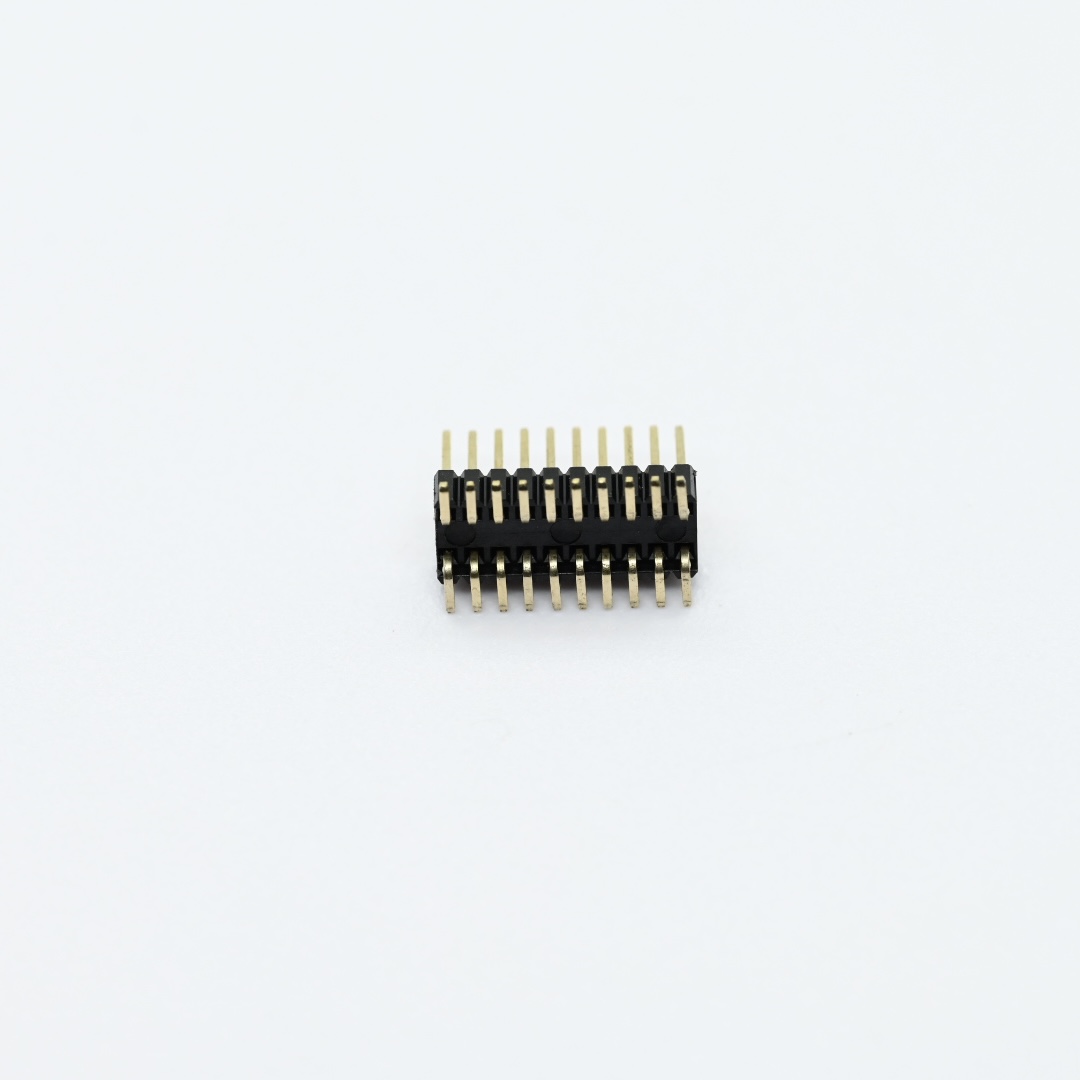

PHCM14-20-G0-D-0843-0100-D-0483-0010-0752-E-T-H（4）
