T6C / T6CL Hydraulic Vane Pump Cartridge Kit
Product Overview
T6C / T6CL Hydraulic Vane Pump Cartridge Kit is the core wearable internal replacement component for Vickers T6C single pump and T6CL double‑pump Hydraulic Vane pump, which acts as key consumable assembly of the whole hydraulic pump. It is widely used for overhaul and performance recovery of industrial hydraulic system and various hydraulic‑driven Machine.

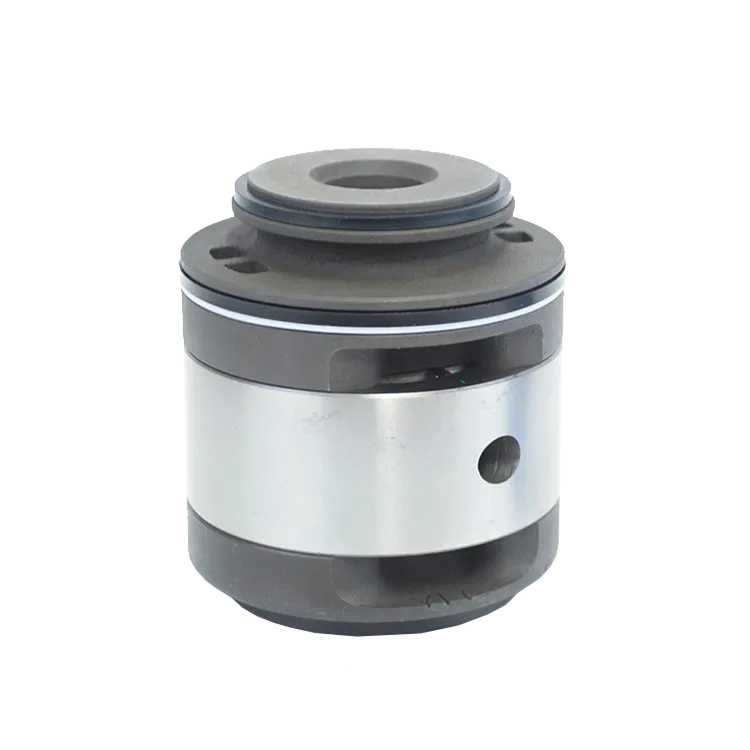

This modular cartridge assembly includes rotor, pin‑driven vanes, cam ring, side pressure plates and matched sealing accessories. It adopts proven high‑pressure pin‑type vane structure. T6C cartridge fits single pump, while T6CL is designed for double pump combination. Thanks to cartridge‑in‑housing structure, field maintenance can be finished without removing the complete hydraulic pump from the Machine. It restores rated flow and pressure output for your hydraulic system, and cuts maintenance cost instead of replacing the whole pump unit.
Technical Specifications
‑ Model: T6C / T6CL Hydraulic Vane Pump Cartridge Kit
‑ Compatible Pump Models: T6C single pump, T6CL double‑pump Hydraulic Vane pump
‑ Internal Structure: High‑pressure pin‑driven vane design
‑ Continuous working pressure: Up to 21 MPa
‑ Rotation direction: Clockwise / Counter‑clockwise optional
‑ Multiple displacement codes available to match original pump specifications
‑ Working medium: Anti‑wear hydraulic mineral oil for industrial hydraulic system, ISO‑VG32 / VG46 recommended
‑ Operating oil temperature: ‑20℃ ~ +80℃
‑ Key Features: Modular integrated assembly, pin‑type high‑pressure structure, high volumetric efficiency, good wear resistance, convenient on‑site servicing, stable continuous performance for medium‑heavy‑duty industrial Machine
Working Principle
As the core pumping unit inside the Hydraulic Vane pump, T6C / T6CL Cartridge Kit completes oil suction and pressure delivery for the hydraulic pump. Driven by main shaft, rotor rotates and built‑in pins push vanes tightly against inner surface of cam ring. Periodic volume variation between vanes realizes oil suction and high‑pressure oil output to supply power for the whole hydraulic system. The pin‑driven vane structure offers stable vane preload under medium‑high pressure, ensuring reliable operation during long‑time running of the Machine.
Once vanes, cam ring or side plates suffer wear, the hydraulic pump will generate internal leakage, pressure drop, insufficient flow and abnormal noise. Installing brand‑new T6C / T6CL Cartridge Kit can rapidly recover full working performance of your hydraulic system.
Core Advantages
1. Modular cartridge‑in‑housing design, no need to disassemble pump housing and pipelines from the Machine, greatly reduces downtime of the hydraulic system.
2. Mature pin‑driven vane structure, good adaptability for medium‑high‑pressure working conditions, improves service life under cyclic load of industrial Machine.
3. Two versions cover T6C single pump and T6CL double pump, satisfying diverse configuration requirements of hydraulic system.
4. Pre‑matched precision components, maintains high volumetric efficiency under long‑term continuous pressure operation.
5. Cost‑effective maintenance solution: replace only inner cartridge rather than complete hydraulic pump, lower spare‑part investment for hydraulic system.
Application Range
T6C / T6CL Cartridge Kit is vital wearable spare‑part for T6C / T6CL high‑pressure Hydraulic Vane pump. Widely applied for repair and overhaul of hydraulic system on injection molding machines, hydraulic presses, machine tools, metallurgical auxiliary equipment and other hydraulic‑driven industrial Machine. Well‑suited for hydraulic repair workshops, equipment integrators and global spare‑parts distributors.
