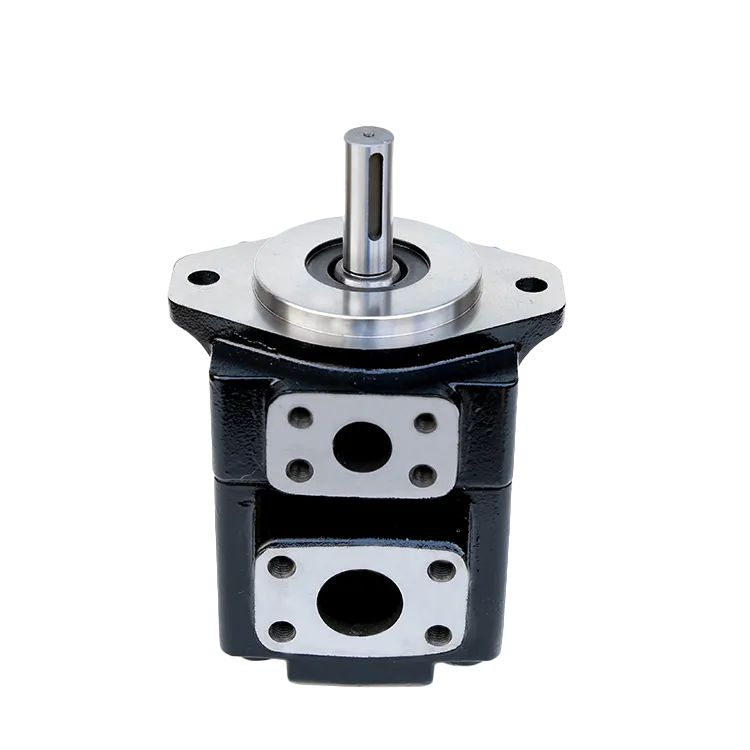

T6C / T6CL High‑Pressure Pin Vane Pump
Product Overview
T6C / T6CL High‑Pressure Pin Vane Pump is Vickers classic medium‑to‑high pressure Hydraulic Vane pump. T6C refers to single pump unit, while T6CL stands for double combined pump. This heavy‑duty hydraulic pump delivers stable pressure and flow for complex industrial hydraulic system and multi‑action automated Machine.
Adopting advanced pin‑driven vane structure, it provides reliable vane preload under high‑pressure working conditions, effectively reducing noise and internal wear. The pump supports direct replacement of T6C / T6CL cartridge kit for quick field maintenance without full pump disassembly. It is widely deployed in injection molding machinery, hydraulic presses, metallurgical equipment and other heavy‑load industrial Machine, serving as stable power source for the whole hydraulic system.
Technical Specifications
‑ Model: T6C / T6CL High‑Pressure Pin Vane Pump
‑ Product Type: High‑pressure pin‑type Hydraulic Vane pump; T6C single pump, T6CL double pump
‑ Multiple displacement options for front and rear pump sections
‑ Continuous working pressure: Up to 21 MPa
‑ Max operating speed: 1800 rpm
‑ Mounting form: Standard SAE flange mounting
‑ Shaft: SAE standard drive shaft
‑ Rotation direction: Clockwise standard, counter‑clockwise optional
‑ Serviceable component: Interchangeable T6C / T6CL cartridge kit
‑ Working medium: Anti‑wear hydraulic mineral oil for industrial hydraulic system, ISO‑VG32 / VG46 recommended
‑ Operating oil temperature: ‑20℃ ~ +80℃
‑ Key Features: Pin‑driven high‑pressure structure, high volumetric efficiency, low noise, modular cartridge maintenance, compact layout, durable performance for continuous‑running heavy‑duty industrial Machine
Working Principle
As a high‑performance Hydraulic Vane pump, this hydraulic pump uses built‑in pins to push vanes against the inner surface of cam ring. Driven by input shaft, the rotor rotates, and periodic volume change between vanes completes oil suction and high‑pressure oil output. For T6CL double pump, two independent pumping assemblies output separate flow to satisfy multi‑circuit demands of one hydraulic system. The pin‑vane design maintains reliable vane contact under high pressure, ensuring stable output during long‑time operation of the Machine.
When internal rotor, vanes, cam ring or side plates wear out, the hydraulic pump will suffer internal leakage, pressure drop, flow shortage and abnormal noise. Replacing the matching cartridge kit can quickly restore full performance of the hydraulic system.
Core Advantages
1. Mature pin‑driven vane structure, excellent performance under medium‑high‑pressure conditions, reduces vane jumping and wear for heavy‑duty Machine.
2. Two configurations: T6C single pump for single‑circuit supply; T6CL double pump provides two independent flows to simplify complex hydraulic system layout.
3. Modular cartridge‑in‑housing design, quick on‑site overhaul, no need to remove complete hydraulic pump from the Machine, shorten equipment downtime of hydraulic system.
4. Standard SAE mounting and port dimensions, good interchangeability for original replacement and system retrofitting.
5. High volumetric efficiency, stable pressure output, low pulsation and low noise, suitable for continuous production environment of industrial Machine.
Application Range
T6C / T6CL High‑Pressure Pin Vane Pump is an important power‑supply hydraulic pump for industrial hydraulic system. Widely used in injection molding machines, hydraulic presses, machine tools, metallurgical machinery and other heavy‑load hydraulic‑driven Machine. Popular for hydraulic system integrators, equipment manufacturers and global spare‑parts distributors.
