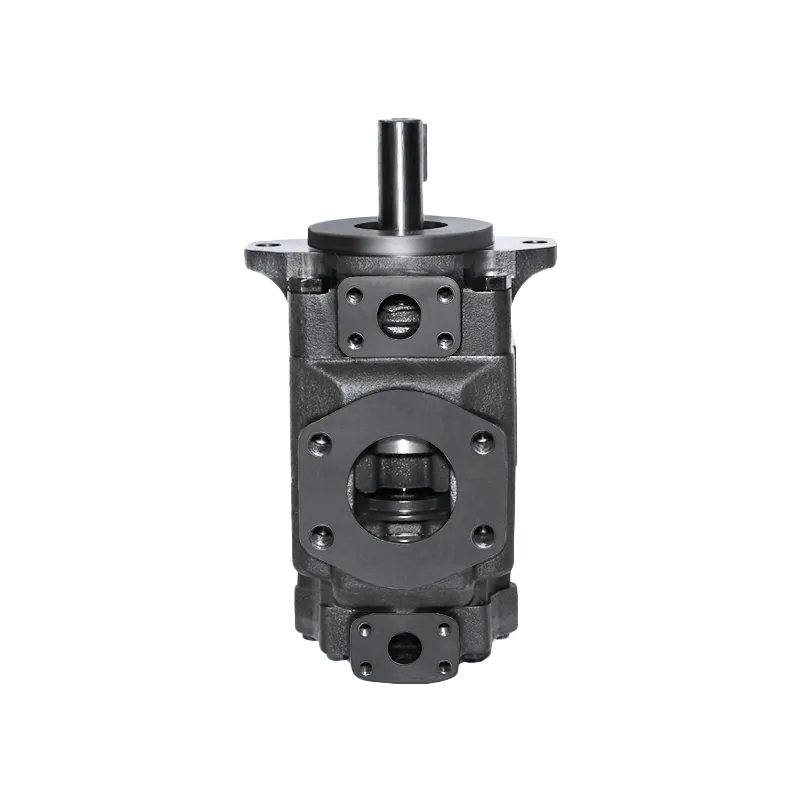

T6ED / T7EDS High‑Pressure Pin Vane Pump
Product Overview
T6ED / T7EDS High‑Pressure Pin Vane Pump is a heavy‑duty double‑pump Hydraulic Vane pump. T6ED belongs to T6 series double pump, while T7EDS is high‑performance T7 series double‑flow hydraulic pump. It provides two independent pressure oil outputs for complex industrial hydraulic system and multi‑action heavy‑duty Machine .
This double Hydraulic Vane pump adopts mature pin‑driven vane structure, delivering stable performance under high‑pressure working conditions. Two separate pumping chambers supply oil for different hydraulic circuits simultaneously. It supports replaceable cartridge kit for quick on‑site overhaul without full pump disassembly. Widely applied for large injection molding machines, hydraulic presses and metallurgical equipment, it serves as core power source for heavy‑load hydraulic system .
Technical Specifications
‑ Model: T6ED / T7EDS High‑Pressure Pin Vane Pump
‑ Product Type: High‑pressure pin‑type double Hydraulic Vane pump, heavy‑duty hydraulic pump
‑ Structure: Double pump combination with two independent flow outputs
‑ Multiple displacement combinations available for front and rear pump sections
‑ Continuous working pressure: Up to 21 MPa; peak pressure up to 24 MPa[(Zhejiang Y...)]
‑ Max operating speed: 2200 rpm
‑ Mounting: Standard SAE flange mounting
‑ Shaft: SAE standard drive shaft
‑ Rotation direction: Clockwise as standard, counter‑clockwise optional
‑ Maintainable part: Interchangeable T6ED / T7EDS cartridge kit
‑ Working medium: Anti‑wear hydraulic mineral oil for industrial hydraulic system, ISO‑VG32 / VG46 recommended
‑ Operating oil temperature: ‑20℃ ~ +80℃
‑ Key Features: Pin‑driven high‑pressure structure, dual independent flow output, high volumetric efficiency, low pressure pulsation, modular cartridge maintenance, durable performance for continuous‑running heavy‑duty industrial Machine
Working Principle
As a high‑performance double Hydraulic Vane pump, this hydraulic pump contains two independent pumping assemblies inside one housing. Driven by input shaft, rotor rotates and built‑in pins push vanes tightly against cam‑ring inner surface. Periodic volume variation completes oil suction and high‑pressure oil output, delivering two separate pressure flows for the whole hydraulic system. The pin‑vane design keeps reliable vane preload under high‑pressure environment, ensuring stable output during long‑time operation of the Machine.
When vanes, cam ring or side plates suffer wear, the hydraulic pump will produce internal leakage, pressure drop, insufficient flow and abnormal noise. Installing matched cartridge kit can rapidly restore full working performance of your hydraulic system.
Core Advantages
1. Optimized pin‑driven vane structure, excellent adaptability for high‑pressure heavy‑load conditions, reduces vane wear for industrial Machine.
2. Dual independent flow output, supplies oil for two separate hydraulic circuits at the same time, simplifies layout of complex hydraulic system.
3. Modular cartridge‑in‑housing design, supports convenient field overhaul, no need to remove complete hydraulic pump from the Machine, shortens equipment downtime of hydraulic system.
4. Standard SAE mounting and port dimensions, good interchangeability for original replacement and system retrofitting.
5. High volumetric efficiency and low flow pulsation, stable continuous operation for large‑scale production equipment of industrial Machine.
Application Range
T6ED / T7EDS High‑Pressure Pin Vane Pump is critical dual‑flow power‑supply hydraulic pump for industrial hydraulic system. Widely used in large injection‑molding machinery, heavy‑duty hydraulic presses, metallurgical equipment, marine auxiliary machinery and other hydraulic‑driven industrial Machine. Popular for hydraulic integrators, equipment manufacturers and global spare‑parts distributors .
