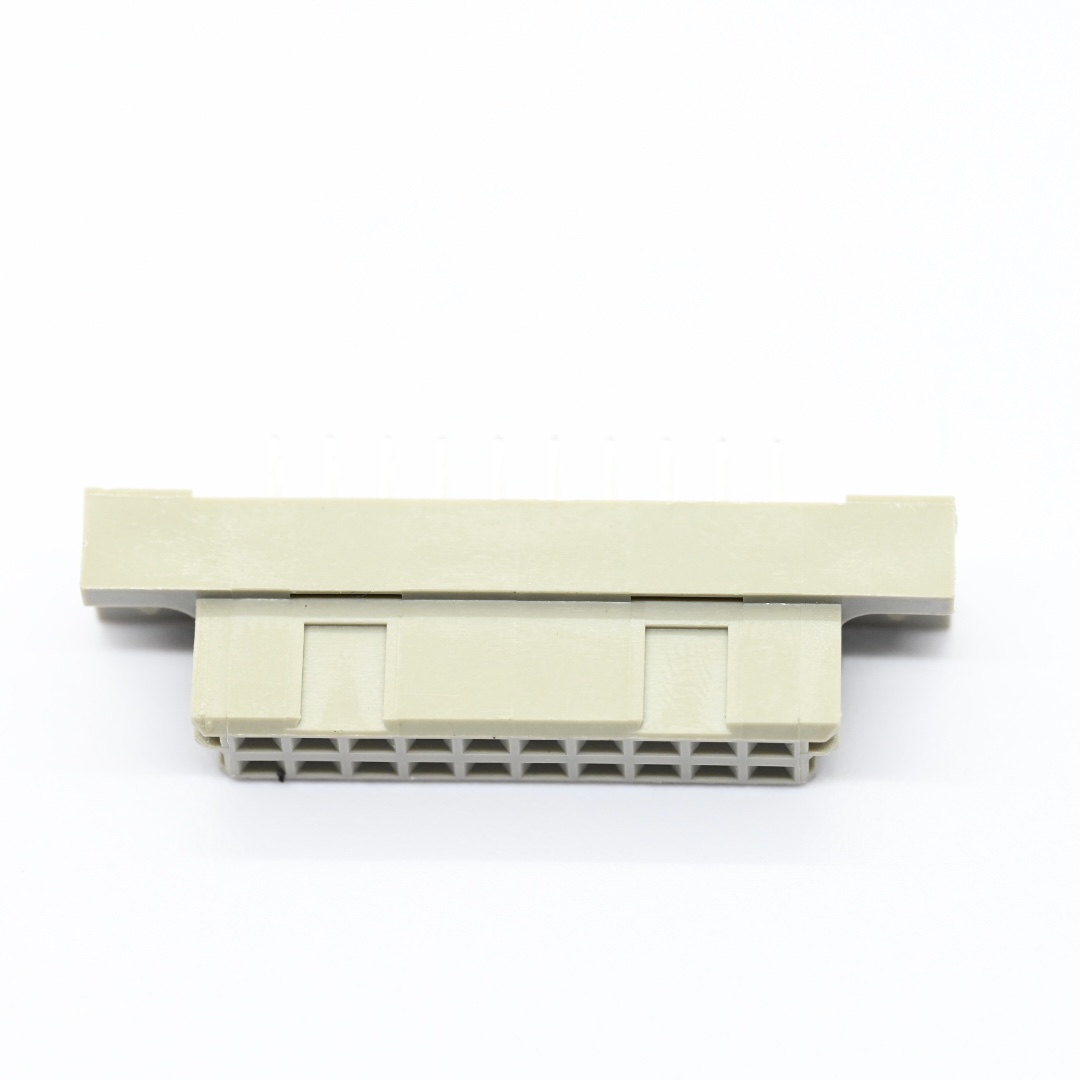

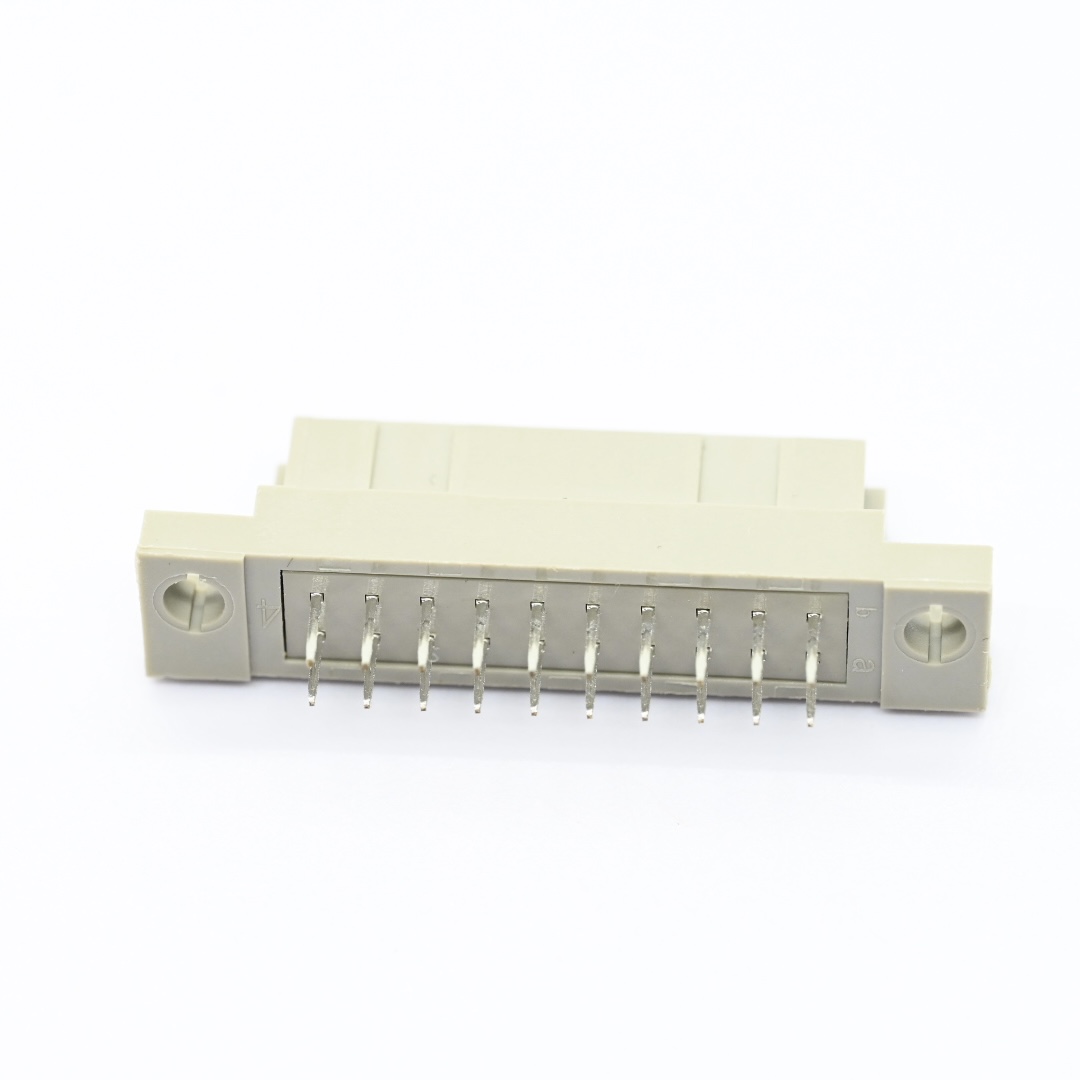

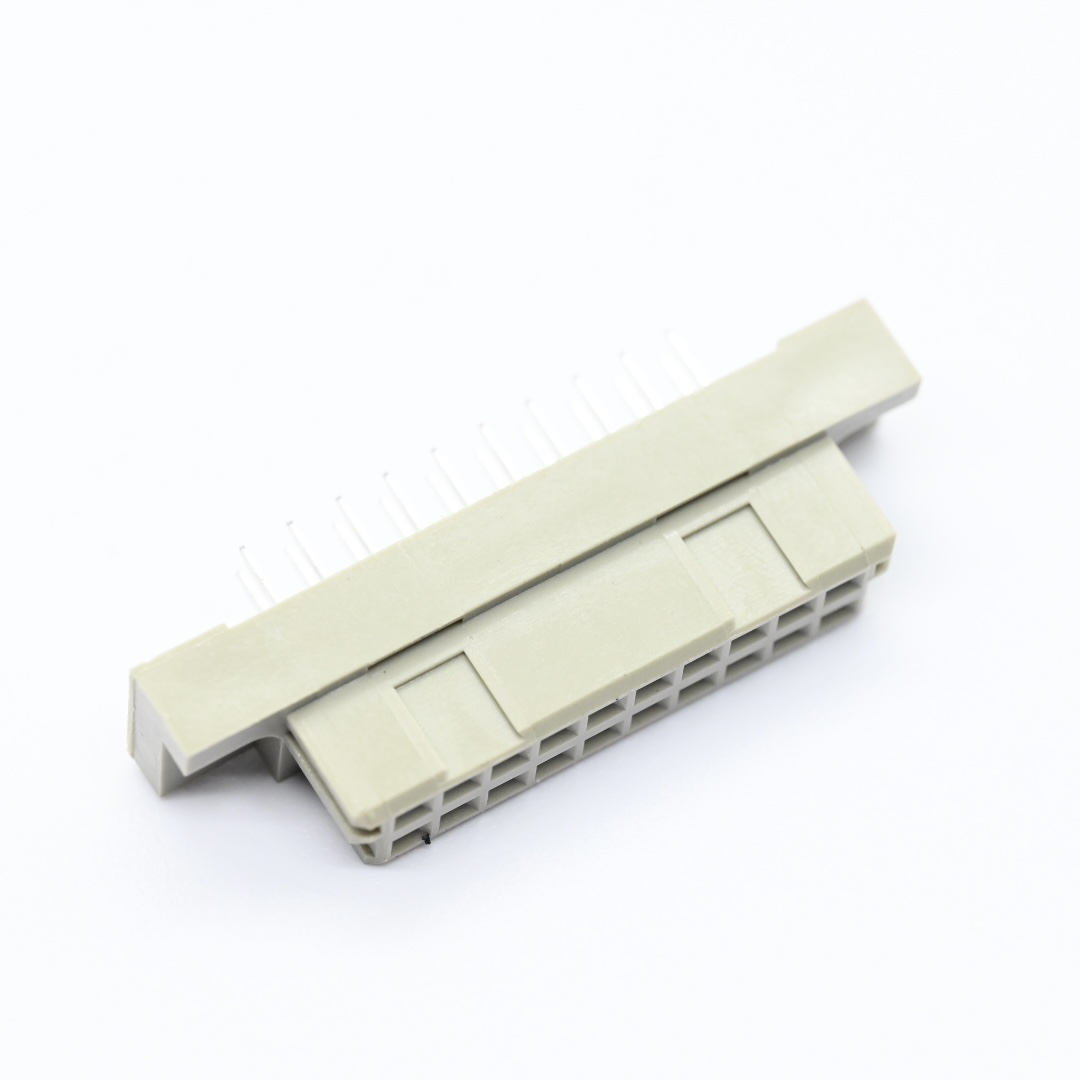

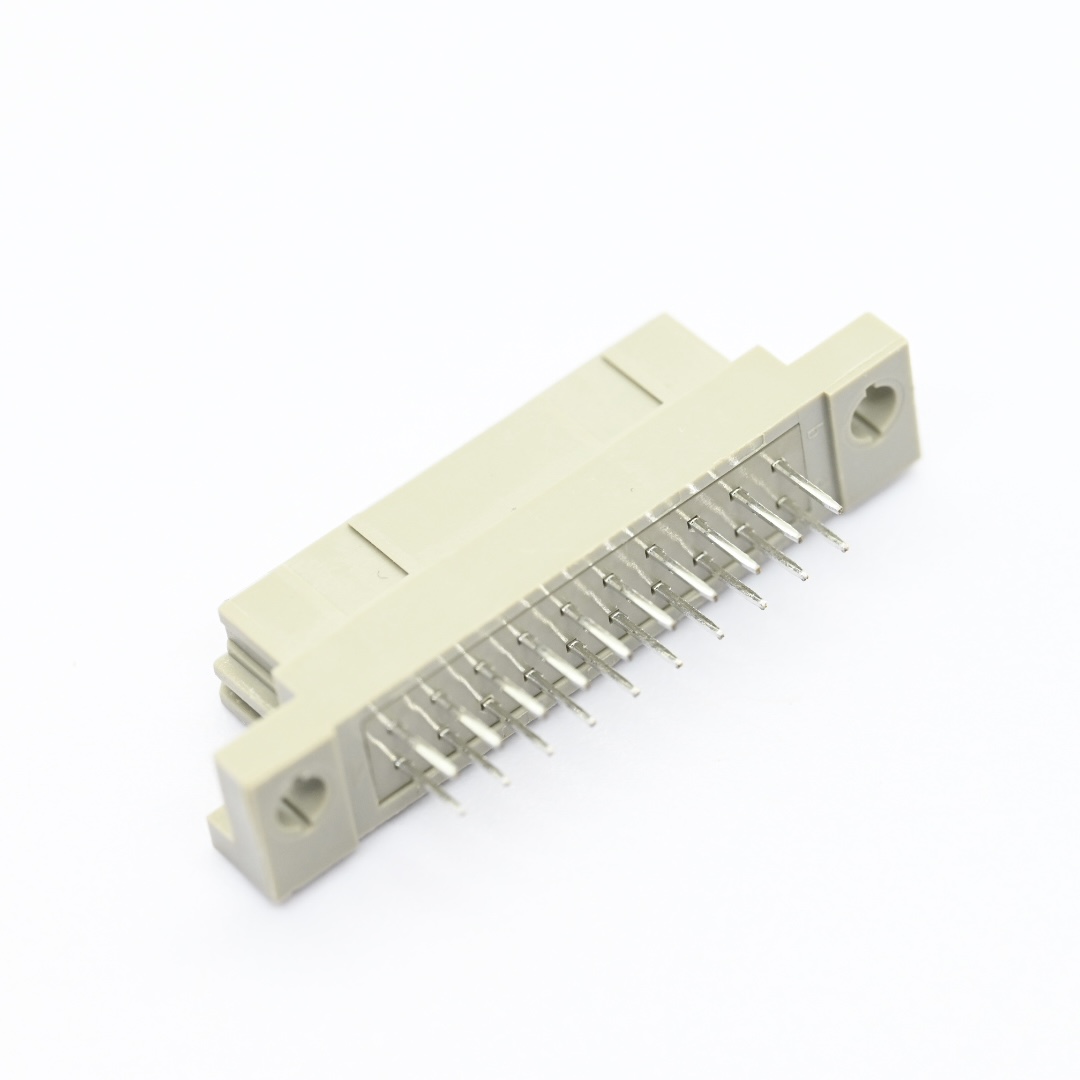

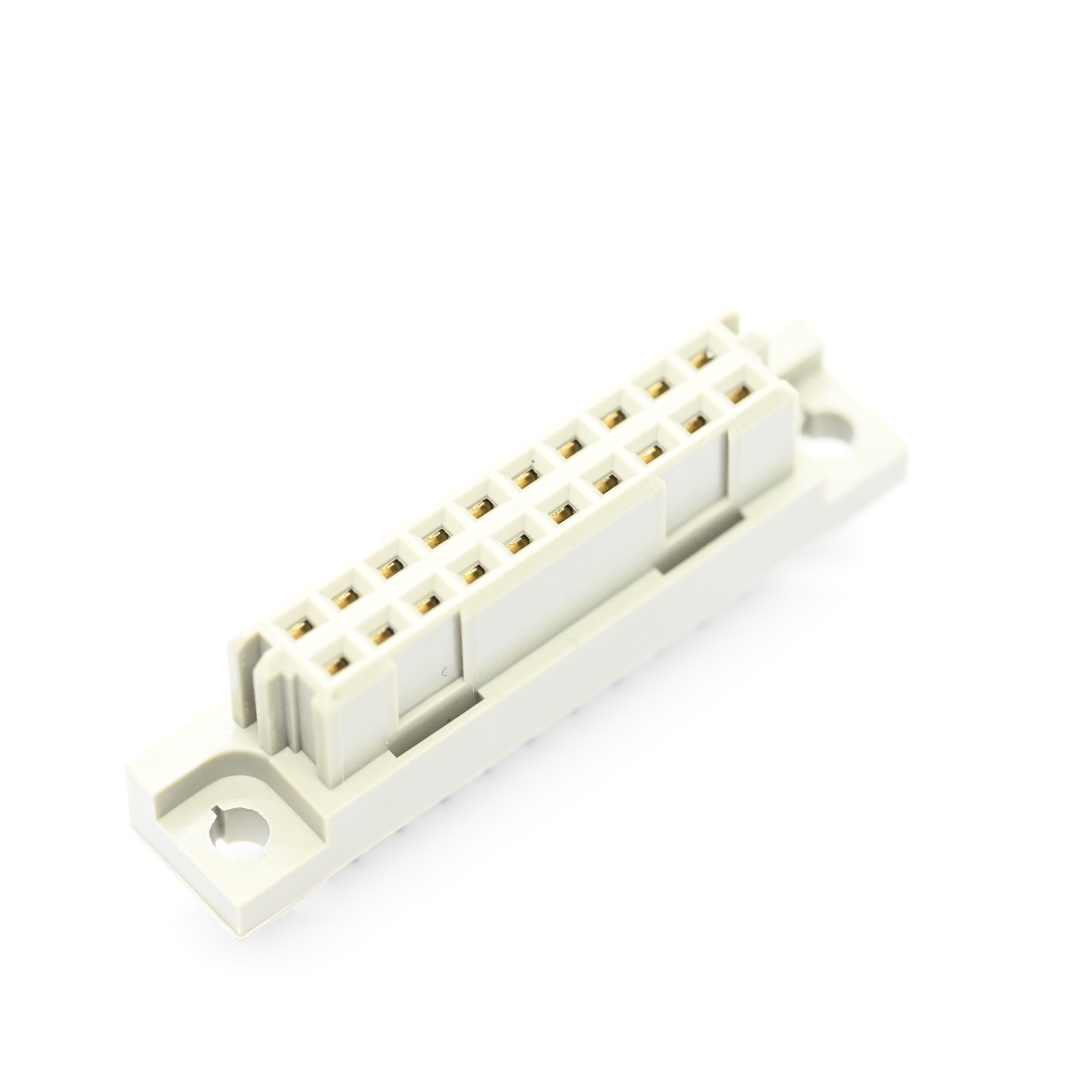

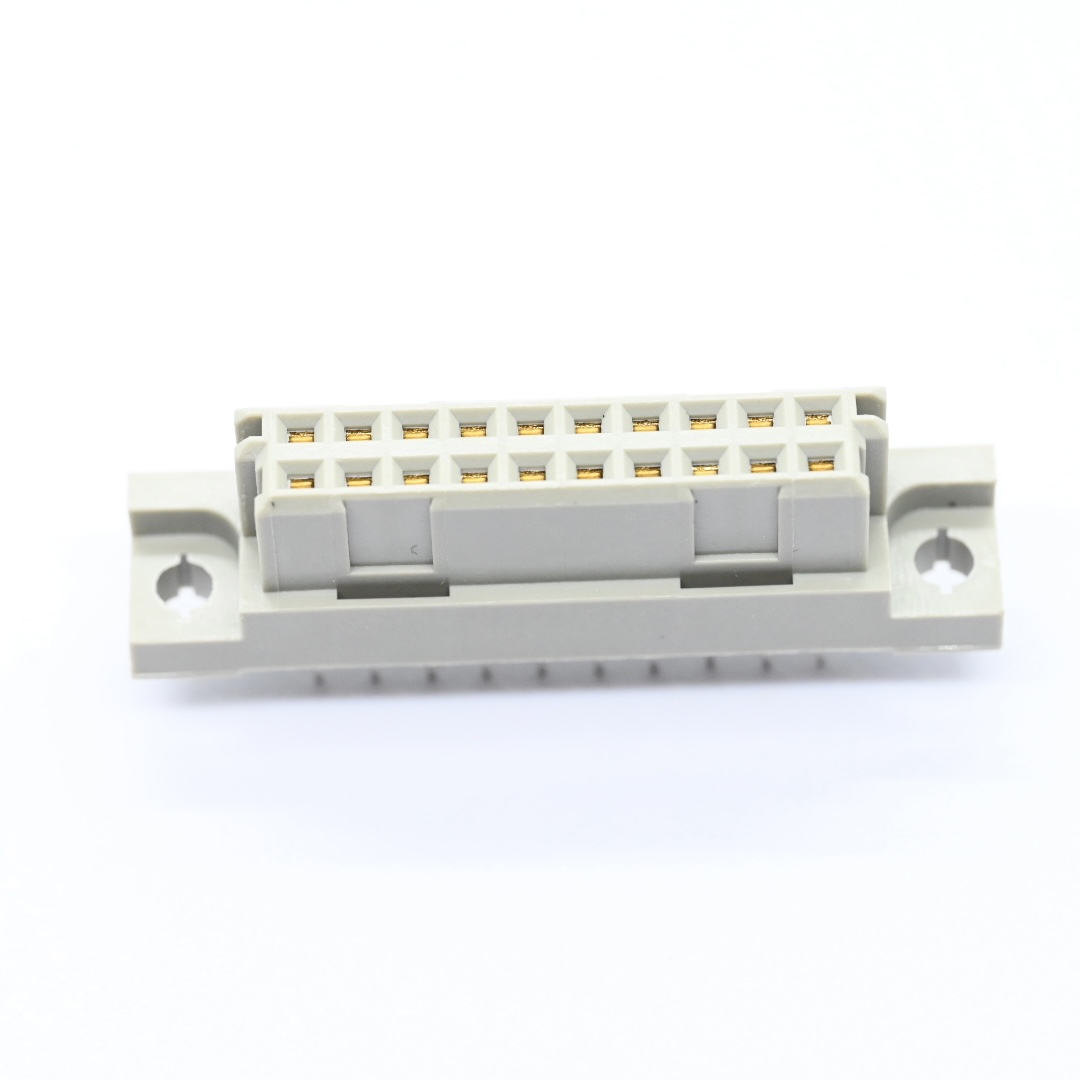

Product Dedscription:

Huizhou Antenk Electronics Co., Ltd. manufactures DFS 214 series DIN 41612 vertical female 20 position connector to deliver stable signal interconnection for backplane systems through soldering onto printed circuit boards. This vertical receptacle connector uses PBT plus thirty percent glass fiber insulator housing with UL94V 0 flame retardant grade and brass contacts supporting multiple plating options including tin and various gold thickness over nickel base, rated for 2 amp current, 20 milliohm maximum contact resistance, 1000 megaohm minimum insulation resistance and 1000V AC one minute dielectric withstand capacity, operating within minus 55 degree Celsius to plus 105 degree Celsius. It supplies varied solder tail lengths, different loaded row configurations and mechanical insertion withdrawal force to match diverse PCB layout requirements. This product complies with RoHS and REACH standards and fits industrial control equipment test instruments and communication electronic devices. Operators must follow official PCB layout for soldering assembly and keep goods in dry storage environment to avoid brass contact oxidation. Unlike competitors outsourcing stamping molding and plating Antenk performs full in house production covering independent mold development brass terminal stamping glass filled plastic injection molding multi grade electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, deliver custom configuration solutions and round the clock engineering support, over seventy percent of connector goods are exported globally. Feel free to submit your project specifications for sample quotation and full datasheet resources.

1. Glass Filled PBT Connector maintains outstanding mechanical strength and flame retardant performance under complex industrial working conditions.

2. Gold Nickel Socket Connector lowers contact resistance and ensures long term stable signal transmission for backplane interconnection systems.

3. Vertical PCB Receptacle Connector optimizes board space and supports reliable soldering installation on various printed circuit boards.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: DIN 41612 vertical female backplane connector

1.2 Measurement unit: millimeter

1.3 Key dimension: contact pitch 2.54 mm, total 20 positions, overall dimension 39.10±0.25 mm, PCB related dimension 34.12±0.10 mm, other physical dimensions refer to official drawing

1.4 Available option: multiple solder tail lengths, varied contact loaded row configurations, diversified gold or tin plating selections

1.5 Mechanical force: max insertion force 18N for 20 pins, minimum withdrawal force 0.15N per single contact

1.6 CTA: Contact our engineering team to obtain complete dimension drawings and PCB layout reference files for your backplane hardware design validation.

2. Material Construction

2.1 Insulator housing: PBT plus 30 percent glass fiber, UL94V‑0 flame retardant grade

2.2 Contact pin: Brass, surface plating includes gold over nickel or tin over nickel with multiple gold thickness options

3. Electrical Parameters

3.1 Rated current: 2.0A

3.2 Insulation resistance: minimum 1000M ohms under DC 100V

3.3 Contact resistance: maximum 20 milliohm

3.4 Dielectric Withstanding: AC 1000V for one minute

4. Environmental Parameters

4.1 Operating temperature range: minus 55°C to plus 105°C

5. Compliance Standard

5.1 Environmental compliance: RoHS compliant

6. Usage Method

6.1 Assembly mode: Soldering onto printed circuit board

6.2 Operation tip: Select matching solder tail length and contact loaded row configuration according to actual PCB design

7. Application Scenarios

7.1 Industrial control backplane systems

7.2 Communication electronic equipment

7.3 Electronic test and measurement instruments

8. Operation & Storage Precautions

8.1 Follow official PCB layout specification to complete soldering assembly

8.2 Avoid excessive plug and pull force to prevent terminal deformation and damage

8.3 Keep products in dry surroundings to prevent brass contact oxidation

8.4 Choose proper plating and terminal tail specification for your real project requirements

8.5 CTA: Submit your plating tail length and row configuration requirements, we can offer free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

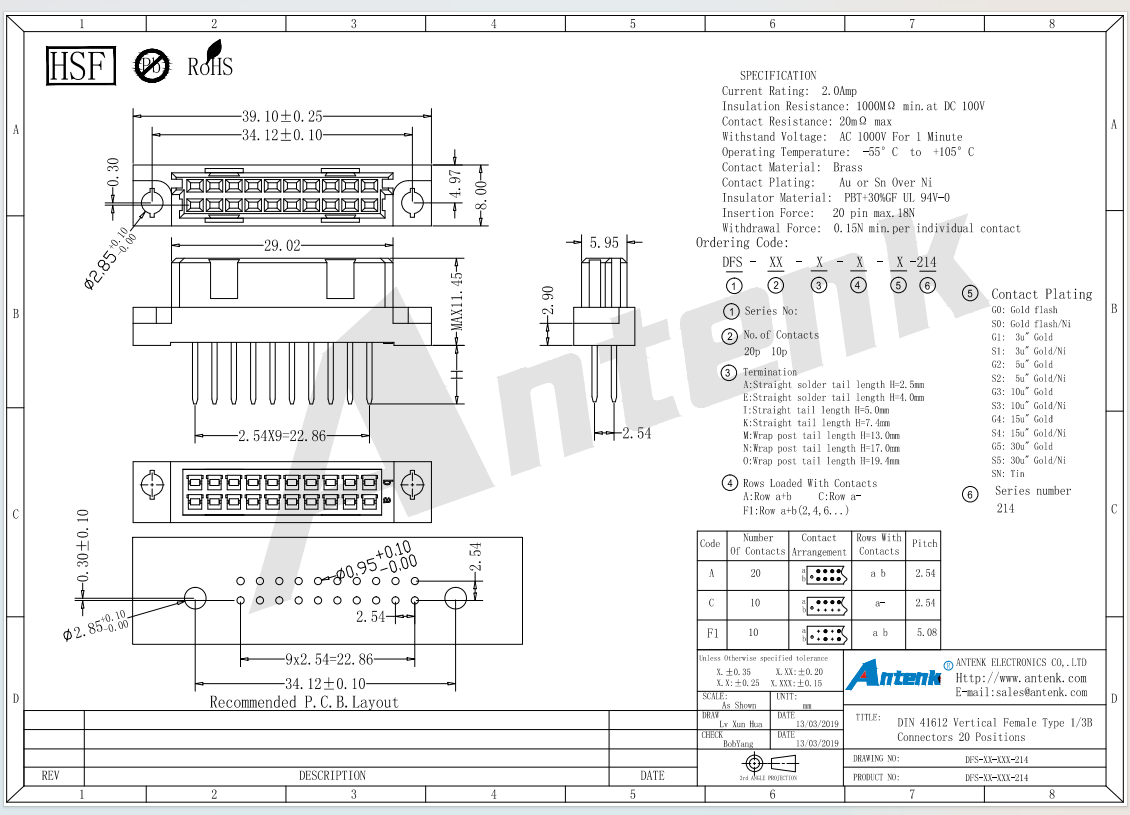

Product Drawing：
