Huizhou Antenk Electronics Co., Ltd. manufactures AW2012RA xP B SN series 2.0 millimeter pitch right angle wafer header without post to deliver stable wire to board signal and power interconnection through soldering onto 1.6 millimeter thickness printed circuit boards. This right angle wafer header supports 2 to 16 positions, uses PBT or PA66 white insulator housing and brass contacts with diversified plating options including tin and various gold thickness over nickel base, rated for 3A AC DC current and 250V AC DC voltage, supports wire gauge from 28AWG to 22AWG with wire insulation outer diameter 0.76 to 1.5 millimeter, reaches 800V AC one minute dielectric strength and minimum 1000 megaohm initial insulation resistance, operating within minus 25 degree Celsius to plus 85 degree Celsius. It provides flexible position counts and multiple contact plating selections to match diverse PCB layout requirements. This product complies with RoHS and REACH standards and fits consumer electronic devices smart home appliances and industrial control modules. Operators must follow official PCB layout for soldering assembly and store goods in dry storage environment to avoid brass contact oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in house production covering independent mold development brass terminal stamping plastic injection molding multi grade electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, deliver custom configuration solutions and round the clock engineering support, over seventy percent of connector goods are exported globally. Feel free to submit your project specifications for sample quotation and full datasheet resources.

1. White Insulator Wafer Header delivers clean visual appearance and stable insulation performance for various wire to board connection projects.

2. Compact PCB Wafer Header saves valuable board space and enables efficient layout for space constrained electronic equipment.

3. Multi Gold Plating Wafer enhances anti corrosion capability and maintains consistent signal transmission under long term working conditions.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: 90 degree right angle wafer connector without post, wire to board type

1.2 Measurement unit: millimeter

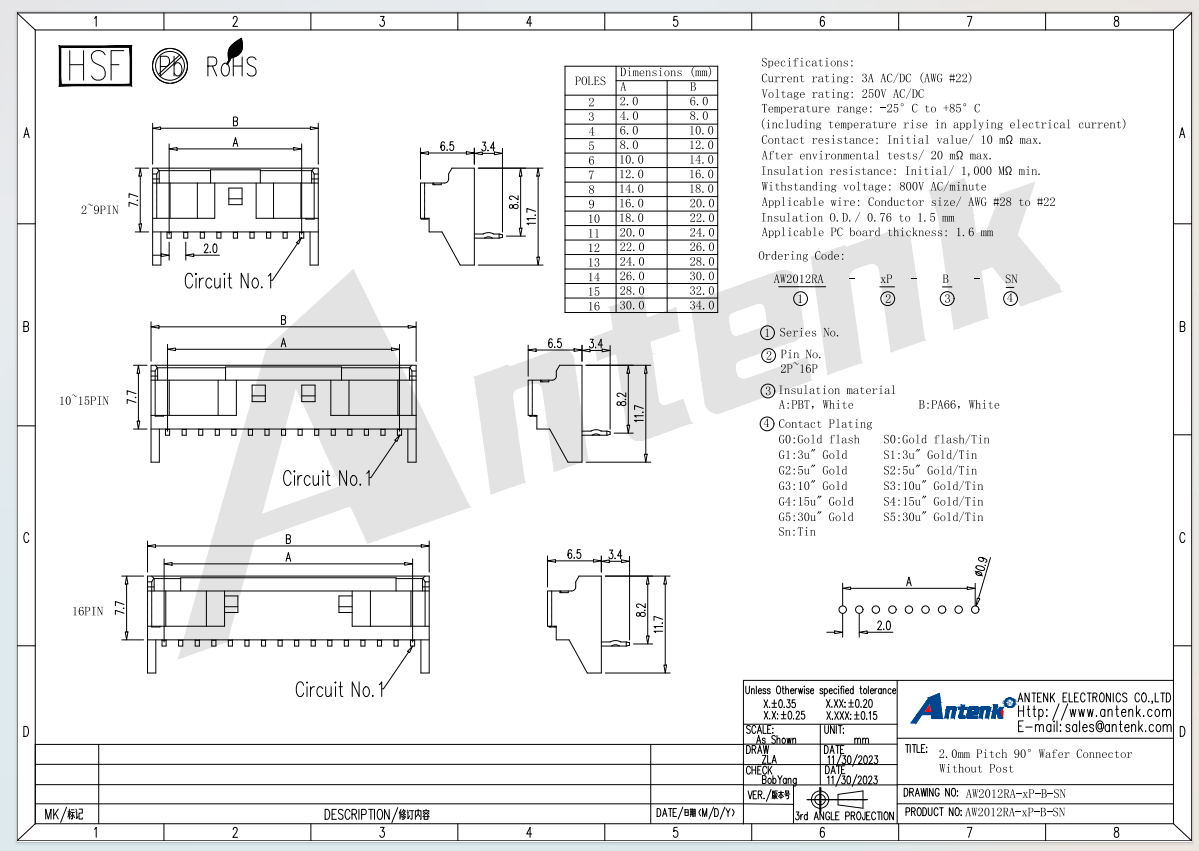

1.3 Key dimension: contact pitch 2.0 mm, available poles from 2 poles to 16 poles, fit 1.6 mm thickness PCB. Dimension A and B vary according to pole counts, refer to official drawing for full dimensional data

1.4 Available option: insulator housing material selectable between white PBT or white PA66, multiple contact plating options including tin and various gold thickness grades

1.6 CTA: Contact our engineering team to obtain complete dimension drawings and PCB layout reference files for your wire‑to‑board hardware design validation.

2. Material Construction

2.1 Insulator housing: White PBT or white PA66

2.2 Contact terminal: Brass, multiple plating selections flash gold, different gold thickness or tin finish

3. Electrical Parameters

3.1 Rated current: 3A AC DC for AWG 22 wire

3.2 Rated voltage: 250V AC DC

3.3 Applicable wire: AWG 28 to AWG 22, insulation outer diameter 0.76 mm‑1.5 mm

3.4 Contact resistance: maximum 10 milliohm initial, maximum 20 milliohm after environmental tests

3.5 Insulation resistance: minimum 1000 megaohm initial

3.6 Dielectric strength: 800V AC for one minute

4. Environmental Parameters

4.1 Operating temperature range: minus 25°C to plus 85°C including temperature rise under electrical current loading

5. Compliance Standard

5.1 Environmental compliance: RoHS compliant

6. Usage Method

6.1 Assembly mode: Soldering onto 1.6 mm thickness printed circuit board

6.2 Operation tip: Select matched pole number, housing material and contact plating according to project requirements

7. Application Scenarios

7.1 Consumer electronic equipment

7.2 Smart home appliances

7.3 Industrial control modules

8. Operation & Storage Precautions

8.1 Follow official PCB layout drawing for soldering assembly

8.2 Use only wires within specified wire gauge and insulation diameter range

8.3 Keep products in dry storage environment to prevent brass terminal oxidation

8.4 Choose proper housing material and contact plating for real project conditions

8.5 CTA: Submit your pole count housing material and plating requirements, we can offer free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Product Drawing：

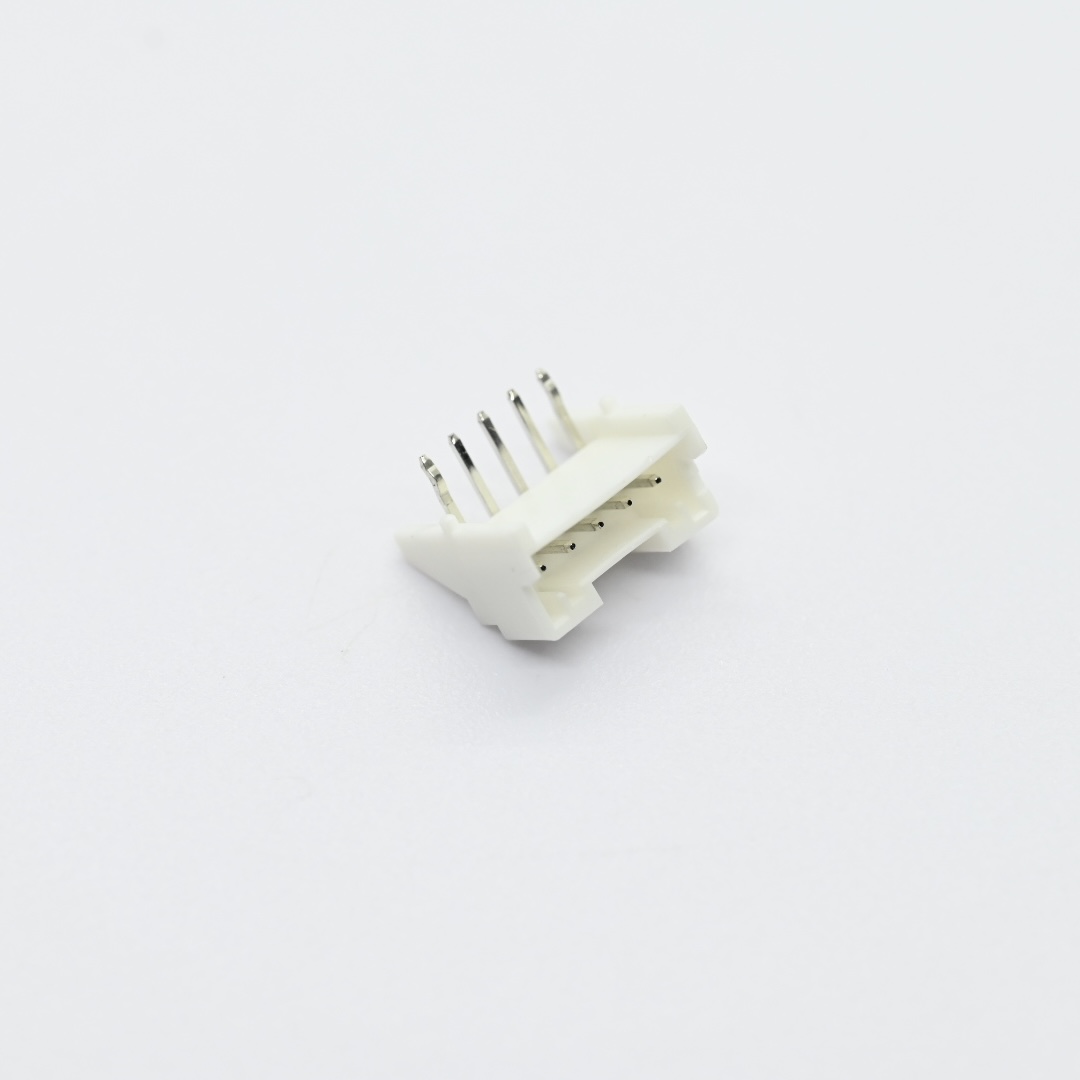

AW2012RA-F-05P+2.0mm Pitch 90°Wafer Connector Without Post（6）

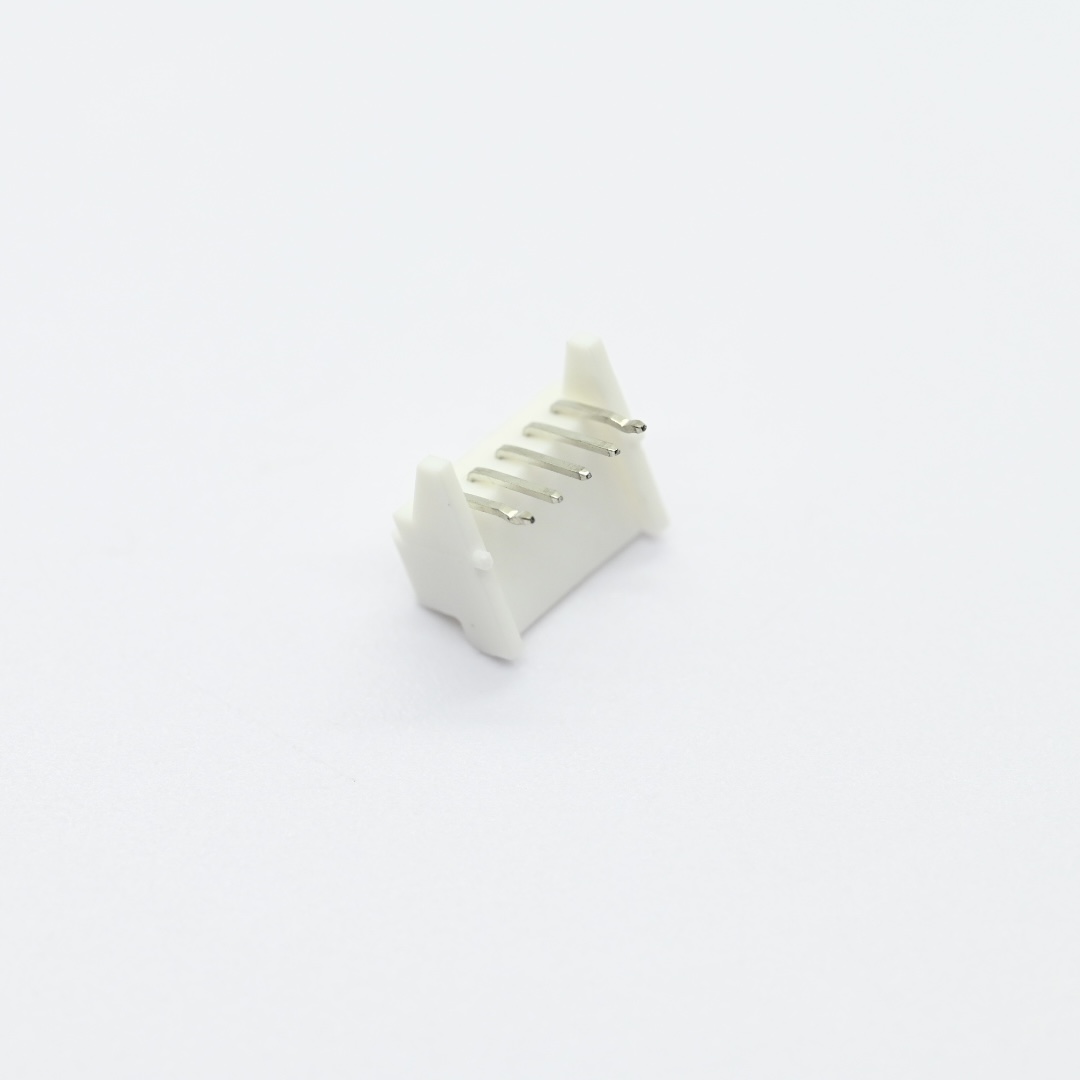

AW2012RA-F-05P+2.0mm Pitch 90°Wafer Connector Without Post（4）

AW2012RA-F-05P+2.0mm Pitch 90°Wafer Connector Without Post（3）

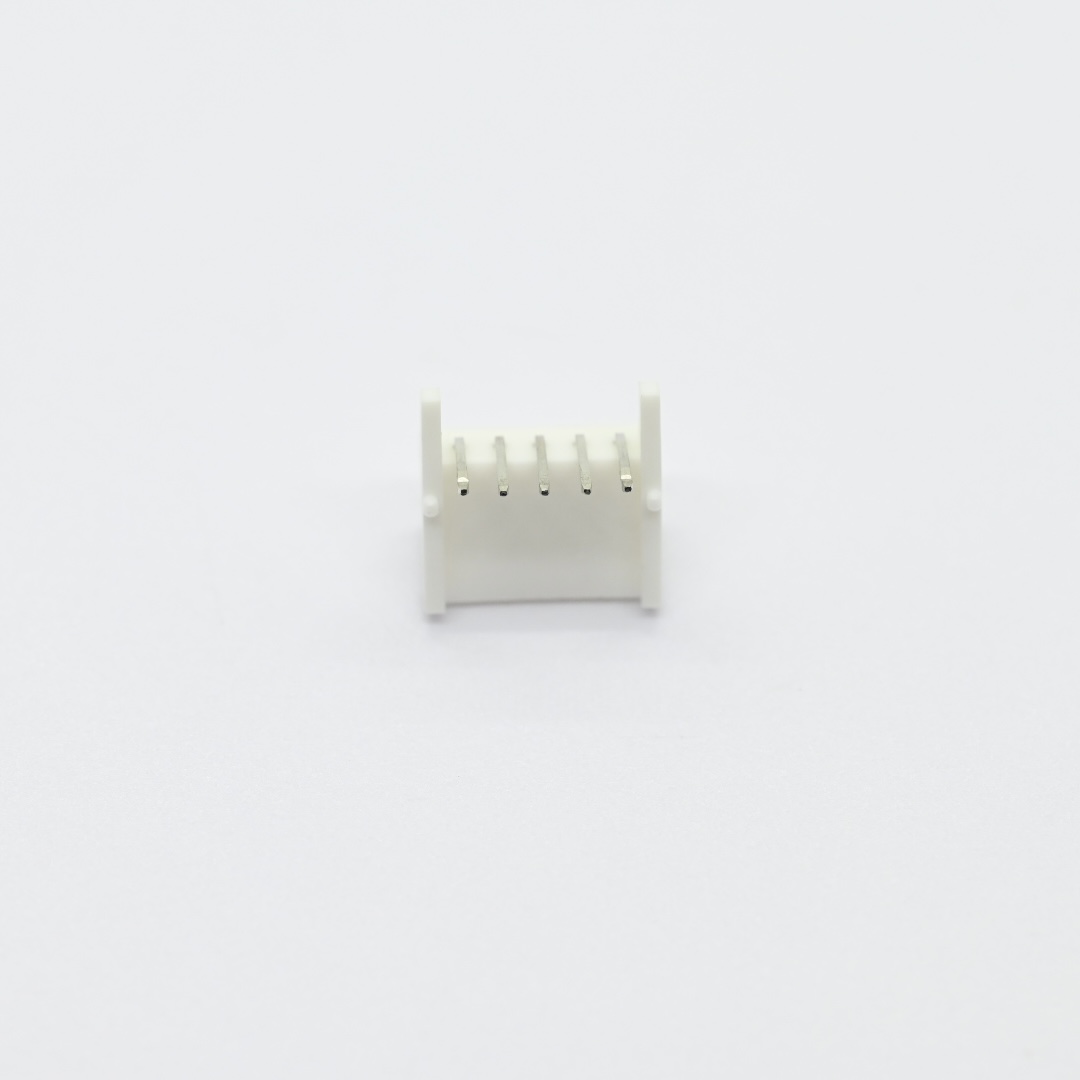

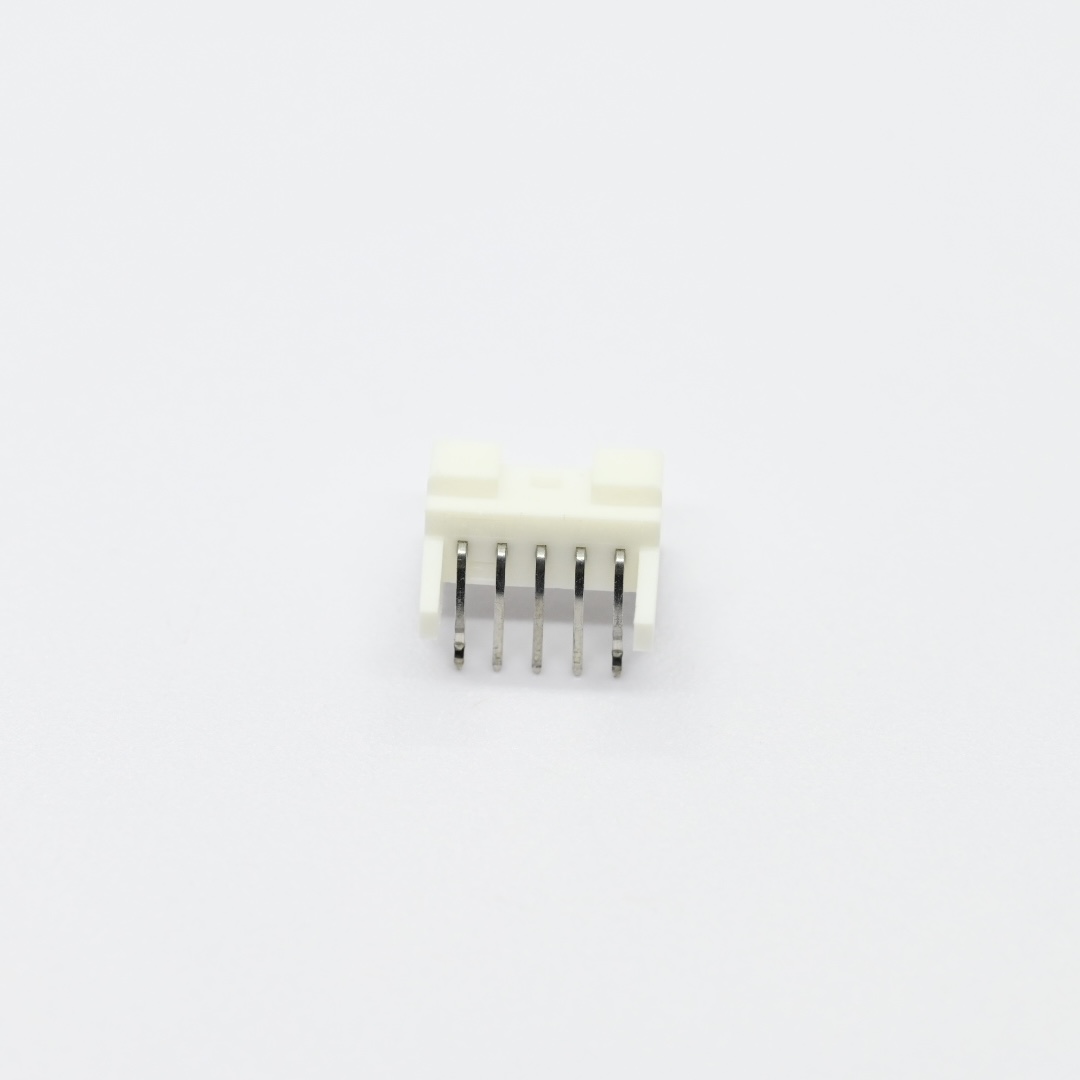

AW2012RA-F-05P+2.0mm Pitch 90°Wafer Connector Without Post（1）

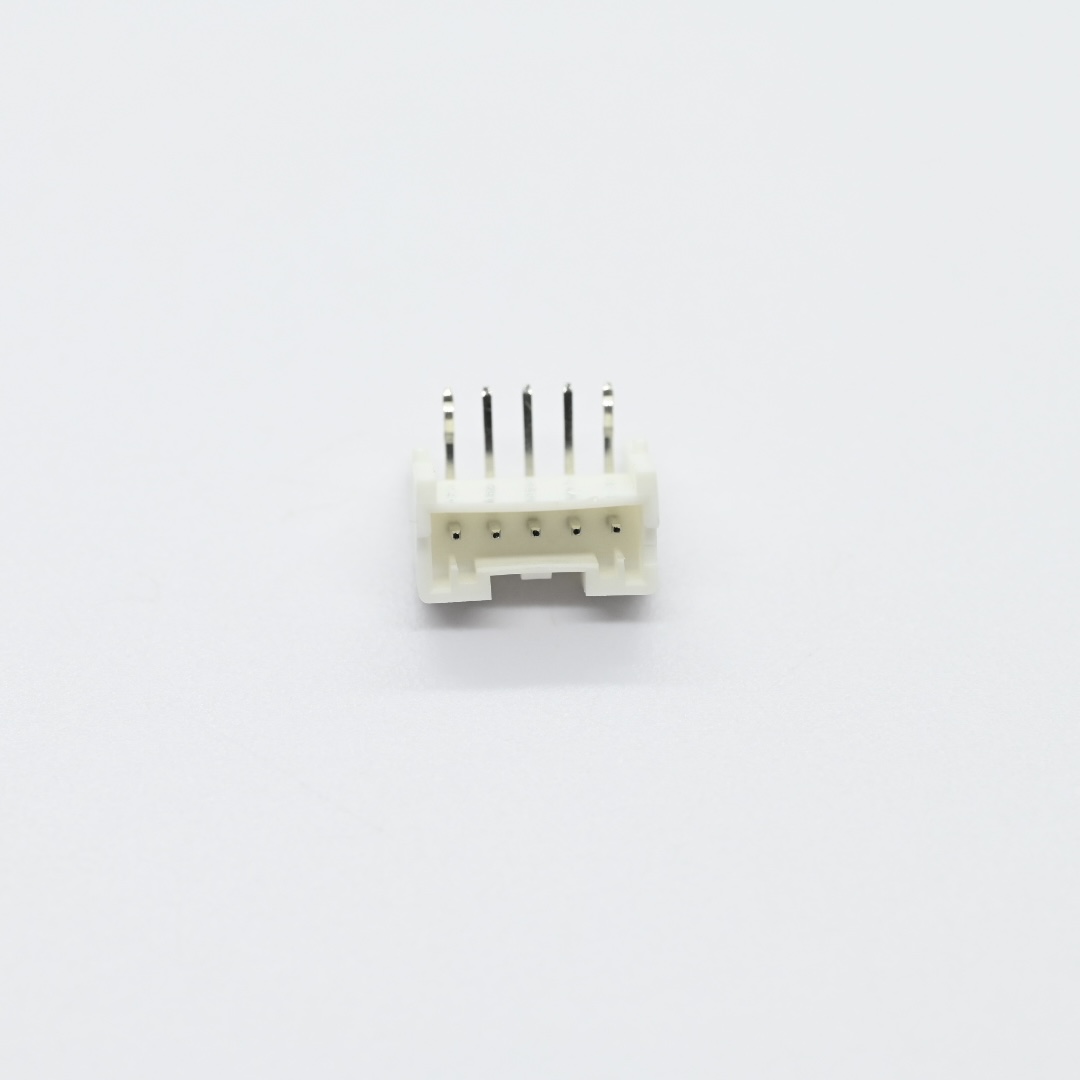

AW2012RA-F-05P+2.0mm Pitch 90°Wafer Connector Without Post（5）

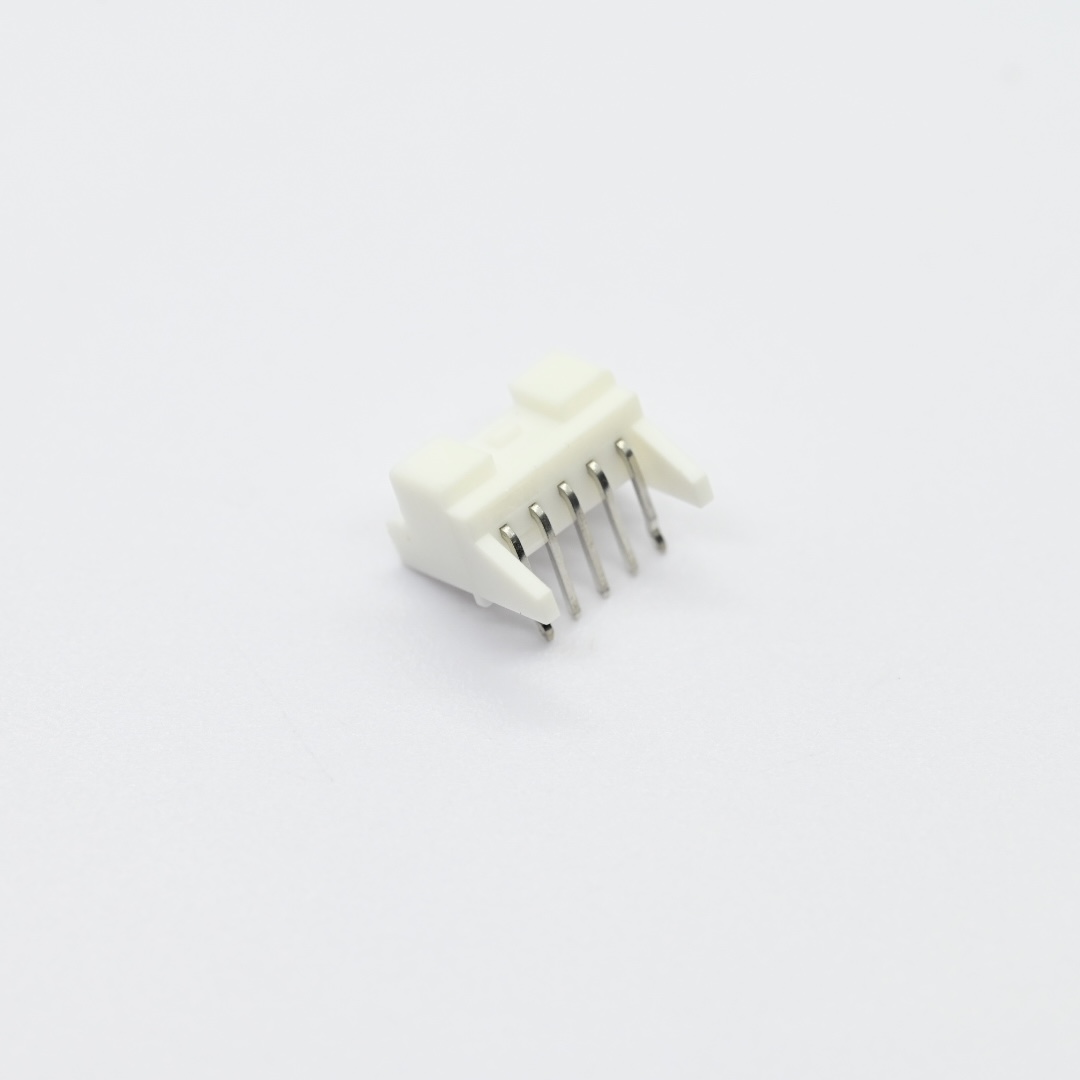

AW2012RA-F-05P+2.0mm Pitch 90°Wafer Connector Without Post（2）
