Product Description：

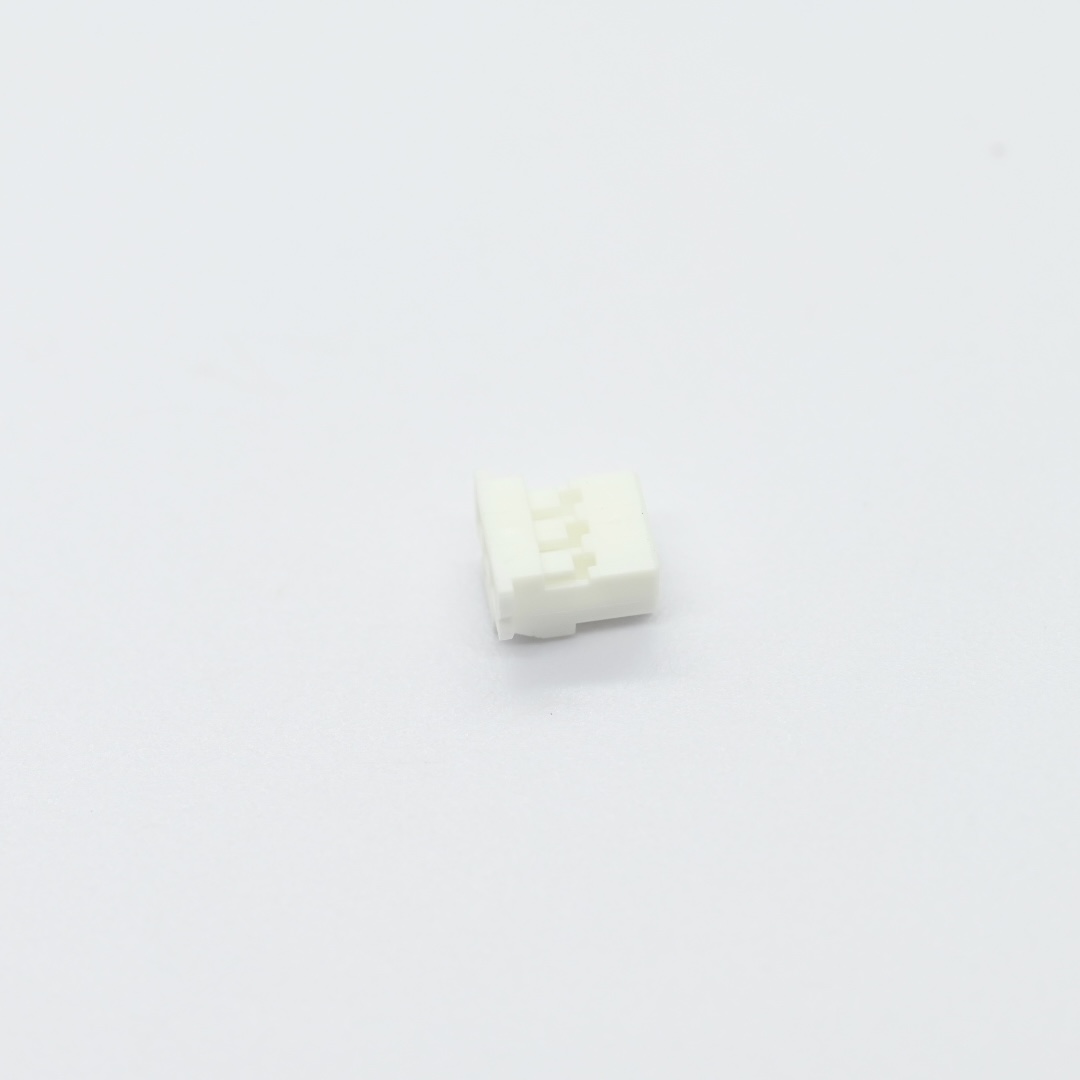

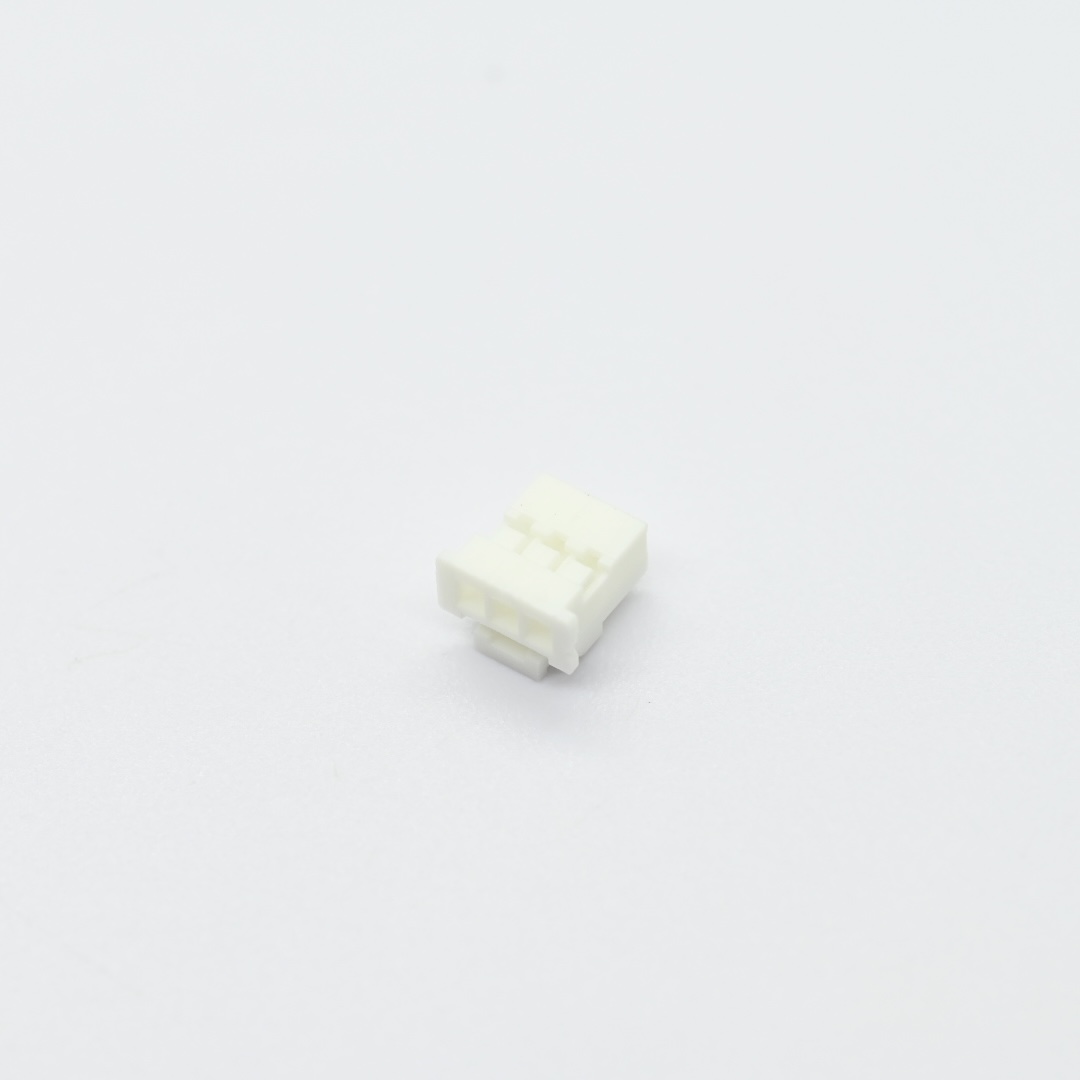

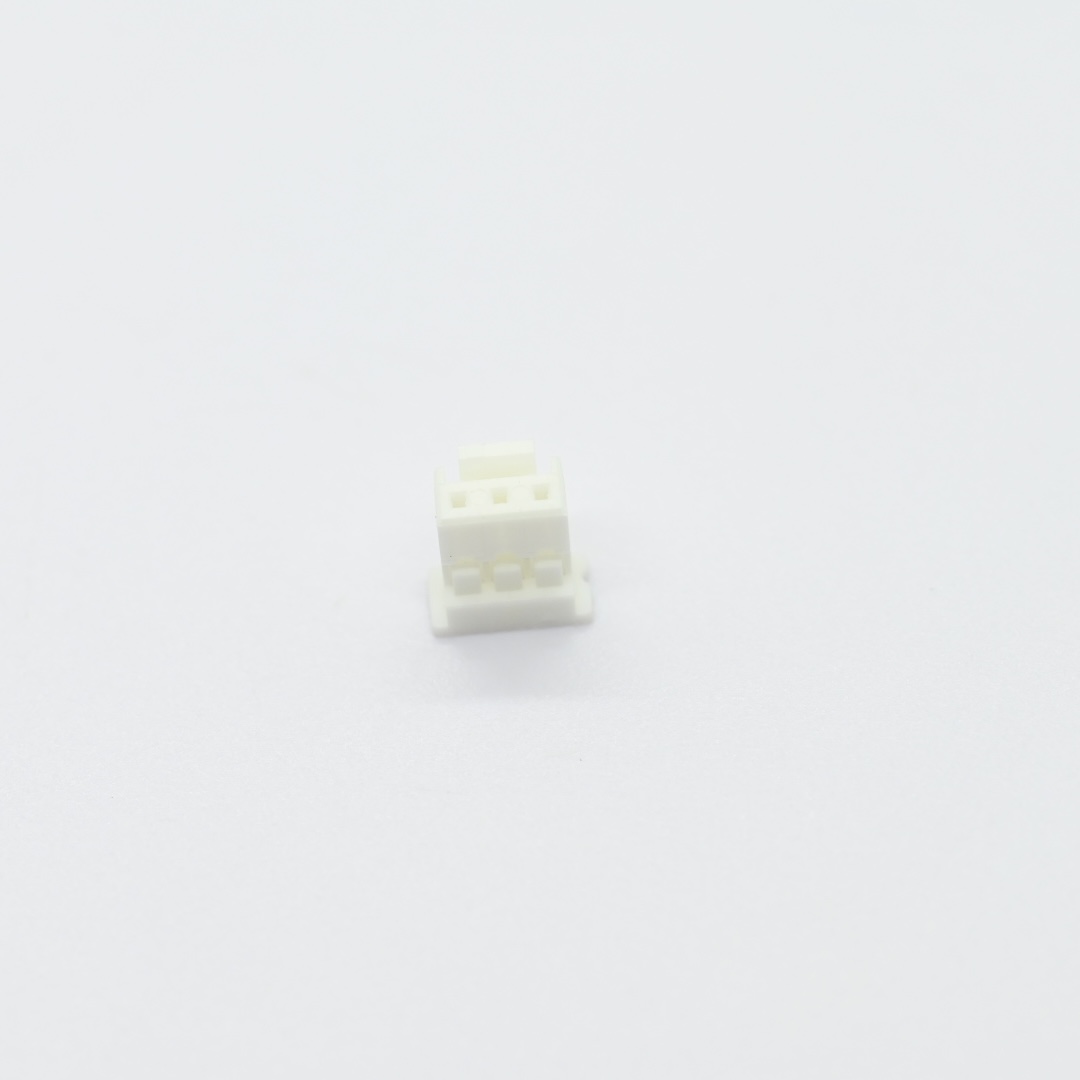

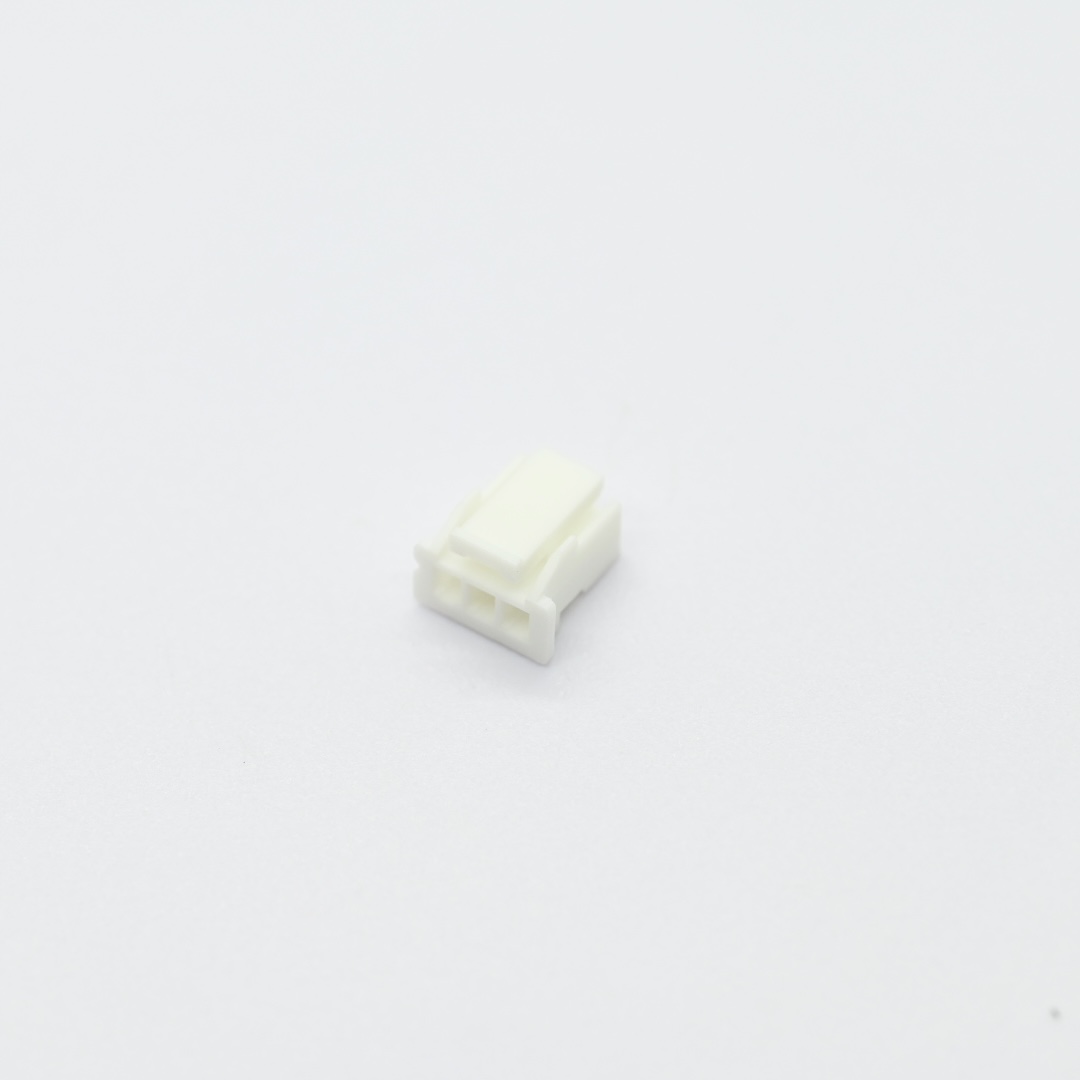

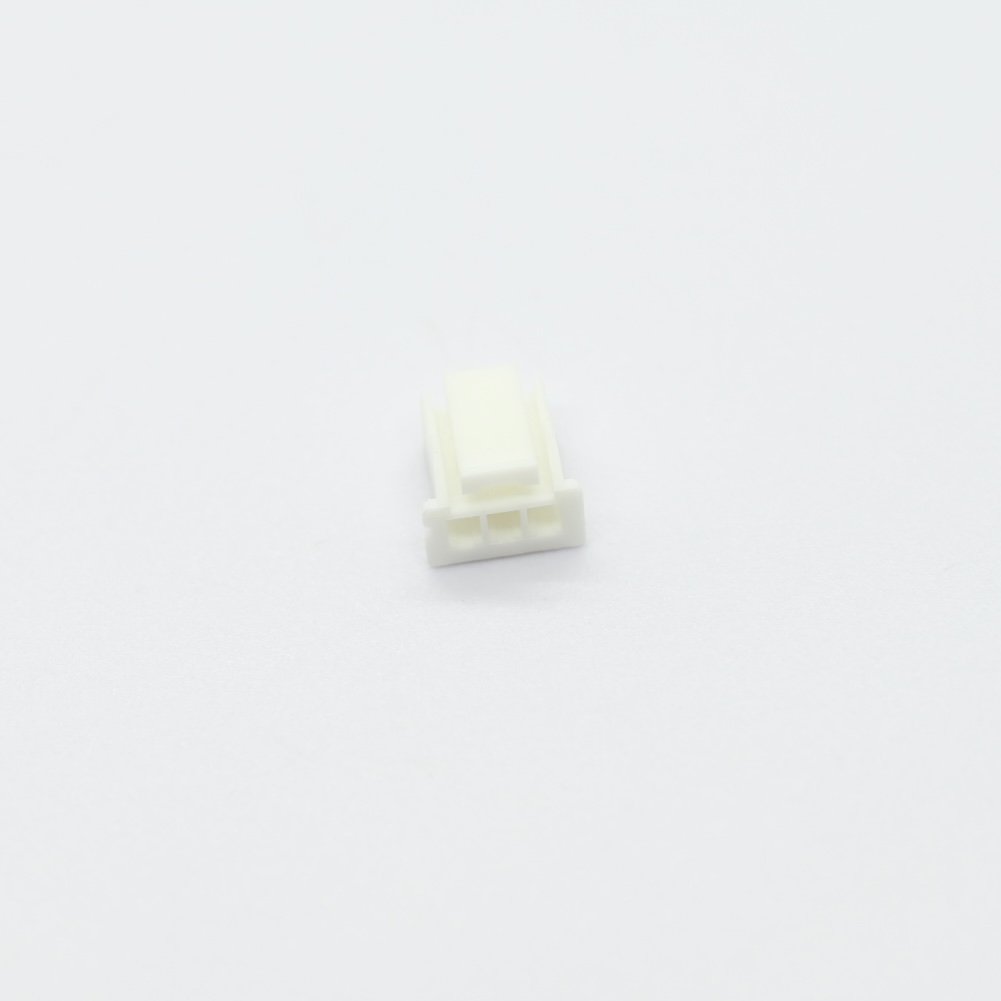

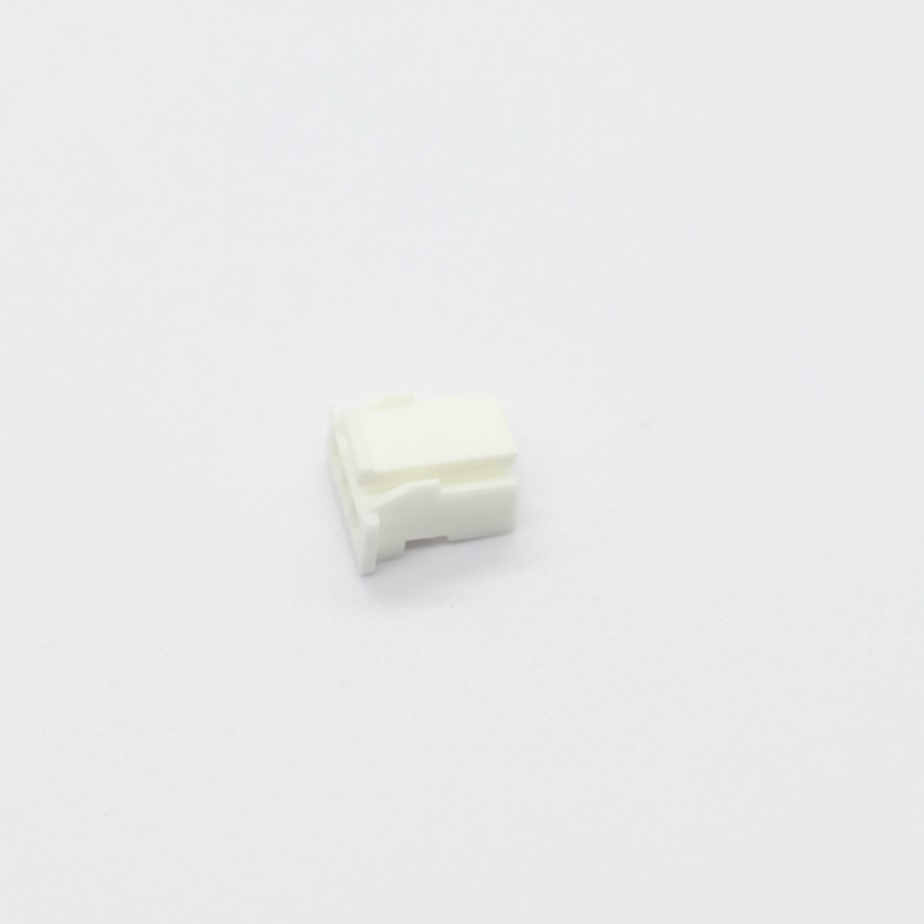

Huizhou Antenk Electronics Co., Ltd. manufactures AH2012 xP series 2.00 millimeter pitch wafer connector housing to offer reliable mechanical protection and positioning for crimp terminals to build stable wire to board interconnection, it fits AT2012T series crimp terminals and mates perfectly with AW2012 series wafer connectors. This connector housing adopts white Nylon 66 insulator with UL94V 0 flame retardant grade, rated for 3A AC DC current and 250V AC DC voltage, reaches 800V AC one minute dielectric strength and minimum 1000 megaohm insulation resistance, operating within minus 40 degree Celsius to plus 105 degree Celsius. It supplies 2 to 16 positions with varied dimension values corresponding to different pole counts to satisfy diverse wire harness assembly demands. This product complies with RoHS and REACH standards and fits consumer electronics household appliances and industrial control devices. Operators need to install matched crimp terminals correctly and store goods in dry environment to prevent plastic aging and metal part oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in house production covering independent mold development plastic injection molding and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, deliver custom configuration solutions and round the clock engineering support, over seventy percent of connector goods are exported globally. Feel free to submit your project specifications for sample quotation and full datasheet resources.

1. Mating Wafer Shell Housing provides precise alignment for seamless connection with corresponding wafer header components during wire harness assembly.

2. High Temperature Wire Housing maintains stable mechanical performance even under harsh working environments with wide temperature fluctuation.

3. Multi Position Crimp Housing accommodates different pole count crimp terminals to satisfy various wire harness layout requirements.

Detailed Specifications of AH2012‑xP 2.00mm Pitch Housing Connector Series

1. Mechanical Specifications

1.1 Product type: Wafer plastic housing for wire harness assembly

1.2 Measurement unit: millimeter

1.3 Key dimension: contact pitch 2.00 mm, available poles range from 2 poles to 16 poles. Dimension A and B change with different pole counts, refer to official drawing for full dimension data

1.4 Available option: multiple pole number selections from 2P to 16P

1.5 Mating information: fits AT2012T series terminals, mates with AW2012 series wafer connectors

1.6 CTA: Contact our engineering team to acquire complete dimension drawings and mating reference files for your wire harness design validation.

2. Material Construction

2.1 Housing material: White Nylon 66 with UL94V‑0 flame retardant rating

3. Electrical Parameters

3.1 Rated current: 3A AC DC

3.2 Rated voltage: 250V AC DC

3.3 Dielectric strength: 800V AC for one minute

3.4 Insulation resistance: minimum 1000 megaohm

4. Environmental Parameters

4.1 Operating temperature range: minus 40°C to plus 105°C

5. Compliance Standard

5.1 Environmental compliance: RoHS and REACH compliant

6. Usage Method

6.1 Assembly mode: Assemble with AT2012T series crimp terminals for wire harness production

6.2 Operation tip: Use matched terminals and mating wafer connectors for normal connection performance

7. Application Scenarios

7.1 Consumer electronic products

7.2 Household electrical appliances

7.3 Industrial control equipment

8. Operation & Storage Precautions

8.1 Only adopt matching AT2012T series terminals and AW2012 series wafer for assembly and mating

8.2 Avoid excessive force during terminal insertion to prevent plastic housing crack

8.3 Store products in dry environment to prevent nylon material aging and deformation

8.4 Select proper pole quantity according to actual project requirements

8.5 CTA: Submit your pole number requirements, we can provide free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

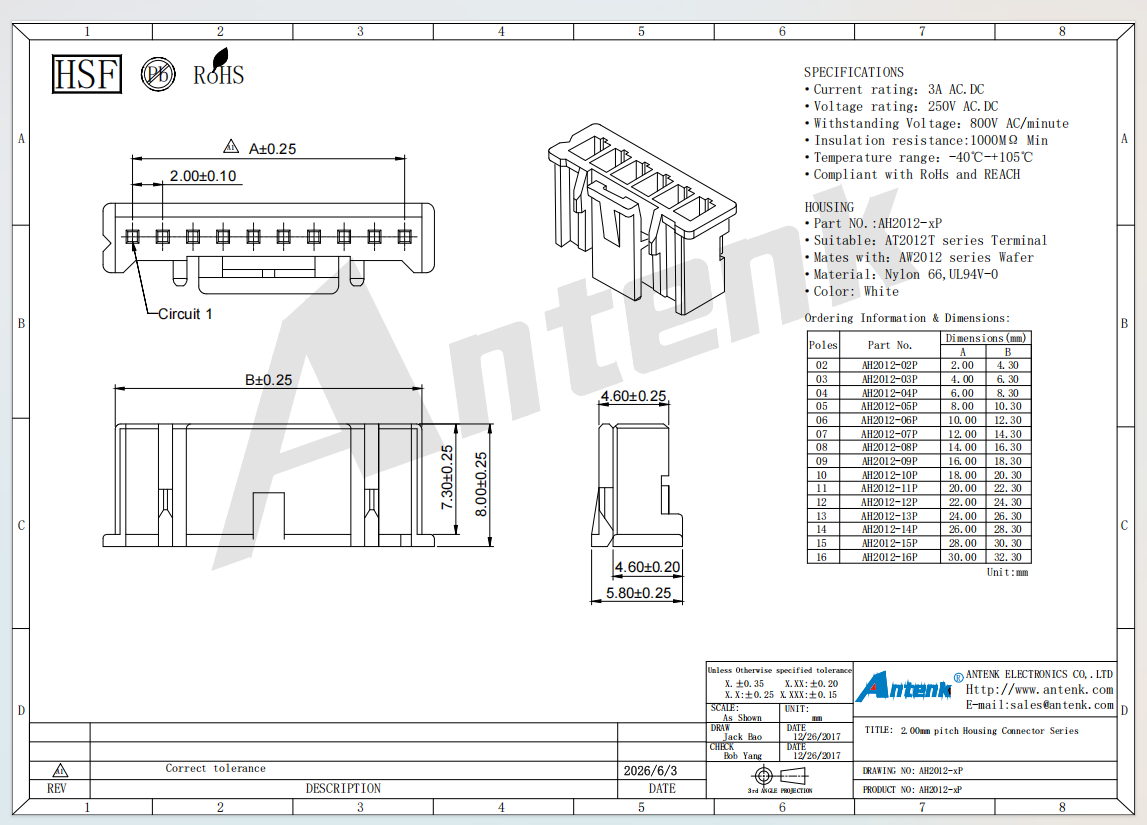

Product Drawing;
