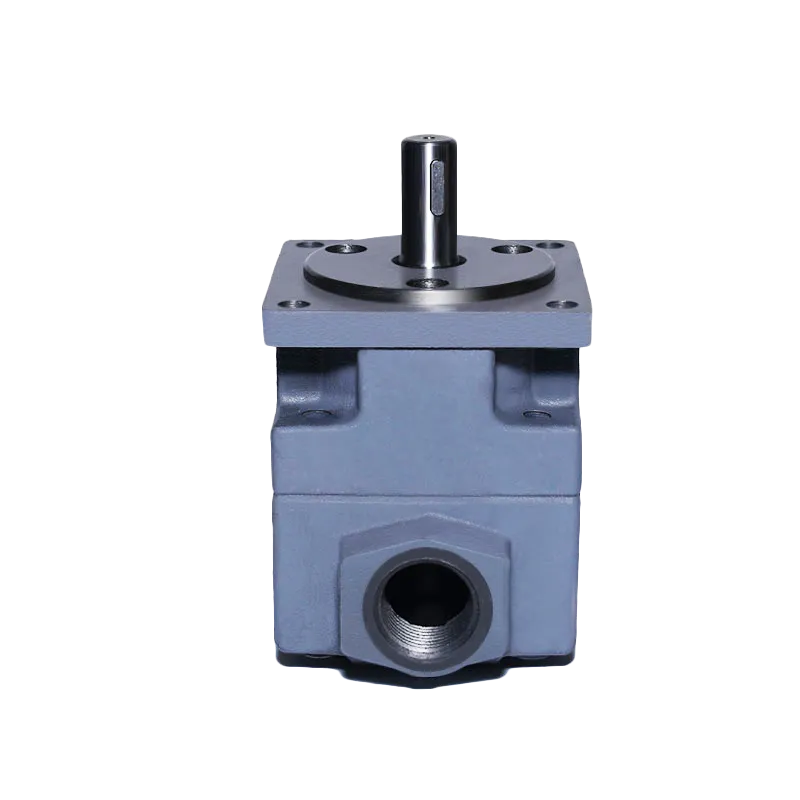

CP1 Medium‑Pressure Vane Pump

Product Overview

CP1 Medium‑Pressure Vane Pump is a compact fixed‑displacement single Hydraulic Vane pump. This cost‑effective hydraulic pump delivers stable flow and pressure output for medium‑pressure industrial hydraulic system and light‑to‑medium‑duty hydraulic‑driven Machine.

This Hydraulic Vane pump adopts classic balanced vane structure, featuring low pressure pulsation and smooth running performance. It is designed with replaceable CP1 cartridge kit for convenient on‑site maintenance without full pump disassembly. Its compact size fits equipment with limited installation space. It is widely applied to small‑size machine tools, packaging machinery and light‑duty hydraulic equipment, acting as reliable power source for the whole hydraulic system.

Technical Specifications

‑ Model: CP1 Medium‑Pressure Vane Pump

‑ Product Type: Fixed‑displacement single Hydraulic Vane pump, medium‑pressure hydraulic pump

‑ Displacement: Multiple displacement options available

‑ Continuous rated pressure: Up to 14 MPa

‑ Maximum rotating speed: 1800 rpm

‑ Mounting: Standard flange mounting

‑ Shaft: Standard keyed drive shaft

‑ Rotation direction: Clockwise as standard, counter‑clockwise optional

‑ Maintainable part: Interchangeable CP1 cartridge kit

‑ Working medium: Anti‑wear hydraulic mineral oil for industrial hydraulic system, ISO‑VG32 / VG46 recommended

‑ Operating oil temperature: ‑20℃ ~ +80℃

‑ Key Features: Balanced vane design, compact structure, high volumetric efficiency, low pressure ripple, modular cartridge maintenance, stable continuous performance for light‑to‑medium‑load industrial Machine

Working Principle

As a single‑unit Hydraulic Vane pump, this hydraulic pump operates based on periodic volume variation. Driven by input shaft, rotor and vanes rotate inside the cam ring. Centrifugal force pushes vanes tightly against inner surface of cam ring. Volume expansion draws in hydraulic oil, while volume compression outputs pressure oil to supply power for the complete hydraulic system. The balanced‑vane structure offsets radial hydraulic force, reducing vibration and wear during long‑time running of the Machine.

When vanes, cam ring or side plates suffer wear, the hydraulic pump will produce internal leakage, pressure drop, insufficient flow and abnormal noise. Installing matched CP1 cartridge kit can rapidly restore full working performance of your hydraulic system.

Core Advantages

1. Mature balanced vane construction, reduces pressure pulsation and vibration, provides steady output for light‑medium‑load industrial Machine.

2. Modular cartridge‑in‑housing design, supports quick field overhaul without removing the whole hydraulic pump from the Machine, greatly shortens downtime of hydraulic system.

3. Standard mounting and port dimensions, good interchangeability for original replacement and existing hydraulic system retrofitting.

4. Compact single‑pump layout, saves installation space, ideal for space‑constrained industrial Machine.

5. High volumetric efficiency under continuous medium‑pressure operation, cost‑effective power solution for light‑to‑medium‑duty equipment.

Application Range

CP1 Hydraulic Vane pump is a practical power‑supply hydraulic pump for industrial hydraulic system. Widely used in small‑size machine tools, packaging machinery, light‑duty hydraulic presses, auxiliary hydraulic devices and other hydraulic‑driven industrial Machine. Popular among hydraulic repair workshops, equipment integrators and global spare‑parts distributors.
