2.5mm Pitch Straight Wafer Header With Boss

2.5mm Pitch Straight Wafer Header With Boss

2 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures AW2502V xP x series 2.5 millimeter pitch 180 degree wafer connector with boss to deliver stable wire to board signal and power interconnection after through hole soldering on printed circuit boards. This straight wafer header supports 2 to 15 positions and provides two pin types for selection, insulator housing adopts PA66 material with UL94V 0 flame retardant grade, brass pins feature tin over nickel plating. It is rated for 3A AC DC current and 250V AC DC voltage, supports wire gauge from AWG30 to AWG22, reaches 800V AC one minute dielectric strength and minimum 1000 megaohm insulation resistance, contact resistance keeps low value for reliable signal transmission and operating temperature ranges from minus 25 degree Celsius to plus 85 degree Celsius. Different pole counts correspond to unique dimension values to satisfy diverse PCB layout requirements. This product complies with RoHS and REACH standards and fits consumer electronics smart home appliances and industrial control modules. Operators must follow official PCB layout for soldering assembly and store goods in dry environment to prevent brass pin oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in house production covering independent mold development brass terminal stamping plastic injection molding multi grade electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, deliver custom configuration solutions and round the clock engineering support, over seventy percent of connector goods are exported globally. Feel free to submit your project specifications for sample quotation and full datasheet resources.

1. Boss Reinforced Wafer Header enhances positioning stability and avoids offset during PCB soldering operations.

2. Straight Through Hole Wafer achieves firm mechanical fixation for reliable wire to board connection on circuit boards.

3. Tin Nickel Plated Wafer Pin resists surface oxidation and maintains stable electrical performance in long term service.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: 180 degree straight wafer header with boss, wire to board through hole soldering type

1.2 Measurement unit: millimeter

1.3 Key dimension: contact pitch 2.50 mm, available poles from 2 poles to 15 poles. Dimension A and B vary for different pole counts, refer to official drawing for full PCB layout and dimensional data

1.4 Available option: two pin types including TYPE1 and TYPE2 for selection

1.6 CTA: Contact our engineering team to obtain complete dimension drawings and PCB layout reference files for your wire‑to‑board hardware design validation.

2. Material Construction

2.1 Insulator housing: PA66 with UL94V‑0 flame retardant grade

2.2 Contact pin: Brass material with tin over nickel plating

3. Electrical Parameters

3.1 Rated current: 3A AC DC

3.2 Rated voltage: 250V AC DC

3.3 Applicable wire: AWG 30 to AWG 22

3.4 Contact resistance: maximum 0.02 ohm

3.5 Insulation resistance: minimum 1000 megaohm

3.6 Dielectric strength: 800V AC for one minute

4. Environmental Parameters

4.1 Operating temperature range: minus 25°C to plus 85°C

5. Compliance Standard

5.1 Environmental compliance: RoHS compliant

6. Usage Method

6.1 Assembly mode: Through hole soldering onto printed circuit board

6.2 Operation tip: Select suitable pin type and pole quantity according to practical PCB design

7. Application Scenarios

7.1 Consumer electronic devices

7.2 Smart home appliances

7.3 Industrial control modules

8. Operation & Storage Precautions

8.1 Follow official PCB layout drawing to complete through hole soldering assembly

8.2 Apply wire within AWG30‑AWG22 wire gauge range

8.3 Store products in dry storage environment to prevent brass pin oxidation

8.4 Choose proper pin type and pole count to match project requirements

8.5 CTA: Submit your pole count and pin type requirements, we can offer free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

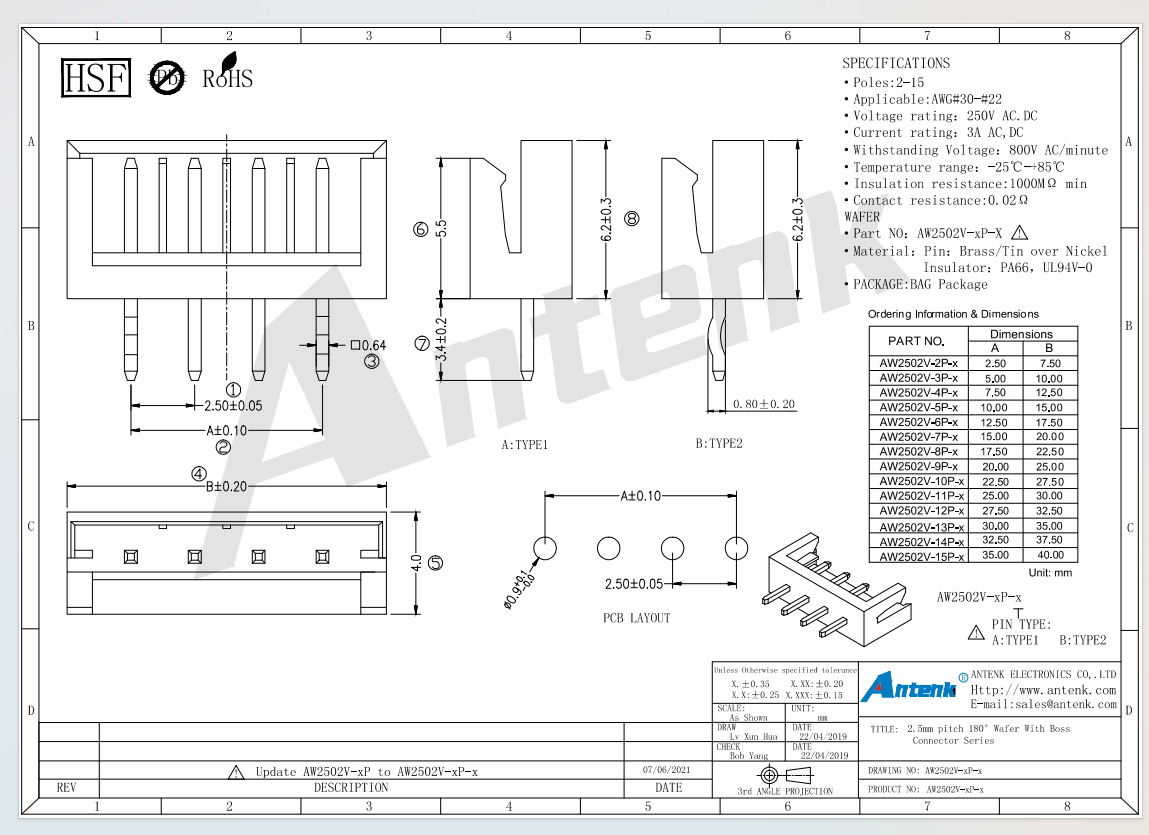

Product Drawing：

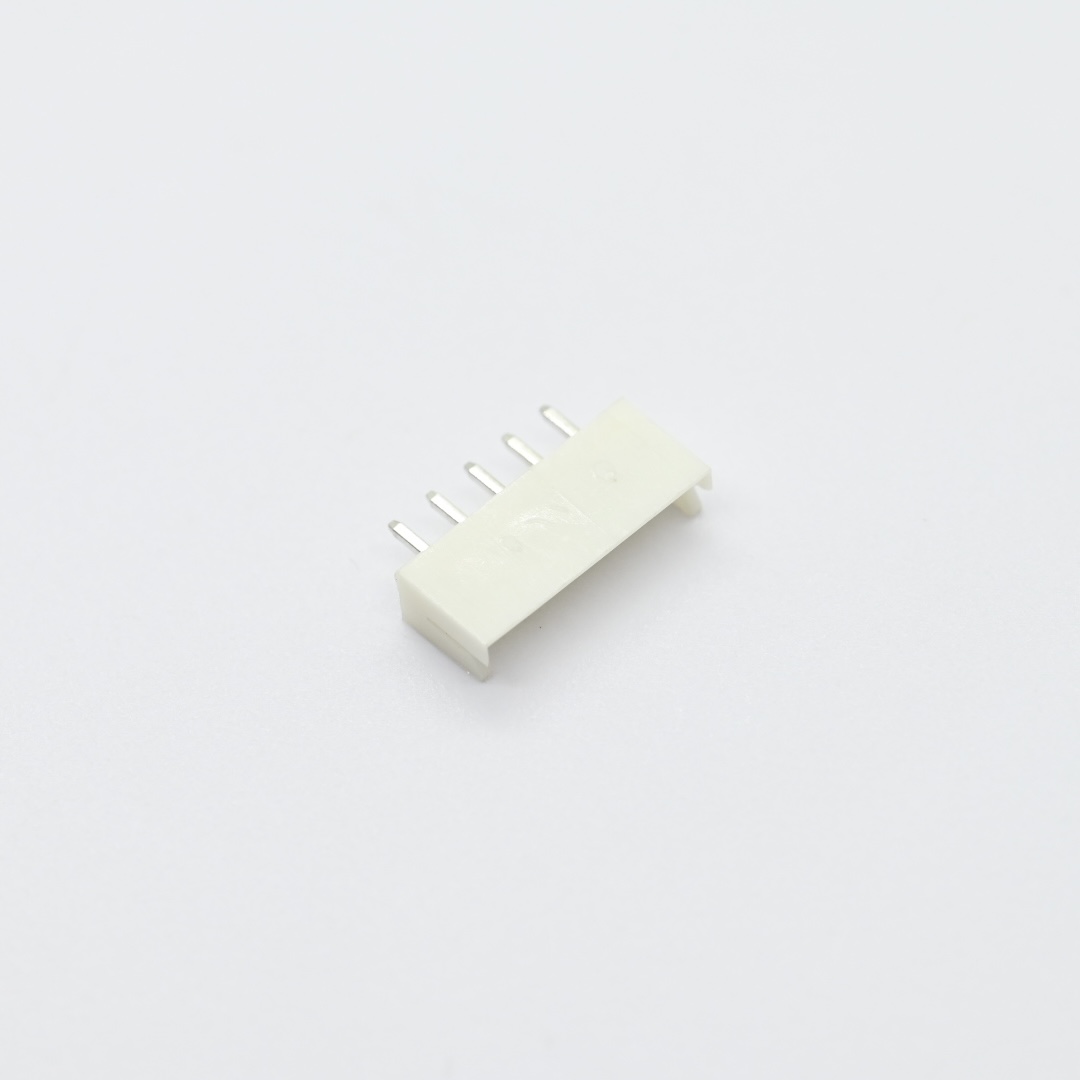

AW2502V-5P-A+2.5mm pitch 180° Wafer With Boss Connector Series（6）

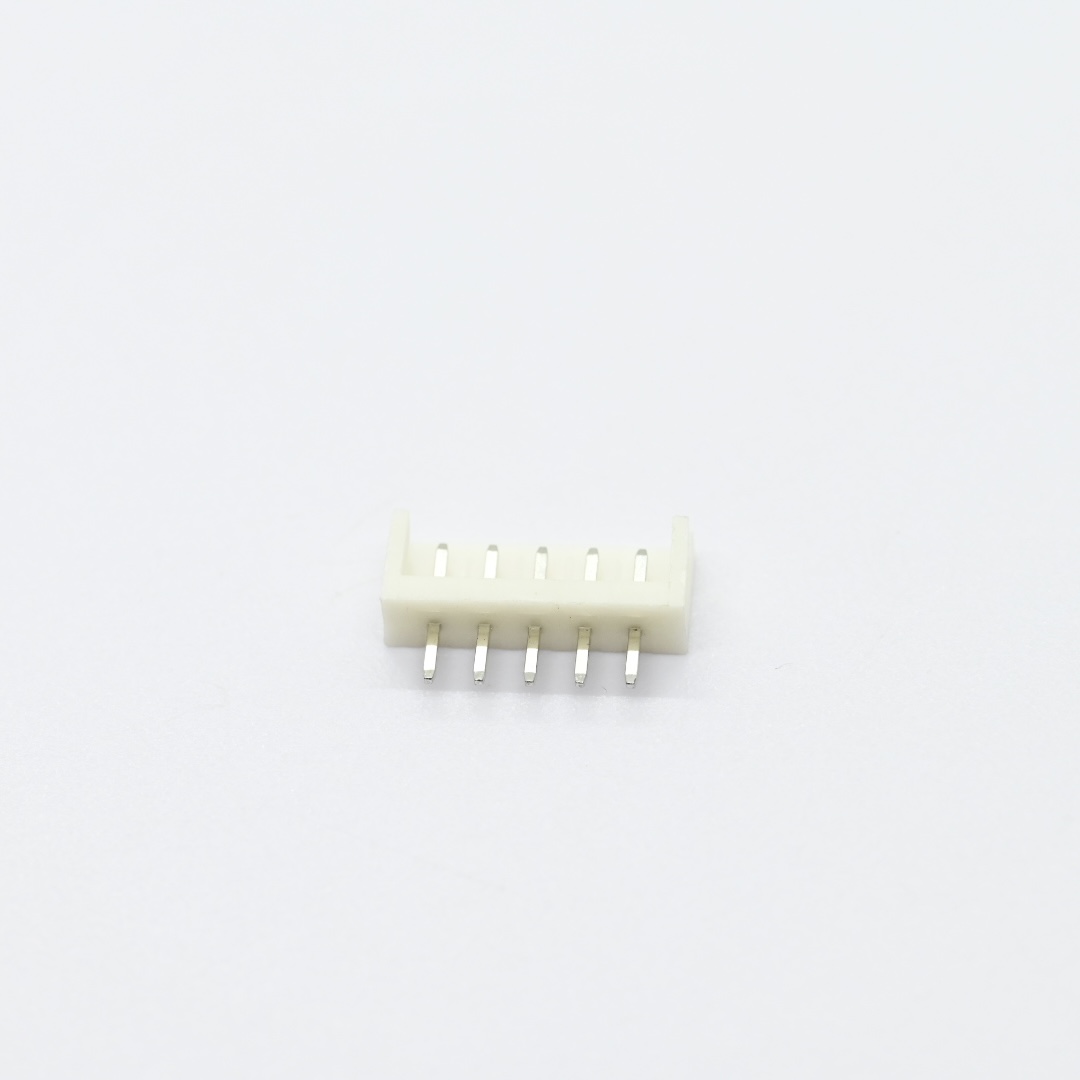

AW2502V-5P-A+2.5mm pitch 180° Wafer With Boss Connector Series（1）

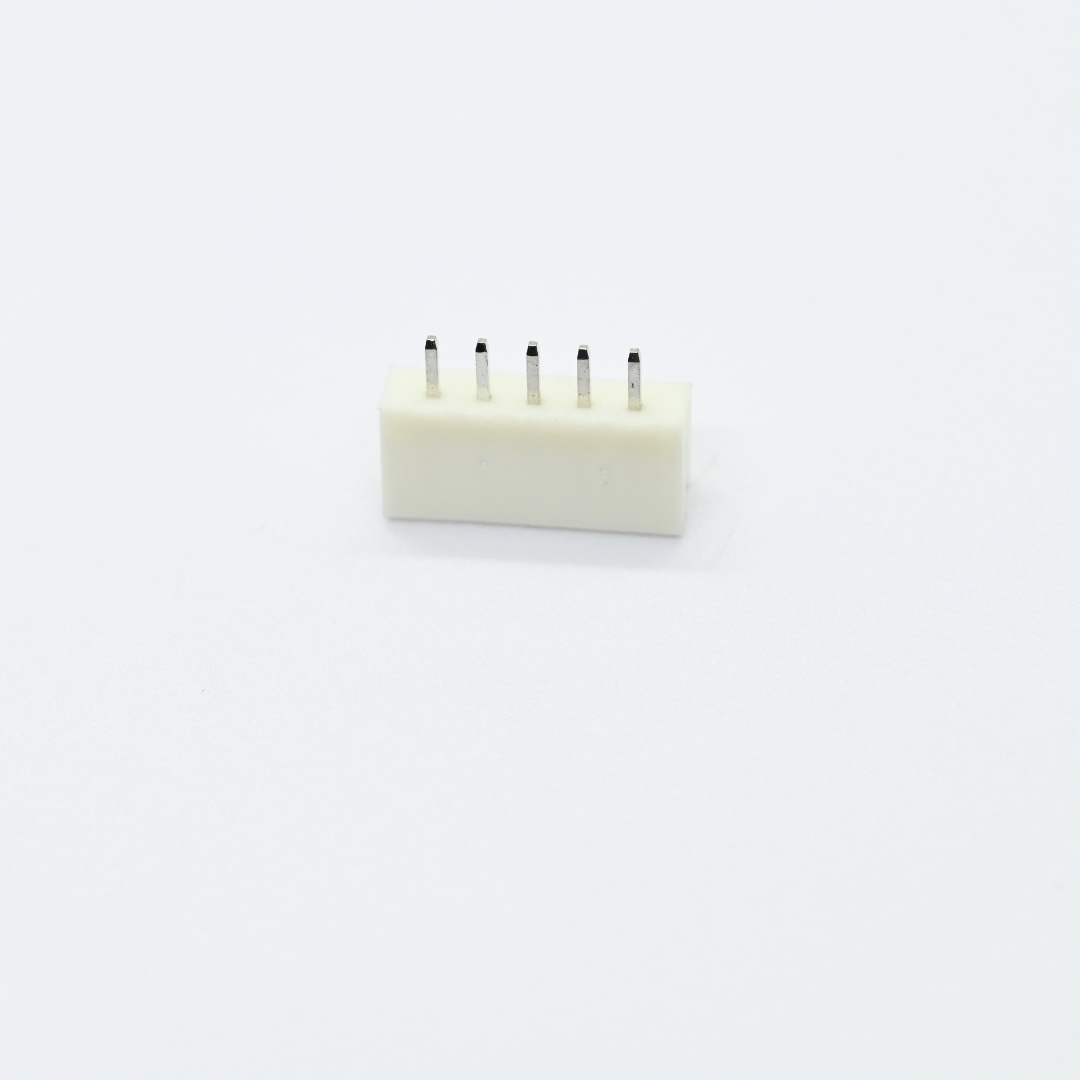

AW2502V-5P-A+2.5mm pitch 180° Wafer With Boss Connector Series（3）

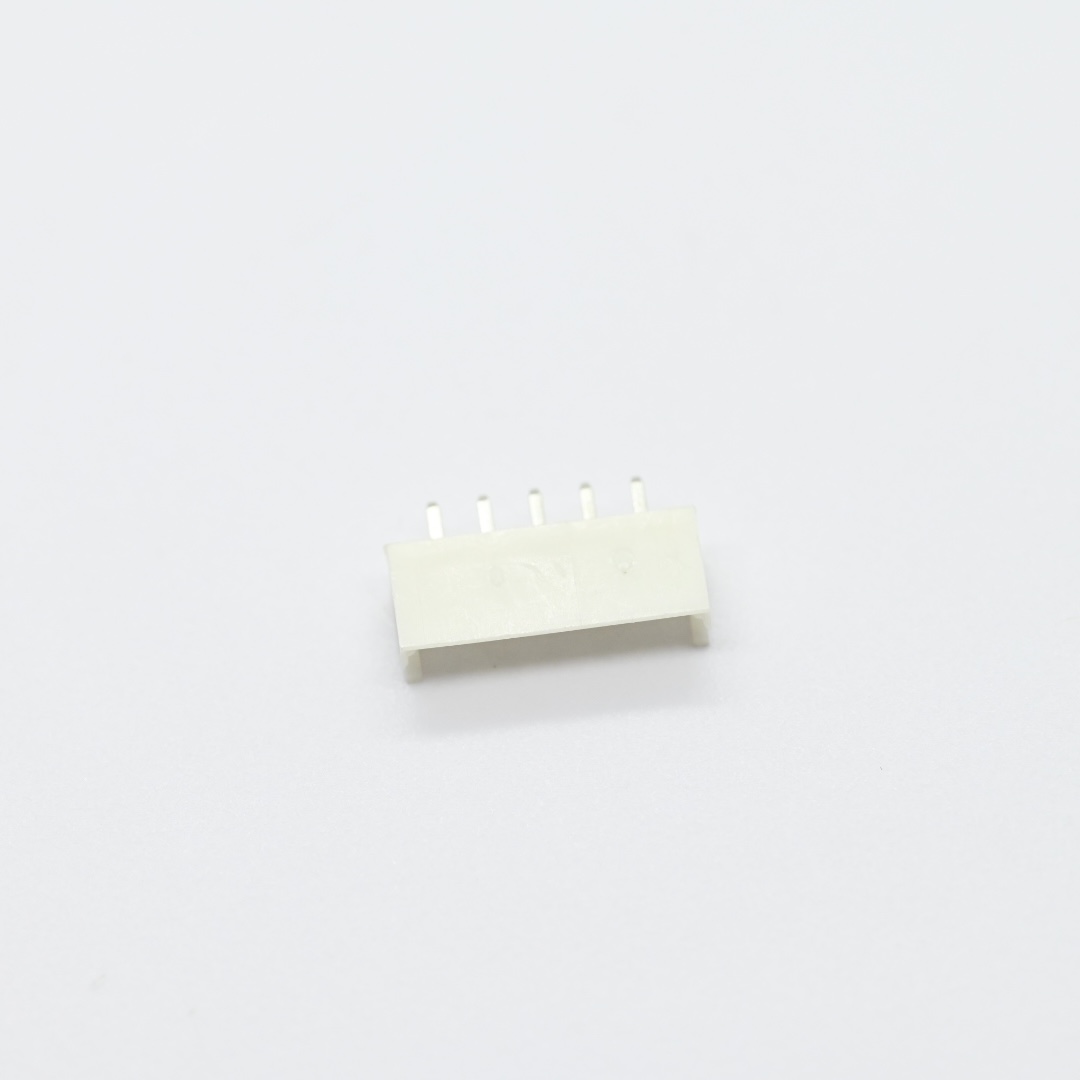

AW2502V-5P-A+2.5mm pitch 180° Wafer With Boss Connector Series（5）

AW2502V-5P-A+2.5mm pitch 180° Wafer With Boss Connector Series（2）

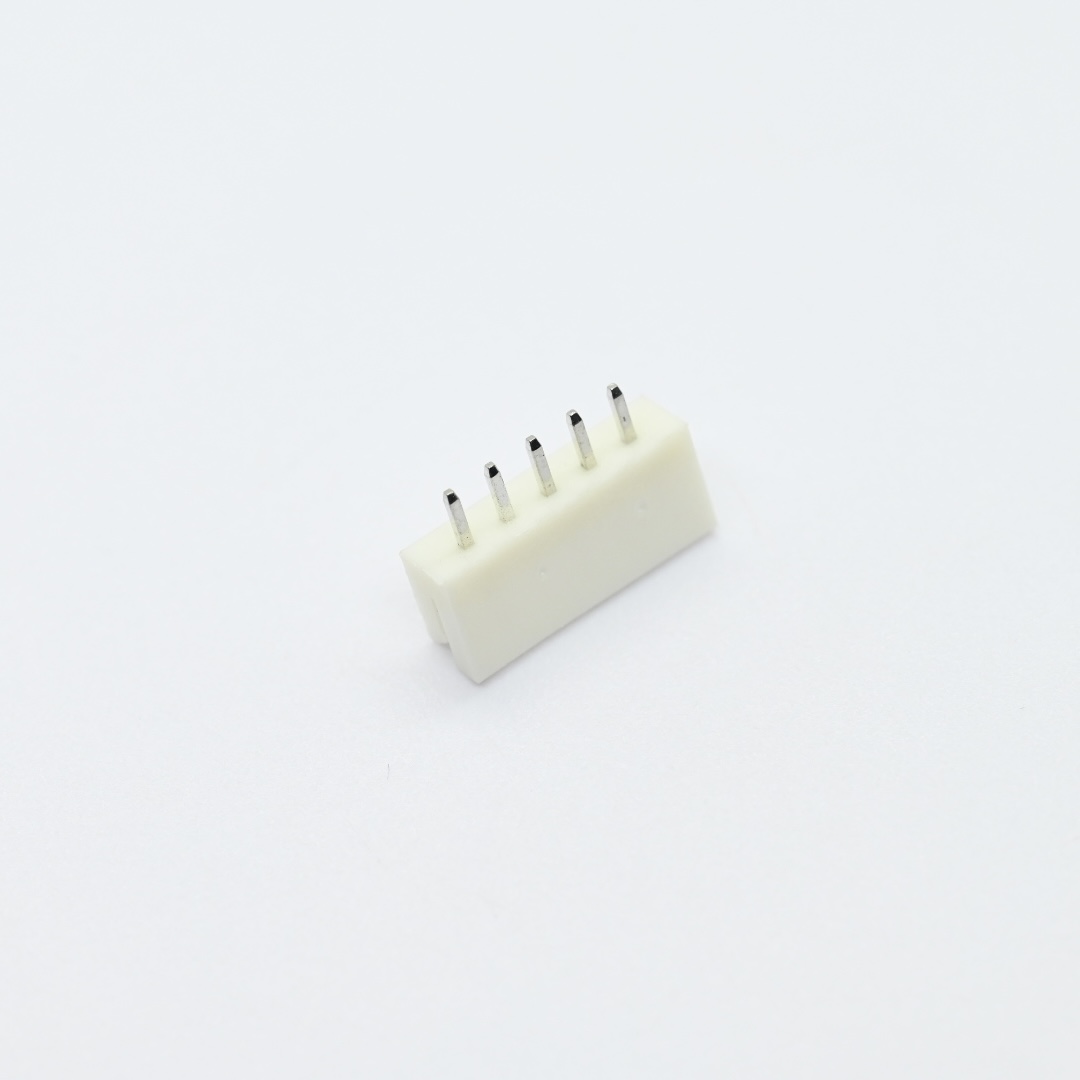

AW2502V-5P-A+2.5mm pitch 180° Wafer With Boss Connector Series（4）
