1.50mm Pitch SMT Straight Wafer Connector

1.50mm Pitch SMT Straight Wafer Connector

3 week ago

3 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures AW1502V S xP series 1.50 millimeter pitch 180 degree SMT wafer connector to realize stable wire to board signal and power interconnection through surface mount soldering on printed circuit boards. This SMT wafer header mates with AH1502 series housing and supports multiple pole options, insulator housing adopts ivory Nylon 6T material with UL94V 0 flame retardant grade, brass pins are finished with tin over nickel plating. It is rated for 3A AC DC current and 350V AC DC voltage, reaches 500V AC one minute dielectric strength and minimum 1000 megaohm insulation resistance and operating temperature ranges from minus 40 degree Celsius to plus 105 degree Celsius. Different pole numbers bring varied outline dimensions to satisfy compact PCB layout requirements. This product complies with RoHS and REACH standards and fits consumer electronics smart home appliances and industrial control devices. Operators must follow official PCB layout for SMT soldering assembly and store goods in dry environment to prevent brass pin oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in house production covering independent mold development brass terminal stamping plastic injection molding multi grade electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, deliver custom configuration solutions and round the clock engineering support, over seventy percent of connector goods are exported globally. Feel free to submit your project specifications for sample quotation and full datasheet resources.

1. Ivory Nylon 6T Wafer delivers excellent heat resistance and flame retardant performance for compact electronic assemblies.

2. SMT Mount Wafer Header enables efficient surface mount soldering to save valuable PCB board space.

3. High Temperature SMT Wafer maintains stable electrical performance during reflow soldering and long‑term operation.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: 180 degree SMT surface mount wafer header, wire to board type

1.2 Measurement unit: millimeter

1.3 Key dimension: contact pitch 1.50 mm, multiple pole selections available. Overall dimension changes with different pole numbers, refer to official drawing for full dimension and PCB layout data

1.4 Available option: two color choices including ivory and black

1.5 Mating information: mates with AH1502 series housing

1.6 CTA: Contact our engineering team to acquire complete dimension drawings and PCB layout reference files for your wire‑to‑board hardware design validation.

2. Material Construction

2.1 Insulator housing: Nylon 6T with UL94V‑0 flame retardant grade

2.2 Contact pin: Brass material with tin over nickel plating

3. Electrical Parameters

3.1 Rated current: 3A AC DC

3.2 Rated voltage: 350V AC DC

3.3 Dielectric strength: 500V AC for one minute

3.4 Insulation resistance: minimum 1000 megaohm

4. Environmental Parameters

4.1 Operating temperature range: minus 40°C to plus 105°C

5. Compliance Standard

5.1 Environmental compliance: RoHS compliant

6. Usage Method

6.1 Assembly mode: SMT surface mount soldering onto printed circuit board

6.2 Operation tip: Use matched AH1502 series housing to achieve reliable connection performance

7. Application Scenarios

7.1 Consumer electronic devices

7.2 Smart home appliances

7.3 Industrial control modules

8. Operation & Storage Precautions

8.1 Follow official PCB layout drawing for SMT soldering assembly

8.2 Select proper pole quantity and housing color according to actual project requirements

8.3 Store products in dry storage environment to prevent brass pin oxidation

8.4 Only pair with AH1502 series housing for normal mating function

8.5 CTA: Submit your pole count and color requirements, we can offer free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

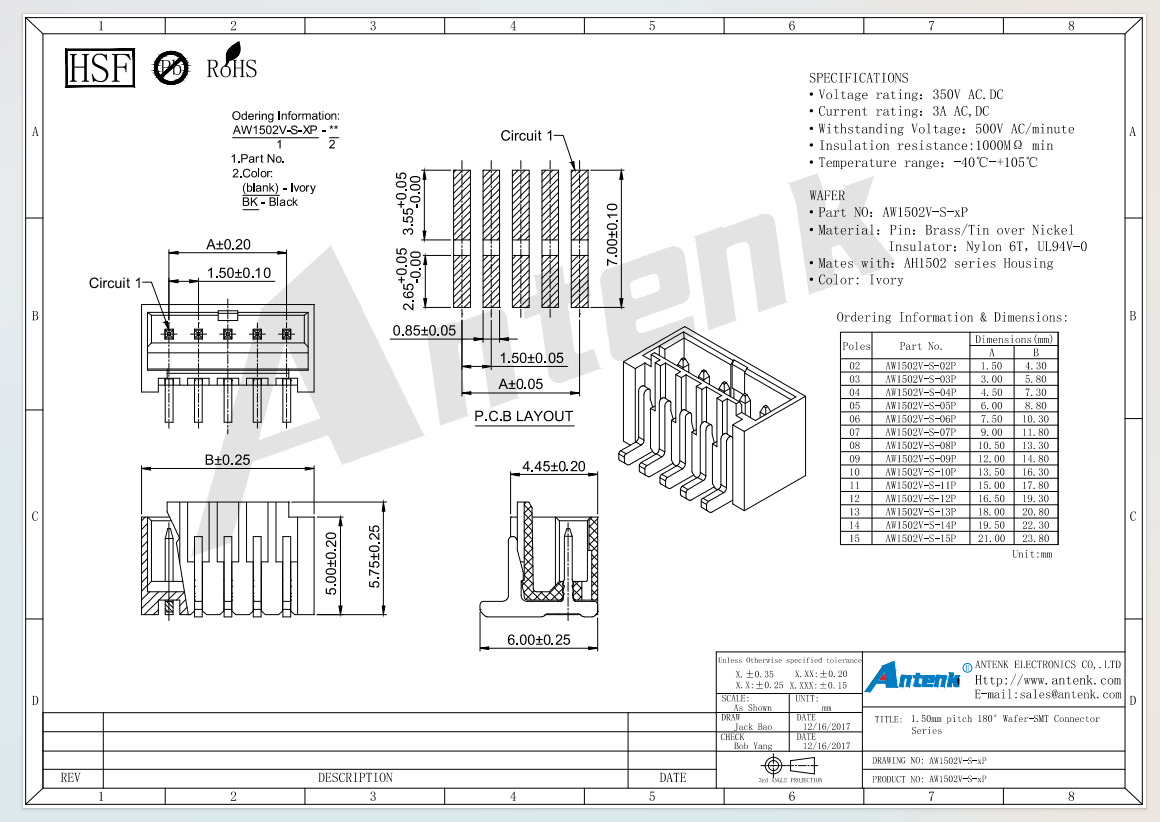

Product Drawing：

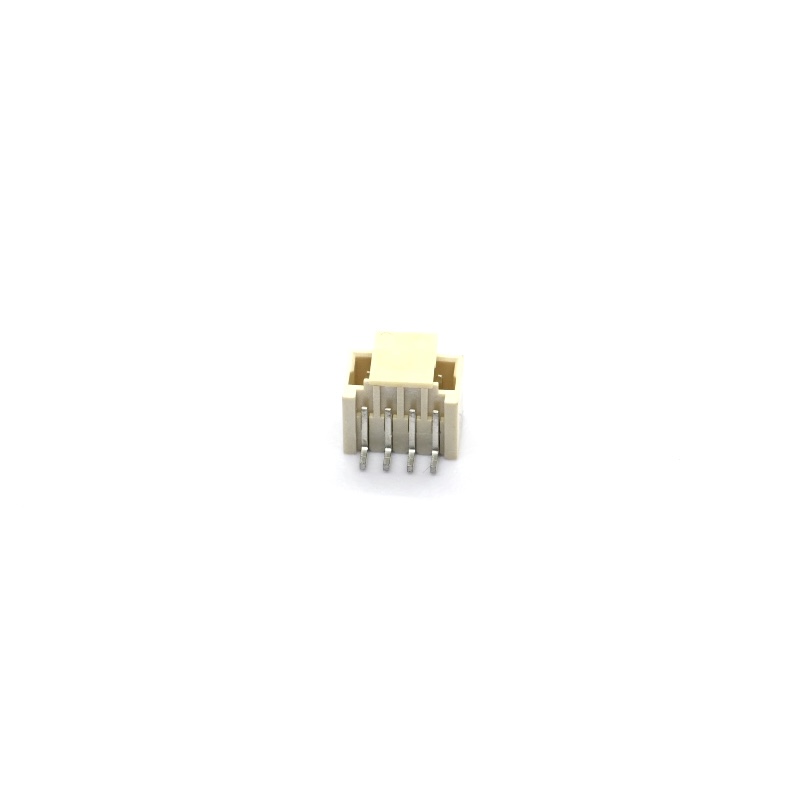

AW1502V-S-04P+1.50mm pitch 180° Wafer-SMT Connector Series（1）

AW1502V-S-04P+1.50mm pitch 180° Wafer-SMT Connector Series（2）

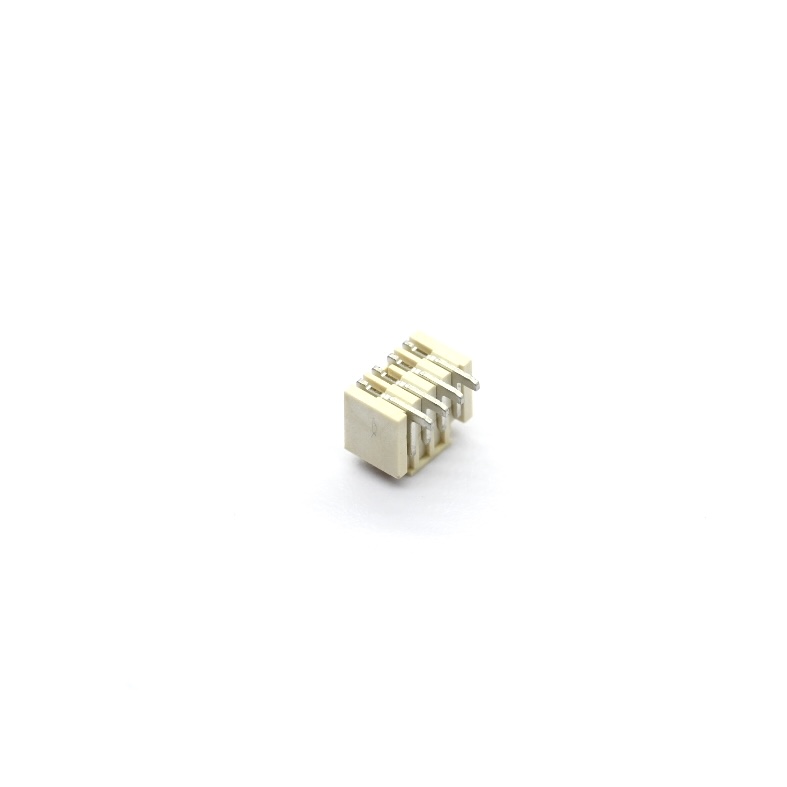

AW1502V-S-04P+1.50mm pitch 180° Wafer-SMT Connector Series（6）

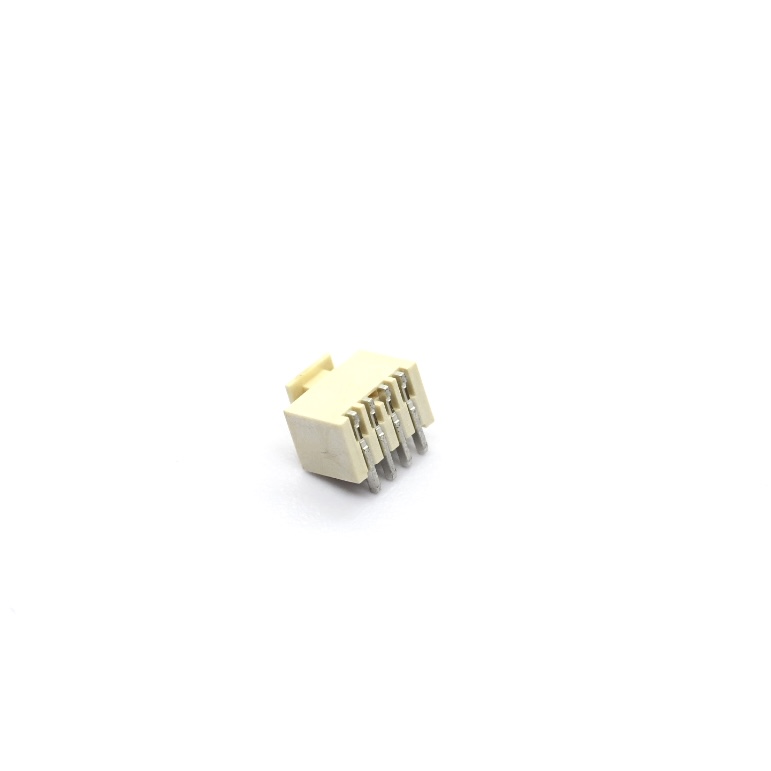

AW1502V-S-04P+1.50mm pitch 180° Wafer-SMT Connector Series（5）

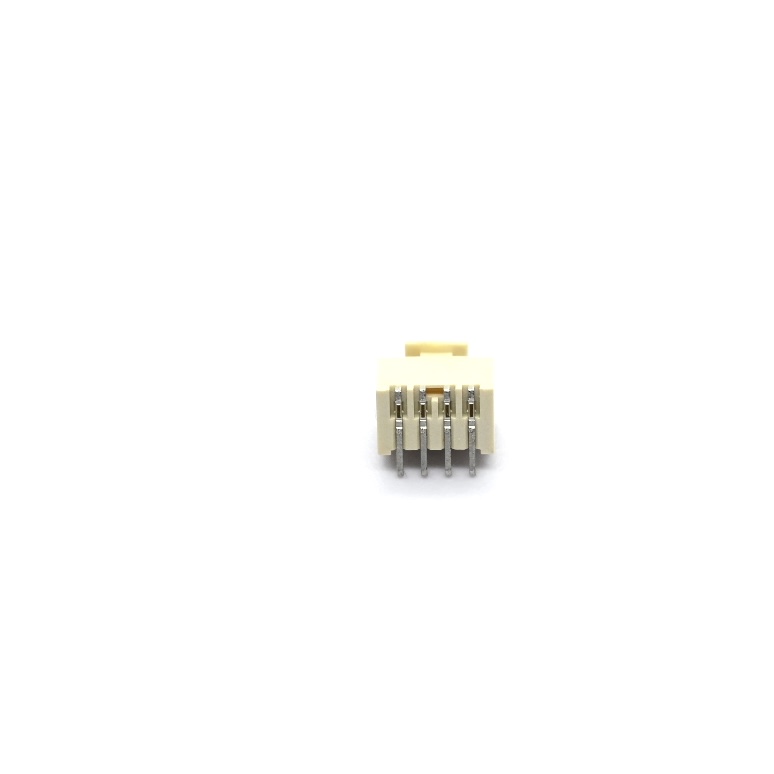

AW1502V-S-04P+1.50mm pitch 180° Wafer-SMT Connector Series（4）

AW1502V-S-04P+1.50mm pitch 180° Wafer-SMT Connector Series（3）

Contact Now

If you are interested in the product, contact 2bvideo.com for more information for more information

To:: HuiZhou Antenk Electronics Co., LTD

Message:

Submit
