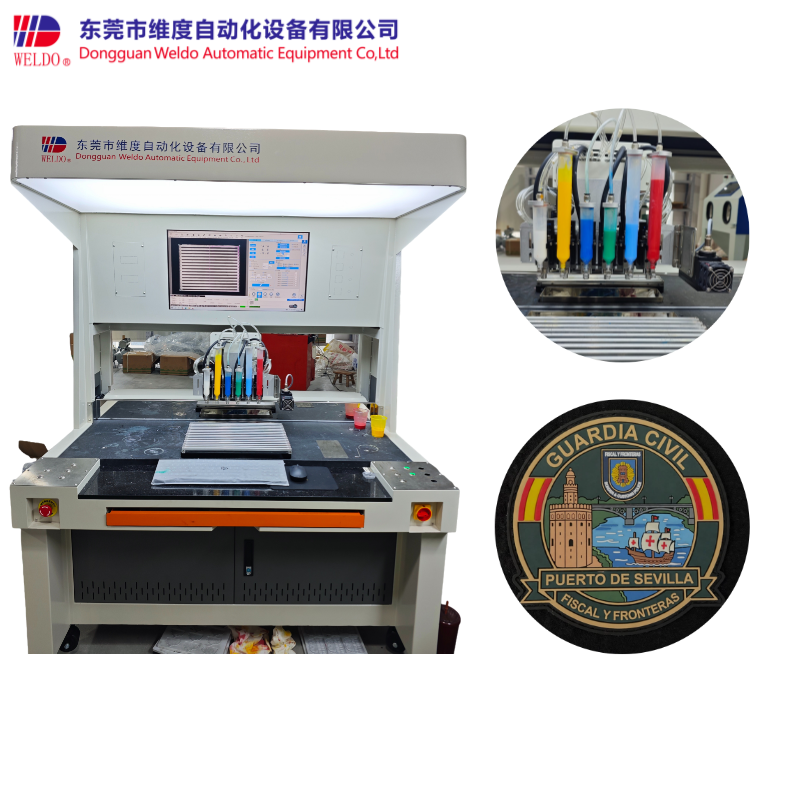

Rubber Badges Making Machine for Clothing | WD900‑2V2F

This visual automatic dispensing machine is built for the PVC & silicone industry. It is widely used to produce clothing rubber badges, soft PVC patches, garment labels, shoe logos and custom craft gifts.

It has huge advantages for clothing label production. For factories with many small‑batch orders, this machine is your perfect choice. With the camera vision system and auto‑program small tool, you can finish dispensing path programming quickly for every new order. Even if each order has low quantity but many different designs, you can switch jobs fast and save much labor time.

Main Features

1. Intelligent one‑time scan. It can locate hundreds of products and finish all processing in one go.

2. Smart detection for product position and angle. You can put mold randomly on the table, no fixture is needed.

3. Easy graphic programming interface. Operators can learn it quickly.

4. Fast program debugging. You can set programs for new products in short time.

5. Smart fault detection. It will automatically skip finished goods to avoid double‑processing mistakes.

6. Multi‑template identification. Run many different mold designs at the same time in one batch.

7. Auto‑optimize dispensing path to raise production output.

8. Flexible optional parts: multi‑channel dispensing system and temperature control system.

9. One machine supports up to 6‑color dispensing.

10. Equipped with high‑speed dispensing valve & injection valve. Fastest dispensing cycle reaches 5ms.

11. Two valve types for different jobs:

- Dispensing valve: for large‑area filling

- Injection valve: for fine small‑area patterns

Two valves can work together for higher efficiency.

Machine Technical Parameters

Item	Specification
Model	WD900‑2V2F
Supported Material	PVC resin, liquid silicone and more
Suitable Products	Metal, plastic, wooden stickers, clothing rubber badges, PVC patches
Max Color	6 colors
Program Control	Computer installed on machine
Vision System	Single vision
Camera	20‑megapixel camera
Light Source	Matrix SMD‑LED illumination
Vision Scan Size	400*300 mm
Scan Speed	1‑2 seconds
Travel Range	X:980 mm，Y:360 mm，Z:50 mm
Working Table	Single working table
Table Size	400*300 mm
Max Working Speed	60000 mm/min
Dispensing System	Precision Spray Valve System
Fastest Dispensing Speed	5 ms
Machine Positioning Accuracy	±0.05 mm
Camera Positioning Accuracy	±0.2 mm
Dispensing Accuracy	0.001 ml
Drive System	Screw ball + AC servo motor
Pneumatic Part	Precision pressure regulating valve
Max Table Load	50 KG
Working Voltage	220V 50HZ
Power	3000W
Machine Dimension	1500(L)1740(W)1915(H) mm
Net Weight	850 KG
Gross Weight	920 KG
Export Packing	Plywood wooden case
Packing Size	1550(L)1330(W)2060(H) cm
Volume(CBM)	4.2

Who is this machine for?

1. Factories making clothing rubber badges, garment PVC labels

2. Factories receiving many small‑volume orders with different patterns

3.Workshops want to reduce mold cost and shorten sample lead‑time

4. Factories producing shoe logos, key‑chains and promotional soft‑PVC gifts

Warranty and After‑sales Service

Warranty: 1 year warranty for the whole machine

Lifetime technical support: We provide long‑term online guidance for debugging, programming and troubleshooting.
