Customizable Filter Press for Industrial Filtration

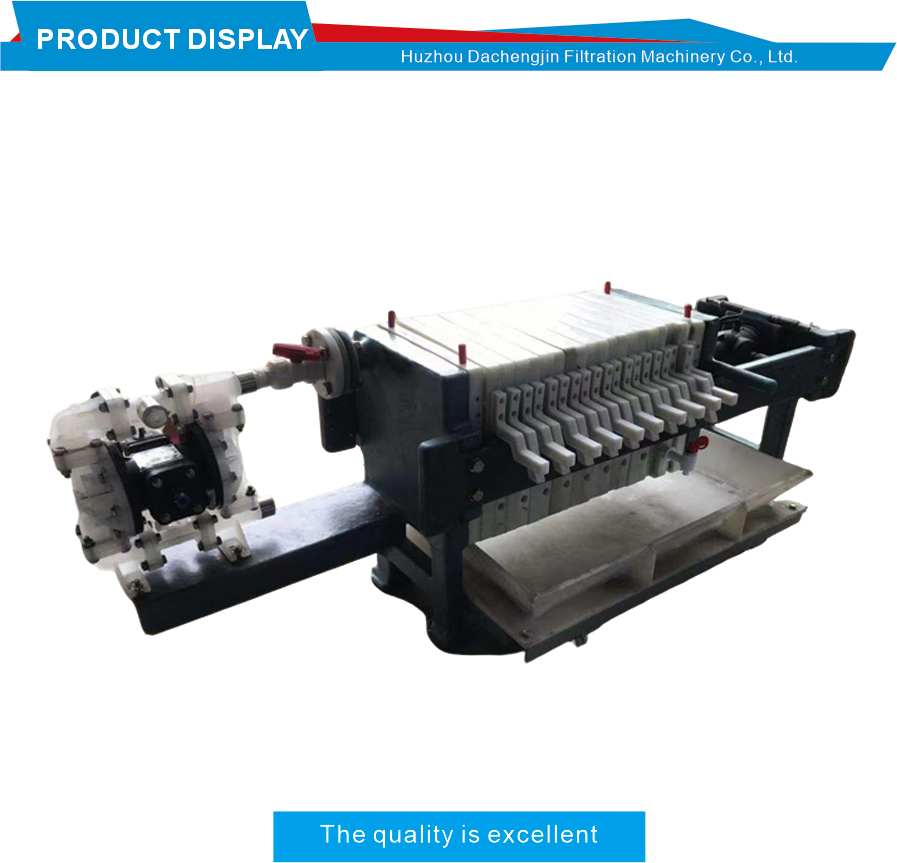

A plate frame filter press consists of a set of vertically arranged recessed plates. These plates are pressed together at one end of the plate stack by the clamping force from a hydraulic jack or cylinder. The pressure applied on the contact surface of each plate must be enough to withstand the internal pressure inside the chambers. One of the main advantages of the plate frame filter press is its feeding method. A large feed hole in the center of the plate stack allows the slurry to fill the chambers quickly and more evenly. This helps reduce the risk of plugging and blowout, and it also helps extend the service life of the recessed chamber filter plates. This feature is especially important for applications with high solid content in the feed. Compared to the chamber filter press, the plate frame filter press uses a combination of plates and frames. It is lighter in operation and easier to move or replace. Its biggest advantage is that it works well for filtering fine or sticky materials. It also gives faster filtration speed and saves more space for cake formation. Compared to the solid plates used in a chamber filter press, the filter cloth on a plate frame filter press creates a more uniform pressure difference across the cloth. The cloth makes maximum contact with the liquid mixture, which helps keep the effective filtration area. There is enough space on both sides of the cloth, so the cake and the liquid have enough room to form a continuous and effective pressure difference. For filtering fine or sticky materials, the plate frame filter press works more efficiently. Models 315, 420, 650, 810, 920, 1000, and 1250 are available for this type of press. On this basis, add on devices such as automatic plate pulling, drip tray turning, and sludge hopper can be installed. Custom orders are also accepted according to customer requirements.
This equipment belongs to the category of Customizable Filter Press According To Customer Requirements. Unlike rigid standard machines, this press equipment allows adjustments in plate material, frame size, and sealing method. The design focuses on practical filtration tasks such as removing solids from industrial liquids or dewatering sludge. Common variations include plate frame type, chamber type, and membrane type. Each works under pressure to separate solids from liquids. The plate frame version uses alternating plates and frames to form chambers. The chamber type uses recessed plates to hold more solids. The membrane type gives extra squeezing after the initial filtration. These three cover most daily filtration needs in small to medium batch work. The whole unit is built for repeated use in tough environments like chemical plants or wastewater stations. Because every customer handles different materials, the design leaves room for changes in filtration area, feed inlet position, and discharge method. This makes the equipment useful for both liquid polishing and cake drying.
Under the same Customizable Filter Press According To Customer Requirements category, the press equipment offers several practical options for daily operation. One key feature is Customizable Design, which means you can choose the pressing method between mechanical and hydraulic. Mechanical pressing uses a screw and handwheel. Hydraulic pressing uses a cylinder and oil pump. Both work well but suit different budgets and labor availability. Another aspect is Industrial Filtration, which covers common jobs like removing fine particles from plating bath liquids or recovering solids from dye mixtures. The Press Equipment itself includes frame sizes from small lab units to larger workshop models. You can also add supporting devices without changing the main machine structure. These include automatic plate pulling, cloth washing, drip tray turning, sludge hopper, and belt or screw conveyor. Each add on solves a specific site problem such as wet floor or manual labor heavy work. The whole system runs on standard plant power and needs regular but not complex maintenance. Seals and cloths are normal wearing parts and can be replaced locally. This keeps the equipment running for many years without special tools.
Focusing further on Customizable Design, the press equipment can use different plate materials for different liquids. Common choices include polypropylene for general chemical use, stainless steel for food or corrosive liquids, cast iron for high temperature or heavy pressure, and glass fabric covered plates for strong acid or alkali. Each material changes the weight and cost of the equipment but not the basic working principle. The filtering cloth can also be changed between polypropylene, polyester, nylon, and other weaves. For Industrial Filtration tasks that require clean operation, an enclosed design prevents liquid splashing and vapor release. For sludge dewatering in municipal or factory wastewater treatment, a open design allows easy cake drop into a bin or onto a conveyor. The Press Equipment accepts different feed pumps such as diaphragm pumps, screw pumps, or centrifugal pumps. The choice depends on the solid size and flow rate needed. All these options are selected during ordering. No field cutting or welding is needed. This makes the equipment ready to run after connection to power and feed line. The frame itself is welded steel with enough strength for daily clamping force. No extra foundation is required for most sizes below one meter square plate size.
Within the same Customizable Filter Press According To Customer Requirements line, this press equipment covers a wide range of Industrial Filtration applications without being over designed. Common uses include removing metal hydroxides from electroplating rinse water, dewatering organic sludge from food factories, recovering pigments from dye waste, clarifying vegetable oil before bottling, and filtering grinding fluid in metalworking shops. The Press Equipment handles both thin slurries with low solid content and thick pastes that need slow filling. Operation steps are simple. First close the plates. Then feed the slurry. Wait until filtrate runs slow. Then stop feed. Open plates. Drop cake. Each cycle time depends on solid type and cake thickness. For plants with many batches per day, automatic plate pulling and cloth washing save time. For plants with one batch per day, manual operation is enough. The equipment does not need a full time operator during filtration. Only during plate opening and cake dropping. Safety features include limit switches on moving parts and pressure relief on hydraulic system. The design follows common filtration practice but does not claim extreme performance. It simply does the job of separating solids from liquids in a repeatable way. Spare parts such as cloths, seals, and feed hoses are standard items available from local suppliers. This reduces downtime and inventory cost. Overall this press equipment is a practical choice for factories that need reliable solid liquid separation without complex programming or expensive custom engineering.
