2.00mm Pitch Right Angle SMT Wafer Connector

2.00mm Pitch Right Angle SMT Wafer Connector

7 day ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures AW2013R M X XP series 2.00 millimeter pitch 90 degree right angle SMT wafer connector to achieve reliable wire to board signal and power interconnection through surface mount soldering on printed circuit boards. This right angle SMT wafer header supports multiple position options from 2 positions up to 15 positions, insulator housing adopts PA9T LCP material with UL94V 0 flame retardant grade, brass pins feature tin over nickel plating. It is rated for 3A AC DC current and 125V AC DC voltage, reaches 500V AC one minute dielectric strength and minimum 1000 megaohm insulation resistance, contact resistance stays below 10 milliohm and keeps within 20 milliohm after environmental testing, operating temperature ranges from minus 40 degree Celsius to plus 105 degree Celsius. Different position counts bring varied outline dimensions to satisfy compact PCB layout requirements. This product complies with RoHS and REACH standards and fits consumer electronics smart home appliances and industrial control devices. Operators must follow official PCB layout for SMT soldering assembly and store goods in dry environment to prevent brass pin oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in house production covering independent mold development brass terminal stamping plastic injection molding multi grade electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, deliver custom configuration solutions and round the clock engineering support, over seventy percent of connector goods are exported globally. Feel free to submit your project specifications for sample quotation and full datasheet resources.

1. LCP Insulator Wafer Header maintains stable mechanical performance under high temperature reflow soldering conditions.

2. Right Angle SMT Wafer Socket saves valuable board space for compact electronic device designs.

3. Brass SMT Wafer Contact delivers consistent electrical conductivity for long term wire‑to‑board connection.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: 90 degree right angle SMT surface mount wafer header, wire to board type

1.2 Measurement unit: millimeter

1.3 Key dimension: contact pitch 2.00 mm, available pole range from 2 poles to 15 poles. Overall dimension varies with different pole counts, refer to official engineering drawing for full dimension and PCB layout data

1.4 Assembly style: SMT surface mount right angle structure

1.6 CTA: Contact our engineering team to acquire complete dimension drawings and PCB layout reference files for your wire‑to‑board hardware design validation.

2. Material Construction

2.1 Insulator housing: PA9T LCP material with UL94V‑0 flame retardant grade

2.2 Contact pin: Brass material with tin over nickel plating

3. Electrical Parameters

3.1 Rated current: 3A AC DC

3.2 Rated voltage: 125V AC DC

3.3 Dielectric strength: 500V AC for one minute

3.4 Insulation resistance: minimum 1000 megaohm

3.5 Contact resistance: maximum 10 milliohm, ≤20 milliohm after environmental testing

4. Environmental Parameters

4.1 Operating temperature range: minus 40°C to plus 105°C

5. Compliance Standard

5.1 Environmental compliance: RoHS compliant

6. Usage Method

6.1 Assembly mode: SMT surface mount soldering onto printed circuit board

6.2 Operation tip: Select appropriate pole number according to actual PCB layout space

7. Application Scenarios

7.1 Consumer electronic devices

7.2 Smart home appliances

7.3 Industrial control modules

8. Operation & Storage Precautions

8.1 Follow official PCB layout drawing for SMT soldering assembly

8.2 Match proper pole quantity for project space limitation

8.3 Store products in dry storage environment to prevent brass pin oxidation

8.5 CTA: Submit your pole count requirements, we can offer free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the pac kaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

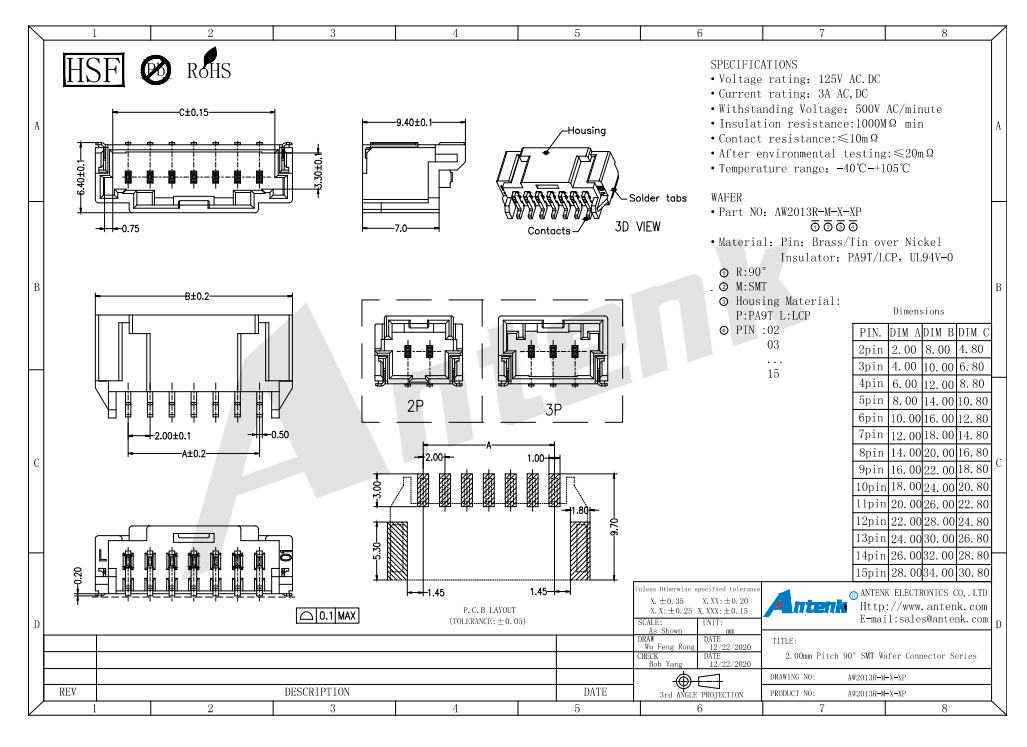

Product Drawing：

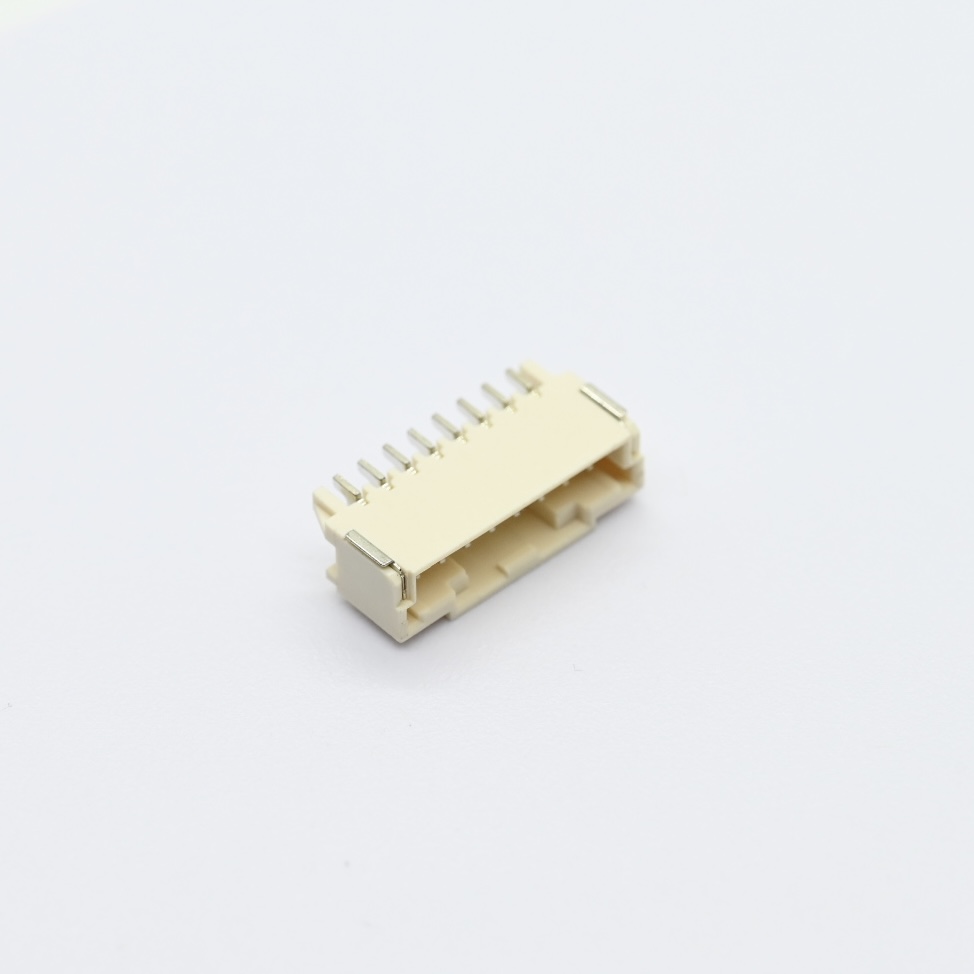

AW2013R-M-08P+2.00mm Pitch 90° SMT Wafer Connector Series（6）

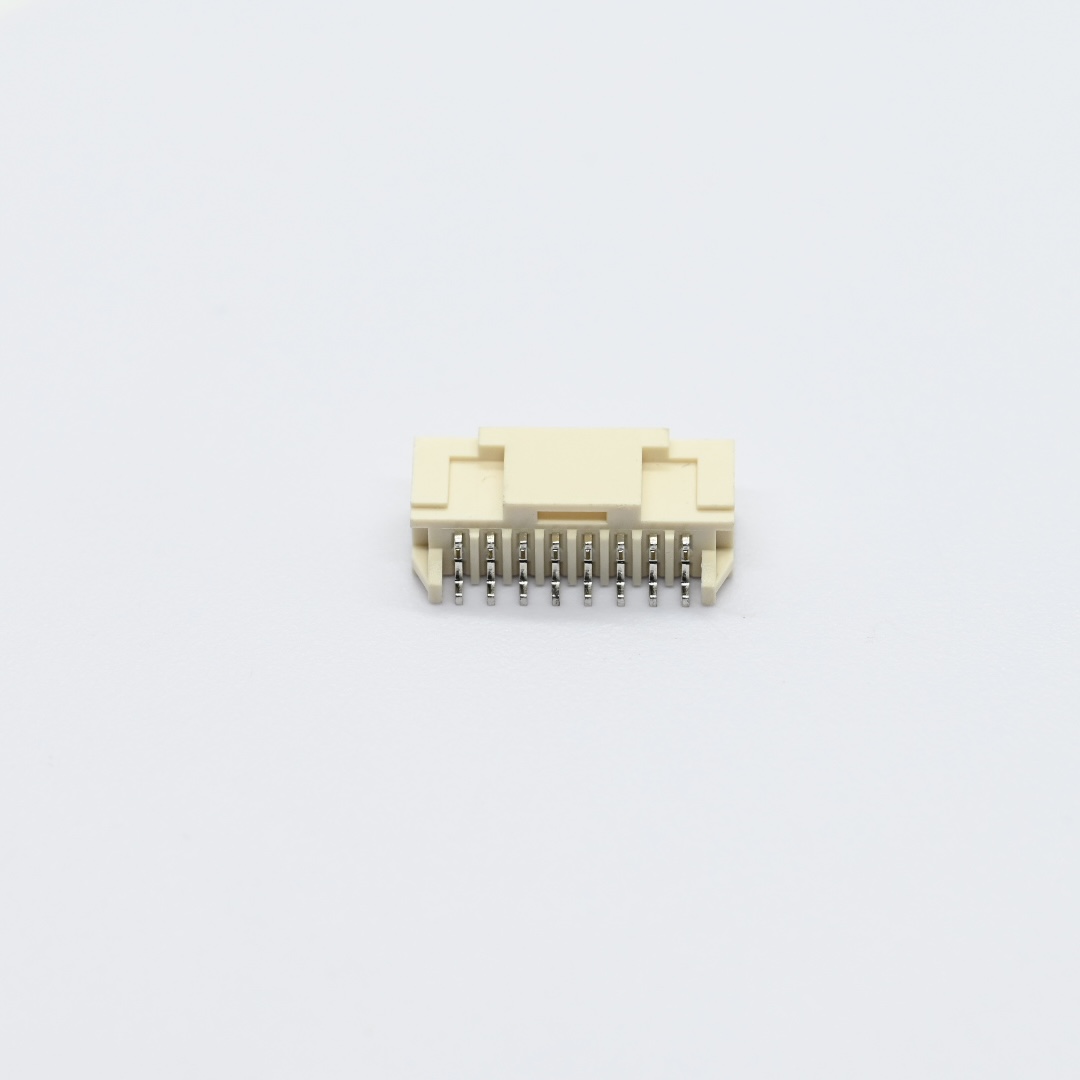

AW2013R-M-08P+2.00mm Pitch 90° SMT Wafer Connector Series（1）

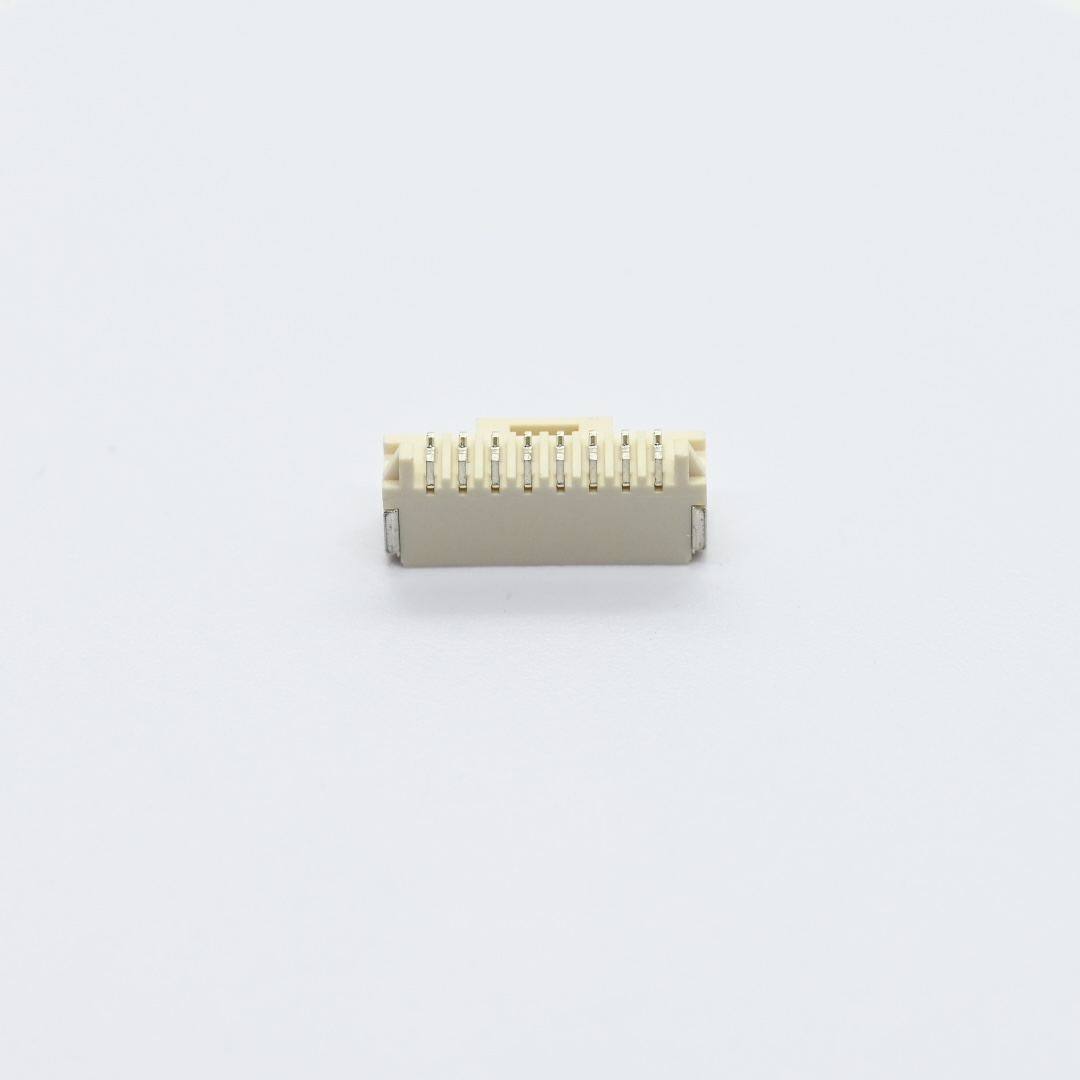

AW2013R-M-08P+2.00mm Pitch 90° SMT Wafer Connector Series（3）

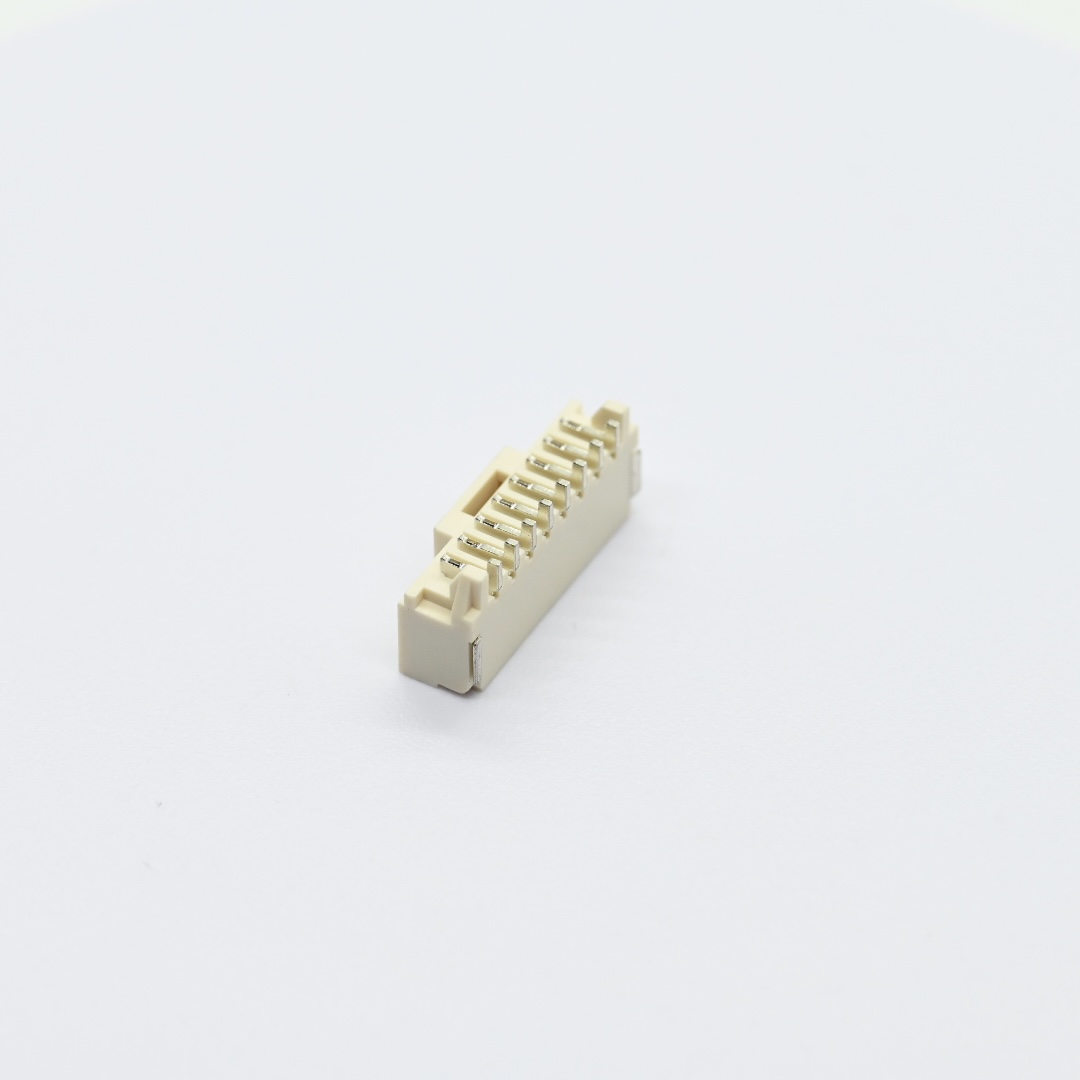

AW2013R-M-08P+2.00mm Pitch 90° SMT Wafer Connector Series（4）

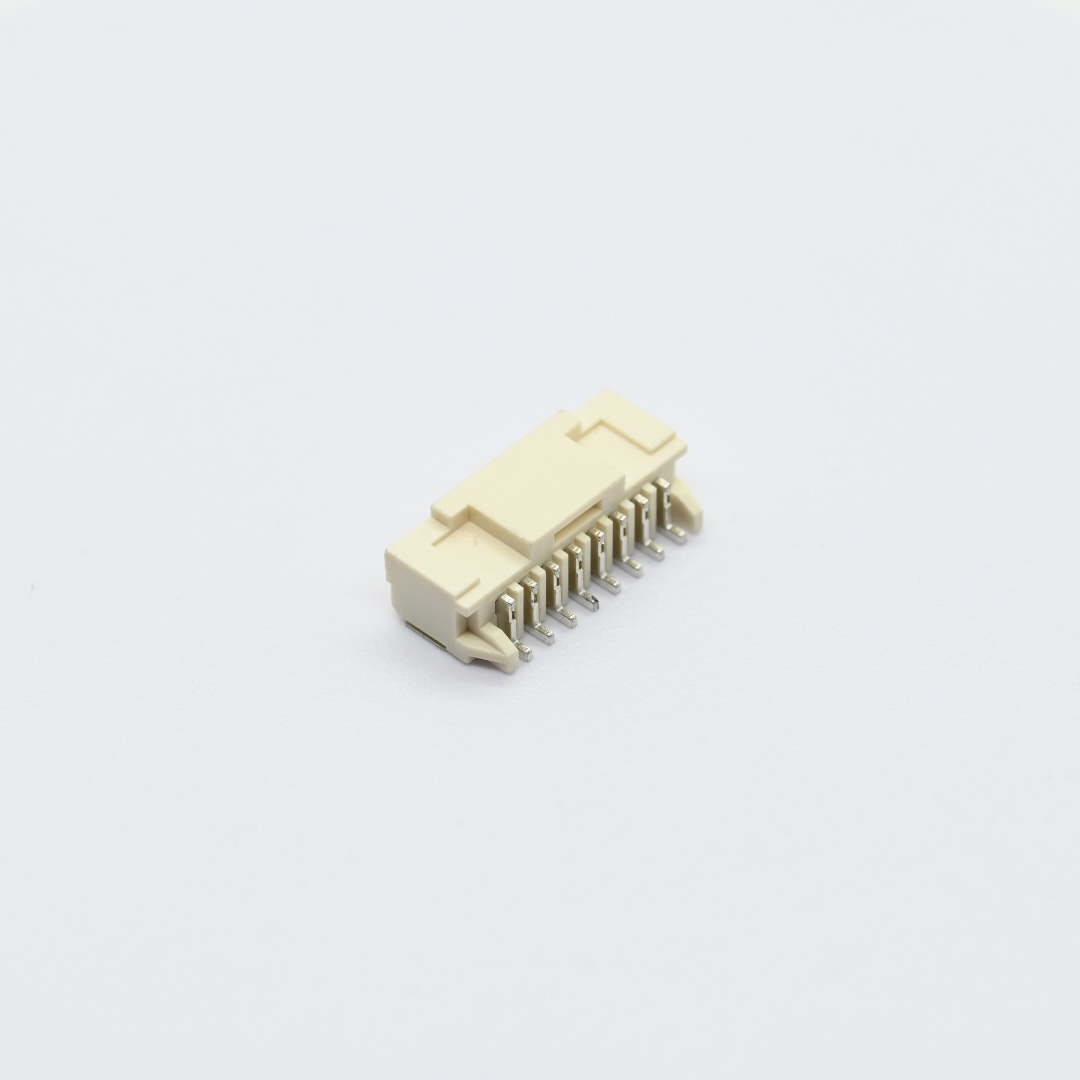

AW2013R-M-08P+2.00mm Pitch 90° SMT Wafer Connector Series（2）

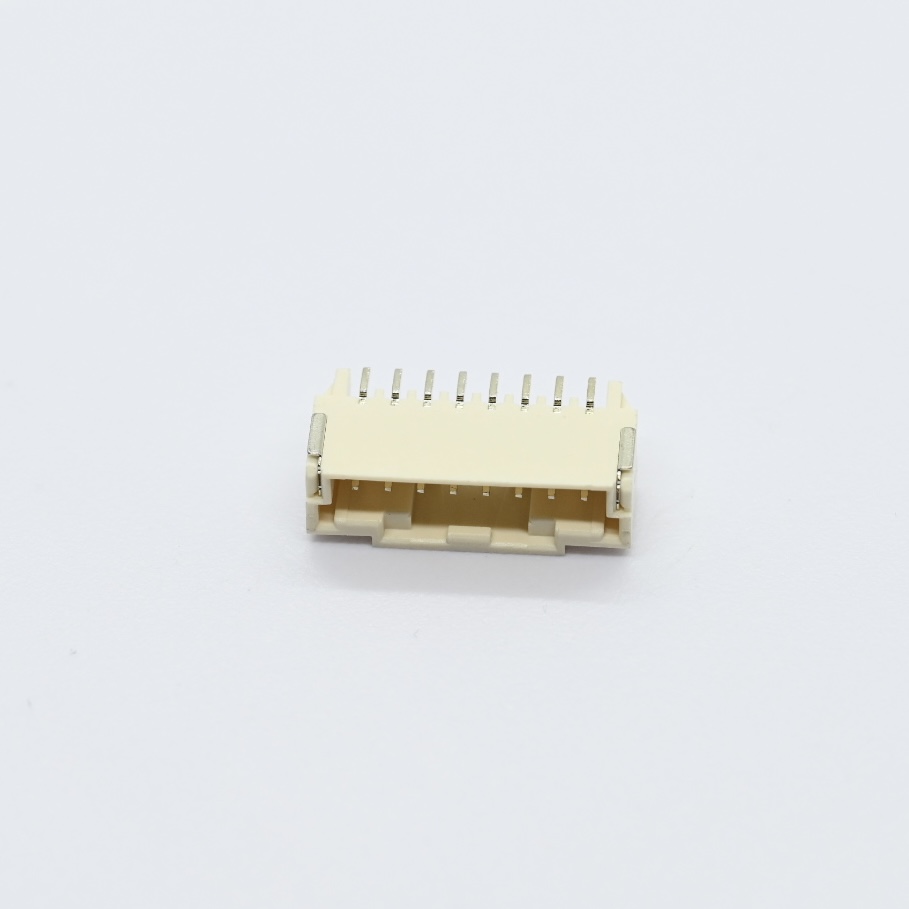

AW2013R-M-08P+2.00mm Pitch 90° SMT Wafer Connector Series（5）
