Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures AH2013 XP series 2.00 millimeter pitch male plastic connector housing to lock crimp terminals and build reliable wire to board connection when paired with matching wafer headers. This male housing supports pole numbers ranging from 2 poles up to 15 poles, overall dimensions vary with different pole counts, please refer to official engineering drawing for complete dimension tables. It is made of Nylon 66 blended PT PBT material that meets UL94V 0 flame retardant grade and comes in black color. This housing fits AT2013T series crimp terminals and mates with AW2013 series wafer connectors. It carries 3A AC DC current rating and 125V AC DC voltage rating, features 500V AC one minute dielectric strength, minimum 1000 megaohm insulation resistance, maximum 10 milliohm contact resistance and stays within 20 milliohm after environmental testing, operating temperature spans from minus 40 degree Celsius to plus 105 degree Celsius. This product complies with RoHS and REACH standards and suits consumer electronics smart household appliances and industrial control modules. Operators shall insert correct terminals properly and use matched mating components, keep goods in dry storage space to avoid plastic aging and terminal corrosion. Unlike competitors outsourcing stamping molding and plating Antenk performs full in house production including independent mold development plastic injection molding raw material inspection and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, deliver custom configuration solutions and round the clock engineering support, more than seventy percent of connector goods are exported globally. Feel free to provide your project specifications for sample quotation and complete datasheet resources.

1. Flame Retardant Male Housing delivers stable fire safety performance for various electronic assembly applications.

2. Single Row Connector Housing saves PCB internal space for compact wire to board connection designs.

3. Black Nylon 66 Housing offers outstanding mechanical strength and resistance to harsh working conditions.

Detailed Specifications of AH2013‑XP 2.00mm Pitch Male Housing Connector Series

1. Mechanical Specifications

1.1 Product type: Male plastic connector housing for wire harness assembly

1.2 Measurement unit: millimeter

1.3 Key dimension: contact pitch 2.00 mm, pole range from 2 poles to 15 poles. Overall dimension varies with different pole quantities, refer to official engineering drawing for full dimension table

1.4 Compatible parts: accepts AT2013T series crimp terminals, mates with AW2013 series wafer connectors

1.5 Housing color: Black

1.6 CTA: Contact our engineering team to get complete dimension drawings for your wire harness design verification.

2. Material Construction

2.1 Housing material: Nylon 66 blended PT‑PBT, UL94V‑0 flame retardant grade

3. Electrical Parameters

3.1 Rated current: 3A AC DC

3.2 Rated voltage: 125V AC DC

3.3 Dielectric strength: 500V AC for one minute

3.4 Insulation resistance: minimum 1000 megaohm

3.5 Contact resistance: maximum 10 milliohm, ≤20 milliohm after environmental testing

4. Environmental Parameters

4.1 Operating temperature range: minus 40°C to plus 105°C

5. Compliance Standard

5.1 Environmental compliance: RoHS compliant

6. Usage Method

6.1 Assembly mode: Insert AT2013T series crimp terminals into housing cavity, then complete mating with AW2013 series wafer connectors

6.2 Operation tip: Match corresponding pole number according to actual project requirements

7. Application Scenarios

7.1 Consumer electronic devices

7.2 Smart home appliances

7.3 Industrial control modules

8. Operation & Storage Precautions

8.1 Only use matched AT2013T terminals and AW2013 series wafer connectors to guarantee connection performance

8.2 Insert terminals fully into housing to avoid poor contact

8.3 Store goods in dry environment to prevent plastic aging and component corrosion

8.4 Check dimension data for selected pole count before mechanical design

8.5 CTA: Submit your pole number requirements, we can provide free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

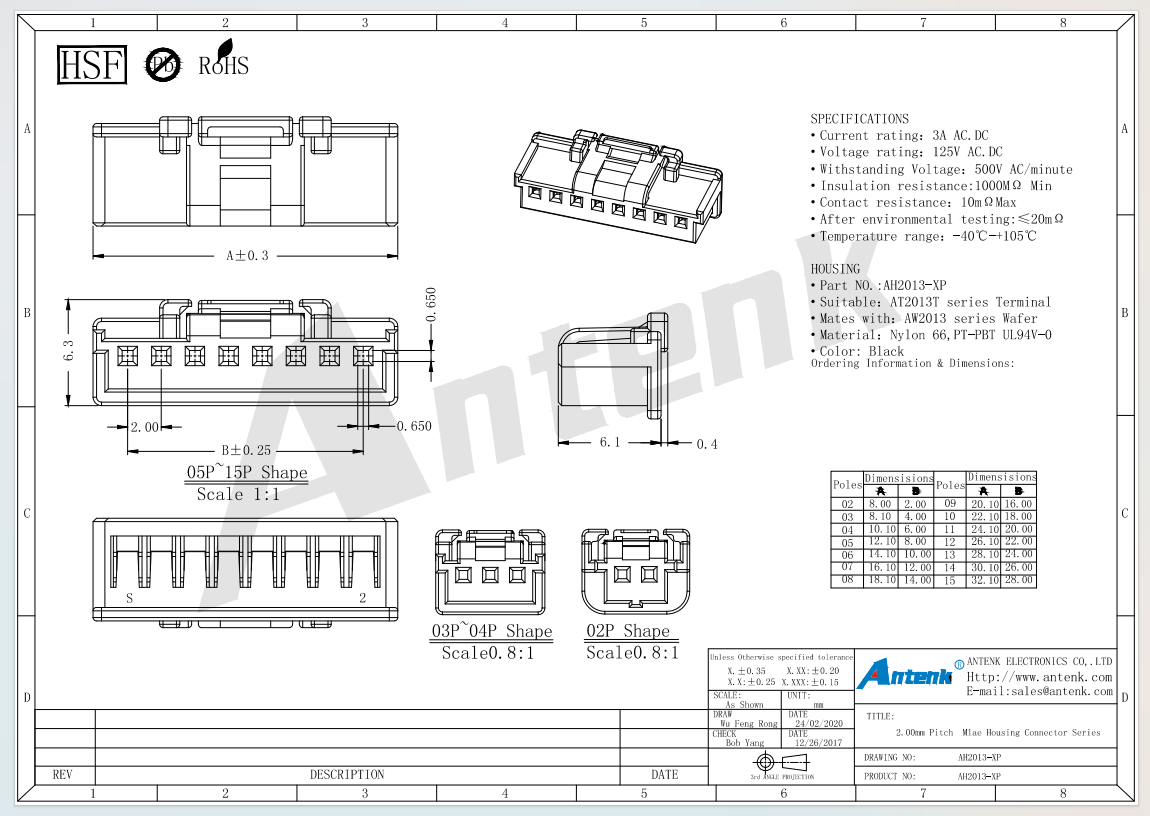

Product Drawing:

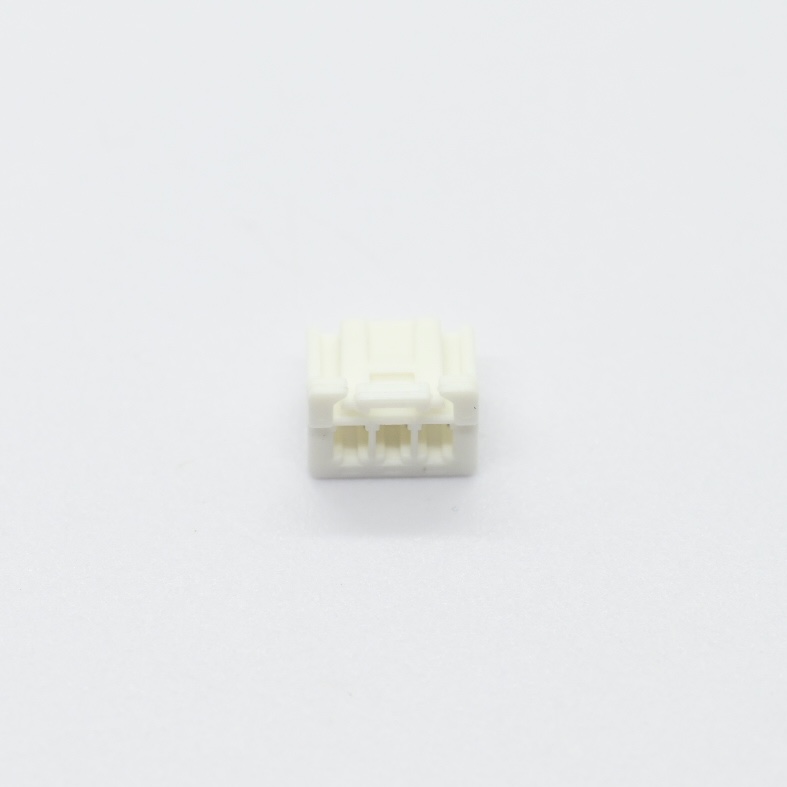

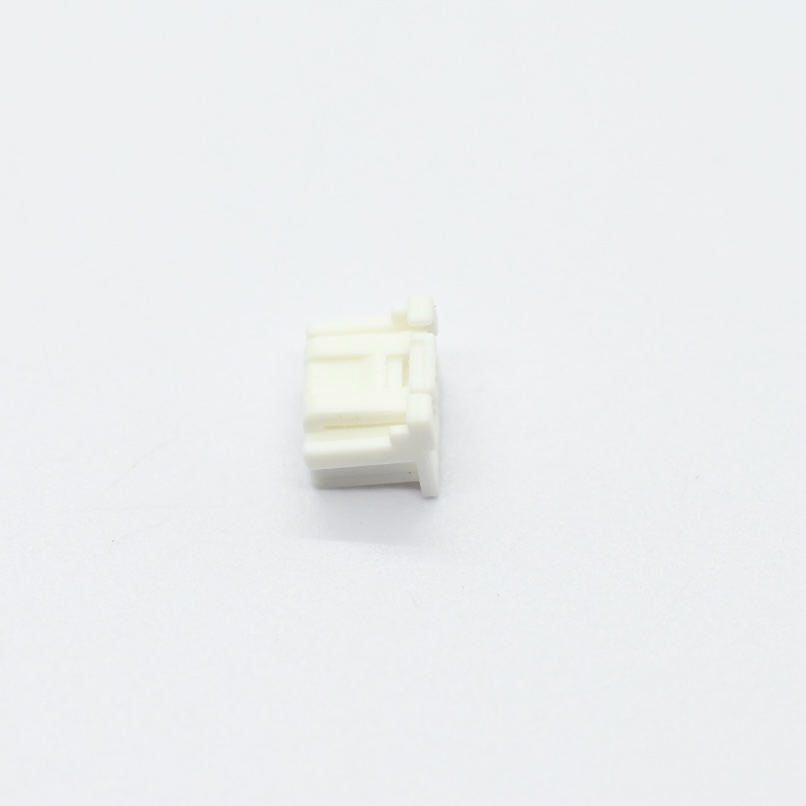

AH2013-03P+2.00m Pitch Mlae Housing Connector Series(5)

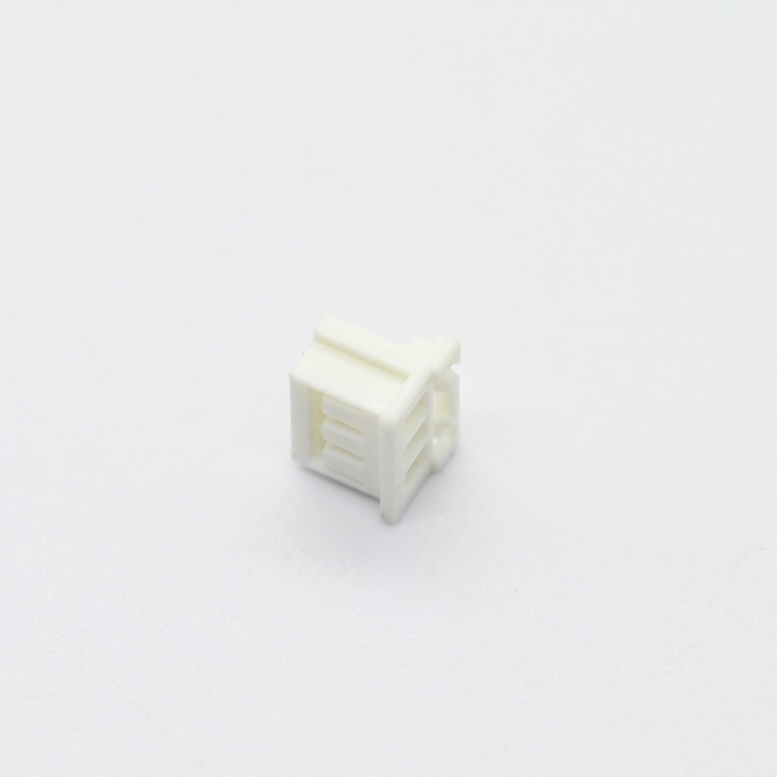

AH2013-03P+2.00m Pitch Mlae Housing Connector Series(6)

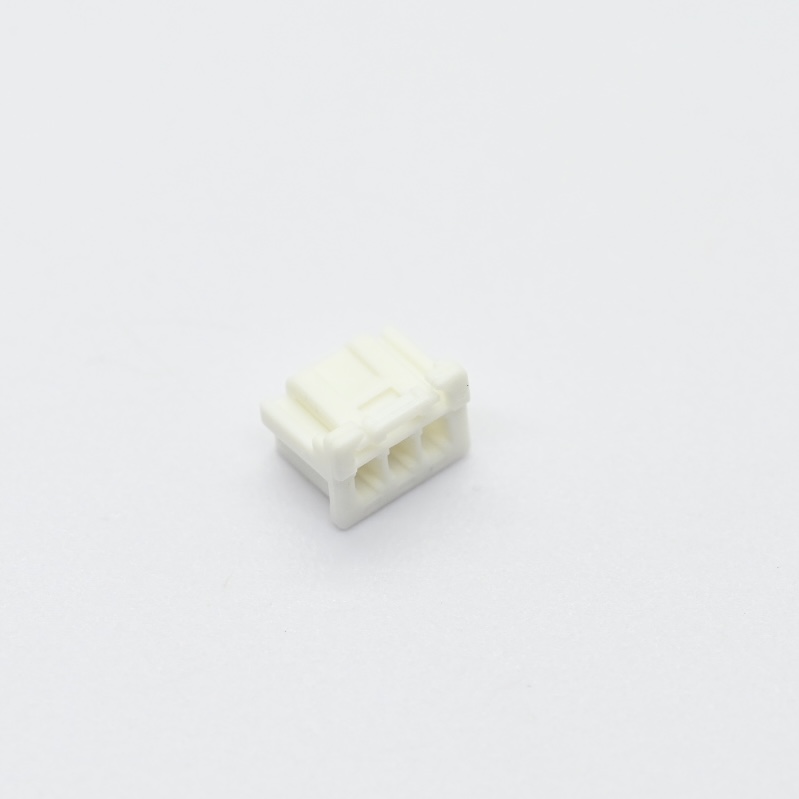

AH2013-03P+2.00m Pitch Mlae Housing Connector Series(4)

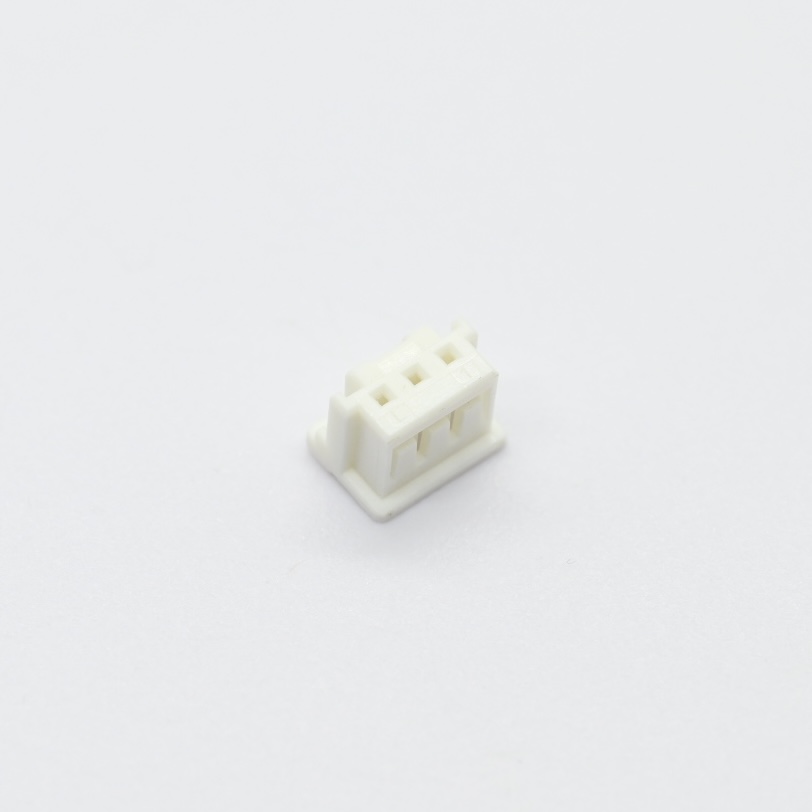

AH2013-03P+2.00m Pitch Mlae Housing Connector Series(2)

AH2013-03P+2.00m Pitch Mlae Housing Connector Series(3)

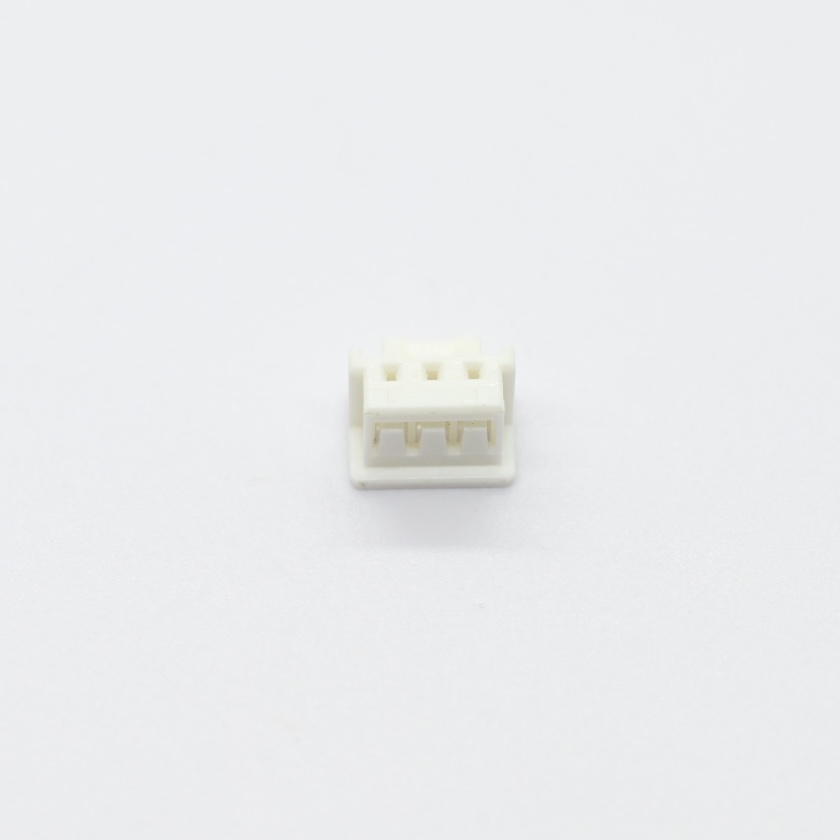

AH2013-03P+2.00m Pitch Mlae Housing Connector Series(1)
