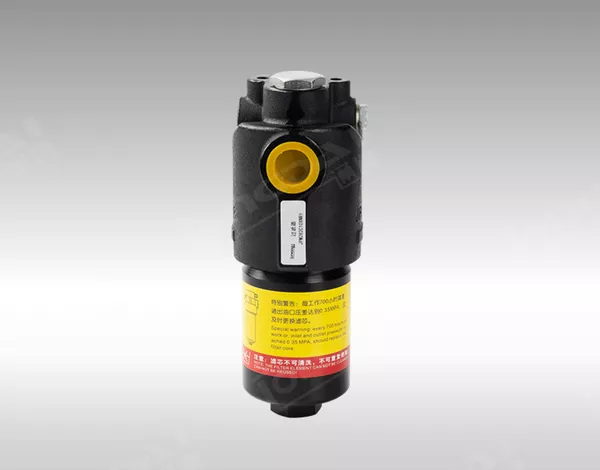

JPM Series Hydraulic High‑Pressure Filter

Product Overview

JPM Series Hydraulic High‑Pressure Filter is an inline high-pressure FILTER, an essential precision protection component for industrial hydraulic system. It is mounted directly on the pressure pipeline of the hydraulic circuit to trap fine solid contaminants and safeguard precision hydraulic components of the Machine.

This high-pressure FILTER adopts high-strength pressure housing to adapt to high-pressure working environments. It intercepts metal wear debris, rubber fragments and fine particulate impurities in pressurized hydraulic oil, maintaining high fluid cleanliness. It effectively prevents scratch and abrasion on proportional valves, servo valves, hydraulic cylinders and other core parts in the hydraulic system, prolonging service life and lowering failure probability of the entire Machine.

Technical Specifications

‑ Model: JPM Series Hydraulic High‑Pressure Filter

‑ Product Type: Inline high-pressure hydraulic FILTER

‑ Application: Pressure line filtration for hydraulic system

‑ Max working pressure: Up to 32 MPa

‑ Working medium: Anti-wear hydraulic mineral oil, ISO-VG32 / VG46 recommended

‑ Operating oil temperature: -20℃ ~ +80℃

‑ Filtration precision: Multiple micron grades optional (1μm ~ 20μm)

‑ Installation: Inline pipeline mounting on pressure oil circuit

‑ Built-in feature: Differential pressure clogging indicator, optional bypass valve

‑ Key Features: High pressure resistance, high filtration accuracy, low pressure loss, reliable differential pressure alarm, stable protection for precision hydraulic components of industrial Machine

Working Principle

As a high-pressure inline FILTER for the hydraulic system, pressurized hydraulic oil flows through the filter housing. Tiny solid contaminants are captured by high-performance filter media, and cleaned high-pressure oil continues to be delivered to actuators of the Machine. It avoids hard particles damaging the precision matching surfaces of valves and pumps within the hydraulic system.

When the filter element accumulates contaminants, the differential pressure increases. The clogging indicator triggers an alarm to remind operators to replace the filter element timely. If the filter element is heavily blocked, the optional bypass valve opens to prevent oil supply interruption and unexpected shutdown of the Machine, ensuring continuous running of the hydraulic system.

Core Advantages

1. Robust pressure-resistant housing design, suitable for long-term high-pressure operation, provides precise filtration protection for the hydraulic system and Machine.

2. High-efficiency filter material with good particle holding capacity, keeps hydraulic oil clean for precision hydraulic loops.

3. Differential pressure monitoring indicator, real-time status of element clogging, supports predictive maintenance.

4. Compact inline structure, simple installation and convenient filter element replacement, reduces downtime of the Machine.

5. Standard thread and flange connection options, great interchangeability for newly-built or upgraded hydraulic system.

Application Range

JPM Series Hydraulic High‑Pressure FILTER is widely applied in the hydraulic system of hydraulic presses, injection molding machines, servo hydraulic stations, construction machinery and other high-pressure hydraulic-driven Machine. Well received by hydraulic maintenance workshops, hydraulic system integrators and global spare parts distributors.
