3.00mm Dual Row Right Angle Wafer Header

3.00mm Dual Row Right Angle Wafer Header

3 week ago

15 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures AW3045R 2xNP B series 3.00 millimeter pitch dual row 90 degree right angle wafer header without locating pegs to realize stable wire to board signal and power interconnection after through hole soldering onto printed circuit boards. This peg free dual row wafer header supports pole configurations ranging from 2 circuits up to 24 circuits, overall dimensions change according to different pole counts, please check official engineering drawing for full dimension tables and PCB layout reference data. Its insulator housing applies Nylon 66 with 15 percent glass filler material that meets UL94V 0 flame retardant grade in black color, brass pins adopt tin plated contact surface treatment. It features 5A AC DC rated current and 250V AC DC rated voltage, delivers 1500V AC one minute dielectric strength and minimum 1000 megaohm insulation resistance, maximum contact resistance reaches 20 milliohm, operating temperature spans from minus 25 degree Celsius to plus 85 degree Celsius. Complying with RoHS and REACH standards, this connector fits consumer electronics smart home appliances and industrial control modules. Operators must follow official PCB drawing for soldering operation and store finished goods under dry environment to prevent brass pin oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in house production including independent mold development brass terminal stamping plastic injection molding electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, provide custom configuration solutions and round the clock engineering support, more than seventy percent of connector goods are exported globally. Feel free to submit your project specifications for sample quotation and complete datasheet resources.

1. Peg‑Free Dual Row Header simplifies PCB mounting layout without extra positioning restrictions.

2. Glass Filled Nylon Header delivers enhanced mechanical strength for long term connector operation.

3. Right Angle Wire To Board Header achieves compact space saving interconnection on printed circuit boards.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: Dual row right angle wire to board wafer header without locating pegs

1.2 Measurement unit: millimeter

1.3 Key dimension: contact pitch 3.00 mm, total pole options range from 2 poles to 24 poles. Overall dimension varies with different pole quantities, refer to official engineering drawing for complete dimension table and PCB layout data

1.4 Structural feature: No positioning posts for flexible PCB installation

1.5 Housing color: Black

1.6 CTA: Contact our engineering team to acquire full dimension drawings and PCB layout files for your hardware design validation.

2. Material Construction

2.1 Insulator housing: Nylon 66 with 15 percent glass filler, UL94V‑0 flame retardant grade

2.2 Contact pin: Brass base material with tin plated contact surface

3. Electrical Parameters

3.1 Rated current: 5A AC DC

3.2 Rated voltage: 250V AC DC

3.3 Dielectric strength: 1500V AC for one minute

3.4 Insulation resistance: minimum 1000 megaohm

3.5 Contact resistance: maximum 20 milliohm

4. Environmental Parameters

4.1 Operating temperature range: minus 25°C to plus 85°C

5. Compliance Standard

5.1 Environmental compliance: RoHS compliant

6. Usage Method

6.1 Assembly mode: Through hole soldering onto printed circuit boards

6.2 Operation tip: Select proper pole count according to actual circuit design requirements

7. Application Scenarios

7.1 Consumer electronic devices

7.2 Smart home appliances

7.3 Industrial control modules

8. Operation & Storage Precautions

8.1 Follow official PCB layout drawing to complete through hole soldering process

8.2 Do not apply excessive mechanical force to brass pins to avoid terminal deformation

8.3 Store products in dry environment to prevent tin plated pins from oxidation

8.4 Verify dimension parameters for selected pole number before mechanical structure design

8.5 CTA: Submit your pole count requirements, we can offer free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

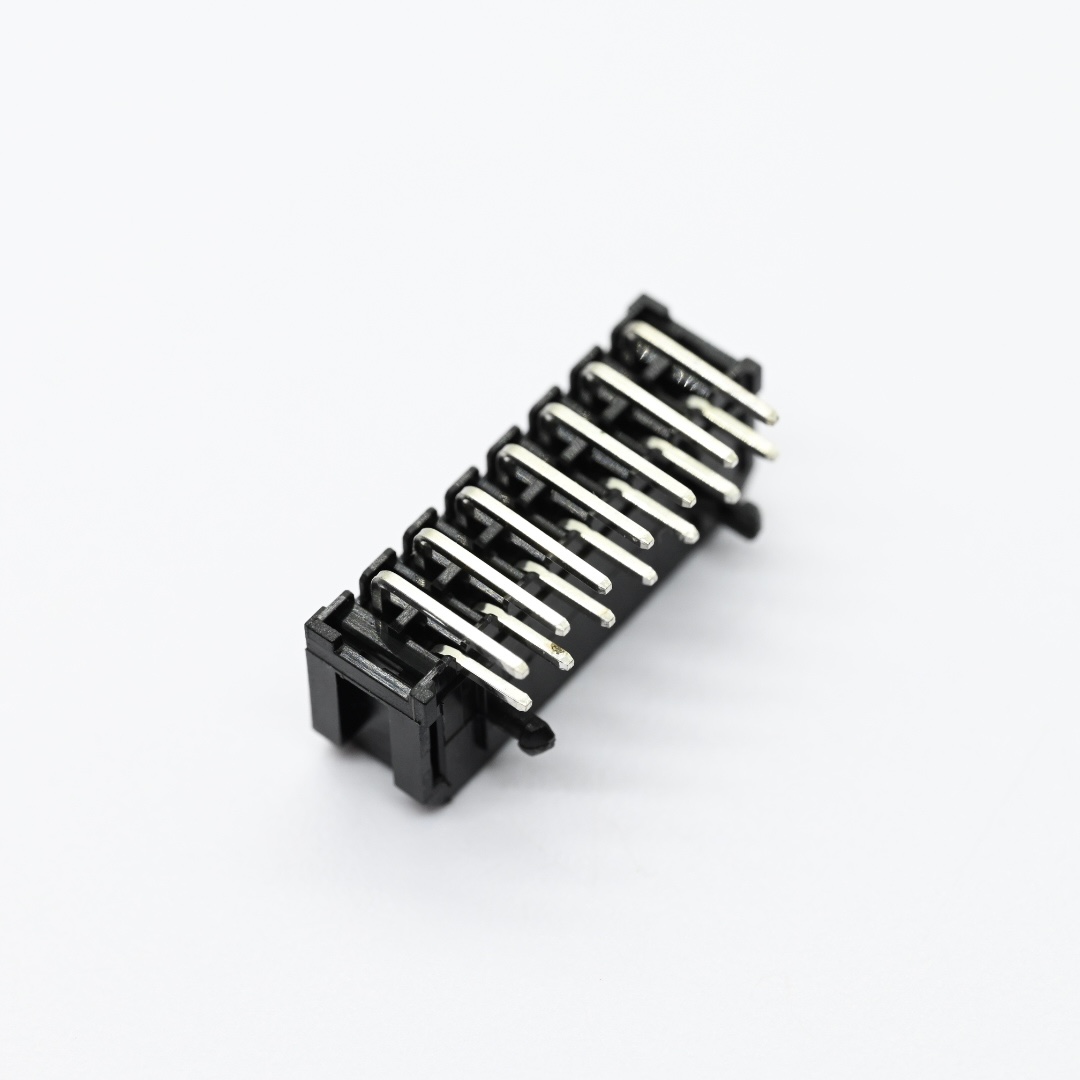

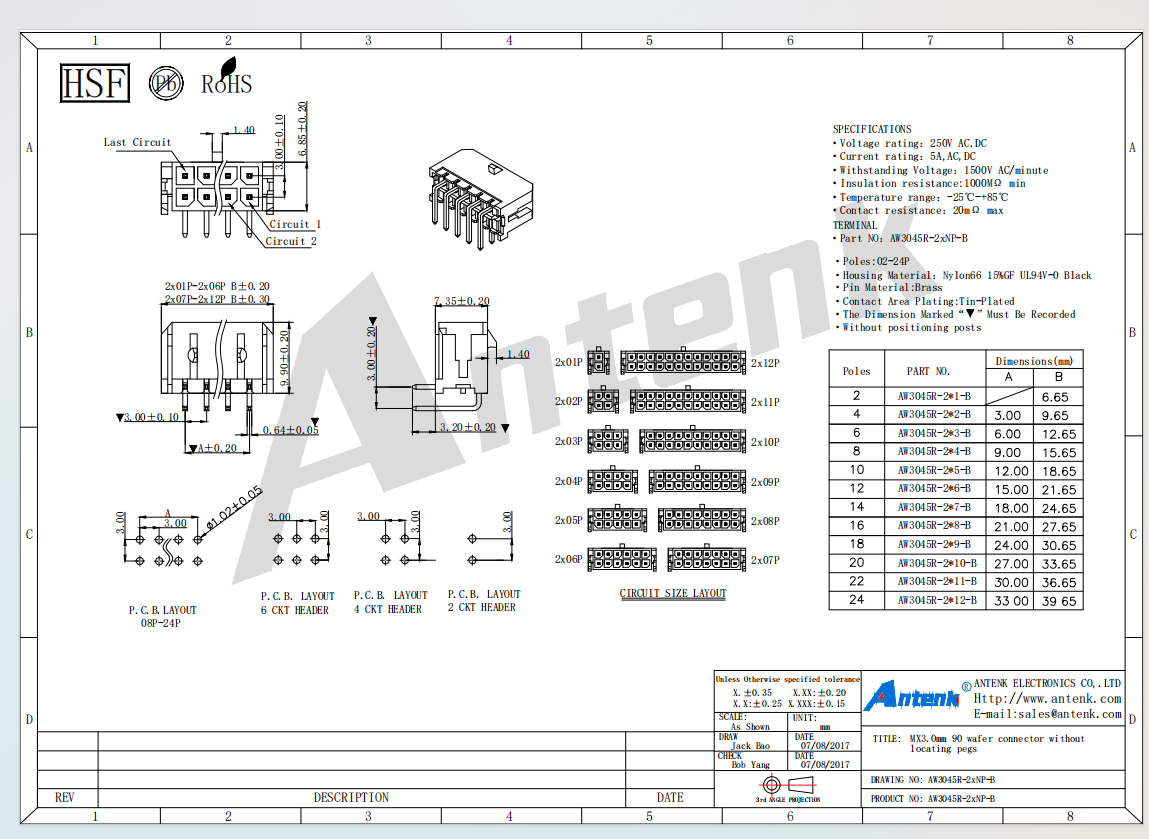

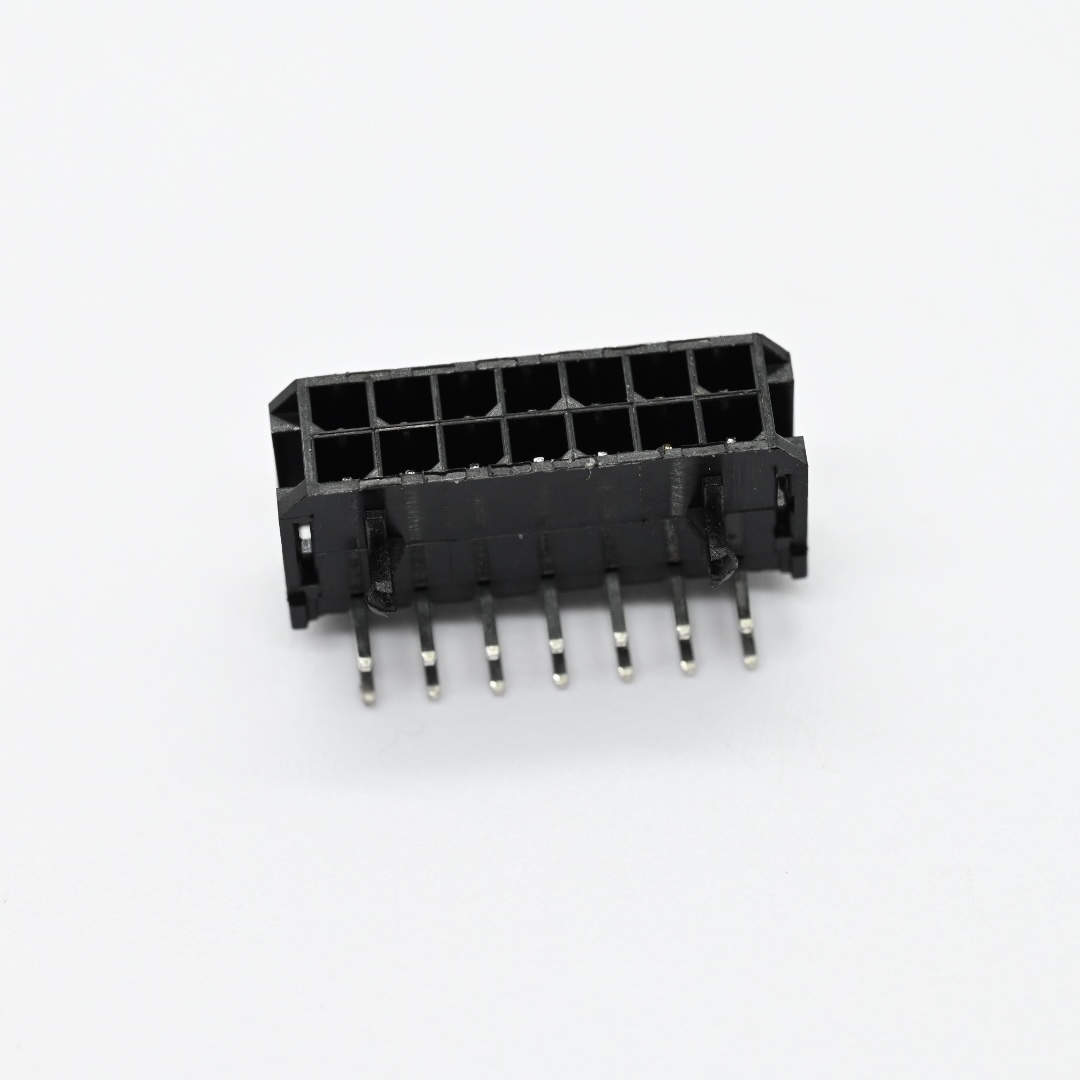

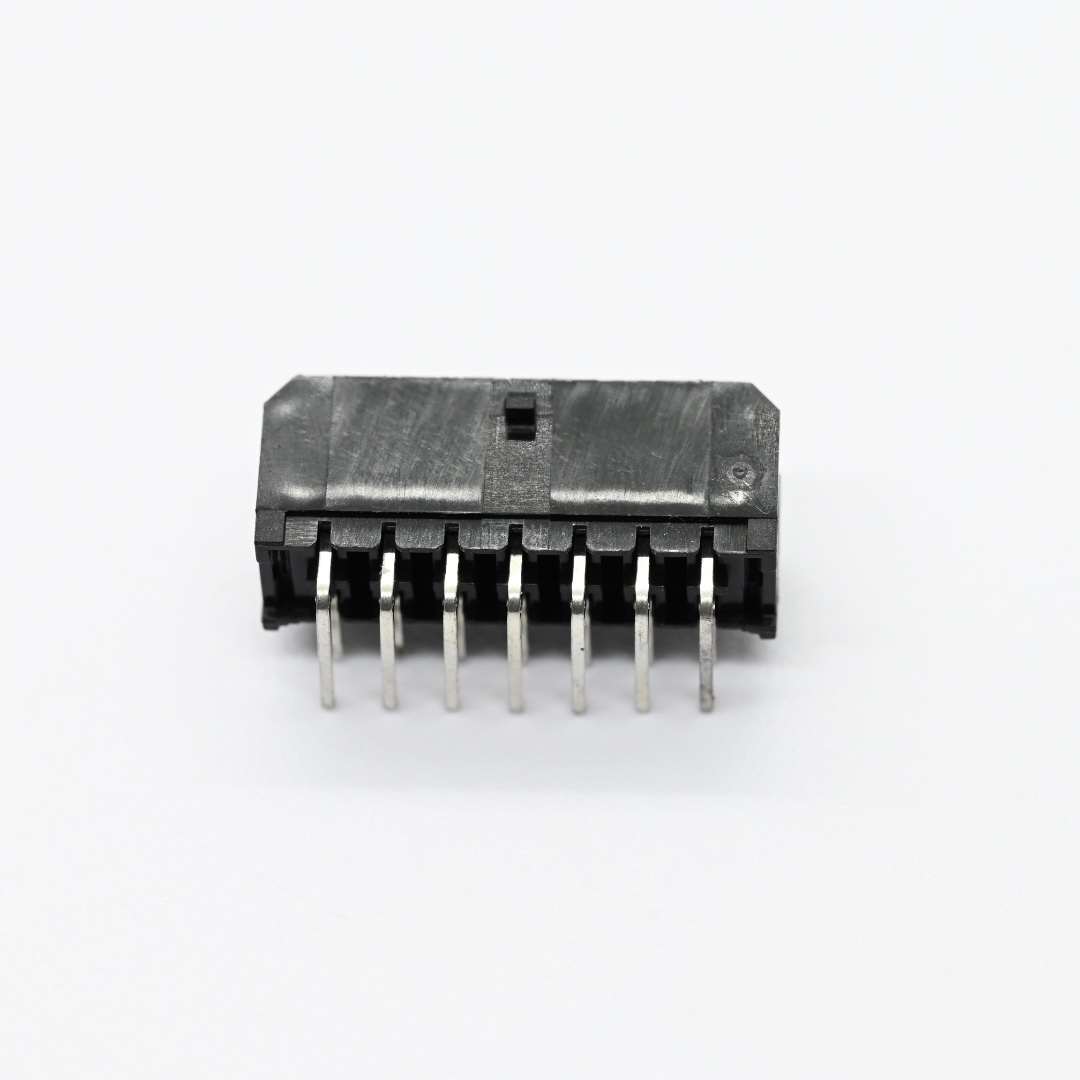

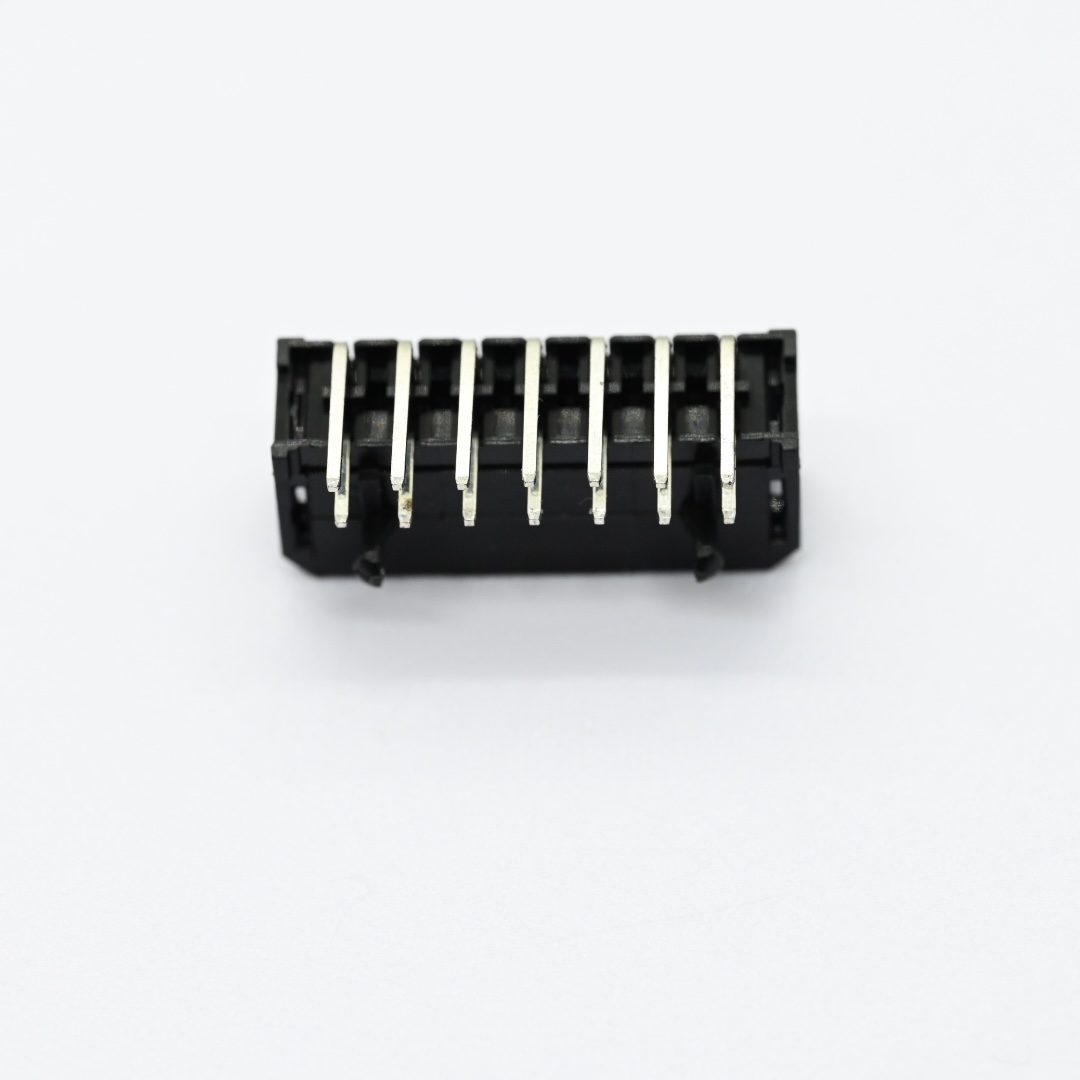

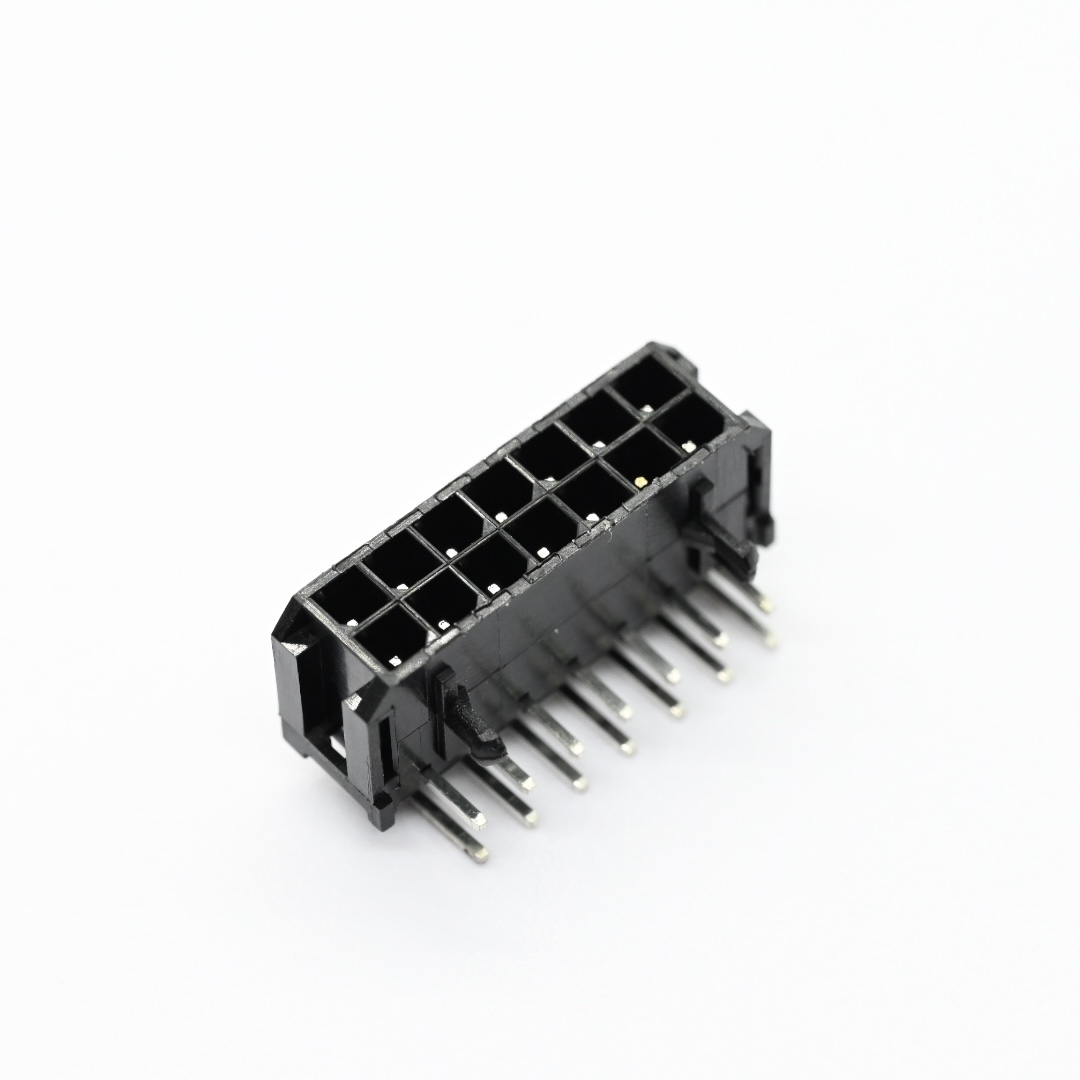

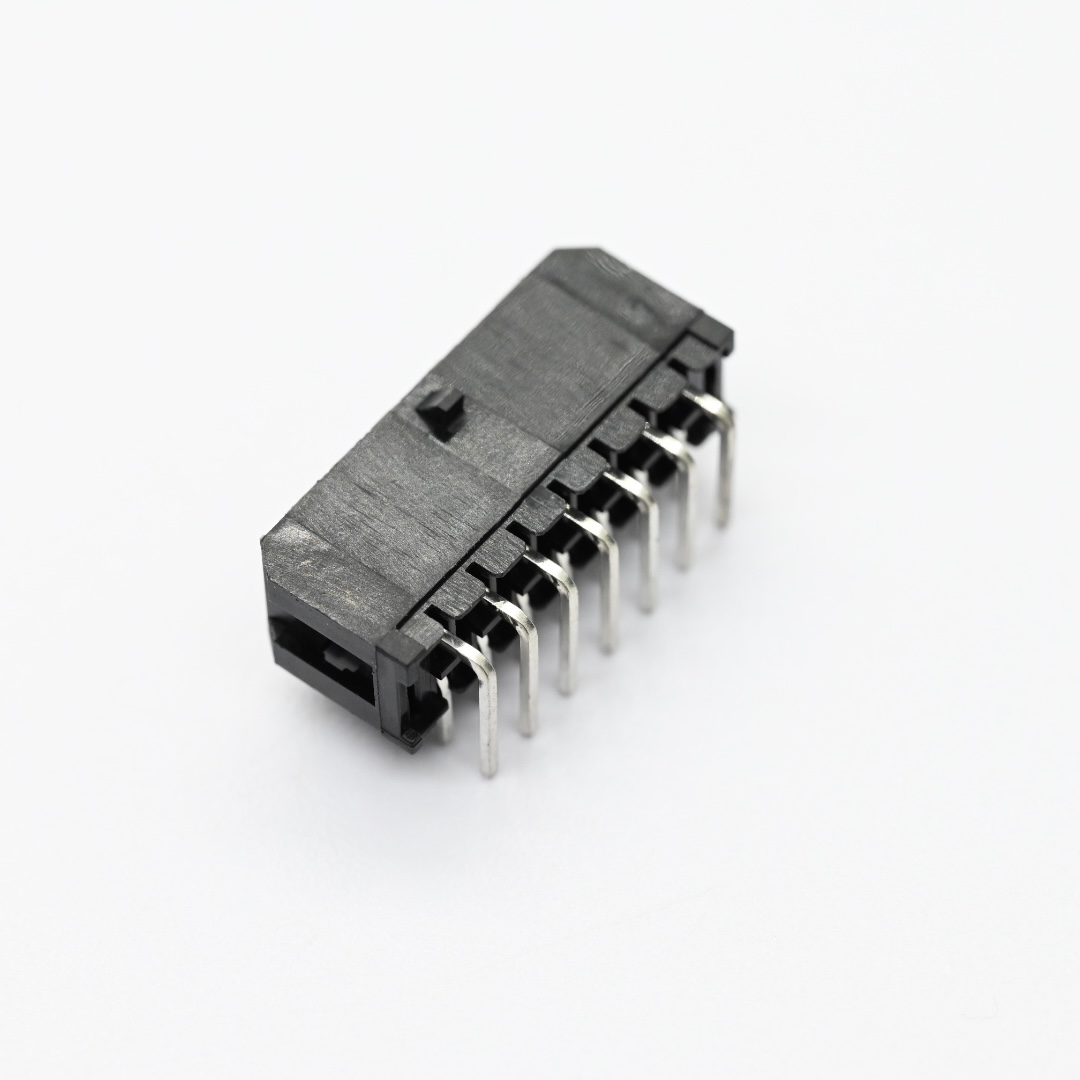

Product Drawing:
