| Inner diameter | Φ20-Φ40mm |
| Outer diameter： | Φ30-80mm |
| Suitable width： | 12-30mm |

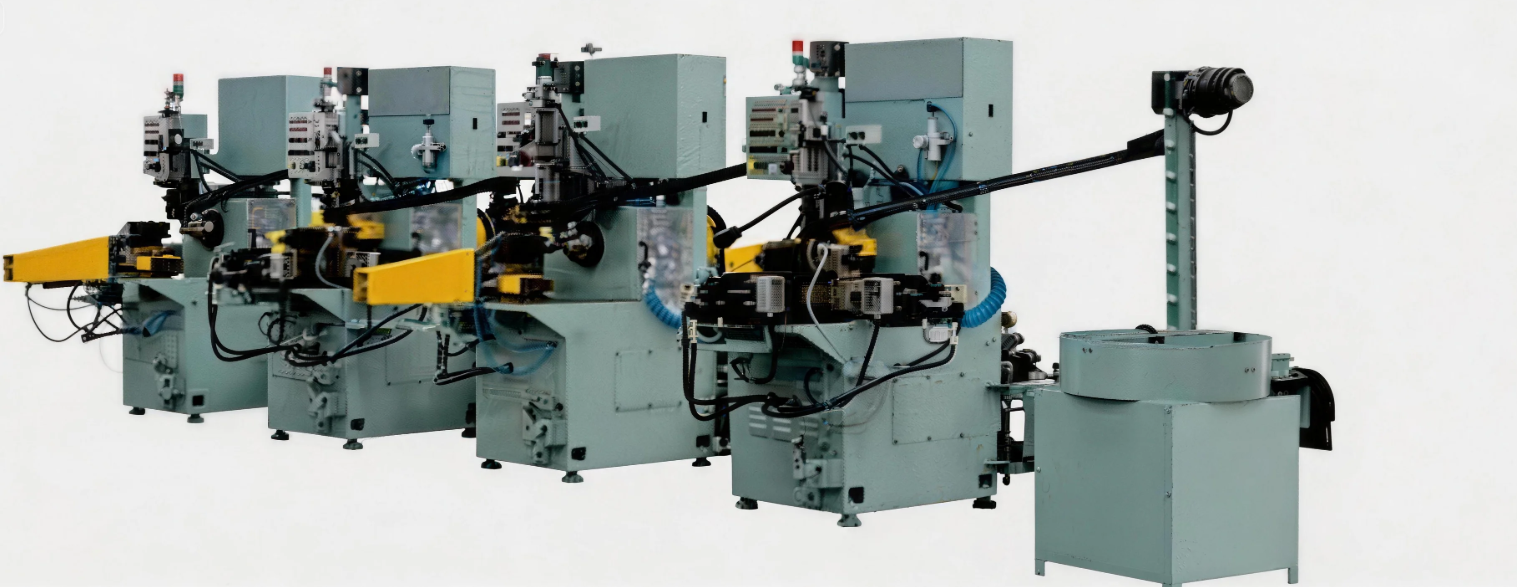

1. Processing Purpose and Process Scope
This series of automatic turning lines is specially designed for the automated production of bearing rings. It is mainly used for high-efficiency, high-precision turning of key processes such as boring, raceway, outer diameter, end face, chamfering, and dust groove on the inner and outer rings of ball bearings. Through automatic loading/unloading and multi-station coordinated operation, the equipment can complete precision machining of multiple surfaces of a ring in one setup, effectively reducing manual intervention and inter-process transfer time, and significantly improving the overall production cycle.
2. Application Fields and Mass Production Capability
This automatic line is widely used in the mass production of inner and outer rings for various mainstream bearing types, including deep groove ball bearings, radial thrust ball bearings, and angular contact bearings. With stable processing performance and a high level of automation, the equipment can meet the demand for continuous, large-scale delivery of bearing components in industries such as automotive, electric motors, engineering machinery, and home appliances, making it an ideal solution for bearing manufacturers seeking production scaling and cost reduction.
3. Structural Design and Performance Advantages
The machine tool features an optimized design with a compact overall structure, effectively saving floor space while maintaining high rigidity to ensure machining stability during long-term operation. The modular design concept allows flexible configuration according to customers' processing requirements, site constraints, and capacity planning, fully meeting individualized customization needs. The whole machine boasts outstanding features including high precision, fast efficiency, stable quality, and small dimensional dispersion, providing customers with a reliable and consistent high-quality machining solution.
MAIN TECHNOLOGY PARAMETER
| Item | Main Technical Specifications | Main Parameter/Brand |
| Machining Range | Max Turning Diameter | Φ80mm |
| Max Machining Height | 30mm | |
| Spindle | Max Spindle Speed | 2500r/min |
| Front Support Bearing Bore | Φ90mm | |
| Spindle Motor Power | Configured according to product process | |
| Spindle Center Height from Floor | 1040mm | |
| Hydraulic Chuck | Customized by TOMAN | |
| Tool Post | Type | Row Tool Post |
| Number of Tool Positions | Determined by product process | |
| Tool Shank Size | 25×25mm | |
| Hydraulic Lubrication System | Lubrication System | Timed & Quantitative Lubrication |
| Overall Machine Dimension (L×W×H) | 2065×1650×2080 mm | |
| Machine Weight | ≈2000kg | |

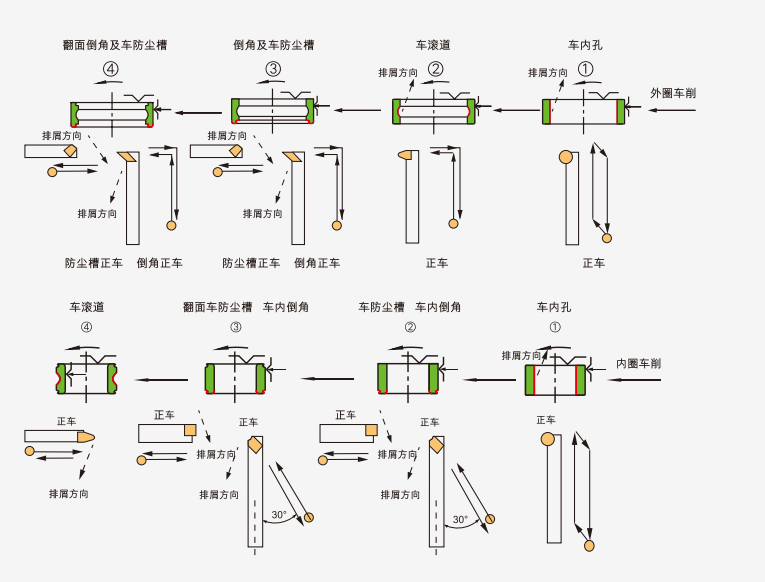

Process Flow Chart（PFC）：
WHY CHOOSE US?
2. Certification--CE/ISO, First prize of science and technology award, National key high tech enterprise and so on.
3. Quality Control--Quality checks to promise stable quality and high reliability for you.
4. Top Customer--We have the top 3 customers in the industries.
About Zhejiang Toman Intelligent Technology Co., Ltd. (Toman)
Toman is a company that adheres to the strategic vision of to be the leader in the professional field, with the mission of innovation to drive customer value enhancement, and the business philosophy of WISE, ALWAYS KEEP STEP AHEAD. In operation since 2006, the company includes the complete range of gear hobbing machine, gear cutting machine, gear machining compound machine tools, gear shaving machine, automatic production units, automatic turning production lines, and MES manufacturing execution system, etc. TOMAN today, is recognised as an industry leader for machines in China.
Toman cutting machines:
Suitable Products: Various steel tubes, cold‑rolled, cold‑headed, precision‑forged & hot‑forged bearing rings, auto & motorcycle spare parts, non‑standard components, etc.
-Profitable -Intelligent -Accurate
Customization is available. Please contact us for more details!
