4.20mm Dual Row Right Angle Wafer Header

4.20mm Dual Row Right Angle Wafer Header

3 week ago

10 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures AW4202RL 2xNP XXXX series 4.20 millimeter pitch dual row 90 degree right angle wafer header for stable wire to board power and signal interconnection after through hole soldering onto printed circuit boards, this header mates with AH4201 single row receptacle. This dual row wafer header supports pole configurations ranging from 2 circuits up to 24 circuits, overall dimensions vary according to different pole counts, please check official engineering drawing for complete dimension tables and PCB layout reference data. Its insulator housing provides multiple material options including Nylon66 with UL94V 2 or UL94V 0 flame retardant grade, brass pins support tin plated or various gold flash plating finishes. It features 7A AC DC rated current and 600V AC DC rated voltage, delivers 1500V AC one minute dielectric strength and minimum 1000 megaohm insulation resistance, maximum contact resistance reaches 20 milliohm, operating temperature spans from minus 25 degree Celsius to plus 85 degree Celsius. Complying with RoHS and REACH standards, this connector fits consumer electronics smart home appliances and industrial control modules. Operators must follow official PCB drawing for soldering operation and store finished goods under dry environment to prevent brass pin oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in house production including independent mold development brass terminal stamping plastic injection molding electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, provide custom plating and housing material solutions and round the clock engineering support, more than seventy percent of connector goods are exported globally. Feel free to submit your project specifications for sample quotation and complete datasheet resources.

1. Multi Plating Wafer Header offers diverse surface finish choices to satisfy varied application environment demands.

2. High Voltage Wire To Board Header ensures dependable power transmission under high voltage working conditions.

3. Dual Row Right Angle Header achieves space saving circuit connection for compact printed circuit board designs.

Detailed Specifications of AW4202RL‑2xNP‑XXXX 4.20mm 90 Degree Wafer Connector Series

1. Mechanical Specifications

1.1 Product type: Dual row right angle wire to board wafer header

1.2 Measurement unit: millimeter

1.3 Key dimension: contact pitch 4.20 mm, pole options range from 2 poles to 24 poles. Overall dimension changes with different pole quantities, refer to official engineering drawing for full dimension table and PCB layout data

1.4 Mating part: Compatible with AH4201 single row receptacle

1.5 Housing material options: Multiple plastic grades including Nylon66 LCP and PA9T

1.6 Contact plating options: Tin plated or various thickness gold flash plating

1.7 CTA: Contact our engineering team to acquire complete dimension drawings and PCB footprint files for your hardware design validation.

2. Material Construction

2.1 Insulator housing: Nylon66 with UL94V‑2 or UL94V‑0 flame retardant grade, alternative LCP and PA9T materials available

2.2 Contact pin: Brass base material, contact surface supports tin plating or gold flash plating

3. Electrical Parameters

3.1 Rated current: 7A AC DC

3.2 Rated voltage: 600V AC DC

3.3 Dielectric strength: 1500V AC for one minute

3.4 Insulation resistance: minimum 1000 megaohm

3.5 Contact resistance: maximum 20 milliohm

4. Environmental Parameters

4.1 Operating temperature range: minus 25°C to plus 85°C

5. Compliance Standard

5.1 Environmental compliance: RoHS compliant

6. Usage Method

6.1 Assembly mode: Through hole soldering onto printed circuit boards

6.2 Operation tip: Select proper pole count and plating finish according to actual circuit design requirements, mate with AH4201 single row receptacle

7. Application Scenarios

7.1 Consumer electronic devices

7.2 Smart home appliances

7.3 Industrial control modules

8. Operation & Storage Precautions

8.1 Follow official PCB layout drawing to complete through hole soldering process

8.2 Do not apply excessive mechanical force to brass pins to avoid terminal deformation

8.3 Store products in dry environment to prevent tin or gold plated pins from oxidation

8.4 Verify dimension parameters, housing grade and plating option before mechanical structure design

8.5 CTA: Submit your pole count housing and plating requirements, we can offer free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

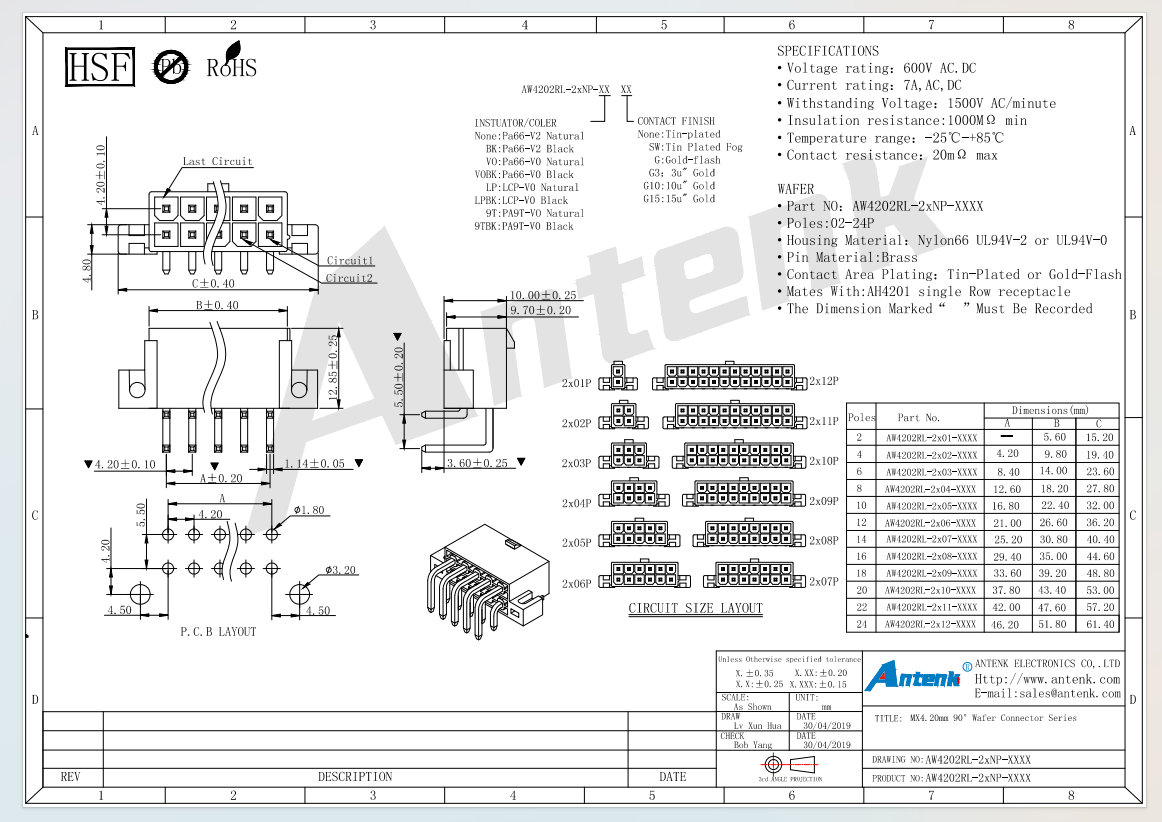

Product Drawing:

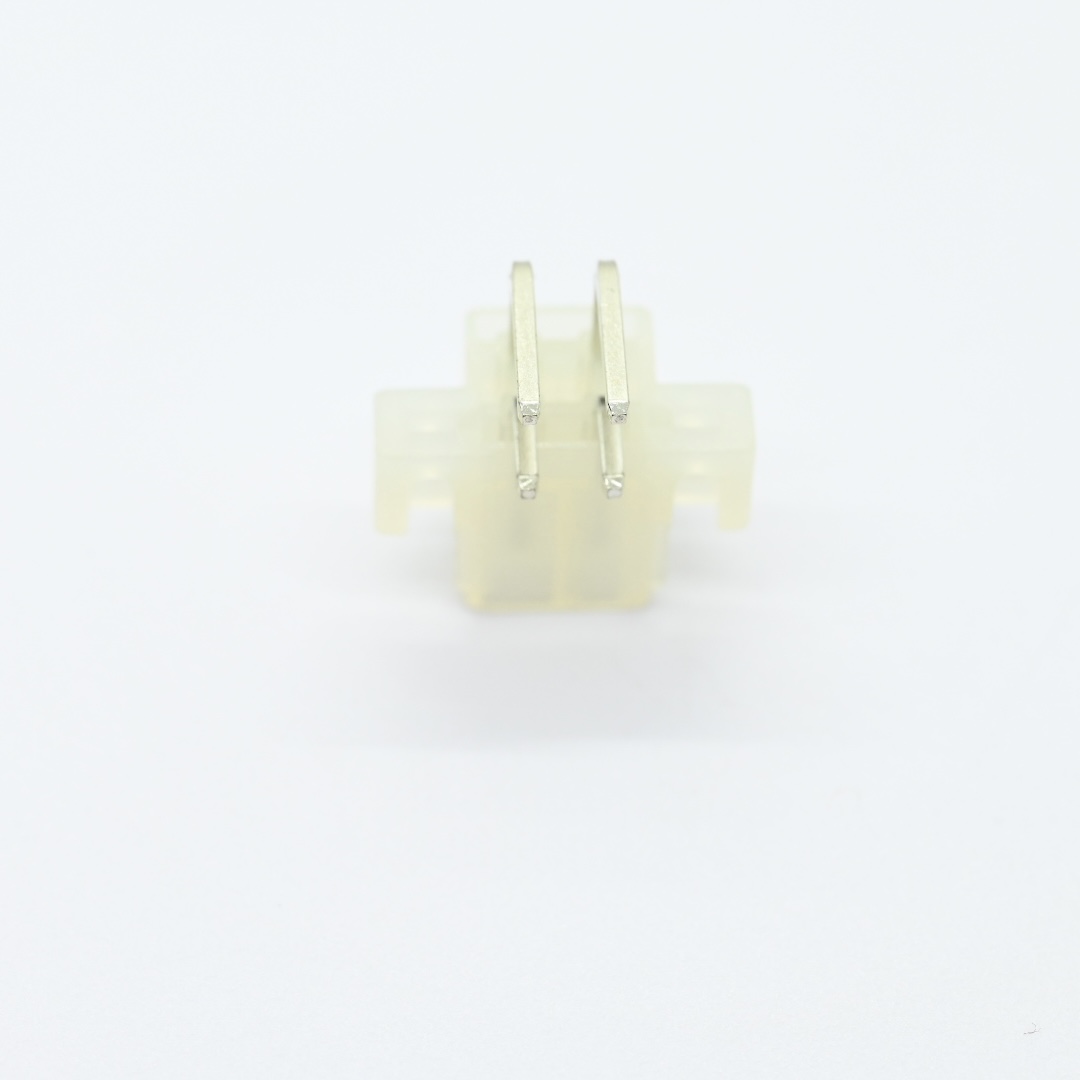

AW4202RL-2x02-xxxx+MX4.20mm 90° Wafer Connector Series（3）

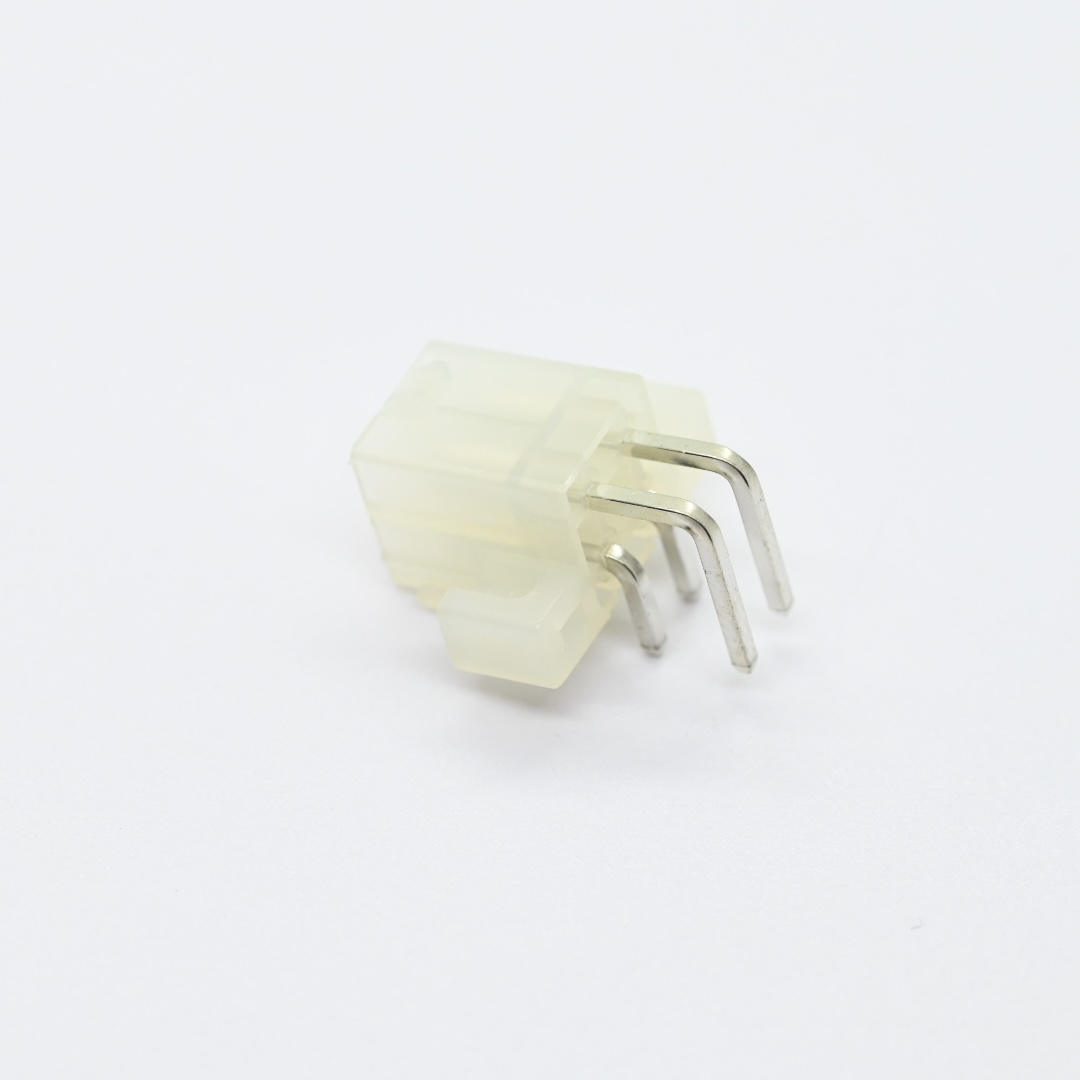

AW4202RL-2x02-xxxx+MX4.20mm 90° Wafer Connector Series（2）

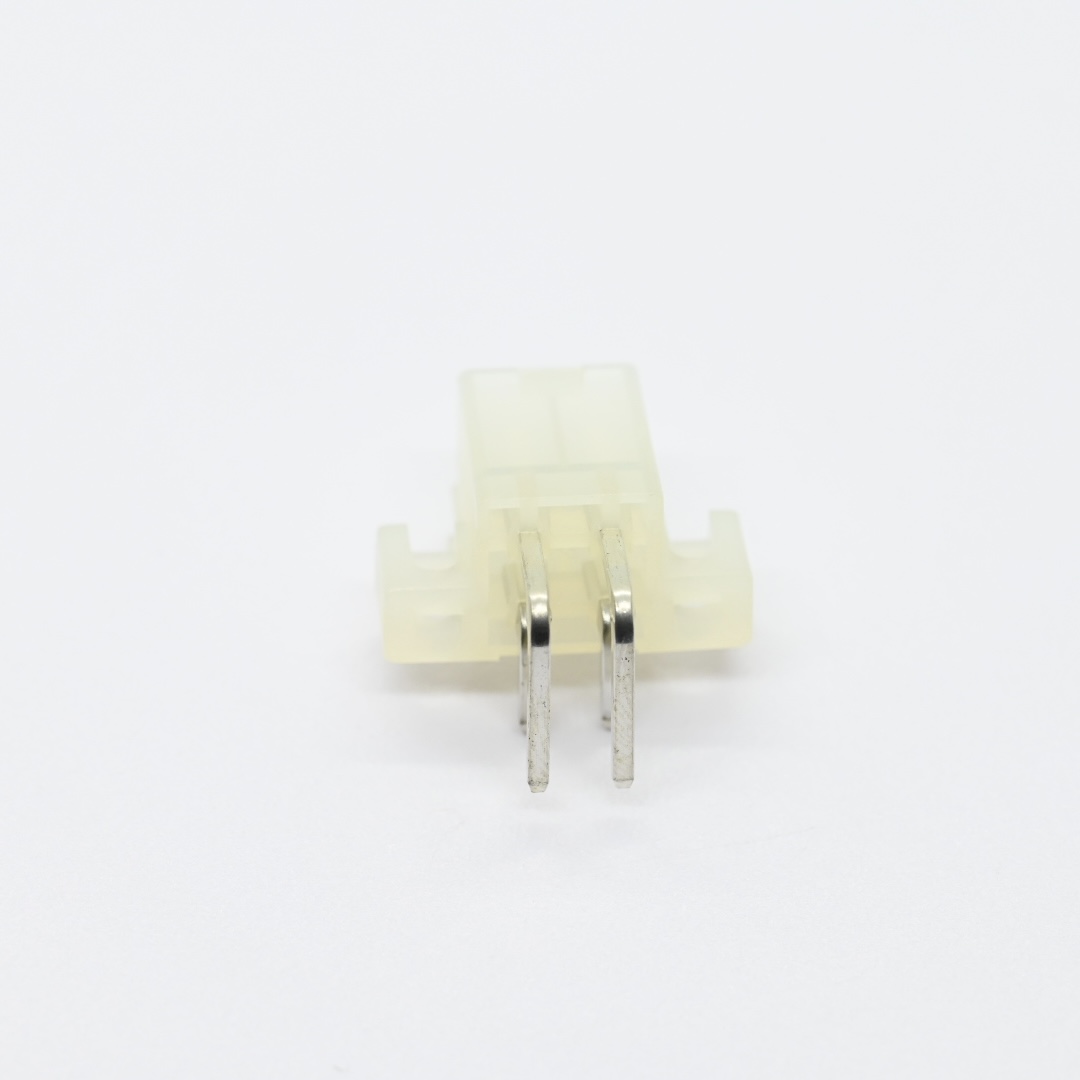

AW4202RL-2x02-xxxx+MX4.20mm 90° Wafer Connector Series（1）

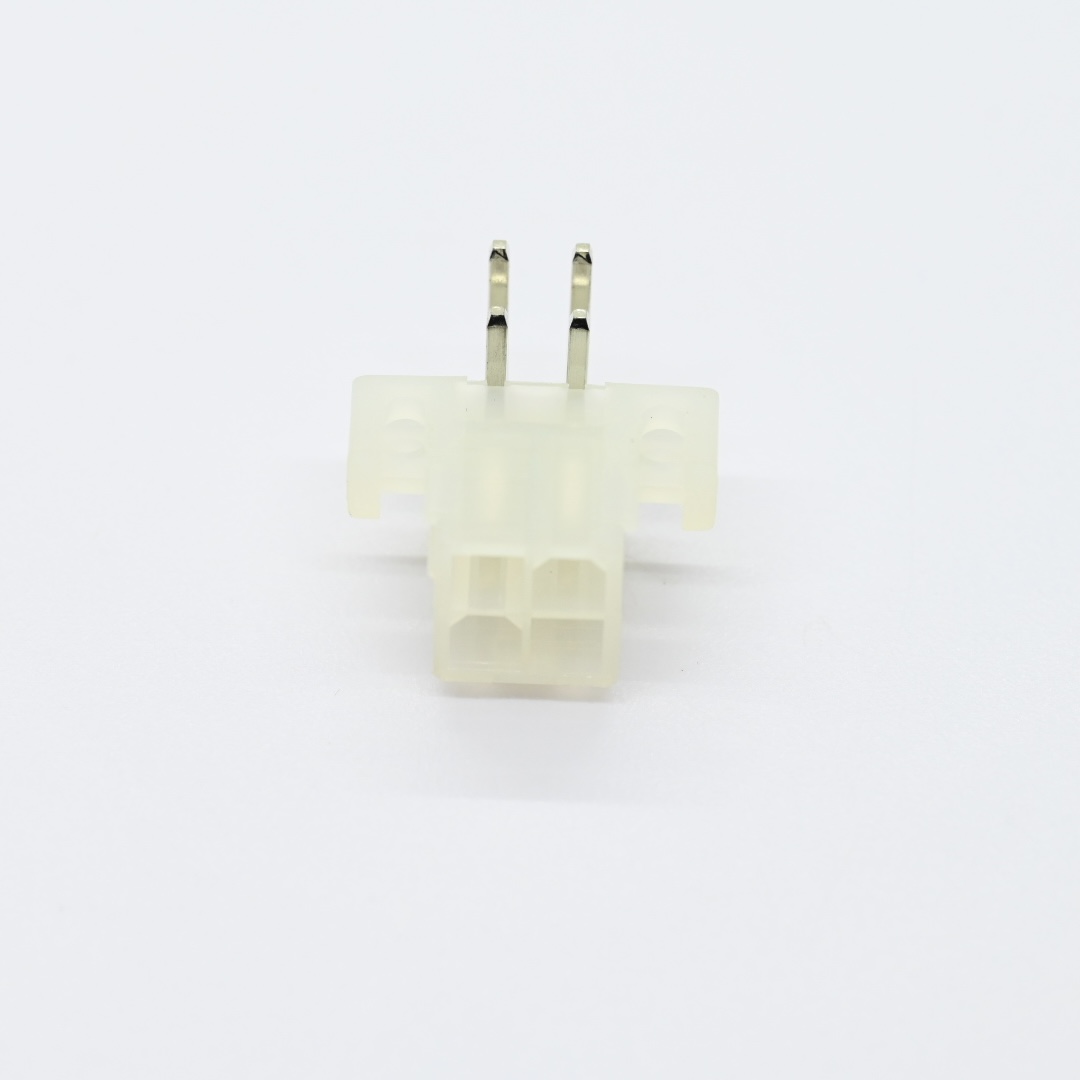

AW4202RL-2x02-xxxx+MX4.20mm 90° Wafer Connector Series（5）

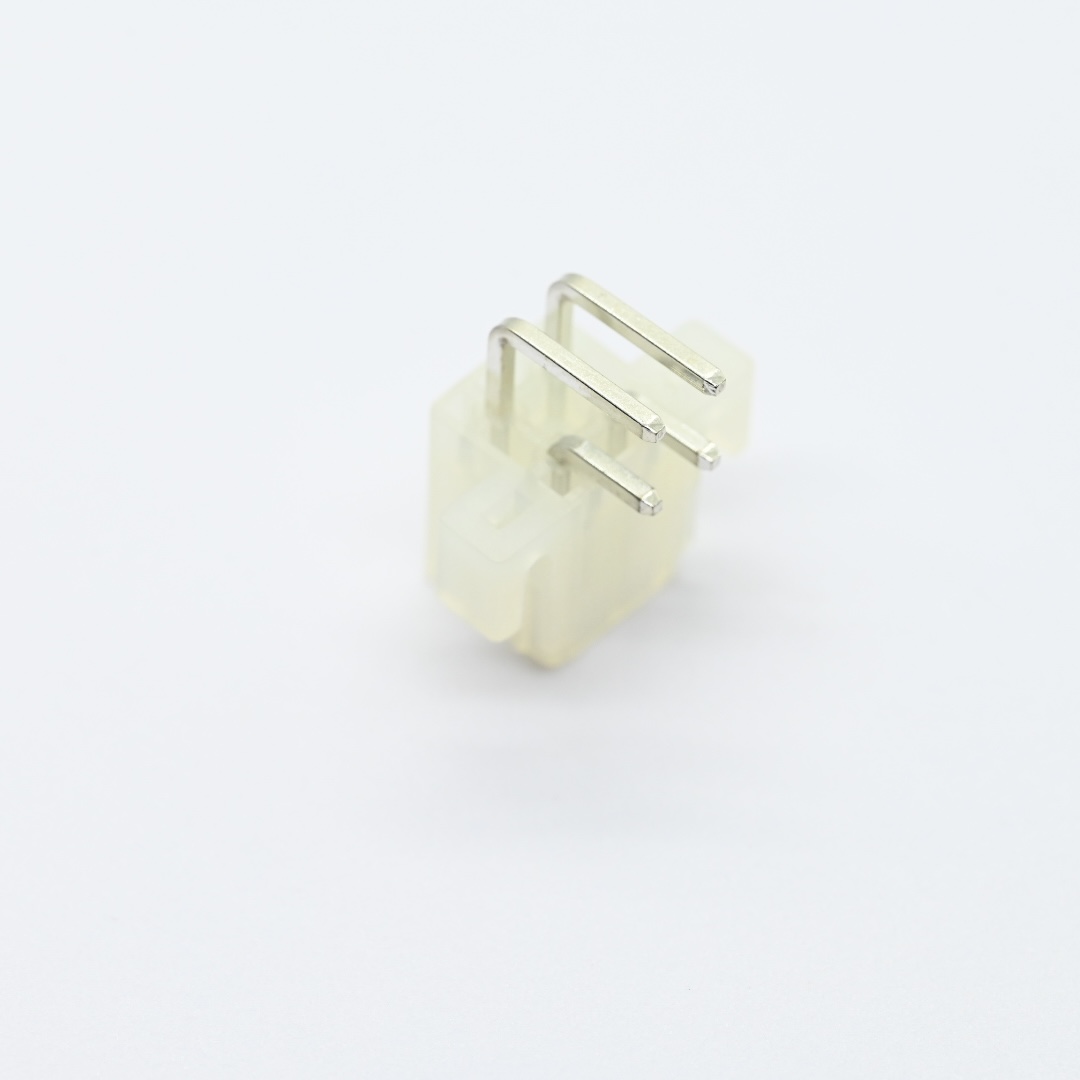

AW4202RL-2x02-xxxx+MX4.20mm 90° Wafer Connector Series（4）

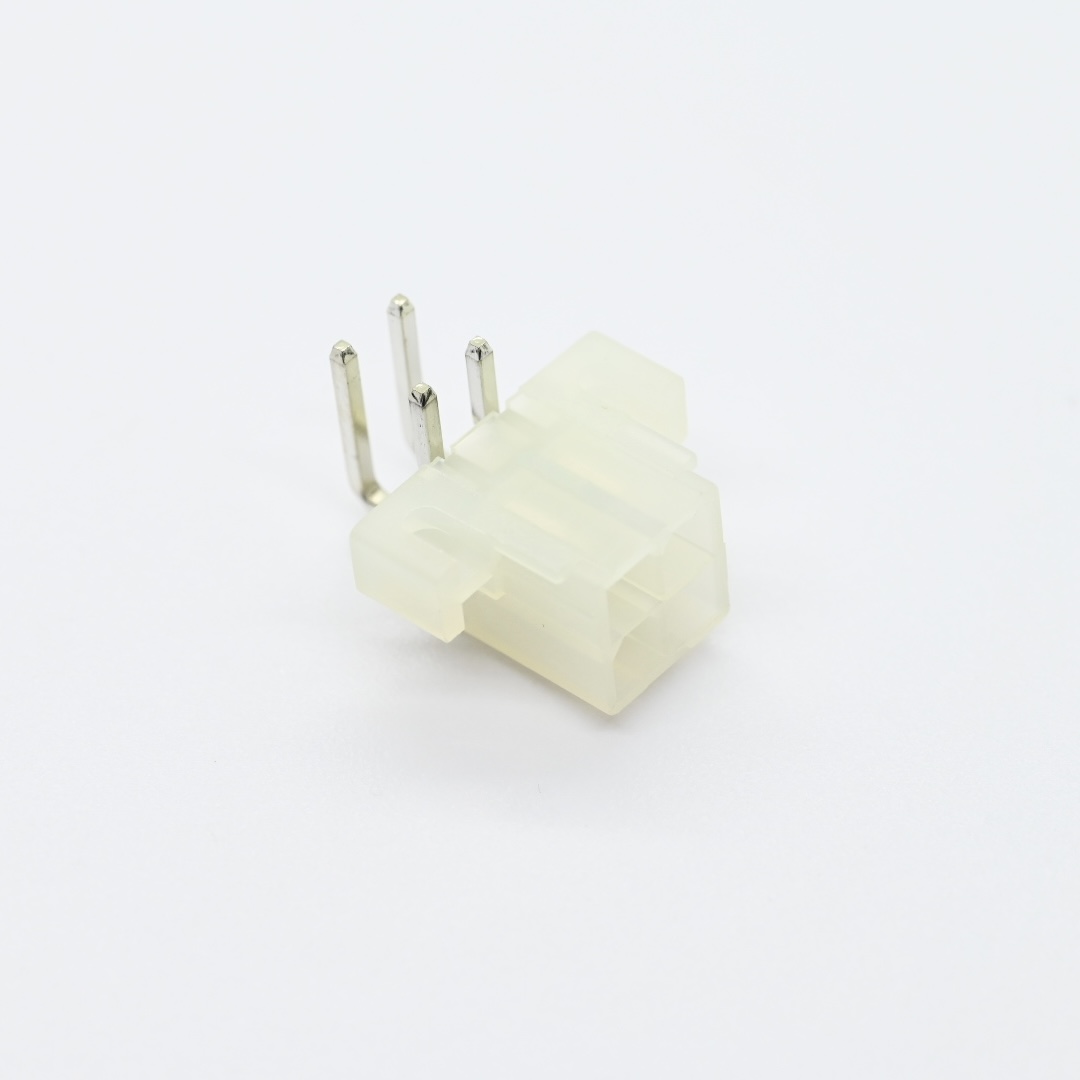

AW4202RL-2x02-xxxx+MX4.20mm 90° Wafer Connector Series（6）
