2.00mm Latch Type IDC Socket Connector

2.00mm Latch Type IDC Socket Connector

3 week ago

7 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures FCCS06 series 2.00 millimeter pitch latch equipped IDC socket for fast and stable flat ribbon cable interconnection without wire stripping. This IDC socket supports contact counts ranging from 6 contacts up to 64 contacts, overall dimensions change according to different contact quantities, please refer to official engineering drawing for complete dimension tables and mechanical reference data. Its insulator housing adopts PBT plus 30 percent glass filled material with UL94V 0 flame retardant grade, phosphor bronze contacts offer multiple plating options including nickel underlayer gold plating and tin plating. This component delivers 1A rated current and 500V AC DC rated voltage, provides minimum 1000 megaohm insulation resistance and maximum 20 milliohm contact resistance, operating temperature covers minus 40 degree Celsius to plus 105 degree Celsius. Complying with RoHS and REACH standards, this socket fits consumer electronics smart home devices and industrial control instruments. Operators shall use qualified IDC termination tool for cable assembly and store goods under dry environment to prevent contact surface oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in house production including independent mold development phosphor bronze terminal stamping plastic injection molding electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, support custom plating color and packaging solutions and round the clock engineering assistance, more than seventy percent of connector goods are exported globally. Feel free to send your project specifications for sample quotation and full datasheet resources.

1. Latch Equipped IDC Socket delivers secure cable locking to avoid accidental disconnection during equipment operation.

2. Phosphor Bronze IDC Socket maintains stable spring performance for long term repeated plug and unplug cycles.

3. High Temp IDC Socket keeps consistent electrical performance under wide range of harsh temperature conditions.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: Latch equipped IDC socket for flat ribbon cable connection

1.2 Measurement unit: millimeter

1.3 Key dimension: contact pitch 2.00 mm, contact count ranges from 6 contacts up to 64 contacts. Overall dimension varies with different contact quantities. 6‑14P versions have no mounting ears while 16‑50P versions come with mounting ears. Refer to official engineering drawing for full dimension table.

1.4 Housing color options: Black and grey are available

1.5 Packaging options: Tray Bag Tube Tape Reel

1.6 Contact plating options: Multiple gold nickel plating grades and tin plating for selection

1.7 CTA: Contact our engineering team to obtain complete dimension drawings and mechanical reference files for your hardware design validation.

2. Material Construction

2.1 Insulator housing: PBT plus 30 percent glass filler, UL94V‑0 flame retardant rating

2.2 Contact terminal: Phosphor Bronze base material, supports Au over Ni or tin surface treatment

3. Electrical Parameters

3.1 Rated current: 1.0 Amp

3.2 Withstand Voltage: 500V AC DC

3.3 Insulation resistance: minimum 1000 megaohm

3.4 Contact resistance: maximum 20 milliohm

4. Environmental Parameters

4.1 Operating temperature range: minus 40°C to plus 105°C

5. Compliance Standard

5.1 Environmental compliance: RoHS compliant

6. Usage Method

6.1 Assembly mode: IDC termination connects flat ribbon cable without wire stripping

6.2 Operation tip: Select correct contact count plating housing color and packaging type according to project requirements

7. Application Scenarios

7.1 Consumer electronic devices

7.2 Smart home appliances

7.3 Industrial control instruments

8. Operation & Storage Precautions

8.1 Use matched IDC termination tool for cable crimping to guarantee reliable contact performance

8.2 Avoid excessive mechanical force on latch and phosphor bronze contacts to prevent component damage

8.3 Store products in dry environment to stop contact surface oxidation

8.4 Confirm contact count mounting ear condition plating and dimension parameters before structural design

8.5 CTA: Submit your contact count plating color and packaging requirements, we can provide free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

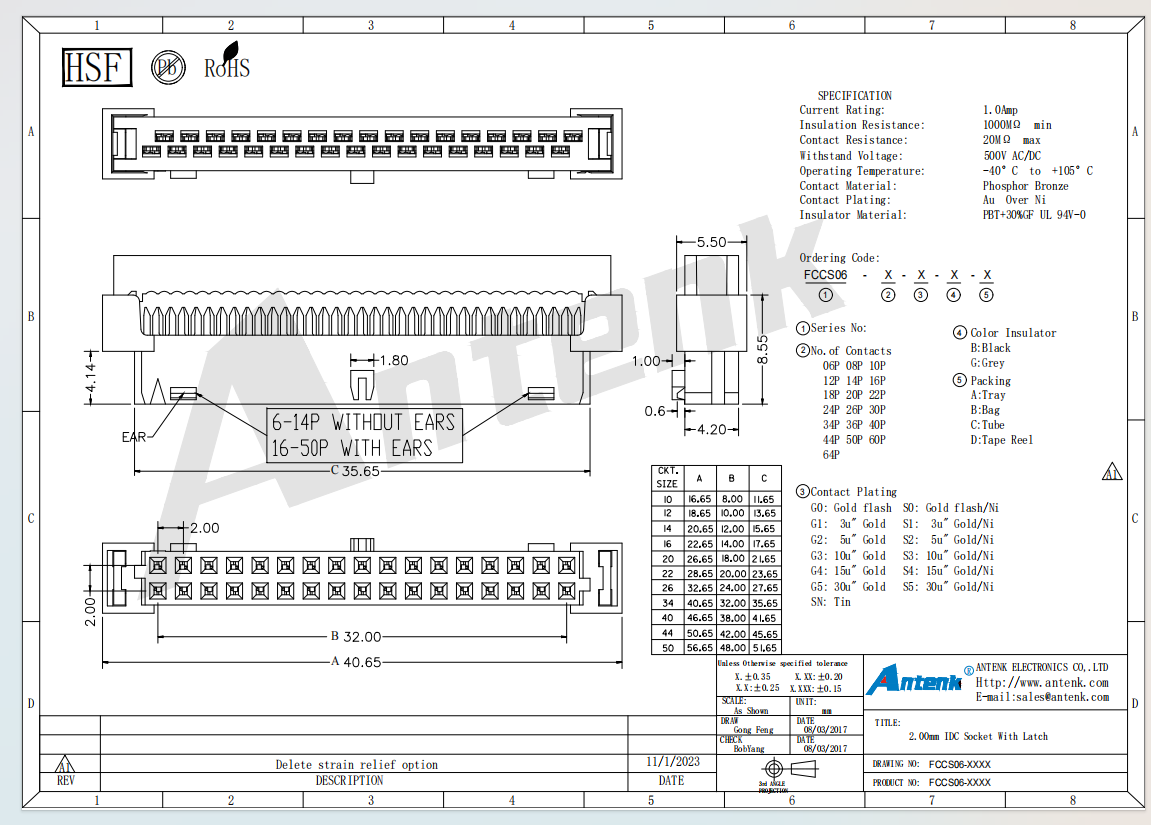

Product Drawing：

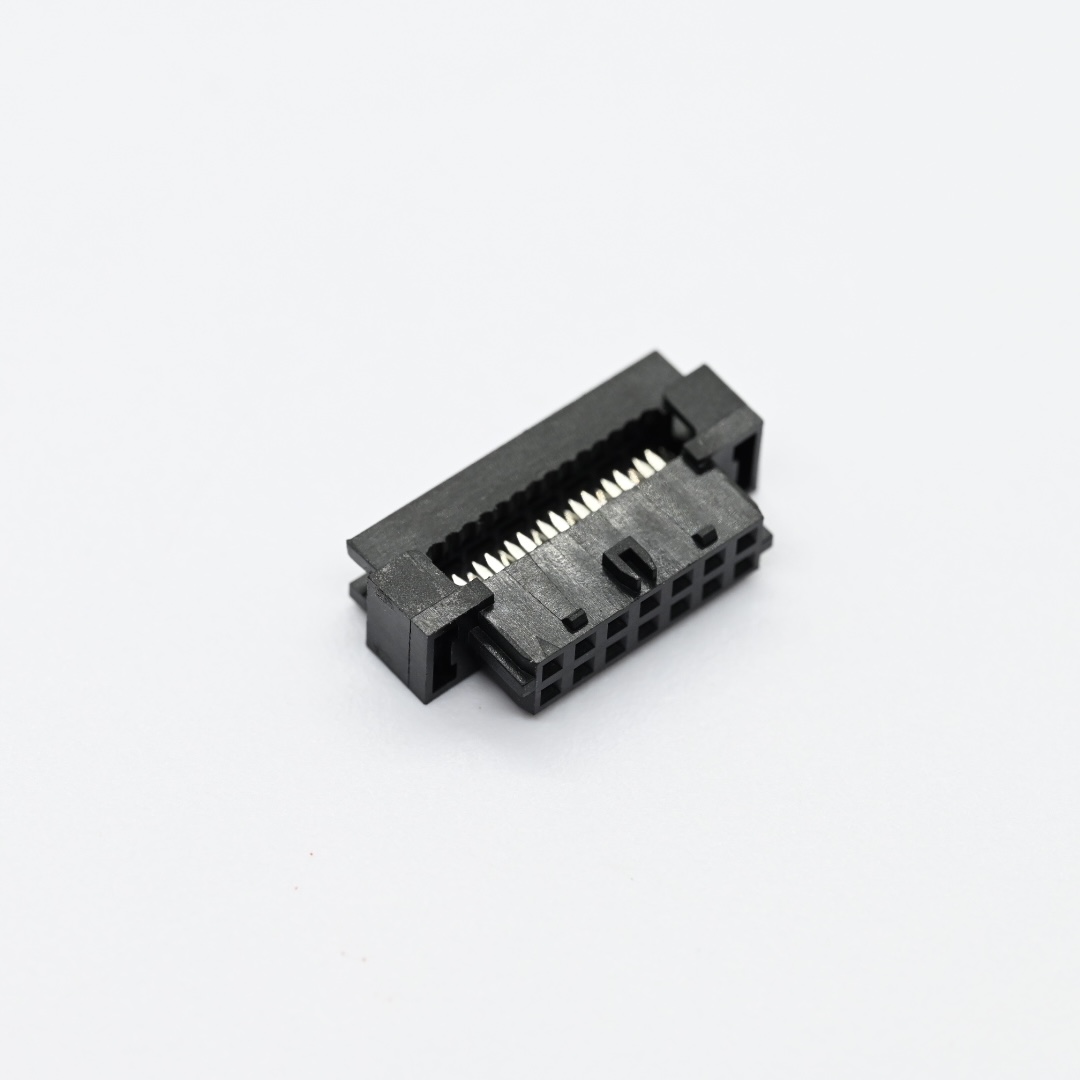

FCCS06-14-S0-B-A-SR+2.00mm IDC Socket With Latch（2）

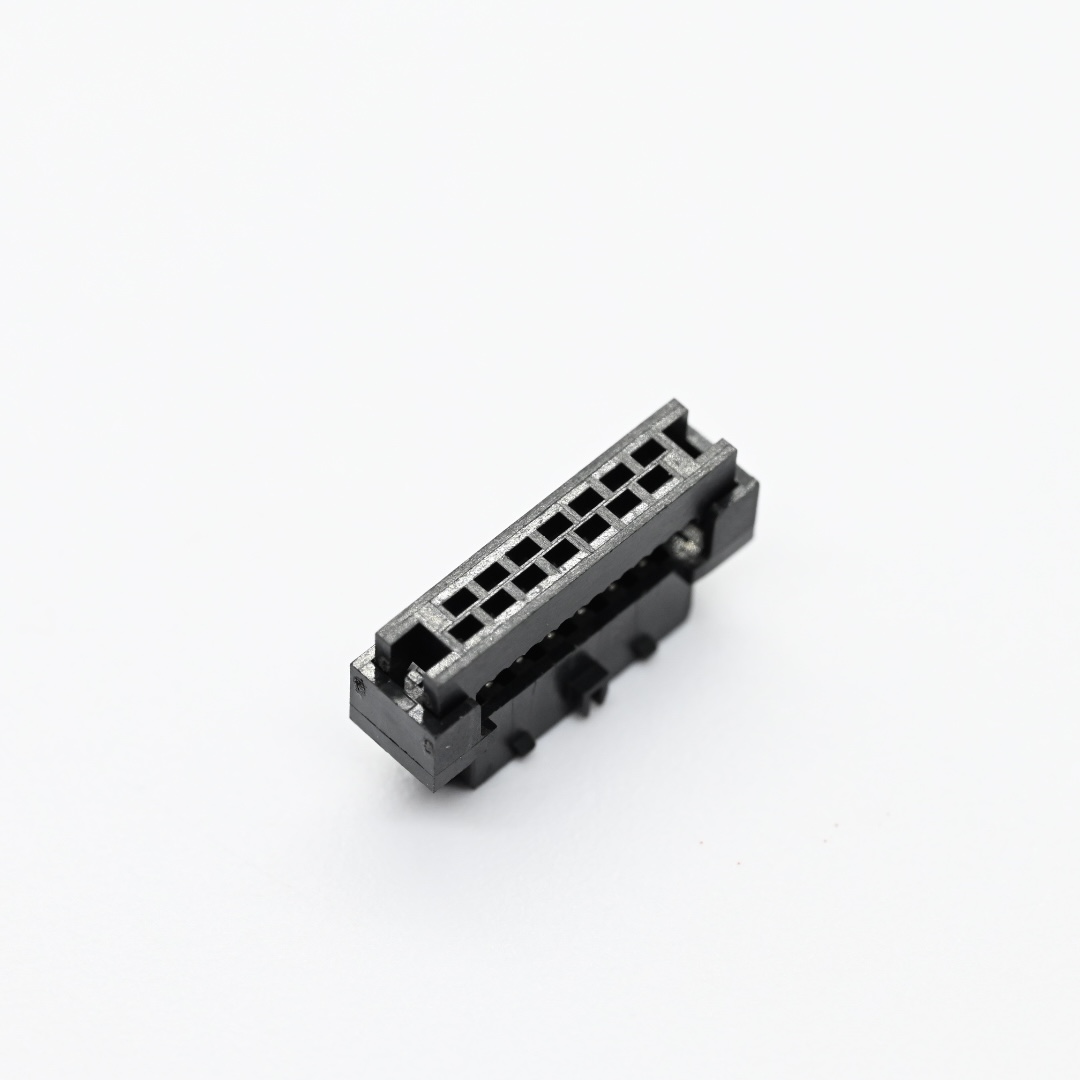

FCCS06-14-S0-B-A-SR+2.00mm IDC Socket With Latch（6）

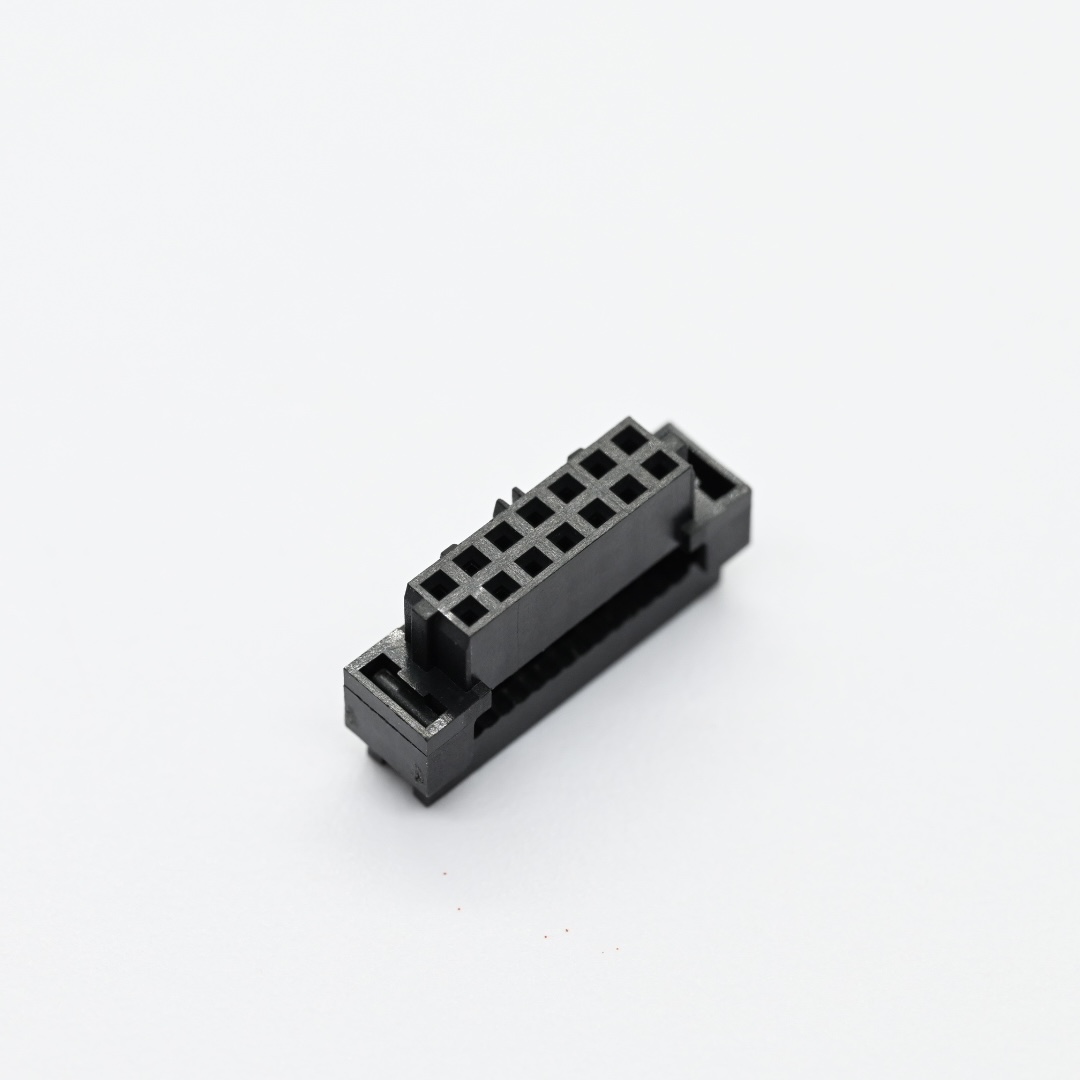

FCCS06-14-S0-B-A-SR+2.00mm IDC Socket With Latch（4）

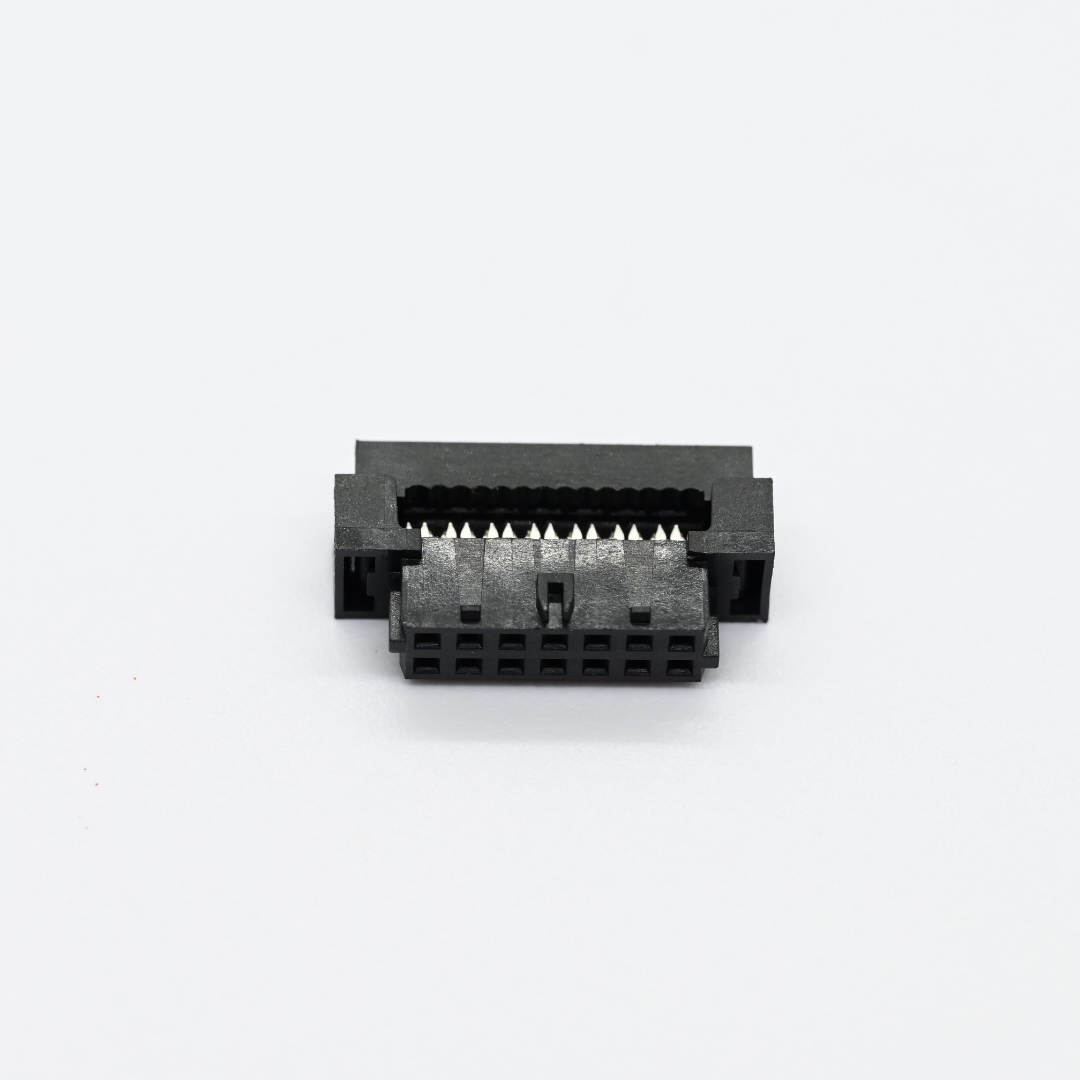

FCCS06-14-S0-B-A-SR+2.00mm IDC Socket With Latch（1）

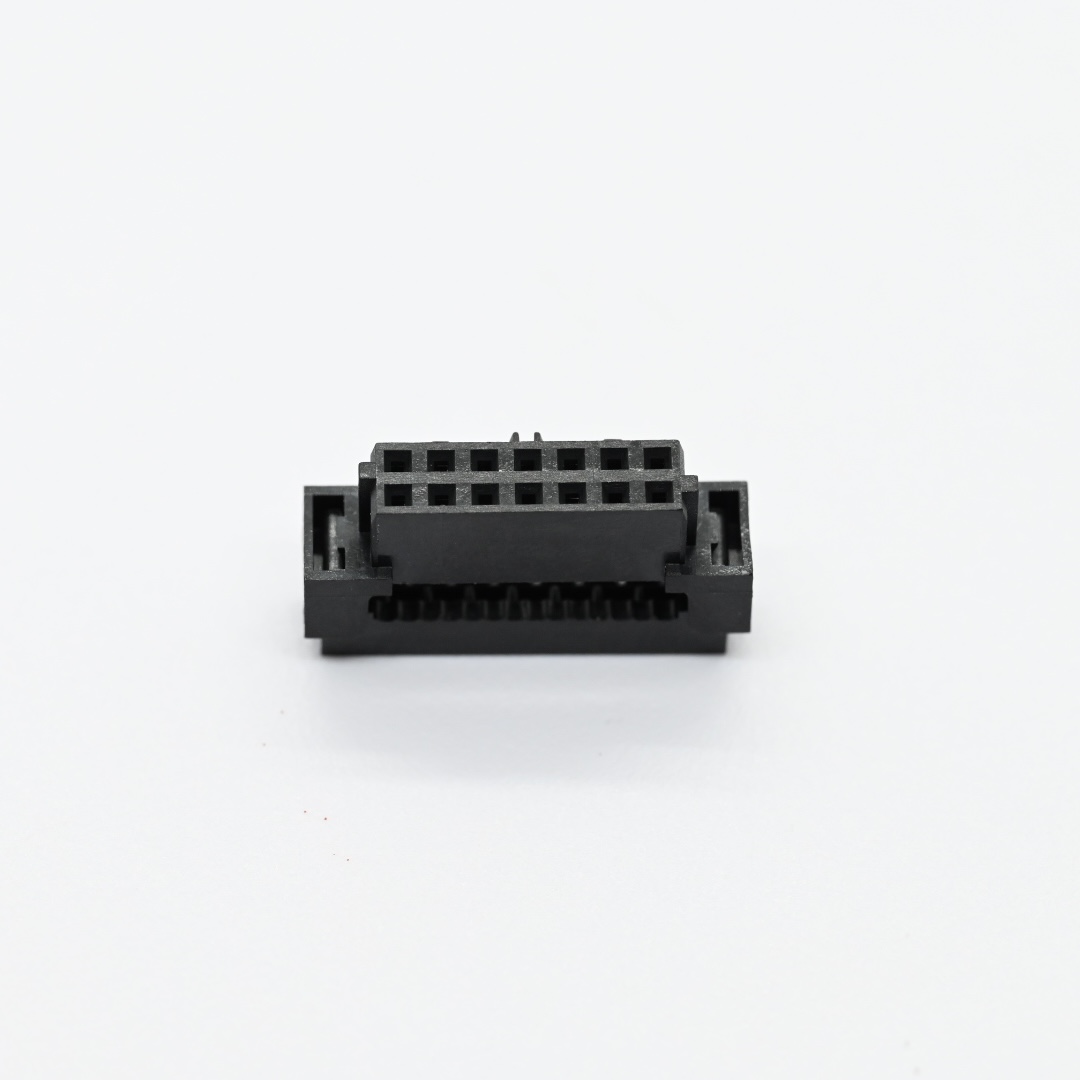

FCCS06-14-S0-B-A-SR+2.00mm IDC Socket With Latch（3）

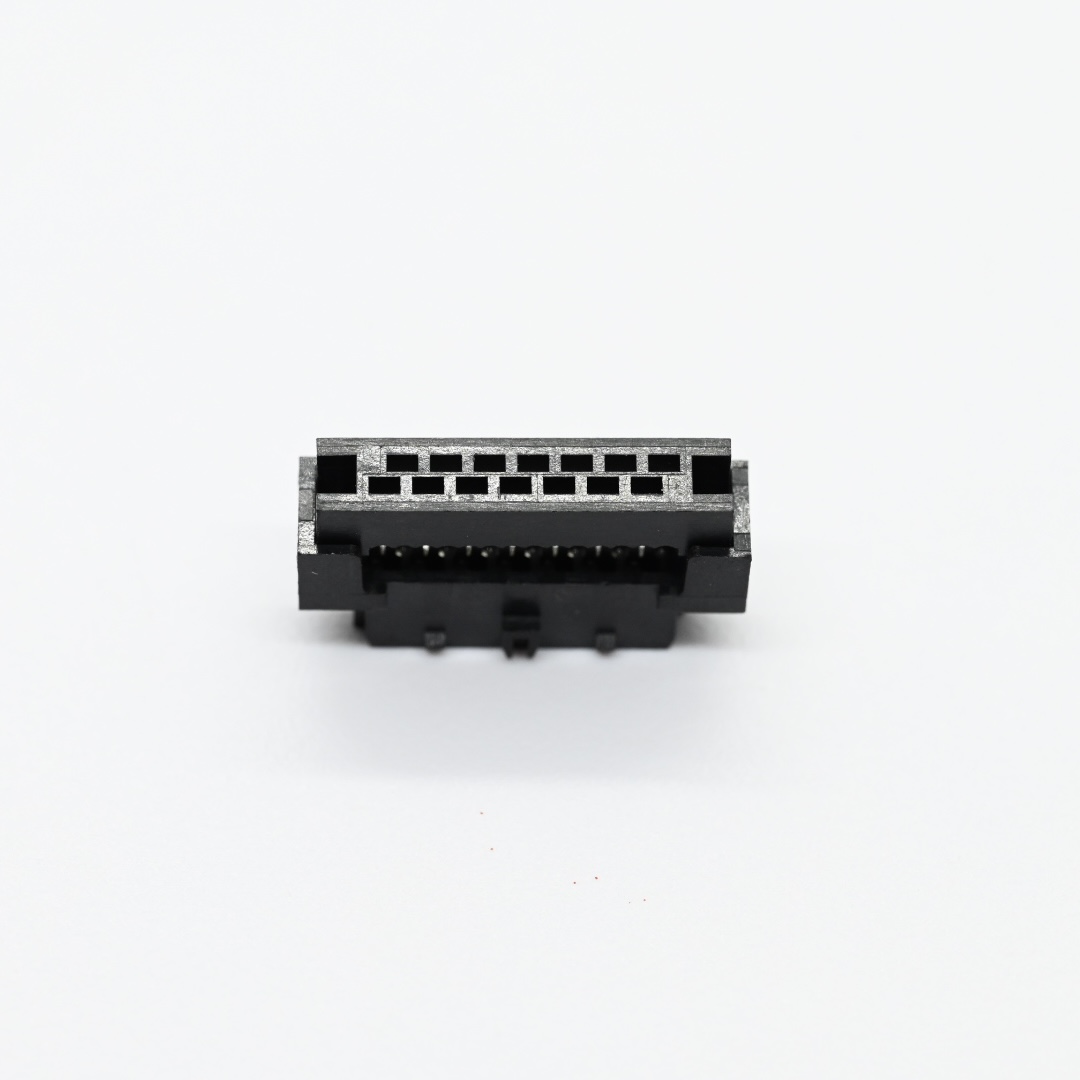

FCCS06-14-S0-B-A-SR+2.00mm IDC Socket With Latch（5）
