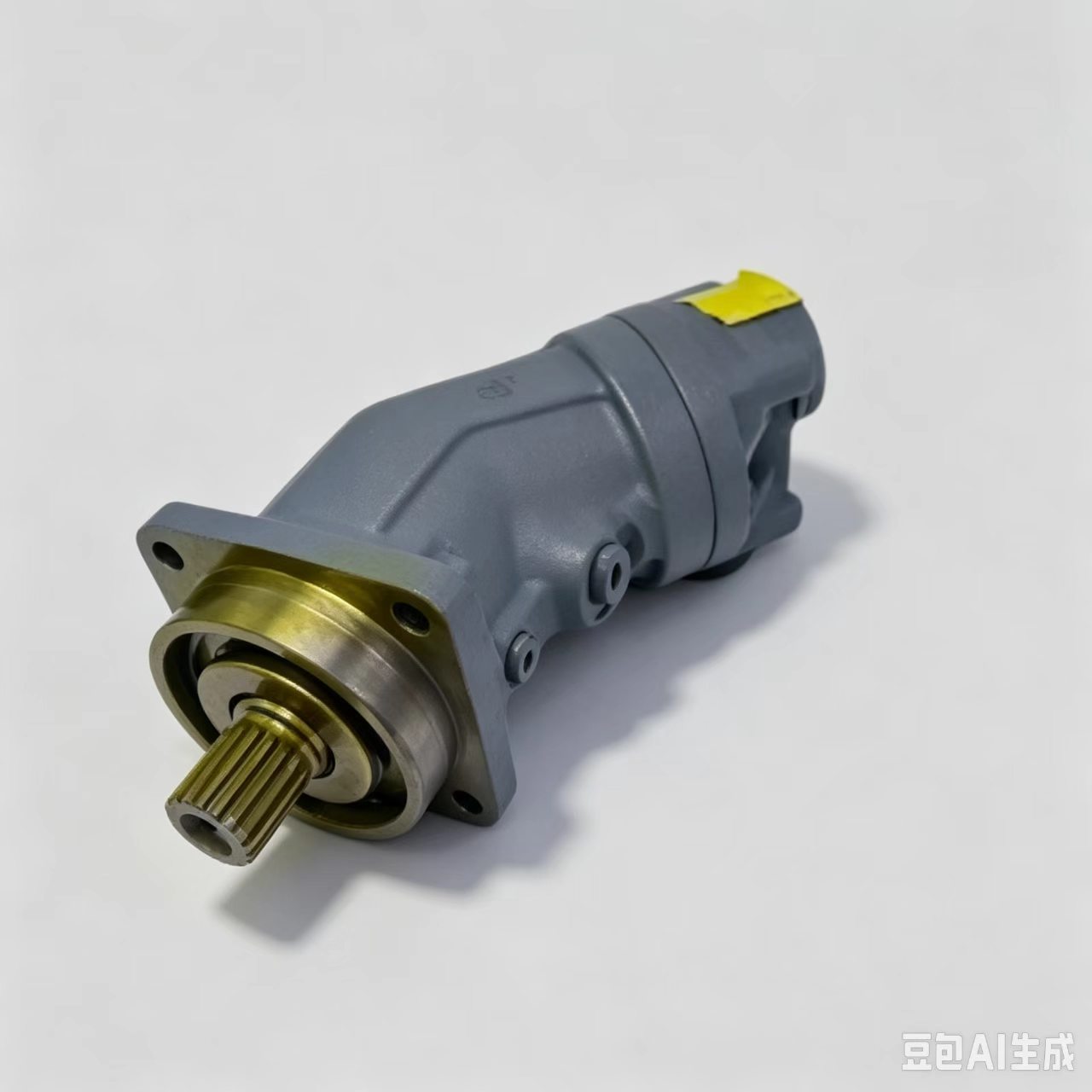

Hydraulic Pump A2FO16/61L

Product Overview

A2FO16/61L is a Rexroth bent-axis fixed displacement Hydraulic piston pump, a high-pressure hydraulic pump designed for open-loop hydraulic system and mobile industrial Machine. This pump adopts classic bent-axis piston structure, delivering stable constant flow proportional to drive speed. It acts as the core power source for high-pressure hydraulic circuits of compact construction and industrial Machine.

This hydraulic pump features high power density and robust cast housing. The integrated one-piece piston with piston rings minimizes internal leakage, maintains high volumetric efficiency under continuous heavy pressure, and reliably supplies pressurized hydraulic oil to cylinders and actuators within the hydraulic system.

Technical Specifications

- Model: A2FO16/61L

- Product Type: Bent-axis fixed Hydraulic piston pump / hydraulic pump

- Application: Power supply for open-loop hydraulic system and mobile Machine

- Displacement: 16 cc/rev

- Series: 61 Series

- Rotation: Counterclockwise (L, viewed from shaft end)

- Rated Pressure: 400 bar

- Peak Pressure: 450 bar

- Working Medium: Anti-wear hydraulic mineral oil

- Operating Temperature: -20℃ ~ +80℃

- Mounting: Standard flange mounting

- Key Features: Compact structure, high power density, high volumetric efficiency, shock-resistant, long service life for hydraulic system and heavy-duty Machine

Working Principle

When the Machine runs, the driving shaft rotates the cylinder block of this Hydraulic piston pump. The bent-axis design makes pistons reciprocate inside the cylinder bore, realizing oil suction and oil discharge. As a fixed displacement hydraulic pump, it outputs constant flow at a fixed rotational speed.

Pressurized hydraulic fluid is delivered to the hydraulic system to drive the working actuators of the Machine. Its heavy-duty bearing system withstands high pressure and vibration during continuous operation. Even under frequent pressure spikes, the precision piston assembly keeps stable flow output and protects the whole hydraulic system from premature failure.

Core Advantages

1. As Rexroth fixed Hydraulic piston pump, this hydraulic pump has ultra-high pressure resistance, ideal for heavy-duty open-loop hydraulic system of compact Machine.

2. Bent-axis design with high power density, small footprint for equipment with limited installation space.

3. One-piece piston with piston ring design, low internal leakage and excellent volumetric efficiency, reduces heat generation of hydraulic system.

4. Reinforced drive shaft bearing structure, strong resistance to vibration and impact, extending service life of the Machine.

5. Standard interchangeable dimensions, suitable for OEM assembly and spare part replacement of hydraulic system.

Application Range

A2FO16/61L hydraulic pump, the fixed Hydraulic piston pump, is widely used in the hydraulic system of small excavators, concrete equipment, cranes, road sweepers and other mobile engineering Machine. It is popular for hydraulic equipment manufacturers, maintenance workshops and global spare parts distributors.
