5.08 Pitch Terminal Block Connector

5.08 Pitch Terminal Block Connector

3 week ago

15 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures AT2500TRB terminal block series with 5.0 millimeter and 5.08 millimeter pitch for reliable power and signal connection inside electronic equipment. This terminal block supports pole numbers ranging from 2 times 2 poles up to 2 times 24 poles with maximum 24 contacts, insulator housing adopts PA66 material with UL94V 0 flame retardant grade in green color, solder pin uses brass material with tin plated surface, it reaches 300V rated voltage and 15A rated current. The component gets mounted on printed circuit boards for stable circuit connection and fits industrial control instruments household appliances communication equipment and digital electronic devices. Operators need to refer to official engineering drawing during soldering assembly and store goods under dry condition to avoid brass tin plated pins oxidation. Different from many competitors who outsource stamping molding and plating Antenk performs full in house production covering independent mold development terminal stamping plastic injection molding electroplating and complete laboratory reliability verification. We hold ISO9001 ISO14001 IATF16949 and UL certifications, support customized pole quantity and packaging solutions with full time engineering support, over seventy percent of our connector products are exported worldwide. Feel free to share your project demands to get sample offer and complete datasheet resources.

1. Dual Row Terminal Block delivers stable dual circuit signal and power connection for industrial and household electronic equipment.

2. PA66 Insulated Terminal features superior flame retardant performance to endure high temperature soldering operating environments.

3. High Current Terminal Block supports 15A rated current to satisfy heavy‑load circuit connection requirements of various devices.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: Dual row through hole soldering terminal block

1.2 Measurement unit: millimeter

1.3 Key dimension: Available pitch options include 5.0 millimeter and 5.08 millimeter, contact quantity ranges from 2 times 2 poles up to 2 times 24 poles with maximum 24 contacts. Refer to official engineering drawing for complete dimension tables and PCB layout reference data.

1.4 Insulator color: Green

1.5 CTA: Contact our engineering team to obtain complete dimension drawings and PCB footprint files for your hardware design validation.

2. Material Construction

2.1 Insulator housing: PA66 material with UL94V 0 flame retardant grade

2.2 Solder pin: Brass base material with tin plated surface finish

3. Electrical Parameters

3.1 Rated current: 15A

3.2 Rated voltage: 300V

4. Usage Method

4.1 Assembly mode: Through hole soldering onto printed circuit boards

4.2 Operation tip: Select proper pitch and pole quantity according to your actual circuit design requirement

5. Application Scenarios

5.1 Industrial control instruments

5.2 Household electrical appliances

5.3 Communication equipment

5.4 Digital electronic devices

6. Operation & Storage Precautions

6.1 Perform through hole soldering strictly following official PCB layout drawing

6.2 Do not apply excessive mechanical force to solder pins and insulator housing to prevent component deformation

6.3 Keep finished products in dry storage environment to avoid oxidation of tin plated brass pins

6.4 Confirm pitch value pole count and material specification before mechanical structure design

6.5 CTA: Submit your pitch pole quantity and custom requirements, we can provide free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

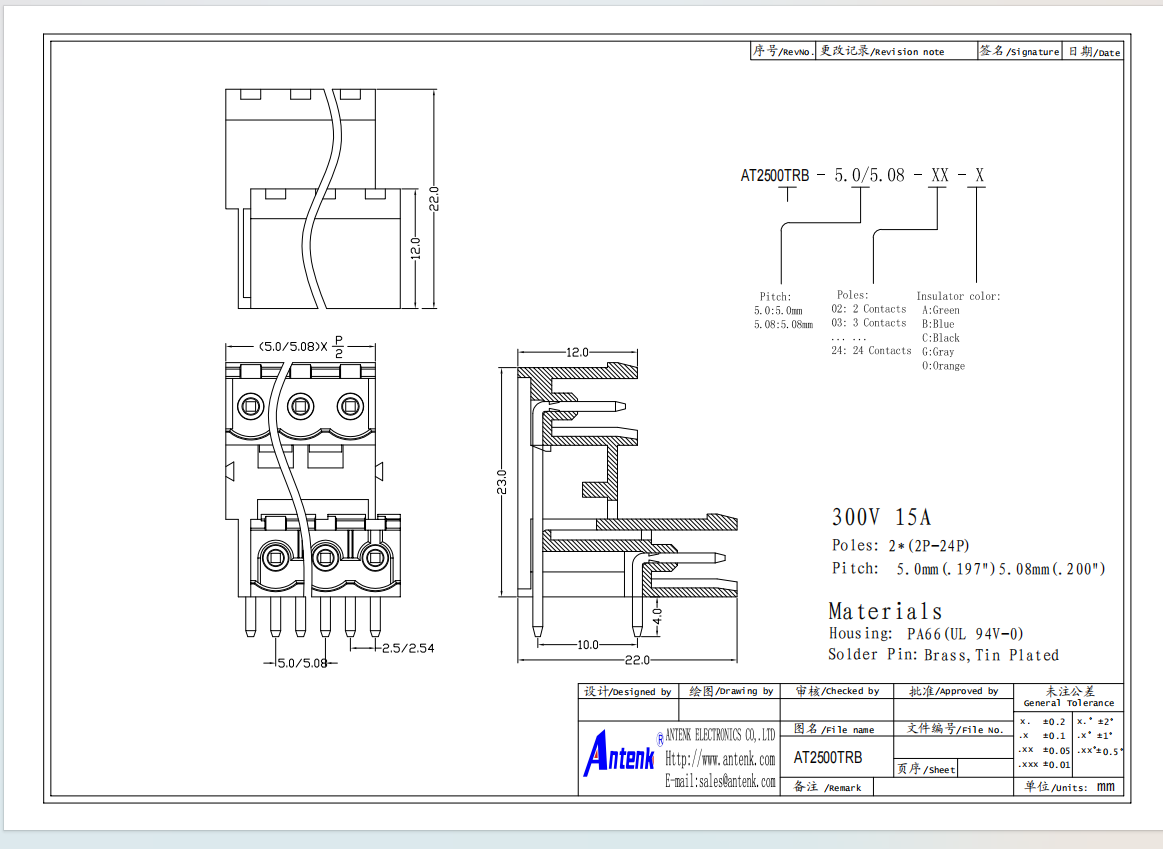

Product Drawing：

Contact Now

If you are interested in the product, contact 2bvideo.com for more information for more information

To:: HuiZhou Antenk Electronics Co., LTD

Message:

Submit
